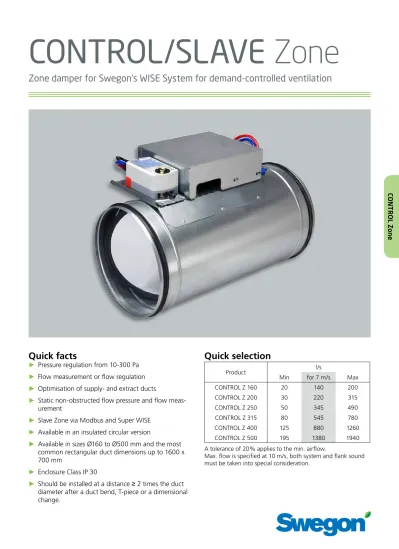

CONTROL/SLAVE Zone

Zone damper for Swegon’s WISE System for demand-controlled ventilation

CO N TROL Z on e

Quick facts

► Pressure regulation from 10-300 Pa

► Flow measurement or flow regulation

► Optimisation of supply- and extract ducts

► Static non-obstructed flow pressure and flow meas-urement

► Slave Zone via Modbus and Super WISE

► Available in an insulated circular version

► Available in sizes Ø160 to Ø500 mm and the most common rectangular duct dimensions up to 1600 x 700 mm

► Enclosure Class IP 30

► Should be installed at a distance ≥ 2 times the duct diameter after a duct bend, T-piece or a dimensional change.

Quick selection

Product l/s

Min for 7 m/s Max

CONTROL Z 160 20 140 200 CONTROL Z 200 30 220 315 CONTROL Z 250 50 345 490 CONTROL Z 315 80 545 780 CONTROL Z 400 125 880 1260 CONTROL Z 500 195 1380 1940

A tolerance of 20% applies to the min. airflow.

Max. flow is specified at 10 m/s, both system and flank sound must be taken into special consideration.

(2)

Technical description

Design

• The CONTROL Zone dampers are available as standard in the circular version in dimensions 160 - 500 mm. • The rectangular variants are designed as louver

dam-pers and are obtainable in most sizes available on the market up to size 1600 x 700 mm.

• The circular variant is also available in an insulated version.

• The circular sizes have a damper that can shut off the airflow to tightness class 4; the rectangular sizes are to tightness class 3, degree of protection IP30.

• CONTROL Zone is supplied completely mounted and configured for the relevant function.

Functions for zone applications

• Pressure regulation in supply and extract air zones respectively.

• Flow regulation of the slave unit or constant flow. • Optimisation of zone damper position in respect to

room product damper position.

• Slave flow regulation sums up several CONTROL Zone units via Super WISE and Modbus.

• Emergency settings open or closed via Modbus com-munication.

• Circuit closure via external contact function.

• Wireless hand-held terminal for making checks and setting values.

Materials and finish

• The sheet-metal parts are made of galvanized sheet steel.

• All the plastic parts are completely free of PVC. PC plastic is the main material used.

Commissioning

• CONTROL Zone is normally pre-set from the factory, therefore no adjustment is necessary.

• Follow-up programming can be carried out using the TUNE Control hand-held terminal, via Modbus RTU or Super WISE

• In the systems with Super WISE, the network needed for communication with subordinate items of equip-ment will be automatically identified.

Maintenance

Dirty products must be cleaned by wiping with a cloth to remove dust. NOTE: Do not use a vacuum.

Declarations

Building material declaration is available for download from www.swegon.com.

(4)

• •

Cables:

4-wire type EKKR 1.0 3-wire type EKKR 1.0

RS485-Modbus category 5 cable

Project planning – Zone applications

See separate documentation, "WISE Project Manual", avail-able to download on www.swegon.se.

Swegon's sales team can also provide with standard zone templates with detailed information regarding function, flow charts and demarcation list for various contractors.

Configuration possibilities

The product can be delivered with pre-configured fun-ctionality, see table below for available variants.

Configuration Codes

P = Pressure F = Flow S = Supply air

E = Extract air

D = Reverse exhaust air control M = Measurement of flow only O = Optimisation

Configuration options - functions

Code Function

PS Pressure regulation and flow measurement in the supply air duct.

PE Pressure regulation and flow measurement in the extract air duct.

PSFE Pressure regulation in the supply air duct. Slave Zone of the extract air with a SLAVE Zone. Used most often when a supply air duct should control an extract air duct with or without offset. The PSFE option requires the accessory SLAVE Zone.

FS Flow regulation in the supply air duct. Is most often used for constant flow regulation.

FE Flow regulation in the extract air duct. Most often used when Super WISE calculates the flows to be regulated. PED Pressure regulation in the extract air with reverse

operation where the GOLD unit or zone dampers is/ are used for balancing the airflow

MSFE Measurement of airflow in the supply air duct. Slave control of exhaust air with SLAVE Zone. MSFE fun-ctionality requires that the product is combined with accessories, SLAVE Zone.

OS Optimisation of the supply air duct OE Optimisation of extract air duct

OSOE Optimisation of both supply- and extract air duct. OSFE Optimisation of the supply air duct. Slave control of

extract air duct with SLAVE Zone. Is used to extract as much air as supplied to the zone. Separate offset can be set.

Configuration examples

On the following pages various configuration options are exemplified for common functional needs.

Figure 4. Wire-less connection with the TUNE Control hand-held terminal.

Slave unit SLAVE Zone and SLAVE MSFE

• The slave unit is a flow- or optimisation regulating unit, which is totally controlled by CONTROL Zone.

• The slave unit is only intended for extract air and is placed in the exhaust system within the same zone. • The airflow through the slave unit may deviate from

the airflow of the master unit by a programmable offset-value in l/s.

• Slave unit with MSFE functionality (SLAVE MSFE) is a separate accessory than ordinary slave damper (SLAVE Zone).

SLAVE Zone - functions:

• Static non-clogging, airflow measurement • Position-independent

• Shut-off-capable damper to tightness class 4, rectangu-lar version to tightness class 3

• Insulated version (optional)

• Rectangular version as an option, rectangular dampers should always be mounted with their shafts horizontal.

TUNE Control

TUNE Control is a hand-held terminal for CONTROL Zone. TUNE Control is used for control and changing of regula-tion variables in CONTROL Zone.

The hand held terminal can be connected to the CON-TROL Zone directly via radio link. It can also be connected with a cord.

TUNE Control - functions:

• Wireless communication

• 433 MHz according to EN 300220-3 • Range ca 30 m

(5)

CO N TROL Z on e

Figure 5. Pressure control of both the supply air and extract air ducts without slave flow.

1 (PS) 2 1 (PE) 2 1 (PSFE) 2 3 4 (FE)

Figure 8. Balance at zone level, mixed - transfer air and balance. Pressure control of the supply air and slave flow control of the extract air in duct system with mixed varied and constant airflow.

3 (PED)

2 (SLAVE)

1 (PSFE) 4

5

Balance at room level

• The CONTROL Zone damper PE/PS (1) is used for main-taining constant pressure in both the supply air and extract air ducts.

• Airflows and balance are controlled at room level. • The toilet groups, if included, should be connected

directly to the pressure-controlled branch duct. • No Modbus communication is necessary.

Balance at zone level - transfer air solution

The CONTROL Zone damper (1) maintains constant pres-sure in the supply air duct.

• CONTROL Zone (1) measures the total airflow in the zone.

• The flow is used for slave-controlling the central Slave Zone extract air damper (3).

• The constant extract airflows, if any, within the zone are controlled by one more CONTROL Zone damper FE (4) which in this case is used as a constant-flow damper.

• To create balance in the zone, specify an air flow offset which corresponds to the extracted air in the constant air flow product. This value is set in the controller CON-TROL Zone.

Balance at zone level, mixed - transfer air and balance

• The CONTROL Zone damper PSFE (1) maintains constant pressure in the supply air duct.

• The flow is used for slave-controlling the central SLAVE Zone extract air damper (2).

• The CONTROL Zone damper (3) keeps the extract air duct under constant pressure so that toilet groups (4) and air registers in rooms with varied airflow can be connected to the extract air duct.

• The zone damper CONTROL Zone (3) open/close their damper blade to meet the airflow needs in the zones.

Figure 6. Balance at the zone level - transfer air solution. Pressure control of the supply air slave flow control from the extract air.

Balance at zone level – transfer air without pressure control

• The zone damper CONTROL Zone MSFE (1) measures the flow of the supply air duct.

• The flow is used to control the central extract air damper SLAVE Zone (2).

Figure 9. Balance at the zone level - transfer air without pressure control. Measurement of the supply air and slave flow control from the extract air in duct systems with mixed varied airflow.

1 (MSFE) 2

OSOE

Optimisation of the supply and extract ducts

Figure 7. Separate optimisation of both supply and extract ducts in regards to damper position at room products.

OSFE

Optimisation of the supply air and balancing of extract air

Figure 10. Supply air is optimized in regards to the damper posi-tion of the room products and extract air damper is slave control-led to extract the same amount of air as is supplied through the supply air damper. It is possible to set an air flow offset.

(6)

Summation of the airflows within a zone

• All the zone dampers are of type CONTROL Zone. • The supply air dampers, PS (1) maintain constant

pres-sure.

• The DETECT Pressure sensor (2) is located 2/3 the dis-tance out on the branch duct.

• The constant extract airflows within the zone are con-trolled by one more zone damper, FE (3).

• Central extract air flow, FE (4) is obtained by adding the airflows from all the supply air dampers and sub-tracting the constant extract airflow. This is carried out by Super WISE (5).

• Super WISE manages up to 10 zones. All communica-tion between dampers and Super WISE is conveyed with Modbus RTU.

3 (FE)

4 (FE)

1 (PS)

2

5 1 (PS)

1 (PS)

Figure 11. Several master units for pressure control of the supply air, slave flow regulation of the extract air via Super WISE which sums up/subtracts the air flows.

.

2 (PED)

1

3

5

4

Figure 12. CONTROL Z PED keeps the pressure constant in the extract air duct so that a constant airflow is always supplied to the toilet group regardless of the total extract airflow.

Decentralised air handling unit

• In this solution, which is most often used in smaller systems, the air handling unit uses sensor (5) to control the pressure in the supply air system.

• The room regulation is managed by the ADAPT prod-ucts (3) and all extract air is balanced by the air han-dling unit. Constant pressure (1) must therefore be maintained in the extract air by means of CONTROL Z PED (2) if a toilet group with constant extract airflow (4) is to be connected.

(7)

CO N TROL Z on e

To wire the zone dampers

• CONTROL Zone is supplied either as default or configured for the correct function (see page 4 for alternative). When delivered as default the configuration is always set to PSFE.

• When the product is supplied as the default, the damper actuator and the flow signal cables are not connected. This wiring must be done at the site according to the instructions for the function desired. • Connect the CONTROL Zone to 24 V AC supply voltage and protect the circuit with a max. 6 A fuse. • Wire all other connections to Modbus and other com- ponents according to the wiring instructions.

• The controller is equipped with pluggable screw termi- nals, which substantially simplify the installation work.

Requirements on wire cross-sectional areas

See figure 13.

• Supply voltage with 24V AC to CONTROL Zone (1), at max. 6 A applies to ≥ 1.0 mm2_.

• Signal wire from Flow sensor (3) to CONTROL Zone (1) max 30 m >= 0.75 mm2_.

• A 4-wire with 0.75 mm2 _{should be fitted between}

CON-TROL Zone (1) and Damper actuator (2).

Electrical data

The particulars apply to CONTROL Zone and SLAVE Zone only. For particulars of the connected accessories, see the separate data for these.

Supply voltage 24 V AC ± 10 %, 50-60 Hz

Transformer sizing:

CONTROL Z 12 VA

Cable rating 0.4 A

CONTROL Z and SLAVE Zone 18 VA

Cable rating 0.6 A

Built-in fuse 4 A

Ambient temperature:

Operation 0 °C – +50 °C

Storage -20 °C – +50 °C

Humidity max. 90% RH, non-condensing

Inputs for

Range of measurement 2-10 VDC

Accuracy ±0.05 V

Output for damper actuator:

Output voltage range 0-10 DC

Accuracy ±0.05 V

Network protocol Modbus RTU

Connection, Modbus 1 RTU Slave

Connection Modbus 2 & 3.1-2 RTU

Mas-ter

Transceiver TIA/EIA-485

Standard 38,400 bps, 8, 1, None

Alternative baudrates 19200 or 9600

Alternative word length 7 or 8

Alternative parity Even, odd or none

9 10 11 12 13 14 15 16 18 19 20 21 22 23 24 G0 X4 G0 X5 G0 X6 G0 X7 X8 G0 X9 G G0 17 G0 Sw SA EA Pa °C Pwr Pwr Y Y G0 Y G G0 Y G G0 Y G G0 Y G 25 26 27 28 29 30 31 32 33 34 35 36 37 38 10V X11 X12 X13 X14 G G0 24 V Extract (1)G0 (3) Y (2)G Pa 36 37 38 23 24 1 2 3 4 5 6 0 Y + 14 Supply (1)G0 (3) Y (2)G Pa 0 Y + Pa 21 7 0 Y + 22 16 26 10 8 Wiring diagram: 1. CONTROL Zone 2. Damper actuator 3. Flow sensor 4. Transformer with supply voltage 24 V AC 5. SLAVE Zone, damper actuator 6. SLAVE Zone, flow sensor 7. Pressure sensor DETECT Pressure 8. Potential-free switch for forced closing of the damper

(8)

Figure 16. Requirement for lengths of straight duct in a rec-tangular design upstream of the unit, A > 2 x B. If extract air is combined with attenuator the length of straight duct is depend-ent on attenuator design, required length of straight duct is then the biggest attentuator design thickness x 3.

Figure 14. Installing with a clamp (2), if a sound absorber (4) with centre baffle is used, it should be installed with a length of straight duct (3) that is 2xØD of the CONTROL Zone (1).

Figure 15. Requirement on a length of straight duct in front of the unit.

Min 500 mm Min 100 mm

Figure 17. Installation space requirements.

Installation

• Circular version of CONTROL Zone can be installed in any position in temperate spaces.

• Rectangular version of CONTROL Zone shall always be installed with the damper axis in horizontal position. The B-measurement is showing the horizontal position of the damper blade axis.

• CONTROL Zone has digital flow measurement that is position independent.

• In ducts that must be regularly cleaned, connect the CONTROL Zone to the duct system by means of an FSR clamp.

• CONTROL Zone should always be installed with a lengths of straight duct, see the figures.

(9)

CO N TROL Z on e

Sizing

Circular design

Airflow capacity

• The airflow capacity of the product is important for planning if airflow measurement is included in the product. • Recommended maximum airflow is given at a pressure drop of 1 Pa/m in the duct.

• The black scale represents recommended working range between min and max flow.

250 500 160 200 315 400 3000 l/s 20 30 40 50 100 200 300 0 0 0 1 0 0 2 0 0 1 300 400 500 2000 3000 500 2000 5000 1000 1000

Sound power level

• The diagrams for the various sizes show the total gen- erated sound power (L_WtotdB), as a function of the airflow and pressure drop across the damper.

• By correcting L_Wtot with the correction factors specified below, the sound power levels can be obtained for each octave band (L_W = L_Wtot + K_ok).

Correction factor K_ok, circular version

Size Mid-frequency (Octave band) Hz

CONTROL Z 63 125 250 500 1000 2000 4000 8000 160 0 -5 -10 -17 -19 -24 -30 -39 200 0 -4 -10 -16 -17 -22 -29 -39 250 0 -5 -9 -13 -17 -21 -27 -37 315 0 -5 -9 -11 -14 -19 -26 -36 400 0 -6 -8 -11 -13 -17 -25 -32 500 0 -5 -7 -12 -13 -17 -26 -36 Tol. ± 2 2 2 2 2 2 2 2 Transmitted sound

• Calculate the transmitted sound from CONTROL Zone according to the formula: L_Wut = L_Wkanal + K_trans

• The data refers to an uninsulated CONTROL Zone and is related to the duct length of the damper.

Correction factor K_transrefers to uninsulated CONTROL Z

CONTROL Z 63 125 250 500 1000 2000 4000 8000 160 -7 -11 -9 -7 -4 -2 -1 -2 200 -8 -12 -10 -8 -5 -3 -2 -3 250 -9 -13 -11 -9 -6 -4 -3 -4 315 -10 -14 -12 -10 -7 -5 -4 -5 400 -11 -15 -13 -11 -8 -6 -5 -6 500 -12 -16 -15 -12 -9 -7 -6 -7

(10)

CONTROL Z 160 CONTROL Z 200 CONTROL Z 500 CONTROL Z 400 CONTROL Z 315 CONTROL Z 250

Sizing diagram

CONTROL Zone – Duct installation

Airflow - Pressure drop - Sound level

• Data applies to sound generation in the duct

• The flow range of CONTROL Zone is specified in the quick selection table.

• Specified sound levels, L_Wtot 50, 55, 60, 65 and 70 dB for lines shown in the diagram.

ps Pa 40 50 100 200 300 400 500 1000 2000 m3 /h 10 20 30 40 50 100 200 300 400 500 l/s 1000 10 20 30 40 50 100 200 300 400 500 1000 50 55 60 65 70 dB Wtot L 20% 100% ps Pa 40 50 100 200 300 400 500 1000 2000 m3 /h 10 20 30 40 50 100 200 300 400 500 l/s 1000 10 20 30 40 50 100 200 300 400 500 1000 50 55 60 20% 100% 70dB Wtot L 65 ps Pa 100 200 300 400 500 1000 2000 3000 40005000 m3 /h 20 30 40 50 100 200 300 400 500 1000 l/s 2000 10 20 30 40 50 100 200 300 400 500 1000 50 55 60 65 20 % 100% 70dB Wtot L ps Pa 200 300 400 500 1000 2000 3000 4000 5000 m3_/h 30 40 50 100 200 300 400 500 1000 2000 l/s 3000 10 20 30 40 50 100 200 300 400 500 1000 50 55 60 65 20% 100% 70dB Wtot L ps Pa 300 400 500 1000 2000 3000 4000 5000 10000 m3_/h 100 200 300 400 500 1000 2000 3000 4000 5000 l/s 10 20 30 40 50 100 200 300 400 500 1000 50 55 60 65 70 dB Wtot L 20% 100% ps Pa 20 30 40 50 100 200 300 400 500 1000 m3 /h 4 5 10 20 30 40 50 100 200 300 l/s 400 10 20 30 40 50 100 200 300 400 500 1000 50 55 60 20% 100% 70dB Wtot L 65

(11)

CO N TROL Z on e ∆Ps 500 200 100 50 20 10 5 Pa 30% 40% 50% 60% 70% 80% 90% 100% 1 2 3 4 5 m/s 10 40 50 60 70

Rectangular design

Sizing diagram

Velocity - Pressure drop - Sound level

• Data applies to sound generation in the duct • Minimum flow applies at 1,0 m/s in the duct • Calculate the face velocity across the damper and

read the sound data and pressure drop at an appropri-ate damper position.

• 100% the damper is fully open.

Sound power level

• The diagrams show the total sound power (L_Wtot dB), as a function of velocity and pressure drop across the damper.

• By correcting L_Wtot with the correction factors from tables below, the sound power level can be obtained for each octave band (L_W = L_Wtot + K_ok + K_k).

Correction factor K_ok for rectangular CONTROL Zone

CONTROL Z 63 125 250 500 1000 1000 4000 8000

All -1 -5 -7 -8 -13 -22 -31 -30

Tol. ± 4 4 3 2 2 2 2 2

Correction factor K_k for the damper’s face area m2

Surface m2 _0.1 _{0.15 0.25 0.4} _0.6 _1.0 _1.6 _2.5

(12)

Airflow capacity

The airflow capacity of the product is important for planning if airflow measurement is included in the product. The normal working range in the duct is between 1.0 - 7.0 m/s.

Size B x H Area m2 min q l/s ca 7 m/s l/s ca 10 m/s l/s 200 x 200 0,04 40 280 400 300 x 200 0,06 60 420 600 400 x 200 0,08 80 560 800 500 x 200 0,10 100 700 1 000 600 x 200 0,12 120 840 1 200 700 x 200 0,14 140 980 1 400 800 x 200 0,16 160 1 120 1 600 1000 x 200 0,20 200 1 400 2 000 300 x 300 0,09 90 630 900 400 x 300 0,12 120 840 1 200 500 x 300 0,15 150 1 050 1 500 600 x 300 0,18 180 1 260 1 800 700 x 300 0,21 210 1 470 2 100 800 x 300 0,24 240 1 680 2 400 1000 x 300 0,30 300 2 100 3 000 400 x 400 0,16 160 1 120 1 600 500 x 400 0,20 200 1 400 2 000 600 x 400 0,24 240 1 680 2 400 700 x 400 0,28 280 1 960 2 800 800 x 400 0,32 320 2 240 3 200 1000 x 400 0,40 400 2 800 4 000 1200 x 400 0,48 480 3 360 4 800 1400 x 400 0,56 560 3 920 5 600 1600 x 400 0,64 640 4 480 6 400 Size B x H Area m2 min q l/s ca 7 m/s l/s ca 10 m/s l/s 500 x 500 0,25 250 1 750 2 500 600 x 500 0,30 300 2 100 3 000 700 x 500 0,35 350 2 400 3 500 800 x 500 0,40 400 2 800 4 000 1000 x 500 0,50 500 3 500 5 000 1200 x 500 0,60 600 4 200 6 000 1400 x 500 0,70 700 4 900 7 000 1600 x 500 0,80 800 5 600 8 000 600 x 600 0,36 360 2 520 3 600 700 x 600 0,42 420 2 940 4 200 800 x 600 0,48 480 3 360 4 800 1000 x 600 0,60 600 4 200 6 000 1200 x 600 0,72 720 5 040 7 200 1400 x 600 0,84 840 5 880 8 400 1600 x 600 0,96 960 6 720 9 600 700 x 700 0,49 490 3430 4 900 800 x 700 0,56 560 3 920 5 600 1000 x 700 0,70 700 4 900 7 000 1200 x 700 0,84 840 5 880 8 400 1400 x 700 0,98 980 6 860 9 800 1600 x 700 1,12 1 120 7 840 11 200

(13)

CO N TROL Z on e

Figure 20. CONTROL / SLAVE Zone / MSFE, rectangular version with.

Figure 18. CONTROL / SLAVE Zone / MSFE, uninsulated version.

Figure 19. CONTROL / SLAVE Zone / MSFE, insulated version.

C E1 G F C J K M N R S S T

Dimensions and Weights

CONTROL/SLAVE Zone/MSFE – circular, uninsulated

Size Dimensions (mm) Weight

(kg) ØD A C E1/E2 F G 160 159 472 45 70 85 70 3,1 200 199 472 45 70 85 70 3,6 250 249 522 45 70 85 70 4,0 315 314 552 45 70 85 70 4,9 400 399 695 60 70 85 70 6,2 500 499 825 60 70 85 70 9,2

CONTROL / SLAVE Zone / MSFE – circular, insulated

Size Dimensions (mm) Weight _(kg)

ØD A J K L M N P Q 160 159 472 285 212 401 55 65 64 20 6,2 200 199 472 335 252 401 35 65 64 – 7,9 250 259 522 395 302 451 10 65 64 – 11,2 315 314 572 465 367 481 0 65 64 – 11,2 400 399 695 553 459 595 0 65 64 – 13,3 500 499 825 653 563 723 0 65 64 – 16,9

CONTROL / SLAVE Zone / MSFE – rectangular

Size Dimensions (mm) Weight _(kg)

R S T U

B x H*) ₄₇₀ ₂₀ ₆₇ ₆₃ _–

*)_{Refer to the product size, width x height in millimetres. For}

standard sizes, see table for airflow capacity on previous page.

R S S U C C E2 J K Q P X Y Z

Figure 21. Hand held terminal, TUNE Control.

TUNE Control – hand held terminal

Dimensions (mm)

Weight (g)

X Y Z

(14)

Specifications

Product

• Size of circular products are listed in the dimension tables Ø D (mm) on previous page.

• Size of rectangular products are specified in width x height, B x H (mm). NOTE: The B-dimension always corresponds to the horizontal direction of the damper blade shaft. For standard dimensions of rectangular products, see sizes in the airflow capacity table on page 12. Rectangular dimensions outside of those are ordered by special order.

• The product can be supplied with pre-configured functionality (CONTROL Zone Config) with following options PS, PE, PSFE, SP, FE, PED, MSFE, OS, OE, OSOE and OSFE. For detailed explanation of the deliverable configuration variants, see table on page 4.

• If the pre-configuration is ordered, following must be specified when ordering:

- Configuration code - Constant pressure (Pa) - Airflow

- Slave flow deviation in l / s - System; Super WISE or BMS

- Communication settings for BMS (if selected) - Any desired mark-up of the product

• The product can also be supplied with default settings without pre-configuration (CONTROL Zone default). • Standard and default configured products are set to

PSFE functionality.

• When using OS, OE, OSOE, OSFE the pressure sensor is not used.

CONTROL Zone – Circular

Circular zone damper CONTROL Z a -aaa -b/-bb Version:

Size: 160, 200, 250, 315, 400, 500

Design type: N = uninsulated / IR = insulated

CONTROL Zone – Rectangular

Rectangular zone damper CONTROL Z a -aaaa-aaaa Version:

Size *) / **): Specify B x H according to standard dimensions in the airflow capacity table on page 12.

Accessories

• Accessories specific to zone products are ordered according to tables below.

• For other available accessories, see the list at the very bottom of the page bottom.

• Note that the slave damper for MSFE functionality (SLAVE MSFE), is a separate accessory, compared to the ordinary slave damper (SLAVE Zone).

SLAVE Zone – Circular

Circular slave damper SLAVE Z a -aaa -b/-bb

Version:

Size: 160, 200, 250, 315, 400, 500

SLAVE MSFE – Circular

Circular slave damper SLAVE MSFE a -aaa -b/-bb Version:

Size: 160, 200, 250, 315, 400, 500

SLAVE Zone – Rectangular

Rectangular slave damper SLAVE Z a -aaaa-aaaa Version:

Size *) / **): Specify B x H according to standard dimensions in the airflow capacity table on page 12.

SLAVE MSFE – Rectangular

Rectangular slave damper SLAVE MSFE a -aaaa-aaaa Version:

Size *) / **)_{: Specify B x H according to standard dimensions in}

the airflow capacity table on page 12.

TUNE Control

Hand held unit TUNE C a

Version:

Other accessories

• Accessories are shown in separate product sheets, available for download on www.swegon.se. DETECT Pressure Pressure sensor for installation in duct FSR Clamp, in order to facilitate installation

and dismantling

POWER Adapt Transformer 230-24 V AC

*) Rectangular dampers should always be installed with the damper blade shafts in a horizontal position. The B - dimension is always the horizontal position for the damper blade.

**) Other rectangular dimensions than those included in the table are ordered by special order.

(15)

CO N TROL Z on e

Specification text

Swegon’s electronic zone controller included in the WISE System with the following functions:

• Constant pressure regulation/flow regulation/optimisa-tion

• Non-clogging, position-independent airflow measure-ment

• Shut-off-capable damper to tightness class 4 (rectan-gular version to class 3)

• Insulated version (optional)

• Slave Zone of the corresponding extract air unit • Modbus RTU-communication (RS-485)

Accessories:

Pressure sensor DETECT P xx items

Slave damper SLAVE Z xx items

Clamp FSR xx items

Hand-held terminal TUNE C xx items

Transformer POWER Adapt xx items

Specify the following: Function according to the code, pres-sure maintained constant, airflow and marking.

CONTROL/SLAVE Zone. Zone damper for Swegon s WISE System for demand-controlled ventilation
