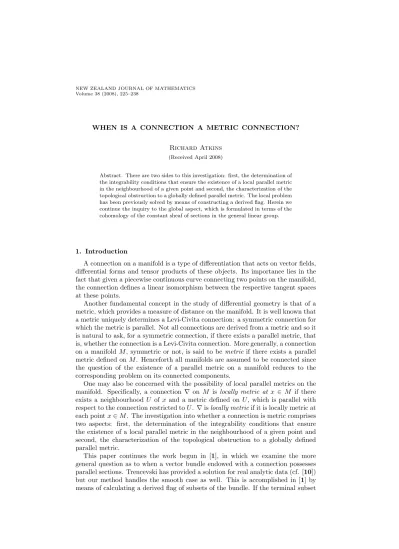

WHEN IS A CONNECTION A METRIC CONNECTION?

WHEN IS A CONNECTION A METRIC CONNECTION?

Richard Atkins

(Received April 2008)

Abstract. There are two sides to this investigation: first, the determination of the integrability conditions that ensure the existence of a local parallel metric in the neighbourhood of a given point and second, the characterization of the topological obstruction to a globally defined parallel metric. The local problem has been previously solved by means of constructing a derived flag. Herein we continue the inquiry to the global aspect, which is formulated in terms of the cohomology of the constant sheaf of sections in the general linear group.

1. Introduction

A connection on a manifold is a type of differentiation that acts on vector fields, differential forms and tensor products of these objects. Its importance lies in the fact that given a piecewise continuous curve connecting two points on the manifold, the connection defines a linear isomorphism between the respective tangent spaces at these points.

Another fundamental concept in the study of differential geometry is that of a metric, which provides a measure of distance on the manifold. It is well known that a metric uniquely determines a Levi-Civita connection: a symmetric connection for which the metric is parallel. Not all connections are derived from a metric and so it is natural to ask, for a symmetric connection, if there exists a parallel metric, that is, whether the connection is a Levi-Civita connection. More generally, a connection on a manifold M , symmetric or not, is said to be metric if there exists a parallel metric defined on M . Henceforth all manifolds are assumed to be connected since the question of the existence of a parallel metric on a manifold reduces to the corresponding problem on its connected components.

One may also be concerned with the possibility of local parallel metrics on the manifold. Specifically, a connection ∇ on M is locally metric at x ∈ M if there exists a neighbourhood U of x and a metric defined on U , which is parallel with respect to the connection restricted to U . ∇ is locally metric if it is locally metric at each point x ∈ M . The investigation into whether a connection is metric comprises two aspects: first, the determination of the integrability conditions that ensure the existence of a local parallel metric in the neighbourhood of a given point and second, the characterization of the topological obstruction to a globally defined parallel metric.

This paper continues the work begun in [1], in which we examine the more

general question as to when a vector bundle endowed with a connection possesses

parallel sections. Trencevski has provided a solution for real analytic data (cf. [10])

but our method handles the smooth case as well. This is accomplished in [1] by

means of calculating a derived flag of subsets of the bundle. If the terminal subset

f W admits, locally, the structure of a non-zero vector bundle then local non-trivial parallel sections exist. By considering the vector bundle of symmetric, covariant two-tensors on a manifold the question as to whether the connection is locally metric is answered. This is briefly reviewed in Section 2.

In the two sections following, the connection is required to be regular in the sense that f W is a rank n vector bundle. As such it is a flat vector bundle with respect to the connection. It is known that the group of isomorphism classes of flat line bundles over a manifold is isomorphic to the first cohomology group of the constant sheaf of sections in the multiplicative group of non-zero complex numbers (cf. [3], 2.2.11. Theorem (3), pg. 76). In Section 4, this is generalized to the classification of flat vector bundles of arbitrary rank. This leads to the study of the cohomology H ¹ (M, G n ) of the constant sheaf of sections in the general linear group GL(n, <).

In Section 5, the question as to whether a connection is metric is answered for the case of regular connections.

In the final section, the difference between analytic and smooth connections is explored. Analytic connections are always regular and so admit the cohomological description developed in the previous two sections. In particular, an analytic locally metric connection on an analytic simply-connected manifold is metric. This is not the case with smooth connections in general. We close with an example of a smooth locally metric connection on the plane, which is not globally metric. Thus even with contractible spaces the local parallel metrics might not piece together to yield a global parallel metric.

Similar work has been investigated in [2] in the case of surfaces. For four- dimensional Lorentzian metrics a solution has been found by Edgar [4]. The alge- braic determination of the metric, up to conformal equivalence, from the curvature has been studied by Ihrig (cf. [5]) and McIntosh and Halford (cf. [7] and [8]).

2. When is a connection locally metric?

Here we review the method presented in [1]. This describes an algebraic proce- dure for determining the number of independent local parallel sections of a smooth vector bundle π : W → M with a connection ∇.

Let W ⁰ be a subset of W satisfying the following two properties:

P1: the fibre of W ⁰ over each x ∈ M is a linear subspace of the fibre of W over x, and

P2: W ⁰ is level in the sense that each element w ∈ W ⁰ is contained in the image of a local smooth section of W ⁰ , defined in some neighbourhood of π(w) in M .

Let X be a local section of W ⁰ . The covariant derivative of X is a local section of W ⊗ T ^∗ M . Define α by e

α(X) := φ ◦ ∇(X) e

where φ : W ⊗ T ^∗ M → (W/W ⁰ ) ⊗ T ^∗ M denotes the natural projection taken fibrewise. If f is any differentiable function with the same domain as X then

α(f X) = f e α(X) e This means that α defines a map e

α W

: W ⁰ → (W/W ⁰ ) ⊗ T ^∗ M

which is linear on each fibre of W ⁰ .

The kernel of α W

is a subset of W ⁰ , which satisfies property P1 but not neces- sarily property P2. In order to carry out the above constructions to ker α W

, as we did to W ⁰ , the non-level points in ker α W

must be removed. To this end we define a leveling map S as follows. For any subset V of W satisfying P1 let S(V ) be the subset of V consisting of all elements v for which there exists a smooth local section s : U ⊆ M → V ⊆ W such that v = s(π(v)). Then S(V ) satisfies both P1 and P2.

We may now describe the construction of the maximal flat subset f W , of W . Let V ⁽⁰⁾ := {w ∈ W | R(, )(w) = 0}

W ⁽ⁱ⁾ := S(V ⁽ⁱ⁾ ) V ⁽ⁱ⁺¹⁾ := ker α _W

where R : T M ⊗ T M ⊗ W → W is the curvature tensor of ∇. This gives a sequence

W ⊇ W ⁽⁰⁾ ⊇ W ⁽¹⁾ ⊇ · · · ⊇ W ^(k) ⊇ · · ·

of subsets of W . For some k ∈ N , W ^(l) = W ^(k) for all l ≥ k. Define f W = W ^(k) , with projection ˜ π : f W → M .

We say that the connection ∇ is regular at x ∈ M if there exists a neighbourhood U of x such that ˜ π ⁻¹ (U ) ⊆ f W is a vector bundle over U . f W x shall denote the fibre of f W over x ∈ M .

Theorem 1. Let ∇ be a connection on the smooth vector bundle π : W → M . (i) If X : U ⊆ M → W is a local parallel section then the image of X lies in f W . (ii) Suppose that ∇ is regular at x ∈ M . Then for every w ∈ f W x there exists a local parallel section X : U ⊆ M → f W with X(x) = w.

Corollary 2. Let ∇ be a regular connection on the vector bundle π : W → M . Then (f W , ∇) is a flat vector bundle over M .

Corollary 3. Let ∇ be a connection on the vector bundle π : W → M , regular at x ∈ M . Then there are dim f W _x independent local parallel sections in a neighbour- hood of x ∈ M .

Now let W be the vector bundle over M consisting of the symmetric elements of T ^∗ M ⊗ T ^∗ M . The connections that are locally metric are characterized as follows.

Corollary 4. Let ∇ be a connection on M , regular at x ∈ M . Then ∇ is locally metric at x if and only if f W x contains a positive-definite bilinear form.

The Frobenius Theorem, upon which Theorem 1 is based, has both smooth and real analytic versions. Therefore Theorem 1 and Corollaries 2, 3 and 4 may be interpreted either in the smooth or analytic contexts. Henceforth, however, mani- folds and connections shall be assumed to be smooth unless explicitly stated to be analytic.

Example 1 In [1] we considered the symmetric connection ∇ on the 2-sphere,

M = S ² , defined by: Γ ^θ _φφ = −sinθcosθ, Γ ^φ _θφ = Γ ^φ _φθ = cotθ and all other Christof-

fel symbols equal to zero. θ and φ are the polar and azimuthal angles on S ² ,

respectively. Define the frame

X ₁ = dθ ⊗ dθ X ₂ = dφ ⊗ dφ

X ₃ = dθ ⊗ dφ + dφ ⊗ dθ

of W , the symmetric elements of T ^∗ M ⊗ T ^∗ M . The non-zero local sections of W ⁽⁰⁾ were shown to be of the form X = f (X 1 + (sin ² θ)X 2 ) where f is a smooth non- vanishing function defined on an open subset of S ² . Furthermore, f W = W ⁽⁰⁾ , from which it follows that ∇ is a locally metric connection. In the next section we carry this example over into the global context.

3. The global problem: rank f W = 1

Consider a locally metric connection ∇ on a manifold M such that f W is a rank one vector bundle over M . In such a case the existence of a global parallel metric on M can be expressed in terms of de Rham cohomology.

Let f W ⁺ denote the subset of f W consisting of the positive-definite bilinear forms.

Since ∇ is locally metric, f W ⁺ is a rank one fibre bundle over M . Let s : M → f W ⁺ be any section of f W ⁺ . s is a metric on M , which is not necessarily parallel. Consider an open cover {U _α : α ∈ A} of M for which there exists a local parallel metric h _α on U _α , for each α ∈ A. Then h _α is a local section: h _α : U _α → f W ⁺ . Since f W ⁺ is a rank one fibre bundle, s restricted to U _α , denoted s _α , must be of the form s _α = f _α h _α for some smooth, positive function f _α on U _α . This allows us to define the 1-form Φ _α on U _α by the covariant derivative of s _α : ∇s _α = s _α ⊗ Φ _α . Since s _α = s _β on U _α ∩ U _β it follows that Φ _α = Φ _β on U _α ∩ U _β as well. Therefore there exists a unique 1-form Φ on M defined by ∇s = s ⊗ Φ. Φ restricted to U α is just Φ α = dlogf α , which is exact. Therefore Φ is a closed 1-form on M and thus defines a cohomology class [Φ] in H _deR ¹ (M ).

It is easily seen that [Φ] does not depend on the choice of section s. Indeed, let s ⁰ : M → f W ⁺ be another section. Then s ⁰ = f s for some positive function f on M .

∇s ⁰ = s ⁰ ⊗ Φ ⁰ , where Φ ⁰ = Φ + dlogf . Thus [Φ ⁰ ] = [Φ]. We may now state when ∇ is a metric connection.

Theorem 5. Let ∇ be a regular, locally metric connection on M with rank f W = 1.

Then ∇ is a metric connection on M if and only if [Φ] = 0 in H _deR ¹ (M ).

Proof:

=⇒ Suppose that ∇ is a metric connection on M . That is, there exists a parallel metric s, which must be a section s : M → f W ⁺ . Then ∇s = 0 defines Φ = 0.

⇐= Suppose that Φ is exact. We may write Φ = df for some function f on M . Define the metric h := exp(−f )s. h is parallel and so ∇ is metric.

q.e.d.

Example 1 continued A section of f W ⁺ is given by s := X 1 + (sin ² θ)X 2 . This

defines the 1-form Φ = 0 which is trivially exact. Therefore the connection ∇ is, in

fact, a Levi-Civita connection on S ² ; it is the Levi-Civita connection of the metric

induced by the standard embedding of S ² into < ³ .

4. Classification of flat vector bundles

We have seen (Corollary 2) that for a regular connection ∇ on M , (f W , ∇) is a flat vector bundle. In pursuit, therefore, of the topological obstruction to the existence of a global parallel metric it will be convenient to classify the flat vector bundles over M , for which the language of sheaf cohomology will prove useful. This shall be the focus of the present section.

Let U = {U α : α ∈ A} be an open cover of M . Let G n denote the constant sheaf of sections in the group GL(n; <). Consider the ˇ Cech complex C ^∗ ( U, G n ) :=

(C ⁰ ( U, G n ), C ¹ ( U, G n ), C ² ( U, G n )). Recall that the coboundary operators for non- abelian cohomology δ ⁱ : C ⁱ ( U, G n ) → C ⁱ⁺¹ ( U, G n ) are defined by

(δ ⁰ a) _αβ := a ⁻¹ _α a _β (δ ¹ a) _αβγ := a ⁻¹ _αγ a _αβ a _βγ

An element a ∈ C ¹ ( U, G n ) is a 1-cocycle if δ ¹ a = 1, where 1 _αβγ is the n × n identity matrix. a is a 1-coboundary if there exists an element b ∈ C ⁰ ( U, G n ) such that a = δ ⁰ b. Define an equivalence relation ∼ on the set of 1-cocyles by a ∼ a ⁰ iff there exists an element b in C ⁰ ( U, G n ) such that a ⁰ _αβ = b ⁻¹ _α a αβ b β . Equivalent elements are said to be cohomologous and the set of elements cohomologous to a is denoted [a]. The set of equivalence classes defines the first cohomology set ˇ H ¹ ( U, G n ) of the complex C ^∗ ( U, G n ) . Observe that it is not a group, in general, but a pointed set with distinguished element 1 = 1 n . The first cohomology set is defined to be the direct limit

H ¹ (M, G n ) := lim

→

H ˇ ¹ ( U, G n )

Denote by E n the set of isomorphism classes of pairs (E, ∇), where E → M is a rank n real vector bundle over M and ∇ is a flat connection on E.

Proposition 6.

(i) Each isomorphism class ξ ∈ E n determines an element Θ(ξ) ∈ H ¹ (M, G n ).

(ii) Each element θ ∈ H ¹ (M, G n ) determines an isomorphism class Ψ(θ) ∈ E n . (iii) Θ(Ψ(θ)) = θ.

(iv) Ψ(Θ(ξ)) = ξ.

Proof:

(i) Let (E, ∇) be a representative of ξ ∈ E n . There exists an open cover U = {U α : α ∈ A} of M with associated bases of local parallel sections h _αi : U _α → E, 1 ≤ i ≤ n. On non-empty intersections of the open sets, U _αβ := U _α ∩ U β , the bases on U _α and U _β are related by :

h _αi|

Uαβ

=

n

X

j=1

(t _αβ ) _ij h _βj|

Uαβ

,

for some t ∈ C ¹ ( U, G n ), for 1 ≤ i ≤ n. The 1-cochain t ∈ C ¹ ( U, G n ) satisfies (δ ¹ t) αβγ := t ⁻¹ _αγ t αβ t βγ = 1 αβγ

Therefore t is a 1-cocycle and thus defines an element τ := [t] in H ¹ (M, G n ).

Let U ⁰ = {U _α ⁰ : α ∈ A ⁰ } be another open cover of M with associated bases of

parallel sections h ⁰ _αi : U _α → E, 1 ≤ i ≤ n. The element t ⁰ ∈ C ¹ ( U ⁰ , G n ) giving

the change of basis over non-empty intersections U _αβ ⁰ := U _α ⁰ ∩ U _β ⁰ also defines an element τ ⁰ := [t ⁰ ] in H ¹ (M, G n ). It must be shown that τ ⁰ = τ . Let V = {V α : α ∈ B} be a common refinement of U and U ⁰ : V α ⊂ U _ρ(α) and V α ⊂ U _ρ ⁰

(α) , where ρ : B → A and ρ ⁰ : B → A ⁰ . Let ˆ t (resp. t ˆ ⁰ ) denote the image of t (resp. t ⁰ ) in C ¹ ( V, G n ): ˆ t _αβ = t _{ρ(α)ρ(β)|}

Vαβ

and ˆ t ⁰ _αβ = t ⁰ _ρ

(α)ρ

(β)|

, on non-empty intersections V _αβ := V _α ∩ V _β . There exists a ∈ C ⁰ ( V, G n ) giving the change of basis:

h _ρ(α)i|

Vα

= P n

j=1 (a _α ) _ij h ⁰ _ρ

(α)j|

. Thus h ⁰ _ρ

(α)i|

=

n

X

j=1

(a α ) ⁻¹ _ij h _ρ(α)j|

=

n

X

j,k=1

(a α ) ⁻¹ _ij (ˆ t αβ ) jk h _ρ(β)k|

=

n

X

j,k,l=1

(a α ) ⁻¹ _ij (ˆ t αβ ) jk (a β ) kl h ⁰ _ρ

(β)l|

Since

h ⁰ _ρ

(α)i|

=

n

X

l=1

(ˆ t ⁰ _αβ ) _il h ⁰ _ρ

(β)l|

we have ˆ t ⁰ _αβ = a ⁻¹ _α t ˆ αβ a β . Hence ˆ t ⁰ is cohomologous to ˆ t in ˇ H ¹ ( V, G n ) and so τ ⁰ = τ in H ¹ (M, G n ). Therefore Θ is well-defined.

(ii) Let θ ∈ H ¹ (M, G n ). θ is represented by a 1-cocycle t ∈ C ¹ ( U, G n ), for some cover U = {U α : α ∈ A} of M . The elements t αβ are the locally constant transition functions of an associated rank n real vector bundle π : E → M . On each π ⁻¹ (U α ) there is a canonical basis e αi , 1 ≤ i ≤ n, of vector fields on U α and on U αβ :=

U α ∩ U β these bases tranform according to e αi|

= P n

j=1 (t αβ ) ij e βj|

. Define a connection ∇ α on U α by ∇ α e αi = 0, for 1 ≤ i ≤ n. Since the t αβ are locally constant, ∇ α = ∇ β when restricted to U αβ . Therefore there exists a flat connection

∇ defined on E whose restriction to U α is ∇ α .

Let t ⁰ ∈ C ¹ ( U ⁰ , G n ) be another representative of θ, where U ⁰ = {U _α ⁰ : α ∈ A ⁰ }. It must be shown that (E, ∇) and (E ⁰ , ∇ ⁰ ), determined respectively by t and t ⁰ , are isomorphic. There exists a common refinement V = {V α : α ∈ B} of U and U ⁰ , V α ⊂ U ρ(α) and V α ⊂ U _ρ ⁰

(α) , such that the respective images ˆ t and ˆ t ⁰ of t and t ⁰ in C ¹ ( V, G n ) are cohomologous: ˆ t ⁰ _αβ = b ⁻¹ _α ˆ t αβ b β , for some b ∈ C ⁰ ( V, G n ). This merely states that ˆ t and ˆ t ⁰ define isomorphic vector bundles ˆ E and ˆ E ⁰ , respectively, over M . Recall that the flat connection ˆ ∇ on ˆ E is determined by requiring the canonical sections ˆ e αi over V α to be parallel, and similarly for ˆ ∇ ⁰ on ˆ E ⁰ . The canonical local sections for ˆ E and ˆ E ⁰ are related by ˆ e _αi = P n

j=1 (b _α ) _ij e ˆ ⁰ _αj . Since the b _α are locally

constant, the connections are equal under the canonical isomorphism of ˆ E and ˆ E ⁰ .

That is, ( ˆ E ⁰ , ˆ ∇ ⁰ ) ∼ = ( ˆ E, ˆ ∇). Furthermore, E is canonically isomorphic to ˆ E. The

canonical local sections of these two bundles are related by ˆ e αi = e _ρ(α)i|

and so

the associated flat connections are equal under the canonical isomorphism of the

two bundles. Hence (E, ∇) ∼ = ( ˆ E, ˆ ∇) and similarly (E ⁰ , ∇ ⁰ ) ∼ = ( ˆ E ⁰ , ˆ ∇ ⁰ ). Therefore,

(E ⁰ , ∇ ⁰ ) ∼ = (E, ∇) and so Ψ : H ¹ (M, G n ) → E n is well-defined.

(iii) and (iv) follow directly from the definitions of Θ and Ψ given above.

q.e.d.

Corollary 7. The set of isomorphism classes E n is naturally bijective with H ¹ (M, G n ).

Proposition 8. Let ∇ be a flat connection on the vector bundle E and let ξ denote the isomorphism class of (E, ∇). There exists a frame of parallel sections of E if and only if Θ(ξ) = 1.

Proof:

=⇒ Suppose that (s 1 , ..., s n ) is a frame of parallel sections of E. With respect to any open cover U = {U α : α ∈ A} of M , the transition functions of s αi := s i|

on non-empty intersections U _αβ := U _α ∩ U β is given by the identity matrix: s _αi|

Uαβ

= P n

j=1 (1 _αβ ) _ij s _βj|

Uαβ

, for 1 ≤ i ≤ n. Therefore Θ(ξ) = 1.

⇐= Suppose that Θ(ξ) = 1. Then there exists an open cover U = {U α : α ∈ A}

of M along with local parallel sections s _αi on U _α such that the transition func- tions are given by the identity matrix. That is, on non-empty intersections U αβ , s _αi|

= s _βi|

. Therefore there exists a parallel frame (s 1 , ..., s n ) such that s i|

= s αi , 1 ≤ i ≤ n.

q.e.d.

Note that triviality of the vector bundle E does not imply that Θ(ξ) = 1; E must satisfy the stronger requirement of possessing a parallel frame. This is illustrated in the following example.

Example 2 Consider the trivial line bundle E := S ¹ × < over M = S ¹ with the obvious projection. Coordinates on E are given by (φ, x) where 0 ≤ φ < 2π and x ∈ <. X 1 := (φ, 1) defines a frame. Define the flat connection on E by

∇

∂φ

X 1 = X 1

and denote the isomorphism class of (E, ∇) by ξ ∈ E 1 . X(φ) := e ^−φ X ₁ is a non- vanishing parallel section but does not extend over the entire manifold M . E does not admit a parallel frame and so by Proposition 8, Θ(ξ) 6= 1 in H ¹ (M, G 1 ).

Corollary 9. H ¹ (M, G n ) = {1}, for any simply-connected manifold M . Proof:

Let θ ∈ H ¹ (M, G n ) and choose a representative (E, ∇) of Ψ(θ). Since ∇ is a flat connection on E and M is simply-connected, there exists a frame of parallel sections s i : M → E obtained by parallel transport. By Proposition 6 (iii) and Proposition 8, θ = 1.

q.e.d.

5. The global problem: rank f W = n

Using the relationship between flat vector bundles and cohomology developed in

the previous section we now proceed to characterize the regular connections that

are globally metric.

Lemma 10. Let V be a finite-dimensional vector space of symmetric, bilinear forms defined on some linear space. If V contains a positive-definite bilinear form then there exists a basis for V comprised of positive-definite bilinear forms.

Proof:

Let e be a positive-definite bilinear form in V . Extend to a basis (e ₁ , ..., e _n ) of V , where e ₁ := e. For a sufficiently small  > 0, b _i := e + e _i , for 2 ≤ i ≤ n, is positive-definite. Set b ₁ := e = e ₁ . Then (b ₁ , ..., b _n ) is a basis of V comprised of positive-definite bilinear forms.

q.e.d.

Consider the natural embedding of groups ι : GL(m, <) → GL(n, <) given by ι(A) :=

 I (n−m)×(n−m) 0

0 A m×m

 ,

for 0 ≤ m ≤ n. This induces an embedding of sheaves ι : G m → G n . A 1-cocycle a ∈ C ¹ ( U, G m ) is sent to a 1-cocycle ι(a) ∈ C ¹ ( U, G n ), which determines an element [ι(a)] ∈ H ¹ (M, G n ). If two cocycles, a 1 ∈ C ¹ ( U 1 , G m ) and a 2 ∈ C ¹ ( U 2 , G m ), are co- homologous in H ¹ (M, G m ) then [ι(a 1 )] = [ι(a 2 )] in H ¹ (M, G n ). Therefore ι defines a map ˆ ι : H ¹ (M, G m ) → H ¹ (M, G n ). ˆ ι is not necessarily injective since cocycles that are not cohomologous in H ¹ (M, G m ) may be cohomologous in H ¹ (M, G n ). Let H _m ¹ denote the image of H ¹ (M, G m ) under ˆ ι. We have a sequence of subsets

{1} = H ₀ ¹ ⊆ H ₁ ¹ ⊆ · · · ⊆ H _n−1 ¹ ⊆ H _n ¹ = H ¹ (M, G n )

Define the rank of an element σ ∈ H ¹ (M, G n ) to be n − m, where m is the least non-negative integer for which σ ∈ H _m ¹ . For instance, rank 1 = n. This appellation will be justified below.

Now specify W to be the vector bundle of symmetric elements of T ^∗ M ⊗ T ^∗ M over M and let ∇ be a connection on M that is regular with respect to W . Denote the isomorphism class of (f W , ∇) by ξ ∈ E n and set τ := Θ(ξ). Let W _S be the trivial subbundle of f W generated by the global parallel sections of W and define W _M to be the trivial subbundle of W _S generated by the global parallel metrics on M . The subbundles have the following inclusions:

W _M ⊆ W _S ⊆ f W ⊆ W Lemma 11. If ∇ is a metric connection then W M = W S .

Proof:

Let s ₁ , ..., s _m be a basis for the space of global parallel sections of W where s ₁ is a parallel metric. Fix any x ∈ M and define V to be the vector space spanned by {s ₁ (x), ..., s _m (x)}. s ₁ (x) is a positive-definite bilinear form, so by Lemma 10, there exists a basis (b ₁ , ..., b _m ) of V consisting of positive-definite bilinear forms. It follows that there exist m linearly independent parallel sections (g 1 , ..., g m ) of W satisfying g i (x) = b i , for 1 ≤ i ≤ m. Since the b i are positive-definite, the g i are parallel metrics. Therefore rank W M ≥ m = rank W S . But W M is a subbundle of W S and so W M = W S .

q.e.d.

Lemma 12. rank τ ≥ rank W _M .

Proof:

If rank W M = 0 then the lemma holds trivially. Therefore suppose rank W M = m > 0; there exist m linearly independent parallel metrics s i on M , 1 ≤ i ≤ m.

Let s be any parallel metric on M , say s = s 1 . Define a smooth inner product <, >

on the fibres of f W by

< h, h ⁰ >:= X

µ,ν,κ,λ

h µν h ⁰ _κλ s ^µκ s ^νλ

for h, h ⁰ ∈ f W x and x ∈ M . Let f W 1 be the rank m subbundle of f W generated by the s i and let f W 2 be the subbundle perpendicular to f W 1 with respect to the inner product. f W is the direct sum of the two subbundles: f W = f W ₁ ⊕ f W ₂ .

We claim that f W 1 and f W 2 are invariant with respect to parallel transport. This is clear for f W ₁ since it is generated by global parallel metrics. Consider the parallel transport h along a curve γ : [0, 1] → M of an element h(γ(0)) ∈ f W 2 . At γ(0),

< s _i , h >:= X

µ,ν,κ,λ

(s _i ) _µν h _κλ s ^µκ s ^νλ

equals zero, by definition of f W 2 , for each 1 ≤ i ≤ m. The covariant derivative of the right hand side of the equation with respect to γ _∗ (∂/∂u) at γ(u) vanishes because each of the four contracted tensors is parallel along γ. Therefore the left hand side is a constant along γ and must be identically equal to zero. This means that h(γ(1)) is an element of f W 2 , establishing the claim.

For y ∈ M let (e _y1 , ..., e _yn ) be a basis of f W _y where e _yi = s _i (y) ∈ f W ₁ for 1 ≤ i ≤ m and e yi ∈ f W 2 for m + 1 ≤ i ≤ n. There exists an open neighbourhood U y of y and a basis of parallel sections h yi of ˜ π ⁻¹ (U y ) such that h yi (y) = e yi for 1 ≤ i ≤ n.

It follows that h yi = s _i|

for 1 ≤ i ≤ m, and since f W 2 is invariant under parallel transport, h _yi : U _y → f W ₂ for m + 1 ≤ i ≤ n. Consider two open neighbourhoods U _y and U _z in U := {U x : x ∈ M } with non-empty intersection U _yz := U _y ∩ U _z . The element t ∈ C ¹ ( U, G n ) describing the change of basis h _yi|

Uyz

= P n

j=1 (t _yz ) _ij h _zj|

Uyz

has the form t = ι(a) for some a ∈ C ¹ ( U, G n−m ):

t yz =

 1 yz 0 0 a yz



Therefore τ = [t] ∈ H _n−m ¹ and so rank τ ≥ m = rank W M . q.e.d.

Let rank τ = m. Then we can find an open cover U = {U α : α ∈ A} of M and associated basis (h _α1 , ..., h _αn ) of parallel sections on U _α such that the transforma- tion of the bases over the non-empty intersection U _αβ := U _α ∩ U β of two open sets in U,

h _αi|

=

n

X

j=1

(t αβ ) ij h _βj|

is given by t = ι(a) for some a ∈ C ¹ ( U, G n−m ). Therefore, restricted to U _αβ , h _αi|

Uαβ

= h _βi|

Uαβ

for all 1 ≤ i ≤ m. It follows that there exist m independent

global parallel sections s 1 , ..., s m whose restriction to U α is s _i|

= h αi . This demonstrates the following lemma.

Lemma 13. rank W S ≥ rank τ .

The theorem below relates the number of independent parallel metrics of a reg- ular metric connection ∇ to the associated cohomology.

Theorem 14. If ∇ is a regular metric connection then rank W _M = rank W _S = rank τ .

Proof:

From Lemmas 11, 12 and 13, rank W M = rank W S ≥ rank τ ≥ rank W M . q.e.d.

Let W ∇ denote the trivial subbundle of W S generated by the h αi for 1 ≤ i ≤ m and α ∈ A.

Proposition 15. W _∇ is well-defined.

Proof:

Suppose that τ is represented by another element t ⁰ = ι(a ⁰ ), where a ⁰ ∈ C ¹ ( U ⁰ , G n−m ), with respect to an open cover U ⁰ of M . Let s ⁰ ₁ , ..., s ⁰ _m be the associated independent global parallel sections. We must show that the bundle generated by the s ⁰ _i equals the bundle generated by the s i . Assume otherwise. Then there is a global parallel section s 0 := s ⁰ _l which is not in the span of the s i . Consider an open set U α in U. Re- call that {s _1|

, ..., s _m|

, h αm+1 , ..., h αn } is a basis for the space of parallel sections on U _α . However, the set of parallel sections {s _0|

Uα

, s _1|

Uα

, ..., s _m|

Uα

, h _αm+1 , ..., h _αn } on U α is linearly dependent, consisting of n + 1 elements. Moreover, for some k ∈ {m + 1, ..., n}, h αk can be written as a linear combination of the other elements in the set:

h _αk =

m

X

i=0

c _i s _i|

Uα

+

k−1

X

i=m+1

c _i h _αi +

n

X

i=k+1

c _i h _αi Therefore

(¯ h α1 , ..., ¯ h αn ) := (s 0|

, ..., s m|

, h αm+1 , ..., h αk−1 , h αk+1 , ..., h αn )

is a basis of local parallel sections on U _α . The transformation of these bases over the non-empty intersection U _αβ := U _α ∩ U _β of two open sets in U,

¯ h _αi|

Uαβ

=

n

X

j=1

(¯ t _αβ ) _ij ¯ h _βj|

Uαβ

is given by ¯ t = ι(¯ a) for some ¯ a ∈ C ¹ ( U, G n−m−1 ). This contradicts the stated rank of τ .

q.e.d.

Proposition 16. If ∇ is a metric connection then W _∇ = W S = W M . Proof:

Suppose ∇ is a metric connection. By Theorem 14, rank W S = m. But W ∇ is a

rank m subbundle of W _S and so W _∇ = W _S , which equals W _M by Lemma 11.

q.e.d.

We may now determine when a regular connection is a metric connection.

Theorem 17. Let ∇ be a regular connection on M . Then ∇ is a metric connection if and only if W ∇ contains a positive-definite bilinear form.

Proof:

=⇒ Suppose that ∇ is a metric connection. By Proposition 16, W _∇ = W _M . Let g be any parallel metric. Then for any x ∈ M , g(x) ∈ W _M is a positive-definite bilinear form in W _∇ .

⇐= Suppose that W _∇ contains a positive-definite bilinear form e, lying in the fibre of W _∇ over x ∈ M , say. Then there exist constants c i such that e = c 1 s 1 (x) + · · · + c m s m (x). s := c 1 s 1 + · · · + c m s m is a parallel metric.

q.e.d.

It is worthwhile comparing Theorem 17 and Corollary 4. W _∇ plays the analogous role, in the global context, to f W _x in the local problem. In both cases, metricity of the connection is determined by the existence of a positive-definite bilinear form in the relevent space. There is a fundamental distinction, however: f W x is obtained by algebraic solution to homogeneous linear systems, whereas W _∇ , on the other hand, must be found by integration of differential equations.

Example 3 Consider the symmetric connection ∇ on the punctured plane M =

< ² − {(0, 0)}, given by Γ ^r _θθ = −k ² r, Γ ^θ _rθ = Γ ^θ _θr = ¹ _r and all other Christoffel symbols equal to zero. 0 < r < ∞ is the radial distance, 0 ≤ θ < 2π is the planar angle and k is a non-half-integer constant. ∇ is flat and so f W = W ⁽⁰⁾ is a rank three vector bundle over M spanned by

X 1 = dr ⊗ dr X 2 = dθ ⊗ dθ

X 3 = dr ⊗ dθ + dθ ⊗ dr

A section h = f 1 X 1 + f 2 X 2 + f 3 X 3 of f W is parallel if ∇h = 0, which is equivalent to a system of six partial differential equations in the three unknown functions f 1 , f 2 , and f 3 . These are readily integrated to yield three independent local parallel sections:

h 1 = X 1 + k ² r ² X 2

h 2 = k ⁻¹ sin(2kθ)X 1 − kr ² sin(2kθ)X 2 + rcos(2kθ)X 3

h 3 = k ⁻¹ cos(2kθ)X 1 − kr ² cos(2kθ)X 2 − rsin(2kθ)X 3

No non-zero linear combination of h ₂ and h ₃ can be extended over all of M . Therefore ∇ has exactly one global parallel metric h 1 , up to constant multiples.

W _∇ = W S = W M is generated by h 1 and rank τ = rank W M = 1.

From the perspective of cohomology, let U 1 := < ² − {(x, 0) : x ≥ 0} and U 2 :=

< ² − {(x, 0) : x ≤ 0} define an open cover U of M. U 1,2 := U 1 ∩ U 2 = H ⁺ ∪ H ⁻ where H ⁺ (resp. H ⁻ ) is the upper (resp. lower) half plane. Define parallel sections on U 1 and U 2 by

h 1i (r, θ) := h _i|

(r, θ) 0 < θ < 2π

h 2i (r, θ ⁰ ) := h _i|

(r, θ ⁰ ) π < θ ⁰ < 3π

for 1 ≤ i ≤ 3, where 0 < θ < 2π and π < θ ⁰ < 3π are coordinates on U 1 and U 2 , respectively. The transition between the h 1i and h 2j on U 1,2 is given by h _1i|

= P 3

j=1 (t 12 ) ij h 2j|

for t ∈ C ¹ ( U, G 3 ) defined by t _12|

H−

:= I 3×3

t _12|

H+

:=





1 0 0

0 cos(4kπ) −sin(4kπ) 0 sin(4kπ) cos(4kπ)





The image of t in H ¹ (M, G 3 ) defines the cohomology class associated to the con- nection: τ = [t] ∈ H ₂ ¹ ⊆ H ¹ (M, G 3 ).

An example of a flat non-metric connection on the torus may be found in [6], Example 4.2, pg. 211.

6. Analytic versus smooth connections

In this final section we consider the differences between smooth and analytic connections.

Proposition 18. Let ∇ be a regular, locally metric connection on a simply-connected manifold M . Then ∇ is a metric connection. Furthermore, there exist rank f W in- dependent parallel metrics on M .

Proof:

By Corollary 9, τ = 1 and so W _∇ = W S = f W , which contains a positive-definite bilinear form since ∇ is a locally metric connection. By Theorem 17, ∇ is metric and by Lemma 11, rank W _M = rank f W .

q.e.d.

The regularity requirement is superfluous, however, for analytic connections.

Lemma 19. If ∇ is an analytic connection on an analytic manifold M then f W is a vector bundle over M .

Proof:

For every point x ∈ M there exists an open neighbourhood U _x of x and a (possibly empty) basis of local analytic parallel metrics h _xi , 1 ≤ i ≤ N _x , on U _x , which has maximal cardinality; if V is any other open neighbourhood of x and g _i , 1 ≤ i ≤ N a basis of local analytic parallel metrics on V , then N ≤ N _x . Without loss of generality we may assume that the U _x are diffeomorphic to < ⁿ and that the intersection of any two such open neighbourhoods is also diffeomorphic to < ⁿ , since a good refinement of U := {U x : x ∈ M } exists.

Consider two open sets U x and U y in U with non-empty intersection U x ∩ U y . Each h xi extends, by analytic continuation, to an analytic metric h ⁰ _xi on U x ∪ U y . Since ∇ is analytic, so is ∇h ⁰ _xi . Restricted to U x , ∇h ⁰ _xi|

Ux

= 0 and hence, by analyticity, ∇h ⁰ _xi = 0 on all of U _x ∪ U y . Therefore h ⁰ _xi|

Uy

are N _x independent local

parallel metrics on U y . This shows that N x ≤ N y by the maximal cardinality

requirement. By symmetry N _y ≤ N x and so N _x = N _y . Since M is assumed to

be a connected manifold N x is independent of x and equals the dimension of the fibres of f W over M . The fibre bundle structure of f W is supplied by the transition functions between the local bases h _xi .

q.e.d.

Corollary 20. Let ∇ be an analytic locally metric connection on an analytic simply-connected manifold M . Then ∇ is a metric connection. Furthermore, there exist rank f W independent parallel metrics on M .

Analyticity is essential in the above corollary; it is not true for smooth connec- tions as the following example shows.

Example 4 Let

f (x) :=

( a + e

−1

(x−x0)2

x < x 0

a x ≥ x 0

and

h(x) :=

( b x < x 1

b + e

−1

(x−x1)2

x ≥ x 1

where a, b, x ₀ and x ₁ are constants satisfying a, b > 0, a 6= b and x ₀ < x ₁ . Define the smooth connection ∇ on < ² by

Γ ^x _yy :=







− ^f ₂

0

− ^h ₂

x < x ₀ x ₀ ≤ x ≤ x ₁ x > x ₁

Γ ^y _xy = Γ ^y _yx :=



 

 

f

2f

0

h

2h

x < x 0

x 0 ≤ x ≤ x 1

x > x 1

and all other Christoffel symbols equal to zero. ∇ is a locally metric connection:

for x < x ₁ , the parallel metrics are c(dx ² + f (x)dy ² ), and for x > x ₀ , the parallel metrics are c(dx ² + h(x)dy ² ), where c is an arbitrary positive constant. Since a 6= b, elements of these two sets cannot be joined together to give a global parallel metric.

Therefore ∇ is not a metric connection on < ² .

Observe that f W is not a fibre bundle as the dimension of the fibres of f W varies over the manifold: on x ≤ x 0 , dim f W x = 1, on x 0 < x < x 1 , dim f W x = 3 and on x ≥ x ₁ , dim f W _x = 1. This behaviour prevents the formulation of the global existence problem in terms of a sheaf cohomology of groups.

References

[1] R. Atkins, On Parallel Sections of a Vector Bundle. Preprint.

http://arxiv.org/abs/0804.1732

[2] R. Atkins and Z. Ge, An Inverse Problem in the Calculus of Variations and the Characteristic Curves of Connections on SO(3)-Bundles Can. Math. Bull.

(1995)

[3] J.-L. Brylinski, Loop Spaces, Characteristic Classes and Geometric Quantiza-

tion Birkhauser, Boston (1993)

[4] S. B. Edgar, Conditions for a symmetric connection to be a metric connection J. Math. Phys. (33) (1992) 3716

[5] E. Ihrig, The uniqueness of g ij in terms of R ^l _ijk International Journal of The- oretical Physics 14 (1975) 23-35

[6] S. Kobayashi and K. Nomizu, Foundations of Differential Geometry I John Wiley & Sons (1963)

[7] C.B.G. McIntosh and W.D. Halford, Determination of the metric tensor from components of the Riemann tensor J. Phys A: Math. Gen. 14 (1981) 2331-2338 [8] C.B.G. McIntosh and W.D. Halford, The Riemann tensor, the metric ten- sor, and curvature collineations in general relativity Journal of Mathematical Physics 23 (1982) 436-

[9] M. Spivak, Differential Geometry II Publish or Perish (1970,1979)

[10] K. Trencevski, On the Parallel Vector Fields in Vector Bundles Tensor N.S.

60 (1998)

Richard Atkins

Trinity Western University 7600 Glover Road Langley, BC, V2Y 1Y1 CANADA

[email protected]
