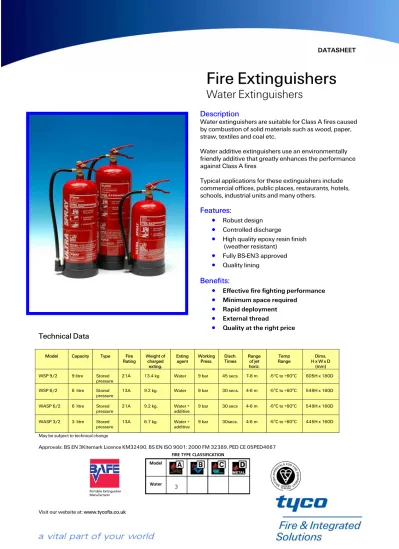

Fire Extinguishers Water Extinguishers

(1)

Technical Data

Model Capacity Type Fire

Rating Weight of charged exting.

Exting

agent Working Press. Disch. Times Range of jet horiz.

Temp

Range H x W x D Dims. (mm) WSP 9/2 9 litre Stored

pressure 21A 13.4 kg Water 9 bar 45 secs. 7-8 m -5

o_{C to +60}o_C _{605H x 180D}

WSP 6/2 6 litre Stored

pressure 13A 9.2 kg. Water 9 bar 30 secs. 4-6 m -5

o_{C to +60}o_C _{549H x 160D}

WASP 6/2 6 litre Stored

pressure 21A 9.2 kg. Water + additive 9 bar 30 secs 4-6 m -5

o_{C to +60}o_C _{549H x 160D}

WASP 3/2 3 litre Stored

pressure 13A 6.7 kg. Water + additive 9 bar 30secs. 4-6 m -5

o_{C to +60}o_C _{445H x 160D}

May be subject to technical change

Approvals: BS EN 3Kitemark Licence KM32490, BS EN ISO 9001: 2000 FM 32389, PED CE 05PED4667

Visit our website at: www.tycofis.co.uk

Description

Water extinguishers are suitable for Class A fires caused by combustion of solid materials such as wood, paper, straw, textiles and coal etc.

Water additive extinguishers use an environmentally friendly additive that greatly enhances the performance against Class A fires

Typical applications for these extinguishers include commercial offices, public places, restaurants, hotels, schools, industrial units and many others.

Features:

•

Robust design

•

Controlled discharge

•

High quality epoxy resin finish

(weather resistant)

•

Fully BS-EN3 approved

•

Quality lining

Benefits:

•

Effective fire fighting performance

•

Minimum space required

•

Rapid deployment

•

External thread

(2)

Technical Data

Model Capacity Type Fire Rating Weight of charged exting.

Working

Press. Disch. Times Range of jet horiz.

Temp

Range H x W x D Dims. (mm) FSP 2/1 2 litre Stored

pressure 8A/55B 3.2 kg. 12 bar 6secs 2 m -5

o_{C to +60}o_C _{430H x 108D}

FSP 3/2 3 litre Stored

pressure 13A/55B 6.1 kg. 9 bar 18 secs 2-4 m -5

o_{C to +60}o_C _{450H x 160D}

o_{C to +60}o_C _{549H x 160D}

o_{C to +60}o_C _{605H x 180D}

Description

Foam spray extinguishers, (AFFF-Aqueous Film Forming Foam), are ideal for multi-risk situations where both Class A combustible materials and Class B flammable liquid risk are likely to be found, or where Class B risks represent a direct hazard. Foam spray extinguishers are especially suitable for Class B fires involving flammable liquids such as oils, spirits, fats and certain plastics.

The blanketing effect of foam spray gives rapid knock down which smothers the flame and prevents re-ignition of flammable vapours by sealing the surface of the solution.

Features:

•

Available in Slimline design

•

Easy to handle

•

Effective spray application

•

Ergonomic design

•

Replaces bulkier 9 litre water extinguishers

•

Higher performance

Benefits:

•

Now available without torque

•

Uses 1% AFFF

•

Reduced service time

•

Reliability

(3)

Technical Data

Model Capacity Fire Rating Weight of

charged exting. Exting agent Disch. Times Range Temp H x W x D Dims. (mm) CD 2/2 2 kg. 34B 5.0 kg. CO2 6 secs. -20oC to +60oC 502H x 118D

CD 2/3 2 kg. 55B 5.0 kg. CO2 6 secs. -20oC to +60oC 502H x 118D

CD 5/2 5 kg. 55B 11.4 kg. CO2 9secs. -20oC to +60oC 677H x 152D

Description

Carbon Dioxide extinguishers are suitable for fires involving flammable liquids and electrical hazards. The non conductive qualities of carbon dioxide make it an ideal choice for dealing with fires involving electrical equipment and machinery. The carbon dioxide used in these extinguishers is a recovered industrial bi-product, thereby reducing the carbon levels that can contribute to the greenhouse effect.

Typical applications can be found in hospitals, supermarkets, hotels and restaurants, paint shops, fast food chains, clothing and fabric industries, industrial units, offices, etc..

Features:

•

Robust design

•

Safe and easy to handle

•

Hose and horn or swivel horn

•

Ergonomic design

•

Lightweight aluminium cylinder or lightweight steel

•

Higher performance

Benefits:

•

Excellent fire ratings

•

Powerful extinguisher

•

Reduced service time

•

High reliability

•

High fire fighting performance

(4)

Technical Data

Model Capacity Type Fire Rating Weight of charged exting. Exting agent (Glutex) Working

Temp

Range H x W x D Dims. (mm) PSP/GP 1/3 1 kg. Stored

pressure 5A/34B 2.1 kg. ABC powder 12 bar 6 secs >4 m -20

o_{C to +60}o_C _{340H x 86D}

PSP/GP 2/3 2 kg. Stored

o_{C to +60}o_C _{415H x 110D}

pressure 21A/113B 6.7 kg. ABC powder 12 bar 9. secs >4 m -20

o_{C to +60}o_C _{445H x 160D}

o_{C to +60}o_C _{549H x 160D}

pressure 55A/183B 13.1 kg. ABC powder 12 bar 15 secs. >6 m -20

o_{C to +60}o_C _{605H x 180D}

Description

Powder Extinguishers are suitable for use on Class A, B and also Class C type fires involving flammable gases such as propane and butane. They are also highly effective for electrical hazards. This multi-purpose extinguisher interferes with the combustion process and provides rapid fire knock down. They are ideal for mixed fire risk environments and especially suited for the protection of flammable liquids, storage of liquid gases and heating oils used for industry, garages and workshops, etc..

Features:

•

Squeeze grip operation

•

Controlled discharge

•

Pressure gauge

•

Compact design

•

Ease of use

Benefits:

•

Easy to service and maintain

•

Unique valve system

•

Covers many types of risk

(5)

Technical Data

Model Capacity Type Fire Rating Weight of charged exting.

Working

Temp

Range H x W x D Dims. (mm) WCSP 6 litre Stored

Pressure 13A/113B 9.5 kg. 9 bar >30 secs. 4-6 m 5

o_{C to 60}o_C _{549H x 160D}

Approvals:, PED CE 05PED4667

Description

These extinguishers have been specifically designed for Class F fire risks involving cooling oils. The wet chemical agent rapidly knocks down the flames, cools burning oil and seals the surface to extinguish the fire and prevent re-ignition.

Features:

•

Long discharge hose with controlled discharge

•

Effective spray application

•

Ergonomic design

•

High performance

Benefits:

•

Minimum space required

•

Rapid deployment

•

Knockdown performance of powder applied like foam
