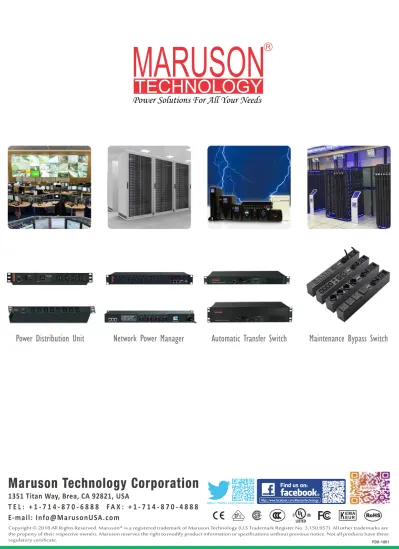

MARUSON TECHNOLOGY.

TECHNOLOGY

MARUSON

https://www.facebook.com/MarusonTechnology

Power Distribution Unit

Network Power Manager

Automatic Transfer Switch

Maintenance Bypass Switch

www.MarusonUSA.com

Maruson Technology Corporation

1351 Titan Way, Brea, CA 92821, USA

T E L : + 1 - 7 1 4 - 8 7 0 - 6 8 8 8 FA X : + 1 - 7 1 4 - 8 7 0 - 4 8 8 8

E-mail: [email protected]

Copyright © 2018 All Rights Reserved. Maruson is a registered trademark of Maruson Technology (U.S Trademark Register No. 3,150,957). All other trademarks are the property of their respective owners. Maruson reserves the right to modify product information or specifications without previous notice. Not all products have these regulatory certificate.

®

https://twitter.com/marusonusa

M

aruson Technology Corporation (MTC) was established in 2003

with ISO 9001:2008 certification and trademark registered in the

U.S.A. (Reg. No. 3,150,957). We design, manufacture, distribute and

service power protection equipment including: uninterruptible power

supply (UPS), automatic voltage regulator (AVR), power distribution

units (PDU), and power inverters, which are employed across various

sectors such as home, office, networking, datacenter, commercial,

industrial, medical, etc. Our headquarters locate in Los Angeles,

California, U.S.A. with additional office and factory in Taiwan and China

to better service our customers globally.

T

he Maruson team applies over 25 years of professionalism and

knowledge in power solution industry to innovate continuously

our product line, offer superior quality products and provide excellent

customer service. Our motto, Power solutions for all your needs, along

with our unique and high quality standards are what our customers know us by.

C

hoosing Maruson can help you find the right product for your applications and market demand. We also show how to maximize

their productivity, provide professional after-sales service, and a variety of marketing programs to our distributors. When you need

clean, reliable, power products for your equipment choose Maruson to fulfill your needs.

COMPANY INTRODUCTION

TECHNOLOGY

gister Online

Cover Page ··· 1

Company Introduction + Index ··· 2

PDU Features Chart ··· 3

Basic PDU Series ··· 4-5

Surge PDU Series ··· 6-7

Metered PDU Series ··· 8-9 Monitored (NPM) PDU Series ··· 10-11 Switched (NPM) PDU Series ··· 12-14

ATS PDU Series ··· 15

MBS PDU Series ··· 16

TABLE OF CONTENTS

Authorized Distributor By:

n li n e U P S Brochure available upon request or at www.MarusonUSA.com

OTHER PRODUCTS AVAILABLE

Line Interactive UPS

Online Single Phase UPS

Online 3 Phase UPS Auto Voltage Regulator Inverter UPS

Online Modular UPS Online Low Frequency UPS

DIN49440 Socket Options IEC320 C13 NBR14136 SR 107-2-D1 IEC320 C19 SEV1011 SR 107-2-D1 NEMA 5-15R NF C61-314 GB2099.3 NEMA 5-20R DIN49440 BS1363 (90)° AS / NZS 3112 INDIA SOCKET ITALY UNIVERSAL N L E N L E L N N L E L N E L N E L N E IEC320 C14

PLUG IEC320 C20 PLUG NEMA 5-15P PLUG NEMA 5-20P PLUG NEMA AS / NZS 3112PLUG

SR 107-2-D1

DK 2-1a PLUG DK 2-5a PLUGSR 107-2-D1 DIN49441 PLUG BS1363 PLUG BS546 PLUG Plug Options

PDU Features Chart

Features Benefits Basic

PDU Surge PDU Metered PDU Monitored NPM Switched NPM ATS PDU MBS PDU

Multiple Power Outlets Provide reliable power distribution from a utility power

source, UPS system to multiple output devices.

・ ・ ・ ・ ・ ・ ・

Surge Protection Built-in a replaceable surge module to protect your _{electrical devices from voltage spikes.}

・

Current & Voltage Meter Can display the data of connected equipment load current

& voltage to prevent overloads and enable load balancing.

・ ・ ・

Monitor PDUs Remotely

Remote monitoring of current, power consumption and system status through network interface and alarm

settings to prevent overloads.

・ ・

Remote Individual Outlet Control

Control outlets individually to remote reboot devices & turning off nonessential devices to extend runtime during

power outages.

・

Auto Transfer Switch

Allow connection with two power sources. When one power source fails, it will automatically switch to the

second power source instantly.

・

Maintain Bypass Switch Provides continuous power to connected equipments

during UPS maintenance.

・

PDU Applications

PDU - Power Distribution Unit is widely used in network enclosure and server rack of data center in fields of

information technology, telecom, electric power, finance and insurance, aviation, transportation, hospital, education,

e-government, etc.

PDU Features

• Patented technology with completely independent intellectual property right

• Modularized structure, requirement customization

• Varied function modular, full scale of output connections

• Various product series, wide application

• Advanced technology; high performance and full functions

• Safety and reliable, excellent quality, energy saving and environment friendly

PDU Models Rule

Series A Name - B PDU Type C Current Capacity D Outlets E Features

Basic / Surge PDU PDU - R--19 Horizontal type 10-- 10 Amp 08-- 8 outlets S- with replaceable MOV (Surge)

Metered PDU MDU - V--0U Veritcal type 15-- 15 Amp 12-- 12 outlets L- 208 VAC input (U.S.A)

Monitored / Switched Network

Power Manager PDU NPM - 16-- 16 Amp 14- 14 outlets H- 400 VAC input (International)

Automatic Transfer Switch (ATS) ATS - 20-- 20 Amp 16- 16 outlets L3- 3 Phase 120 VAC / 208V input (U.S.A)

30-- 30 Amp 20- 20 outlets H3- 3 Phase 230 / 400 VAC input (International)

32-- 32 Amp 24- 24 outlets NC- Outlets On / Off control & basic monitor _function

30- 30 outlets ND- Outlets On / Off control & advance monitor _function

B- Hydraulic Breaker

INTRODUCTION

A

_{Series Name}

B

_{19 or Vertical Type}

C

_{Rating Current}

D

_Outlets

E

_Features

MDU - R 15 12 S

A B C D E

• Example:

• 19 inch rack-mount and 0U vertical type

• Flexible modular structure

• Range from 10 A to 30 A versatile configurations

• Circuit breaker with prompt overload protection response

• Available with UK, IEC, Schuko, Italy, or India type outlets

• RoHS compliant

• IEC C14 plug fastener (optional)

Power Distribution Unit Series

Basic PDUs provide reliable and cost-effective power distribution.

Single & three phase power solutions and diversity of receptacle

choices.

A. Input AC power

B. LED power indicator

C. Circuit breaker

D. Output outlets

E. Bracket mounting hole

Power Distribution Unit Series

Features

Product Structure

BASIC PDU

B A C D B C A D A B C D E A B D E C _{E E}

(1U NEMA socket type)

(1U IEC socket type)

(0U NEMA socket type)

(0U IEC socket type)

(Plug fastener)

Hydraulic Breaker

(PDU-R3010LB)

BASIC PDU SPECIFICATION (120 VAC, 208 VAC, 3P 208 / 120 VAC)

Model Phase Voltage Current Rating Rack Size Plug Type Cable Length Outlet Type Outlets Dimensions (L x W x H) inch

PDU-R1508 Single 120 VAC 15 A 1U NEMA 5-15P 10ft. NEMA 5-15R x 8 8 19 x 2.7 x 1.75

PDU-R1510 Single 120 VAC 15 A 1U NEMA 5-15P 10ft. NEMA 5-15R x 10 10 19 x 2.7 x 1.75

PDU-R1516 Single 120 VAC 15 A 1U NEMA 5-15P 12ft. NEMA 5-15R x 16 16 19 x 4.6 x 1.75

PDU-R2010 Single 120 VAC 20 A 1U NEMA 5-20P 10ft. _{NEMA 5-15 / 20R x 2}NEMA 5-15R x 8 10 19 x 2.7 x 1.75 PDU-R2012L Single 208 VAC 20 A 1U NEMA L6-20P 10ft. IEC-320 C13 x 8 _{IEC-320 C19 x 4} 12 19 x 4.6 x 1.75 PDU-R3010LB

(Hydraulic breaker) Single 208 VAC 30 A 1U NEMA L6-30P 10ft. IEC C13 x 10 10 19 x 4.6 x 1.75

PDU-V1512 Single 120 VAC 15 A 0U NEMA 5-15P 10ft. NEMA 5-15R x 12 12 22 x 2.7 x 1.75

PDU-V2016 Single 120 VAC 20 A 0U NEMA 5-20P 10ft. _{NEMA 5-15 / 20R x 4}NEMA 5-15R x 12 16 28 x 2.7 x 1.75 PDU-V2020 Single 120 VAC 20 A 0U NEMA 5-20P 10ft. _{NEMA 5-15 / 20R x 4}NEMA 5-15R x 16 20 44 x 2.7 x 1.75 PDU-V2024 Single 120 VAC 20 A 0U NEMA 5-20P 10ft. _{NEMA 5-15 / 20R x 4}NEMA 5-15R x 20 24 50 x 2.7 x 1.75

PDU-V3024 Single 120 VAC 30 A 0U NEMA L5-30P 10ft. NEMA 5-15 / 20R x 24 24 72.5 x 2.7 x 1.75

PDU-V2024L Single 208 VAC 20 A 0U NEMA L6-20P 10ft. IEC-320 C13 x 18 _{IEC-320 C19 x 6} 24 72.5 x 2.7 x 1.75 PDU-V3024L Single 208 VAC 30 A 0U NEMA L6-30P 10ft. IEC-320 C13 x 20 _{IEC-320 C19 x 4} 24 72.5 x 2.7 x 1.75 PDU-V3032L Single 208 VAC 30 A 0U NEMA L6-30P 10ft. IEC-320 C13 x 26 _{IEC-320 C19 x 6} 32 72.5 x 2.7 x 1.75 PDU-V2024L3 3 Phase 208 / 120 VAC 20 A 0U NEMA L21-20P 10ft. IEC-320 C13 x 21 _{IEC-320 C19 x 3} 24 72.5 x 2.7 x 1.75 PDUV2030L3 3 Phase 208 / 120 VAC 20 A 0U NEMA L21-20P 3ft. IEC-320 C13 x 24 _{IEC-320 C19 x 6} 30 60 x 2.7 x 1.75

BASIC PDU SPECIFICATION

BASIC PDU SPECIFICATION (230 VAC, 3P 400 / 230 VAC )

Model Phase Voltage Current Rating Rack Size Plug Type Cable Length Outlet Type Outlets Dimensions (L x W x H) inch

PDU-R1008 Single 230 VAC 10 A 1U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 8 8 19 x 2.7 x 1.75

PDU-R1010 Single 230 VAC 10 A 1U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 10 10 19 x 2.7 x 1.75

PDU-R1014 Single 230 VAC 10 A 1U Schuko / U.K. / IEC 12ft. IEC-320 C13 x 14 14 19 x 4.6 x 1.75

PDU-R1016 Single 230 VAC 10 A 1U Schuko / U.K. / IEC 12ft. IEC-320 C13 x 16 16 19 x 4.6 x 1.75

PDU-R1612 Single 230 VAC 16 A 1U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 12 12 19 x 2.7 x 1.75

PDU-R1614 Single 230 VAC 16 A 1U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 8 _{IEC-320 C19 x 6} 14 19 x 4.6 x 1.75 PDU-R1616 Single 230 VAC 16 A 1U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 8 _{IEC-320 C19 x 6} 16 19 x 4.6 x 1.75

PDU-V1014 Single 230 VAC 10 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 14 14 27 x 2.7 x 1.75

PDU-V1016 Single 230 VAC 10 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 16 16 30 x 2.7 x 1.75

PDU-V1616 Single 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 16 16 28 x 2.7 x 1.75 PDU-V1620 Single 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 18 _{IEC-320 C19 x 2} 20 72.5 x 2.7 x 1.75 PDU-V1630 Single 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 24 _{IEC-320 C19 x 6} 30 72.5 x 2.7 x 1.75 PDU-V1624H3 3 Phase 400 / 230 VAC 16 A 0U IEC 309 3P+N+E 10ft. IEC-320 C13 x 18 _{IEC-320 C19 x 6} 24 72.5 x 2.7 x 1.75 PDU-V1630H3 3 Phase 400 / 230 VAC 16 A 0U IEC 309 3P+N+E 10ft. IEC-320 C13 x 24 _{IEC-320 C19 x 6} 30 72.5 x 2.7 x 1.75 PDU-V3236H3 3 Phase 400 / 230 VAC 32 A 0U IEC 309 3P+N+E 10ft. IEC-320 C13 x 30 _{IEC-320 C19 x 6} 36 72.5 x 2.7 x 1.75 A Basic PDU B 19 Rackmount C 20 Amp D 10 Outlets E OU vertical F 30 Amp G 24 outlets H 208 VAC input

• Example:PDU - R 20 10 / PDU - V 30 24 L A B C D A E F G H

A Basic PDU B 19 Rackmount C 10 Amp D 16 Outlets E OU vertical F 16 Amp G 30 outlets H 3 Phase 400 / 230 VAC • Example:PDU - R 10 16 / PDU - V 16 30 H3

10KA / 1800 Joules Replaceable Surge Protector

(1U NEMA socket type)

(1U IEC socket type)

• 19 inch rack-mount and 0U vertical type

• Replaceable 1800 joules surge protection module

• Flexible modular structure

• Range from 10 A to 30 A versatile configurations

• Circuit breaker with prompt overload protection response

• Available with UK, IEC, Schuko, Italy, or India type outlets

• RoHS compliant

Power Distribution Unit Series

Surge PDUs built in an unique removeable surge module to limit

input inrush voltage. Safely supply stable power to multiple

connected devices.

A. Input AC power

B. LED power indicator

C. Circuit breaker

D. Surge module

E. Output outlets

F. Bracket mounting hole

Surge Power Distribution Unit Series

Features

Product Structure

SURGE PDU

B A C D E F B A C D E F A B C D E F A B C D E F

SURGE PDU SPECIFICATION (120 VAC, 208 VAC TYPE)

Model Phase Voltage Current _Rating Rack Size _ProtectionSurge Plug Type Cable Length Outlet Type Outlets _{(L x W x H) inch}Dimensions

PDU-R1508S Single 120 VAC 15 A 1U 1800 Joules NEMA 5-15P 10ft. NEMA 5-15R x 8 8 19 x 2.7 x 1.75

PDU-R1512S Single 120 VAC 15 A 1U 1800 Joules NEMA 5-15P 12ft. NEMA 5-15R x 12 12 19 x 4.6 x 1.75

PDU-R2014S Single 120 VAC 20 A 1U 1800 Joules NEMA 5-20P 12ft. _{NEMA 5-15 / 20R x 6}NEMA 5-15R x 8 14 19 x 4.6 x 1.75

PDU-R2016S Single 120 VAC 20 A 1U 1800 Joules NEMA 5-20P 12ft. NEMA 5-15R x 10

NEMA 5-15 / 20R x 6 16 19 x 4.6 x 1.75

PDU-V1516S Single 120 VAC 15 A 0U 1800 Joules NEMA 5-15P 10ft. NEMA 5-15R x 16 16 29 x 2.7 x 1.75

PDU-V2020S Single 120 VAC 20 A 0U 1800 Joules NEMA 5-20P 10ft. _{NEMA 5-15 / 20R x 4}NEMA 5-15R x 16 20 35 x 2.7 x 1.75

PDU-V3024S Single 120 VAC 30 A 0U 1800 Joules NEMA L5-30P 10ft. NEMA 5-15R x 16

NEMA 5-15 / 20R x 8 24 54 x 2.7 x 1.75

PDU-V2020SL Single 208 VAC 20 A 0U 1800 Joules NEMA L6-20P 10ft. IEC-320 C13 x 16 _{IEC-320 C19 x 4} 20 38 x 2.7 x 1.75

PDU-V3024SL Single 208 VAC 30 A 0U 1800 Joules NEMA L6-30P 10ft. IEC-320 C13 x 20

IEC-320 C19 x 4 24 56 x 2.7 x 1.75

SURGE PDU SPECIFICATION (230 VAC TYPE)

Model Phase Voltage Current

Rating Rack Size

Surge

Protection Plug Type Cable Length Outlet Type Outlets

Dimensions (L x W x H) inch

PDU-R1008S Single 230 VAC 10 A 1U 1800 Joules Schuko / U.K. / IEC 10ft. IEC-320 C13 x8 8 19 x 2.7 x 1.75

PDU-R1012S Single 230 VAC 10 A 1U 1800 Joules Schuko / U.K. / IEC 12ft. IEC-320 C13 x12 12 19 x 4.6 x 1.75

PDU-R1614S Single 230 VAC 16 A 1U 1800 Joules Schuko / U.K. / IEC 12ft. IEC-320 C13 x 10 _{IEC-320 C19 x 4} 14 19 x 4.6 x 1.75

PDU-R1616S Single 230 VAC 16 A 1U 1800 Joules Schuko / U.K. / IEC 12ft. IEC-320 C13 x16 16 19 x 4.6 x 1.75

PDU-V1016S Single 230 VAC 10 A 0U 1800 Joules Schuko / U.K. / IEC 10ft. IEC-320 C13 x16 16 29 x 2.7 x 1.75

PDU-V1620S Single 230 VAC 16 A 0U 1800 Joules Schuko / U.K. / IEC 10ft. IEC-320 C13 x 16

IEC-320 C19 x 4 20 34 x 2.7 x 1.75

PDU-V1628S Single 230 VAC 16 A 0U 1800 Joules Schuko / U.K. / IEC 10ft. IEC-320 C13 x 24 _{IEC-320 C19 x 4} 28 49 x 2.7 x 1.75

PDU-V3230S Single 230 VAC 32 A 0U 1800 Joules IEC 309 2P+E 10ft. IEC-320 C13 x 24

IEC-320 C19 x 6 30 65 x 2.7 x 1.75

SURGE PDU SPECIFICATION

A Surge PDU B 19 Rackmount C 10 Amp D 12 Outlets E Surge module F OU vertical G 16 Amp H 20 outlets

•

Example:

PDU - R 10 12 S / PDU - V 16 20 S

A B C D E A F G H E

A Surge PDU B 19 Rackmount C 15 Amp D 12 Outlets E Surge module F OU vertical G 20 Amp H 20 outlets I 208 VAC input

•

Example:

PDU - R 15 12 S / PDU - V 20 20 S L

• 19 inch rack-mount and 0U vertical type

• Digital LED total ampere & input voltage meter

• Flexible modular structure

• Circuit breaker with prompt overload protection response

• Available with UK, IEC, Schuko, Italy, or India type outlets

• RoHS compliant

• Replaceable 1800 Joules surge protection module (for S model)

Power Distribution Unit Series

Metered PDUs with built-in digital LCD meter to actively monitor on

load current & voltage to enable for load balancing. Overload

alarm notification can prevent overloading connections.

A. Input AC power

B. LED power indicator

C. Circuit breaker

D. Surge module

E. Current / Voltage display meter

F. Output outlets

G. Bracket mounting hole

Metered Power Distribution Unit Series

Features

Product Structure

METERED PDU

(1U NEMA socket type)

(1U IEC socket type)

A B C D E F G A B C D E F G B A C D F G E B A C D F G E Input voltage, total current,

METERED PDU SPECIFICATION (120 VAC, 208 VAC, 3P 208 / 120 VAC)

Model Phase Voltage Current Rating Rack Size Meter Plug Type Cable Length Outlet Type Total Outlets Dimensions (L x W x H) inch

MDU-R2008 Single 120 VAC 20 A 1U

Total Current AC Voltage, Overload

Alarm

NEMA 5-20P 10ft. NEMA 5-15 / 20R x 8 8 19 x 2.7 x 1.75

MDU-R2010L Single 208 VAC 20 A 1U NEMA L6-20P 10ft. IEC C13 x 10 10 19 x 2.7 x 1.75

MDU-R2012L Single 208 VAC 20 A 1U NEMA L6-20P 10ft. IEC-320 C13 x 8

IEC-320 C19 x 4 12 19 x 2.7 x 1.75 MDU-R3010LB

(Hydraulic breaker) Single 208 VAC 30 A 1U NEMA L6-30P 10ft. IEC C13 x 10 10 19 x 2.7 x 1.75

MDU-V3024B

(Hydraulic breaker) Single 120 VAC 30 A 0U NEMA L5-30P 10ft. NEMA 5-15 / 20R x 24 24 72.5 x 2.7 x 1.75

MDU-V2024L Single 208 VAC 20 A 0U NEMA L6-20P 10ft. IEC-320 C13 x 21

IEC-320 C19 x 3 24 72.5 x 2.7 x 1.75 MDU-V3024LB

(Hydraulic breaker) Single 208 VAC 30 A 0U NEMA L6-30P 10ft.

IEC-320 C13 x 20

IEC-320 C19 x 4 24 72.5 x 2.7 x 1.75 MDU-V3030LB

(Hydraulic breaker) Single 208 VAC 30 A 0U NEMA L6-30P 10ft.

IEC-320 C13 x 24

IEC-320 C19 x 6 30 72.5 x 2.7 x 1.75 MDU-V3032LB

(Hydraulic breaker) Single 208 VAC 30 A 0U NEMA L6-30P 10ft.

IEC-320 C13 x 26

IEC-320 C19 x 6 32 72.5 x 2.7 x 1.75

MDU-V2024L3 3 Phase 208 / 120 VAC 20 A 0U NEMA L21-20P 10ft. NEMA 5-15R x 24 24 72.5 x 2.7 x 1.75

MDU-V2024L3 3 Phase 208 / 120 VAC 20 A 0U NEMA L21-20P 10ft. IEC-320 C13 x 21 _{IEC-320 C19 x 3} 24 72.5 x 2.7 x 1.75

METERED PDU SPECIFICATION (230 VAC, 3P 400 / 230 VAC)

Model Phase Voltage Current Rating Rack Size Meter Display Surge Protection Plug Type Cable Length Outlet Type Dimensions (L x W x H) inch

MDU-R1012S Single 230 VAC 10 A 1U

Total Load Current, AC Voltage, Overload

Alarm

1800 Joules Schuko / U.K. / IEC 12ft. IEC-320 C13 x 12 19 x 5.0 x 1.75 MDU-R1014S Single 230 VAC 10 A 1U 1800 Joules Schuko / U.K. / IEC 12ft. IEC-320 C13 x 14 19 x 5.0 x 1.75

MDU-R1612 Single 230 VAC 16 A 1U N / A Schuko / U.K. / IEC 10ft. IEC-320 C13 x 8

IEC-320 C19 x 4 19 x 2.7 x 1.75 MDU-V1014S Single 230 VAC 10 A 0U 1800 Joules Schuko / U.K. / IEC 10ft. IEC-320 C13 x 14 35 x 2.7 x 1.75 MDU-V1616S Single 230 VAC 16 A 0U 1800 Joules Schuko / U.K. / IEC 10ft. IEC-320 C13 x 12 _{IEC-320 C19 x 4} 35 x 2.7 x 1.75 MDU-V1620 Single 230 VAC 16 A 0U N / A Schuko / U.K. / IEC 10ft. IEC-320 C13 x 18 _{IEC-320 C19 x 2} 72.5 x 2.7 x 1.75 MDU-V1630 Single 230 VAC 16 A 0U N / A Schuko / U.K. / IEC 10ft. IEC-320 C13 x 24 _{IEC-320 C19 x 6} 72.5 x 2.7 x 1.75 MDU-V3224S Single 230 VAC 32 A 0U 1800 Joules Schuko / U.K. / IEC 10ft. IEC-320 C13 x 20 _{IEC-320 C19 x 4} 59 x 2.7 x 1.75 MDU-V1624H3 3 Phase 400 / 230 VAC 16 A 0U N / A Schuko / U.K. / IEC 10ft. IEC-320 C13 x 18 _{IEC-320 C19 x 6} 72.5 x 2.7 x 1.75 MDU-V1630H3 3 Phase 400 / 230 VAC 16 A 0U N / A Schuko / U.K. / IEC 10ft. IEC-320 C13 x 24 _{IEC-320 C19 x 6} 72.5 x 2.7 x 1.75 MDU-V3236H3 3 Phase 400 / 230 VAC 32 A 0U N / A Schuko / U.K. / IEC 10ft. IEC-320 C13 x 30 _{IEC-320 C19 x 6} 72.5 x 2.7 x 1.75

METERED PDU SPECIFICATION

A Metered PDU B 19 Rackmount C 10 Amp D 14 Outlets E Surge module F OU vertical G 16 Amp H 24 outlets I 3 Phase 400 / 230 VAC

•

Example:

MDU - R 10 14 S / MDU - V 16 24 H3

A B C D E A F G H I

A Metered PDU B 19 Rackmount C 30 Amp D 10 Outlets E 208 VAC input F Hydraulic breaker G OU vertical H 20 Amp I 24 outlets J 3 Phase 208 / 120 VAC

•

Example:

MDU - R 30 10 L B / MDU - V 20 24 L3

Power Distribution Unit Series

Monitored PDUs provide reliable power distribution with remote management & environmental monitoring.

Monitored Network Power Manager PDU Series

Features

MONITORED (NPM) PDU

Remotely monitor

• Input voltage

• Individual outlet current

• Total and individual outlet power consumption (KWh)

• Total and individual outlet power (KW)

• Total current

• Power factor

• Temperature & humidity

• System operating status

Communication management through

• Web

• Telnet

• SNMP (V1 / V2 / V3)

• SSH

• Supports Wi-Fi access technology

• Graphic display of operation data

• Original state of each outlet does not change

when reset

• Daisy-chain up to 4 NPM units

• System alarm when limiting range is exceeded

• Embedded controlling software system for

multi-user operation and support software update

Alarm function settings

• Limit range of total and individual load current

• Limit range of temperature and humidity

• Alarm port output signal level

19 inch rack-mount and 0U vertical style NPM PDU

Monitored Network Power Manager PDU Series

Smog Sensor Temperature

Humidity Sensor Door Sensor Water Logging

Sensor

Sensor Optional Items

NPM-R1508M (Front)

1 3 4 5 6 10 9 8 7 11

NPM-R1508M (Rear)

13 15 14 2 12 1. Mounting holes 2. Outlets 3. IN: for daisy-chain 4. OUT: for daisy-chain 5. SER: serial port 6. NET port 7. WIFI port

8. DOWN: selection button 9. UP: selection button 10. Reset button

11. LCD display (total Amp / AC voltage / IP address) 12. Power input cable

13. T / H 1: temperature & humidity sensor port 1 14. T / H 2: temperature & humidity sensor port 2 15. Circuit breaker

MONITORED PDU SPECIFICATION

MONITORED (NPM) PDU SPECIFICATION (230 VAC, 3P 400 / 230 VAC)

Model Phase Voltage Current Rating Rack Size Indicators Communication Plug Type Cable Length Outlet Type Total Outlets Dimensions (L x W x H) inch

NPM-R1008M Single 230 VAC 10 A 1U

Input voltage, total load current,

each outlet load current, total power KW, each outlet power KW, total consumption KWh, each outlet KWh power factor, temp. & Humidity

Temp. & Humidity port x 2, network port, Wi-Fi port, daisy-chain port

Schuko / U.K. / IEC 12ft. IEC-320 C13 x 8 8 19 x 8.5 x 1.75

NPM-R1012M Single 230 VAC 10 A 1U Schuko / U.K. / IEC 12ft. IEC-320 C13 x 12 12 19 x 8.5 x 1.75

NPM-R1608M Single 230 VAC 16 A 1U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 8 8 19 x 8.5 x 1.75

NPM-V1016M Single 230 VAC 10 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 16 16 55 x 2.6 x 1.75

NPM-V1624M Single 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 21 _{IEC-320 C19 x 3} 24 72.8 x 2.05 x 2.2 NPM-V1628M Single 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 24 _{IEC-320 C19 x 4} 28 67 x 3.5 x 1.75

MONITORED (NPM) PDU SPECIFICATION (120 VAC, 208 VAC, 3P 208 / 120 VAC)

Model Phase Voltage Current Rating Rack Size Indicators Communication Plug Type Cable Length Outlet Type Total Outlets Dimensions (L x W x H) inch

NPM-R1508M Single 120 VAC 15 A 1U Input Voltage, Total Load Current, Each Outlet Load Current, Total Power KW, Each Outlet Power KW, Total Consumption KWh, Each Outlet KWh Power Factor, Temp. & Humidity

Temp. & Humidity Port x 2, Network Port, Wi-Fi Port, Daisy-chain Port

NEMA 5-15P 10ft. NEMA 5-15R x 8 8 19 x 8.5 x 1.75

NPM-R2008M Single 120 VAC 20 A 1U NEMA L5-20P 10ft. NEMA 5-15 / 20R x 8 8 19 x 8.5 x 1.75

NPM-V1524M Single 120 VAC 15 A 0U NEMA L5-15P 10ft. NEMA 5-15R x 24 24 72.8 x 2.05 x 2.2

NPM-V3024MB

(Hydraulic breaker) Single 120 VAC 30 A 0U NEMA L5-30P 10ft. NEMA 5-20R x 24 24 72.8 x 2.05 x 2.2

NPM-V2024ML Single 208 VAC 20 A 0U NEMA L6-20P 10ft. IEC-320 C13 x 21 _{IEC-320 C19 x 3} 24 72.8 x 2.05 x 2.2 NPM-V3024MLB

(Hydraulic breaker) Single 208 VAC 30 A 0U NEMA L6-30P 10ft.

IEC-320 C13 x 18

IEC-320 C19 x 6 24 72.8 x 2.05 x 2.2

NPM-V2024ML3 3P 208 / 120 VAC 20 A 0U NEMA L21-20P 10ft. NEMA 5-20R x 24 24 72.8 x 3.29 x 2.2

NPM-V3024ML3B

(Hydraulic breaker) 3P 208 / 120 VAC 30 A 0U NEMA L21-30P 10ft. NEMA 5-15R x 24 24 72.8 x 3.29 x 2.2 NPM-V2024ML3 3P 208 / 120 VAC 20 A 0U NEMA L21-20P 10ft. IEC-320 C13 x 21 _{IEC-320 C19 x 3} 24 72.8 x 3.29 x 2.2

A Monitored PDU B 19 Rackmount C 10 Amp D 12 Outlets E Monitoring function F OU vertical G 16 Amp H 28 outlets

•

Example:

NPM - R 10 12 M / NPM - V 16 28 M

A B C D E A F G H E

A Monitored PDU B 19 Rackmount C 15 Amp D 8 Outlets E Monitoring function F OU vertical G 30 Amp H 24 outlets I 208 VAC J Hydraulic breaker

•

Example:

NPM - R 15 08 M / NPM - V 30 24 M L B

Power Distribution Unit Series

Available to remotely control individual outlets to power cycle outlets, power monitoring of voltage, current and power

consumption.

Switched Network Power Manager PDU Series

Features

SWITCHED (NPM) PDU

Remotely monitor

• Input voltage

• Total and individual outlet current

• Total and individual outlet power consumption (KWh)

• Temperature & humidity

• System operating status

• Power factor

Remotely control:

• Power on / off individual outlet

• Set threshold of total load current

• Set the threshold of individual load current

• Set the delay of outlet sequential switching

Alarm function setting:

• Limit range of total and individual load current

• Limit range of temperature and humidity

• Alarm port output signal level

• Supports Wi-Fi access technology

• Graphic display of operation data

• Original state of each outlet does not change when reset

• Daisy-chain up to four (4) NPM units

System alarm when limiting range is exceeded.

Embedded controlling software system for multi-user.

Operation and support software update.

Communication management through:

• Web

• Telnet

• SNMP (V1 / V2 / V3)

• SSH

Alarm sensors:

• Water logging sensor

• Smoke sensor

• Temperature / humidity sensor

• Door sensor

19 inch rack-mount and 0U vertical style NPM PDU

Switched Network Power Manager PDU Series

SWITCHED PDU SPECIFICATION

Smog Sensor Temperature

Humidity Sensor

Door Sensor Water Logging

Sensor

Sensor Optional Items

1 3 4 5 6 10 9 8 7 11

NPM-R1508ND (Rear)

13 15 14 2 12

NPM-R1508ND (Font)

1. Mounting hole 2. Outlets 3. IN: for daisy-chain 4. OUT: for daisy-chain 5. SER: serial port 6. NET port 7. WIFI port

8. DOWN: selection button 9. UP: selection button 10. Reset button

11. LCD display (total Amp / AC voltage / IP address) 12. Outlets ON/OFF status LED indicator

13. T / H 1: temperature & humidity sensor port 1 14. T / H 2: temperature & humidity sensor port 2 15. Circuit breaker

16. Power input cable

16 10 9 8 12 13 14 15 16 7 3 5 6 11 4 1. Mounting holes 2. Outlets 3. IN: for daisy-chain 4. OUT: for daisy-chain 5. SER: serial port 6. NET port 7. WIFI port

8. DOWN: selection button 9. UP: selection button 10. ENTER: selection button

11. Reset button

12. Outlets ON / OFF status LED indicator 13. T / H 1: temperature & humidity sensor port 1 14. T / H 2: temperature & humidity sensor port 2 15. SENOR: logic port

16. LCD display (total Amp / AC voltage / IP address) 17. Outlets ON / OFF status LED indicator 18. Hydraulic circuit breeaker

19. Power input cable

A. 19 Rackmount

B. 0U Vertical

17 18 19 1 2

SWITCHED PDU SPECIFICATION

SWITCHED (NPM) PDU SPECIFICATION (230 VAC, 3P 400 / 230 VAC)

Model Phase Voltage Current Rating Rack Size Indicators Communication Switch Plug Type Cable Length Outlet Type Outlets Dimensions (L x W x H) inch NPM-R1008NC Single 230 VAC 10 A 1U Input Voltage, Total Load Current, Temp. & Humidity Temp. & Humidity Port x 1, Network Port On / Off each outlet

Schuko / U.K. / IEC 10ft. IEC-320 C13 x 8 8 19 x 5.5 x 1.75

NPM-R1608NC Single 230 VAC 16 A 1U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 8 8 19 x 8.5 x 1.75

NPM-V1016NC Single 230 VAC 10 A 0U Schuko / U.K. / IEC 12ft. IEC-320 C13 x 16 16 19 x 5.5 x 1.75

NPM-V1624NC Single 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 21 _{IEC-320 C19 x 3} 24 72.8 x 2.05 x 2.2 NPM-V1624NCH3B

(Hydraulic breaker) 3 Phase 400 / 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft.

IEC-320 C13 x 21

IEC-320 C19 x 3 24 72.8 x 2.05 x 2.2 NPM-R1008ND Single 230 VAC 10 A 1U Input Voltage, Total

Load Current, Each Outlet Load Current, Total Power KW, Each Outlet Power KW, Total Consumption KWh, Each Outlet KWh Power Factor, Temp. & Humidity

Temp. & Humidity Port x 2, Network Port, Wi-Fi Port, Daisy-Chain Port

On / Off each outlet

Schuko / U.K. / IEC 12ft. IEC-320 C13 x 8 8 19 x 8.5 x 1.75

NPM-R1012ND Single 230 VAC 10 A 1U Schuko / U.K. / IEC 12ft. IEC-320 C13 x12 12 19 x 8.5 x 1.75

NPM-R1608ND Single 230 VAC 16 A 1U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 8 8 19 x 8.5 x 1.75

NPM-V1016ND Single 230 VAC 10 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 16 16 55.8 x 2.6 x 1.75

NPM-V1624ND Single 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft. IEC-320 C13 x 21 _{IEC-320 C19 x 3} 24 72.8 x 2.05 x 2.2 NPM-V1624NDH3B

(Hydraulic breaker) 3 Phase 400 / 230 VAC 16 A 0U Schuko / U.K. / IEC 10ft.

IEC-320 C13 x 21

IEC-320 C19 x 3 24 72.8 x 2.05 x 2.2

SWITCHED (NPM) PDU SPECIFICATION (120 VAC, 208 VAC, 3P 208 / 120 VAC)

Model Phase Voltage Current Rating Rack Size Indicators Communication Switch Plug Type Cable Length Outlet Type Total Outlets Dimensions (L x W x H) inch NPM-R1508NC Single 120 VAC 15 A 1U Input Voltage, Total Load Current, Temp. & Humidity Temp. & Humidity Port x 1, Network Port On / Off each outlet NEMA 5-15P 10ft. NEMA 5-15R x 8 8 19 x 8.5 x 1.75

NPM-R2008NC Single 120 VAC 20 A 1U NEMA L5-20P 10ft. NEMA 5-20R x 8 8 19 x 8.5 x 1.75

NPM-V1524NC Single 120 VAC 15 A 0U NEMA L5-15P 10ft. NEMA 5-15R x 24 24 72.8 x 2.05 x 2.2

NPM-V3024NCB

(Hydraulic breaker) Single 120 VAC 30 A 0U NEMA L5-30P 10ft. NEMA 5-20R x 24 24 72.8 x 2.05 x 2.2

NPM-V2024NCL Single 208 VAC 20 A 0U NEMA L6-20P 10ft. IEC-320 C13 x 21

IEC-320 C19 x 3 24 72.8 x 2.05 x 2.2 NPM-V3024NCLB

(Hydraulic breaker) Single 208 VAC 30 A 0U NEMA L6-30P 10ft.

IEC-320 C13 x 18

IEC-320 C19 x 6 24 72.8 x 2.05 x 2.2 NPM-V3024NCL3B

(Hydraulic breaker) 3P 208 / 120 VAC 30 A 0U NEMA L21-30P 10ft. NEMA 5-15R x 24 24 72.8 x 3.29 x 2.2

NPM-V2024NCL3 3P 208 / 120 VAC 20 A 0U NEMA L21-20P 10ft. IEC-320 C13 x 21

IEC-320 C19 x 3 24 72.8 x 3.29 x 2.2 NPM-R1508ND Single 120 VAC 15 A 1U Input Voltage, Total Load Current, Each Outlet Load Current, Total Power KW, Each Outlet power KW, Total Consumption KWh, Each Outlet KWh, Power Factor, Temp. & Humidity Temp. & Humidity Port x 2, Network Port, Wi-Fi Port, Daisy-Chain Port

On / Off each outlet

NEMA 5-15P 10ft. NEMA 5-15R x 8 8 19 x 8.5 x 1.75

NPM-R2008ND Single 120 VAC 20 A 1U NEMA L5-20P 10ft. NEMA 5-15 / 20R x 8 8 19 x 8.5 x 1.75

NPM-V1524ND Single 120 VAC 15 A 0U NEMA L5-15P 10ft. NEMA 5-15R x 24 24 72.8 x 2.05 x 2.2

NPM-V3024NDB

(Hydraulic breaker) Single 120 VAC 30 A 0U NEMA L5-30P 10ft. NEMA 5-20R x 24 24 72.8 x 2.05 x 2.2

NPM-V2024NDL Single 208 VAC 20 A 0U NEMA L6-20P 10ft. IEC-320 C13 x 21

IEC-320 C19 x 3 24 72.8 x 2.05 x 2.2 NPM-V3024NDLB

(Hydraulic breaker) Single 208 VAC 30 A 0U NEMA L6-30P 10ft.

IEC-320 C13 x 18

IEC-320 C19 x 6 24 72.8 x 2.05 x 2.2 NPM-V3024NDL3B

(Hydraulic breaker) 3P 208 / 120 VAC 30 A 0U NEMA L21-30P 10ft. NEMA 5-15R x 24 24 72.8 x 3.29 x 2.2

NPM-V2024NDL3 3P 208 / 120 VAC 20 A 0U NEMA L21-20P 10ft. IEC-320 C13 x 21

IEC-320 C19 x 3 24 72.8 x 3.29 x 2.2

A Switched PDU B 19 Rackmount C 15 Amp D 8 Outlets E Basic type F OU vertical G 30 Amp H 24 outlets I Advance type J 208 VAC K Hydraulic breaker

•

Example: NPM - R 15 08 NC / NPM - V 30 24 ND L B

A B C D E A F G H I J K

A Switched PDU B 19 Rackmount C 16 Amp D 8 Outlets E Basic type F OU vertical G 16 Amp H 24 outlets I Advance type J 3 Phase 400 / 230 VAC K Hydraulic breaker

• Example: NPM - R 16 08 NC / NPM - V 16 24 ND H3 B

MODEL ATS - 1508 (S) ATS - 3016 (S) ATS - 1608E (S) ATS - 3216E (S) INPUT

Voltage 110 / 120 VAC (LV) 220 / 230 / 240 VAC (HV)

Frequency 50 Hz or 60 Hz

Plug Type NEMA 5-15P NEMA L5-30P IEC320 C20 IEC60309 32A

Load Current 15 A 30 A 16 A 32 A

OUTPUT

Socket Type & Quantity NEMA 5-15R x 8 _{NEMA 5-15 / 20R x 4}NEMA 5-15R x 12 IEC320 C13 x 6_{IEC320 C19 x 2} IEC320 C13 x 12_{IEC320 C19 x 4}

Total Current 15 A 30 A 16 A 32 A

Transfer Polarity yes

Transfer Time 10 ms (typical)

DISPLAY

Indicators Output current, output voltage, A / B source indicator, Primary source indicator, present source indicator PROTECTION

Overload Protection yes

ALARM

Logical Port yes

COMMUNICATION

Serial Port yes

SNMP Module (Optional) Remote management via network (for S model)

PHYSICAL

Dimensions (L x W x H) (mm / in) 482.6 x 220 x 44.4 (1U) / _{188.2 x 85.8 x 17.3 (1U)} 482.6 x 220 x 88.8 (2U) / _{188.2 x 85.8 x 34.6 (2U)} 482.6 x 220 x 44.4 (1U) / _{188.2 x 85.8 x 17.3 (1U)} 482.6 x 220 x 88.8 (2U) / _{188.2 x 85.8 x 34.6 (2U)} Mounting Length (mm / in) 465.0 / 181.3 (both sides installation with brackets)

ENVIRONMENT

Operating Environment 0 ~ 45°C, 0 ~ 95% relative humidity (non-condensing)

ATS - 1508 / 1608E (front without SNMP module)

ATS-3016 / 3216E (front without SNMP module)

ATS-3016S / 3216ES (front with SNMP module)

ATS-1608E / 1608ES (HV rear) ATS-3216E / 3216ES (HV rear)

ATS-1508 / 1508S (LV rear)

ATS-1508S / 1608ES (front with SNMP module)

ATS PDU SPECIFICATION

ATS-3016 / 3016S (LV rear)

Features

• 19 inch rack-mount style ATS PDU

• Dual power supply for redundancy

• Seamlessly transfer between two power sources

• A / B power source (selectable)

• MCU embedded technology

• Total load-current and input / output voltage monitoring

• SNMP module for remote management (optional)

Automatic Transfer Switch (ATS) PDU Series

ATS PDU

MBS PDU

Features

• 20 A for 208 / 220 / 230 / 240 VAC and 16 A for 110 / 115 / 120 / 127 VAC

• Provides continuous power to connected equipment during UPS maintenance

• Easy operation with simple rotary switch and indicators

• Master / slave function for energy saving

• Provides a large number of sockets for extended usage

• 19 inch rackmount and tower design to fit diverse working environments

• Simple installation with plug and play socket type

• Suitable for all UPS up to 10 KVA

PDU & Maintenance Bypass Switch (MBS) Series

MODEL MBS - 123TW MBS-123RM MBS-610RM

Current Rating Maximum 20 A for 110 / 115 / 120 / 127 VAC_{Maximum 16 A for 208 / 220 / 230 / 240 VAC} 63 A

Voltage Rating 110 / 115 / 120 / 127 VAC or 208 / 220 / 230 / 240 VAC 208 / 220 / 230 / 240 VAC

Frequency 50 Hz or 60 Hz

Protection Overload

Isolation Voltage N / A 690 VAC

INPUT CONNECTION

AC Power 1 x IEC (16 A) connector and 1 x customized plug cable

Terminal type

UPS Input 1 x IEC (16 A) connector and 1 x cable

(16 A - 10 A IEC cable for 1K / 2K, 16 A-16 A IEC cable for 3K) UPS Output

OUTLETS & OUTPUT

IEC 8 x IEC 10 A sockets & 1 x IEC 16 A socket (with circuit breakers)

5 x IEC 10 A sockets & 1 x IEC 16 A socket (with circuit breakers)

Terminal type

Schuko 4 x Schuko 16 A sockets

UK 4 x UK 13 A sockets

NEMA 5 x NEMA 20 A sockets 5 x NEMA 20 A Sockets

Transfer Time 4ms (max.)

PHYSICAL Dimensions （D x W x H) (mm / in) IEC 180 x 160 x 50 / 70.2 x 62.4 x 19.5 80 x 438 x 50 / 31.2 x 170.8 x 19.5 158 x 438 x 86 / 61.6 x 170.8 x 33.5 Schuko 180 x 200 x 50 / 70.2 x 78 x 19.5 80 x 438 x 60 / 31.2 x 170.8 x 23.4 UK NEMA 180 x 160 x 50 / 70.2 x 62.4 x 19.5 80 x 438 x 50 / 31.2 x 170.8 x 19.5 Net Weight (kg / lb) 1.3 / 2.9 1.5 / 3.3 3.0 / 6.6 OPERATING ENVIRONMENT

Relative Humidity 20 ~ 90% relative humidity at 0 ~ 45°C (non-condensing)

MBS-123TW

(for 1 / 2 / 3K Tower UPS)

MBS-123RM

(for 1 / 2 / 3K Rackmount UPS)

MBS-610RM (for 6 / 10K Rackmount UPS)
