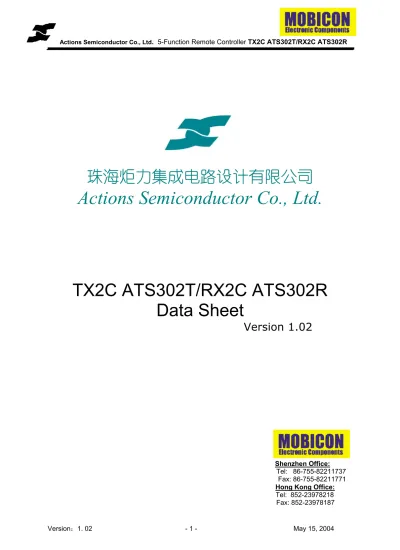

TX2C ATS302T/RX2C ATS302R Data Sheet Version 1.02

(1)

Tel: 86-755-82211737 Actions Semiconductor Co., Ltd. 5-Function Remote Controller TX2C ATS302T/RX2C ATS302R

珠海炬力集成电路设计有限公司

Actions Semiconductor Co., Ltd.

TX2C ATS302T/RX2C ATS302R

Data Sheet

Version 1.02

Shenzhen Office: Fax: 86-755-82211771

Hong Kong Office: Tel: 852-23978218 Fax: 852-23978187

(2)

Actions Semiconductor Co., Ltd. 5-Function Remote Controller TX2C ATS302T/RX2C ATS302R

Notice:

The 5-function TX2C ATS302T/RX2C ATS302R heritages the sophisticated

architecture and design methodology from TX2/RX2 of Realtek Semiconductor

who is one of the leaders of remote controller technology design of toy product.

This pair of TX2C ATS302T/RX2C ATS302R are the best Transmitter/ Receiver

choice of remote control car and fully covers TX2RX2 features with superior

performance. RX2C ATS302R is the first receiver controller worldwide with internal

and selectable DC-DC converter and shift-speed module. The TX2C ATS302T/RX2C

ATS302R are with more functions and excellent quality, its stability and affectivity

promoted to a higher level applications. Actions keeps on leading the designing

technique of remote controller of toy product.

Copyright pending # 03500035X to National Intellectual Property and Patent

Administration Bureau.

(3)

REMOTE CONTROLLER WITH FIVE FUNCTIONS

General Description

The TX2C ATS302T/RX2C ATS302R are a pair of CMOS LSIs designed for remote

controlled car applications. TX2C ATS302T is the encoder and RX2C ATS302R is the

decode. They provide five function keys to control forward, Backward, Rightward,

Leftward and Turbo motions. Besides, a combination of these five motions can be played.

And RX2C ATS302R provides the selections of Output Signal Format about FORWARD

function.

TX2C ATS302T is built with auto Power-OFF function. When input key is pulled low,

TX2C ATS302T will wake up, SO and SC will continuously send out the outputs used in

wireless (Non-Carrier) and infrared (Carrier) applications respectively. When a complete

code is sent out and all the keys are open, TX2C ATS302T will automatically go into

power-off mode.

RX2C ATS302R provides two high effective amplifiers and enhancive Signal Input (SI)

recognition circuit for increasing remote control distance.

RX2C ATS302R has an internal, selectable DC-DC converter that makes the application

stable, reliable under lower supply voltage. The input voltage ranges from 0.8v to 3.0V,

where V

_OUT

can be set to about 2.8V. Start-up is guaranteed from 1.0V inputs.

Features

Wide and Low operating voltage range:

1.5V to 5.0V(TX2C ATS302T and RX2C ATS302R No using DC-DC)

1.0V to 3.0V(RX2C ATS302R Using DC-DC)

5-function remote controller controlling forward/ backward/ turbo/ right/ left

Provide two transmissive interface (RF and IR) for different application

Selectable Forward Output Signal Format through MOD pin

Few external components needed and Oscillator with an external resistor and a

capacitance.

Low Standby current and low operating current.

Typical oscillator frequency:

RF: 128KHz

IR: 114KHz(Carrier Frequency: 57KHz)

IR: 76KHz(Carrier Frequency: 38KHz)

Auto Power-OFF function for TX2C ATS302T

Internal, Selectable DC-DC converter which need few external components

Provide two high effective amplifiers and enhancive signal input (SI) recognition

circuit for very weak signal for increasing remote control distance.

(4)

Pinouts and Block Diagrams

TX2C ATS302T (encoder)

LEFTB NC OSCI OSCO PC VDD SO RIGHTB NC GND BACKWARDB TURBOB SC FORWARDB 1 7 6 5 4 3 2 9 8 10 11 12 13 14 T X 2C A T S 302T Transmitter Pin Assignment TX2C ATS302T

Oscillator _GeneratorTiming

Latch Circuit Encoding Circuit Logic OSCI OSCO RIGHTB LEFTB TURBOB BACKWARDB FORWARDB PC SO SC Block Diagram

RX2C ATS302R (decoder)

VI2 VO1 VI1 VDD TURBO FORWARD BACKWARD VO2 GND SI OSCI RIGHT LEFT OSCO 1 7 6 5 4 3 2 12 13 14 15 16 RX 2C AT S 302R Receiver Pin Assignment

RX2C ATS302R Oscillator Timing

Generator DC-DC Latch OSCI OSCO LEFT Block Diagram 8 9 11 10 LX MOD AMP Decoding Circuit SI VI1 VI2 VO1 VO2 LX Counter PLA RIGHT TURBO BACKWARDFORWARD MOD

Absolute Maximum Ratings

Comments*

Never allow a stress to exceed the values listed under "Absolute Maximum Ratings", otherwise the device would suffer from a permanent damage. Nor is a stress at the listed value be allowed to persist over a period, since an extended exposure to the absolute maximum rating condition may also affect the reliability of the device, if not causing a damage thereof.

DC Supply Voltage... -0.3V to 6.0V Input/Output Voltage... GND -0.2V to VDD + 0.2V Operating temperature... -10°C to 60°C Storage Temperature... -25°C to 125°C

(5)

Electrical Characteristics

TX2C ATS302T

Typical operating Conditions : VDD = 3.0V, Fosc =128KHz, TA=25℃, (unless otherwise noted.)

TX2C ATS302T

Parameter

Symbol Conditions

Min Typ Max

Units

Input Low Voltage ViL Function Input Pin -0.7 1.5 V

Stand by Current

I

StandBy No function input 0.2 1.0 uA

Operating Current

I

DD Unload 0.1 0.4 mA

SO Driving Current

I

DrSO Load=0.7V(1N4148) 11 11.5 mA

SC Driving Current

I

DrSC Load=0.7V(1N4148) 11 11.5 mA

PC Driving Current

I

DrPC Load=0.7V(1N4148) 7.5 8.0 mA

Oscillator Frequency

Tolerance Ftolerance RX2C ATS302R _Fosc=128KHz -20% +20% %

Code Speed SCode Fosc=128KHz 500 1000 Hz

Note 1: “Function input pin” means forward, Backward, Rightward, Leftward and Turbo inputs.

RX2C ATS302R

Typical operating Conditions :

_{VDD = 2.7V, Fosc = 128KHz, TA=25℃, NO using DC-DC}

converter , (unless otherwise noted.)

RX2C ATS302R

Parameter

Symbol Conditions

Min Typ Max

Units

Function Output

voltage

V

O Unload 2.7 2.7 2.7 V

Operating Current IDD Unload 0.2 1.0 mA

Output Driving

Current IDriving Load=0.7V(1N4148) 3.0 3.5 mA

Tolerance Ftolerance TX2C ATS302T _Fosc=128KHz -20% +20% %

Note 1: Recommended operating voltage is 2.7V. The sensitivity of RX2C ATS302R will be higher. 2: “Function Output pin” means forward, Backward, Rightward, Leftward and Turbo outputs.

RX2C ATS302R

Typical operating Conditions : VINPUT

=1.5V ,Fosc = 128KHz, TA=25℃, Using DC-DC

converter , (unless otherwise noted.)

RX2C ATS302R

Parameter

Symb

ol

Conditions

Min Typ Max

Units

DC-DC output

Voltage

V

DD Power Output 2.5 2.8 3.1 V

Fuction Output

voltage

V

O Unload 2.5 2.8 3.1 V

DC-DC Hold Voltage

V

_HOLD Unload 0.8 V

Operating Current IDD Unload（Use recommended _{DC-DC Circuit）} 0.8 mA

Output Driving

Current IDriving Load=0.7V(1N4148) 3.0 3.5 mA

Tolerance Ftolerance

TX2C ATS302T

Fosc=128KHz -20% +20% %

Note 1: “Function Output pin” means forward, Backward, Rightward, Leftward and Turbo outputs. 2: ” VINPUT “ means the input Voltage to the DC/DC converter.

(6)

Actions Semiconductor Co., Ltd. 5-Function Remote Controller TX2C ATS302T/RX2C ATS302R 3. The start-up voltage depends on the application circuit. 1.0V(Start-up) means that the

Schhottky Type Diode(IN5817) must be used.

Pin Description

TX2C ATS302T

PIN NAME

FUNCTION

1 RIGHTB

The rightward function will be selected when this pin is connected

_{to GND.}

3 GND

Negative power supply

4 BACKWARDB

The backward function will be selected when this pin is

_{connected to GND.}

5 FORWARDB

The forward function will be selected when this pin is connected

_{to GND.}

6 TURBOB

The turbo function will be selected when this pin is connected to

_GND.

7 SC

Output pin of the encoding signal with carrier frequency

8 SO

Output pin of the encoding signal without carrier

_{frequency(Wireless)}

9 VDD

Positive power supply

10 PC

Power control output pin. When any function key is pulled low, PC

_{will be high logic. If not, it will be Low logic.}

11 OSCO

Oscillator output pin

12 OSCI

Oscillator input pin

14 LEFTB

The leftward function will be selected when this pin is connected

_{to GND.}

RX2C ATS302R

PIN NAME

FUNCTION

1 VO2

Output pin for the Second amplify

2 GND

Negative power supply

3 SI

Input pin of the encoding signal

4 OSCI

Oscillator input pin

5 OSCO

Oscillator output pin

6 RIGHT

Rightward output pin

7 LEFT

Leftward output pin

8 LX

DC-DC converter Switch signal output pin. The LX pin should be

connected with a switch-transistor through a resistor for Limiting

the current.

9 MOD

Output-signal-format selection input control pin about Forward

function. High=Open. When Mod pin is open, the output Signal of

all the functions will be high logic if working respectively

.

When it

is pulled low, there is the other Format that the forward output will

vary from pulse format to high logic if there is corresponding

input. For detailed information, Please refer to output tables

10 BACKWARD

Backward output pin

11 FORWARD

Forward output pin

12 TURBO

Turbo output pin

13 VDD

Positive power supply

14 VI1

Input pin for the First amplify

15 VO1

Output pin for the first amplify

(7)

Output Tables

Function Key Decode Result (Mod=1) Decode Result (Mod=0)

End Code End Code

Forward (L) Forward (H) Forward (Z)

Forward (L) & Turbo (L) Forward (H) Forward (H) & Turbo (H)

Turbo (L) Turbo (H) Forward (H) & Turbo (H)

Forward (L) & Left (L) Forward (H) & Left (H) Forward (Z) & Left (H) Turbo (L) & Left (L) Forward (H) & Left (H) Forward (Z) & Left (H) Turbo (L)& Forward (L) & Left

(L) Forward (H) & Left (H) Forward (Z) & Left (H) Forward (L) & Right (L) Forward (H)& Right (H) Forward (Z)& Right (H)

Turbo (L) & Right (L) Forward (H)& Right (H) Forward (Z)& Right (H) Turbo (L) & Forward (L) & Right

(L) Forward (H)& Right (H) Forward (Z)& Right (H)

Backward (L) Backward (H) Backward (Z)

Backward (L) & Right (L) Backward (H) & Right (H) Backward (Z) & Right (H) Backward (L) & Left (L) Backward (H)& Left (H) Backward (Z)& Left (H)

Left (L) Left (H) Left (H)

Right (L) Right (H) Right (H)

Note 1:L=LOW, H=HIGH, Z= 84Hz 66.7% DUTY Pulse

2:The frequency of pulse depends on the local oscillator frequency. If the local oscillator frequency is 128KHz, the frequency of pulse will be 84Hz.

(8)

Typical Application Circuit

Transmitter (TX2C ATS302T Fosc=128 KHz)

Note 1:Please pay attention to the form of the oscillator circuit. The frequency in the figure below is 128KHz. The value of resistor (R1) should be changed, if the other oscillator frequency needed. And changing the value of oscillator capacitance (C1) is not necessary Fosc=128KHz 11 OSCI OSCO Oscillator Circuit 12 C1 33p R1 120K TX2C ATS302T R1 C1 Fosc 150K 33p About 110KHz 120K 33p About 134KHz 100K 33p About 159KHz 82K 33p About 190KHz 75K 33p About 200KHz crystal 120K 330 120K 100 35K 100 6.8K 3V ANTENNA C1815 C1815 104 104 47p 47p 47p 100p 10p 47p RIGHT 1 NC 2 GND 3 BACK 4 FORW 5 TURBO 6 SC 7 _SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 NC 13 LEFT 14 TX2C ATS302T 33p Power on-off 1K LED + 47uF 4.7uH + 47uF 2.7uH Control Handle Control Handle (L and R) (F, T and B) F T B L R 9V BATTERY 27.145MHz

(9)

Receiver Ⅰ (RX2C ATS302R Fosc =128 KHz)

Note 1: The MOD pin is open because of NO using Shift-gears 2: No using DC-DC because of higher supply voltage

3:Please pay attention to the form of the oscillator circuit. The frequency in the figure below is 128KHz. The value of resistor (R1) should be changed, if the other oscillator frequency needed. And changing the value of oscillator capacitance (C1) is not necessary Fosc=128KHz 5 OSCI OSCO Oscillator Circuit 4 C1 33p R1 120K RX2C ATS302R R1 C1 Fosc 150K 33p About 107KHz 120K 33p About 130KHz 100K 33p About 155KHz 82K 33p About 184KHz 75K 33p About 195KHz 2.2K 2.2M 104 2.2K 470p 104 2.2K 2.2M 330 150 150 1N4148 8550 8550 MOTOR 104 VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 RIGHT 6 LE FT 7 LX 8 MOD 9 BACK 10 FORW 11 TURBO 12 VDD 13 VI1 14 VO1 15 VI2 16 RX2C ATS302R 2.7V 1K 1K 104 8p 15p 103 68p 332 560 120K C380 8050 8050 ANTENNA 10uH 1.5K A1015 A1015 120K + 4.7uF 302 33p 150 150 8550 8550 MOTOR 104 1K 1K 8050 8050 A1015 _A1015 + 100uF Power BATTERY 4*AA Fosc=128KHz 27.145MHz on-off

(10)

Receiver Ⅱ (RX2C ATS302R Fosc =128 KHz)

Note 1: The MOD pin is connected to GND because of realization of Shift-gears 2: No using DC-DC because of higher supply voltage

3: Please pay attention to the form of the oscillator circuit. The frequency in the figure below is 128KHz. The value of resistor (R1) should be changed, if the other oscillator frequency needed. And changing the value of oscillator capacitance (C1) is not necessary Fosc=128KHz 5 OSCI OSCO Oscillator Circuit 4 C1 33p R1 120K RX2C ATS302R R1 C1 Fosc 150K 33p About 107KHz 120K 33p About 130KHz 100K 33p About 155KHz 82K 33p About 184KHz 75K 33p About 195KHz 2.2K 2.2M 104 2.2K 470p 104 2.2K 2.2M 330 150 150 1N4148 8550 8550 MOTOR 104 VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 RIGHT 6 LE FT 7 LX 8 MOD 9 BACK 10 FORW 11 TURBO 12 VDD 13 VI1 14 VO1 15 VI2 16 RX2C ATS302R 2.7V 1K 1K 104 8p 15p 103 68p 332 560 120K C380 8050 8050 ANTENNA 10uH 1.5K A1015 A1015 120K + 4.7uF 302 33p 150 150 8550 8550 MOTOR 104 1K 1K 8050 8050 A1015 _A1015 + 100uF Power BATTERY 4*AA Fosc=128KHz 27.145MHz on-off

(11)

Receiver Ⅲ (RX2C ATS302R Fosc =128 KHz)

Note 1: The MOD pin is open because of NO using Shift-gears

2: Using DC-DC because of lower supply voltage, and the Schottky Type Diode must be used 3:Please pay attention to the form of the oscillator circuit. The frequency in the figure

below is 128KHz. The value of resistor (R1) should be changed, if the other oscillator frequency needed. And changing the value of oscillator capacitance (C1) is not necessary R1 C1 Fosc 150K 33p About 107KHz 120K 33p About 130KHz 100K 33p About 155KHz 82K 33p About 184KHz 75K 33p About 195KHz Fosc=128KHz 5 OSCI OSCO Oscillator Circuit 4 C1 33p R1 120K RX2C ATS302R 100 100 8550 8550 560 ₅₆₀ 8050 8050 100uH 104 560 ₅₆₀ 1.2V 8050 8050 Left Forward Right Backward IN5817 2.2K 2.2M 104 2.2K 470p 104 2.2K 2.2M VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 RIGHT 6 LE FT 7 LX 8 MOD 9 BACK 10 FORW 11 TURBO 12 VDD 13 VI1 14 VO1 15 VI2 16 RX2C ATS302R 3K 103 8p 15p 103 68p 332 560 120K C380 ANTENNA 10uH 1.5K 120K + 4.7uF 302 33p Focs=128KHz 27.145MHz 8050 + 100uF BATTERY MOTOR 104 Power(L&R) Electromagnetic Forward Backward Right Left

(12)

Infrared Application Circuit

Transmitter（TX2C ATS302T Fosc =114 KHz）

DC:3V 8050 1~4.7 Photo Diode Fosc=114KHz 1 2 3 4 5 6 7 8 9 10 11 12 13 14 LEFTB NC NC OSCI OSCO

BACKWAREB FORWARDB TURBOB

PC VDD SO SC GND RIGHTB

TX2C ATS302T

100uF

Recevier（RX2C ATS302R Fosc=114KHz）

1815 57KHz IR Receiver 100K DC:5V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VI2 VO1 GND VI1 VDD

OSCI OSCO RIGHT

TURBO FORWARD BACKWARD MOD

LX LEFT SI VO2

RX2C ATS302R

Fosc=114KHz GND VDD OUT 100uF

Testing Circuit

NO using DC-DC TX2C ATS302T/RX2C ATS302R (128KHz)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VI2 VO1 GND VI1 VDD

OSCI OSCO RIGHT

TURBO FORWARD BACKWARD MOD LX LEFT SI VO2 RX2C ATS302R 120K 120K 1 2 3 4 5 6 7 8 9 10 11 12 13 14 LEFTB NC NC OSCI OSCO

BACKWAREB FORWARDB TURBOB PC VDD SO SC GND RIGHTB TX2C ATS302T 3V 100uF 1 2 JUMPER 33p 33p

Using DC-DC TX2C ATS302T/RX2C ATS302R (128KHz)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VI2 VO1 GND VI1 VDD

OSCI OSCO RIGHT

TURBO FORWARD BACKWARD MOD LX LEFT SI VO2 RX2C ATS302R 120K 120K 1 2 3 4 5 6 7 8 9 10 11 12 13 14 LEFTB NC NC OSCI OSCO

BACKWAREB FORWARDB TURBOB PC VDD SO SC GND RIGHTB TX2C ATS302T 2.7V 100uF 1 2 JUMPER 33p 33p 3K 103 8050 5817 100uF 104 100uH 1.5V

(13)

Package Information

TX2C ATS302T DIP 14 Pin Outline Drawing

Unit in mm

(14)

RX2C ATS302R DIP 16 Pin Outline Drawing

Unit in mm

(15)

COB Bonding Figure

TX2C ATS302T

about 0.84m m about 0.84m m Designation X Y

TX2C ATS302T

RI G H T B RIGHTB 774 773 GND 626 773 BACKWARDB 504 773 FORWARDB 382 773 TURBOB 260 773 SC 66 773 SO 66 66 VDD 239 66 PC 341 66 OSCO 444 66 OSCI 626 66 LEFTB 774 66 Unit in um X:840 Y:840

Note: Substrate is connected to VDD

SC TU R B O B F O RWA R DB B A CK WA RDB GN D LE FTB VD SO D PC OS C O OS C I

RX2C ATS302R

about 1.20m m about 1.18m m Designation X Y

RX2C ATS302R

VO 2 VO2 81 134 GND 206 80 SI 321 80 OSCI 464 80 OSCO 647 80 RIGHT 803 80 LEFT 923 80 LX 1113 134 MOD 1066 1049 BACKWARD 920 1099 FORWARD 765 1099 TURBO 581 1099 VDD 466 1099 VI1 321 1099 VO1 206 1099 VI2 81 1049 Unit in um X:1200 Y:1180 Note: Substrate is connected to VDD

RI G H T OS C O OS C I SI GN D VI 1 MO D B A CK WA RD FO R W A R D T URB O VD D VI2 LE F T LX VO 1

(16)

Version List

Version Release date Comment

1.00 2003/4/28 First Version

1.01 2003/9/1 (1) Modify the information of COB package

(2) Modify the value of resistor that lays between the LX pin and the switch-transistor in the test and application circuit

1.02 2004/5/15 (1)Update the product number

Notice: ACTIONS's products are sold by description only, ACTIONS reserves the rights to make changes in circuit design and/or specification at any time without notice. Accordingly, the reader is cautioned to make sure the latest version of data sheets are available before placing orders.
