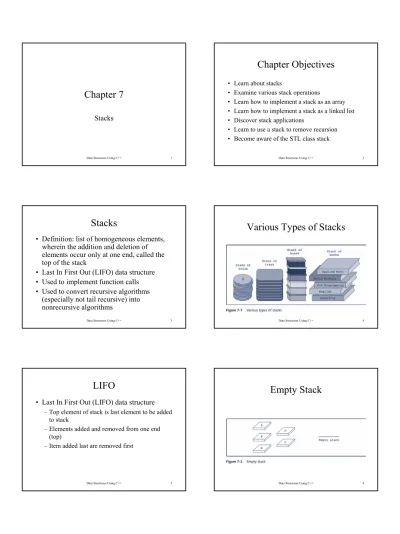

Data Structures Using C++ 1
Chapter 7
Stacks
Data Structures Using C++ 2
Chapter Objectives
• Learn about stacks
• Examine various stack operations
• Learn how to implement a stack as an array
• Learn how to implement a stack as a linked list
• Discover stack applications
• Learn to use a stack to remove recursion
• Become aware of the STL class stack
Data Structures Using C++ 3
Stacks
• Definition: list of homogeneous elements,
wherein the addition and deletion of
elements occur only at one end, called the
top of the stack
• Last In First Out (LIFO) data structure
• Used to implement function calls
• Used to convert recursive algorithms
(especially not tail recursive) into
nonrecursive algorithms
Data Structures Using C++ 4
Various Types of Stacks
LIFO
• Last In First Out (LIFO) data structure
Data Structures Using C++ 7
Stack Operations
Data Structures Using C++ 8
Basic Operations on a Stack
•
initializeStack
: Initializes the stack to an
empty state
•
destroyStack
: Removes all the elements
from the stack, leaving the stack empty
•
isEmptyStack
: Checks whether the stack is
empty. If empty, it returns true; otherwise, it
returns false
Data Structures Using C++ 9
Basic Operations on a Stack
•
isFullStack
: Checks whether the stack is full. If
full, it returns true; otherwise, it returns false
•
push
:
– Add new element to the top of the stack
– The input consists of the stack and the new element.
– Prior to this operation, the stack must exist and must
not be full
Data Structures Using C++ 10
Basic Operations on a Stack
•
top
: Returns the top element of the stack.
Prior to this operation, the stack must exist
and must not be empty.
•
pop
: Removes the top element of the stack.
Prior to this operation, the stack must exist
and must not be empty.
Data Structures Using C++ 11
Example of a Stack
Data Structures Using C++ 12
Data Structures Using C++ 13
initializeStack and destroyStack
template<class Type>
void stackType<Type>::initializeStack()
{
stackTop = 0;
}//end initializeStack
template<class Type>
void stackType<Type>::destroyStack()
{
stackTop = 0;
}//end destroyStack
Data Structures Using C++ 14
emptyStack and fullStack
template<class Type>
bool stackType<Type>::isEmptyStack()
{
return(stackTop == 0);
}//end isEmptyStack
template<class Type>
bool stackType<Type>::isFullStack()
{
return(stackTop == maxStackSize);
}//end isFullStack
Data Structures Using C++ 15
Push
Data Structures Using C++ 16
Push
template<class Type>
void stackType<Type>::push(const Type& newItem) {
if(!isFullStack()) {
list[stackTop] = newItem; //add newItem at the top //of the stack stackTop++; //increment stackTop }
else
cerr<<"Cannot add to a full stack."<<endl; }//end push
Data Structures Using C++ 19
Pop
Data Structures Using C++ 20
copyStack
template<class Type>
void stackType<Type>::copyStack(const stackType<Type>& otherStack) {
delete [] list;
maxStackSize = otherStack.maxStackSize; stackTop = otherStack.stackTop; list = new Type[maxStackSize]; assert(list != NULL);
//copy otherStack into this stack for(int j = 0; j < stackTop; j++)
list[j] = otherStack.list[j]; }//end copyStack
Data Structures Using C++ 21
Copy Constructor
template<class Type>
stackType<Type>::stackType(const stackType<Type>& otherStack) {
list = NULL; copyStack(otherStack); }//end copy constructor
Data Structures Using C++ 22
Overloading the Assignment
Operator (=)
template<class Type>
const stackType<Type>& stackType<Type>::operator=
(const stackType<Type>& otherStack) {
if(this != &otherStack) //avoid self-copy copyStack(otherStack);
return *this; }//end operator=
Data Structures Using C++ 23
Time-Complexity of Operations
of class stackType
Data Structures Using C++ 24
Stack Header File
//Header file: myStack.h #ifndef H_StackType #define H_StackType #include <iostream> #include <cassert> using namespace std;
//Place the definition of the class template stackType, as given //previously in this chapter, here.
//Place the definitions of the member functions, as discussed in //this chapter, here.
Data Structures Using C++ 25
Programming Example: Highest
GPA
Input
The program reads an input file consisting of each
student’s GPA, followed by the student’s name. Sample
data is:
3.8 Lisa
3.6 John
3.9 Susan
3.7 Kathy
3.4 Jason
3.9 David
3.4 Jack
Data Structures Using C++ 26
Programming Example: Highest
GPA (Algorithm)
1. Declare the variables.
2. Open the input file.
3. If the input file does not exist, exit the program.
4. Set the output of the floating-point numbers to a
fixed decimal format with a decimal point and
trailing zeroes. Also, set the precision to two
decimal places.
5. Read the GPA and student name.
6.
highestGPA = GPA;
7. Initialize the stack.
Data Structures Using C++ 27
Programming Example: Highest
GPA (Algorithm)
8. while (not end of file) {
8.1 if (GPA > highestGPA) {
8.1.1 destroyStack(stack); 8.1.2 push(stack, student name); 8.1.3 highestGPA = GPA; }
8.2 else
if(GPA is equal to highestGPA) push(stack, student name); 8.3 Read the GPA and student name; }
Data Structures Using C++ 28
Programming Example: Highest
GPA (Algorithm)
9.
Output the highest GPA.
10. Output the names of the students having the highest
GPA.
Programming Example: Highest
GPA (Sample Run)
Input File (Ch7_HighestGPAData.txt)
Programming Example: Highest
GPA (Sample Run)
Data Structures Using C++ 31
Empty and Nonempty
Linked Stack
Empty linked stack Nonempty linked stack
Data Structures Using C++ 32
Default Constructor
template<class Type> //default constructor
linkedStackType<Type>::linkedStackType()
{
stackTop = NULL;
}
Data Structures Using C++ 33
Destroy Stack
template<class Type>
void linkedStackType<Type>::destroyStack() {
nodeType<Type> *temp; //pointer to delete the node while(stackTop != NULL) //while there are elements
//in the stack {
temp = stackTop; //set temp to point to //the current node stackTop = stackTop->link; //advance stackTop
//to the next node delete temp; //deallocate the memory
//occupied by temp }
}//end destroyStack
Data Structures Using C++ 34
initializeStack and isStackEmpty
template<class Type>
void linkedStackType<Type>:: initializeStack() { destroyStack(); } template<class Type> bool linkedStackType<Type>::isEmptyStack() { return(stackTop == NULL); } template<class Type> bool linkedStackType<Type>::isFullStack() { return false;
Data Structures Using C++ 35
Push
Stack before the push
operation
Stack and newNode
Data Structures Using C++ 36
Push
Stack after the statement
newNode->link = stackTop;
executes
Stack after the statement
stackTop = newNode;
Data Structures Using C++ 37
Return Top Element
template<class Type>
Type linkedStackType<Type>::top() {
assert(stackTop != NULL); //if the stack is empty, //terminate the program return stackTop->info; //return the top element }//end top
Data Structures Using C++ 38
Pop
Stack before the pop operation
Data Structures Using C++ 39
Pop
Stack after the statements temp = stackTop;
and stackTop = stackTop->link;execute
Stack after the statement delete temp;
executes
Data Structures Using C++ 40
Application of Stacks:
Postfix Expression Calculator
Application of Stacks:
Data Structures Using C++ 43
Postfix Expression Calculator (Main Algorithm)
Data Structures Using C++ 44
Nonrecursive Algorithm to
reverse linked list
current = first; while(current != NULL) { stack.push(current); current = current->link; }
llistType, *newfirst = stack.pop(); current = newfirst;
while (!stack.empty()) current->link = stack.pop(); current->link = NULL;
Data Structures Using C++ 45
List After Execution of Statement
current = first;
Data Structures Using C++ 46
Repeated Execution of:
stack.push(current);
current = current->link;
Data Structures Using C++ 47
STL class stack
(Stack Container Adapter)
• Standard Template Library (STL) provides
a class to implement a stack in a program
• Name of the class defining a stack is
“stack”
• Name of the header file containing the
definition of the class stack is “stack”
