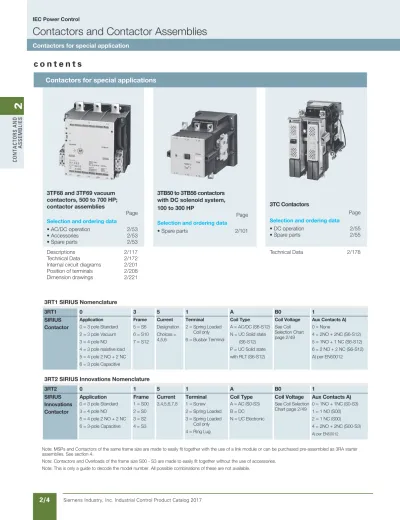

Contactors and Contactor Assemblies

(1)

SIRIUS

Siemens Industry, Inc. Industrial Control Product Catalog 2017

2/4

2

ContaCtors and assemblies

Siemens / Industrial Controls Previous folio: 2/4

3RT1 SIRIUS Nomenclature

3RT1 0 3 5 1 A B0 1

SIRIUS Contactor

Application Frame Current Terminal Coil Type Coil Voltage Aux Contacts A) 0 = 3 pole Standard

2 = 3 pole Vacuum 3 = 4 pole NO 4 = 3 pole resistive load 5 = 4 pole 2 NO + 2 NC 6 = 3 pole Capacitive

5 = S6 6 = S10 7 = S12

Designation Choices = 4,5,6

2 = Spring Loaded Coil only 6 = Busbar Terminal

A = AC/DC (S6-S12) N = UC Solid state (S6-S12) P = UC Solid state with RLT (S6-S12)

See Coil Selection Chart page 2/49

0 = None

4 = 2NO + 2NC (S6-S12) 5 = 1NO + 1 NC (S6-S12) 6 = 2 NO + 2 NC (S6-S12) A) per EN50012

3RT2 SIRIUS Innovations Nomenclature

3RT2 0 1 5 1 A B0 1

SIRIUS Innovations Contactor

Application Frame Current Terminal Coil Type Coil Voltage Aux Contacts A)

0 = 3 pole Standard

3 = 4 pole NO 5 = 4 pole 2 NO + 2 NC 6 = 3-pole Capacitive

1 = S00 2 = S0 3 = S2 4 = S3

3,4,5,6,7,8 1 = Screw 2 = Spring Loaded 3 = Spring Loaded

Coil only 4 = Ring Lug

A = AC (S0-S3) B = DC N = UC Electronic

See Coil Selection

Chart page 2/49 0 = 1NO + 1NC (S0-S3) 1 = 1 NO (S00) 2 = 1 NC (S00) 4 = 2NO + 2NC (S00-S3) A) per EN50012

Note: MSPs and Contactors of the same frame size are made to easily fit together with the use of a link module or can be purchased pre-assembled as 3RA starter assemblies. See section 4.

Note: Contactors and Overloads of the frame size S00 - S3 are made to easily fit together without the use of accessories.

Note: This is only a guide to decode the model number. All possible combinations of these are not available.

IEC Power Control

Contactors and Contactor Assemblies

Contactors for special application

c o n t e n t s

Contactors for special applications

3TF68 and 3TF69 vacuum contactors, 500 to 700 HP;

contactor assemblies

Page

Selection and ordering data

• AC/DC operation 2/53

• Accessories 2/53

• Spare parts 2/53

3TB50 to 3TB56 contactors with DC solenoid system, 100 to 300 HP

Page

• Spare parts 2/101

3TC Contactors

Page

• DC operation 2/55

• Spare parts 2/55

Descriptions 2/117

Technical Data 2/172

Internal circuit diagrams 2/201 Position of terminals 2/208 Dimension drawings 2/221

Technical Data 2/178

(2)

SIRIUS

2/8

2 Selection and ordering data

Frame Size

Amp

Ratings Single-phase

HP ratings Three-phase

HP ratings Auxiliary

contacts Screw Terminals Spring-Loaded

Terminals1) Weight

approx.

AC3 AC1 115V 208V 230V 208V 230V 460V 575V NO NC Order No. Order No. kg

3RT 3-pole contactors

S00

6 18 0.25 0.5 0.75 1.5 2 3 5 1 0 3RT2015-1^■●●1 3RT2015-2^■●●1

0.24/0.29 0 1 3RT2015-1^■●●2 3RT2015-2 ^■●●2

9 22 0.33 1 1 2 3 5 7.5 1 0 3RT2016-1^■●●1 3RT2016-2 ^■●●1

0 1 3RT2016-1^■●●2 3RT2016-2 ^■●●2

12 22 0.5 1.5 2 3 3 7.5 10 1 0 3RT2017-1^■●●1 3RT2017-2 ^■●●1

0 1 3RT2017-1^■●●2 3RT2017-2 ^■●●2

16 22 1 2 2 3 5 10 10 1 0 3RT2018-1^■●●1 3RT2018-2 ^■●●1

0 1 3RT2018-1^■●●2 3RT2018-2 ^■●●2

S0

9 40 1 1 1 2 3 5 7.5 1 1 3RT2023-1^■●●0 3RT2023-2 ^■●●0

0.42/0.60

12 40 1 2 2 3 3 7.5 10 1 1 3RT2024-1^■●●0 3RT2024-2 ^■●●0

17 40 1 2 3 5 5 10 15 1 1 3RT2025-1^■●●0 3RT2025-2 ^■●●0

25 40 2 3 3 7.5 7.5 15 20 1 1 3RT2026-1^■●●0 3RT2026-2 ^■●●0

32 50 2 5 5 10 10 20 25 1 1 3RT2027-1^■●●0 3RT2027-2 ^■●●0

38 50 3 5 5 10 10 25 25 1 1 3RT2028-1^■●●0 3RT2028-2 ^■●●0

S2

40 60 3 5 7.5 10 15 30 40 1 1 3RT2035-1^■●●0 3RT2035-3 ^■●●0

0.99/1.121

50 70 3 7.5 10 15 15 40 50 1 1 3RT2036-1^■●●0 3RT2036-3 ^■●●0

65 80 5 10 10 20 20 50 50 1 1 3RT2037-1^■●●0 3RT2037-3 ^■●●0

65²⁾ 90 5 10 15 20 25 50 60 1 1 3RT2038-1^■●●0 3RT2038-3 ^■●●0

S3

80 120 7.5 15 15 25 30 60 75 0 0 3RT1045-1^■●●0 3RT1045-3 ^■●●0

1.8/2.8

95 120 10 15 20 30 30 75 100 0 0 3RT1046-1^■●●0 3RT1046-3 ^■●●0

96 125 10 10 20 30 40 75 100 1 1 3RT2047-1^■●●0 3RT2047-3 ^■●●0

Size S2 only: Replace “B” with “K” for 24VDC coil only Size S0 and S2 only: UC Electronic with integrated varistor

■ AC Coil = A DC Coil = B UC Coil = N

■ AB N

NEMA SIze

Amp Ratings

Single-phase HP ratings

Three-phase HP ratings

Auxiliary

contacts Screw Terminals

with AC coil Screw Terminals

with 24 VDC coil Weight approx.

115V 230V 208V 230V 460V 575V NO NC Order No. Order No. kg

NEMA Labeled Contactors

0 18 1 2 3 3 5 5 1 0 3RT2018-1A ●●1-0UA0 3RT2018-1BB41-0UA0 0.28

1 27 2 3 7.5 7.5 10 10 1 1 3RT2027-1A●●0-0UA0 3RT2027-1BB40-0UA0 0.42

2 45 3 7.5 10 15 25 25 1 1 3RT2036-1A●●0-0UA0 3RT2036-1NB30-0UA0 0.986/1.121

3 90 7.5 15 25 30 50 50 1 1 3RT2046-1A●●0-0UA0 3RT2046-1NB40-0UA0 1.8 / 2.8

1) All terminals are spring loaded on frame sizes S00 & S0.

Only the coil terminals are spring loaded on frame sizes S2 & S3.

2) Max UL FLA = 65A at 460V

Note: Ring lug terminals are also available in size S00 & S0 contactors, except contactors with communication interface or UC coil. Change the 8th digit of the order number to a “4”, e. g. 3RT2015-4AK61.

For further coil voltages, see page 2/49.

For auxiliaries and accessories, see page 2/66-2/83.

For spare parts, see page 2/94-2/99.

For technical data, see page 2/121-2/142.

For description, see page 2/104-2/105.

For int. circuit diagrams, see page 2/190-2/197.

For dimension drawings, see page 2/209-2/212.

3RT201.-1A 3RT201. -2A. . . 3RT2028-1N... 3RT2025-2B... 3RT2035-1A... 3RT2045-1A...

AC Coil Selection for 3RT201 through 3RT204

●●Coil Code C2²⁾ H2³⁾ K6 P6 U6 V6 T6

60 Hz 24 V 48 V 120 V 240 V 277 V 480 V 600 V

50 Hz 24 V 48 V 110 V 220 V — — —

2)Use Code B0 for 3RT201, S00

3)Use Code H0 for 3RT201, S00

DC Coil Selection for 3RT201 & 3RT202 (for 3RT203 & 3RT204 see UC)

●●Coil Code A4⁴⁾ B4 W4 E4 F4 G4 M4

DC 12 V 24 V 48 V 60 V 110 V 125 V 220 V

4) 3RT201 and 3RT202 only

UC Coil Selection for 3RT202 UC Coil Selection for 3RT203 & 3RT204

●●Coil Code B3 F3 P3⁴⁾ ^●● B3 F3 P3⁵⁾

UC 21-28V 95-130V 200-280V 20-33V 83-155V 175-280V

5) at upper limit = 1.1 x Us

IEC Power Control

Contactors for Switching Motors

3RT contactors, 3-pole – Size S00 to S3

Product Category IEC

(3)

SIRIUS

2/49

2

Siemens / Industrial Controls Previous folio: IC10 2/23

Selection and ordering data

Contactor type

Rated control supply voltage Us

^3RT201^3RA211 ^3RT231^3RT251 ^3RT202^3RA212 ^3RT232^3RT252 ^3RT2617^3RT2627_3RT2637 ^3RT203^3RA213 ^3RT233^3RT253 ^3RT104^3RT134_3RT144 3RA114

S00 S00 S0 S0 S00-S2 S2 S2 S3

Rated control supply voltages (changes to 10th and 11th positions of the Order No.)

AC Operation¹⁾

Coils for 50 Hz

(exception:

size S00: 50 and 60 Hz²⁾

24 V AC B0 B0 B0 B0 B0 B0 B0 B0

42 V AC D0 D0 D0 -- -- D0 -- D0

48 V AC H0 H0 H0 -- -- H0 -- H0

110 V AC F0 F0 F0 F0 F0 F0 F0 F0

230 V AC P0 P0 P0 P0 P0 P0 P0 P0

400 V AC V0 V0 V0 V0 V0 V0 V0 V0

Coils for 50 and 60 Hz

²⁾

24 V AC B0 B0 C2 C2 C2 C2 C2 C2

42 V AC D0 D0 D2 D2 -- D2 D2 D2

48 V AC H0 H0 H2 H2 -- H2 H2 H2

110 V AC F0 F0 G2 G2 G2 G2 G2 G2

208 V AC M2 M2 M2 M2 M2 M2 M2 M2

220 V AC N2 N2 N2 N2 N2 N2 N2 N2

230 V AC P0 P0 L2 L2 L2 L2 L2 L2

240 V AC P2 P2 P2 P2 P2 P2 P2 P2

For USA and Canada

³⁾

50 Hz: 60 Hz:

110 V AC 120 V AC K6 K6 K6 K6 K6 K6 K6 K6

220 V AC 240 V AC P6 P6 P6 P6 P6 P6 P6 P6

277 V AC — — — U6 — U6 U6 U6

480 V AC V6 — V6 — — V6 V6 V6

600 V AC — — — T6 — T6 T6 T6

For Japan

^{50/60 Hz}⁴⁾^: ^{60 Hz}⁵⁾^:

100 V AC 110 V AC G6 G6 G6 G6 G6 G6 G6 G6

200 V AC 220 V AC N6 N6 N6 N6 N6 N6 N6 N6

400 V AC 440 V AC R6 R6 R6 R6 R6 R6 R6 R6

DC Operation¹⁾

12 V DC A4 A4 — — — — — —

24 V DC B4 B4 B4 B4 — — — —

42 V DC D4 D4 D4 D4 — — — —

48 V DC W4 W4 W4 W4 — — — —

60 V DC E4 E4 E4 E4 — — — —

72 V DC J8 J8 J8 J8 — — — —

80 V DC — — — — — — — —

110 V DC F4 F4 F4 F4 — — — —

125 V DC G4 G4 G4 G4 — — — —

220 V DC M4 M4 M4 M4 — — — —

230 V DC P4 P4 P4 — — — — —

Coil codes for frame sizes S6-S12 can be found on page 2/9. Further voltages on request

3/50

Siemens IC 10 · 2015

Power Contactors for Switching Motors SIRIUS 3RT20 contactors, 3-pole, up to 37 kW

3

Options

Rated control supply voltages, possible on request (change of the 10th and 11th digits of the Article No.)

1)For deviating coil voltages and coil operating ranges of sizes S00 and S0, the SITOP power 24 V DC power supply unit with wide range input (93 to 264 V AC; 30 to 264 V DC) can be used for coil excitation (For more SITOP information see section 15).

2)Coil operating range at 50 Hz: 0.8 ... 1.1 x U_s at 60 Hz: 0.85 ... 1.1 x U_s 3)Coil operating range

Size S00: at 50 Hz: 0.85.... 1.1 x U_s at 60 Hz: 0.8 ... 1.1 x at 50 Hz and 60 Hz: 0.8 ... 1.1 x U_s

Size S0 to S3: U_s

4) Coil operating range

Size S00: at 50/60 Hz: 0.85 ... 1.1 x U_s Size S0: at 50 Hz: 0.8 ... 1.1 x U_s

at 60 Hz: 0.85 ... 1.1 x U_s 5) Coil operating range

at 60 Hz: 0.8 ...1.1 x U_s

6) Coil operating range for S0: 0.7 x U_{s min} ... 1.3 x U_{s max} Coil operating range for S2: 0.8 x U_{s min} ...1.1 x U_{s max}

7) The following applies to S0 and U_{s max} = 280 V: Upper limit =1.1 x U_{s max} Rated control supply

voltage U_s Contactor type 3RT201 3RT202 3RT203 3RT231,

3RT251 3RT232,

3RT252 3RT233,

3RT253

Size S00 S0 S2 S00 S0 S2

Sizes S00 to S2 AC operation¹⁾

Solenoid coils for 50 Hz (exception: Size S00: 50 and 60 Hz²⁾)

24 V AC B0 B0 B0 B0 B0 B0

42 V AC D0 D0 D0 D0 -- --

48 V AC H0 H0 H0 H0 -- --

110 V AC F0 F0 F0 F0 F0 F0

230 V AC P0 P0 P0 P0 P0 P0

240 V AC U0 U0 U0 -- -- --

400 V AC V0 V0 V0 V0 V0 V0

Solenoid coils for 50 and 60 Hz²⁾

24 V AC B0 C2 C2 B0 C2 C2

42 V AC D0 D2 D2 D0 D2 D2

48 V AC H0 H2 H2 H0 H2 H2

110 V AC F0 G2 G2 F0 G2 G2

220 V AC N2 N2 N2 N2 N2 N2

230 V AC P0 L2 L2 P0 L2 L2

Solenoid coils (for USA and Canada³⁾)

50 Hz 60 Hz

110 V AC 120 V AC K6 K6 K6 K6 K6 K6

220 V AC 240 V AC P6 P6 P6 P6 P6 P6

Solenoid coils (for Japan) 50/60 Hz⁴⁾ 60 Hz⁵⁾

100 V AC 110 V AC G6 G6 G6 G6 G6 G6

200 V AC 220 V AC N6 N6 N6 N6 N6 N6

400 V AC 440 V AC R6 R6 R6 R6 R6 R6

DC operation¹⁾

12 V DC A4 A4 -- A4 A4 --

24 V DC B4 B4 -- B4 B4 --

42 V DC D4 D4 -- D4 D4 --

48 V DC W4 W4 -- W4 W4 --

60 V DC E4 E4 -- -- -- --

110 V DC F4 F4 -- F4 F4 --

125 V DC G4 G4 -- G4 G4 --

220 V DC M4 M4 -- M4 M4 --

230 V DC P4 P4 -- P4 -- --

Examples

AC operation 3RT2023-1AP00 Contactor with screw terminals; with solenoid coil for 50 Hz for rated control supply voltage 230 V AC 3RT2023-1AG20 Contactor with screw terminals; with solenoid coil for 50/60 Hz for rated control supply voltage 110 V AC DC operation 3RT2025-2BB40 Contactor with spring-type terminals; for rated control supply voltage 24 V DC

3RT2025-2BG40 Contactor with spring-type terminals; for rated control supply voltage 125 V DC Rated control supply

voltage Contactor type -- 3RT2. 2.-.N Rated control supply

voltage Contactor

type3RT2. 3.-.N

U_{s min}... U_{s max}⁶⁾ Size S00 S0 U_{s min}... U_{s max}⁶⁾ Size S2

Sizes S00 to S3

AC/DC operation (50/60 Hz AC, DC)

21 ... 28 V AC/DC -- B3 20 ... 33 V AC/DC B3

95 ... 130 V AC/DC -- F3 83 ... 155 V AC/DC F3

200 ... 280 V AC/DC⁷⁾ -- P3 175 ... 280 V AC/DC P3

IC10_03_04.fm Page 50 Friday, April 17, 2015 3:43 PM

3RT2. 2.-.N S3

B3F3 P3

Contactors and Contactor Assemblies

3RT / 3RA Contactors

Rated control supply voltages

(4)

SIRIUS

2/106

2

Design

• 3RT10 contactors for switching motors

• 3RT12 vacuum contactors for switching motors

• 3RT14 contactors for AC-1 applications

Operating mechanism Two types of solenoid-operated mechanism are available:

• Conventional operating mechanism

• Solid-state operating mechanism(with 3 performance levels) UC operation

The contactors can be AC (40 to 60 Hz) and DC driven.

Withdrawable coils

To allow easy coil changing, for example if the application is changed, the magnetic coil can be pulled out upwards without tools after the release mechanism has been actuated, and can be replaced by any other required coil of the same size.

Auxiliary contact complement The contactors can be equipped with a maximum of 8 auxiliary contacts, with iden- tical auxiliary switch blocks from S0 to S12. Of these, no more than 4 are permitted to be NC contacts.

• 3RT10 and 3RT14 contactors: auxiliary contacts mounted laterally and on front

• 3RT12 vacuum contactors:

auxiliary contact mounted laterally

Contactors with conventional operating mechanism 3RT1...-.A:

The magnetic coil is switched on and off directly with the con- trol supply voltage U_s via terminals A1/A2.

Multi-voltage range for the con- trol supply voltage U_s:

Several closely adjacent control supply voltages, available around the world, are covered by just one coil, for example UC 110-115-120-127 V or UC 220-230-240 V.

In addition, allowance is also made for a coil voltage tolerance of 0.8 times the lower rated control supply voltage (Us min) and 1.1 times the upper rated control supply voltage (U_{s max}), within which the

contactor switches reliably and no thermal overloading occurs.

Contactors with solid-state operating mechanism The power required for reliable

switching and holding is sup- plied selectively to the magnetic coil by series-connected control electronics.

Features:

• Extended voltage range for the control supply voltage Us: Compared with the conventional operating mechanism, the solid-state operating mechanism covers an even broader range of globally available control supply voltages within one coil variant.

For example, the globally available voltages 200-208- 220-230-240-254-277 V are covered with the coil for UC 200 to 277 V (Us min to Us max).

• Extended coil voltage toler- ance 0.7 to 1.25 × U_s: On account of the broad range for the rated control supply voltage and the addi- tionally allowed coil voltage tolerance of 0.8 × U_{s min} to 1.1

× U_{s max}, an extended coil voltage tolerance of at least 0.7 to 1.25 × Us, within which the contactors will operate reliably, is available for the most common control supply voltages of 24, 110 and 230 V.

• Bridging short-time voltage dips:

Control voltage failures dip- ping to 0 V (at A1/A2) are bridged for up to approx.

25 ms, therefore preventing unintentional disconnection.

• Defined ON and OFF thresh- olds:

As of voltages ≥ 0.8 × Us min, the electronics reliably switch the contactor on and as of

≤ 0.5 × Us min it is reliably switched off. The differential travel in the switching thresh- olds prevents chattering of the main contacts and hence increased wear or welding when operated in weak, unstable networks. Similarly, thermal overloading of the contactor coil is prevented if the voltage applied is too low – the contactor is not switched on and is operated with overexcitation.

• Low control power consump- tion when closing and in closed state.

Electromagnetic compatibility (EMC)

The contactors with solid-state operating mechanism conform to the requirements for operation in industrial plants.

• Noise immunity

– Burst (IEC 61 000-4-4): 4 kV – Surge (IEC 61 000-4-5): 4 kV – Electrostatic discharge,

ESD (IEC 61 000-4-2): 8/15 kV – Electromagnetic field

(IEC 61 000-4-3): 10 V/m

• Emitted interference Limiting value class A to EN 55 011

Note:

In connection with converters, the control cables should be installed separately from the load cables to the converter.

3RT1...-.N: for DC 24 V PLC output 2 control options:

• Control without an interface directly via a DC 24 V /≥ 30 mA PLC output (EN 61 131- 2). Connection via a 2-pole plug-in connection; the con- nector, using screwless spring-force technology, is included in the scope of supply. The control supply voltage for supplying power to the solenoid operating mechanism must be connected to A1/A2.

Note:

Before start-up, the sliding- dolly switch for PLC operation must be moved to the "PLC ON"

position (setting ex works:

"PLC OFF").

• Conventional control by applying the control supply voltage at A1/A2 via a switching contact.

Note:

The sliding-dolly switch must be in the "PLC OFF" position (= setting ex works).

Overview

Sliding-dolly switch, must be in PLC "ON" position Plug-in connection, 2-pole

Sliding-dolly switch, must be in PLC "OFF" position

$

Contactors and Contactor Assemblies

Contactors for Switching Motors

3RT1 contactors, 3-pole, sizes S6 to S12

(5)

SIRIUS

2/123

2 3RT1 contactors

Endurance of the main contacts Technical data

Size S2

Sizes S6 to S12

3RT12 vacuum contactors Sizes S10 and S12

Size S3

II 100

80 60 50 40

a(A) Contactor

type Operating cycles at

Breaking current 3RT2038

(37 kW)

IC01_00456

10 2 108 64 2 108 64 2 108 64 6 7

2 108 64 2 108 64 2 64

4 6

2 108 64 2 108 64 2 86 4

4 6

2 108 64 2 108 64 2 108 64 6 7

10 10 5 5 5 5

8

690 V

500 V

230 V 400 V

4

3RT2035 (18,5 kW) 3RT2036

(22 kW) 3RT2037 (30 kW)

400500 300 200 150 30

20 10

Contactors and Contactor Assemblies

Contactors for Switching Motors

3RT1 contactors

(6)

SIRIUS

2/196

2

Sizes S3 to S12

Terminal designations according to EN 50 012 3RT10 4 to 3RT10 7, 3RT12, 3RT14 contactors

3RT10 4 to 3RT10 7, 3RT14 contactors

With 3RH19 21- . HA22 4-pole auxiliary contact block, mountable on the front 2 NO + 2 NC

Ident. no. 22E

3RT1. 5, 3RT1. 6, 3RT1. 7 contactors (sizes S6, S10, S12)

With 3RH19 21-1DA11 2-pole auxiliary switch blocks, laterally mountable 2 NO + 2 NC

3RH19 21- . HA../-.XA..4-pole auxiliary switch blocks, for snapping onto the front²)

3 NO + 1 NC Ident. no. 31

3RH19 21- . DA11, 3RH19 21-2DE11 first laterally mountable auxiliary switch block (solid-state compatible)

1 NO + 1 NC left

3RH19 21- . JA11, 3RH19 21-2JE11 second laterally mountable auxiliary switch block (solid-state compatible)

(only for sizes S3 to S12) 1 NO + 1 NC

left

Surge suppressor (plug-in direction coded; exception: marked +/– for 3RT19 16-1T... diode assembly) for sizes S2 to S3

Diode Diode assembly Varistor RC element Diode with LED Varistor with LED

Internal circuit diagrams (applicable to screw, spring and ring lug connection)

2 NO + 2 NC

22 1 NO + 3 NC

2 NO + 2 NC 13 22

1 NO + 1 NC right

Contactors with 4 main contacts, sizes S3 Terminal designations acc. to EN 50 005 3RT13/23 and 3RT15/25 contactors

C N 2 + O N 2 O

N 4

(3RH19 21 auxiliary switch blocks acc. to EN 50 005 can be snapped on)

1) 3RH29 auxiliaries are intended to be used only with 3RT2 or 3RH2 base devices.

3RH19 auxiliaries are intended to be used only with 3RT1 or 3RH1 base devices.

2) Not for 3RT12. vacuum contactors

3RT26 capacitor contactors

Size S00 Sizes S0 and S2

A1

-Q 13 21

14 22 NO NC

NO NC 1/L1 3/L2 5/L3

2/T1 4/T2 6/T3

52 51 6/T34/T22/T1 5/L3 1/L1 3/L2

C1 A2

F0

IC01_00374

A1

L3 L2 L1

62 61

52 51 6/T34/T22/T1 5/L3 1/L1 3/L2

C1 A2

F0

IC01_00375

A1

L3 L2 L1

64 63

Contactors and Contactor Assemblies

3RT Contactors

3RT1 contactors and accessories

(7)

SIRIUS

2/204

2

3RT20 1 contactors, 3RT20 1 coupling relays, 3RT 20 3,

3RT20 4, 3RT124 46 contactors, 3RT 20 3, 3RT 20 4 contactors 3RH19 21- . HA22 4-pole auxiliary switch block snapped onto the front 1 NO

Ident. no. 10E 1 NC

01

2 NO + 2 NC Ident. no. 22 E

3RT20 1 contactors (with 1 NO)

with auxiliary switch blocks snapped onto the front 3RH19 11-. H . . .

3RT20 3, 3RT20 4 contactors

with 4-pole auxiliary switch block for snapping onto the front 3RH19 21- . HA31

3RT20 3, 3RT20 4 contactors

with 4-pole auxiliary switch block for snapping onto the front 3RH19 21- . HA13 1 NO + 1 NC

Ident. no.: 11 2 NO + 2 NC

22

3 NO + 1 NC

Ident. no. 31 E 1 NO + 3 NC

13 E Position of terminals (applicable to screw connection and Cage Clamp connection)

2 NO + 3 NC

Ident. no.: 23 3 NO + 2 NC

32

1/L1 3/L2 5/L3 A1 21 13

2/T1 4/T2 6/T3 14 22 A2

3RT20 2 Contactors with 1NO + 1NC 3RT20 2 Coupling Relays

A1 21 13

14 22 A2 3RT20 2 Contactors with 3NO + 3NC

1 1 3 3

2 2 4 4

2/T1 4/T2 6/T3 1/L1 3/L2 5/L3 Size S00

Terminal designations according to EN 50 012

Size S0

1/L1 3/L2 5/L3 A1 21 13

2/T1 4/T2 6/T3 14 22 A2

3RT20 3 Contactors with 1NO + 1NC 3RT20 3 Coupling Relays

A1 21 13

14 22 A2 3RT20 3 Contactors with 3NO + 3NC

1 1 3 3

2 2 4 4

2/T1 4/T2 6/T3 1/L1 3/L2 5/L3 Size S2

Terminal designations according to EN 50 012 Sizes S3 to S12

Contactors and Contactor Assemblies

3RT Contactors and 3RH Control Relays

3RT2 contactors and accessories

(8)

SIRIUS

2/213

2

ContaCtors and assemblies 3RT10 5, 3RT14 5 contactors

Size S6 and NEMA Size 4

with auxiliary switch block, laterally mountable and mountable on the front, mounted overload relay and box terminals,

laterally mounted electronics module with remaining lifetime indication

Clearance from earthed parts with directly mounted overload relay:

lateral: 10 mm front: 20 mm Dimension drawings

For size S6:

k = 120 mm (minimum clearance for removing the withdrawable coil)

1) Second auxiliary switch block, laterally mountable 2) Auxiliary switch block, mountable on the front 3) RC element

4) 3RB10 overload relay, mounted 5) 3RT19 55-4G box terminal block

(hexagon socket 4 mm) 6) 3RT19 56-4G box terminal block

(hexagon socket 4 mm)

7) PLC connection DC 24 V and changeover switch (with 3RT1...-.N)

8) Electronics module with remaining lifetime indication (auxiliary switch block not mountable on right- hand side)

Drilling pattern

For specific dimensions, 2D / 3D CAD files and technical data, please visit www.siemens.com/cax
