BTL - An Efficient Deadlock-Free Multicast Wormhole
Algorithm to Optimize Traffic in 2D Torus Multicomputer
Kadry Hamed
Dept. of CS, Faculty of Computers and Information, Minia University, Egypt. Dept. of CS, College of Computing and Information Technology, Shaqra University, KSA.
Mohamed A. El-Sayed
Dept. of Math, Faculty of Science, Fayoum University, Egypt.
Dept. of CS, College of Computer and Information Technology, Taif University, KSA.
ABSTRACT
Multicast communication, in which the same message is sending from a source node to a set of destination nodes, is being increasingly demanded in multicomputer systems. It can be used to support several other collective communication operations. 2D torus network has many features. So, it has become increasingly important to multicomputer design. This paper presents an efficient multicast wormhole deadlock-free algorithm that Balance Traffic Load on 2D torus network; hence the name BTL algorithm. BTL algorithm handles multicast operation with a fixed number of message-passing steps irrespective of the network size. Also, it is designed such that can send messages to any number of destinations within two communication phases. Results from extensive comparative analysis show that BTL algorithm exhibit superior performance advantages over a well-known algorithm.
General Terms
Network, Multicomputer, and Algorithms.
Keywords
Deadlock-Free, Multicast communication, 2D torus topology, Multicomputer.
1.
INTRODUCTION
For Multicomputers, Optimizing the performance of the interprocessor communication depends on many factors as selection of the interconnection network, switching technique and routing algorithm. Two dimensional (2D) torus network is frequently utilized on top-performing multicomputers. It has been one of the most important communication networks due to its desirable properties, such as scalability, recursive structure, ease of implementation, constant node degree, constant length channel wires, higher channel bandwidth, low contention latency, and more [1, 2, 3]. Also, it offers edge connectivity and can be partitioned into meshes. Much recent interest in multicomputer systems is therefore concentrated on 2D torus networks. Such technology has been adopted in [4, 5, 6, 7]. Wormhole switching technique is widely used in interconnection networks due firstly to its low buffering requirements, allowing for efficient router implementation. Secondly, and more importantly, it makes latency almost independent of the message distance in the absence of blocking [1, 8, 9].
In this paper, 2D torus networks with bidirectional channels are used. For simplicity, the torus network will draw without channels. Multicasting is an important primitive among collective communication operations. Multicasting allows a source node to send the same message to a group of destination nodes. If the set of destination nodes contains only one node, the multicast called unicast. If the set of destination
nodes contains all of the computational nodes in the system, the multicast called broadcast [10]. Many multicast algorithms have been proposed in the literature [2, 11, 12]. The performance of multicast communication is measured in terms of its latency in delivering a message to all destinations. In wormhole-routed networks, the communication latency consists of three parts, start-up latency, network latency and blocking latency [2]. The start-up latency is the time incurred by the operating system when preparing a message for injection into the network. The network latency is a combination of propagation delay, router delay, and contention delay. The blocking latency accounts for all delays associated with contention for routing resources among the various worms in the network.
In this study, an efficient deadlock-free wormhole multicast routing algorithm for 2D torus multicomputer is proposed. This algorithm is multicasting a message to all destination nodes through two phases at most. In this scheme, the objective is to utilize the channels uniformly and reduce the path length of message worms, making multicasting more efficient in 2D torus networks.
The remainder of this paper is organized as follows. Section 2 summaries the related works. The proposed multicast algorithm and a new routing function are presented in section 3. Section 4 evaluates the performance of the proposed algorithm to an existing well known, T2W multicast algorithm [9]. Finally, section 5 concludes this study.
2.
RELATED WORKS
In multicast routing, the path selection procedure is very important to maximize the efficiency of the message delivery process. Various path selection techniques have been proposed in the literature. In general, the algorithms for multicast routing can be classified into three types, unicast-based, path-unicast-based, and tree-based. In unicast-based routing, identical messages are sent to the destination nodes recursively [4, 13]. This technique suffers from performance inefficiently as well as excessive power consumption [12]. The tree-based routing [14, 15, 16, 17] tries to construct a tree rooted at the source node in order to deliver a multicast message to destination nodes along the paths on the formed tree.
There are two types of multicast operation, single-phase (one startup) [18] and multi-phase (there is more than one startup) [9, 19]. In multi-phase multicasting, a message is required more than one step to reach all destination nodes. In [9], Darwish et al. proposed a path-based wormhole multicast algorithm in 2D torus network terms as T2W. In this algorithm, some intermediate nodes that are non-destination nodes are allowed to perform multicast operations. This feature increases flexibility in distributing messages to the destination nodes thereby improving performance that is evaluated through simulations. T2W algorithm can send a message to a set of destinations within two startup communication phases. It can use both horizontal and vertical wraparound channels of a torus network. In the first phase, T2W algorithm defines a horizontal main path starts from the source node and directed to a special node called end node.

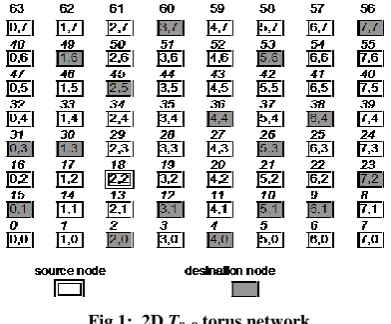

Fig 1: 2D T8×8 torus network
The horizontal main path is selected such that may use the horizontal wraparound channels to cover as many destinations as possible on its path. Also, the nodes on it can cover all remaining destinations that exist on columns of the torus network. In the second phase, some intermediate nodes along horizontal main path retransmit the message to the remaining destination nodes through vertical paths that branch from one side of the main path. In this technique, the multicast routing is divided into sub-multicasts that can be carried out in parallel by many independent paths that branch from the horizontal main path. Fig 1 shows a 2D torus network, T8×8,
with a source node, s= (2, 2) and a set of random distributed destination nodes in gray color.
A torus network and message paths become as in fig 2 when T2W algorithm is used to send a message from the source node to all destination nodes. A solid and dotted lines represent communication paths in the first and second phases, respectively.
Fig 2: Message multicasting by using T2W algorithm
Reducing the latency and traffic of multicasting message are main important aims of this paper. So, an efficient multicast wormhole routing algorithm with special routing function is introduced (BTL). The proposed algorithm will be compared with T2W algorithm [9]. The simulation results show that the proposed algorithm performs better than T2W algorithm.
3.
THE PROPOSED MULTICAST
ALGORITHM
This section introduces an efficient multicast wormhole deadlock-free algorithm, BTL for 2D torus network. BTL algorithm uses the concept of virtual partitioning of the torus network into meshes and divides the torus into nearly equally two size horizontal partitions. Each partition represents a 2D mesh. The basic idea behind the introduced algorithm is that, during the first phase, the message is sent to a set of nodes such that all the destinations can be reached in the first or the second phase of multicast communication. In the first phase, BTL algorithm like T2W algorithm where it defines a horizontal path named Horizontal Main Path (HMP) which begins from the source node and may use the horizontal wraparound channels to cover as many destinations as possible. The message is sent to the end node of HMP according to a deterministic routing function which supplies a unique minimal path.
In the second phase, the technique of BTL algorithm is differing from its T2W algorithm. BTL algorithm may use the vertical wraparound channels and divides the torus, Tn×m, into
nearly equally two virtual meshes. Some intermediate nodes along HMP retransmit the message to the remaining destinations through nearly equally vertical paths. The technique of BTL algorithm shows that the multicast is divided into sub-multicasts that branch from the two sides of HMP. So, the long of paths in BTL algorithm are shorter than of T2W algorithm (nearly half). Also, the multicast is divided into sub-multicasts carried out in parallel fashion by many independent paths. Fig 3 illustrates the message paths when BTL algorithm is used on torus, T8×8 of fig 1. The solid and
dotted lines represent communication paths in the first and second phases, respectively.
1,6 0,6 7,6 6,6 5,6 4,6 3,6 2,6
1,5 0,5 7,5 6,5 5,5 4,5 3,5 2,5
1,4 0,4 7,4 6,4 5,4 4,4 3,4 2,4
1,3 0,3 7,3 6,3 5,3 4,3 3,3 2,3
1,2 0,2 7,2 6,2 5,2 4,2 3,2 2,2
1,1 0,1 7,1 6,1 5,1 4,1 3,1 2,1
1,0 0,0 7,0 6,0 5,0 4,0 3,0 2,0
[image:2.595.320.537.501.637.2]1,7 0,7 7,7 6,7 5,7 4,7 3,7 2,7
Fig 3: Message multicasting by using BTL algorithm
3.1 Partitioning Algorithm
BTL algorithm begins by determination the best move direction and the optimum last node, e =(xe, ys) of HMP. This
[image:2.595.53.263.618.753.2]Phase 1: algorithm1 may use the horizontal wraparound channels since it selects two destination nodes such that one of them has the farthest x-coordinate, xR, to xs from the right
direction (the right direction starts from the source node column and directed right to reach at the last column that previous the source node column). The other destination node has the farthest x-coordinate, xL, to xs from the left direction
(the left direction is similar to the right direction but directed to left side). So, a variable called Move_HMP is used to refer the horizontal moving direction of HMP where Move_HMP =1 refers to the right direction and Move_HMP =0 refers to the left direction. According to Move_HMP, the x-coordinate of end node, xe is determined which equals to xR or xL. Phase 2: according to the source node position, algorithm1 may use the vertical wraparound channels to divide the torus, Tn×m, into two virtual meshes, M1 and M2. So, there are two
cases:
Case 1: If the y-coordinate of the source node is less than m/2, then M1 contains the nodes whose y-coordinates are
between y-coordinate of the source node and y-coordinate of the source node plus m/2 ,M2 contains the remaining nodes.
Case 2: If the y-coordinate of the source node is greater than or equal to m/2, then M1 contains the nodes whose
y-coordinates are between y-coordinate of the source node and y-coordinate of the source node minus m/2, M2 contains the
remaining nodes.
For any Tn×m with a destination set D = {(x0,y0), (x1,y1),… ,
(xk,yk)}. Let Dx = {x: (x, y) D}, Dy = {y: (x, y) D} are the
two sets of x-coordinates and y-coordinates respectively of D. Let Lx={xi:0≤xi<xs, xiDx}, and Rx=Dx–Lx are the two sets of
x-coordinates of D which exist on the left columns and the right columns respectively of the column that contains the source node.
Fig 4 illustrates algorithm1 which produces xe, Move_HMP,
andN_HMP that is the number of nodes on HMP.
Algorithm1: BTL_Balancing_Partitions Input: source node s= (xs, ys), the sets Lx, Rx Output: xe , Move_ HMP , N_HMP
Begin:
1- IF (Lx ≠ ) THEN xR= Max {Lx}, Rdist=n-|xs-xR|
ELSE xR= Max {Rx}, Rdist=|xs-xR|.
2- RX1=Rx – {xs}, LX1=Lx U {xs}
3- IF (RX1 ≠ ) THEN
xL= Min{ RX1}, Ldist=n-|xs – xL|
ELSE xL= Min{ LX1}, Ldist=|xs – xL|.
4- IF(Rdist ≥ Ldist) THEN
xe= xR, Move_ HMP =1 , N_HMP= Rdist +1
ELSE
xe= XL, Move_ HMP =0 , N_HMP= Ldist +1
5- Return (xe, Move_ HMP and N_HMP)
End BTL_Balancing Partitions algorithm
Fig 4: Determination HMP
3.2 A Formal Routing Function
A special path routing function, RBTL, is needed to determine
the next node for which the path of BTL algorithm will visit in a 2D torus network, Tn×m. RBTL is the same as XY-routing
[20] with some conditions which deal with the horizontal and vertical wraparound channels and prevent deadlock to occur. So, a routing path by RBTL is decided first along the
X-dimension before choosing a path along the Y-dimension. Clearly, RBTL routing is deadlock-free for one-to-one
communication because it is impossible for a cyclic channel dependency to arise if channels are acquired in XY order. The direction variable, Move_HMP which is decided in previous subsection will be considered. To send a message from a current node u= (xu, yu) to a destination node v= (xv, yv), the
horizontal neighbor node of node u denoted h_node(u) is determined as follows:
0 1 1 1 0 0 1 1 1 0 _ Move_hor if ,yu) (xu Move_hor if ,yu) (xu Move_hor xu if ,yu) (n Move_hor n xu if ,yu) ( node(u)h (1)
The path routing function of BTL algorithm is a function RBTL: (P P P) that maps a (current node, destination node)
pair to a neighbor node of the current node. It is defined as follows: RBTL (u, v) = hv_node, where
yv yu if yu xu yv yu if ) (xu,yu m ys yv n yu if ) (xu, m ys yv yu if ) n (xu xv xu if u node h node hv ) 1 , ( 1 /2 1 0 /2 0 1 , ) ( __ (2)
3.3 Message Processing of BTL Algorithm
In this subsection, two ordered subsets (Olist1 and Olist2) of the destination nodes are constructed. One of them is constructed and sorted from the destinations in M1 and the
other is constructed and sorted from the destinations in M2.
Fig 5 describes the components of algorithm2: BTL_Message_Processing, which constructs Olist1 and Olist2 according to the position of the source node where there are four cases. So, there are many FOR loops that organize the building of Olist1 and Olist2 such that all destinations (are not on HMP) receive a message through vertical paths branch from HMP. The function FILL_LIST() is used to fill Olist1 and Olist2 with destination nodes.
Algorithm2: BTL_Message_Processing Inputs: s, D, e, N_HMP
Output: Olist1 and Olist2
Begin: let D=D U {s}, Olist1=, Olist2=, b=s FOR k=1 TO N_HMP
{1. u=b, OL1=, OL2= 2. IF (ys <m/2 ) THEN
FOR i=yu+1 TO yu+m/2
IF (xu, i) D THEN FILL_LIST ((Xu,i), OL1)
FOR i= yu – 1 TO 0 step –1
[image:3.595.329.529.254.299.2] [image:3.595.330.528.361.420.2]FOR i=n–1 TO yu+ m/2+1 step -1
IF (xu, i) D THEN FILL_LIST ((Xu,i), OL2)
3. ELSE
FOR i= yu – 1 TO yu – m/2 step -1
IF (xu, i) D THEN FILL_LIST ((Xu,i), OL1)
FOR i= yu + 1 TO n–1 step +1
IF (xu, i) D THEN FILL_LIST ((Xu,i), OL2)
FOR i=0 TO yu- m/2 -1 step -1
IF (xu, i) D THEN FILL_LIST ((Xu,i), OL2)
4. IF (OL1 ≠ uD) THEN Olist1= Olist1 ||{u}|| OL1 5. IF (OL2 ≠ uD) THEN Olist2= Olist2 ||{u}|| OL2 6. b= RBTL (u,e)
}
RETURN (Olist1, Olist2)
END BTL_Message_Processing algorithm
Fig 5: Message processing algorithm
So, the source node constructs two messages, one containing Olist1 as part of the header and the other contain Olist2 as part of the header. The source node sends two messages into two disjoint subnetworks M1 and M2.
Next, the BTL algorithm uses a distributed routing method in which the routing decision is made at each intermediate node. Upon receiving the message, each intermediate node determines whether its address matches that of the first destination node in the message header. If so the address is removed from the message header, the message is copied and sent together with its header to the neighboring node using the routing function RBTL. In case where the intermediate node is
not a destination, it sends the message together with its header to the neighboring node using the routing function RBTL. If the
sets of the destination nodes are not empty, the algorithm continues according to the previous method.
Theorem 1: BTL Algorithm is
Deadlock-Free.
Proof: as explained in previous subsection 3.1 and according to the position of the source node, BTL algorithm divides the 2D torus network into two disjoint sub-networks, M1 and M2.
This is obvious since M1∩ M2 = . Then BTL algorithm is
deadlock-free at M1 and M2. The technique of BTL algorithm
uses both of the horizontal and vertical wraparound channels and rearranges columns and rows to deal with a torus as a virtual mesh network. It makes the source node nearly in the middle of the first or last column. In the first phase, there is a main horizontal path (HMP) starts from the source node and extend to last column contains destination nodes. HMP sends the message to the destination nodes that pass on. All other destinations receive the message through vertical paths branch from HMP (up or down in M1 or M2). So, all paths are parallel
and as follows, there is no intersection between any paths.
Then no cyclic dependency can be created among the channels. So, BTL algorithm is deadlock-free.
4.
PERFORMANCE EVALUATION
In this section, the performance of the proposed algorithm, BTL is compared with well-known multicast T2W algorithm [9]. A common metric used to evaluate the performance of an interconnection network system is the communication latency, which is approximated by TS+Tn [21]. TS is the startup time
and consists of two parts TS1 and TS2. TS1 is made at the source
node in the first phase. TS2 is made at each intermediate node
along HMP in the second phase to retransmit the message to rest of the multicast destinations. It is clear that TS2< TS1
because the generation of succeeding messages should take less time than the generation of the first message. The network time, Tn, is the total time spent between the injection
of the message into the network until the message is drained away. Tn is different for the two algorithms, T2W and BTL.
So, it is used to compare them. Each multicast message can be expressed as sequences of serially forwarded unicast messages from root to destinations [22]. So, the time of multicast message is expressed as follow:
Tmulticast = Max [Ts + Tn] over paths (3)
Where Max [ ] operation yields the total multicast latency for deepest path over all paths, and Tmulticast is the time interval
between the initiation of the multicast and the last destination’s reception of the message. The network traffic is another parameter and is defined as the number of channels used to deliver all messages involved.
The two metrics, the network latency and the network traffic are calculated for two algorithms to compare the performance. A routing model for each algorithm is used as path processes to determine the channels on which each message should be transmitted. A simulation in VC++ language was designed and implemented for performance evaluation. Many random 2D torus networks that contain two virtual channels per physical channel were used. Each network contains a source node (xs, ys) and a set of destination nodes that are uniformly
distributed through each network. The networks were generated with different numbers of processors ranging from 25 to 3200. It is assumed that the network latency time between any two nodes is 30 ns, TS1 is set to 1s, and TS2 is
set to 240 ns. Figs. 6-8 show the results of these algorithms.
90 100 110 120 130
L
a
te
n
c
y
(mi
c
ro
se
c
)
number of destinations
[image:4.595.323.537.548.698.2]BTL T2W
Fig 6: network latency of BTL and T2W vs. no. of destinations
Fig 6 plots the multicast latency obtained by the two algorithms on T40×40 versus various values of the number of
is nearly in the center of the network. It is clear that, as the number of destination increases, the latency values obtained by all algorithms increase. BTL algorithm however, is less sensitive to the increased load than T2W algorithm. This is due to the fact that BTL routing uses shorter paths; so resources are held for shorter time periods, leading to higher throughput.
Fig 7 plots the multicast latency obtained by the two comparison algorithms versus the different sizes of torus networks within range from 25 to 1600 nodes, pd=20% where pd is the percentage of destination nodes out of the total number of nodes in the network, and the source node is nearly in the center of the network. It is clear that, as the torus size increases, as the latency values increase. However, the latency obtained by BTL algorithm increases slowly. It is obvious that, BTL algorithm outperforms T2W algorithm.
40 60 80 100 120
T5 T10 T15 T20 T25 T30 T35 T40
la
te
n
cy
(mi
cr
o
se
c)
Torus size
BTL T2W
Fig 7: Network latency of T2W and BTL vs. torus size
800 1000 1200 1400 1600
100 200 400 600 800 1000 1200 1400 1600
Tr
a
ff
ic
Number of destination
[image:5.595.59.274.259.398.2]BTL T2W
Fig 8: Network traffic of T2W and BTL vs. no. of destinations
Fig 8 plots the network traffic obtained by the two algorithms on T40×40 versus various values of the number of the
destinations ranging from 100 to 1600. For the two algorithms, as the number of destinations increases, the traffic curves increase until they meet at a certain point. This happens when Pd =100%, i.e., at the broadcast pattern. But the increasing rate of traffic curve of BTL algorithm is lowest. Also, at small number of destinations, the increasing rate of traffic curves is large, nearly 25%, after this ratio, the Increasing rate is small. Generally, from the previous figures, the following notes can be observed:
BTL algorithm performs better than T2W algorithm.
As the number of destinations increases, latency values obtained by the two algorithms increases but BTL routing is less sensitive to the increased load than T2W algorithm. This is due to the fact that it’s BTL routing uses shorter paths, figs 6, 7.
Also, the number of destinations increases, the traffic of the two algorithms increase but BTL algorithm has the lowest, fig 8.
Finally, BTL algorithm is efficiently used in 2D torus multicomputer.
5.
CONCLUSION AND FUTURE WORK
In this study, a deadlock-free wormhole multicast algorithm in 2D torus multicomputer, BTL, was presented. This algorithm used a path-based facility and is shown to be deadlock-free. BTL routing uses both horizontal and vertical wraparound channels to send a message to a set of destinations within two phases at most. Also, a routing function, RBTL is designed and
is used as a base for the proposed algorithm. The performance of BTL algorithm was evaluated through comparing it with T2W algorithm [9]. The results show that the best performance is obtained by BTL algorithm over different traffic loads and destination set sizes. Our future works will focus on extending the proposed BTL algorithm to higher dimensional torus networks. Also, another multicast partitioning and routing strategy will be studied to enhance the overall system performance.
6.
