REFERENCE NO, - BMPL/101022

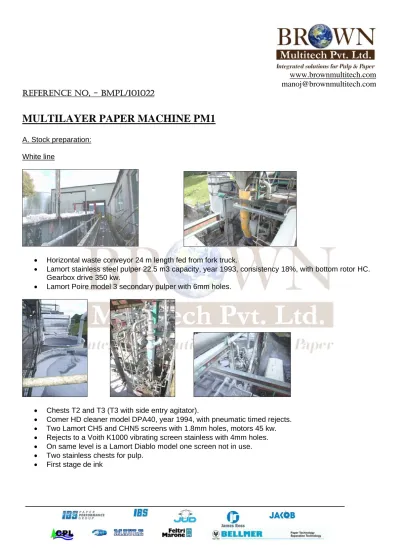

MULTILAYER PAPER MACHINE PM1
A. Stock preparation:White line
• Horizontal waste conveyor 24 m length fed from fork truck.
• Lamort stainless steel pulper 22.5 m3 capacity, year 1993, consistency 18%, with bottom rotor HC. Gearbox drive 350 kw.
• Lamort Poire model 3 secondary pulper with 6mm holes.
• Chests T2 and T3 (T3 with side entry agitator).
• Comer HD cleaner model DPA40, year 1994, with pneumatic timed rejects.
• Two Lamort CH5 and CHN5 screens with 1.8mm holes, motors 45 kw.
• Rejects to a Voith K1000 vibrating screen stainless with 4mm holes.
• On same level is a Lamort Diablo model one screen not in use.
• Two stainless chests for pulp.
www.brownmultitech.com
[email protected]
• Number one Lamort de inking cells: Verticell model 4, capacity 560 m3/hr operating at 1.2% consistency. Complete with double and counter aeration pumps. Sludge removal fan. Primary cell operating on 7t/hr.
• Cell accept tank. White water silo.
• Thin stock de ink
• Lamort SPN 12 pressure screen year 1993, stainless with 0.15mm slots.
• Tailing screen for pressure screen Lamort CHA5 with 0.15 mm slots. Voith C bar baskets and motor 45kw.
• Greenson and Waite drum thickener for thickening de ink pulp. Face 5.5 m x 1800mm diameter complete with direct drive manifold and rubber couch roll.
• Tank T12 in stainless with side entry agitator.
• Dispersion
• Maule 1989 kneader dispersion system running at 6t/hr, six inclined dewatering screws, feed transfer screw and Maule dewatering screw into steam heated (Unpressurised 100 Deg) kneader.
• Dispersed stock chest with side entry agaitator.
• Post Dispersion Deinking
• Number two Lamort style model 4 Verticell stainless cell.
• Voith drum thickener with feed manifold, and rubber couch roll, 4500mm length and drum diameter 1500mm, rated at 480 m3/ hr at 1.2% consistency.
• Tank T22 in stainless with side entry agitator.
• Top wire feed chest with top mounted agitator unit.
• Top wire recirculation chest.
• Top wire has two Beloit 3000 series refiners: 26” diameter auto gear loading
• Top wire pressure screen: Voith model 20, 0.35mm slots.
• Voith KS160 LD cleaners in three stages with tertiary rejectomatic cleaner.
www.brownmultitech.com
[email protected]
Brown line• Jylhavara roll splitter 2500mm width x 1250mm diameter. Fork truck loaded roll.
• Sicma wire baler for pulp bale wires.
• Conveyor floor level fed from fork truck feeding pulper.
• Bottom wire pulper (A) is a BCI unit 16 ft diameter, LC with a D section tub, body mild steel with stainless lining. number three gearbox drive.
• Voith Trashex for pulper rejects.
• Rejects treated by an external trommel.
• Bottom wire dirty chest.
• HD cleaner: Voith ATS 21 turbo separator 2.6mm holes.
• Rejects to a Voith 1000 vibrating screen 4mm.
• Bottom wire stainless refiner chest with side mounted agitator.
• One Voith SDM 30”`disc refner.
• Bottom Wire machine chest with top mounted agitator
• Two pressure screens: BCI 36p units in stainless with 0.2 mm slots.
• Primary Rejects to a BCI P24 selectifier
• Secondary Rejects to an Esher Wyess RS2B reject sorter, year 1989.
• LD cleaners: Bauer model 623 (primary x 5 cleaners, secondary x 1 cleaner) 1217 l/min at 8% consistency.
www.brownmultitech.com
[email protected]
B. Paper machine PM1• This machine has a right hand drive sectional Electric drive, the cylinders are rated 100 psi, speed 520 m/min. The machine has a top wire as the machine produces white top as well as liner papers. Speed range 520 to 350 m/min, 180 to 125 gsm, deckle at slice 3200mm and deckle at reel 2850mm, sectional electric DC drive. Top and bottom wire. Production 200 to 170 t/day. Basement designed machine.
Top wire approach flow
• Three stage Voith model KS160 cleaners: first stage 7 cleaners, second stage 4 cleaners and third stage 1 cleaner. Fibre saver in the last stage.
• Pressure screen Voith Size 20 with 0.35mm slots.
• Basis weight control: De Zurick. Top wire, year 1981
• Voith Jetcommander flowbox. Pressure equalising tank, slice 3150mm, manual slice adjustment, 25 micro adjusters. The wire section is cantilevered. Breast roll 514mm diameter, rubber covered, forming board stainless with ceramic cover, low vacuum suction foils, rubber covered forward drive roll 514mm diameter, stainless steel trim handling system, couch tail cutter (manual), wire cleaning high pressure: Permajet system. Thune auto wire guide. The top wire runs in opposite machine direction.
Bottom wire
• Stainless wire frame cantilever type.Voith Duo shake motion, year 2003.
• KMW pressurized flowbox with ABB auto slice control, two driven evenor rolls,
• breast roll with Voith lubrication system 2003, forming board stainless with polyethylene top, Johnnson gravity foils in stainless with polyethylene tops. Low vacuum foils in stainless steel with 3 ceramic foils each, complete with vacuum fan and CH Johnson auto vac 2 with two systems. High vacuum boxes in stainless with two ceramic foils each. Duo Vac foil box with six ceramic foils.
• Suction box with PTFE cover. Top Wire Dandy roll 800mm diameter. Suction couch roll 762mm diameter with lump breaker roll. Forward drive roll 500mm diameter. All wire rolls covered with Glatex covers. Electric wire stretcher. Wire centres from breast roll to suction couch: 16 m. High pressure showers.
• Hog pit pulper system under couch roll.
www.brownmultitech.com
[email protected]
• Suction pick up.
• Two direct plain presses with pneumatic loading.
• Drying sections
• Dryers are on A/F bearings with central lubrication system. Dryers are gear driven with some having gears removed being driven through felt.
• 28 dryers before the size press. 1500mm diameter with bolted ends, Thune felt guides, Some sections with Judd felt stretchers. Sheathan rope feed.
• Hood enclosure with exhaust fan systems.
• Valmet Cross machine scanner measuring moisture profile.
• Size Press - Warburton inclined size press with pneumatic loading of rolls, sheathan rope feed
• After Drying section
• After dryer section on A/F bearings, Thune felt guide, eleven cylinders, sheathan rope feed.
• Under machine dry end pulper.
• Vib damper unit.
• Aquatrol system (not used)
• Hood enclosure with exhaust fan systems
• Calender - Voith two roll calender stack with calcoil caliper control and hydraulic loading.
• Cross machine scanner
• Valmet IQ scanner measuring moisture, caliper, gsm, ash and profile. Year 1998. IBS tail transfer tape system.
www.brownmultitech.com
[email protected]
• Vacuum System
• The bottom wire high vac system and 1st and 2nd felt conditioning vacuum systems all have 2000 series vacuum pump. The Couch roll has 4000 series vacuum pump and the 1st press suction roll is fitted with a 3000 series vacuum pump.
• Rewinder - Masson Scott UIA rewinder with unwind on fixed stand, water cooled drum brake with pneumatic operated brakes, tension control, taking a reel 2.4 m diameter, shaftless rewind diameter 1500mm. Rewinder has been rebuilt with twin motor drive and converted to hydraulic operation. Drive on left side. Reel ejector and lowering table.
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101019
PRESSURE SCREEN (VOITH)
• Make – VOITH
• Model - VSi10/11
• With screen basket C Bar 0.30mm
• 6000 LPM possible (preferable with waste paper)
• Nominal capacity - up to 100 TPD
• Equiped with drive motor 15 kW
• In complete overhauled condition
• Ready for installation with new bearings and new shaft seal.
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101018
CENTRICLANER SET – GL&V
• GLV Cleanpac 700, 3 stages with 2 fibermizers
• 1st stage 16 units of CLP700
• 2nd stage 6 units of CLP700
• 3rd stage 3 units of CLP700
• 2 Fibermizer 0/2
•
Installed in 2002www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101017
HEADBOX – RECTIFIER ROLL TYPE
• Manufacturer: EMUA (TAMPELLA licence)
• Year of manufacture: 1.978
• Type: with rectifier rolls
• Slice width: 2.450 mm.
• Max. flow rate: 50.000 l./min.
• Min. flow rate: 16.500 l./min.
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101015
PRESSURIZED HEADBOX
• Manufacturer : ALLIMAND • Slice width : 2950 mm • Flow Maximum : 26000 LPM• Machine speed Maximum : 600 MPM
• Construction : Stainless Steel
• Controls are not available
• Location : Warehouse in Europe
• Inspection is possible any time
• Selling price : on request
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101013
FLUTTING & WP PAPER MACHINE – 3200 MM. WIDE (Twin machines)
• Manufacturer : ERWEPA
• Internal number : PM2
• Year of made : 1963
• Main rebuilts : 1980`
• Working width : trimm width 3200mm
• speed : max. 350 mpm
• grammage range : 60 - 120 gsm
• paper grades : Schrenz, Fluting, woodfree and wood
• containing papers
• capacity : approx. 100 tpd (35000 tpy)
• Stock Preparation and Approch flow system consisting of:
• 2 pulpers 16m3 for using for pulp in bales, loose waste papers
• high density celaners Escher Wyss D1PS
• 2 Refiners Sprout Waldron DD 26”
• 14 Erwepa conical Refiners
• 2 Escher Wyss Deflakers E1K
• Finckh Sz. 25 pressure Screen with screen basket Ø 2,0mm, 5-wing rotor
• 3 stage Low Density Cleaners
• Paper Machine:
• Erwepa pressurized Headbox
• Frourdrinier cantilevered in stainless steel construction
• Dandy Roll i s/s constr.
• Suction Pick Up Roll with press nip
• Granit Central Press
• Fabric Press
• 35 drying cylinders Ø 1500mm with steam pressure 5 bar, roller bearings, central lubrication
• rope paper feeding
• excellent hood made 1990 by Brunsweiler
• size press horizontal roll Ø 500mm, rubereized
• 1 cooling cylinder Ø 1500 with cupper lined
• 4 roll machine calendar with S-roll
• Pope reel
• Pope reel Crane
• Drive with long shaft drive
• Erwepa vacuum system
• Converting:
• Converting with Slitter Rewinder jagenberg 1963, Sheet Cutter by Jagenberg, Kleinewefers reel
• wrapping, Super calendar for news print and offset papers
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101013
FLUTTING & WP PAPER MACHINE – 3200 MM. WIDE (Twin machines)
• Price: on application “in condition as is, where is” negotiable
• Documentation: full set available
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101013
FLUTTING & WP PAPER MACHINE – 3200 MM. WIDE (Twin machines)
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101013
FLUTTING & WP PAPER MACHINE – 3200 MM. WIDE (Twin machines)
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101013
FLUTTING & WP PAPER MACHINE – 3200 MM. WIDE (Twin machines)
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
DUPLEX BOARD MACHINE – 2600 MM. WIDE
(CROSSED PARTS ALREADY SOLD)
www.brownmultitech.com
[email protected]
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
FORMING DRUM WITH HEADBOX 2600MM
(5 UNITS AVAILABLE)
Manufacturer : DOERRIES (VOITH)
Type : Screen Drum Former with Headbox, vacuum, Type „N“ Number available : 5
Year of origin : 1987 Working width drum : 2765mm Drum diameter : Ø 1250mm Working width Headbox: 2760mm Trim width : 2500mm
Maximum speed : 95 – 250 mpm (m/min) Grammage : approx. 30 – 80 gsm / former Hydraulic load : ca. 4000 lpm
Wire cleaning : Stamm shower pipe high pressure, oscillating
Couch roll : Ø 400mm x 2950mm, 30mm rubber lined 180 – 200 P&J, load 10 kN/m, pressure 5,5 bar by compressed air
Material : Throughout acid proved steel Documentation : Included in Germany language
Asking price : “as is, where is” Location : Switzerland
Current status : out of operation since spring 2010 Available : at any time, subject a prior sale Inspection : possible at any time
Condition : very good condition
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
JUMBO PRESS 2600MM FOR BOARD
Manufacturer : VOITH SULZER DOERRIES Type : Vertical Jumbo Press, crowning Year of Origin : 1987
Working width : 2600mm on reel
Maximum speed : 230 mpm(m/min) operating speed, higher speed possible Jumbo Press : heavy duty press for 300 kN/m, water cooled
Top and Bottom Roll by Doerries 1987, rubber covered 22mm, drum shell thickness 60mm, weight 8600 kg (without bearings), blind drilled Ø 2,5mm, open area 23-25%
Roll Ø 1244mm x 2800mm, useful length 2680mm B/C 3360mm, crowning max 1,7mm (in diameter) Drive : Top roll drive 56 kW, 1705-1, DC
Bottom roll drive 58 kW, 1705-1, DC
Available with D/C drive motors, current 380/400V, 50 Hz Drive side : right hand drive
Documentation : included in German language
Asking price : o.a. “errected, as is, where is” for the entire plant Location : Switzerland
Current status : out of operation since spring 2010 Available : at any time, subject a prior sale Inspection : possible at any time
Condition : very good condition
www.brownmultitech.com
[email protected]
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
MG-CYLINDER Ø 3600MM X 2850MM
Manufacturer Year of made Outer diameter Face length B/C No Shell thickness : : : : : : : VOITH HEIDENHEIM 1938 3600mm 2850mm 3600mm 9912 Original 48mm Operation pressure : 2,5 barTest pressure Last test Speed Drive Documentation Asking Price Location Current status Available Inspection : : : : : 5 bar 2.12.2008, passed Used for 250m/min Right hand
Included in Germany language : o.a. “errected, as is, where is” : Switzerland
: Out of operation since spring 2010 : At any time, subject a prior sale : Possible at any time
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
MG-CYLINDER Ø 4200MM X 2900MM
Manufacturer : DOERRIES VOITH Year of made : 1957
Outer diameter : 4200mm Face length : 2900mm
B/C : 3530mm
No : 14593
Shell thickness : Original 47mm Operation pressure : 2.5 bar
Test pressure : 5 bar
Last test : 2.12.2008, passed Speed : used for 250m/min
Drive : Right hand
Documentation : included in Germany language Asking Price : o.a. “erected, as is, where is”
Location : Switzerland
Current status : Out of operation since spring 2010 Available : at any time, subject a prior sale Inspection : possible at any time
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
SIZEPRESS 2600MM FOR PAPER AND BOARD
Manufacturer Type Year of origin Working width Maximum speed Line pressure Drum load Drums Drive Spare rolls Documentation Included Price Location Current status Available Inspection Condition : : : : : : : : : : : : CARCANO ITALY
Horizontal Size Press, single and double side coating possible Paper feed vertical
1987 2600mm
250 mpm (m/min) Max. 40 kN/m
Pneumatic, 5 bar compressed air Flexible Soft roll Ø 500mm x 2700mm
Rubber Cover 20mm, 20P41 st (Schaefer) B/C 3360mm
Fixed Soft roll Ø 500mm x 2700mm face length Rubber Cover 20mm, 20P41 st (Schaefer) B/C 3360mm
right hand drive
Flexible roll: kardan shaft, gearbox, 11kW, 2060-1, DC Fixed roll: gear box, 24kW, 1725-1, DC
one complete set of spare rolls available included in Germany language
Ø 496mm feeding drum, rope feeding pullies, drive support frames, gangway : “as is, where is”
: Switzerland
: Out of operation since spring 2010 : At any time, subject a prior sale : Possible at any time
www.brownmultitech.com
[email protected]
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
BACHOFEN & MEIER AIR KNIFE COATING 2600MM
Manufacturer : Bachofen & Meier Bülbach (CH)
Type : Air Knife Coating Head with rotary doctor Year of Origin : 1984
Consisting of : Colour tank with water cooling, stroke 460 – 710mm, printing drum
Drum Ø 300mm x 2840mm
Colour thickness : by rolling doctor Ø 12mm x 2730mm, water cooled, driven by motor 1,1 kW,
Return colour tank : s/s with filter separating colour and air, water cooled control sheets
Documentation : included in Germany language Asking Price : o.a. “errected, as is, where is” Location : Switzerland
Current status : Out of operation since spring 2010 Available : at any time, subject a prior sale Inspection : possible at any time
Condition : in excellent shape
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
CALENDAR PRESS 2600MM FOR PAPER AND BOARD
: Voith Sulzer Manufacturer
: Double drum vertical press Type : 1997 Year of origin : 2600mm Working width : 250 mpm (m/min) Maximum speed
: Gravity load, hydraulic unload Line pressure
Top Roll Ø 400mm, plain steel, drum face 2650mm, B/C 3100mm, :
Drums
Bottom Roll Ø 450mm, plain steel, drum face 2650mm, B/C 3100 :
Drive Right hand drive :
Documentation Included in Germany language Asking Price : o.a. “errected, as is, where is” Location : Switzerland
Current status : Out of operation since spring 2010 Available : At any time, subject a prior sale Inspection : Possible at any time
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101010
POPE REEL 2600MM
Manufacturer : DOERRIES
Type : Pope Reel
Year of origin : 1963
Working width : 2620mm on pope
Drum Ø : 900mm
Drum face : 2770mm
Doctor Blade : with pneumatic release Cooling connection : yes / water cooling Max rewind : 1800mm
Spool couling : see picture
Maximum speed : 95 – 250 mpm (m/min) Grammage : nom. 120 – 800 gsm Operators desk : included
Documentation : included in Germany Language Asking Price : o.a. “errected, as is, where is” Location : Switzerland
Current status : Out of operation since spring 2010 Available : at any time, subject a prior sale Inspection : possible at any time
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101009
TISSUE MACHINE
• Machine No. 1:• Tissue machine type Crescent Former.
• Still running (as on 01/12/2010).
• Shutdown planned for June 2011
• Maximum speed 565 m/min on the Yankee
• Product: 16 gr/m2 to 40 gr/m2 at the pope reel
• Production: 30 TPD. Depending the mix the machine, it can be 700 MT per month
• Manufacturer: Over Mecánica – Italia.
• Present speed: 565 MPM at 22g/m².
• Maximum width: 2430 mm
• Yankee: Diameter 3600 mm, Face 2730 mm. Maximum workable width is 2499 mm
• The working pressure: 2.5 – 2.8 bar
• The last thickness of the yankee is 42 mm.
• Hood: Closed and high efficiency hood built by CBTI.
• Burners of natural gas
• Temperature Maximum 550° C
• Temperature operation 450° C
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101008
DUPLEX BOARD MACHINE DETAILS
STOCK PREPARATION
Three lines:
White top layer (1)
Middle layer (2)
Bottom layer (3)
White top layer composed of:
•
Helical pulper
•
Contaminex (diam. 3 mm)
•
Vibrating screen
•
High density cleaner
•
C-300 (diam. 3 mm)
•
Moduscreen C4R (diam. 2,2 mm)
•
Hot dispersion
Approach flow:
•
Low density cleaners in 4 stages
•
Moduscreen HB3R of 0,15 mm. slots
•
Minisorter of 0,35 mm. slots
•
Thickener
•
Middle layer composed of:
•
1 Low density pulper of 12 mm. diam. perforated plate
•
1 Horizontal drum pulper of 6 mm. diam. holes
•
High consistency cleaner
•
Turbosorter of 0,65 mm. slots
•
Vibrating screen
•
Thickener
•
Hot dispersion
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101008
Approach flow:
•
4 Stages cleaners
•
Sorter 400, 0,35 mm. slots basket
•
Minisorter 1,4 mm. diam. basket
•
Bottom layer composed of:
•
1 Low density pulper of 18 mm. perforated plate
•
Turboseparator
•
Vibrating screen
•
C-300 pressure screen of 3 mm. diam. basket
•
Fiberizer of 3 mm. diam. holes
•
Hot dispersion
•
F-20 pressure screen of 0,15 mm. slots basket
•
F-10 pressure screen of 0,25 mm. slots basket
Approach flow:
•
4 Stage centricleaners
•
SP-600 pressure screen with 0,35 mm. slots basket
•
Minisorter of 0,25 mm. slots basket
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101008
COATED BOARD MACHINE
Trim width
: 2.180 mm.
Working speed : 50-220 mpm
Basis weight range: 150-650 gsm
Composed of the following elements:
•
3 Air cushion headboxes with manual adjustment of lip
•
3 Forming wires
•
1 Top former
•
1st Suction press with top and bottom felt
•
2nd and 3rd Tem-Sec press
•
Predrying section with 22 dryers of 1.500 mm. diam.:
•
16 Dryers of 2.400 mm. at 3,5 Kg./cm2
•
6 Dryers of 2.400 mm. at 5 Kg./cm2
•
MG cylinder of 2.400 mm. face x 4.000 mm. diam. 3,5 Kg./cm2, with high efficiency hood
•
Inclined size-press of 500 mm. diam. x 2.500 mm. face
•
Postdrying section with 12 dryers of 1.500 mm. diam. x 2.400 mm. face, 3,5 Kg./cm2
•
1st Calender stack with 3 fixed crowning rolls
•
Coating section:
•
Coating head Roll Flex with Brunschweiler intermediate drying tunnel
•
Air knife coating head Bachofen/Meier with infrared panel (240.000 Kcal.) and Brunschweiler
tunnel
•
2nd Calender stack with fixed crowning rolls
•
1 Dryer and 1 cooler of 1.500 mm. diam. (the cooler´s construction is similar to a dryer), 3,5
Kg./cm2
•
Soft calender: soft and hard. Thermal oil. Variable crowning
•
3 Brushers
•
Moisture and grammage control system. 3 Units:
•
Before MG cylinder: grammage and humidity
•
Before coater: grammage and humidity
•
Before pope reel: grammage, humidity and caliper
•
Pope reel
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101008
WINDER
•
Face width of rolls 2.300 mm
•
Working width 2.200 mm
•
Max Worthing speed 1.000 m/min
•
GSM range 200 to 550 g/m2 board
•
Unwinding stand for machine spool
•
Finished reel core diam 70, 75, 100, 120, 150, 200 and 250mm
•
Max diam. at the unwinding stand 2.200 mm
•
Maximum width at the unwinding stand 2.200 mm
•
Max diam of the finished reel 2.200 mm
•
Number of cuts 7
•
Automatic slitter setting
•
Acceleration time 90 s.
•
Deceleration time 90 s
•
Emergency stop time 10 s
•
Installed power 315 kW (approx)
•
Main tension 380 V triangle
•
Auxiliar tension 220 V AC
•
Tension of solenoide valves 24 V DC
•
Air pressure 6 bar
•
Estimated air volume 1.200 l/min
•
Hydraulic central power 7.5 kW
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101008
SHEET CUTTER
•
Manufacturer: JAGENBERG
•
Year of manufacture:
•
Type: SYNVERT 215 with multimotor drive
•
Synchro cut
•
Doble unwinding stand with intermediate arms
•
Automatic splicers
•
Imperfections optical detector
•
Max reel diam: 2100 mm
•
Min reel diam: 700 mm
•
Max reel width: 2.230 mm
•
Max reel width with intermediate arm: 2 x 1000 mm
•
Min reel width: 500 mm
•
Max working width: 2.230 mm
•
Number of slitters: 7
•
Automatic slitter setting
•
Max knife load: 1.000 g/m2
•
Length wise cutting accuracy: +/- 1 mm for < 1.000 mm sheet length
•
+/- 1% for > 1.000 mm sheet length
•
Cutting angle accuracy: 0,5 mm for 1.000 mm sheet length
•
Max and min cutting length: 1.800 mm - 310 mm
•
Min cutting width: 210 mm
•
Max working speed: 300 m/min
•
Max pallet height: 1.950 mm
•
Compressed air: 6 bar
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101008
PASABAN KDD 2500 SHEET CUTTER
•
Year of manufacture 1999
•
Max machine width 2.600 mm
•
Max working width 2.500 mm
•
Max reel width 2.500 mm
•
Max reel width with central arm 1.200 mm
•
Number of unwinding stands 2 with automatic splicers
•
Min reel width 500 mm
•
Max reel diam 2.200 mm
•
Min reel diam 600 mm
•
Core diam 75, 100, 150, 250, 300 mm
•
Max working speed 300 m/min
•
Max sheet length 1.600 mm
•
Min sheet length 400 mm
•
Min sheet width 300 mm
•
Cutting accuracy length wise +- 0.5 mm< than 1000 mm sheet length
•
+-0.05% > than 1000 mm sheet length
•
Cutting accuracy width wise +- 0.5 mm
•
Cutting accuracy sheet angle +-0.5 mm/1000 mm sheet length
•
Max pallet height 1.800 mm
•
Grade to be cut board
•
GSM 200-600 g/m2
•
Max knife load 600 g/m2
•
Disconformities optical detector
•
Automatic slitter setting
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101008
Auxiliary equipments:
•
Drive with DC motors for the 1st and 2nd forming wires and for the soft calender
•
Lined shaft drive with:
•
Main DC motor
•
Auxiliary DC motor
•
Transmission by belts and pulleys
•
Air circulation with:
•
Closed hood
•
Heat recovery
•
Drying of felts
•
Steam and condensate system
•
Vacuum system
•
Compressed air
•
Coating and starch kitchen
•
2 Broke pulpers under machine:
•
one is located after press section (wet broke)
•
the other one is located after postdrying section (dry broke)
•
Cranes
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101006
COATED BOX BOARD MACHINE
•
Manufacturer
:
DOERRIES VOITH
•
Internal number
:
KM6
•
Year of made
:
1961
•
Main times rebuilts :
up to year 2000
•
Working width
:
trimm width 3500mm
•
Speed
:
max. 250 mpm
•
grammage range
:
300 - 600 gsm
•
calliper
:
0,4mm – 1,01mm
•
paper grades
:
wall base paper, news print and book print
•
capacity
:
approx. 77000 tpy
Stock Preparation and Approch flow system, see preparation sheet
Board Machine:
Layer structure 1 fourdrinier, 2 short formers, 6 rotary screen
Surface treatment - size press 2/sided, top side triple coating
•
Rollflex
•
Blade
•
Air knife.
reverse treatment with roll coater (metering bar)
Possible grade range coated grades GD/GT (WLC)
Several special grades
Technical machine datas according to the block diagram
•
Products:
Swissboard cream back (GT2/WLC) 350, 600 gsm
Swissboard grey back (GD2/WLC) 350, 600 gsm
Greyboard medium glossed 350, 500 gsm
Greyboard one side glossed 350 gsm
Fruit tray board blue/blue 530 gsm
•
Location :
Europe
•
Condition/Shape
:
in excellent shape
•
Price
:
on application “in condition as is, where is” negotiable
Errected, out of operation
•
Documentation
:
full set available
•
Available
:
immediately, subject a prior sale
•
Inspection
:
at any time possible
www.brownmultitech.com
[email protected]
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101005
Headbox
•
Type: F.K.130
•
Year: 1971
•
Capacity: min 1800 - max 10000 lt/min
•
Slice width – 2350 mm.
•
Dismantled: 2006
•
Operating speed: 400 m/min
•
Basis weight range: 80 - 300 gr/m
2•
All stainless steel
•
Price: Available on Request.
•
Location: Europe
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/101001
Complete Paper Machine with stock preparation for Graphic Papers
General datas:
- Manufacturer: Carcano
- Year installed: 1976
- Width at pope reel: 2.480 mm
- Maximum speed 650 m/min
- Production: 42.000 Tons / year
- Grafic papers from 50 – 240 gsm
Description:
- Completely stock preparation for virgin papers Maule
- Caolin preparation
- Broke system line (refiners, deflakers, screens, …)
- Head box Carcano type KHW
- Fourdrinier
- Unipress type 160
- Suction cough press diam 720 mm
- Granite press section and 2nd blend drilled press
- 30 dryers cylinders
- New Voith size press type film sizer - 14 + 2 dryer cylinders
- Kusters calendar
- Automatic pope reeler
- Sectional drive system
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091024
COMPLETELY PAPER MILL TO PRODUCE LINER AND MEDIUM
General data:
• Machine type 2 Fourdriniers
• Drive Right
• Net trim pope 2650 mm
• Max. speed 450 m/min
• Basis weight range 90-200 gsqm
• Raw material 100% waste
• Production capacity 220 MT/day
• Dryer cylinders 34 Ø 1500 mm 7,5 bar
Bottom Fourdrinier (to produce FILLER)
• Type cantilever
• Cleaners 3 stages LICAR
• Screen COMER ECP-10, Ø1,8 mm
• Headbox AHLSTROM air cushion 2 rolls
• Couch Roll Ø 700 mm vacuum
• Traction Roll Ø 690 mm
• Dewatering devices Forming borrad
6 foil box 5 foils each 4 vacuumfoils x 5 foils each 8 flat boxes 300 mm
Tending, guide, showers and Edge trim Top Fourdrinier (to prudce TOP)
• Type cantilever
• Cleaners 3 stages LICAR
• Screen COMER ECP-10, Ø1,8 mm
• Headbox VOITH air cushion 2 rolls
• Traction Roll Ø 690 mm
• Dandy Roll Ø 1000 mm
• Dewatering devices Forming board
3 foil box 5 foils each 3 vacuumfoils x 5 foils each 3 flat boxes 300 mm
Tending, guide, showers and Edge trim Presses:
1st. press:
• Type Double felt
• Press rolls Ø 750 mm blind drilled
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091024
2nd.Press:
• Type 2 Press rolls against central drum
• Central drum Ø 1600 mm
• Press rolls Ø 850 mm blind drilled
• Working load 156 and 195 kN/m
Dryer Cylinders:
• Double Drying felts
• Dryers 34 Ø1500 mm 7,5 bar
• Sifon Johnson rotating
• Groups 6
• Steam distribution cascade system
• Doctors on each cylinder
• Wetting machine VIB on dryer 27
Hood:
• Type closed
• Supplier BRUNNSCHWEILER
Pope reel:
• Type Automatic with store ans load of cores
• Max. diameter reel 2500 mm
• Diamter core 300 mm
• Drum diameter 1000 mm
Vacuum Central:
• Completely 5 ring water pumps SAFEM
• 1 Reserve ring water pump
• Air/water separators
• Refrigeration circuit for ring water with spray tower Machine drive:
• Type multimotor AC
• Supplier JEMA
QCS:
• Type: Scanner basis weight and moisture
• Supplier ABB
• Transversal control VIB wetting applicator
Broke pulpers:
• Type 2 stainless steel LICAR
Hydraulic units:
• 1st press NORGREN 8,77 l/min
• 2nd.press NORGREN 0-25 l/min 90 bar
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091024
Greasing system:
• Wet end centralised for grease
• Dry end rolls centralised for grease
• Drying cylinders oil centralised
Winder machine:
• Type 2 Rolls
• Supplier T.VILARRUBIAS
• Max. speed 1.300 m/min
• Diameter bobine 1.500 mm
• Breake regenerative
• Drive AC JEMA
Electrical Installation:
• Central 25000/400 V 50 Hz
• Transformers 2 x 2500 kVA ALKARGO
Compressed air central:
• Compressors 2 WORTHINGTON Rollair 50
• Flow 353 m3/h
• Pressure 10 bar
• Power 37 kW
• Air dryers 2
• Air tanks 2 x 4 m3 + 1 x 2 m3
STOCK PREPARATION PLANT: General data:
• Capacity 240 MT/day
• Raw material 100% waste
• Yield 90-92%
Pulper Black-Clawson:
• Pulper 6D, 17 m3, 200 kW
• Heavy Junk box Size II
• Hydrapurge II-24-800 Ø 10 mm 55 kW
• Selectpurge 4500 Ø12 mm 5,5 kW
• Liquid Cyclone 14,5” automatic
Pulper Helico:
• Pulper LICAR 12 m3 200 kW
• Detrashing poire Size 2 75 kW
Fractionation:
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091024
TOP LINE: • Capacity 80 MT/day • Equipment: T.SOTERAS SH-400 Ø1,2 mm 75 kW FILLER LINE: • Capacity 160 MT/day• Screens LICAR Tailnet 3 Ø2 mm 90 kW
LICAR Tailnet 2 Ø1,5 mm 30 kW T.SOTERAS SH-400 Ø1,2 mm 75 kW
• Hot Dispersion MAULE
• Refiners BELOIT 2 x DD 24” serie 4000 250 kW
STEAM BOILER:
• Type Pyrotubular
• Capacity 18.000 kg/h 13 bar
• Supplier VALTEC-UMISA SMS-45
• Burner RAY OI model EG-250
• Fuel Natural gas
WATER TREATEMENT PLANT: Flotation plant:
• Type Deltafloat DF-100
• Capacity 800 m3/h
Filter:
• Type GAMMAFILTER model SR 5.2
• Capacity 200 m3/h
OTHER EQUIPMENTS INCLUDEDS:
• Spare parts (press rolls, wire rolls, felt rolls,)
• Water and process pumps
• Pipes and valves
• Instrumentation
• Electric cables
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091022
COMPLETE PAPER MACHINE WITH STOCK PREPARATION
• Stock preparation:
OCC stock preparation plant with 2 production lines:
- Line Black Clawson : capacity 150 Tpd
- Line Beloit : capacity 300 Tpd. Construction year 1988
• Paper Machine 2
- Original builder: Allimand - First start up: 1958
- Head box: Strataflow by Beloit (1985) with 2 layers
- Forming section: Allimand
- Press section: two nips
• First botton felt transfer ( 1st and 2nd NIP)
• Extended nip press ENP by Beloit 1989
- Dryer section and size press
• Pre dryer section 38 cylinders
• Post dryer section 20 cylinders
• Size press Beloit upgraded by Gorostidi in 1988 - Pope reeler Gorostidi built in 1992
- Paper width of the paper machine: 2.500 mm
- Nominal speed: 600 m/min
- Maximum speed: 630 m/min
- Foxboro Digital System in stock preparation and paper machine
- Honeywell Measurex Quality System for the paper quality
Technical details Paper Machine 2 (Production capacity - 90000 MT/year)
• Forming fabric: 2.950 mm
• Paper width after rewinder: 2.500 mm
• Nominal speed: 600 m/min and maximum 630 m/min
• Actual capacity: 330 Tm/day
• Original builder: Allimand
• Two tank head of machine (short and long fiber)
• Two variable speed pumps
• Two pressurized Lamort SP 800 (short and long fiber)
• For the rejects Lamort SPM 600 and 400
• Head Box:
- Beloit Strataflow 2 jets installed in 1985
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091022
- Table with forming wire of 36 m length
- 1 forming box
- 2 hydrafoils boxes - 7 vacufoils boxes
- 6 wet suction boxes triple coated ceramic
- Cough roll Thiry diam: 1.000 mm
- 1 driving roll
• Press section:
- 1 pick up roll
- 1st press section: suction roll (1000 KN/N) to 3 bars linear max - 2nd press section: ENP Beloit (1050 KN/N) with tandem system - Driving section by Siemens in wet end
• Pre dryer section:
- 38 dryer cylinders diameter 1.500 mm, tested 10 bar, in 2 levels
• Size press:
- Size press Beloit reformed by Gorostidi in 1992
• Post dryer section:
- 20 dryer (2 on stainless steel) cylinders diameter 1.500 mm, tested 10 bar, in 2 levels
• Tail feeding by guide-rope system
• Dryer hood Brunnschweiler with ventilation system , hot air blowing extraction built in 1991 – 1992
• Reeler:
- Installed new in 1991 built by Gorostidi, maximum diameter 2.800 mm
- Support for cores
• Control quality machine QCM
• Measurex 2001 for regulation, basis weight and moisture
• Control process machine DCS and MCS
• Drive system Siemens forming and press, size press, dryer and reeler
1. Rewinder:
• Built by Gorostidi
• Type: 43 – 15
• Speed maximum 2.200 m/min
• 2 electric drives 2x67 kW
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091022
2. Production Starch
• One automatic enzymatic conversion of starch installed in 1987
• One bin capacity 120 Tons
• 1 strach cooker capacity 2.6 Tons at 24%, production 62,4 Tm/d
• 2 chest with agitator capacity 6.600 lt and 3.900 lt
• 1 tank of hot water 2.900 lt
• 3 filters Celco
• 1 starch cooker cathionique
3. Reel handling system
• 1 conveyor system and lowering platform ( built 1990)
• 1 circle sealer Feuillard
• 1 automatic weighing Toledo
• 1 guillotine De Pecker
A) STOCK PREPARATION LINES 1. Short fiber line
• Built by: Black Clawson
• Capacity: 180 Tm/d
• Digital control system Foxboro
• 1 hydrapulper Black Clawson 14” power 240 hp
• 1 liquid cyclone BC
• 1 turbo separator Voith ATS30 with 1 KS 200 Voith
• 1 stock chest 50 m3 with agitator
• 1 selectifier Black Clawson
• 1 Omega screen size 12”
• 1 stock chest capacity 125 m3 with agitator
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091022
2. Long fiber line
• Built by: Beloit
• Capacity: 300 Tm/d
• Conveyor belt
• 1 pulper Beloit 61 m3 installed power 400 kW
• 1 stock chest
• 2 hydrocyclones for a heavy rejects
• 2 secondary pulpers Belcor 2 x 110 kW
• 2 Beloit Sscrens S32 intalled power 160 kW
• 1 Beloit Sscreen S18
• 1 Rejecsorter RS3B EW
• 1 stock chest
• 1 drum trommel
• 2 classifiers CST400
• 1 screw thickner Black Clawson
• 11 tricleans cyclones
• 2 cycleans
• 100 Beloit uniflow cleaners
• 16 Beloit uniflow cleaners
• 2 drum thickners Maule
• 1 Polydisc filter thickener
Mobile Cranes:
- 1 Crane Sameto (8 Tons) with 2 trooleys - 1 Crane Verlinde (20 Tons) with 2 trooleys
www.brownmultitech.com
[email protected]
REFERENCE NO, - BMPL/091004
Jumbo Press (Reconditioned)
Operating Conditions
Rolls dimensions : Ø 1800 mm x 3000 mm face
Design nip : 500 kN/m
Machine speed : 600mt/1’
New Equipment and Materials
Supporting frame
(1)
- manufactured with vertical elements in Stainless (Brand new) steel.
Loading and unloading equipment by hydraulic levers. For the easy change of the felt, stools in
aluminium alloy are provided.
1
st
Press Roll
(1)
- Ø 1800 mm
(Bottom roll)
Face 3000 mm Rubber covered, blind drilled, 18 P&J. (Stowe
Woodward Aquawell II) The roll is manufactured from casting in Gh30 cast iron
with nodular cast iron heads/pins . The scope of supply includes stainless steel
bearing housings and roller bearings, grease lubricated. In the scope of supply it is
included the rotary joint for roll cooling.
2
nd
