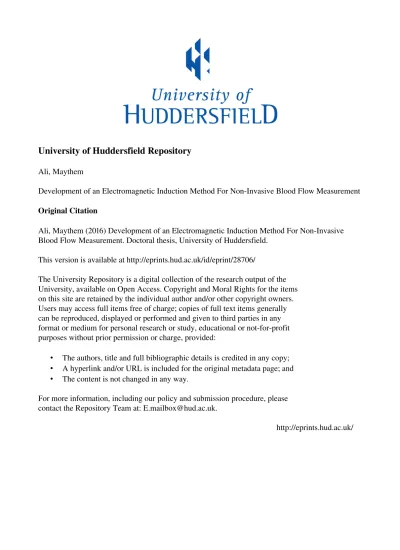

Ali, Maythem Development of an Electromagnetic Induction Method For NonInvasive Blood Flow Measurement Original Citation Ali, Maythem (2016) Development of an Electromagnetic Induction Method For NonInvasive Blood Flow Measurement. Doctoral thesis, University of Huddersfield. This version is available at http://eprints.hud.ac.uk/id/eprint/28706/ The University Repository is a digital collection of the research output of the University, available on Open Access. Copyright and Moral Rights for the items on this site are retained by the individual author and/or other copyright owners. Users may access full items free of charge; copies of full text items generally can be reproduced, displayed or performed and given to third parties in any format or medium for personal research or study, educational or notforprofit purposes without prior permission or charge, provided: • The authors, title and full bibliographic details is credited in any copy; • A hyperlink and/or URL is included for the original metadata page; and • The content is not changed in any way. For more information, including our policy and submission procedure, please contact the Repository Team at: [email protected]. http://eprints.hud.ac.uk/
ELECTROMAGNETIC INDUCTION METHOD
FOR NON-INVASIVE BLOOD FLOW
MEASUREMENT
Maythem Ali
BEng
A thesis submitted to the University of Huddersfield in partial fulfilment of the requirements for the degree of Doctor of Philosophy
Blood flow is an important measurement in the diagnosis of cardiovascular diseases – the main cause of death globally. Cardiovascular diseases are often associated with atherosclerosis, which is a condition that causes the narrowing of arteries due to a build-up of lipids on the wall of the arterial vessels. Atherosclerosis occurring in the build-upper or lower limbs (referred to as peripheral arterial diseases) may lead to heart attack, stroke or severe health complications. Early detection of peripheral arterial diseases will enable primary prevention, and thus a reduction in morbidity, mortality and associated resources and financial costs.
Limitations and drawbacks in the current methods for peripheral arterial blood flow measurement were primary factors in directing this research, which focuses on developing a reliable, easy-to-use and low-cost, non-invasive blood flow metering method that can replace or be an alternative option to current methods. This thesis describes the design and development of a novel electromagnetic induction method that can be used for peripheral arterial blood flow measurement non-invasively. In general terms, an electromagnetic induction flow metering technique is desirable because it is linear and insensitive to viscosity, temperature, conductivity and pressure loss. Additionally, and unlike previous non-invasive electromagnetic blood flow meters, the proposed method can be calibrated offline and is insensitive to velocity profile. The latter is important in obtaining measurements with high accuracy as blood flow in mammals is asymmetric.
A mathematical model was developed for the proposed electromagnetic induction method based on the theory of “weight functions” by Shercliff and the “virtual current” theory by Bevir. This model demonstrated that, for multiple flow channels within a
volumetric flow rate can be found, irrespective of the number, size and location of the flow channels within the area bounded by the electrode array using a technique based on the Discrete Fourier Transform method. This proposed method allows the venous and arterial blood flow in a limb to be found.
Next, a finite element model was developed in COMSOL Multiphysics software to validate the theoretical work. This was achieved by modelling multiple flow channels within a cylindrical region and obtaining flow induced potentials, which were compared with the theoretical values. From these induced potentials, the volumetric flow rate was found, using the DFT method, and confirmed.
Finally, a practical model was designed and built which consisted of a physical pipework model (simulating a human limb), an electromagnet and signal conditioning and processing systems. Flow induced potential difference measurements were made using this model and compared with the predicted theoretical values. Overall, a good agreement was found between the theoretical results, computer simulations and practical results. Based on this work and additional work that is suggested in this research, a medical prototype non-invasive electromagnetic blood flow meter device can be developed for clinical trials.
This research work would not have been possible to complete without the guidance and support of several people. First, I would like to express my gratitude to my supervisor, Prof. Gary Lucas, for his valuable support, contribution, patience and encouragement throughout my research journey. I have enjoyed working with him very much and learned a lot from his great research experience.
I would also like to give special thanks to Dr. Laszlo Kollar, for his contribution to my research work, and my fellow colleagues Dr. Sanjin Berberkic, Tim Amsdon, Ogheneochuko Obie, Raymond Webilor and Michael Agolom for the numerous interesting conversations we had.
I would also like to thank the School of Computing and Engineering for the tuition fee-waiver and providing me with the facilities to conduct my research.
Last but not least, I would like to thank my beloved family for their continued support during all my studying years at the University of Huddersfield.
No portion of the work referred to in this thesis has been submitted to support an application for another degree or qualification at this or any other university or other institute of learning.
