V301 Advanced GPS Tracking Device

10

Full text

(1)

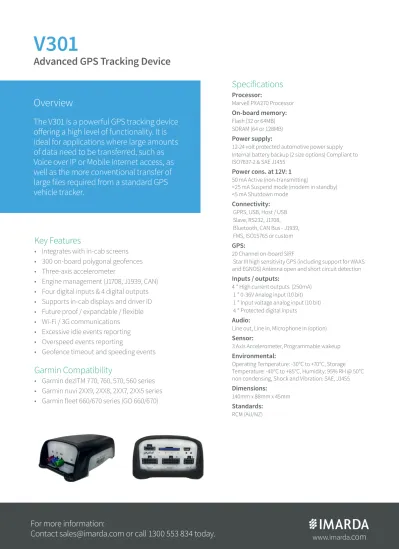

V301

Advanced GPS Tracking Device

For more information:

Contact sales@imarda.com or call 1300 553 834 today.

Overview

The V301 is a powerful GPS tracking device

offering a high level of functionality. It is

ideal for applications where large amounts

of data need to be transferred, such as

Voice over IP or Mobile Internet access, as

well as the more conventional transfer of

large files required from a standard GPS

vehicle tracker.

Key Features

• Integrates with in-cab screens • 300 on-board polygonal geofences • Three-axis accelerometer

• Engine management (J1708, J1939, CAN) • Four digital inputs & 4 digital outputs • Supports in-cab displays and driver ID • Future proof / expandable / flexible • Wi-Fi / 3G communications

• Excessive idle events reporting • Overspeed events reporting

• Geofence timeout and speeding events

Garmin Compatibility

• Garmin dezlTM 770, 760, 570, 560 series • Garmin nuvi 2XX9, 2XX8, 2XX7, 2XX5 series • Garmin fleet 660/670 series (GO 660/670)

Specifications

Processor:

Marvell PXA270 Processor

On-board memory:

Flash (32 or 64MB) SDRAM (64 or 128MB)

Power supply:

12-24 volt protected automotive power supply Internal battery backup (2 size options) Compliant to ISO7637-2 & SAE J1455

Power cons. at 12V: 1

50 mA Active (non-transmitting)

<25 mA Suspend mode (modem in standby) <5 mA Shutdown mode

Connectivity:

GPRS, USB, Host / USB Slave, RS232, J1708, Bluetooth, CAN Bus - J1939, FMS, ISO15765 or custom

GPS:

20 Channel on-board SiRF

Star III high sensitivity GPS (including support for WAAS and EGNOS) Antenna open and short circuit detection

Inputs / outputs:

4 * High current outputs (250mA) 1 * 0-36V Analog input (10 bit) 1 * Input voltage analog input (10 bit) 4 * Protected digital inputs

Audio:

Line out, Line In, Microphone In (option)

Sensor:

3 Axis Accelerometer, Programmable wakeup

Environmental:

Operating Temperature: -30°C to +70°C, Storage Temperature: -40°C to +85°C, Humidity: 95% RH @ 50°C non condensing, Shock and Vibration: SAE, J1455

Dimensions:

140mm x 88mm x 45mm

Standards:

RCM (AU/NZ)

(2)

View 960

Rugged Text-only Messaging Display

Constant Communication

Two way communication in real time with your driver.

Job Dispatch

Easily dispatch jobs to your drivers and gather status information in real time.

Driver Fatigue Management

Actively manage driving hours and rest breaks with proactive driver reminders and alerts.

Messaging

The View960 Mobile Data Terminal (MDT) provides an organisation with real time two way capabilities that includes:

• user created messages

• pre-programmed (canned messages) • status messages

Fatigue Management

Actively manage drivers and driving hours with proactive rest prompts, driving time displays, and rest break messages. All compatible with Fatigue Management requirements and backed by a comprehensive suite to monitor, plan, and report on all your driving activities.

Overview

The View960’s hardy interface allows this

unit to go almost anywhere, with two-way

status messaging between driver and office

features that allow you to comply with

fatigue management requirements.

(3)

View 5

Touchscreen Messaging Display

For more information:

Contact sales@imarda.com or call 1300 553 834 today. www.imarda.

com

Routing

Send routes directly to the navigation system.

Navigation

Send destinations to the cab, allowing drivers to load the route automatically from the messaging screen. Avoid routes which are not suitable for the vehicle by entering truck attributes, weight length, hazardous materials, etc.

Messaging

Touchscreen display provides real time two-way capabilities, which include user-created messages, pre-programmed and status messages.

Job Dispatch

With i360, the View 5 touchscreen display allows the easy dispatch of jobs and information directly to the driver and allows real time status messaging from the driver to be delivered back.

Fatigue Management

Actively manage drivers and driving hours with proactive rest prompts, driving time displays, and rest break messages. All compatible with Fatigue Management requirements and backed by a comprehensive suite to monitor, plan, and report on all your driving activities.

Specifications

CPU:

SiRF Atlas IV 500MHz, ARM11

GPS antenna:

Built-in patch antenna

Operating System:

Microsoft Windows CE 6.0

Memory:

Internal RAM DDR 128MB, internal flash 2GB Nand Flash (standard) Weight: 200g Size: 135(W) x 88(H) x 15(D) mm Battery:

Removable & Rechargeable Li-Ion battery (1050 mAh)

Extension Slot:

Micro SDTM, up to 8GB

Display:

5.0” TFT LCD with touch screen

Resolution: 480 x 272 pixels Audio: Built-in speaker Temperature: Operation: -10°C~ 60°C Storage: -20°C~ 70°C USB:

Mini USB Connector for USB client & DC power in

Contrast:

Software backlight adjustment

Overview

The View 5’s touchscreen enables easy

navigation and two-way status messaging

between driver and office, with the ability to

relay and manage drivers and driving hours

for any fatigue management compliance

requirements.

(4)

V110

Plug-in Tracking Device

Overview

With an integrated J1962 connector and

extremely compact design, powered

through the OBD port, the V110 offers low

power consumption and can be installed in

a matter of seconds, substantially reducing

installation costs.

Key Features

• No installation required - it simply plugs into the diagnostics port available in most cars and light commercial vehicles

• 3 axis accelemometer • Server geofencing • GPRS communications • Overspeed events reporting • GPRS class B multi-slot class 10

• LED status indicators for GPS lock, GSM registration and OBDII lock

• Auto-detects ODBII protocol • Rugged texture plastic enclosure

Specifications

Receiver: 16 Channel Receiver sensitivity: -158 dBm Accuracy: +/- 2.5m CEP Cold start: <38 Sec Hot start: <3 Sec DC power: 6-18V GSM 850: 35mA average @ 12V GSM 1900: 30mA average @ 12V OBD connector: J1962 GPS antenna: Integrated Cellular antenna:

Integrated dual band (850-1900 MHz)

Case material: ABS Plastic Dimensions: 46 x 38 x 25 mm Temperature: -30˚C to +75˚C (operating); -40˚C to +85˚C (storage) Weight: <52g Module approvals: FCC, CE, IC, PTCRB

(5)

V220

Weatherproof Asset Tracker

For more information:

Contact sales@imarda.com or call 1300 553 834 today.

Overview

The V220 is a cost effective fully-sealed

tracking device with internal antenna

making it ideal to track machinery and

equipment with outdoor exposure. With its

rechargeable internal battery backup, it can

also be used for tracking assets that do not

have continuous power.

Specifications

Power supply:

6-32V DC Input (12V & 24V support)

Backup battery I/O:

3 digital IO

Dimensions:

108mm(W) x 80mm(D) x 40mm(H)

Case:

IP66 Sealed Enclosure

Temperature:

-30°C to +75°C (operating); -40°C to +85°C (storage)

Environment:

US Mil Std 202G and 810F, SAE J1455, 2G: GSM/GPRS Quad-band, 850/900/1800/1900Mhz 3G: UMTS/HSPA Quad-band 850/900/1900/2100Mhz (with Quad-band GSM/GPRS/EDGE fallback)

Module Approvals:

FCC, CE, IC, PTCRB

GPS chipset:

50-channel GPS chipset (with SBAS/WAAS support), -162 dBm

GPS antenna:

Internal antennas for both cellular and GPS

www.imarda.

com

Key Features

• Ignition plus up to 2 digital IO • Weatherproof

• Quad-band GPRS or 3G communications including Telstra NextG / Telecom XT support. • Excessive idle reporting

• Overspeed events reporting

• Three-axis accelerometer for motion sense and tilt • Internal GPS and mobile communications

antenna

• One month battery life on single message per day

• Low battery alert

• Power disconnected alert • Wakeup on movement • Live tracking and trip replay • Operating hours and service alerts

(6)

V200

Cost Effective Tracking Device

Overview

The V200 is a cost effective tracker that

enables optional use of Garmin navigation

and messaging screens. The V200 has high

accuracy GPS positioning and the best

possible mobile network coverage.

Specifications

Power supply:

6-32V DC Input (12V & 24V support)

Backup battery I/O:

5 DI, 3 DO, 2 TTL serial

Dimensions: 54mm(W) x 90mm(D) x 20mm(H) Case: Plastic, Black Temperature: -30°C to +75°C (operating); -40°C to +85°C (storage) Environment:

US Mil Std 202G and 810F, SAE J1455 2G: GSM/GPRS Quad-band 850/900/1800/1900Mhz

3G: UMTS/HSPA Quad-band 850/900/1900/2100Mhz (with Quad-band GSM/GPRS/EDGE fallback)

Module Approvals:

FCC, CE, IC, PTCRB

GPS chipset:

50-channel GPS chipset (with SBAS/WAAS support), -162 dBm

GPS antenna:

Internal or external GPS antenna options

Key Features

• Ignition plus up to 5 digital inputs

• Quad-band GPRS or 3G communications including Telstra NextG / Telecom XT support • Excessive idle reporting

• Overspeed events reporting • Three-axis accelerometer

• Internal or external GPS and mobile communications antenna options

Garmin Compatibility

• Garmin dēzl TM 770, 760, 570 and 560 series • Garmin nüvi 2XX5, 2XX7, 2XX8, 2XX9, series - 2-way messaging

(7)

V1000

HD Camera Tracking Device

For more information:

Contact sales@imarda.com or call 1300 553 834 today.

Overview

The V1000 is an industrial-grade GPS/3G

enabled HD camera unit with live tracking.

The forward-facing camera supports

programmable levels of incidents

and auto-calibrates G-force sensors

to accurately record impact forces,

significantly reducing false impacts and

redundant responses.

Specifications

Weight: 135g Dimensions: 92mm x 45mm x 40mm Lens: Wide-angle HD quality, 1280p x 720p

Live real-time tracking:

30 second – 300 second intervals

Input voltage:

7-32V

Sensor:

3-axis G-force sensor

Satellites:

American GPS satellites and Russian GLONASS system

Upgrades:

Wireless firmware upgrades

Temperature:

Camera tested to 95 degrees with cooling fin

Battery:

3 month internal battery back up

Memory: 32GB Micro SD card Standard: ISO9000 accredited www.imarda.

com

Key Features

• Always on recording when ignition is live

• Auto-upload of data to the cloud at time of event, including a window immediately before and after the event

• 3 levels of configurable in-built triggers (low, medium, high)

• Auto-calibration of G-force sensors to ensure accurate recording of impact forces

• Monitors speed at 10 HZ (10 times per second to ensure accurate tracking of split-second accidents

• Side-mounted button on the camera enables manual trigger of video recording

• Respects driver privacy - forward facing cameras mean drivers aren’t visible while driving.

• Anti-glare mounting brackets • Remote diagnostics

(8)

Specifications

CPU: 1.2 GHz quad-core processor Operating System: Microsoft Windows CE 6.0 Memory:

MicroSD / built-in storage up to 1080P30

Weight:

305g

Size:

171(W) x 98(H) x 17(D) mm

Battery:

16GB NAND flash, 1GB RAM, 1500mAh li-Ion battery

Extension Slot:

Micro SDTM

Display:

Bright 6.1” dual - orientation display with Capacitive Touch

Resolution:

800x480 pixels

Audio:

Hands-free driver operation with Automatic Speech Recognition / BT 2.1 support, headphone audio output with 3.5mm jack, extra loud speaker

Temperature:

Operation: -20 to 60°C; Storage: 0 to 40°C

Connectivity:

Wi-Fi with Miracast, USB (micro) connectivity

Maps:

Free lifetime map updates

Optional Features:

Lifetime traffic avoidance (with additional FMI 45 cable)

Additional Features available with GO670:

• Truck routing • B-double support • Road warnings • Truck speed limits • Read warnings / restrictions • Mile markers

• RDS / HD / DAB traffic support • Sunrise/sunset

• Active Lane Guidance • Border notices

• Bird’s Eye with photoReal Junction View • Map tool

GO 660 / GO 670

6.1’’ Touchscreen Display

Overview

The GO 660 and GO 670 combine the

strength of Garmin navigation and

Imarda’s fleet experience with the

openness and flexibility of Android. With

free lifetime map updates, real guidance

with lane assist and optional lifetime

traffic avoidance; drivers can be ready for

whatever the road has in store.

Constant Communication

Two way communication in real time with your driver.

Messaging

The GO 660 and GO 670 touchscreen display provides real time two-way capabilities, which include user-created messages, pre-programmed and status messages.

Navigation and Routing

Send destinations directly to the navigation system, allowing drivers to load the route automatically from the messaging screen.

Driver ID

Drivers login with a 4 digit pin to identify them whilst driving, making reporting and accountability easier using i360.

(9)

Specifications

Battery Capacity: 57 amp / hour Battery Voltage: 3.6 volts Battery Technology:

Lithium Field Replaceable Battery Pack I/O: 5 DI, 3 DO, 2 TTL serial

Dimensions: 55mm (W) x 55mm (H) x 260mm (L) Case: Plastic, Cream Temperature: -30°C to +75°C Environment:

US Mil Std 202G and 810F, SAE, J1455, 2G: GSM/GPRS Quad-band, 850/900/1800/1900Mhz, 3G: UMTS/HSPA band, 850/900/1700/1900/2100Mh (with Quad-band GSM/GPRS/EDGE fallback)

Module Approvals:

FCC, CE, IC, PTCRB

GPS Chipset:

50-channel GPS chipset (with

GPS Antenna:

SBAS/WAAS support), -162 dBm Internal GPS antenna

V140

Battery Operated Asset Tracker

For more information:

Contact sales@imarda.com or call 1300 553 834 today.

Overview

The V140 is a tracking unit featuring a

small size, superior GPS performance,

and an internal 57 Ah battery. The internal

battery can process up to 5000 message

cycles on a freshly charged battery pack

and lasts for up to 7 years. The V140 is

designed to dramatically reduce cost,

power and size while providing excellent

field reliability.

www.imarda.

com

Key Features

• 7 years with single message cycle per day on fully charged batteries

• 57 Ah lithium field replaceable battery pack • IP67 sealed and rugged enclosure

• Packet data (GPRS, CDMA 1xRTT, or HSPA) and SMS-based messaging

• Internal cellular and GPS antennas • Super Sensitive GPS (-162 dBm tracking) • Built-in 3-axis accelerometer for motion sense • Ultra low power sleep mode (<100µA)

(10)

Others

Apple

iPhone iPad

Motorola

MCxx - Windows Mobile ruggedized hand-helds

ES400 - Windows Mobile ruggedized hand-helds

Globalstar/Axxon

SmartOne - Satellite based asset tracker

Intermec

Cnxx - Windows Mobile ruggedized handhelds

Micronet

CE-507 - 7” Mobile Data Terminal

Navman Wireless

Qube 1 - Vehicle Tracking Device Qube 2 - Vehicle Tracking Device MDT850 - Movile Data terminal (Requires Qube 1 or 2)

i360 Supported Devices

Imarda Devices

V301

Advanced GPS Tracking Device

V200

Cost Effective Tracking Device

V220

Weatherproof Asset Tracker

V1000

HD Camera Tracking Device

V110

Plug-in Tracking Device

V140

Battery Operated Asset Tracker

Garmin 660/670

Touch Screen Display 6.1’’

View 960

Rugged text-only Messaging Display (requires V301)

View 5

Figure

Updating...

References

Updating...

Related subjects :
