Quotation for CCTV 2

Microtech (BD) System

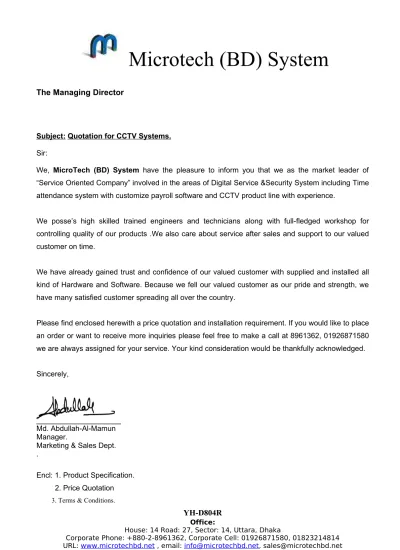

Subject : Quotation for CCTV Systems . Sir:

We, MicroTech (BD) System have the pleasure to inform you that we as the market leader of “Service Oriented Company” involved in the areas of Digital Service &Security System including Time attendance system with customize payroll software and CCTV product line with experience.

We posse’s high skilled trained engineers and technicians along with full-fledged workshop for controlling quality of our products .We also care about service after sales and support to our valued customer on time.

We have already gained trust and confidence of our valued customer with supplied and installed all kind of Hardware and Software. Because we fell our valued customer as our pride and strength, we have many satisfied customer spreading all over the country.

Please find enclosed herewith a price quotation and installation requirement. If you would like to place an order or want to receive more inquiries please feel free to make a call at 8961362, 01926871580 we are always assigned for your service. Your kind consideration would be thankfully acknowledged. Sincerely,

Md. Abdullah-Al-Mamun Manager.

Marketing & Sales Dept. .

Encl: 1. Product Specification. 2. Price Quotation 3. Terms & Conditions.

YH-D804R

Microtech (BD) System

FEATURES£º

¡ï Low power consumption, easy to heat

¡ï use of high-quality materials, fine processing technology ¡ï appearance of small, clear picture quality

¡ï wide-angle lens, suitable for indoor installation SPECIFICATIONS£º

MODEL YH-D804R

Pickup device 1/3 Sony CCD

Number of pixels PAL:512(H)¡Á582(V) NTSC:512(H)¡Á492(V)

System of signal NTSC/PAL

Horizontal resolution 420TV Line

Minium illumination 0Lux/1.2£¨IR ON£©

Lens 3.6mm/6mm(¿ÉÑ¡/Optional)

Backlight compensation Auto

Electronic shutter 1/50£¨1/60£©~1/100,000sec

White balance Auto

S/N ratio £¾52dB £¾48dB

Gamma correction £¾0.45

Operation temperature -20¡æ~50¡æ

Sync.system Internal/ÄÚͬ²½

Video output 1.0Vp-p/75¦¸

Power supply DC12V,300mA

Dimensions(mm) 126(D)¡Á77(H)

Wavelength 850nm

Weight(g) 250g

IR view distance 22pcs ¦Õ5 IR LED 15-20m

Microtech (BD) System

KPC 132 AVTECH Color Dome camera

Spec:

• 1/3" AVTech CCD Color

• 480 TVL ( Number of pixel: 512(H) X 492(V) <NTSC> / 512(H) X 582(V) <PAL> ) • Min ilumination 0,4 Lux

• 3.6 mm Lens • Power 12 VDC

• Plastic Dome material

• Dimension: Diameter DOME 10 cm • Warranty 1 year

• Jalur Video berkonektor BNC ! *OPTIONAL: Konektor BNC.

KPC

136

AVTECH

IR

CAMERA

Specification

1/3" CCD COLOR IR CAMERA

21 IR LED'S

15 METRES IR RANGE

YH-9616 COLOR BOX CAMERA

Microtech (BD) System

FEATURE:

Low power consumption; ★

-definition clarity and fine detail; ★

color turns black and full, product performance and stability; ★

SPECIFICATIONS：

MODEL YH-9616

Pickup device 1/4 Sharp CCD

Number of pixels PAL:512(H)×582(V) NTSC:512(H)×492(V)

System of signal PAL/NTSC

Horizontal resolution 420TV Line

Minium illumination 1.0 Lux/F1.2

Lens mount C/CS

Backlight compensation ON/OFF(Optional)

AGC ON/OFF(Optional)

Electronic shutter 1/50（1/60）~1/100,000sec, Auto(preset)Manuail(Optional)

lris control VIDEO/DC

White balance ON/OFF(Optional)

S/N ratio >48dB

Gamma correction >0.45

Operation temperature -20℃~50℃

Sync.system Internal

Video output 1.0VP-P/75Ω

Power supply DC12V,150mA /AC24V,120 mA /AC220V,10mA Dimensions(mm) 119(L)×60(W)×54(H)

Weight(g) 400g

Microtech (BD) System

Video System NTSC / PAL (auto detection) Video Compression Format H.264

Video Input 8 channels (Composite video signal 1 Vp-p 75Ω BNC) Video Loop Output 8 channels (Composite video signal 1 Vp-p 75Ω BNC) Video Output (BNC) Main Monitor: For stable display

Call Monitor: For sequence display Video Output (VGA) Built-in VGA interface for LCD monitor Audio Input / Output 4 audio inputs, 2 audio output (Mono)

Maximum Recording Rate Frame: 704×480 pixels with 60 IPS <NTSC> / 704×576 pixels with 50 IPS <PAL> Field: 704x240 pixels with 120 IPS <NTSC> / 704×288 pixels with 100 IPS <PAL> CIF: 352×240 pixels with 240 IPS <NTSC> / 352×288 pixels with 200 IPS <PAL> Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL

Hard Disk Storage Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB) Quick Search Time / Motion / Alarm search mode

SATA Interface Built-in

Recording Mode Manual / Timer / Motion / Alarm / Remote

Multiplex Operation Live display / record / playback / backup / network operations USB Mouse Control YES

Motion Detection Area 16 × 12 grids per channel

Motion Detection Sensitivity 3 adjustable parameters for accurate detection Pre-alarm Recording YES

Backup Device DVD Writer (optional) / USB 2.0 flash drive / Network Web Transmitting

Compression Format H.264

Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet

Web Interface Licensed software "Video Viewer" / Internet Explorer, Mozilla Firefox or Google Chrome web browser / QuickTime player(10 users access simultaneously)

*Operating System: Windows 7 / Vista / XP / 2000 Network Protocol TCP/IP, PPPOE, DHCP and DDNS

Fully Remote Independent Operation YES

Event Notification By FTP & E-Mail R.E.T.R. (Remote Event

Trigger Recording) YES

IR Remote Control YES (IR receiver built-in)

Microtech (BD) System

Mobile Surveillance YES (Including iPhone, BlackBerry, WinCE, J2ME & Android) Picture Zoom 2X digital zoom

PTZ Control YES

Alarm I/O 8 inputs, 1 output Key Lock (Password

Protection) YES

User Level Administrator & Operator Video Loss Detection YES

Camera Title Supports up to 6 letters

Video Adjustable Hue / Saturation / Contrast / Brightness Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY Daylight Saving YES

Power Source (±10%) DC 19V Power Consumption (±10%) < 64 W

Operating Temperature 10℃ ~ 40℃ (50 ~104 )℉ ℉ Dimensions (mm) 432(W) × 90(H) × 326(D)

System Recovery System auto recovery after power failure Optional Peripherals Keyboard Controller

AVC798AD 16CH H.264 Network DVR (USB Mouse Control)

AVC798AD, a new released 16CH H.264 DVR, features in its graphical OSD display with USB mouse control, For remote surveillance, mobile surveillance is applicable to many popular mobile platforms, such as iPhone, BlackBerry, WinCE & Android. Video backup can be made via the built-in DVD writer, USB port, and network.

Microtech (BD) System

Video System NTSC / PAL (auto detection) Video Compression

Format H.264

Video Input 16 channels (Composite video signal 1 Vp-p 75Ω BNC) Video Loop Output 16 channels (Composite video signal 1 Vp-p 75Ω BNC) Video Output (BNC) Main Monitor: For stable display

Call Monitor: For sequence display Video Output (VGA) Built-in VGA interface for LCD monitor Audio Input / Output 4 audio inputs, 2 audio output (Mono) Maximum Recording

Rate Frame: 704×480 pixels with 120 IPS <NTSC> / 704×576 pixels with 100 IPS <PAL> Field: 704x240 pixels with 240 IPS <NTSC> / 704×288 pixels with 200 IPS <PAL>

CIF: 352×240 pixels with 480 IPS <NTSC> / 352×288 pixels with 400 IPS <PAL>

Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL

Hard Disk Storage Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB) Quick Search Time / Motion / Alarm search mode

SATA Interface Built-in

Recording Mode Manual / Timer / Motion / Alarm / Remote

Multiplex Operation Live display / record / playback / backup / network operations USB Mouse Control YES

Motion Detection Area 16 × 12 grids per channel Motion Detection

Sensitivity 3 adjustable parameters for accurate detection Pre-alarm Recording YES

Backup Device DVD Writer (optional) / USB 2.0 flash drive / Network Web Transmitting

Compression Format H.264

Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet Web Interface

Licensed software "Video Viewer" / Internet Explorer, Mozilla Firefox or Google Chrome web browser / QuickTime player(10 users access simultaneously)

*Operating System: Windows 7 / Vista / XP / 2000 Network Protocol TCP/IP, PPPOE, DHCP and DDNS

Fully Remote

Independent Operation YES

Event Notification By FTP & E-Mail R.E.T.R. (Remote Event

Trigger Recording) YES

IR Remote Control YES (IR receiver built-in)

Microtech (BD) System

Mobile Surveillance YES (Including iPhone, BlackBerry, WinCE, J2ME & Android) Picture Zoom 2X digital zoom

PTZ Control YES

Alarm I/O 16 inputs, 1 output Key Lock (Password

Protection) YES

User Level Administrator & Operator Video Loss Detection YES

Camera Title Supports up to 6 letters

Video Adjustable Hue / Saturation / Contrast / Brightness Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY Daylight Saving YES

Power Source (±10%) DC 19V Power Consumption

(±10%) < 64 W

Operating Temperature 10℃ ~ 40℃ (50℉~104℉) Dimensions (mm) 432(W) × 90(H) × 326(D)

System Recovery System auto recovery after power failure Optional Peripherals Keyboard Controller

Microtech (BD) System

Specification

Support Windows 2000/XP

Multi-card in single system, single card with 8 channels

Supports PAL/NTSC, every channel can work independently without interference with each other Multi-channel overlay with low CPU occupancy

Offer MPEG-4 compression engine, can compress images of multi-channel

Supports video composite, Video keep stable synchronous all along (Long-time Video synchronization)

Imposed character (year/month/day/hour/min/sec, text) and logo in video Supports uncompressed image capture

Still-image capture

Price Quotation

For

CCTV System

Sl. No. Description Unit price

01. Yhdo IR Dome Camera Origin: China

Microtech (BD) System

Yhdo 9616 Normal CCD Canera Brand: YHDO

Model: 9616 Origin: China

4,500.00

05.

Avtech 16 Channel Digital Video Recorder (DVR) with 1TB HDD. Brand: AvTech

Model: AVC 798AD Origin: Taiwan

90,000.00 06. Avtech 8 Channel Digital Video Recorder (DVR) with 1TB HDD.

Brand: AvTech Model: AVC 796AD Origin: Taiwan

75,000.00 07. 8 Channel Digital Video Recorder Card (DVR Card) PC Based.

Brand: QX2006 Origin: Taiwan

15,000.00 08. Video cable RG-06 50 ohm. Chino USA Standard.

15 tk per yard

09. Power Cable (BRB) 15 tk per yard

10. Camera Adopter 400.00

11. Camera Stand 200.00

12. BNC Jack 70.00

13. Installation commissioning charge per _{Camera/Monitor} 500 per Camera

Terms & Conditions

Payment A minimum or 50% payment should be made in advance for hardware and (100% payment in advance for cards) along with work order & rest of the amount should be adjusted during the installation period 25% and 25% immediately after the installation, test & trial.

Microtech (BD) System

Delivery Delivery & installation will be done after confirmation of work order. Customers are requested to provide full support giving the required data without any delay.

Training Training will be provided by our technical team during and after the installation. The client must provide at least one dedicate personnel to look after and maintain the system. We strongly suggest that the client employ, technical personnel dedicated for the running and maintenance of the system. If the client wants, we could train and recommend a technical person for this job, whom they can retain under their payroll.

Warranty One year full replacement warranty will be provided for all hardware unless any physical damage or burning is found. And three month of software modification will be void if any temperament is noticed.

Technical Support Two year free tech support and after that the client is required to maintain service contract fixed up by mutual understanding.

Modification Any request for modification is required to be placed in writing. The warranty will be invalid if any modification is made without our permission.

Validity Our offer is valid for a period of 15 days from the date of submission. This package price is only valid for this package. After 15 days price will vary. It might be increase or decrease.

Hand over If customer is satisfied with installation, test & trial, it will be certainly treated that the full systems has been handed over properly. The client is required to sign a job completion certificate.

Company holds the sole authority to revise the price and terms & conditions with prior notice.

Md. Abdullah-Al-Mamun Manager.

Marketing & Sales Dept.
