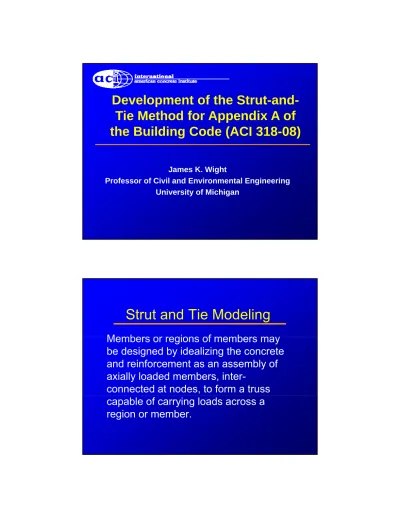

Strut and Tie Model

Development of the

Strut-and-Tie Method for Appendix A of

James K. Wight

Professor of Civil and Environmental Engineering

pp

the Building Code (ACI 318-08)

Professor of Civil and Environmental Engineering University of Michigan

Strut and Tie Modeling

Members or regions of members may Members or regions of members may be designed by idealizing the concrete and reinforcement as an assembly of axially loaded members,

inter-connected at nodes, to form a truss capable of carrying loads across a region or member.

Components of Strut and Tie Models

Steps to Build Strut & Tie Model

• Isolate member or D(disturbed) region • Isolate member or D(disturbed) - region • Compute forces or distribution of

stresses on boundary

• Represent stress distributions as forces • Select a truss model to transmit theseSelect a truss model to transmit these

Concept of D-Regions

(force discontinuities)

h h 2h

Concept of D-Regions

(geometric discontinuities)

h2 h1 h h h1 h2

Basic Requirements

• Model approximates stress flow • Define component dimensions and

strengths

• Define φ and β factors

• Analyze nodes and anchorageAnalyze nodes and anchorage • Select reinforcement details

Modeling Stress Flow in D-Regions

(Dapped Beam)

How to Select the “Correct”

Strut-and-Tie Model

• Some researchers suggest using a finite element model to determine stress

trajectories, then selecting a STM to “model” the stress flow.

• Generally a STM that minimizes theGenerally, a STM that minimizes the required amount or reinforcement is close to an ideal model.

Required Definitions for Code

• Geometric rules to follow when creating a strut-and-tie model.

• Component strengths for determining members sizes and final geometry of the model

the model.

Other Codes with Rules for Use

of Strut-and-Tie Models

• AASHTO LRFD Specification

• Canadian Code for Design of Concrete Structures (CSA Standard, 2004)

FIP R d ti (1996) f • FIP Recommendations (1996) for

Strength of Compression Struts

(what to consider)

• Longitudinal cracking due to transverse tension strain

• Transverse tension forces • Sustained loads

• Reinforcement grid crossing strut • Confinement by concrete or steel

Lateral Expansion of Strut (bottle-shaped strut)

Effective Compressive Strength of Struts ns u F F φ ≥ 0.75 φ = ns cu c F = f A

min. cross-sectional area of strut c

A =

0 85

f_cu 0.85 β_s f_c′

f = β f′

AASHTO and CSA Evaluation of

Effective Concrete Strength

Trans. tension strain, ε1 = (εs + 0.002) cot2θs

1

0.85

0.8 170

c s c c

f

f

f

β

ε

′

′

=

≤

′

+

θ_s = angle between strut and tie (steel)

FIP Recommendations for

β

_s

in

Cracked Struts

• 0.80 - struts with longitudinal cracking (splitting), but crossed by minimum reinforcement grid

• 0.75 - struts crossed by “normal” width cracks

cracks

• 0.60 - struts crossed by “wide” cracks

ACI Recommended β_s Values for Struts • 1.0 – prismatic shape (constant width) over its

length similar to a flexural compression zone length, similar to a flexural compression zone in a B-region

• 0.75 – inclined (bottle-shaped) strut crossed by minimum reinforcement grid

• 0.60λ – inclined bottle-shaped strut not crossed by minimum reinforcement grid; where λ accounts for lightweight concrete • 0.40 – struts in flexural tension zones

Struts in a Flexural Tension Zone

A

A

Sect. A-A

Minimum Reinforcement Grid (f’_c ≤ 6000 psi)

Strut centerline 2 1 γ₂ γ₁ si i i A in 0.003 b s s γ Σ ≥ (A 4)−

Reinforcement “Grid”

(only horizontal bars)

Min. Reinf. Grid in other Codes

• AASHTO ρ ≥ 0.003 EW • CSA ρ ≥ 0.002 EW • FIP ρ ≥ 0.001 EF, EW

Modification for Higher

Strength Concrete

• For concrete strengths above 6000 psi • For concrete strengths above 6000 psi

(41 MPa), must calculate required amount of transverse reinforcement crossing strut.

• This procedure can result in a

significant difference when compared to requirements of ACI Eq. (A-4).

Modification for Higher

Strength Concrete

Assumed Slope = Assumed Slope 2 longitudinal/1 transverse R i d t Required transverse tie capacity = 50% of strut strength

Tie Dimensions

• Full width (out or plane) of member • Width (in plane) of tie is function of

effective compression strength of

concrete in nodes where tie is anchored • Spread reinforcement throughout tie • Spread reinforcement throughout tie

dimensions

Tie - Dimensions and Strength

Strength of Ties

• Strength = φ A_s f_y, where φ = 0.75* • Anchorage of ties at nodes is a major

concern

*A constant value of φ = 0.75 is to be used for sizing the strut-and-tie model, but the use of

φ = 0.75 to also select the reinforcement may

need further examination within the appropriate Code subcommittee.

Anchorage Check

Nodal Zone Shape and Dimensions

• Width of compression face is same as width of strut connecting to nodal zone (smaller allowable strength governs) • Height (width of face perpendicular to

tie force) of nodal zone is equal to tie force divided by effective compressive strength of the concrete in the node

Effective Strength of Nodal Zones

• Function of type of members connected to the node

• Possible combinations are CCC, CCT and CTT

S h b h d b ddi i

• Strength can be enhanced by addition of confinement reinforcement

Examples of CCT and CTT Nodes

Strength of Nodes nn u F F φ ≥ 0 75 φ 0.75 φ = F_nn = f_cu A_n n u

A area of node face = ⊥ to force F

n

0.85

cu c

f = β f′

Recommended β_n Values (Nodes) • 1.0 - CCC node

0 8 CCT node • 0.8 - CCT node • 0.6 - CTT node

Use of STM in the ACI Code

Appears in Appendix A in 318 08 Code • Appears in Appendix A in 318-08 Code.

However,

• Is listed as alternate procedure in several sections of the code (e.g. corbels, short shear walls).

• Currently required for shear strength design of deep beams.

640 k (includes member weight) 20 in All member widths = 20 in.

Example: ACI Concrete International Magazine, May 2003 dv 60 in. 20 in. 53 in. 107 in. 212 k 428 k 16 in. 16 in.

640 k

20 in All member widths = 20 in.

Beam Dimensions and Initial Truss Model

dv 60 in. 20 in. 53 in. 107 in. 212 k 428 k 16 in. 16 in.

Check Max. Allowable Shear Force Max shear force = 428 k

Max. shear force = 428 k

Max. All. Shear Force = 10 4000 (max) 0.75 10 20 54 512 k (o.k.) 1000 c w n f b d V φ φ ′ ⋅ ⋅ ⋅ = × × × × = Assumed that d ≈ 0.9×h

212 k 428 k

Splitting of Node 2

dv = ? 1 2 3 4 5 α₁= 42.2o α₂= ? α₂

49.7 in. 50.2 in. 50.2 in.

10 in.

428 k 212 k

Establish Truss Geometry: Start with

left portion of the beam

Assumes heights of Nodes 1 & 2 = 15 in. Thus, d_v = 60 in. – 2(7.5 in.)

= 45 in. (1140 mm) From geometry:

From geometry:

tan α₁ = (45in./49.7in.), And thus α₁ = 42.2 deg.

212 k 428 k

Initial Truss Geometry

dv = 45 in. 1 2 3 4 5 α₁= 42.2o α₂= ? α₂

49.7 in. 50.2 in. 50.2 in.

10 in.

428 k 212 k

Establish Equilibrium at Node 1

F F₁₂ F₁₄ ΣF_y = 428 - F₁₂×sin α₁= 0 F₁₂= 637 k 428 k ΣF_x = F₁₄– F₁₂×cos α₁ = 0 F₁₄= 472 k

Geometry and dimensions of Node 1

and Strut 1-2

w w₁₄ ℓb1 α₁

Establish/Check Dimensions at Node 1 φf_cu(1) = φ (0.85) β_n f_c' = 0.75×0.85×0.80×4 1 428 ( ) 1.34 ksi (o.k.) 20 16 w b R f base b = = = ⋅l_l ⋅ = 2.04 ksi 14 14 472 11.6 12 in. (1) 20 0.75 2.72 w cu F w b φ f = = = ≅ ⋅ ⋅ × ×

Establish/Check Width and Strength of Strut 1-2

( )

( )

( )

( )

12 14 1 1 1 12 cos sin 8.89 10.8 19.7 in. b w w w α α = ⋅ + ⋅ = + = l (1-2) 0.85 0.85 0.75 4 2.55 ksi cu s c f = × ×β f′= × × = 12 (1-2) (1-2) (1-2) 0.75 2.55 19.6 20 757 k 637 k (o.k.) ns cu w ns F f w b F φ φ φ = ⋅ ⋅ = × × × = ≥

Modified Truss Geometry and Member Forces

Thus, height of Node 1 = 12 in.

Because Node 2 is a CCC node, assume it has a total height of 10 in.

Then d 60 (12 + 10)/2 49 in Then, d_v = 60 – (12 + 10)/2 = 49 in.

Reestablish truss geometry and member

212 k 428 k

Final truss geometry and member forces

dv = 49 in. 434 k 217 k 217 k 1 2 3 4 5 α₁= 44.6o α₂= 44.3o _α 2 212 k

49.7 in. 50.2 in. 50.2 in.

10 in.

428 k 212 k

Select Reinforcement for Tie 1-4

2 14 434 ( .) 9.64 in. 0 75 60 s F A req d f φ ′ = = = ( ) 0.75 60 s y q f φ⋅ ×

Select 13 No. 8 bars,

As= 10.3 in.2

3 in.

20 in.

3 in. 3 in.

Check Anchorage at Node 1 Tie 1-4 ℓ_a= 6 in./tanα₁ ℓ_a = 6.09 in. Total anchorage ℓb1= 16in. ℓa Critical section

α₁ 6in. Total anchorage

Length ≈ 22.1 in.

Check Anchorage at Node 1

0.02 0.02 1 60,000 1.0 in. e y dh b f d ψ × × = = × l b 1.0 in. 1 4000

19.0 in. (> 8d and > 6 in.)

dh b c dh d f λ ′ × = l l

Although ℓ_dhis less than 22 in., this would be a tight fit if only 90° hooks were used. In-plane 180° hooks could be y p used for some bars to partially relieve this rebar detailing problem. The use of mechanical anchorage devices could also be considered.

Minimum Reinforcement Crossing Strut 1-2 Strut centerline 2 1 γ₂ γ₁ si i i A in 0.003 b s s γ Σ ≥

Minimum Reinforcement Crossing

Strut 1-2 for

β

_s

= 0.75

• This reinforcement is to control the growth • This reinforcement is to control the growth

and width of cracks crossing the strut.

• Because this is a deep beam, I recommend that you also satisfy ACI Code Sections 11.7.4 and 11.7.5.

• Also because this is a deep flexural member • Also, because this is a deep flexural member,

the minimum skin reinforcement requirements of ACI Code Section 10.6.7 must be satisfied.

2 #4 per layer

3 in.

Final design in left span

Four #4 legs 6 at 8 in.

3 at 3 in.

20 in. 13 #8

212 k 428 k

Comments on right half of truss

dv = 49 in. 434 k 217 k 217 k 1 2 3 4 5 α₁= 44.6o α₂= 44.3o _α 2 212 k

49.7 in. 50.2 in. 50.2 in.

10 in.

22in. 60in.

Analysis of fan-shaped struts 2-4

and 3-5, and tie 3-4

2 49in. 25o 25o 3 5 104 in. 22in. _{six stirrups at s = 10 in.}

4

Section A

Final design of longitudinal and transverse steel

5 at 10 in. 15 at 6 in.
