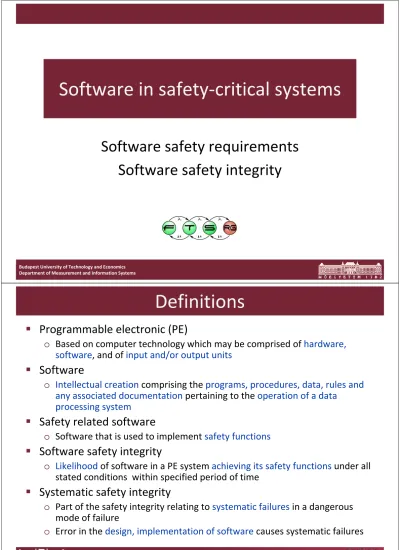

Software in safety‐critical systems
Software safety requirements
Software safety integrity
Definitions
Programmable electronic (PE) o Based on computer technology which may be comprised of hardware,software, and of input and/or output units
Software
o Intellectual creationcomprising the programs, procedures, data, rules and
any associated documentationpertaining to the operation of a data
processing system
Safety related software
o Software that is used to implement safety functions
Software safety integrity
o Likelihoodof software in a PE system achieving its safety functionsunder all
stated conditions within specified period of time
Systematic safety integrity
o Part of the safety integrity relating to systematic failures in a dangerous mode of failure
Determining software SIL
Basic concepts:
o Software SIL shall be identical to the PE system SIL
(implementing the safety function)
o Exception: Mechanism exists to prevent the failure of a
software module from causing the system to go to an unsafe state
Reducing software SIL requires
o Analysis of failure modes and effects (probabilistic analysis) o Analysis of independence between software and the applied prevention mechanisms
Different software modules may have different SIL
Architecture for reducing software SIL
Független szoftver modulok
„bejárása”
Channel 1 I/O locking locking Channel 2 Signature Signature (1) (1) (1) (2) (2) (2) (3) (3) (3) (1) (1) (3) (3) (4) (4)2 channels
and independent acknowledgement
Problems and solutions
Systematic failures
in complex software:
o Development of fault‐free software cannot be guaranteed in
case of complex functions • Goal: Reducing the number of faults (remaining after verification and validation activities) that may cause hazard ‐> Fault prevention, fault removal, fault tolerance, fault forecasting o Target failure measure cannot be demonstrated by a quantitative analysis • General techniques do not exist, estimations are questionable
Standards prescribe
methods and techniques
for the
software development, operation and maintenance:
1. Safety lifecycle 2. Techniques and measures in all phases of the lifecycle 3. Documentation 4. Competence and independence of personnel1. Safety lifecycle
Hardware and software development
PE system architecture (partitioning of functions) determines software requirements PES integration follows software development Final step: E/E/PES integration E/E/PES safety requirements specification E/E/PES architecture Software safety requirements Software design and development PES integration (software and hardware) Hardware safety requirements Programmable hardware design and development Non‐programmable hardware design and development E/E/PES integrationSoftware safety lifecycle
Safety req. spec. has two parts: o Software safety functions o Software safety integrity levels Validation planning is required Integration with PE hardware is required Final step: Software safety validation Software safety requirements Safety functions Safety integrity Software safety validation planning Software design and development PES integration (hw and sw) Software safety validationExample lifecycle (V‐model)
Development model is not prescribed by the standards o V‐model is characterized by clear conditions to step forward o V&V planning is explicitly supported (input for V&V activities)Software quality assurance
Software Quality Assurance Plan o Specifying activities and documents according to ISO 9000‐3 • ISO 9001 accreditationo Determining all technical and control activities in the lifecycle
• Activities, inputs and outputs (esp. verification and validation)
• Quantitative quality metrics
• Specification of its own updating(frequency, responsibility, methods)
o External suppliercontrol Software configuration management o Configuration control before release for all artifacts (code, documents, …) o Changes require authorization Problem reporting and corrective actions (issue tracking) o “Lifecycle” of problems: From reporting through analysis, design and implementation to validation o Preventive actions
2. Techniques and measures
Basic approach
Goal: Preventing the introduction of
systematic faults
and controlling the
residual faults
SIL determines the set of
techniques to be applied
as
o M: Mandatory o HR: Highly recommended (rationale behind not using it should be detailed and agreed with the assessor) o R: Recommended o ‐‐‐: No recommendation for or against being used o NR: Not recommended
Combinations
of techniques is allowed
o E.g., alternate or equivalent techniques are marked
Hierarchy of methods is formed (references to tables)
Example: Guide to selection of techniques
Software safety requirements specification:
o Techniques 2a and 2b are alternatives
o Referred table: Semi‐formal methods (B.7)
Hierarchy of design methods
Specific techniques: Design
Safety bag technique
o Independent external monitor ensuring that the main computer
performs safe
Memorizing executed traces
o Comparison of program execution with previously documented reference in order to force it to fail safely if it attempts to execute a path which is not allowed
Defensive programming
o Checking anomalous control/data flow and data values during
execution
• E.g., checking variable ranges, plausibility,
• consistency of configuration, availability of hw, etc.
o and react in a safe manner
Hierarchy of V&V methods
Hierarchy of V&V methods
Specific techniques: Verification
Probabilistic testing
o Deriving probabilistic figures about the reliabilityof components from (automated) testing • via environment simulation focusing on frequent trajectories
Test case execution from error seeding
o Inserting errors in order to estimate the number of remaining
errors after testingfrom the number of inserted and detected errors
Fagan inspections
o Revealing mistakes by a systematic audit on documents and
design artifacts
Sneak circuit analysis
o Detecting unexpected paths or logic flow (latent conditions
inadvertently designed into the system) which initiate undesired functions
Application of tools in the lifecycle
Fault prevention
:
o Program translation from high‐level programming languages o MBD, CASE tools: High level modeling and code/configuration generators
Fault removal
:
o Analysis, testing and diagnosis o Correction (code modification)Management tools
o Contributing both to fault prevention and removal o Includes project management, configuration management, issue trackingSafety concerns of tools
Types of tools
o Tools potentially introducing faults • Modeling and programming tools • Program translation tools o Tools potentially failing to detect faults • Analysis and testing tools • Project management tools
Requirements
o Use certified or widely adopted tools
• “Increased confidence from use” (no evidence of improper results yet)
o Use the well‐tested parts without altering the usage o Check the outputof tools (analysis/diversity)
Safety of programming languages
Factors for selection of languages
o Functional characteristics (probability of faults) • Logical soundness (unambiguous definition) • Complexity of definition (understandability) • Expressive power • Verifiability (consistency with specification) • Vulnerability (security aspects) o Availability and quality of tools o Expertiseavailable in the design team
Coding standards
(subsets of languages) are defined
o “Dangerous” constructs are excluded (e.g., function pointers) o Static checking can be used to verify the subset
Specific (certified)
compilers
are available
o Compiler verification kit for third‐party compilers
Safety of programming languages
Factors for selection of languages
o Functional characteristics (probability of faults) • Logical soundness (unambiguous definition) • Complexity of definition (understandability) • Expressive power • Verifiability (consistency with specification) • Vulnerability (security aspects) o Availability and quality of tools o Expertiseavailable in the design team
Coding standards
(subsets of languages) are defined
o “Dangerous” constructs are excluded (e.g., function pointers) o Static checking can be used to verify the subset
Specific (certified)
compilers
are available
o Compiler verification kit for third‐party compilers Constructs that make verification difficult (61508): • Unconditional jumps excluding subroutine calls • Recursion • Pointers, heaps or any type of dynamic variables • Interrupt handling at source code level • Multiple entries and exits of loops and subprograms • Implicit variable initialization or declaration • Variant records and equivalence • Procedural parameters
Language comparison
Wild jumps: Jump to arbitrary address in memory Overwrites: Overwriting arbitrary address in memory Model of math: Well‐defined data types Separate compilation: Type checking across modulesCoding standards for C and C++
MISRA C (Motor Industry Software Reliability Association)
o Safe subset of C (2004): 141 rules (121 required, 20 advisory) o Examples: • Rule 33 (Required): The right hand side of a "&&" or "||" operator shall not contain side effects.• Rule 49 (Advisory): Tests of a value against zeroshould be made explicit, unless the operand is effectively Boolean.
• Rule 59 (R): The statement forming the body of an "if", "else if", "else", "while", "do ... while", or "for" statement shall always be enclosed in braces.
• Rule 104 (R): Non‐constant pointers to functionsshall not be used.
o Tools to check “MISRA conformance” (LDRA, PolySpace, …)
• Test cases to demonstrate adherence to MISRA rules
MISRA C++ (2008): 228 rules
US DoD, JSF C++: 221 rules (incl.
metric
guidelines)
Interesting facts
Boeing 777: Approx. 35 languages are used
o Mostly Ada with assembler(e.g., cabin management system)
o Onboard extinguishers in PLM
o Seatback entertainment system in C++with MFC
European Space Agency:
o Mandates Adafor mission critical systems
Honeywell: Aircraft navigation data loader in C
Lockheed: F‐22 Advanced Tactical Fighter program in Ada 83 with a small amount in assembly
GM trucks vehicle controllers mostly in Modula‐GM (Modula‐GM is a variant of Modula‐2) TGV France: Braking and switching system in Ada Westinghouse: Automatic Train Protection (ATP) systems in Pascal
Safety‐critical OS: Required properties
Partitioning
in space
o Memory protection o Guaranteed resource availability
Partitioning in time
o Deterministic scheduling o Guaranteed resource availability in time
Mandatory access control
for critical objects
o Not (only) discretionary
Bounded execution time
o Also for system functions
Support for fault tolerance and high availability
o Fault detection and recovery / failover o Redundancy controlExample: Safety and RTOS
Compromise needed
o Complex RTOS: • Difficult to test o “Bare machine”: • Less scheduling risks • High maintenance risks
Example: Tornado® for Safety Critical Systems
o Integrated software solution uses Wind River'ssecurely partitioned VxWorks® AE653 RTOS
o ARINC 653: Time and space partitioning
(guaranteed isolation)
o RTCA/DO‐178B: Level A certification o POSIX, Ada, C support
Principles for documentation
Type
of documentation
o Comprehensive (overall lifecycle) • E.g., Software Verification Plan o Specific (for a given lifecycle phase) • E.g., Software Source Code Verification Report
Document
Cross Reference Table
o Determines documentation for a lifecycle phase o Determines relations among documents
Traceability
of documents is required
o Relationships between documents are specified (input, output) o Terminology, references, abbreviations are consistent
Merging
documents is allowed
o If responsible persons (authors) shall not be independentDocument cross reference table (EN50128)
creation of a
document
used
document in
a given
phase
(read
vertically)
Example
Document structure in EN50128 30 documents in a systematic structure o Specification o Design o VerificationSystem Development Phase
System Requirements Specification System Safety Requirements Specification System Architecture Description
System Safety Plan
Software Maintenance Phase
Software Maintenance Records Software Change Records
Software Assessment Phase
Software Assessment Report
Software Requirements Spec. Phase
Software Requirements Specification
Software Requirements Test Specification
Software Requirements Verification Report
Software Validation Phase
Software Validation Report
Software/hardware Integration Phase
Software/hardware Integration Test Report
Software Architecture & Design Phase
Software Architecture Specification
Software Design Specification
Software Architecture and Design Verification Report
Software Integration Phase
Software Integration Test Report
Software Module Design Phase
Software Module Design Specification
Software Module Test Specification
Software Module Verification Report
Software Module Testing Phase
Software Module Test Report
Coding Phase
Software Source Code & Supporting Documentation
Software Source Code Verification Report
Software Planning Phase
Software Development Plan Software Quality Assurance Plan Software Configuration Management Plan Software Verification Plan
Software Integration Test Plan
Software/hardware Integration Test Plan Software Validation Plan
Software Maintenance Plan
4. Competence and independence
of personnel
Human factors
In contrast to computers o Humans often failin: • reacting in time • following a predefined set of instructions o Humans are goodin: • handling unanticipated problems Human errors o Not all kind of human errors are equally likely o Hazard analysis(FMECA) is possible in a given contexto Results shall be integratedinto system safety analysis
Reducing the errors of developers
o Safe languages, tools, environments
o Training, experience and redundancy (independence)
Reducing operator errors:
o Designing ergonomic HMI(patterns are available) o Designing to aid the operatorrather than take over
Organization
Safety management
o Quality assurance o Safety Organization
Competence
shall be demonstrated
o Training, experience and qualifications
Independence
of roles:
o DES: Designer (analyst, architect, coder, unit tester) o VER: Verifier o VAL: Validator o ASS: Assessor o MAN: Project manager o QUA: Quality assurance personnelIndependence of personnel
DES, VER, VAL
DES VER, VAL
DES MGR
VER, VAL
MGR
DES VER VAL
ASS ASS ASS ASS SIL 0: SIL 1 or 2: SIL 3 or 4: or: Organization Person
EN 50128:
Specific design aspects:
Development of generic software
Software/hardware integration
Overview of the lifecycle
System development Requirement specification Architecture design Module design Module coding Module test plan Integration test plan Validation test plan Module testing Software integration Software validation Software assessment Operation and maintenance Generic software: It can be used and re‐used after parameterizationwith specific data Parameterization Design for paramete‐ rization V&V of paramete‐ rizationDesign aspects
Checking compatibility of changes in program code and parameters Maintenance Checking for potential parameter values and their combinations Verification and validation Separationof program code and parameters Module design
Design of interfaces for parameterization Architecture design Specification of parameterized functions Specification of data validation Software requirement specification Decision about parameterized functions System development Design aspect Lifecycle phase
Parameterization activities
Validation of the system parameterized with application data Software validation Software assessment Parameterization (configuration) Software integration Data preparationData testing (verification) Data test reporting Software architecture and design Specifying application requirements Software requirements specification Activity Similar lifecycle phase
