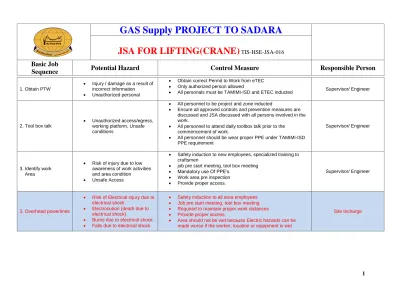

GAS Supply PROJECT TO SADARA

JSA FOR LIFTING(CRANE)

TIS-HSE-JSA-016

Basic Job

Sequence

Potential Hazard

Control Measure

Responsible Person

1

1. Obtain PTW

 Injury / damage as a result of incorrect information

 Unauthorized personal

 Obtain correct Permit to Work from eTEC

 Only authorized person allowed

 All personals must be TAMIMI-ISD and ETEC inducted Supervisor/ Engineer

2. Tool box talk

 Unauthorized access/egress, working platform, Unsafe conditions

 All personnel to be project and zone inducted

 Ensure all approved controls and prevention measures are discussed and JSA discussed with all persons involved in the work.

 All personnel to attend daily toolbox talk prior to the commencement of work.

 All personnel should be wear proper PPE under TAMIMI-ISD PPE requirement

Supervisor/ Engineer

3. Identify work Area

 Risk of injury due to low awareness of work activities and area condition

 Unsafe Access

 Safety induction to new employees, specialized training to craftsmen

 job pre start meeting, tool box meeting

 Mandatory use Of PPE’s

 Work area pre inspection

 Provide proper access.

3. Overhead powerlines

 Risk of Electrical injury due to electrical shock.

 Electrocution (death due to electrical shock)

 Burns due to electrical shock  Falls due to electrical shock

 Safety induction to all area employees  Job pre start meeting, tool box meeting  Required to maintain proper work distances  Provide proper access

 Area should not be wet because Electric hazards can be made worse if the worker, location or equipment is wet

(2)

GAS Supply PROJECT TO SADARA

JSA FOR LIFTING(CRANE)

TIS-HSE-JSA-016

Basic Job

Sequence

Potential Hazard

Control Measure

Responsible Person

2

4 .Lifting area preparation

 Improper access

 Personal injury

 Uneven ground pavement

 Bad housekeeping

 Scattered materials

 Slip, trip

 Un authorized entry

 Excavations and trenches

 Area should be clear from any debris

 Material must be segregate

 Housekeeping must be done prior to start the job and finished the job

 Adequate access.

 Ensure area is properly prepared for job

 Ground pavement must be leveled properly

 Provide proper barricades

 Provide signage

 Provided spill tray for flammable oils

 Provide adequate fire extinguisher

 Follow the monthly color code

 Maintain safe distance from Excavation and trenches.

(3)

GAS Supply PROJECT TO SADARA

JSA FOR LIFTING(CRANE)

TIS-HSE-JSA-016

Basic Job

Sequence

Potential Hazard

Control Measure

Responsible Person

3

5. Material preparation  Personal injury  Improper access  Sharp edges  Hand injury  Pinch point

 Hit by/hit by objects

 Rolling over of stack pipes

 Slip, trip hazard

 Improper stacking of pipes

 Property damage

 Falling objects

 Scattered pipe materials

 Fire

 Fall of height

 Mechanical failure

 Lifting tackle failure

 Caught in between

 Vision blocked

 Pre inspection of crane equipment prior to start the job.

 Ensure crane is third party certified

 Follow safe operating procedures

 Proper supervision from immediate supervisor

 Prepare proper signage and barricade prior to lifting job

 Use PPE’s as per TAMIMI-ISD requirements

 Ensure that over head object has properly place and tied off

 Material should be properly stacked

 Pipes must be in proper place ,and must be in pipe racks

 Good house keeping

 If working at height must be undergo training of working at heights

 Use fall protection gear

 Proper segregation of pipes as per sizes

 Ensure proper fire extinguisher is available in the area

 Don’t put the hands in between two pipes/objects

 Ensure sling is third party certified

 Inspect the sling thoroughly prior to use

 Ensure lifting gear has third party certified and valid

 Ensure lifting gear has no signed of damage, if damage found don’t use it or replace immediately

 Ensure out rigging pad available and no defects

 Follow monthly color code

 Operation vision must be clear

 Proper communication between operator and Rigger.

6. Lifting work (by means of crane)

 Uneven ground pavement

 Falling objects/pipes

 Struck by/hit by

 Crane overload

 Inadequate access

 Crane overturning

 Ensure crane must third party certified

 Only competent rigger allowed to performed the job

 Only qualified crane operator can performed the job

 Ensure the ground pavement level properly

 Provide proper barricade

 Provide proper signage

 Ensure clear visibility between rigger and crane operator

(4)

GAS Supply PROJECT TO SADARA

JSA FOR LIFTING(CRANE)

TIS-HSE-JSA-016

Basic Job

Sequence

Potential Hazard

Control Measure

Responsible Person

4

 Property damage

 Mechanical failure

 Uncontrolled movements of lifted pipes/objects

 Improper communication bet. Crane operator and rigger

 Oil spill

 Slip, trip

 Pinch point

 Personal injury

 Failure of lifting equipment

 Collision of objects/pipes

 Vision blocked

 Caught in between

 EOT crane movement

 Live DSL cable

 Load hit structure

 Provide oil spill tray

 Ensure outrigger pad is free of damage

 Ensure proper sling position

 Inspect lifting gear prior to use

 Lifting gear must third party certified

 Regular inspection of lifting equipments prior to use

 Lifting tackles must have a third party certified and valid

 Use PPE’s as per TAMIMI-ISD requirements

 Don’t put hands in between two objects/pipes

 Ensure proper access

 Use two tag lines

 No people should stand beneath the lifted object/pipes

 Maintain safe distance from lifted objects/pipes

 Be sure no overhead objects within boom range

 Crane load chart must strictly followed

 Ensure lifted pipes must be in proper and secured to avoid rolling of pipes

 Use wooden wedge block

 No person should stay within boom range

 Never sit, stand, walk, work under suspended load

 Ensure no hydraulic leakage of crane

 Maintain safe distance from DSL cables box bar

7. chain block and

rigging gear



Irregular inspection on all

lifting tackles



Shackle improperly

maintained and inspected



Wear and tear of wire

ropes



Mechanical failure



Chain block failure



Wire rope shall be provided properly identified for SWL

and manufacturer.



Inspections shall be done by authorized personnel and

by the safety dep’t. Shall keep the records.



Safe working load stamp shall provide by the

manufacturer



Only trained persons may use electric or pneumatic

tools.

(5)

GAS Supply PROJECT TO SADARA

JSA FOR LIFTING(CRANE)

TIS-HSE-JSA-016

Basic Job

Sequence

Potential Hazard

Control Measure

Responsible Person

5 

Over loading of chain

block



Improper coordination



Falling of lifted pipes



Collapse of loads



Collapse of rigid mounting



Personal injury



Inadequate access



Property damages



Fall from height



Defective tools or equipment shall not allowed to use



Ensure proper rigid mounting



Ensure to use PPE



Stay away from lifted loads



Lift the pipes slowly



Provide sufficient access as possible



Be sure not to over load the capacity of chain block



Be sure not to over load the maximum strength of wire

ropes



Inspect chain blocks before use



All chain blocks should be 3

rd

party certified



Use two tag lines to control load movements



Use fall protection if working at height



Only qualified personnel allowed to do the job



Barricade the area



Provide proper signage

(6)

GAS Supply PROJECT TO SADARA

JSA FOR LIFTING(CRANE)

TIS-HSE-JSA-016

Basic Job

Sequence

Potential Hazard

Control Measure

Responsible Person

6

8. Housekeeping

 Tripping Hazards

 Arrange/ stage all the material in neat orderly manner.

 Remove damage, banding, crate material, nails etc. and dispose of properly

 Waste disposal

 Fire

 Slip,Trip,Fall

 Crushed by EOT crane

 Provide trash for work areas means for maintaining.

 All containers should be labeled

 Clean the spill area immediately, and reporting of incident and spillage.

 Stay away from EOT crane.

 Maintain safe distance from live box bar

Prepared by: Reviewed by: Approved by: Date

HSE Manager

Muhammad Raza Khan.

Project Manager AMJAD PERVAIZ

eTEC Safety Head Jinhan Baek
