Automation Motion Server
Drives and Drive Racks

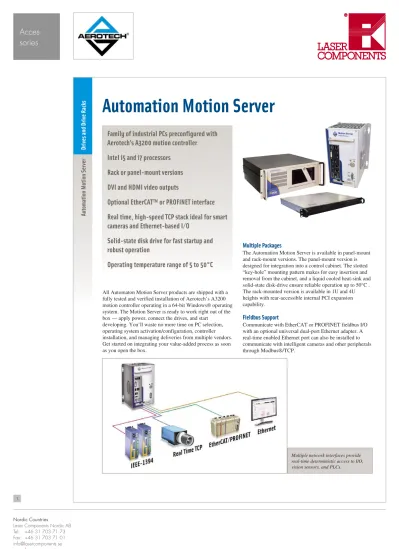

Automation Motion Server
All Automaton Motion Server products are shipped with a
fully tested and verified installation of Aerotech’s A3200
motion controller operating in a 64-bit Windows® operating
system. The Motion Server is ready to work right out of the
box — apply power, connect the drives, and start
developing. You’ll waste no more time on PC selection,
operating system activation/configuration, controller
installation, and managing deliveries from multiple vendors.
Get started on integrating your value-added process as soon
as you open the box.
Family of industrial PCs preconfigured with
Aerotech’s A3200 motion controller
Intel i5 and i7 processors
Rack or panel-mount versions
DVI and HDMI video outputs
Optional EtherCAT™ or PROFINET interface
Real time, high-speed TCP stack ideal for smart
cameras and Ethernet-based I/O
Solid-state disk drive for fast startup and
robust operation
Operating temperature range of 5 to 50°C
Multiple Packages
The Automation Motion Server is available in panel-mount
and rack-mount versions. The panel-mount version is
designed for integration into a control cabinet. The slotted
“key-hole” mounting pattern makes for easy insertion and
removal from the cabinet, and a liquid cooled heat-sink and
solid-state disk-drive ensure reliable operation up to 50°C .
The rack-mounted version is available in 1U and 4U
heights with rear-accessible internal PCI expansion
capability.
Fieldbus Support
Communicate with EtherCAT or PROFINET fieldbus I/O
with an optional universal dual-port Ethernet adapter. A
real-time enabled Ethernet port can also be installed to
communicate with intelligent cameras and other peripherals
through Modbus®/TCP.
Multiple network interfaces provide real-time deterministic access to I/O, vision sensors, and PLCs.
Acces -
sories
Nordic Countries
Laser Components Nordic AB Tel: +46 31 703 71 73 Fax: +46 31 703 71 01 [email protected]
Drives and Drive Racks
Automation Motion
Server
3
Automation Motion Server
Drives and Drive Racks
Automation Motion Server DIMENSIONS
Acces -
sories
Nordic Countries
Laser Components Nordic AB Tel: +46 31 703 71 73 Fax: +46 31 703 71 01 [email protected]
Drives and Drive Racks
Automation Motion
Server
5
07/15 / V1 / IF / aerotech/drives_drive-racks/automation_motion_ser
ver
Automation Motion Server
Drives and Drive Racks
Automation Motion Server ORDERING INFORMATION
Automation Server Panel Mount Machine Controller
A3200 MOTION SERVER PPC A3200 panel-mounted machine controller with 10/100/1000 MB LAN, 120 GB (minimum) DVI-I, HDMI, five USB 2.0, two USB 3.0, 85-230 VAC, 300 W power supply
Processor (Required)
-i5 Intel i5; 4 Core, 3.1 GHz; 6 MB Cache, 8 GB memory -i7 Intel i7; 4 Core, 3.6 GHz; 8 MB Cache, 16 GB memory
Operating System (Required)
-Win 7 64 Windows 7 64-bit SP1 operating system -Win 8.x 64 Windows 8.1 (minimum) 64-bit operating system
Controller Network Interface (Required)
-1394 Dual port IEEE-1394
Fieldbus Network Interface (Optional)
-I/O 0 No fieldbus option
-I/O 1 Dual-port real timer Ethernet for EtherCat™ and PROFINET
PC Options (Optional)
KB/MOUSE USB keyboard and mouse
KB/TOUCHPAD USB keyboard with integral touch pad
Automation Server Rack-Mount Machine Controllers
A3200 MOTION SERVER A3200 rack-mount machine controller configured with the following options:
Operating System
-Win 7 64 Windows 7 64-bit SP1 operating system -Win 8.x 64 Windows 8.1 (minimum) 64-bit operating system
PC Type
-4U RACK 19-inch 4U rack-mount industrial PC, Intel 3 GHz G3220 processor, four-slot backplane (PCIe 16x, one-PCIe 1x, two-PCI), 4 GB RAM, 2 GB LAN, VGA, DVI, HDMI, DVD+/-R/RW, eight USB 2.0, four USB 3.0, 500 GB hard drive, 85-230 VAC, 400 W supply, IEEE-1394 card
-1U RACK 1U rack-mount industrial PC, Intel 3 GHz G2030 processor, one-PCIe x16 expansion slot, four-USB 3.0, 4GB RAM, VGA, HDMI, DVI, DVD+/-R/RW, 320 GB drive, 85-230 VAC one 260 W power supply, 2 GB LAN, IEEE-1394 card
-1U RACK SSD 1U rack-mount industrial PC, Intel 3 GHz G2030 processor, one-PCIe x16 expansion slot, four USB-3.0, 4 GB RAM, VGA, HDMI, DVI, DVD+/-R/RW, 80 GB SSD drive, 85-230 VAC, 260 W power supply, 2 GB LAN, IEEE-1394 card
PC Options
-MOUSE-USB Mouse -KEYBOARD-USB Keyboard
-KB/TOUCHPAD-USB Keyboard with touchpad -KB/TRACKBALL-USB Keyboard with track ball -17" LCD MONITOR 17" LCD monitor
-GLOBAL ETHERNET I/O Real-time compatible Ethernet card -CFG AS A3200 REMOTE SERVER Configure A3200 as remote server
-CFG FOR GLOBAL ETHERNET I/O Configure Global Ethernet card for real-time operation -HILSCHER Dual port Ethernet card
AC Power Cord Options
-ENGLAND UK compatible line cord -GERMANY German compatible line cord -ISRAEL Israel compatible line cord -INDIA India compatible line cord -AUSTRALIA Australia compatible line cord -US115VAC US 115 VAC line cord -US230VAC US 230 VAC line cord -NOLINECORD No line cord
