With Altiris® Deployment Solution 6.5, Altiris offers a tool for remote control and

administration of server landscapes.

Integrating the Altiris solution in visionapp Platform Management Suite 2006 R2 (vPMS 2006 R2) allows administrators to apply the vPMS 2006 R2 package distribution

mechanisms and configuration options in Altiris® controlled environments, in particular in

the field of Citrix Presentation Servers.

This whitepaper serves as guideline for performing the necessary modifications in an Altiris® environment. The Transition Wizard and the visionapp Transition Tool (vTT) will be

used to implement the transition from an Altiris® operating system installation to a vPMS




The procedure described in this whitepaper requires a pre-installed Altiris® Deployment

Solution 6.5 as well as a vPMS 2006 R2 environment.

To begin with, an Installation Control Manager Site (ICM Site) has to be created in visionapp Control Center (vCC), including the supporting application software packages and installation scripts. Then, following the operating system installation, the sequenced software package installation can be run from within Altiris® Deployment Solution 6.5.

For instructions on how to install the environments above and create an ICM Site, please refer to the vCC Online Help.



Configuration in vCC


Creating a Farm

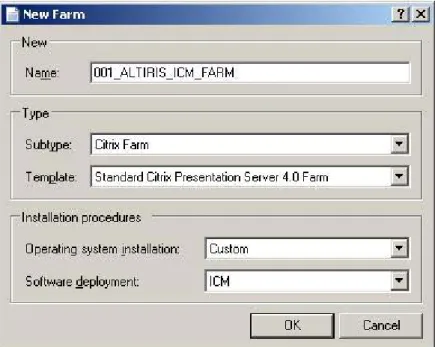

In vCC, select Infrastructure Management (IM) and use the context menu to create a new farm with the properties shown in Figure 1 below:

Figure 1: Creating a New Farm

The type of the farm is set under Type in the Subtype field. As illustrated in Figure 1, under Installation procedure, select User-defined in the Operating system



Creating the Server

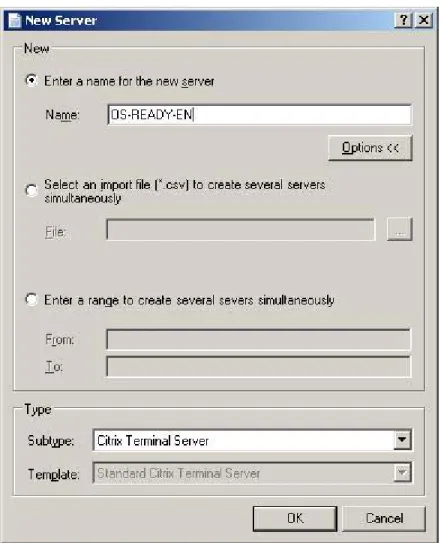

After having created the farm, use the farm’s context menu to create one or more servers (refer to Figure 2).

In case the farm has been created as Citrix farm (as in the example above), you need to create a zone before inserting servers.



Assigning an ICM Script

After the transition from the Altiris® Deployment Solution 6.5 operating system installation

to the vPMS 2006 R2 package installation, an ICM installation script has to be assigned to the server in vCC. This assignment is needed to ensure that the server receives the software packages selected.

For instructions on how to create an ICM installation script, please refer to the vCC Online Help.



Exporting the Transition Tool

The transition tool enables the transition from the Altiris® Deployment Solution 6.5

operating system installation to the vPMS 2006 R2 package installation.

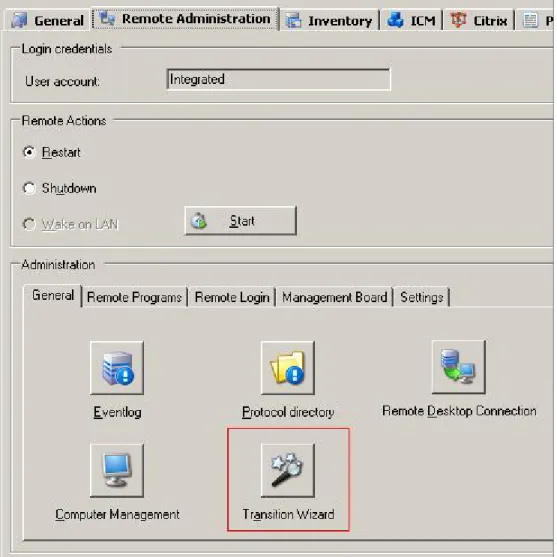

Under the newly created server, select the Remote Administration tab. Then click the

Transition Wizard button under Administration (refer to Figure 4).

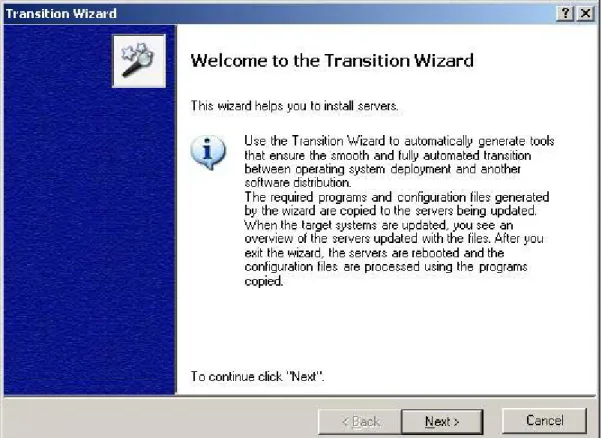

The Transition Wizard is used to export the necessary files to an appropriate directory. The subsequent pages describe the various Transition Wizard screens and the settings to be made.

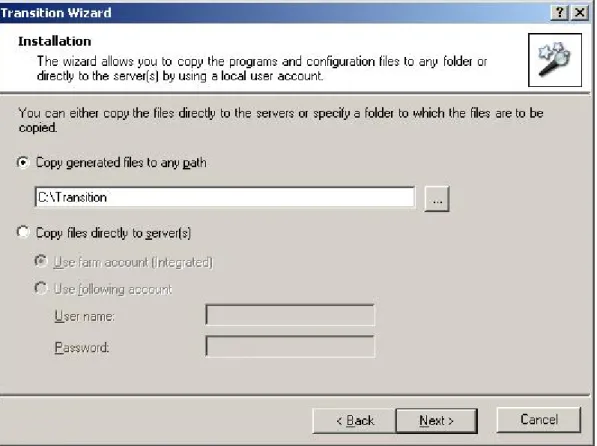

The Installation dialog (refer to Figure 6) is used to set whether the files are to be copied to the server(s) or exported to another location. Click the … button to select the export directory.


The Configuration Options dialog (refer to Figure 7) is used to define whether existing configuration settings are to be kept or new ones edited. This being the initial

configuration, there are no existing settings and the Apply settings option is grayed out.

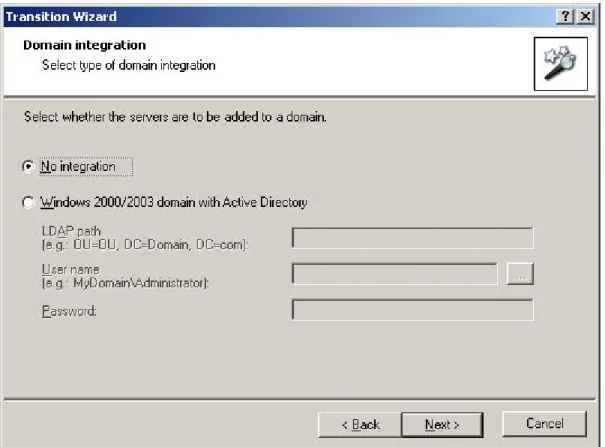

In the Domain integration dialog (refer to Figure 8) select the No integration option. This is the setting required for the operating system installation in the Altiris® Deployment

Solution 6.5 environment.

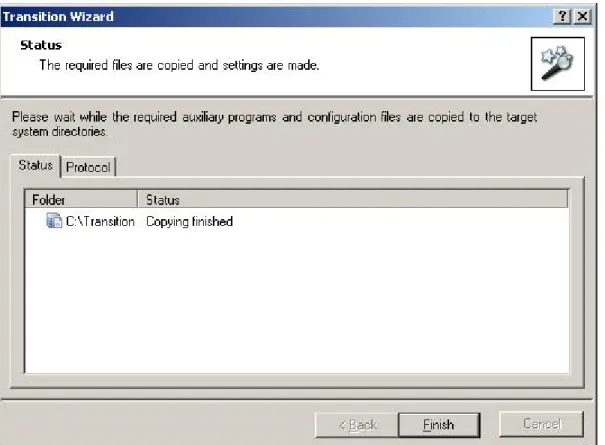

Finally, the Transition Wizard displays the Status dialog (refer to Figure 9) with, under the

Status tab, information on the current procedure.


The following Transition Tool files have been copied to the selected directory (refer to

Figure 10):


vTT.exe Æ visionapp Transition Tool


vTT.ini Æ visionapp Transition Tool configuration file


vSit.dll Æ visionapp encryption DLL for secure communication

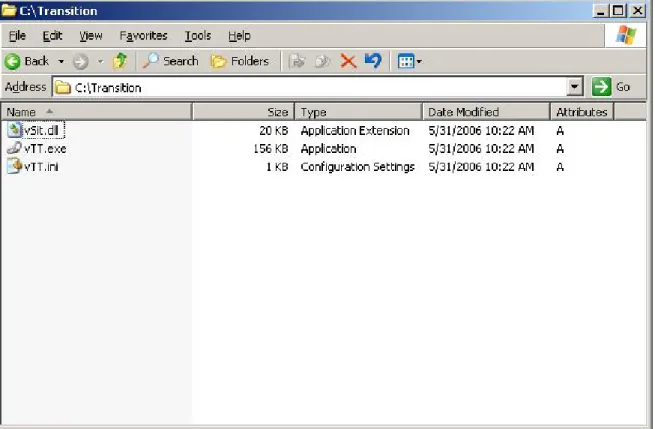

Figure 10: Transition Tool Files

The vTT.ini file is needed to set up the connection to the vCC database and provide the parameters required for the installation of the ICS service.

The vTT.ini file contains information such as the database name, the database user and the encrypted password of the database user.



Configuration in Altiris



After having completed the configuration in vCC and exported the Transition Tool files, you can proceed with the configuration in the Altiris® Console.

This document does not describe preliminary settings to be made in the Altiris® Console, such as the inclusion of a server or

the creation of images. For details on these tasks please refer to the Altiris® Deployment Solution 6.5 Online Help.


Copying Transition Tool Files

First, the transition tool files generated with the Transition Wizard have to be copied to a directory under the Deployment Server share on the Altiris® server.

Create this new directory under: %PROGRAMFILES%\Altiris\eXpress\. The name of the directory can be freely selected, but should be descriptive (e.g.: Transition).



Creating a New Job

Now, in the Altiris® Console, create a new job that will copy the transition tool files and

run the vTT.exe file.

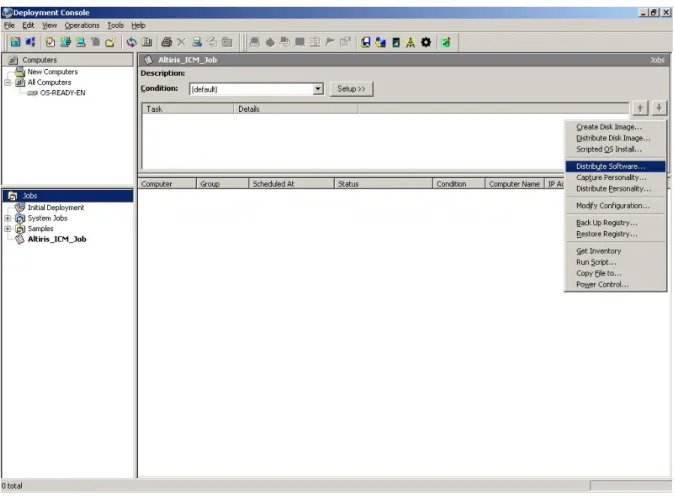

To do so, open the context menu under Jobs and create a new job (named

Altiris_ICM_Job in Figure 11). Then click Add on the right-hand side of the screen and

select Distribute Software... (refer to Figure 11).


In the Distribute Software… dialog, select the vTT.exe file from the directory previously created. To copy all of the files from the directory, enable the Copy all directory files checkbox (refer to Figure 12).



Running a Job

How the job is run within the Altiris® Deployment Console has to be decided by the


For instance, the job could be used in combination with an operating system image distribution in order to implement an entire procedure, from the installation of an operating system using Altiris® to the installation of software packages using ICM.

A simple way to run a job is to drag and drop the newly created job to the server in the Altiris® Deployment Console.

In the Schedule Computers for Job dialog displayed next, you can select the Job

Schedule tab and enable the option Run this job immediately. Schedule for immediate execution (refer to Figure 13).


After having confirmed with OK, the job copies the vTT.exe, vTT.ini and vSIT.dll files to the target server and runs the vTT.exe program.

To do so, the job creates a temporary directory on the target server under

”%WINDIR%\Temp“. The log file generated by the vTT.exe program, vTT.log, is also stored in this temporary directory.

For detailed information on how to run jobs in the Altiris®

Console please refer to Altiris® Deployment Solution 6.5

Online Help.

With the procedure illustrated, it is possible to use all of the vPMS 2006 R2 software package installations within an Altiris® Deployment Solution 6.5 environment.


Monitoring the Installation

To monitor an installation, regardless of the software deployment solution used, select the

Protocol tab under Infrastructure Management in vCC.

For details on how to monitor an installation, refer to the vCC Online Help under Monitoring an Installation.
