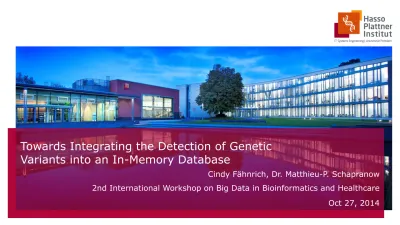

Towards Integrating the Detection of Genetic

Variants into an In-Memory Database

Cindy Fähnrich, Dr. Matthieu-P. Schapranow

2nd International Workshop on Big Data in Bioinformatics and Healthcare

Oct 27, 2014

(2)

■

Next-generation sequencing (NGS) requires adapted analysis workflow

□

Higher error rates

□

Shorter reads

■

Base sequencing step produces output within a few

hours

■

Subsequent processing steps take

days

up to several

weeks

Motivation –

Genome Data Analysis Process

Cindy Fähnrich, Dr. Matthieu-P. Schapranow Detecting Genetic Variants within an In-Memory Database 2

Variant Detection within an In-memory Database | Cindy Fähnrich |

6th December 2013

DNA

(3)

■

NGS growth pattern more

remarkable than Moore’s law

à

Addressing data deluge with more

computing power no option

■

For variant calling: Still options to

improve data processing

□

Single-threaded processing

□

Data stored in files on disk

Motivation –

The Next-Generation Sequencing Data Deluge

Cindy Fähnrich, Dr. Matthieu-P. Schapranow Detecting Genetic Variants within an In-Memory Database 3 0.001 0.01 0.1 1 10 100 1000 10000 01/12/01 01/12/03 01/12/05 01/12/07 01/12/09 01/12/11 01/12/13 Cost in [USD] Date

Main Memory Cost per Megabyte Sequencing Cost per Megabase

0.001 0.01 0.1 1 10 100 1000 10000 01/12/01 01/12/03 01/12/05 01/12/07 01/12/09 01/12/11 01/12/13 Cost in [USD] Date

Main Memory Cost per Megabyte Sequencing Cost per Megabase

(4)

IMDB Building Blocks

Cindy Fähnrich, Dr. Matthieu-P. Schapranow Detecting Genetic Variants within an In-Memory Database 4 Combined column

and row store Map/Reduce

Single and multi-tenancy

Lightweight compression Insert only

for time travel

Real-time replication

Working on integers

SQL interface on columns and rows Active/passive

data store

Minimal

projections Group key

Reduction of software layers Dynamic multi-threading Bulk load of data Object-relational mapping Text retrieval and extraction engine No aggregate tables Data partitioning Any attribute as index No disk On-the-fly extensibility Analytics on historical data Multi-core/ parallelization

+

+ + + + P

v

+ + +

t

SQL x x

T

disk

(5)

IMDB Building Blocks

Cindy Fähnrich, Dr. Matthieu-P. Schapranow Detecting Genetic Variants within an In-Memory Database 5 Combined column

and row store Map/Reduce

Single and multi-tenancy

Lightweight compression Insert only

for time travel

Real-time replication

Working on integers

SQL interface on columns and rows Active/passive

data store

Minimal

projections Group key

Reduction of software layers Dynamic multi-threading Bulk load of data Object-relational mapping Text retrieval and extraction engine No aggregate tables Data partitioning Any attribute as index No disk On-the-fly extensibility Analytics on historical data Multi-core/ parallelization

+

+ + + + P

v

+ + +

t

SQL x x

T

disk

(6)

■

Different calling strategies for variant types with increasing complexity

□

SNP calling (single-/ multi-sample)

□

Indel calling

à

Focus here on

single-sample

SNP calling

Different Types of Genetic Variants

AACTG vs. A

T

CTG

Single Nucleotide

Polymorphism (SNP)

AACTG

vs.

GTCAA

Structural Variations (SV)

AACTG

vs.

AA

_

TG

Insertion or Deletion (InDel)

(7)

■

SNP calling implemented as core

component of the database

■

Invocation of SNP calling via stored

procedure call:

■

Built-in parallel scheduling and

resource management of distinct

SNP calling steps

Our Contribution

Integrating SNP Calling into an In-Memory Database

CALL

"_SYS_AFL"

.

"CALL_SNPS”

(

SAMIMPORT.NA19240,

REFERENCE.HG19CHR1,

'chr1'

, 20, 20, 30, 40,

(8)

Reference Genome

■

Base sequence for comparison

■

Stored position-wise

Read Alignments

■

Reads mapped to the reference genome

■

Table conforming SAM format

Variant/SNP Calls

■

Detected SNPs

■

Table conforming VCF format

Our Contribution –

SNP Calling Data Artifacts

(9)

■

Genotype calling = deriving the actual genotype at a particular position

■

Assign probability to all possible genotypes depending on given data

à

Formula applied by GATK’s UnifiedGenotyper

Our Contribution –

Genotype Calling Formula

Cindy Fähnrich, Dr. Matthieu-P. Schapranow Detecting Genetic Variants within an In-Memory Database 9 P(Gi) = Uniform for all genotypes Gi,i.e. 1

Dj = all base occurrences at a particular position j

Gi = Genotype for which to calculate the probability

H_l = Haploid part of genotype G_i

(10)

■

Data:

68.8M chr1 read

alignments from 1,000 genomes

project

■

Performance speedup by up to

22x for IMDB-based SNP calling

■

GATK‘s runtime depends on

system‘s I/O capabilities

■

Lower boundary for our approach

around 369s

Our Contribution

Experiment Results

Cindy Fähnrich, Dr. Matthieu-P. Schapranow Detecting Genetic Variants within an In-Memory Database 10 0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 0 5 10 15 20 25 30 35 40 Duration (seconds)

Covered Positions on Chromosome 1 (millions) GATK

(11)

■

Running SNP calling within in-memory database satisfies expectations

□

Main memory availability

□

Built-in parallelization strategies

à

Memory access is the new bottleneck

■

SNP calling runtime improves up to factor 22 compared to GATK

■

Further evaluations on runtime performance and result set quality

■

Extension of statistical formula to incorporate other aspects

Conclusion
