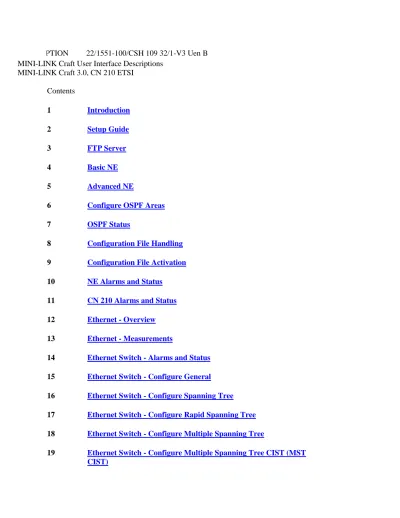

DESCRIPTION 22/1551-100/CSH 109 32/1-V3 Uen B MINI-LINK Craft User Interface Descriptions
MINI-LINK Craft 3.0, CN 210 ETSI Contents 1 Introduction 2 Setup Guide 3 FTP Server 4 Basic NE 5 Advanced NE
6 Configure OSPF Areas 7 OSPF Status
8 Configuration File Handling 9 Configuration File Activation 10 NE Alarms and Status
11 CN 210 Alarms and Status 12 Ethernet - Overview 13 Ethernet - Measurements
14 Ethernet Switch - Alarms and Status 15 Ethernet Switch - Configure General
16 Ethernet Switch - Configure Spanning Tree
17 Ethernet Switch - Configure Rapid Spanning Tree 18 Ethernet Switch - Configure Multiple Spanning Tree
19 Ethernet Switch - Configure Multiple Spanning Tree CIST (MST CIST)
20 Ethernet Switch - Multiple Spanning Tree Instance (MSTI) 21 Ethernet Switch - Configure Static Unicast Filtering
22 Ethernet Switch - Configure VLAN
23 Ethernet Switch - Configure Static Multicast Filtering 24 Ethernet Switch - Configure QoS
25 Ethernet Switch - Configure Queues
26 Ethernet Switch - User Defined Network Priority Mapping 27 Ethernet Switch - View Unicast Filter
28 Ethernet Switch - Configure MAC White Lists 29 Ethernet Switch - Configure Port Mirror 30 LAG Configuration
31 Ethernet Switch - Create Bandwidth Profile 32 Ethernet Switch - Switch Port Overview 33 Switch Port Alarms and Status
34 Switch Port - Configure 35 Switch Port - Configure QoS
36 Switch Port - User Priority Mapping
37 Switch Port - Bandwidth Profile per User Priority 38 Layer 1 Connection - Configure
39 Layer 1 Connection - Configure QoS 40 Layer 1 Connection - Configure Queues 41 Layer 1 Connection - User Priority Mapping
42 Layer 1 Connection - User Defined Network Priority Mapping 43 LAN Interfaces - Overview
44 LAN - Alarms and Status 45 LAN - Configure
46 LAN - Link OAM
47 LAN - Link OAM Capability 48 LAN - Link OAM Statistics 49 WAN Interfaces - Overview
50 WAN Interfaces - Configure Queue Size 51 WAN - Alarms and Status
52 WAN - Configure General
53 WAN - Configure Traffic Class Queue 54 Notification History
55 Software Upgrade
56 Generate Configuration Report 57 View Configuration Report 58 Configure Radio Link
59 Control Adaptive Modulation 60 Radio Link Alarms and Status 61 Radio Link Performance 62 PDH — Configure E1 63 E1 Alarms and Status
64 User I/O Ports
65 Configure Network Sync 66 SFP Overview
67 SFP - Alarms and Status 68 SFP - Configuration 69 RAU Alarms and Status 70 RAU IF Alarms and Status 71 RF Alarms and Status 72 Notification List 73 Slot Status Table 74 E1 Loops
75 Radio Link Loops 76 Setup Security 77 Handle Error Log 78 Restart
79 RMM Alarms and Status
Copyright © Ericsson AB 2011. All rights reserved. No part of this document may be reproduced in any form without the written permission of the copyright owner.
methodology, design and manufacturing. Ericsson shall have no liability for any error or damage of any kind resulting from the use of this document.
1
Introduction
This description provides information about the graphical user interface of MINI-LINK Craft 3.0 for MINI-LINK CN 210. Each page is described in a separate section containing a screenshot and a short description.
For more background information on MINI-LINK Craft, see MINI-LINK Craft User Guide. For
information on how to install MINI-LINK Craft and how to access a Network Element, see the applicable CPI library.
2
Setup Guide
Figure 1 The Setup Guide Page
For more information about initial setup of a node, see Configuring MINI-LINK CN 210.
Radio Link — Displays parameters for the Radio Link. If 1+1 protection is used, parameters for both Master and Slave will be displayed for Unit, Tx Frequency (MHz), and RF Input Level (dBm).
o Unit — Displays the name of the unit (always CN 210 for a MINI-LINK CN 210 node).
o Tx Frequency (MHz) — Displays the Tx frequency. If the frequency is 0, Not Configured is displayed in red text.
o Min – Max Capacity Modulation — Displays the Capacity and modulation of the radio link.
o RF Input Level (dBm) — Displays the RF input power level for the radio link.
o Status — Displays the status of the radio link. When there is a connection to the far end, the NE name of the far end is displayed.
o Configure Radio Link — Link to the Configure Radio Link page.
o Radio Link Alarms and Status — Link to the Radio Link Alarms and Status page.
Network Element — Displays parameters for the NE.
o NE Name — Displays the name of the NE. Not Configured is displayed in red text if the far end NE name has a default value.
o NE IP Address — Displays the IP address of the NE: Not Configured is displayed in red text if the IP address has the default value of 192.168.0.1.
o NE Subnet Mask — Displays the IP address of the subnet mask for the NE.
o Default Gateway — Displays the IP address of the default gateway for the NE. Packets with unknown destination are sent to this IP address.
o PPP Status — Displays the operational status of the PPP interface.
o Configure Basic NE — Link to the Basic NE page.
o Configure Advanced NE — Link to the Advanced NE page. Traffic Options
Configure E1 — Link to the PDH - Configure E1 page.
Ethernet Overview — Link to the Ethernet Overview page. Additional Options
Software Upgrade — Link to the Software Upgrade page. Install Mode Options
Operational Mode — Switches the configuration from installation mode to operational mode. When the NE is in installation mode a warning is added below the title. To enter installation mode when in
operational mode, press the BR button on the MINI-LINK CN 210.
Emergency Fallback — Activates the previous software release.
Factory Settings — Deletes the current configuration and reverts the NE to factory settings.
Configuration File Handling — Link to the Configuration File Handling page. The configuration file is stored both in the RMM and in a flash memory on the MINI-LINK CN 210. The configuration file is identified using the serial number of the MINI-LINK CN 210 and the fingerprint of the configuration file. The link is enabled if the configuration file identity differs between the RMM and the flash memory. Related Tasks
Network Element Overview — Link to the NE Alarms and Status page.
3
FTP Server
Figure 2 The FTP Server Page
Starting and Stopping — Starting, restarting and stopping the FTP server. If the FTP server is not started the Start button will be displayed. If the FTP server is started the Stop and Restart buttons will be
displayed.
Configuration — Configuration parameters for the FTP server.
o Automatic Start-Up — Specifies that the FTP server should be started automatically when MINI-LINK Craft is started.
o FTP Port — The port used for FTP. Port 21 is the established standard for FTP.
o FTP Home — The directory used for uploading and downloading configuration files and load modules.
o Username — The user name used to log in to the FTP server.
Unless anonymous login is allowed, this must match the user name specified for the FTP server on the Advanced NE page.
o Password — The password used to log in to the FTP server.
Unless anonymous login is allowed, this must match the password specified for the FTP server on the Advanced NE page.
o Permissions — Specifies the read-write permissions on the FTP server. To be able to upload files to the FTP server, this must be set to read-write.
o Allow Anonymous Login — Allows the NE (or any other FTP client) to access the FTP server with user name anonymous. The FTP server accepts any text as password.
Status — Indicates whether the FTP server is running or not.
Interfaces — Displays a list of the IP addresses available on the PC.
FTP Log — Displays a log of FTP activities.
4
Basic NE
This page is used to configure the basic NE parameters.
Figure 3 The Basic NE Page
Basic NE Data
NE Name — The name of the NE.
NE Location — The physical location of the NE.
NE Contact — Contact information such as name and telephone number of the system responsible person.
NE IP Address — The IP address of the NE, that is the internal router. Note:
The IP address must be within the following intervals:
o 1.0.0.0 – 126.255.255.255
o 128.0.0.0 – 223.255.255.255
When changing the IP address, the contact with the node may be lost.
NE Subnet Mask — The subnet mask of the NE. The subnet mask is used to determine which subnet an IP address belongs to.
Default Gateway — Displays the IP address for the default gateway. Packets with unknown destination are sent to this IP address.
DHCP Address — Displays the IP address for the Dynamic Host Configuration Protocol. General Settings
Alarms Filter Time — The time between the occurrence of a defect and the sending of an alarm. This applies also for sending a clear alarm when the defect ceases. The time can be set in the range 1.0 – 10.0 seconds, in steps of 0.5 seconds.
PM Start Time — The time when 24 hour performance interval starts. The time can be set in the range 00:00 – 23:45, in steps of 15 minutes.
Power Redundancy — Enable or disable use of redundant power supply. Clock Settings
Time Zone — Displays the deviation from Coordinated Universal Time (UTC) when local time zone (Continent and City) has been configured. UTC is in casual use called Greenwich Mean Time (GMT).
Continent — Displays a list of all continents for local time zone configuration.
City — Displays a list of all cities for the selected continent for local time zone configuration.
NTP Server — Displays the IP address of the NTP server from which date and time parameters can be collected.
NTP Status — Displays the current status of the NTP server. Possible values are: NTP Service Up, NTP Service Down, and Not Configured.
Date and Time — Displays the date and time of the NE. When an NTP server is defined with a valid IP address, the clock will be adjusted in accordance with the NTP server and it is not possible to manually change the date and time. When an NTP server is not defined (set to 0.0.0.0) it is possible to manually set date and time by opening a calendar by clicking the arrow button to the right of the Date and Time field. SNMP Manager (Trap Receiver)
Enable Sending of Alarms and Events — Enables sending of alarms and events to the SNMP Manager.
Port — Displays the port used for the SNMP.
Version — Displays the SNMP version.
— Click to add a row in the list. — Click to delete a row in the list.
— Click to toggle between row and cell selection. Related Tasks
Configure Advanced NE — Link to the Advanced NE configuration page.
5
Advanced NE
Figure 4 The Advanced NE Page
FTP
Remote FTP Server — The IP address of the remote FTP server. Normally this is the address of a permanent FTP server in the network, but it could also be an FTP server on the PC.
User Name — The user name used to log in to the remote FTP server.
Password — The password used to log in to the remote FTP server. DCN - Static Routing
Destination — The destination IP address of this DCN.
RouteMask — The netmask for the destination IP address.
Gateway — The IP address of the gateway to the network.
— Click to add a row in the list. — Click to delete a row in the list.
— Click to toggle between row and cell selection.
Site - LAN
IP Address — Displays the IP address for the LAN.
NE Subnet Mask — The subnet mask of the NE.
Auto Negotiation — Enable Auto Negotiation of the interface capabilities for speed and duplex mode.
MDI-MDIX — Specifies the MDI mode, that is selection of Rx/Tx.
o Auto — The mode is detected automatically. A crossed or straight cable can be used independent of the connected device.
o MDI — Manual mode with Rx and Tx not switched. Use a straight cable to connect to a router and a crossed cable to a PC.
o MDIX — Manual mode with Rx and Tx switched. Use a straight cable to connect to a PC and a crossed cable to a router.
Speed — Specifies the speed in Mbit/s and duplex mode or detects it automatically. When the Auto Negotiation parameter is off, a fixed value must be selected and the interface is forced to the setting without any negotiations.
PPP
Interface — The name of the interface.
Oper Status — Displays the operational status of the PPP interface.
Admin Status — Specifies the desired status of the interface.
o Up — Sets the interface in operating mode.
o Down — Sets the interface in non-operating mode.
Caution!
Selecting Down will disable the DCN communication on the interface.
Notifications — Specifies if the interface should send any notifications.
IP Address — Specifies the IP address of a numbered interface. The box should be left empty for an un-numbered interface.
Caution!
It is recommended to set all interfaces destined to the same NE as either numbered or un-numbered. Mixing both types may cause DCN instability.
MTU Size –– The MTU size. Default value = 1500.
Speed –– The speed in bit/s.
Remote IP Address — The remote IP address. Related Tasks
Configure Basic NE — Link to the Basic NE configuration page.
Configure OSPF Areas — Link to the Configure OSPF Areas configuration page.
6
Configure OSPF Areas
This page is used to configure OSPF areas.
Figure 5 The MINI-LINK Configure OSPF Areas Page
OSPF Areas — Displays the OSPF areas present.
o Subnet Mask — The netmask of the subnet.
o Area ID — The OSPF area of the subnet.
o Area Type — The type of OSPF area.
— Click to add a row in the list. — Click to delete a row in the list.
— Click to toggle between row and cell selection.
Related Tasks
OSPF Status — Link to the OSPF Status configuration page.
7
OSPF Status
Figure 6 The OSPF Status Page
General — Displays general OSPF parameters
o Router ID — A unique identifier of the router in the Autonomous System (AS).
o Admin. Status — The administrative status of OSPF in the router. Enabled denotes that the OSPF process is active on at least one interface. Disabled denotes that the OSPF process is disabled on all interfaces.
o Version — The current version of the OSPF protocol.
o ABR Status — Indicates whether this is an Area Border Router.
o ASBR Status — Indicates whether this is an Autonomous System Border Router.
o Ext LSA Count — The number of external (LS type 5) Link State Advertisements (LSA) in the link state database.
o Ext LSA Checksum — Checksums of the external link state advertisements contained in the link state database. This sum can be used to determine if there has been a change in a router's link state database, and to compare the link state database of two routers.
o TOS Support — The router’s support for Type Of Service (TOS) routing.
o Originated New LSA Count — The number of new LSAs that have been originated. This number is incremented each time the router originates a new LSA.
o Received New LSA Count — The number of LSAs received, determined to be new instantiations. This number does not include newer instantiations of self-originated LSAs.
o Ext LSA Limit — The maximum number of non-default AS-external-LSAs entries that can be stored in the link state database. If the value is –1, then there is no limit. When the number of non-default AS-external-LSAs in a router’s link state database reaches Ext. LS Limit, the router enters Overflow State. The router never holds more than Ext. LS Limit non-default AS-external-LSAs in its database. Ext. LS Limit must be set identically in all routers attached to the OSPF backbone and/or any regular OSPF area (that is, OSPF stub areas and NSSAs are excluded).
o Multicast Extension — A bit mask indicating whether the router is forwarding IP multicast (Class D) datagrams based on the algorithms defined in the multicast extensions to OSPF.
Bit 0, if set, indicates that the router can forward IP multicast datagrams in the router's directly attached areas (called intra-area multicast routing).
Bit 1, if set, indicates that the router can forward IP multicast datagrams between OSPF areas (called inter-area multicast routing).
Bit 2, if set, indicates that the router can forward IP multicast datagrams between Autonomous Systems (called inter-AS multicast routing).
Only certain combinations of bit settings are allowed, namely:
0 No multicast forwarding is enabled. This is the default value. 1 Intra-area multicasting only.
3 Intra-area and inter-area multicasting. 5 Intra-area and inter-AS multicasting. 7 Multicasting everywhere.
o Exit Overflow Interval — The number of seconds that, after entering Overflow State, a router will attempt to leave Overflow State. This allows the router to again originate non-default AS-external-LSAs. When set to 0, the router will not leave Overflow State until restarted.
Figure 7 The OSPF Status Page, Areas
Area — Displays OSPF area parameters.
o ID — A unique identifier of the area. Area ID 0.0.0.0 is used for the OSPF backbone.
o Auth. Type — The authentication type specified for an area. Additional authentication types may be assigned locally on a per area basis.
o Import AS External — The area’s support for importing AS-external-LSAs.
o SPF Runs — The number of times that the intra-area route table has been calculated using this area’s link state database.
o ABR Count — The total number of ABRs reachable within this area. This is initially 0, and is calculated in each SPF pass.
o ASBR Count — The total number of ASBRs reachable within this area. This is initially 0, and is calculated in each SPF pass.
o LSA Count — The total number of LSAs in this area’s link state database, excluding AS-external-LSAs.
o LSA Checksum — The 32-bit unsigned sum of the LSA’s LS checksums contained in this area’s link state database. This sum excludes external (LS type 5) LSAs. The sum can be used to determine if there has been a change in a router’s link state database, and to compare the link state database of two routers.
o Summary — Controls the import of summary LSAs into stub areas. It has no effect on other areas. If it is no Area Summary, the router will neither originate nor propagate summary LSAs into the stub area. It will rely entirely on its default route. If it is Send Area Summary, the router will both summarize and
propagate summary LSAs.
Stub Area — Displays stub area parameters.
o ID — A unique identifier of the stub area.
o TOS — The Type Of Service (TOS) associated with the metric.
o Metric — The metric value applied at the indicated TOS. By default, this equals the least metric at the TOS among the interfaces with other areas.
o Metric Type — The type of metric advertised as a default route.
Area Aggregate — Displays area aggregate parameters.
o Area ID — The area the address aggregate is to be found within.
o LS Type — The type of link state this address aggregate applies to.
o Network — The IP address of the net or subnet indicated by the range.
o Mask — The subnet mask that pertains to the net or subnet.
o Effect — Subnets subsumed by ranges either trigger the advertisement of the indicated aggregate (Advertise Matching), or result in the subnets not being advertised at all outside the area.
Figure 8 The OSPF Status Page, Interface
Interface — Displays OSPF interface parameters.
o IP Address — The IP address of the OSPF interface
o Addressless IF — Differentiates the addressless interfaces from the addressed interfaces. The value 0 signifies that the interface has an IP address.
o Area ID — A unique identifier of the area. Area ID 0.0.0.0 is used for the OSPF backbone.
o Type — The OSPF interface type.
o Admin. Status — The administrative status of the OSPF interface. When the value is set to Enabled, it signifies that the neighbor relationships may be formed on the interface, and the interface is advertised as an internal route to some area. When the value is set to Disabled, it signifies that the interface is external to OSPF.
o Router Priority — The priority of this interface. When the value is set to 0, it signifies that the router is not eligible to become the designated router on this particular network.
o Transit Delay — The estimated number of seconds it takes to transmit a link state update packet over this interface.
o Retransmit Interval — The number of seconds between the link state advertisement retransmissions, for adjacencies belonging to this interface. This value is also used when retransmitting database description and link state request packets.
o Hello Interval — The time interval, in seconds, between the Hello packets that the router sends on the interface. This value must be the same for all the routers attached to a common network.
o Router Dead Interval — The number of seconds that a router’s Hello packets have not been seen before it’s neighbors declare the router down. This should be some multiple of the Hello Interval. This value must be the same for all routers attached to a common network.
o Poll Interval — The larger time interval, in seconds, between the Hello packets sent to an inactive non-broadcast multi-access neighbor.
o State — The OSPF interface state.
o Designated Router — The IP address of the designated router.
o Backup Designated Router — The IP address of the backup designated router.
o Events — The number of times this OSPF interface has changed its state, or an error has occurred.
o Auth. Key — The authentication key.
o Multicast Forwarding — The way multicasts should be forwarded on this interface, not forwarded, forwarded as datalink multicasts or forwarded as data link unicasts. Data link multicasting is not meaningful on PPP and NBMA interfaces. The value 0 effectively disables all multicast forwarding.
o Demand — Indicates whether demand OSPF procedures (Hello suppression to FULL neighbors and setting the DoNotAge flag on propagated LSAs) should be performed on this interface.
o Auth. Type — The authentication type specified for an area. Additional authentication types may be assigned locally on a per area basis.
Interface Metric — Displays interface metric parameters.
o IP Address — The IP address of the OSPF interface
o Addressless IF — Differentiates the addressless interfaces from the addressed interfaces. The value 0 signifies that the interface has an IP address.
o TOS — The Type Of Service (TOS) metric being referenced.
o Value — The metric of using this TOS on this interface. The default value of the TOS 0 metric is 108/Speed.
o Area ID — The transit area that the virtual link traverses. By definition, this is not 0.0.0.0.
o Neighbor — The router ID of the virtual neighbor.
o Transit Delay — The estimated number of seconds it takes to transmit a link state update packet over this interface.
o Retransmit Interval — The number of seconds between link state advertisement retransmissions, for adjacencies belonging to this interface. This value is also used when retransmitting the database
description and link state request packets. This value should be greater than the expected round-trip time.
o Hello Interval — The time interval, in seconds, between the Hello packets that the router sends on the interface. This value must be the same for the virtual neighbor.
o Router Dead Interval — The time interval, in seconds, during which a router's Hello packets are not received before its neighbors declare the router down. This is a multiple of the Hello interval. This value must be the same for the virtual neighbor.
o State — Signifies the OSPF virtual interface states.
o Events — The number of state changes or error events on this virtual link.
o Auth. Key — The authentication key.
o Auth. Type — The authentication type specified for a virtual interface. Additional authentication types may be assigned locally.
Figure 9 The OSPF Status Page, Neighbor
Neighbor — Displays neighbor parameters.
o IP Address — The IP address this neighbor is using in its IP source address. Note that on addressless links, this will not be 0.0.0.0, but the address of another of the neighbor's interfaces.
o Addressless Interface — Differentiates the addressless interfaces from the addressed interfaces. When the value is set to 0, it signifies that the interface has an IP address.
o Router ID — A unique identifier of the neighboring router in the Autonomous System (AS).
o Options — A bit mask corresponding to the neighbor's options field.
Bit 0, if set, indicates that the system will operate on TOS metrics other than TOS 0. If the value is 0, the neighbor will ignore all metrics except the TOS 0 metric.
Bit 1, if set, indicates that the associated area accepts and operates on external information. If the value is 0, it is a stub area.
Bit 2, if set, indicates that the system is capable of routing IP multicast datagrams, implementing the multicast extensions to OSPF.
Bit 3, if set, indicates that the associated area is a Not So Stubby Area (NSSA). These areas are capable of carrying type 7 external advertisements, which are translated into type 5 external advertisements at NSSA borders.
o Priority — Signifies the priority of this neighbor in the designated router. When the value is set to 0, it signifies that the neighbor is not eligible to become the designated router on this particular network.
o State — The state of the relationship with this neighbor.
o Events — The number of times this neighbor relationship has changed state, or an error has occurred.
o LS Retransmit Q Len — The current length of the retransmission queue.
o Permanence — This variable displays the status of the entry. Dynamic and Permanent refer to how the neighbor became known.
o Hello Suppressed — Indicates whether Hellos are being suppressed to the neighbor.
o Virtually Neighbor — Displays virtual neighbor parameters.
Area — The transit area identifier.
Router ID — A unique identifier of the neighboring router in the Autonomous System (AS).
IP Address — The IP address this virtual neighbor is using.
Options — A bit mask corresponding to the neighbor’s options field.
Bit 1, if set, indicates that the system will operate on TOS metrics other than TOS 0. If the value is 0, the neighbor will ignore all metrics except the TOS 0 metric.
Bit 2, if set, indicates that the system is network multicast capable, that is implementing OSPF multicast routing.
State — The state of the virtual neighbor relationship.
Events — The number of times this virtual link has changed its state, or an error has occurred.
Hello Suppressed — Indicates whether Hellos are being suppressed to the neighbor.
Figure 10 The OSPF Status Page, Host
Host — Displays OSPF host parameters.
o IP Address — The IP Address of the host.
o TOS — The Type Of Service of the route being configured.
o Metric — The metric to be advertised.
o Area ID — The area the host entry is to be found within. By default, the area that a subsuming OSPF interface is in, or 0.0.0.0.
8
Configuration File Handling
The configuration file is stored both in the RMM and in a flash memory on the MINI-LINK CN 210. The configuration file is identified using the serial number of the MINI-LINK CN 210 and the fingerprint of the configuration file. If the configuration file identity differs between the RMM and the flash memory, the MINI-LINK CN 210 enters installation mode and the Setup Guide page is shown. The Setup Guide
page displays a text in red, that the NE is in installation mode and that a difference is detected for the configuration file identities in the RMM and the flash memory.
Figure 11 Configuration File Identity Difference Detected on The Setup Guide Page
On the Configuration File Handling page, the desired configuration is activated.
Figure 12 The Configuration File Handling Page
RMM Configuration File
o Activate — Activates the configuration file in the RMM and copies the configuration file in the RMM to the flash memory, overwriting the current configuration file stored in the flash memory.
Flash Configuration File
o Activate — Activates the configuration file in the flash memory and copies the configuration file in the flash memory to the RMM, overwriting the current configuration file stored in the RMM.
9
Configuration File Activation
The Configuration File Activation page shows the progress of the configuration file activation. This page is shown when one of the Activate buttons are pressed on the Configuration File Handling page.
Figure 13 The Configuration File Activation Page
OK — Press OK to go to the Setup Guide page. This button is only displayed when the activation of the configuration file is finished.
Figure 14 The NE Alarms and Status Page
NE — Displays a graphical symbol that indicates the worst severity of the whole NE.
NE Status — Displays status parameters for the NE.
o NE Name — Displays the name of the NE.
o NE IP Address — Displays the IP address for the NE
o Site LAN IP Address — Displays the IP address of the Site LAN.
o NE Status — Displays the status of the NE. Possible values are:
In Service — The NE is operating properly.
Out of Service — The NE is not operating.
o NTP Status — Displays the operational status of an NTP service. Possible values are:
NTP Service Up — Contact established with NTP server.
NTP Service Down — Contact lost with NTP server.
Not Configured — The NE is not configured to use an NTP server.
o Notifications — Displays the notifications status of the NE.
NE Alarms — Displays the severity of a possible alarm for the following alarms:
o Power Failure DC2 — Displays the severity of a possible alarm for power failure for connector DC2.
o Power Failure DC1 Slave — Displays the severity of a possible alarm for power failure for connector DC1 slave.
o Power Failure DC2 Slave — Displays the severity of a possible alarm for power failure for connector DC2 slave.
o Low Input Voltage — Displays the severity of a possible alarm for Low Input Voltage.
NE Overview — Displays a graphical presentation of the NE.
o Master — A graphical presentation of the master NE. The colors of the units represent the highest severity of possible alarms on the unit.
o Slave — A graphical presentation of the slave NE. The colors of the units represent the highest severity of possible alarms on the unit. If the NE is prepared for 1+1 protection but this has not been activated, Slave — Prepared for protection will be displayed instead.
o CN 210 Master — Displays hardware and software release of the MINI-LINK CN 210 Master.
HW Release — Displays the hardware release of the MINI-LINK CN 210.
SW Release — Displays the software release stored on the MINI-LINK CN 210.
RMM HW Release — Displays the hardware release of the RMM.
o CN 210 Slave — Displays hardware and software release of the MINI-LINK CN 210 Slave.
HW Release — Displays the hardware release of the MINI-LINK CN 210.
SW Release — Displays the software release stored on the MINI-LINK CN 210.
RMM HW Release — Displays the hardware release of the RMM.
o RAU Master — Displays hardware and software release of the RAU Master.
o RAU Slave — Displays hardware and software release of the RAU Slave.
Related Tasks — A list of links to other pages related to the current page.
o Setup Guide — Link to the Setup Guide page.
Figure 15 The MINI-LINK CN 210 Alarms and Status Page
Unit Status — Displays the status parameters for the CN 210 unit.
o Oper Status — Displays the operational status of the unit.
In Service — The unit is operating properly.
Out of Service — The unit is not operating.
o Notifications — Shows if sending of notifications from the unit is enabled or disabled.
o RAU Supply Voltage — Shows the voltage that the RAU is supplied with. The parameter is only available if voltage is distributed directly to the RAU.
+55V — The RAU is supplied with a voltage of +55V.
-48V — The RAU is supplied with a voltage of -48V.
Unit Alarms — Lists active alarms in the unit.
o RCC — Displays the severity of a possible alarms for RCC.
o HCC — Displays the severity of a possible alarm for HCC.
o Default Coding Not Acc — Displays the severity of a possible alarm for Default Coding Not Acc.
o Running Config Not Acc — Displays the severity of a possible alarm for Running Config Not Acc.
o High Temperature — Displays the severity of a possible alarm for High Temperature.
o ATPC Capability Far End — Displays the severity of a possible alarm for ATPC Capability Far End.
o Unit Inaccessible — Displays the severity of a possible alarm for Unit Inaccessible.
o RAU Supply Voltage Changed — Displays the severity of a possible alarm for RAU Supply Voltage Changed.
On this page it is possible to view and configure Ethernet for MINI-LINK CN 210.
Figure 16 The Ethernet - Overview Page
Layer 1 Connection Status
o Layer 1 Connection — A link to the Layer 1 Connection - Configure page.
Ethernet Switch Status
o Ethernet Switch — A link to the Ethernet Switch - Alarms and Status page.
Switch Port Status — Displays the status of all switch ports.
o LAG — If the switch port is used in a LAG, this parameter displays the status of the LAG (Master/Slave) and the name of the LAG. If the switch port is not part of a LAG, this field is empty.
o Port Role — Displays what the switch port is used for.
Port Not Used — The port is not assigned a role. This is the default value if the switch port is not connected to an interface.
UNI — The port is used as UNI. This is the default value if the switch port is connected to a LAN interface.
I-NNI — The port is used as I-NNI. This is the default value if the switch port is connected to a WAN interface.
Mirror — The port is used as a mirror port for test purpose.
o Interface — Displays the name of the connected interface. The value Disconnected is shown if no interface is connected to the switch port.
o Type — Displays the WAN type of the connected interface. If the switch port is not connected this field is empty. Possible values are:
VCG — The connected interface is VCG.
- — The connected interface is a LAN.
o Speed (Mbit/s) — Displays the current speed of the connected interface. If the switch port is not connected the field is empty.
o AMM Pos — Displays the MINI-LINK CN 210 slot position from which the underlying connected interfaces originate.
LAN Interface Status — Displays the status of all WAN interfaces.
o Oper Status — Displays the operational status of the unit.
o Summary — Indicates the highest severity of alarm for Ethernet Down, Link Fault and Link OAM Loopback.
o Notifications — Displays if notifications are sent or not.
On — Notifications are enabled for all alarms.
Off — Notifications are disabled for all alarms.
Mixed — Notifications are enabled for some alarms.
If Link OAM is not supported, the parameters Summary and Notifications are based only on the Ethernet Down alarm.
WAN Interface Status — Displays the status of all WAN interfaces.
o Oper Status — Displays the status of the WAN interface.
Up — Payload is passing on the interface.
Down — A defect is detected on the interface or administrative status is set to Down.
Testing — The interface is in test mode.
Unknown — The unit is in cold reset, warm reset or repair state.
Lower layer down — The interface is down due to lower layer interfaces. Payload is passing on the interface but not all active lower layers have operational status Up.
Figure 17 The Ethernet Measurements Page
Configuration — Displays the configuration parameters.
o Probe — Displays the probe number.
o WAN Interface — Specifies the name and position of the interface to probe.
o TC Queue — Specifies the queue the measurements are applied to.
o Probe Type — Specifies the type of probe. Possible probe types are:
Delay — Specifies the Ethernet packet delay measurement.
Bandwidth — Specifies the bandwidth measurements.
o Enable — Enables logging of frame delays for a specified ifIndex/traffic class.
Delay Measurements — Displays the amount of time (in seconds) that the packet delays have been within the x-y interval. The intervals are: 0-0.1, 0.1-0.3, 0.3-1, 1-3, 3-10, 10-30, 30-100 and >100 (larger than 100 s).
o Probe — Displays the probe number. The value can be between 1 and 16.
o Average — Displays the average delay of a packet.
o Max — Displays the maximum delay of a packet.
o Min — Displays the minimum delay of a packet.
o Clear — Clears all measured parameters for this probe.
o Duration — Displays the duration (DD:HH:MM:SS) of the measurement.
Bandwidth Measurements — Displays the amount of time (in seconds) that the load of the bandwidth has been between x and y%. The intervals are: 0-5, 5-10, 10-15, 15-20, 20-25, 25-30, 30-35, 35-40, 40-45, 45-50, 50-55, 55-60, 60-65, 65-70, 70-75, 75-80, 85-90, and 95-100.
o Probe — Displays the probe number.
o Clear — Clears all measured parameters for this probe.
o Duration — Displays the duration (DD:HH:MM:SS) of the measurement.
This page displays the alarms and status of the Ethernet Switch. The displayed parameters vary depending on if the STP type is RSTP or MSTP.
Figure 18 The Ethernet Switch Alarms and Status Page
Status
MAC Address — Displays the unique MAC address for the switch.
Number of Switch Ports — Displays the number of ports controlled by this switching entity.
Unconnected Switch Ports — Displays the number of available switch ports that can be connected to Ethernet interfaces.
Number of Learned Entry Discards — The total number of forwarding database entries that have been or would have been learned, but have been discarded due to a lack of storage space in the forwarding database.
Number of Rules Left — The number of rules that may still be used on the switch. The rules are used to identify which protocols will be sent to the CPU.
STP Type — Indicates the selected Spanning Tree Protocol type. Possible selections are:
o RSTP (Rapid Spanning Tree Protocol)
o MSTP (Multiple Spanning Tree Protocol)
Force Version — Select between STP compatible mode, RSTP or MSTP. The parameter value MSTP is only available when the STP Type is set to MSTP. The Force Version parameter causes the RSTP or MSTP bridge to use STP compatible BPDUs and timer values on all bridge ports.
Protocol Specification — Displays the standard of the spanning tree protocol. This parameter is only visible when STP Type is RSTP.
Priority — Displays the value of the priority field that is contained in the first octet of the Bridge ID. The value can be set between 0 and 61440 in steps of 4098.
CIST Bridge ID — Displays the identifier of the bridge for the CIST. The value consists of a priority indication followed by the MAC address. This parameter is only visible when STP Type is MSTP.
Regional Root ID — Displays the identifier of the bridge for the current CIST Regional Root. The value consists of a priority indication followed by the MAC address. This parameter is only visible when STP Type is MSTP.
Path Cost — When the STP Type is set to MSTP, this parameter displays the CIST patch cost from the transmitting bridge to the CIST Regional Root.
When the STP Type is set to RSTP, this parameter displays the path cost from the transmitting bridge to the regional root.
The value can be between 0 and 200000000, where 0 corresponds to automatic calculation of the cost. The calculation depends on the capacity of the interface.
Designated Root ID — When the STP Type is set to MSTP this parameter shows the bridge identifier of the CIST root of the spanning tree.
When the STP Type is set to RSTP the parameter shows the bridge identifier of the regional root of the spanning tree.
Root Path Cost — The cost of the path to the Designated Root. The value can be between 0 and 200000000.
Root Port — The port number of the port that offers the lowest cost path from this bridge to the root bridge.
Max Age In Use (sec) — The maximum age of the information (BPDUs) transmitted by the bridge when it is the root bridge. If the bridge is not the root bridge, the Max Age In Use (sec) shows the maximum age determined by the root bridge.
Hello Time In Use (sec) — The amount of time between the transmissions of configuration BPDUs by this node on any port when it is the root of the spanning tree, or trying to become so. This parameter is only visible when the STP Type is set to RSTP.
Forward Delay In Use (sec) — Shows how fast a port changes its spanning state when moving towards the Forwarding state.
Time since Topology Change — The time since the last topology change was detected by the bridge entity.
Topology Change Count — The total number of topology changes detected by this bridge since the physical bridge was last reset or initialized.
Topology Change — Topology Change is true when a topology change is in progress. The parameter is only displayed when the STP Type is MSTP.
VLAN IDs — Displays the VLAN members of the CIST. The parameter is only displayed when the STP Type is MSTP.
15
Ethernet Switch - Configure General
Figure 19 The Ethernet Switch - Configure General Page
General
o MAC Address — Displays the MAC address
o Aging Time (s) — Displays the aging time
o Switch Mode — Displays the current switch mode
Not Configured — The Ethernet switch is not configured
802.1Q — The Ethernet switch is configured in 802.1Q mode
Related Tasks — A list of links to other pages related to the current page.
o Configure Spanning Tree — Link to the Ethernet Switch - Configure Spanning Tree page.
o Configure Static Unicast Filtering — Link to the Ethernet Switch - Configure Static Unicast Filtering page.
o Configure VLAN — Link to the Ethernet Switch - Configure VLAN page.
o Configure Static Multicast Filtering — Link to the Ethernet Switch - Configure Static Multicast Filtering page.
o Configure QoS — Link to the Ethernet Switch - Configure QoS page.
16
Ethernet Switch - Configure Spanning Tree
Figure 20 The Ethernet Switch - Configure Spanning Tree Page
General
STP Enable — Enable or disable the Spanning Tree Protocol.
STP Type — Indicates the selected Spanning Tree Protocol type. Possible selections are:
o RSTP (Rapid Spanning Tree Protocol)
o MSTP (Multiple Spanning Tree Protocol) Related Tasks
Configure Rapid Spanning Tree — Link to the Ethernet Switch - Configure Rapid Spanning Tree page.
Configure Multiple Spanning Tree — Link to the Ethernet Switch - Configure Multiple Spanning Tree page.
17
Ethernet Switch - Configure Rapid Spanning
Figure 21 The Ethernet Switch - Configure Rapid Spanning Tree Page
General
Force Version — Force compatibility with STP, RSTP or MSTP. It is only possible to choose lower level protocols than the set protocol. That is, when the STP Type is RSTP, only STP and RSTP are available options for Force Version. MSTP is only available when STP Type is MSTP The STP enable parameter is set on the Ethernet Switch - Configure Spanning Tree page.
Max Age (sec) — Indicates the maximum age of STP information learned from the network on any port before it is discarded, when this bridge is acting as the root. The value can be set between 6 and 40 in steps of 1 second.
Hello Time (sec) — Displays the amount of time between the transmission of configuration BPDUs by this node on any port when it is the root of the spanning tree. The value is fixed to 2 seconds.
Forward delay (sec) — Indicates how fast a port changes its spanning tree state when moving towards the Forwarding state, when this bridge is acting as the root. The value can be set between 4 and 30 seconds, in steps of 1 second.
Priority — Indicates the value of the writable portion of the Bridge ID (that is, the first two octets of the (8 octet long) Bridge ID). The value can be set between 0 and 61440 in steps of 4096 increments.
Transmission Hold Count — If the information in a configuration message changes, the message is transmitted. The default setting for the transmission rate is 6, which means maximum 1 message can be transmitted per 6 seconds.
Status
Protocol — Indicates which standard version of the Spanning Tree Protocol is being used.
Designated Root ID — Indicates the ID for the root of the Spanning Tree Protocol used. The value is used as the root ID in all configuration bridge PDUs. The first part of the identification corresponds to the priority and the second part of the identification is constituted by the MAC address.
Root Path Cost — Displays the cost of the path to the root as seen from this bridge. The value can be between 0 and 200000000.
Root Port — Displays the port number of the port that offers the lowest cost path from this bridge to the root bridge.
Max Age In Use (sec) — Displays the maximum age of STP information learned from the network on any port before it is discarded, in units of seconds. This is the actual value that this bridge is currently using.
Hello Time In Use (sec) — Displays the actual value of the Hello Time that the bridge is currently using.
Forward Delay In Use (sec) — Displays the actual value of the Forward Delay that the bridge is currently using.
Switch port overview
Port — Displays the port number.
Interface — Displays which interface is connected to the used switch port.
Priority — Indicates the value of the priority field that is contained in the first octet of the Port ID. The value can be set between 0 and 240 in steps of 16. If the Administrative Path Cost is the same for two NEs, the Priority parameter decides the traffic route.
Administrative Path Cost — Indicates the administratively assigned value for the contribution of this port to the path cost of paths toward the spanning tree root. The value can be between 0 and 200000000, where 0 corresponds to automatic calculation of the cost. The calculation depends on the capacity of the interface.
Port Enable — Enable or disable the RSTP for the switch port.
Protocol Migration — When enabled, an RSTP configured bridge will force this port to transmit RSTP BPDUs. This means that the transmitted BPDUs will always be compatible with the configuration of the neighboring bridge.
Administrative Edge — When enabled, the port is defined as an edge port.
Auto Edge Port — When enabled, the port can automatically detect if it will operate as an edge port or not.
Administrative Point-to-Point — Sets the administrative point-to-point status of the site LAN segment attached to this port. Possible values are:
o forceTrue — Indicates that there is a point-to-point connection for this switch port.
o forceFalse — Indicates that there is no point-to-point connection for this switch port.
o auto — Indicates automatic detection of any point-to-point connection.
MAC Enabled — Enable or disable the MAC port. The default value is enabled.
— Click to toggle between row and cell selection.
Switch Port Overview in New Window — Clicking the link will open the Ethernet Switch - Switch Port Overview in a new window.
Operative Edge Port — Shows if the port is an administrative edge port or not.
Operative Point-to-Point — Displays if the port has a point-to-point connection or not.
Operative Port Path Cost — Shows the contribution of this port to the path cost of paths toward the spanning tree root.
Port Up-time — Displays time since the NE was started or restarted (warm or cold restart) in standard time format.
MAC Operational — Displays the current state of the MAC Operational parameter.
Topology Change Ack — Displays if a configuration message with a topology change acknowledge flag set, is to be transmitted.
18
Ethernet Switch - Configure Multiple
Spanning Tree
Figure 22 The Ethernet Switch - Configure Multiple Spanning Tree Page
General
Format Selector — The Format Selector of the configuration identifier. The parameter has the value 0 to indicate the format specified in IEEE 802.1s.
Configuration Name — The Configuration Name is a 0 to 32 character long string, identifying the MST Region.
Revision Level — The Revision Level indicates the revision of the configuration. The default value is 0.
Configuration Digest — The Configuration Digest is a 16-octet signature of type HMAC-MD5. For the purpose of calculating the Configuration Digest the MST configuration table is considered to contain
4096 consecutive two octet elements, where each element of the table (with exception of the first and last element) contains an MSTID value encoded as a binary number, with the first octet being most significant. The first element of the table contains the value 0, the second element the MSTID value corresponding to VID 1, the third element the MSTID value corresponding to VID 2, and so on, with the second last element of the table containing the MSTID value corresponding to VID 4094, and the last element containing the value 0. The key used to generate the signature consists of the 16-octet string specified in Table 13-1 of 802. 1Q-2005.
Reset to Default — Will restore the default values for MSTP, that is the default MAC address, configuration name, and configuration digest. All configured MSTIs are deleted.
Related Tasks
Configure Multiple Spanning Tree CIST (MST CIST) — Link to the Ethernet Switch - Multiple Spanning Tree CIST (MST CIST) page.
Configure Multiple Spanning Tree Instance (MSTI) — Link to the Ethernet Switch - Configure Multiple Spanning Tree Instance (MSTI) page.
19
Ethernet Switch - Configure Multiple
Spanning Tree CIST (MST CIST)
Figure 23 The Ethernet Switch - Configure Multiple Spanning Tree CIST (MST CIST) Page
Force Version — Force compatibility with STP, RSTP or MSTP. It is only possible to choose lower level protocols than the set protocol. That is, when the STP Type is RSTP, only STP and RSTP are available options for Force Version. MSTP is only available when STP Type is MSTP The STP enable parameter is set on the Ethernet Switch - Configure Spanning Tree page.
Forward Delay (sec) — Indicates how fast a port changes its spanning tree state when moving towards the Forwarding state, when this bridge is acting as the root. The value can be set between 4 and 30 in steps of 1 second.
Max Age (sec) — The maximum age of STP information learned from the network on any port before it is discarded, when this bridge is acting as the root. The value can bet set between 6 and 40 in steps of 1 second.
Priority — Indicates the value of the writable portion of the CIST Bridge ID (that is, the first two octets of the (8 octet long) CIST Bridge ID). The value can be set between 0 and 61440 in steps of 4096 increments.
Transmission Hold Count — If the information in a configuration message changes, the message is transmitted. The default setting for the transmission rate is 6, which means maximum 1 message can be transmitted per 6 seconds.
Max Hops — Defines the initial value of remaining hops for MSTI information, generated at the boundary of an MSTI region.
Status
CIST Bridge ID — Displays the identifier of the bridge for the CIST. The value consists of a priority indication followed by the MAC address.
Regional Root ID — Displays the identifier of the bridge for the current CIST Root. The value consists of a priority indication followed by the MAC address.
Path Cost — Displays the CIST path cost from the transmitting bridge to the CIST Root. The value can be between 0 and 200000000.
Designated Root ID — The bridge identifier of the root of the spanning tree as determined by the Spanning Tree Protocol as executed by this node. This value is used as the root identifier parameter in all configuration bridge PDUs originated by this node.
Root Path Cost — Displays the cost of the path to the root of the configured region as seen from this bridge. The value can be between 0 and 200000000.
Root Port — Displays the port number of the port which offers the lowest cost path from this bridge to the CIST root bridge.
Max Age In Use (sec) — Displays the maximum age of STP information learned from the network on any port before it is discarded, in units of seconds. This is the actual value that this bridge is currently using.
Forward Delay In Use (sec) — This time value, measured in units of seconds, controls how fast a port changes its spanning state when moving towards the Forwarding state. This is the actual value that this bridge id currently using.
VLAN IDs — Shows VLAN members of the CIST.
Port — Displays the port number.
Interface — Displays which interface is connected to the used switch port.
Priority — Sets the value of the priority field that is contained in the first (in network byte order) octet of the (2 octet long) Port ID. The value can be set between 0 and 240 in steps of 16 increments.
Administrative Path Cost — Sets the administratively assigned value for the contribution of this port to the path cost of paths toward the spanning tree root. The value can be between 0 and 200000000, where 0 corresponds to automatic calculation of the cost. The calculation depends on the capacity of the interface.
Port Enable — Enable or disable the MSTP for the switch port.
Protocol Migration — When enabled, an RSTP configured bridge will force this port to transmit RSTP BPDUs. This means that the transmitted BPDUs will always be compatible with the configuration of the neighboring bridge
Note:
This parameter is read only if the protocol version is STP (not RSTP).
Administrative Edge — When enabled, the port is defined as an edge port.
Auto Edge Port — When enabled, the port can automatically detect if it will operate as an edge port or not.
Administrative Point-to-Point — Sets the administrative point-to-point status of the site LAN segment attached to this port. Possible values are:
o forceTrue — Indicates that there is a point-to-point connection for this switch port.
o forceFalse — Indicates that there is no point-to-point connection for this switch port.
o auto — Indicates automatic detection of any point-to-point connection.
CIST Cost — Sets the CIST path cost from the transmitting bridge to the CIST Regional Root. The value can be between 0 and 200000000, where 0 corresponds to automatic calculation of the cost. The
calculation depends on the capacity of the interface.
Restricted Role (Rest Role) — Enable or disable the restricted role for the port. If this parameter is enabled, the port is not selected as root port for the CIST or any MSTI, even if it has the best spanning tree priority vector. The port will instead be selected as an alternate port after the root port has been selected. The Restricted Role (Rest Role) parameter is used by a network administrator to prevent bridges, external to a core region of the network, from influencing the spanning tree active topology. The default value for Restricted Role (Rest Role) is false.
Restricted Tcn (Rest Tcn) — Indicates the current state of restricted Topology Change Notifications (Tcn) for the port. If the parameter is enabled, the port will not propagate received topology change notifications and topology changes to other ports. If the Restricted Tcn (Rest Tcn) parameter is enabled, it can cause temporary loss of connectivity after changes in the active topology of a spanning tree. This is a result of persistent, incorrectly learned station location information. The Restricted Tcn (Rest Tcn) parameter is used by a network administrator to prevent bridges, external to a core region of the network, from causing address flushing in that region. The default value for Restricted Tcn (Rest Tcn) is false.
MAC Enabled — Indicates if the port MAC is enabled or disabled. Default value is enabled.
— Click to toggle between row and cell selection.
Switch Port Overview in New Window — Clicking the link will open the Ethernet Switch - Switch Port Overview in a new window.
Port Details
Operative Edge Port — Displays if the port is an edge port or not.
Operative Port Path Cost — Displays the path cost from this port to the next bridge, towards the root. The value can be between 1 and 200000000.
Port Up-time — Displays time since the NE was started or restarted (warm or cold restart) in standard time format.
MAC Operational — Displays the current state of the MAC Operational parameter.
Topology Change Ack — Displays if a configuration message with a topology change acknowledge flag set, is to be transmitted.
Disputed — Displays the current value of the disputed variable for the CIST for the port. The port state is disputed if an RST BPDU with the learning flag set, has been received at the port while the agreed flag is set and the proposing flag is cleared.
20
Ethernet Switch - Multiple Spanning Tree
Instance (MSTI)
Figure 24 The Ethernet Switch - Configure Multiple Spanning Tree Instance (MSTI) Page
MST Instance
MSTI ID — Indicates the identification of the MSTI. The maximum number of configurable ports are 16 and the value can be between 1 and 4094.
Priority — Indicates the value of the writable portion of the MSTI Bridge ID. The value can be set between 0 and 61440 in steps of 4096 increments.
VLAN IDs — Shows the VLAN members of the MSTI in a list of individual VLAN IDs and/or ranges of VLAN IDs, separated with commas. Ranges are defined as the first and last VLAN ID, separated with a hyphen. Example: 1,5,7,40-50.
Bridge ID — Displays the bridge identifier for the MSTI.
Designated Root — Displays the bridge identifier of the root bridge for the MSTI, that is the MSTI Regional Root.
Cost — Displays the path cost from the transmitting bridge to the Designated Root (MSTI Regional Root). The value can be between 0 and 200000000.
Root Port — Displays the root port for the MSTI, that is the port corresponding to the path with the lowest cost to the root.
Time Since Topology Change — Displays the time since the topology was changed for any of the ports for the MSTI.
Topology Change Count — Displays the number of times the topology has changed for any of the ports for the given MSTI, since the bridge was started or initialized.
Topology Change — Shows if a topology change is ongoing for any of the ports for the given MSTI.
— Click to add a row in the list. — Click to delete a row from the list.
— Click to toggle between row and column.
Selected MST Instance Ports
Port — Displays the port number of the port.
Interface — Displays which interface is connected to the used switch port.
Priority — Indicates the priority for the port. The value can be between 0 and 240, in steps of 16. The default value is 128.
Path Cost — Displays the contribution of this port to the path cost of paths towards the Designated Root (MSTI Regional Root) which includes this port. The value can be between 0 and 200000000, where 0 corresponds to automatic calculation of the cost. The calculation depends on the capacity of the interface.
Enable — Enable or disable the MSTP on the switch port for this MSTI.
Port State — Displays the current state of the port. Possible values are: Disabled, Blocking, Listening, Learning, Forwarding, and Broken.
Role — Displays the current MSTI port role for the port. Possible values are: Root, Master, Designated, Alternate, Backup, Disabled, and Not Applicable.
Designated Root — Displays the bridge identifier of the root bridge for the MSTI, that is the MSTI Regional Root.
Designated Cost — Displays the path cost of the Designated Port of the segment connected to this port. This value is compared to the root path cost field in received BPDUs. The value can be between 0 and 200000000.
Designated Bridge — Displays the bridge identifier of the bridge that this port considers to be the Designated Bridge for the network segment of this port.
Designated Port — Displays the Port ID of the port on the Designated Bridge for the network segment of this port.
Up time — Displays the time since the NE was started or restarted (warm or cold restart) in standard time format.
Disputed — Displays the current value of the disputed variable for the MSTI for the port. The port state is disputed if an RST BPDU with the learning flag set, has been received at the port while the agreed flag is set and the proposing flag is cleared.
Forward Transitions — Displays the number of times this port has transitioned from the Learning state to the Forwarding state.
Switch Port Overview in New Window — Clicking the link will open the Ethernet Switch - Switch Port Overview in a new window.
— Click to toggle between row and cell selection.
21
Ethernet Switch - Configure Static Unicast
Figure 25 The Ethernet Switch - Configure Static Unicast Filtering Page
VLAN Filter — Filtering criteria for the Unicast table: All VLANs or one specific VLAN.
Unicast Table — Shows the learned entries for the VLANs selected in the VLAN Filter list.
o VLAN ID — The (static or dynamic) VLAN for which the unicast entry is shown.
o MAC Address — The unicast filter destination MAC address.
o Delete Status — Persistency status of the filter.
o Allowed To Go To — The egress ports to use if the Ethernet switch learning mechanisms have not identified the packet egress port.
Note:
It is only allowed to select one egress port in the Allowed To Go To field.
22
Ethernet Switch - Configure VLAN
This page is used to configure a VLAN.
Figure 26 The Ethernet Switch - Configure VLAN Page
General — Displays the number of supported VLANs and currently defined VLANs.
o Maximum VLAN ID — The maximum number of supported VLAN IDs.
o Maximum Supported VLANs — The maximum number of supported VLANs.
