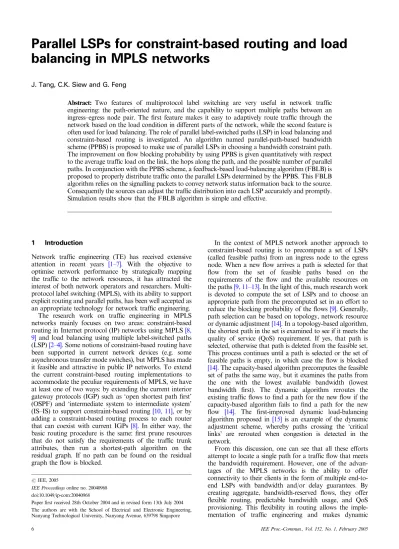

Parallel LSPs for constraint-based routing and load
balancing in MPLS networks
J. Tang, C.K. Siew and G. Feng
Abstract: Two features of multiprotocol label switching are very useful in network traffic engineering: the path-oriented nature, and the capability to support multiple paths between an ingress–egress node pair. The first feature makes it easy to adaptively route traffic through the network based on the load condition in different parts of the network, while the second feature is often used for load balancing. The role of parallel label-switched paths (LSP) in load balancing and constraint-based routing is investigated. An algorithm named parallel-path-based bandwidth scheme (PPBS) is proposed to make use of parallel LSPs in choosing a bandwidth constraint path. The improvement on flow blocking probability by using PPBS is given quantitatively with respect to the average traffic load on the link, the hops along the path, and the possible number of parallel paths. In conjunction with the PPBS scheme, a feedback-based load-balancing algorithm (FBLB) is proposed to properly distribute traffic onto the parallel LSPs determined by the PPBS. This FBLB algorithm relies on the signalling packets to convey network status information back to the source. Consequently the sources can adjust the traffic distribution into each LSP accurately and promptly. Simulation results show that the FBLB algorithm is simple and effective.
1 Introduction
Network traffic engineering (TE) has received extensive attention in recent years [1–7]. With the objective to optimise network performance by strategically mapping the traffic to the network resources, it has attracted the interest of both network operators and researchers. Multi-protocol label switching (MPLS), with its ability to support explicit routing and parallel paths, has been well accepted as an appropriate technology for network traffic engineering.
The research work on traffic engineering in MPLS networks mainly focuses on two areas: constraint-based routing in Internet protocol (IP) networks using MPLS[8, 9] and load balancing using multiple label-switched paths (LSP)[2–4]. Some notions of constraint-based routing have been supported in current network devices (e.g. some asynchronous transfer mode switches), but MPLS has made it feasible and attractive in public IP networks. To extend the current constraint-based routing implementations to accommodate the peculiar requirements of MPLS, we have at least one of two ways: by extending the current interior gateway protocols (IGP) such as ‘open shortest path first’ (OSPF) and ‘intermediate system to intermediate system’ (IS–IS) to support constraint-based routing[10, 11], or by adding a constraint-based routing process to each router that can coexist with current IGPs [8]. In either way, the basic routing procedure is the same: first prune resources that do not satisfy the requirements of the traffic trunk attributes, then run a shortest-path algorithm on the residual graph. If no path can be found on the residual graph the flow is blocked.
In the context of MPLS network another approach to constraint-based routing is to precompute a set of LSPs (called feasible paths) from an ingress node to the egress node. When a new flow arrives a path is selected for that flow from the set of feasible paths based on the requirements of the flow and the available resources on the paths[9, 11–13]. In the light of this, much research work is devoted to compute the set of LSPs and to choose an appropriate path from the precomputed set in an effort to reduce the blocking probability of the flows [9]. Generally, path selection can be based on topology, network resource or dynamic adjustment[14]. In a topology-based algorithm, the shortest path in the set is examined to see if it meets the quality of service (QoS) requirement. If yes, that path is selected, otherwise that path is deleted from the feasible set. This process continues until a path is selected or the set of feasible paths is empty, in which case the flow is blocked [14]. The capacity-based algorithm precomputes the feasible set of paths the same way, but it examines the paths from the one with the lowest available bandwidth (lowest bandwidth first). The dynamic algorithm reroutes the existing traffic flows to find a path for the new flow if the capacity-based algorithm fails to find a path for the new flow [14]. The first-improved dynamic load-balancing algorithm proposed in [15]is an example of the dynamic adjustment scheme, whereby paths crossing the ‘critical links’ are rerouted when congestion is detected in the network.
From this discussion, one can see that all these efforts attempt to locate a single path for a traffic flow that meets the bandwidth requirement. However, one of the advan-tages of the MPLS networks is the ability to offer connectivity to their clients in the form of multiple end-to-end LSPs with bandwidth and/or delay guarantees. By creating aggregate, bandwidth-reserved flows, they offer flexible routing, predictable bandwidth usage, and QoS provisioning. This flexibility in routing allows the imple-mentation of traffic engineering and makes dynamic The authors are with the School of Electrical and Electronic Engineering,
Nanyang Technological University, Nanyang Avenue, 639798 Singapore
rIEE, 2005
IEE Proceedings online no. 20040968 doi:10.1049/ip-com:20040968
multipath routing feasible. Obviously, the constraint-based routing schemes discussed do not suffice in MPLS networks with traffic engineering functions. We propose a parallel-path-based bandwidth scheme (PPBS) to resolve the bandwidth constraint for multipath routing in MPLS networks. We show that in an MPLS network with dense connectivity the proposed PPBS algorithm can greatly reduce the blocking probability of an aggregated traffic flow.
A consequence of the proposed PPBS algorithm is that the bandwidth requirement of an aggregate traffic flow may only be met by a number of LSPs. Therefore a necessary task of the ingress router is to distribute the traffic of the flow aggregate to all the supporting paths appropriately. We consider the traffic between an ingress–egress node pair of an MPLS network as an aggregate of a large number of individual flows, and the out-of-sequence packets (if any) caused by the delay difference on LSPs will be handled by the end user. In[2]the MPLS adaptive traffic engineering (MATE) is proposed to avoid network congestion by adaptively balancing the load among multiple paths based on measurement and analysis of a cost function. In[3]an algorithm based on measured delay is proposed to achieve similar goals. And in[4], a switch architecture is proposed to distribute flows inside the switch and among the parallel links. However, the MATE algorithm is very difficult to implement due to its complexity, and delay-based load balancing in[3] implies that the available bandwidth in a path is inversely proportional to the packet delay obtained by a probing scheme, which does not apply to a complex network. In[4], load balancing issues are considered but the focus is on the switch architectures.
We notice that accurate information of the network status, specifically the available bandwidth along each possible path, is the key to effective load balancing. The feedback-based load-balancing (FBLB) algorithm proposed in this paper obtains the bandwidth information based on explicit feedback of probing packets. Probing in the proposed algorithm can be implemented easily using existing signalling protocols (e.g. resource reservation protocol (RSVP), label distribution protocol (LDP)) with slight modification or extension. Therefore the ingress router can have an up-to-date database of the explicit available bandwidth along each path to an egress router, and can allocate the traffic accordingly. We show that the FBLB algorithm is stable and very easy to implement.
2 Parallel-path-based bandwidth scheme
2.1
Model
We model an MPLS network by a set L of unidirectional links. The network is shared by a set S of ingress–egress node pairs, indexed 1; 2; :::; S. Each of these pairs sðs 2 SÞ has a set Ps of LSPs available to it. By this definition Pss
(s2 S) are disjoint sets, which means no two (distinct) pairs use the same LSP, even though some of their LSPs may share links.
An ingress–egress pair s has a total input traffic of rate rs
and may send xsp of it on LSP p2 Ps such that
X
p2Ps
xsp ¼ rs; 8s 2 S ð1Þ
Let xs¼ fxsp; p2 Psg be the rate vector of s, and let x ¼
ðxsp; p2 Ps; s2 SÞ be the vector of all rates. The traffic
load on a link l2 L, denoted by xl, is the sum of source
rates on all LSPs that traverse link l
xl¼X
s2S
X
l2p;p2Ps
xsp ð2Þ
Define yslas the available bandwidth to pair s on link l, that
is ysl¼ C X i2S;i6¼s X l2p;p2Pi xip ð3Þ
where C is the total bandwidth on link l. The available bandwidth to a pair s on its path p is then defined as
ysp¼ min
l2pfyslg ð4Þ
The constraint-based routing is to find a path p for pair s, that satisfies
ysp rs ð5Þ
The problem is that if rsis big, and no single path p meets
the requirement ysp rs, the flow requiring rs amount of
bandwidth will be blocked even though rs can be possibly
supported by two or more paths in Ps.
We solve the problem in two steps: expand ysp in (5) to
the summation of all ysp, p2 Psusing the proposed PPBS
algorithm; and then find appropriate xsp in (1) based on
knowledge of ysp using the proposed FBLB algorithm.
2.2
PPBS algorithm
The parallel-path-based bandwidth scheme can be described as follows:
Precompute the paths for each edge pair s (a) Find the shortest path in the graph. If the path exists,
then put it in setPsand go to (b) else end the precomputation process.
(b) Delete the links and routers along the path found in (a) from the network graph, except the ingress and egress router, then go to (a).
For a flow aggregate with bandwidth requirement of rs if rs P
p2Ps
ysp,
then accept the flow else block the flow.
To precompute the paths for an edge pair s we employ a node-disjoint path method where the first route is the minimum link metric path (e.g. shortest path), and the kth route is the minimum link metric path on the reduced network, where the routers and links along the first route, second route,...,(k1)th route are pruned except source and destination routers. Examples of this computation is illustrated in Fig. 1. In this example, the first feasible path
source destination first path (3 hops)
second path (4 hops)
third path (4 hops)
between the source and destination node is the shortest path of three hops, and the second (third) path is the shortest one with the routers and links along the first (first and second) path pruned from the graph. As a result the three paths computed for the source destination pair do not share any link, that is, they are disjoint.
The paths computed in this algorithm are parallel paths in the sense that no two paths share a same link. One advantage of these parallel paths lies in the fact that the correlations or traffic interference among the paths between the same source–destination pair is removed, and the parallel paths can be considered independent of each other, which greatly facilitates bandwidth provisioning and performance analysis. The downside of this method is that the number of parallel paths between a pair depends on the connectivity of the network, or more specifically, on the ports of the label switching routers including the ingress node. For example, if the ingress node has only three output ports, then at most three parallel paths can be found between the source and destination. Since the parallel feature of these paths is very useful in bandwidth allocation and load balancing, we use this node-disjoint path method for path precomputation in this paper.
Consider an ingress–egress pair s with a set of node-disjoint paths Psand the available bandwidth yspon path p.
When a new flow aggregate arrives with bandwidth requirement rs, the aggregate is accepted by the network
if the following holds: rs
X
p2Ps
ysp ð6Þ
Compared with traditional constraint-based routing, (6) expands the bandwidth of an acceptable flow aggregate to the summation of available bandwidth on all the parallel paths instead of that of a single path, which greatly reduce the blocking probability of new flows, especially when the overall traffic load in the network is high.
2.3
Performance analysis of PPBS
algorithm
Consider a general network model in Fig. 2. The available bandwidth on the links along the path i is denoted by oi1;oi2; :::;oimi, respectively, where mi is the number of
links along path i. Similarly, the available bandwidth for the source–destination pair along path i is denoted by yi
yi¼ min j¼1;:::;mi
foijg ð7Þ
Since we focus on only one ingress–egress pair in this Section we have omitted the subscript s of the variable y in (7) and continue to use yito represent ysi for simplicity in
the rest of this Section. If there are n paths between the pair, the total available bandwidth Y between the pair is
Y ¼X
n
i¼1
yi ð8Þ
The available bandwidth on a link changes dynamically, so oijis a random variable. Suppose the probability density
function (PDF) of oij is foij, and links in the network are
independent of each other, then we have the following lemma:
Lemma 1: If the available bandwidth on all the links have the same pdf, that is, foi;j¼ fo, the PDF of the available
bandwidth yi along path i, denoted by fyi, is given by
fyiðyÞ ¼ mifoðyÞR mi1
o ðyÞ ð9Þ
where mi is the number of links along path i, Ro is the
reliability function of o, which is defined as
RoðoÞ ¼ P fo4og ¼ 1 FoðoÞ, Fo is the probability
distribution function of variable o.
Proof: Suppose mi¼ 2, then yi¼ minfoi1;oi2g, from[16]
we have,
fyiðyÞ ¼ foi1ðyÞRoi2ðyÞ þ foi2ðyÞRoi1ðyÞ ð10Þ
RyiðyÞ ¼ Roi1ðyÞRoi2ðyÞ ð11Þ
Since foi1ðoÞ ¼ foi2ðoÞ ¼ foðoÞ and Roi1ðoÞ ¼
Roi2ðoÞ ¼ RoðoÞ,
fyiðyÞ ¼ 2foðyÞRoðyÞ ð12Þ
RyiðyÞ ¼ R 2
oðyÞ ð13Þ
Without loss of generality, suppose (9) holds when mi¼ k; k 2, and fyiðyÞ ¼ mifoðyÞR mi1 o ðyÞ ¼ kfoðyÞRk1o ðyÞ; k 2 ð14Þ RyiðyÞ ¼ R mi oðyÞ ¼ R k oðyÞ; k 2 ð15Þ then for mi¼ k þ 1, yi¼ minfoi1;oi2; :::;oik;oiðkþ1Þg ¼ minfy0i;oiðkþ1Þg ð16Þ where y0i¼ minfoi1;oi2; :::;oikg ð17Þ From[16] fyiðyÞ ¼ fy0
iðyÞRoiðkþ1ÞðyÞ þ foiðkþ1ÞðyÞRy0iðyÞ ð18Þ
From the assumptions in (14) and (15), and
foiðkþ1ÞðoÞ ¼ foðoÞ, (18) becomes
fyiðyÞ ¼ kfoðyÞRk1o ðyÞRoðyÞ þ foðyÞRkoðyÞ
¼ ðk þ 1ÞfoðyÞRkoðyÞ
¼ mifoðyÞRmoi1ðyÞ ð19Þ
That is (9) holds when mi¼ k þ 1, and this completes the
proof. &
Lemma 2: The probability density function of the total available bandwidth Y between an ingress–egress pair is given by
fYðyÞ ¼ fy1ðyÞ,fy2ðyÞ, . . . ,fynðyÞ ð20Þ
where n is the number of parallel paths between the pair, yiði ¼ 1; :::; nÞ is the available bandwidth on a contributing
path i, fyiis obtained in lemma 1, and, is the convolution
operation defined as fx1ðyÞ,fx2ðyÞ ¼
R1 1fx1ðy xÞ fx2ðxÞdx. source destination 11 12 21 2m2 n1 n2 1m1 nmn
Proof: Suppose yð2ÞðyÞ ¼ y1ðyÞ þ y2ðyÞ, then from[16]
fyð2ÞðyÞ ¼ fy1ðyÞ,fy2ðyÞ ð21Þ
For yð3ÞðyÞ ¼ y1ðyÞ þ y2ðyÞ þ y3ðyÞ ¼ yð2ÞðyÞ þ y3ðyÞ,
we have
fyð3ÞðyÞ ¼ fyð2ÞðyÞ,fy3ðyÞ
¼ fy1ðyÞ,fy2ðyÞ,fy3ðyÞ ð22Þ
Similarly for YðyÞ ¼ y1ðyÞ þ y2ðyÞ þ ::: þ ynðyÞ ¼ yðnÞ,
fYðyÞ ¼fyðnÞðyÞ ¼ fyðn1ÞðyÞ,fynðyÞ
¼fyðn2ÞðyÞ,fyn1ðyÞ,fynðyÞ
. . .
¼fy1ðyÞ,fy2ðyÞ, . . . ,fynðyÞ ð23Þ
Theorem 2.1: For a single-path constraint-based routing network the blocking probability of a flow requiring bandwidth r is
pb¼P fy1or; y2or; . . . ; ynorg
¼ Z r 1 fy1ðoÞdo Z r 1 fy2ðoÞdo ::: Z r 1 fynðoÞdo ð24Þ
where n is the number of feasible paths between the edge node pair and fyiðoÞ is defined in lemma 1. For a PPBS
network with disjoint-node parallel paths, the blocking probability of a flow requiring a bandwidth of r is obtained by
p0b¼ P fYorg ¼Z
r
1
fYðoÞdo ð25Þ
where fYðoÞ is defined in lemma 2.
Equations (24) and (25) follow directly from the assumption that the parallel paths between an edge node pair are independent of each other and the definition of the blocking probability: the probability that a flow (aggregate) with bandwidth requirement r cannot be accepted by the network because the network cannot meet the bandwidth requirement r. Theorem 1 gives a quantitative blocking probability of a flow with certain amount of bandwidth requirement, both in a single-path traditional constraint-based routing and in a parallel-path network using PPBS. From lemmas 1 and 2 it is easy to see that with the same bandwidth requirement r, the blocking probability in PPBS (25) is much lower than that in a single-path network (24). For illustration purpose only, Figs. 3 to 7 give an numerical example of evaluating the flow-blocking prob-ability using theorem 2.1. In this example, each link has a capacity of 150 Mbit/s. The available bandwidth on a link is assumed to be a random variable that follows a normal distribution Nðm ¼ 80, s2¼ 400Þ. This is a viable
assump-tion in a network with relatively large bandwidth and a large number of individual flows[16]. The parameter m¼ 80 sets the expected available bandwidth to 80 Mbit/s, and the shape parameter s2¼ 400 makes sure that the available
bandwidth is distributed in the range of 0–150 Mbit/s. Figure 3 shows the blocking probability of a flow with bandwidth requirement r, in a single-path scheme. It can be seen that the blocking probability increases when the number of hops along the path grows. When the bandwidth requirement is 50 Mbit/s, the blocking probability is about 12% in a two-hop path, but it becomes as high as 50% on a ten-hop path. Figure 4 shows the probability density function of the available bandwidth along a path with
different hops. The shape of the PDF graph becomes narrower and shifts to the left hand when the number of hops along a path grows, which explains the phenomenon in Fig. 3.
Figures 5 and 6 illustrate the relationship between the blocking probability and the bandwidth requirement in a single-path scheme and PPBS scheme, respectively, with a
0 50 100 150 0 0.2 0.4 0.6 0.8 1
bandwidth requirement, Mbit/s
block probability of request
2 hops 4 hops 6 hops 8 hops 10 hops
Fig. 3 Blocking probability of single path scheme (with one
possible path) 0 50 100 150 0 0.01 0.02 0.03 0.04
available bandwidth, Mbit/s
probability density function
1 link 2 links 4 links 6 links 8 links 10 links
Fig. 4 PDF of available bandwidth (single path)
0 50 100 150 0 0.2 0.4 0.6 0.8 1
bandwidth requirement, Mbit/s
block probability
1 path 2 paths 3 paths 4 paths
Fig. 5 Blocking probability of single-path scheme (multiple
different number of feasible paths between the ingress– egress nodes. We consider the range of the number of parallel paths from 1 to 4 for illustration. Hops along each path is assumed to be the same (eight hops in Figs 5 and 6). Figure 5 shows that when the number of feasible paths increases the blocking probability is reduced to some extent in single-path constraint-based routing. However, the reduction effect becomes unnoticeable when the number of feasible path is more than three or four. When the bandwidth requirement is greater than about 60 Mbit/s in this example, increasing the number of feasible paths does not reduce the blocking probability tangibly.
Figure 6 shows a completely different behaviour in a PPBS scheme. In this Figure every additional feasible path not only decreases the blocking probability significantly, but also greatly expands the range of acceptable bandwidth requirement. For example, when there is one feasible path, a flow requiring 50 Mbit/s bandwidth will experience a blocking probability of about 30%. But if the number of feasible paths becomes four, a flow will experience a blocking probability of 30% only when its bandwidth requirement reaches 185 Mbit/s. Intuitively, this is because in the PPBS scheme, more parallel paths implies that each path has a smaller share of the traffic from a flow, thus the network as a whole can support higher traffic load. Figure 7 shows the probability density function of the available bandwidth in a parallel-path scheme, which clearly explains the phenomenon in Fig. 6.
3 Feedback-based load balancing algorithm As a result of the PPBS algorithm the traffic between an ingress–egress pair is shared by a number of parallel LSPs between them. If the traffic is not properly distributed to the LSPs, load unbalancing may occur; congestion may occur along some paths while other paths are lightly loaded. Therefore load-balancing becomes an integral part of the functions of an ingress router that employs PPBS scheme. In fact, proper load balancing can minimise the utilisation of the most heavily loaded links throughout the network so that no bottleneck link exists, and proper traffic distribution along parallel LSPs enables the efficient utilization of network resources and prevents any link from being overly congested due to heavy demand of user’s traffic.
3.1
FBLB algorithm
It is easy to understand that if accurate information of the load condition in the network is available, more traffic can be transmitted through the lightly loaded links of the network while avoiding the heavily loaded links. If such information is accurate and the load adjustment is prompt, congestion will be well controlled.
However, it is not a trivial task to obtain the network status information accurately. In [2], a cost function is evaluated based on measurement, which is used for traffic adjustment with the objective to minimise the cost in the network. In [3], the available bandwidth is implicitly assumed to be inversely proportional to the measured packet delay via a probing scheme. But since measurement is difficult to implement, and some measured parameters (e.g. delay in [3]) cannot reflect the load condition accurately, we propose a new feedback-based scheme for load balancing.
FBLB algorithm Ingress router
(a) Maintain a database for each egress router s (or more accurately an ingress–egress pair s from this ingress router). The database may contain the set of parallel paths Ps, and available bandwidth ysp; p2 Ps etc.
(b) Send probing packets periodically along all parallel paths to egress routers (to collect the information on available bandwidth along each path).
(c) On return of the feedback packet, update the available bandwidth ysp in the database for the
corresponding path p and egress router s.
(d) After time interval T , adjust the traffic load on each path: compute the traffic share xsion path i (i¼ 1; :::; m)
to egress node s (s2 S), according to the following xsi¼ yi Pm j¼1 yj rs ð26Þ
where m is the number of parallel paths for egress router s, rs is the total traffic between the ingress and egress
routers.
Intermediate router: When an intermediate router receives a probing packet, it updates the available bandwidth (ABW) field in the probing packet according to its load condition, and passes the packet to the downstream routers.
Egress router: The egress router returns the probing packets to the ingress router after updating the ABW field.
0 50 100 150 200 250 300 0 0.2 0.4 0.6 0.8 1
bandwidth requirement, Mbit/s
block probability
1 path 2 paths 3 paths 4 paths
Fig. 6 Blocking probability of PPBS scheme (eight hops)
0 50 100 150 200 250 300 0
0.01 0.02 0.03
available bandwidth, Mbit/s
probability density function
1 path 2 paths 3 paths 4 paths
In this algorithm we suppose each router in the network keeps its own state information. In other words, a router knows how much bandwidth is in use for which LSP on each output port. This feature is already commercially available in some routers (e.g. RSVP-capable routers). The source router then sends probe packets periodically to the destination, each probe packet containing an ABW field. Routers along the path will modify the ABW field based on their status and the destination will revert the probe packet to the source. And every time the ingress router receives a feedback packet it will update its database of the available bandwidth accordingly. After a predefined time interval, the ingress router will adjust the load distribution based on the information in its database. Since the source can send probe packets along all the parallel paths it knows the exact available bandwidth along each parallel path, and thus can allocate the traffic accordingly.
The load distribution algorithm in (26) implies that the traffic share along a path is proportional to the available bandwidth on that path. Since the available bandwidth is provided by the feedback mechanism, the load distribution algorithm directly works towards minimising the utilisation of the heavily loaded links to avoid network congestion.
As stated earlier, the FBLB algorithm does not impose complex computation but it does require some collabora-tion between the routers involved. First, the ingress routers need to maintain a database to store the information of the LSPs to each egress router, and the available bandwidth along each path. Secondly, all the routers involved need to support the probing packet. Thirdly, all the intermediate routers need to keep track of the bandwidth allocated to each LSP to accurately update the probing packets. However, considering the fact that a signaling protocol is already in use in MPLS networks, implementation of the FBLB would require slight or moderate extention of the existing protocol. Therefore the implementation cost would not be high compared with the benefit gained.
3.2 Simulation results
Simulation is conducted to evaluate the effectiveness of the algorithm based on the network model in Fig. 8. In the network modelða1; b1Þ, ða2; b2Þ and ða3; b3Þ are three pairs
of ingress–egress nodes. Each pair has two parallel paths, pairsða1; b1Þ and ða2; b2Þ share link l1, pairsða1; b1Þ and
ða3; b3Þ share link l2 and pairsða2; b2Þ and ða3; b3Þ share
link l3. We call the traffic from these three pairs the
engineered traffic, and background traffic on the links the cross traffic. Here we suppose cross traffic passes through links l1, l2 and l3, making them the bottleneck link for all
the three pairs, respectively.
Assume the total bandwidth of each link is 150 Mbit/s, and the pattern of cross traffic on links l1, l2 and l3 is
shown in Fig. 9. All the nodes in the network employ FBLB scheme, where intermediate routers convey their available bandwidth information to the sources (a1, a2 and a3) that
will adjust the traffic distribution according to the algorithm (see (26)).
Figures 10 and 11 show the traffic load on the bottleneck links when the bandwidth requirement from all three source is 50 Mbit/s, respectively. Figure 10 shows the aggregated traffic from the engineered flows, and Fig. 11 shows the total traffic load (engineered traffic+cross traffic) on the links. In these Figures, when the cross traffic on the bottleneck link increases, the engineered traffic decreases
a1 a2 a3 l3 l2 l1 x22, x32 x12, x31 x11, x21 b1 b2 b3 destination nodes cross traffic source nodes
Fig. 8 Network model
0 20 40 60 80 100 0 50 100 150 time, ms
traffic load, Mbit/s
link 1 link 2 link 3
Fig. 9 Pattern of cross traffic
0 20 40 60 80 100 0 50 100 150 time, ms
traffic load, Mbit/s
link 1 link 2 link 3
Fig. 10 Aggregate traffic on bottleneck links (bandwidth requir-ement¼ 50 Mbit/s) 0 20 40 60 80 100 0 50 100 150 time, ms
traffic load, Mbit/s
link 1 link 2 link 3
Fig. 11 Total traffic on bottleneck links (bandwidth
accordingly. Similarly the engineered traffic increases on a link if the cross traffic is reduced. When the cross traffic remains stable for a long time the engineered traffic load converges to a stable state accordingly. In Fig. 11 the pattern of the total traffic follows the background traffic. But since the engineered traffic is adjusted dynamically, the fluctuation of the total traffic is much smoother than the cross traffic. However, since the engineered traffic is relatively light compared with the cross traffic in Fig. 11, the pattern of the total traffic is dominated by the cross traffic.
Figures 12 and 13 shows the traffic load on the bottleneck links when the bandwidth requirement from the engineered flows is higher (80 Mbit/s). In Fig. 12 the aggregated engineered traffic shows a similar pattern of change as in Fig. 10 with a larger value of the absolute load. In Fig. 13 the traffic load fluctuates more than in Fig. 11, and the engineered flows may experience burstiness or even packet loss, since the instant total traffic load is greater than the link capacity for a very short period of time. If there is enough buffer to hold the packets, only a slight delay is incurred, otherwise packet loss will result.
It is well understood that the overall traffic load, including the engineered traffic and the cross traffic, has a great influence on the performance of load balancing algorithms. If the overall load is too high the network will
experience delay or packet loss no matter which load-balancing algorithm is used. This is also observed in Fig. 13. However, this issue is generally handled by admission control mechanisms which is beyond the scope of this paper.
4 Conclusions
In this paper we have investigated the possibility of using parallel paths in two areas of traffic engineering in MPLS networks: constraint-based routing and load balancing. The parallel LSPs considered do not share links if they are between a same ingress–egress node pair. As a result, if a flow between the edge nodes can be routed on the bundle of all the parallel paths, the network can accept more flows with QoS guarantees than when a flow can be routed on only one of the parallel paths, which is a common practice at the moment.
The PPBS algorithm provides a method to extend the existing constraint-based routing algorithm to make use of the parallel LSPs when choosing a path with sufficient bandwidth. The improvement on flow-blocking probability by using PPBS is given quantitatively with respect to the average traffic load on the link, the hops along the path, and the possible number of parallel LSPs. Furthermore, a FBLB algorithm is proposed to distribute the traffic to the parallel paths adaptively based on the dynamic load condition of the paths which is fed-back by probing packets. Taking into account the signaling facility in the MPLS networks (e.g. RSVP, LDP), this feedback mechan-ism is easy to implement and provides exact network status information for load balancing. Simulation results show that FBLB is a stable and effective algorithm.
5 References
1 Awduche, D., Chiu, A., Elwalid, A., and Xiao, X.: ‘Overview and
principles of internet traffic engineering’. IETF RFC 3372, 2002
2 Elwalid, A., Jin. C., Low, S., and Widjaja, I.: ‘MATE: MPLS adaptive
traffic engineering’. Proc. IEEE Infocom 2001, pp. 1300–1309
3 Gao, D., Shu, Y., Liu, S., and Yang, O.W.: ‘Delay-based adaptive
load balancing in MPLS networks’. Proc. IEEE ICC 2002, pp. 1184– 1188
4 Widjaja, I., and Elwalid, A.: ‘Exploiting parallelism to boost data-path
rate in high-speed IP/MPLS networking’. Proc. IEEE Infocom 2003
5 Mitra, D., and Wang, Q.: ‘Stochastic traffic engineering, with
applications to network revenue management’. Proc. IEEE Infocom 2003
6 Fortz B., and Thorup, M.: ‘Internet traffic engineering by optimizing
OSPF weights’. Proc. IEEE Infocom, 2000
7 Feldmann, A. et al.: ‘Netscope traffic engineering for IP network’,
IEEE Netw., 2001, 14, pp. 11–19
8 Awduche, D., Malcolm, J., Agogbua, J., O’Dell, M., and McManus,
J.: ‘Requirements for traffic engineering over MPLS’. IETF
RFC2702, 1999
9 Iwata, A., and Fujita, N.: ‘A hierarchical multilayer QoS routing
system with dynamic SLA management’, IEEE J. Sel. Areas Commun., 2000, 18, (12), pp. 2603–2616
10 Apostolopoulos, G., Williams, D., Kamat, S., Guerin, R., Orda, A.,
and Przygienda, T.: ‘QoS routing mechanisms and OSPF extensions’. IETF RFC2676, 1999
11 Katz, D., et al. ‘Traffic engineering extension to OSPF’. IETF Internet
Draft., draft-karz-yeung-osfp-traffic-00.ext, 1999
12 Chen, S., and Nahrstedt, K.: ‘An overview of quality of service routing
of next-generation high-speed networks: problems and solutions’, IEEE Netw., 1998, pp. 64–79
13 Guerin, R., and Orda, A.: ‘QoS routing in networks with inaccurate
information: theory and algorithms’, IEEE Trans. Netw., 1999, 7, (3), pp. 350–364
14 Long, K., Zhang, Z., and Cheng, S.: ‘Load balancing algorithms in
MPLS traffic engineering’. Proc. IEEE Workshop on High Perfor-mance Switching and Routing, Dallas, TX, USA, pp. 175–179
15 Salvadori, E., Battiti, R., Sabel, M.: ‘A reactive scheme for traffic
engineering in MPLS networks’. Technical Report DIT-02-0098,
University of Trento, http://rtm.science.unitn.it/Bbattiti/archive/
98.pdf, 2002
16 Papoulis, A.: ‘Probability, random variables, and stochastic processes’
(McGraw-Hill International Editions, 1991, 3rd edn.)
0 20 40 60 80 100 0 50 100 150 time, ms
traffic load, Mbit/s
link 1 link 2 link 3
Fig. 12 Aggregate traffic on bottleneck links (bandwidth requir-ement¼ 80 Mbit/s)
link 1 link 2 link 3
traffic load, Mbit/s
0 20 40 60 80 100 0 40 80 120 160 time, ms
Fig. 13 Total traffic on bottleneck links (bandwidth
