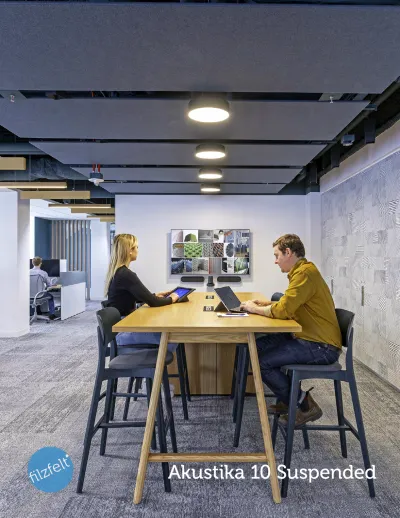

Akustika 10 Suspended
About
Akustika 10 Suspended is a hard-
working acoustic panel available in
customizable sizes in over ninety
colors. Akustika 10 Suspended ships
compete with two repositionable
suspension options that allow for
easy installation.
Standard Sizes + Edge Options
Max. 3'-11" (119.4 cm)Max. 3'-11" (119.4 cm)
Max. 9'-10" (299.7 cm)
Max. 9'-10" (299.7 cm)
Reflected Ceiling Plan
Top View
Longitudinal Side Elevation with Exposed Edge
Transverse Side Elevation with Wrapped Edge
2 5/8"(67 mm)
6"
(152 mm) 6"
(152 mm) 6"
(152 mm)
6"
(152 mm) 6"
(152 mm)
2 5/8"(66 mm)
1/2" (13 mm)1/2" (13 mm)
Suspension Cable with Sliding Cable Grippers Shown (Suspension Rod Option Available)
Suspension Drop
Suspension Cable with Sliding Cable Grippers Shown (Suspension Rod Option Available)
Aluminum Frame
(Varied Suspension Points may be Provided)
[email protected] | filzfelt.com 3
Suspension Options
Suspension Cable
Longitudinal Side Elevation
Suspension Rod
Longitudinal Side Elevation
Sliding Cable Grippers may be Repositioned Along Length of Track
1/2"(13 mm) 1/2"(13 mm) 2 5/8" (67 mm)
1" (26 mm)
Suspension Cable
Acoustic Panel
Acoustic Panel
Sliding Nut allows Suspension Rod to be Repositioned Along Length of Track Threaded Suspension Rod
(Additional Suspension Points may be Required)
(Additional Suspension Points may be Required)
Ceiling Mounting Plate with Cable Gripper (ceiling fasteners by others) Finish Ceiling
(by others)
Ceiling Attachment Options
for Suspension Cable
Akustika 10 Suspended with Suspension Cable Akustika 10 Suspended
with Suspension Cable
ACT Grid Clip with Cable Gripper ACT Ceiling Grid (by others)
Akustika 10 Suspended with Suspension Cable
2"(51 mm)
1 3/8" (35 mm)
1 3/16" (30 mm)
1 7/8"(48 mm)
None
Unless Otherwise Specified, No Ceiling Attachment Hardware is ProvidedCeiling Mounting Plate
Mounting Plate with Cable Gripper (ceiling fasteners not included)
ACT Grid Clip
ACT Grid Clip with Cable Gripper Attaches to Standard Acoustical Ceiling Tile (ACT) Ceiling Grid—Available for 9/16" (1.4 cm) or 15/16" (2.4 cm) Grid Sizes
[email protected] | filzfelt.com 5
Specifications
Name Akustika 10 Suspended
Content 100% Wool Design Felt + Akustika 10 Substrate
Panel Thickness 1/2 in (13 mm)
Standard Sizes Minimum: 6 ft² (0.56 m²)
Maximum: 3'-11" x 9'-10" (119.4 x 299.7 cm)
Edge Options Exposed
Wrapped
Suspension Options Suspension Cable
Suspension Rod Ceiling Attachment Options
for Suspension Cable None
Ceiling Mounting Plate ACT Grid Clip
Durability Contract
Maintenance Vacuum occasionally to remove general air-borne debris. Should soiling occur, spot clean with mild soap and lukewarm water. Avoid aggressive rubbing as this can continue the felting process and change the surface appearance of the felt. Refer to 100% Wool Design Felt Maintenance + Cleaning for detailed care instructions.
Lead Time Made to order and certain lead times will apply
Environmental 100% Wool Design Felt is 100% biodegradable and Akustika 10 Substrate is 100% recyclable Contains no formaldehyde, 100% VOC free, no chemical irritants, and free of harmful substances 100% Wool Design Felt contributes to LEED©
Suspension Points A minimum of four and maximum of six suspension drops will be provided per panel Installation Installs with suspension hardware that includes suspension cables with sliding cable grippers
or sliding suspension rods. Sliding cable grippers and suspension rods may be repositioned along track in top of panel and optional ceiling attachment options include ceiling mounting plate and ACT grid clips. Suspension cables or rods come in 3'-0" (91.4 cm) length and additional length may be available. Actual ceiling connection depends upon ceiling type and ceiling fasteners not included.
Unistrut Installation Suspension options may be suspended from Unistrut Metal Framing System provided by others. For more information, please contact FilzFelt Customer Service.
Custom Custom sizes and shapes are available
Variation Wool felt is a natural material and color variation and inclusions of natural fiber on the surface are evidence of the 100% natural origin of the material. Product color is only indicative, as it is not possible to assure consistency of color in a natural product due to the natural color of raw wool and absorption of dyes. Color matching cannot be guaranteed on shipments and variation will be more pronounced beyond the normal commercial range.
Acoustics ASTM C 423: NRC – 0.65, SAA – 0.66
Colorfastness to Light Class 4–5 (40 hours)
Colorfastness to Crocking Class 3–4 (wet), Class 4–5 (dry)
Environmental Oeko-Tex© Standard 100 Certified Product Class II (100% Wool Design Felt + Akustika 10 Substrate) Meets VOC test limits for the CDPH v1.2 method (100% Wool Design Felt + Akustika 10 Substrate) Flammability Test reports available upon request
100% Wool Design Felt
Akustika 10 Substrate
284 Himmel 613 Gletscher
272 Royal 487 Pfirsich 023 Koralle
573 Kupfer
248 Jade 472 Minze 575 Salbei 483 Adria
220 Rehbraun 411 Alpaka 190 Natur-meliert 200 Natur
698 Dunst 405 Stahl 215 Meer
345 Pazifik
331 Sahara 311 Mandel 467 Sand 481 Sandstein
548 Türkis 312 Lagune 308 Petrol 540 Ozean
100 Wollweiß 110 Rohweiß 160 Beige 529 Champagner
509 Kamel 131 Honig
124 Gelb 108 Zitrone
647 Kobalt 686 Enzian 286 H’Blau
170 Asche 423 Hellgrau 408 Taupe 175 Graphit
180 Terracotta
136 Weinrot 209 Bordeaux
221 Himbeere 201 Rot
125 Tomate 179 Hellrot
945 Drachenfrucht 102 Kirsche
173 Mango 105 Rost 116 Orange 495 Abricot
533 Indigo 282 D’Blau 111 Traube 626 Azur
150 Weiß 428 Silber 427 Stein 021 Beton
403 Mais 274 Senf
550 Ocker 535 Sesam
995 Wasser 458 Bewölkt
425 Taubengrau 446 Kohle 300 Anthrazit 426 Schwarz
203 Vanille 027 Kartause 384 Lind 713 Kiwi
551 Eis 113 Immergrün
269 Violett
667 Amethyst
377 Maigrün 732 Farn 378 Oliv 260 Sprießen
099 Lila
671 Pfingstrose 634 Erröten
640 Granat
156 Loden 343 D’Grün 435 Smaragd 625 Pinie
242 Pink 255 Flieder 437 Aubergine 250 Trüffelbraun
05 Ice 02 Medium Grey 03 Dark Grey
Standard Colors
