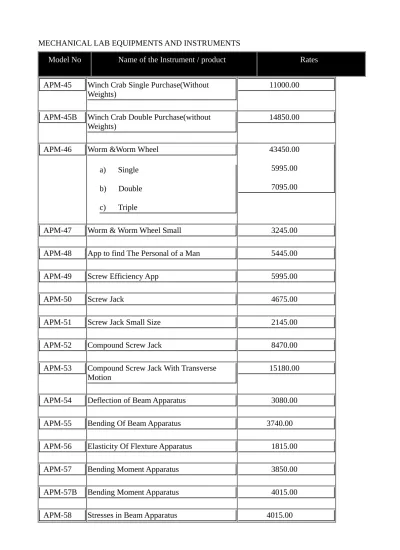

MECHANICAL LAB EQUIPMENTS AND INSTRUMENTS
Model No Name of the Instrument / product Rates
APM-45 Winch Crab Single Purchase(Without Weights)
11000.00
APM-45B Winch Crab Double Purchase(without Weights)
14850.00
APM-46 Worm &Worm Wheel a) Single b) Double c) Triple
43450.00 5995.00 7095.00
APM-47 Worm & Worm Wheel Small 3245.00
APM-48 App to find The Personal of a Man 5445.00
APM-49 Screw Efficiency App 5995.00
APM-50 Screw Jack 4675.00
APM-51 Screw Jack Small Size 2145.00
APM-52 Compound Screw Jack 8470.00
APM-53 Compound Screw Jack With Transverse Motion
15180.00
APM-54 Deflection of Beam Apparatus 3080.00
APM-55 Bending Of Beam Apparatus 3740.00 APM-56 Elasticity Of Flexture Apparatus 1815.00
APM-57 Bending Moment Apparatus 3850.00
APM-57B Bending Moment Apparatus 4015.00
APM-58 Stresses in Beam Apparatus 4015.00
APM-59 Compression of Coiled Springs 5225.00 APM-60
APM-61
The Combined Compression & Extensions of Springs App
Hook’s Law Apparatus
4675.00 1078.00
APM-62 Young Modulus App 1595.00
APM-63 Young Modulus App Vernier Type 935.00
APM-64 Young Modulus of a Metal Rod By An Interface Method
7755.00
APM-65 Rigidity of Wires With Stand 2695.00
APM-66 Maxwell Vibration Needle 2475.00
APM-67 Torsion App Clamp Pattern 5445.00
APM-68 Torsion App Searle’s Type 2695.00
APM-69 Torsion App Vertical Type 5005.00
APM-70 Second Law Of Motion App 385.00
APM-71 Simple Pendulum Complete App with Stand 385.00
APM-72 Bar Pendulum or Compound Pendulum 770.00
APM-73 Kater’s Reversible Pendulum 2695.00
APM-74 Moment of Inertia of Flywheel a) 15cm Dia
b) 20cm Dia c) 25cm Dia d) 30cm Dia
2145.00 2695.00 6050.00 9405.00
APM-75 Moment of Inertia of a) 37cm Dia b) 45cm Dia
11550.00 14850.00
APM-76 Fletcher Trolley 8360.00
APM-77 Atwood Machine 7150.00
APM-77B APM-78
App to find Center of Gravity Centrifugal Force Apparatus
4345.00 16060.00
APM-78B Gyroscope 2750.00
APM-78C Gyroscope Motorised 8580.00
ENGINEERING MODELS
APM-79 Gear Models
a) Single Stage Spur Gears b) Differential Gears
1595.00 4400.00
APM-80 Mechanism Models
a) Pawl & Ratchet Motion b) Crank & Rod
1540.00 1925.00
APM-85 Cam & Follower Models a) Action of Cams b) Harmonic Motion
3190.00 2200.00
APM-90 Brake Models
a) Disc Brake Model b) Lever Brake
c) Hydraulic Brake Units
3795.00 2200.00 10780.00
APM-100 Best Pulling Models
a) Belt Drive Single Speed b) Two Stage
2035.00 2145.00
APM-110 Bearing Models
a) Ball Bearing Set
2145.00
APM-120 Key & Joints Model
a) Socket & Spigo Joint b) Hook’s Coupling
1540.00 5170.00
APM-130 Clutch Model’s
a) Centrifugal Clutch b) Multiplate Clutch
3190.00 4895.00
APM-140 Screw & Nut Models
a) Locking Arrangement of Bolts
2860.00
APM-150 Gyroscope Models
a) Standard Gyroscope b) Bicycle Wheel Gyroscope c) Revolving Stool for above
2640.00 1980.00 2640.00
OBJECT DRAWING MODELS APM- 160 Object Drawing Model Dissected
(Rectangular, Triangular, Square, Hexagonal, octagonal,
Decagonal Prism, Pyramid, Cube, Cone, Sphere, Cylinder ANY ONE)
700.00
APM-170 Object Drawing Model Non- Dissected (Rectangular, Triangular, Square,
550.00
Hexagonal, octagonal,
Decagonal Prism, Pyramid, Cube, Cone, Sphere, Cylinder ANY ONE)
APM-180 Hydraulics & Fluid Mechanics Lab Instruments(Open circuit)
a) Verification of Bernoulli Theorem b) Forces of Jet Apparatus
c) Reynold App with collecting Tank d) To Determine Critical Velocity
26840.00 17160.00 23100.00 60500.00
APM-190 Manometers
a) Pilot Tube
b) U Tube double column Manometer 25cm
1210.00 990.00
APM-200 Valves
a) Hydraulic Non Return Valve b) Gate or Safety or Globe Valve
1980.00 1980.00
APM-250 Turbines & Pumps
Different Impellers Of Pumps And Turbines:
a) Runner Cast Aluminum 180 mm in Dia Mixed Flow or Axial Flow or Francies, Radial or Centrifugal(Any One)
b) Hydraulic Jack c) Kaplan Turbine d) Gear Pump Model e) Rotary Pump
f) Centrifugal Pump (actual Cut Section)
3245.00 6050.00 3520.00 5720.00 4345.00 10450.00
2035.00 1485.00 1815.00 4950.00
g) Centrifugal Pump (Model) h) Water Pump
i) Model of Air Lift Pump j) Tube well Model
k) Deep well Turbine Pump l) Submersible Pump
m) Hydro- Electric Power Installation n) Water Wheel
o) Air or Steam Pressure Turbine
9350.00 5060.00 8250.00 2200.00 6380.00
APM- 280 Constructions Machines & Engineering Equipments Models
a) Blast Furnace b) Dumper c) Road Roller d) Belt Conveyor
15950.00 19250.00 19250.00 9295.00
APPLIED MECHANICS
APM-1 Universal Force Table () with brass slotted
weights & brass pulleys 12100.00
APM-1B Universal Force Table (normal) with iron slotted weights & Aluminum Pulleys
9790.00
APM-2 Wheel and Differential Axie:
a) Universal Force Table (normal) with iron slotted weights &
Aluminum Pulleys
9350.00
APM-3 Link Polygon Apparatus without weights 6050.00 APM-5 Apparatus To Study Equilibrium of Non
Concurrent Forces with iron slotted weights 2750.00
APM-6 Parallelogram of Forces Apparatus with iron slotted weights
2200.00
APM-7 Polygon Of Forces apparatus with iron conical weights
3520.00
APM-8 Triangle & Parallelogram of Forces Apparatus with iron Slotted weights
3960.00 APM-9 Polygon & Triangle of Forces Apparatus
with iron Slotted Weights
4840.00
APM-10 Polygon of Forces Apparatus with iron Slotted
Weights & Pans
6050.00
APM-11B Law of Conversation of Mass Apparatus (w/o Weights)
4950.00
APM-11C To Verify The Law of Forces in Two Dimensions
2145.00
APM-11D To Verify The Law of Forces in Three Dimensions
1815.00
APM-12 Parallel Forces Apparatus (Tubular spring Balance) with 1 kg. Iron weights 2pcs
4950.00
APM-12B Parallel Forces Apparatus (Dial spring Balance) with 1 kg. Iron weights 2pcs
6820.00
APM-12C Parallel Forces Apparatus (Overhanging Beam Type) with 1 kg. Iron weights 2pcs
4950.00
APM-12D Apparatus For Reaction of Forces in Beam Dial Type Balance 20kg Iron weights
17050.00
APM-13 a)Bell Crank lever on Angle Iron Base b)Bell Crank lever on Wooden Base
4290.00 2860.00
APM-14 Compound Lever (with Weights) 2200.00
APM-15 Cranked Compounded Lever(with Weights) 2860.00 APM-16
APM-17
Lever Apparatus(with Weights) Moments Disc Apparatus
2200.00 4620.00
APM-18 Law of Moments Apparatus 3520.00
APM-19 Cantilever Beam Apparatus 4400.00
APM-20 Structural Apparatus Complete Set Including
a) Single Cantilever
b) Contilever with Four Members c) Simple Roof Truss
d) Roof Truss with Angled Tie Rods e) A composite Frame Work
f) King Post Roof Truss g) Standard Roof Truss h) Roof Truss with Loads i) Mansard Roof Truss j) Island Roof Truss k) N Type Girder l) Warren Girder m) Framed Arc
n) North Light Roof Truss
40150.00
APM-21 Jointed Roof Truss On Wheels 3190.00
APM-22 Shear Legs Apparatus 4785.00
APM-23 a) Simple Jib Crane 3850.00
b) Jib Crane With Iron Base &
Tubular type compression Balance
9350.00
APM-24 Geared Jib Crane 19250.00
APM-25 a) Friction Slide Apparatus (Superior Quality)
b) Friction Slide Apparatus (Normal Quality)
2530.00 1540.00
APM-26 Inclined Plane (Normal Quality) 2860.00
APM-26B Inclined Plane(Superior Quality) 3850.00 APM-27 Combined Inclined Plane & Friction Slide
Apparatus Wooden Base & w/o Weights 4125.00 APM-27B Combined Inclined Plane & Friction Slide
Apparatus Angle & w/o Weights 7645.00 APM-28 Coil Friction Apparatus without Weights 3245.00 APM-29 Combined Coil & Flat Belt Friction
Apparatus without weights 7645.00
APM-30 Combined Coil & ‘V’ Belt Friction
Apparatus without Weights 7645.00
APM-31 Rope Brake & Dynamometer (with weights) 9845.00 APM-32 Prony Brake Dynamometer (with weights) 4345.00
APM-33 Pulley Block Brass, 8cm dia & 6mm groove a) Single
b) Double c) Tripple
1375.00 1815.00 2145.00
APM-34 Pulley Block Brass, 5cm dia & 6mm groove a) Single
1375.00 1375.00
b) Double c) Tripple
1925.00
APM-35 Pulley Block Aluminum, 8cm dia & 6mm groove
a) Single b) Double c) Tripple
850.00 1375.00 1705.00
APM-36 Pulley Blocks Brass, 5cm dia & 6mm groove
a) Single b) Double c) Tripple
750.00 1155.00 1595.00
APM-37 Double Shave Pulley Block 4290.00
APM-38 Differential Pulley Block Model 950.00
APM-39 Pulley Demonstrate Set 5995.00
APM-40 Pulley System Different Type Including a) first system pulley
b) second system pulley c) third system pulley d) frame for above
4345.00
I.C. Engine Lab
APM-800 Actual Cut Section Engines:
a) 4 Stroke 4 Cylinder petrol(hand driven)
29500.00 36500.00
b) 4 Stroke 4 Cylinder Petrol (motor driven)
c) 4 Stroke 4 Cylinder Petrol (hand driven)
d) 4 Stroke 4 Cylinder Petrol ( motor driven)
52500.00 62500.00
