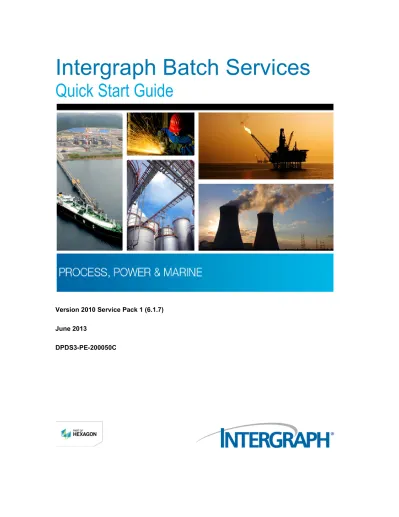

Intergraph Batch Services
Quick Start Guide
Version 2010 Service Pack 1 (6.1.7) June 2013
Copyright
Copyright © 1994-2013 Intergraph® Corporation. All Rights Reserved. Intergraph is part of Hexagon.
Including software, file formats, and audiovisual displays; may be used pursuant to applicable software license agreement; contains confidential and proprietary information of Intergraph and/or third parties which is protected by copyright law, trade secret law, and international treaty, and may not be provided or otherwise made available without proper authorization from Intergraph Corporation.
Portions of the user interface copyright 2012-2013 Telerik AD. U.S. Government Restricted Rights Legend
Use, duplication, or disclosure by the government is subject to restrictions as set forth below. For civilian agencies: This was developed at private expense and is "restricted computer software" submitted with restricted rights in accordance with subparagraphs (a) through (d) of the Commercial Computer Software - Restricted Rights clause at 52.227-19 of the Federal Acquisition Regulations ("FAR") and its successors, and is unpublished and all rights are reserved under the copyright laws of the United States. For units of the Department of Defense ("DoD"): This is "commercial computer software" as defined at DFARS 252.227-7014 and the rights of the Government are as specified at DFARS 227.7202-3.
Unpublished - rights reserved under the copyright laws of the United States. Intergraph Corporation
P.O. Box 240000 Huntsville, AL 35813 Terms of Use
Use of this software product is subject to the End User License Agreement ("EULA") delivered with this software product unless the licensee has a valid signed license for this software product with Intergraph Corporation. If the licensee has a valid signed license for this software product with Intergraph Corporation, the valid signed license shall take precedence and govern the use of this software product. Subject to the terms contained within the applicable license agreement, Intergraph Corporation gives licensee permission to print a reasonable number of copies of the documentation as defined in the applicable license agreement and delivered with the software product for licensee's internal, non-commercial use. The documentation may not be printed for resale or redistribution.
Warranties and Liabilities
All warranties given by Intergraph Corporation about equipment or software are set forth in the EULA provided with the software or applicable license for the software product signed by Intergraph Corporation, and nothing stated in, or implied by, this document or its contents shall be considered or deemed a modification or amendment of such warranties. Intergraph believes the information in this publication is accurate as of its publication date.
The information and the software discussed in this document are subject to change without notice and are subject to applicable technical product descriptions. Intergraph Corporation is not responsible for any error that may appear in this document. The software discussed in this document is furnished under a license and may be used or copied only in accordance with the terms of this license. No responsibility is assumed by Intergraph for the use or reliability of software on equipment that is not supplied by Intergraph or its affiliated companies. THE USER OF THE SOFTWARE IS EXPECTED TO MAKE THE FINAL EVALUATION AS TO THE USEFULNESS OF THE SOFTWARE IN HIS OWN ENVIRONMENT.
Intergraph is not responsible for the accuracy of delivered data including, but not limited to, catalog, reference and symbol data. Users should verify for themselves that the data is accurate and suitable for their project work.
Trademarks
Intergraph, the Intergraph logo, PDS, SmartPlant, FrameWorks, I-Convert, I-Export, I-Sketch, SmartMarine, IntelliShip, INtools, ISOGEN, MARIAN, SmartSketch, SPOOLGEN, SupportManager, and SupportModeler are trademarks or registered trademarks of Intergraph Corporation or its subsidiaries in the United States and other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation. Oracle, JD Edwards, PeopleSoft, and Retek are registered trademarks of Oracle
Corporation and/or its affiliates. MicroStation is a registered trademark of Bentley Systems Inc, all rights reserved. Other brands and product names are trademarks of their respective owners.
Contents
Preface ... 5
Batch Services Overview ... 7
Batch Services Defined ... 8
Batch Services Features ... 8
Batch Services Components ... 9
Getting Started ... 9
Installing and Configuring Batch Services ... 11
Batch Services Hardware/Software Recommendations ... 11
Installing Intergraph Batch Services ... 12
Command Line Installation (Silent Install) ... 15
Starting and Stopping Batch Services ... 16
Granting Jobs Access to the Desktop ... 17
Removing the Batch Service ... 18
Using Batch Manager ... 19
Understanding the Batch Manager Interface ... 19
Granting Batch Service Privileges ... 20
Understanding Account Mapping ... 22
Creating and Managing Queues ... 23
Creating and Deleting Queues ... 23
Creating a Batch Queue ... 23
Creating a Pipe Queue ... 24
Deleting a Queue ... 24
Changing Queue Properties ... 24
Setting the Default Queue ... 25
Adding Shells to a Batch Queue ... 26
Adding Destinations to a Pipe Queue ... 26
Enabling and Disabling a Queue ... 27
Starting and Stopping a Queue ... 27
Displaying Queue Status ... 28
Submitting a Batch Job ... 29
Creating a Script ... 29
Submitting a Job ... 30
Setting Basic Job Information ... 30
Setting Job Scheduling Information ... 31
Creating Recurring Jobs ... 31
Specifying Job Notification Preferences ... 32
Specifying How to Handle Job Output ... 32
Specifying Job Resource Requirements ... 33
Saving and Restoring Named Batch Jobs ... 33
Creating a Named Job... 34
Submitting a Named Job ... 34
Contents
Glossary ... 35 Index ... 41
The Batch Services Quick-Start Guide describes how to install, configure, and use Intergraph Batch Services on a computer running the Microsoft Windows operating system.
About This Document
This document is organized as follows:
The Preface introduces you to the Quick-Start Guide, describes document conventions, and provides information on related documentation, product support, and contacting Intergraph. Section 1, “Batch Services Overview,” provides an introduction to the basic concepts and
features of Intergraph Batch Services.
Section 2, “Installing and Configuring Batch Services,” describes how to install, configure, and run Batch Services on your system.
Section 3, “Using Batch Manager,” describes the Batch Manager graphical interface, and describes how to use it to grant batch service privileges for your system, and handle account mapping.
Section 4, “Creating and Managing Queues,” describes how to use the Batch Manager graphical interface to create, manage, and monitor queues.
Section 5, “Submitting a Batch Job,” describes how to use the Batch Manager graphical interface to submit a batch job.
The Glossary defines terms used in this document.
This document assumes that you understand basic networking concepts, and that you have a working familiarity with the Transmission Control Protocol/Internet Protocol (TCP/IP), Internet addressing, and Windows services.
Finding Additional Batch Services Information
Additional Batch Services documentation is available online through Batch Services Help, which is delivered when you install the Batch Services software. Batch Services Help provides
detailed information on the following subjects: Batch Services terminology.
Accomplishing tasks with Batch Services.
Using the graphical user and command-line interfaces to Batch Services. Using the Batch Services application programming interface (API).
Finding Operating System Information
If you need more detailed information on an aspect of the Windows operating system, you can refer to the documentation delivered with the Windows operating system software.
Getting Documentation and Training
In the United States, contact your sales account representative, or call the Intergraph at 1-800-766-7701.
At international locations, contact the Intergraph subsidiary or distributor from which you purchased your Intergraph software to place an order.
To find information on training for Intergraph products, or to enroll for an available class, go to http://www.intergraph.com.
Preface
Preface
Getting Telephone Support
If you experience problems with your Intergraph system or software, or have questions about the information in this document, you can contact Intergraph for help.
In the United States, call the Customer Response Center at 1-800-766-7701.
At international locations, contact the Intergraph subsidiary or distributor from which you purchased your Intergraph system or software.
Have the following information readily available when you call: Your name and telephone number.
The product’s name.
A brief description of the problem.
Finding Intergraph on the Internet
You can find Intergraph on the Internet at http://www.intergraph.com.
S
E C T I O N
1
Intergraph Batch Services is a system service that provides tools for the management and execution of non-interactive tasks. The batch system is fully networked, and provides connectivity to other batch servers.
The batch system is useful to both system administrators and users. Delayed execution of tasks allows maintenance- and compute-intensive tasks, such as backups or compilation of large programs, to be scheduled for times when the system is not in use. The batch system also allows several client computers to use a multiprocessor server as a "compute engine" for CPU intensive tasks. A large task can be spread out among several systems available on the network.
The Batch Server service requires System Account privileges on the system. Use the Services icon in the Control Panel to configure the Batch Server service.
The complete batch system consists of several pieces, including a batch Server, pipe and batch queues, and an API set, as shown in the following diagram:
In This Section
Batch Services Defined ... 8
Batch Services Features ... 8
Batch Services Components ... 9
Getting Started ... 9
Batch Services Overview
Batch Services Overview
Batch Services Defined
Batch Services is a Windows system service that allows you (or an application) to manage and perform non-interactive tasks on your computer system. Batch Services gives users and applications a means of submitting compute-intensive tasks as processes that will run in the background (non-interactively), and provides notification when the tasks complete.
To perform tasks using Batch Services, you submit a batch job to the system running Batch Services (the batch server). The batch job provides information to the batch server about the tasks you want to accomplish and how you want the batch job to run. When a job is successfully submitted, it gets a unique job ID, enters a queue (a waiting list for processing), and then runs on the batch server system as if you were logged in to the system and executing the task yourself.
Batch Services is useful to both system administrators and users. Delayed execution of tasks allows maintenance- and compute-intensive tasks, such as system data backups or compilation of large programs, to be scheduled for times when the system is not in use. Batch Services also allows several client computers to use a multiprocessor server as a “compute engine” for compute-intensive tasks. A large task can be spread out among several batch server systems available on the network.
Batch Services can be used with several Intergraph products, including SmartPlant 3D, SmartMarine 3D, Plant Design System (PDS), and SmartPlant Review Publisher.
Batch Services Features
With Batch Services, time-consuming, resource-consuming, and repetitive tasks can be run automatically. By making these tasks execute automatically, you can spend your time and resources on other tasks. Benefits of automating tasks with Batch Services include the following: You can submit compute-intensive jobs into the background, and then go on to other tasks
or exit the application or session, while the batch job continues to process. You can set up jobs to repeatedly execute at any interval you choose. You can set up a list of jobs to run in a specific order.
You can set the times you want your jobs to run.
You can specify that certain jobs have priority over other jobs awaiting execution.
You can submit jobs directly to a remote queue if Batch Services is present on that system. Batch Services can continue processing tasks even after a system interruption. Batch Services manages the tasks so that you do not have to restart them yourself, providing the following features:
Batch Services resubmits jobs when the network is down, or the remote host is unavailable.
Batch Services automatically restarts jobs if the system crashes while a job is running, or if the system is down when a job is scheduled to run.
With Batch Services, you control the processing of tasks submitted as batch jobs. The following features allow you to manage task processing:
You can use Batch Manager for managing batch jobs.
You can manage batch and pipe queues on remote computers from one location. You can determine which jobs run at a given time, and in what order.
You do not have to monitor jobs. Batch Services supports SMTP mail or event log notification when a batch job completes successfully or encounters errors.
Batch Services provides the following additional features:
Batch Services Overview
An application programming interface (API). Support for multiprocessor systems.
A command-line interface that can be used with scripts. Job submission to or from Windows systems.
Batch Services Components
Batch Services software consists of the following components: A batch server program (BATSERV.EXE).
Windows Batch Provider, including an API library (BATCHAPI.DLL). The Batch Manager graphical interface (BATCHMGR.EXE).
A command-line interface (QSUB.EXE, QSTAT.EXE, QMGR.EXE, QDEL.EXE).
Getting Started
Begin by following the instructions in the next section to install and configure the Batch Services software on your system. Then refer to the rest of the document as follows:
To remove Batch Services software from your system, see Removing the batch service (on page 18).
To learn about the Batch Manager interface, see Understanding the Batch Manager
Interface (on page 19).
To grant batch services privileges on your system, see Granting Batch Service Privileges (on page 20).
To create queues on your system, see Creating and Deleting Queues (on page 23). To manage and monitor queues on your system, see Specifying Job Notification
Preferences (on page 32).
To learn about scripts, see Creating a Script (on page 29). To submit a batch job, see Submitting a Job (on page 30).
To manage batch jobs, see Creating and Managing Queues (on page 23).
Batch Services Overview
S
E C T I O N
2
This section describes how to install and configure Intergraph Batch Services on a system running the Windows operating system.
In This Section
Batch Services Hardware/Software Recommendations ... 11
Installing Intergraph Batch Services ... 12
Command Line Installation (Silent Install) ... 15
Starting and Stopping Batch Services ... 16
Granting Jobs Access to the Desktop ... 17
Removing the Batch Service ... 18
Batch Services Hardware/Software
Recommendations
Before installing Intergraph Batch Services software, verify that the computer on which you want to use the software has the following:
Intel-compatible processor
At least 512 MB of RAM, 1 GB is recommended. At least 3.5 MB of free space on the system’s hard disk. A Windows-compatible network adapter.
Microsoft Windows XP SP3, Windows Vista SP2, Windows 2003 Server R2 (32-bit and 64-bit), Windows 2008 Server R1 and Microsoft Windows 7 Professional or Enterprise with UAC 'On' at Level 3 (Default) (32-bit and 64-bit). For the most up-to-date listing of supported operating systems, visit the Intergraph knowledge base (www.intergraph.com) and look at the compatibility matrix.
If you want Intergraph Batch Services to run batch jobs as 64-bit processes, the batch server machine must run the 64-bit version of the operating system. It must also have the 64-bit version of the designated Intergraph software installed.
Batch Services software can work with any network adapter supported by Windows. The
network adapter you use must be properly installed and configured for your computer before you install Batch Services software. Refer to your Windows documentation for a list of compatible network adapters, and to the documentation for your network adapter for installation and configuration instructions.
Running batch jobs on the Citrix server is not supported. However, you can pipe queue the batch processes from the Citrix server to a batch queue on another computer.
Installing and Configuring Batch
Services
Installing and Configuring Batch Services
Installing Intergraph Batch Services
1. Open Control Panel > Administrative Tools > Services and determine the current status
of the TCP/IP NetBIOS Helper service on your computer. Start that service if it is not already running.
2. Insert the Intergraph Batch Services CD into your computer's drive. 3. To start setup, do one of the following:
Press the Windows key + R to activate the Run dialog box. Type drive:\setup, where
drive is the drive letter for the CD/DVD drive.
In Windows Explorer, select the CD/DVD drive; then double-click setup.exe.
4. Select Batch Services Installation.
5. Click Next on the Welcome page.
Installing and Configuring Batch Services
6. Type your name and organization name, and then click Next.
7. On the License Agreement page, select your country from the list, and then click Display.
8. Read the license agreement, and then close the PDF file. 9. Click Yes to accept the license agreement.
10. To accept the default destination folder ($WindowsDrive:\Win32App\Ingr\Batch), click Next.
-OR-
Click Change, and specify a new installation folder.
If you plan to use this installation of Intergraph Batch Services with Plant Design System (PDS), do not install Intergraph Batch Services to a folder path that contains
Installing and Configuring Batch Services
spaces, such as c:\Program Files (x86)\Batch. While Intergraph Batch Services does support spaces in folder paths, PDS does not.
If the destination folder already contains a version of Intergraph Batch Services, a warning message displays. You can install the new version of the Batch Services over the currently installed version, or you can install the new version in another folder.
11. Select whether you want jobs to have access to the desktop. If you allow jobs to have access to the desktop, an iconified and non-active window will appear on the screen when a job runs. These windows will only appear when a user is logged on to the system.
Windows Vista, Windows 2008 Server, Windows 7, and later operating systems do not allow jobs to have access to the desktop. Therefore, you will not see this dialog when installing Batch Services in these operating systems.
Installing and Configuring Batch Services
If your site is one where batch jobs might require some user input, you should select Yes. If
your site is one where security is a major concern, you should select No; a logged-on user
will be able to interact with running batch jobs, even if the job is running as a different user. You can change whether you want jobs to have access to the desktop later. See Granting
Jobs Access to the Desktop (on page 17) for details. Jobs that try to access the desktop will
not run unless the user running the job is a member of the Administrators group. 12. Setup asks if you want to run all jobs as the same user.
If you select Yes to configure account mapping, define the username and username
password under which jobs should run.
If you select No, setup warns you that you must configure account mapping before you can
submit jobs. Use Batch Manager to configure account mapping after setup is complete. 13. Click Next, and then click Install.
Intergraph Batch Services is installed on your computer. This might take a few minutes.
14. Click Finish.
15. After setup completes, restart your computer.
Command Line Installation (Silent Install)
To install Batch Services from the command line, run Setup.exe in the BatchServices folder. Setup.exe automatically runs the Windows Installer setup, Intergraph Batch Services.msi.
The following command-line arguments are available:
Required Arguments
SLAACCEPT=yes - Accepts the Software License Agreement.
/v"<arguments>" - Passes options to the Windows Installer setup, Intergraph Batch
Services.msi. There are no spaces after the v.
Optional Arguments
/s - Runs Setup.exe in silent mode.
Installing and Configuring Batch Services
/qn - Runs the Windows Installer setup, Intergraph Batch Services.msi, in silent mode. INSTALLDIR=<path> - By default, the product is installed to
the<WindowsVolume>\Win32App\INGR\BATCH folder. To change the location, enter a different path. For example, enter INSTALLDIR=D:\Intergraph\BatchServices. If spaces exist in the
path, you must add \" before and after the path. For example, enter INSTALLDIR=\"D:\Intergraph\Batch Services\".
INTERACTIVE_DESKTOP=0 - By default, on Windows XP, the Batch Server service is setup
to interact with the desktop. To disable this behavior, include INTERACTIVE_DESKTOP=0. This
setting is not valid with Vista, Windows 7, or later operating systems, and is ignored.
ACCTMAP_USERNAME=domain\username - To run all jobs as the same user, enter an
existing domain\username.
ACCTMAP_PWD - Password for the username. Used in conjunction with ACCTMAP_USERNAME.
/Lv*x <path>\Logfilename - Creates a Windows Installer installation log file. If the path or file
name contains spaces, you must put \" in front of the path and after the file name, for example: /Lv*x \"C:\Installer Log Files\InstallLog.log\". The path must already exist.
Example Command-lines
C:\>"…\BatchServices\Setup.exe" /s /v"SLAACCEPT=yes /qn"
Installs the setup to the default location without account mapping. By default, on Windows XP, the Batch Server service is set up to interact with the desktop.
C:\>"…\BatchServices\Setup.exe" /s /v"INSTALLDIR=\"C:\Batch Services\" SLAACCEPT=yes INTERACTIVE_DESKTOP=0 /qn"
Installs the setup to C:\Batch Services without account mapping. On Windows XP, the Batch Server service is not set up to interact with the desktop.
C:\>"…\BatchServices\Setup.exe" /s /v"INSTALLDIR=\"C:\Batch Services\"
SLAACCEPT=yes INTERACTIVE_DESKTOP=0 ACCTMAP_USERNAME=domain\username ACCTMAP_PWD=password /qn"
Installs the setup to C:\Batch Services with account mapping. On Windows XP, the Batch Server service is not set up to interact with the desktop.
C:\>"…\BatchServices\Setup.exe" /s /v"SLAACCEPT=yes INTERACTIVE_DESKTOP=0 ACCTMAP_USERNAME=domain\username ACCTMAP_PWD=password /Lv*x \"C:\Install Log Files\install.log\" /qn"
Installs the setup to the default location with account mapping, and creates a Windows Installer
installation log file. On Windows XP, the Batch Server service is not set up to interact with the
desktop.
C:\>"…\BatchServices\Setup.exe" /s /x /v"/qn"
Uninstalls Batch Services in silent mode.
Starting and Stopping Batch Services
When you install Intergraph Batch Services software, the batch server service is configured to start automatically each time you restart your computer. No further configuration is required. Intergraph recommends leaving the batch server service as configured. However, if you want to configure Intergraph Batch Services to be started manually instead of automatically, do the following:
1. Open Control Panel > Administrative Tools > Services.
2. In Services, right-click on Intergraph Batch Server, and select Properties.
Installing and Configuring Batch Services
3. Set Startup type to Manual, and then click OK.
4. Close the Services window.
Batch Services also delivers an Intergraph NQS Listener service that is configured to start automatically. If your site is not using Intergraph NQS, you can configure the NQS Listener service to be started manually. Repeat steps 1-3, selecting Intergraph NQS Listener from the Service list.
If you configure Batch Services to be started manually, you must start the batch server each time you restart your system, or each time you want to run Batch Services.
To start Batch Services manually:
1. Open Control Panel > Administrative Tools > Services.
2. In Services, select Intergraph Batch Server from the list, and then click Start.
To stop Batch Services:
1. Open Control Panel > Administrative Tools > Services.
2. In Services, select Intergraph Batch Server from the list, and then click Stop.
Granting Jobs Access to the Desktop
If required, batch jobs can have access to the desktop. If jobs are allowed to have access to the desktop, a window that is iconified and non-active displays on the screen while a job is running. These windows will only be seen when a user is logged in.
Windows Vista, Windows 7, and Windows 2008 Server do not allow jobs access to the desktop.
Granting jobs access to the desktop depends on your site's security requirements. If jobs are granted access to the desktop, a logged in user will be able to interact with batch jobs that are running, even if the batch job is running as a different user. If security is not a concern, sites where batch jobs may require some user input should configure Batch Services to allow jobs to have access to the desktop. Sites where security is a main concern should configure Batch Services not to allow jobs to have access to the desktop. When you install Batch Services software, you are given the option of whether or not jobs may have access to the desktop. After installation, if you want to change the way Batch Services is currently configured, do the following:
1. Open Control Panel > Administrative Tools > Services.
2. Right-click on Intergraph Batch Server in the list, and then click Properties.
3. Select the Log On tab.
4. The Allow service to interact with desktop checkbox determines whether or not jobs may
access the desktop. If you want jobs to have access to the desktop, make sure the checkbox is selected. If you do not want jobs to access the desktop, make sure the checkbox is cleared.
5. Click Apply to reconfigure the startup parameters.
The Intergraph Batch Server service must be stopped and restarted for the change to take effect.
6. Select the General tab.
7. Click Stop.
8. Click Start to restart Batch Services.
9. Click OK to close the properties window.
10. Exit the Services window.
Installing and Configuring Batch Services
Removing the Batch Service
To remove the batch services:
1. As an administrator, go to the Control Panel and then Add or Remove Programs
(Windows XP and some Windows Server versions) or Programs and Features (Windows
Vista, Windows 7, and some Windows Server versions). 2. Select Intergraph Batch Services.
3. Click Change/Remove or Uninstall depending on your version of Windows.
4. Click Yes.
S
E C T I O N
3
This section briefly describes the Intergraph Batch Manager windows interface and how to use it to grant batch service privileges on your computer. This section also briefly describes how Batch Services handles account mapping. For more detailed information on the Batch Manager interface, or for information on using the command-line interface, refer to Batch Services Help or the Batch Services User's Guide.
In This Section
Understanding the Batch Manager Interface ... 19 Granting Batch Service Privileges ... 20 Understanding Account Mapping ... 22
Understanding the Batch Manager Interface
Intergraph Batch Manager provides a graphical interface for viewing and managing batch services. Batch Manager allows you to create queues and connect to remote queues, and to submit and manipulate jobs within queues. Connection to remote servers allows you to manage other Windows batch servers on the network.
Click Start > All Programs > Intergraph Batch Services > Intergraph Batch Manager.
Figure 1: Batch Manager
The Batch Manager toolbar, located below the Batch Manager menus, provides shortcuts to the following tasks. Position the cursor over a toolbar button to display a tip describing the command associated with that button. Buttons are provided for the following tasks:
Submitting and deleting jobs Holding and releasing jobs Creating and deleting queues Enabling and disabling queues
Using Batch Manager
Using Batch Manager
Starting and stopping queues
Batch Manager provides two types of views in the main window:
The server view displays information about the server and its queues. Information on each queue in the server view includes its name and type, its priority, its inflow and outflow state, and the number of jobs currently in the queue. When the server view is active, you can create, delete, and manage queues. Double-clicking on a queue listed in a server view displays the queue view of that queue.
The queue view displays information about the jobs contained in a specific queue.
Information on each job in a queue includes its ID and status, its priority, its name, and the username of the job’s submitter. When the queue view is active, you can manipulate specific jobs in that queue. Double-clicking on a job listed in a queue view displays the properties of that job.
The status bar, at the bottom of the main window, displays information about the active view. For an active server view, the status bar displays the server name. For an active queue view, the status bar displays the queue’s name and type, its description, and its inflow and outflow states.
Granting Batch Service Privileges
Before you begin using Batch Services, you should use Intergraph Batch Manager to ensure that users on your system (and users on other systems if appropriate) are granted the proper privileges for access to Batch Services.
A user with manager privileges can use all the commands that affect batch server configuration and operation, including granting and removing privileges, and creating and deleting queues. A user with operator privileges can manage jobs, including those belonging to other users, and can start and stop batch server queues. Users or groups without privileges can only submit requests to queues to which they have been granted access; most users or user groups are non-privileged users.
On Windows 7 and Windows Vista with User Account Control turned on to level 3, the
Administrators group on your system has manager privileges. From an account belonging to the Administrators group, you can add users and groups of users, on your system or other systems, to the manager and operator privilege lists.
1. Open Start > All Programs > Intergraph Batch Services > Intergraph Batch Manager.
2. Select your computer name in the tree view on the left. 3. Click Server > Properties.
4. Select the Security tab.
Using Batch Manager
Users and groups, and their Batch Service privileges, display in the Managers and Operators list.
Figure 2: Server Properties Dialog: Security Page
5. Click Add, and then type the username of a user into the Add Names box, or the group
name of a group, to which you want to grant privileges.
6. Specify local users and groups (on your computer) by username or group name only. Use one of the following formats when keying in a username or group name:
domain_name\username or system_name\username domain_name\group_name or system_name\group_name
Separate multiple users or groups with a semicolon (;).
7. Select the type of privilege you want to grant the user or group (Manager or Operator).
8. Click OK.
9. Repeat steps 5 through 8 for each user or group to which you want to grant privileges. 10. When you have finished assigning privileges to users or groups, click OK on the Server
Properties dialog box.
To remove privileges from a user or group:
1. Open Start > All Programs > Intergraph Batch Services > Intergraph Batch Manager.
2. Select your computer name in the tree view on the left. 3. Click Server > Properties.
4. Select the Security tab.
The current users and groups with Batch Service privileges are displayed in the Managers and Operators list.
5. In the Managers and Operators list, select the user or group for which you want to remove
privileges. 6. Click Remove.
Using Batch Manager
7. Repeat steps 5 and 6 for each user or group from which you want to remove privileges. 8. When you have finished removing privileges from users and groups, click OK.
To change a user’s or group’s privileges, first remove the current privileges from the user or group; then re-add the user or group to the privilege list with the new privilege.
Understanding Account Mapping
Batch Services requires an account name and password to use when running jobs. The process of determining the account name to use is called account mapping. You can use Batch Manager to enter and modify account-mapping information for your system. An account mapping entry comprises two parts: the user information to match (the “from” user), and whom that user maps to (the “to” user). Account mapping entries allow users submitting a job to assume the
environment and permissions of the user to whom they are mapped.
To perform account mapping, the batch server tries to match the job owner with an account mapping entry, using the following order (items are listed on the account mapping dialog in the order in which they are applied):
1. The batch server first tries to find an exact match, matching the job owner’s domain or computer name and username with the “from” user in the account mapping entries. 2. If the batch server cannot find an exact match, the batch server then searches the account
mapping entries using the job owner’s domain or computer name, with “*” (meaning any user) as the username.
3. If no match is found, the batch server then searches the account mapping entries using “*” (meaning any computer or domain) as the domain name, with the job owner’s username. 4. Finally, if a match still has not been found, the batch server searches with “*” as the domain
name and “*” as the username.
How you configure account mapping depends on the security needs and configuration of your site. For more information on configuring account mapping, see Configure Account Mappings in the Installation Guide.
S
E C T I O N
4
This section describes how to use the Intergraph Batch Manager graphical interface to create and manage queues on a system running Batch Services. For more information on the Batch Manager interface, or for information on using the command-line interface, refer to Batch Services Help.
In This Section
Creating and Deleting Queues ... 23 Changing Queue Properties ... 24 Setting the Default Queue ... 25 Adding Shells to a Batch Queue ... 26 Adding Destinations to a Pipe Queue ... 26 Enabling and Disabling a Queue ... 27 Starting and Stopping a Queue ... 27 Displaying Queue Status ... 28
Creating and Deleting Queues
Before you can submit a batch job, you must create and enable a batch queue. The batch queue accepts requests to execute shell scripts, commands, or executables non-interactively. You may also want to create one or more pipe queues on your system. A pipe queue accepts requests to send batch jobs to another queue. Typically, you create a pipe queue when you need access to a batch queue on another system.
Note the following limitations on creating queues:
You must have manager privileges to create a queue.
When naming a queue, you can use any alphanumeric and punctuation characters, except for the punctuation characters [@ \ ( ) = ,]. The first character cannot be - or /.
Creating a Batch Queue
To create a batch queue on your system, take the following steps: 1. Open Intergraph Batch Manager.
2. Select the server on which you want to create the queue.
3. Select Queue > Create, or click Create Queue on the toolbar. 4. Key the queue name into the Queue Name box.
5. Optionally, key a description of the batch queue into the Description box.
6. Under Queue Type, select Batch.
7. Click OK.
Refer to Adding Shells to a Batch Queue (on page 26) for more information on batch queues.
Creating and Managing Queues
Creating and Managing Queues
Creating a Pipe Queue
To create a pipe queue on your system, take the following steps: 1. Open Intergraph Batch Manager.
2. Select the server on which you want to create the queue.
3. Select Queue > Create, or click Create Queue from the toolbar. 4. Key the queue name into the Queue Name box.
5. Optionally, key a description of the batch queue into the Description box.
6. Under Queue Type, select Pipe.
7. Click OK.
Refer to Adding Destinations to a Pipe Queue (on page 26) for more information about pipe queues.
Deleting a Queue
Before you can delete a queue, the queue may not contain any jobs and must be disabled and stopped. You must have manager privileges to delete a queue. You can delete queues on remote Windows computers. To delete a queue from your system:
1. Open Intergraph Batch Manager.
2. Click on the queue listed in the server view, or select the queue view for that queue. 3. Select Queue > Delete, or click Delete Queue from the toolbar.
4. When prompted, click Yes to confirm that you want to delete the queue.
Changing Queue Properties
A queue is created with its operational parameters set at default values. You can change these default values by selecting a queue listed in the server view and pressing ALT+ENTER, or by selecting the queue view for that queue, and then selecting Properties from the Queue menu. Select the tabs in the Queue Properties dialog to display the current values for a queue’s parameters. The following are basic operational parameters found in the Queue Properties dialog, along with their default values and brief descriptions of changes you can make.
Tab Parameter Default Comments
General Description None Optional.
Scheduling Run Limit 1 Determines the maximum number of jobs
that can run in the queue at the same time. Specify a number of jobs from 1 to 60. Job Defaults Scheduling Priority 31 Determines the default priority of execution
of a job relative to other jobs in the queue. Raise (as high as 1023) to increase the priority; lower (as low as -1024) to lower the priority.
Creating and Managing Queues
Tab Parameter Default Comments
Security Queue Access Unrestricted Determines who can gain access to the queue. To restrict access to specific users or groups of users, select Restricted. To open access to the queue to all users, select Unrestricted.
Authorized Groups
and Users None Lists users or groups of users that can gain access to the queue if it is restricted. Select Add to add users or groups to the access list. Select a user or group, and then select Remove, to remove that user or group from the access list.
When keying in a username or group name, use the format for usernames and group names described in Granting Batch Service
Privileges (on page 20).
Shells For a complete description, see Adding
Shells to a Batch Queue (on page 26).
Destinations Order dependent. For a complete
description, see Adding Destinations to a
Pipe Queue (on page 26).
Setting the Default Queue
The default queue on a server is the queue to which batch jobs are submitted when the user does not explicitly request a queue. The default queue cannot be a remote queue; it must exist on the server.
Manager privileges are required to set a default queue.
Using Batch Manager:
1. Select the server.
2. Select Server > Properties.
The Server Properties Dialog Box displays.
3. Key a queue name into the Default Queue box, or select a queue from the dropdown list.
4. Click OK.
Using the command line:
1. Start qmgr.
2. Use the set default batch_request queue command to set the default queue for the server.
Using the Batch API:
1. Use the BatchGetServerInfo function to obtain the current BATCH_SERVER_INFO structure.
2. Modify the BATCH_SERVER_INFO defaultqueue field.
3. Use the BatchSetServerInfo function with the modified BATCH_SERVER_INFO structure to set the default queue.
Creating and Managing Queues
Adding Shells to a Batch Queue
A shell is a program that can run a specific type of script; for example, cmd.exe is a shell that can run .bat scripts. You can associate a list of shells with each batch queue. The shell list allows you to specify a shell from the list without knowing where the actual shell resides on the computer.
When you associate a list of shells with a batch queue, users can choose one of these shells from the list, specify a full path to another shell, or use a shell in the PATH environment variable for the user to whom the job is mapped.
To add a shell to a batch queue: 1. Open Intergraph Batch Manager.
2. Click on the batch queue listed in the server view, or select the queue view for that queue. 3. Select Queue > Properties.
The Queue Properties dialog displays.
4. Select the Shells tab.
5. Under Shell Configuration, key the name of the shell into the Name box; then key the path
to the shell into the Location box.
6. Click Add.
The name and location of the shell display in the Shell box. If you want to set a default shell for the queue, proceed to the next step. Otherwise, skip to step 8.
You may want to specify the default shell for a batch queue on your system. The default shell is the one run when a user submits a job, but does not explicitly request a shell. When you set a default shell for a batch queue, you must explicitly select another shell if you want to submit a job to run a script that uses another shell. If you want to submit
executable programs (.EXE files) to a batch queue, do not set a default shell for that queue, or set the default shell to be CMD.EXE.
7. Select the shell in the Shell List box; then select Default.
The name of the shell displays in the Default Shell box.
8. Click OK.
You must have manager privileges on the batch server to set the default shell for a batch queue.
Adding Destinations to a Pipe Queue
Destinations are used with pipe queues. Pipe queues are normally used to create a connection to a remote batch queue. A pipe queue interprets a batch job request, and pipes it to the first available queue in its destination list that will accept the request. The destination list may contain any queue type.
To add a destination to a pipe queue: 1. Open Intergraph Batch Manager.
2. Click on the pipe queue listed in the server view, or select the queue view for that queue. 3. Select Queue > Properties.
The Queue Properties dialog displays.
4. Select the Destinations tab.
5. Key the new destination queue into the Destination edit box; then click Add.
The destination displays in the List box.
Creating and Managing Queues
6. A destination can be a local queue (on your system) or a remote queue (on other systems). Specify a local queue by its queue name. To specify a remote queue, use one of the following format: \\system_name\queue_name
If you list more than one destination for a pipe queue, the pipe queue will send a job to the first available queue in its destination list that will accept the job.
7. Repeat step 5 for each destination you want to add to the pipe queue. 8. When you have finished adding destinations to the pipe queue, click OK.
You must have manager privileges on the batch server to add a destination to a pipe queue.
Enabling and Disabling a Queue
A newly created queue has a disabled inflow state; it will not accept new jobs that are submitted or transferred to it. A queue must be enabled to accept new jobs.
You must have at least operator privileges on the batch server to enable or disable a queue.
To enable a queue:
1. Open Intergraph Batch Manager.
2. Click on the queue listed in the server view, or select the queue view for that queue. 3. Select Queue > Enable, or click Enable Queue from the toolbar.
The queue should now show as ENABLED in its listing in the server view.
The availability of the Enable and Disable menu and toolbar commands toggles, depending on the current inflow state of the queue.
To disable a queue:
1. Open Intergraph Batch Manager.
2. Click on the queue listed in the server view, or select the queue view for that queue. 3. Select Queue > Disable, or click Disable Queue from the toolbar.
The queue should now show as DISABLED in its listing in the server view.
Starting and Stopping a Queue
A newly created queue has a stopped outflow state; it will not run any jobs it contains. A queue must be started to run jobs.
You must have at least operator privileges on the batch server to start or stop a queue.
To start a queue:
1. Open Intergraph Batch Manager.
2. Click on the queue listed in the server view, or select the queue view for that queue. 3. Select Queue > Start, or click Start Queue from the toolbar.
The queue should now show as STARTED in its listing in the server view.
Creating and Managing Queues
The availability of the Start and Stop menu and toolbar commands toggles, depending on the current outflow state of the queue.
To stop a queue:
1. Open Intergraph Batch Manager.
2. Click on the queue listed in the server view, or select the queue view for that queue. 3. Select Queue > Stop, or click Stop Queue from the toolbar.
The queue should now show as STOPPED in its listing in the server view.
The availability of the Start and Stop menu and toolbar commands toggles, depending on the current outflow state of the queue.
Displaying Queue Status
You can display the status of any queue on the batch server on your computer, and of any queues on any batch servers on remote computers. Queue status information includes queue type, queue priority, inflow state, outflow state, and a count of the jobs currently in the queue. To display the status of a queue on your computer, double-click on the queue listed in the server view, or select the queue view for that queue in the Intergraph Batch Manager window.
To display the status of a queue on another system: 1. Open Intergraph Batch Manager.
2. Select Server > Connect.
3. Key in the name of the server (\\system_name) on which the queue resides; then click OK.
Batch Manager displays a server view for the selected server, listing the queues currently available on that server.
You can also use Queue > Connect To to display a queue view for a particular queue on
a remote computer.
S
E C T I O N
5
This section describes how to submit a batch job, and monitor the status of submitted jobs, on a system running Batch Services. For more information on the Batch Manager interface, or for information on using the command-line interface, refer to Batch Services Help.
You can use Batch Services to run an executable program on your system, or to perform a set of tasks on your system. To perform a set of tasks, you can create a script, a file containing instructions that can be interpreted by a shell. The following section describes scripts; the rest of the chapter describes how to submit and monitor batch jobs.
In This Section
Creating a Script ... 29 Submitting a Job ... 30 Saving and Restoring Named Batch Jobs ... 33
Creating a Script
A batch job reads a script and performs the instructions in it, using the appropriate shell (the program that runs the instructions in the script). Scripts can take many forms, including .bat files
and Perl scripts. A script can also be an executable program (.EXE file) if the queue has no default shell, or if the shell is set to CMD.EXE.
The following example is a .bat script that backs up a directory on the batch server to a shared
drive that has been locally mounted from a remote system. To use the script, ensure that a local batch queue has been created, enabled, and started, and that the queue’s default shell is the
cmd.exe program.
REM This script will do the following: REM
REM 1. Mount the shared drive \\machine\share
REM 2. Copy everything in c:\users\default to the shared drive. REM 3. Unmount the shared drive.
REM
net use p: \\machine\share xcopy c:\users\default p: /e /i net use /delete p:
The following example is a .bat script that prints all PostScript files in the c:\temp directory on
the batch server to a printer on a remote Windows system. To use the script, ensure that a local batch queue has been created, enabled, and started; that the queue’s default shell is the
cmd.exe program; and that your system has access to the printer on the remote Windows
system.
REM This script will do the following: REM
REM 1. Associate a remote printer on a Windows system
REM (\\machine\printer) with a local printer port.
REM 2. Copy files in c:\temp that end in .ps to the local printer
REM port.
REM 3. Remove the printer association.
Submitting a Batch Job
Submitting a Batch Job
REM
net use lpt1: \\machine\printer cd c:\temp
for %%I in (*.ps) do copy %%I lpt1: net use /delete lpt1:
Submitting a Job
To submit a job to be run on the batch server on your system: 1. Open Intergraph Batch Manager.
2. Select a queue listed in the server view, or select the queue view for that queue. 3. Ensure that the selected queue is enabled and started.
4. Select Job > Submit, or click Submit Job on the toolbar.
Intergraph Batch Manager provides tabbed pages in the Job Submit dialog for the following job
parameter categories:
General Sets basic information about the job.
Scheduling Sets the parameters associated with scheduling the job for execution. Notification Sets the notification preferences for the job.
Output Specifies how output should be handled for the job. Resources Configures job resources needed for the batch job. File Staging Describes how necessary files for the job are handled. Advanced Sets advanced job parameters.
The following sections describe basic operational parameters found in the Job Submit dialog,
along with brief instructions for using them when submitting a job.
Setting Basic Job Information
Displays the following basic information about the job.
Job ID - Shows the ID of the job.
Owner - Specifies the user who has submitted the job. State - Shows the status of the job.
Queue - Specifies the queue to which the job is submitted. Job Name - Specifies a user-defined name for the job. Script File - Specifies the shell script submitted for execution.
Account Name - Specifies a user-defined string describing the account. Size - Shows the size of the shell file.
Shell - Displays the currently selected shell for the job. A blank value indicates the default shell
for the queue. This value can be set only at job submission.
Restartable - Controls whether the job is restarted after a system crash, system shutdown, or
batch service shutdown while the job is running.
Submitting a Batch Job
Setting Job Scheduling Information
Describes the various parameters associated with scheduling the job for execution.
Job Occurs - Sets the execution frequency of a job. Jobs can be scheduled to run once or at
regular intervals. If you choose to run jobs at regular intervals, additional recurring job frequency controls (Minutes, Hourly, Daily, Weekly, Monthly, or Yearly) appear to the right of this field.
These controls allow you to enter more specific scheduling information. The scheduling controls can be changed at job submission, and the recurring jobs frequency controls can be modified for recurring jobs already submitted.
Time Ranges / Range Times - Sets a period of time within a day for the recurring job to run.
This option is available only with Minute(s) and Hourly settings. The Range Times controls are
shown after you click Time Ranges. For example, if you want to schedule an hourly recurring
job to run from 15:30 to 22:00, specify 15 Hours, 30 Minutes for the From field and 22 Hours, 00 Minutes for the To field.
Start Date - Specifies the date when a one-time job should be run or when the execution series
of a recurring job should begin. This setting can be changed at any time before the end date.
End After - Specifies how many times the job is run before its execution series ends No End Date - Sets the recurring job to run indefinitely.
End By - Specifies an end date for the execution series of the job.
Start Time - Specifies the time the job is allowed to start. These fields can be changed at job
submission and at any time before the end date for submitted recurring jobs.
Current Time - Uses the submission time of the job as its start time. This field can be changed
at job submission and at any time before the end date for submitted recurring jobs.
Next Occurrence - Shows the date and time of the next occurrence of the recurring job. This
read-only field appears only for recurring jobs (on page 38). It is calculated by Batch Services.
Creating Recurring Jobs
If you have a task that recurs on a regular basis, such as a nightly backup, you can schedule it as a recurring job. You only schedule recurring jobs once, and then Batch Services
automatically runs all future occurrences of the job for you.
As an example, we will schedule a system backup to run every Tuesday and Thursday at 7:00 PM, starting on the first of September 2011. To do this:
1. Open Intergraph Batch Manager and select the queue to which you want to submit the
recurring job.
2. Select Job > Submit.
3. Browse for and select the backup script that you want to run. 4. Select the Scheduling tab.
5. Select weekly job frequency by choosing the Weekly radio button.
6. Select a weekly frequency of every 1 week.
7. Select the Tuesday and Thursday checkboxes, making sure that no other checkboxes are selected.
8. Set the effective date to September 1, 2011.
9. Set the start time to 19:00 (7:00 PM). The Next Occurrence field will note that the first
occurrence of the backup job will be run on Thursday, September 1, 2011 at 7:00 PM.
Submitting a Batch Job
Specifying Job Notification Preferences
Describes the notification preferences for the job. Notification preferences can be set only at job submission.
Job Start / Job Completion / Job Abort - Specifies the notification option. You can be notified
for the following events:
The job begins execution (Job Start).
The job completes execution (Job Completion).
The job is aborted (Job Abort).
By default, Job Abort is selected.
Output File / Error File - Sets whether output files and error files are included with the
notification.
Address - Lists mail addresses in the form \\host (event log notification) or user@host (see
Configuring SMTP Mail). Mail will be sent to each recipient. To add an address to the list, type in the mail address and click Add. You can specify more than one recipient by typing in addresses
separately, and clicking Add after each address. By default, job notification messages are
placed in the event log of the batch server where the job is run.
Address Book - Opens the address book for you to select mail addresses. Add - Adds the specified recipient to the list box.
Move Up - Moves the selected recipient up in the list of mail addresses. Remove - Removes the highlighted recipient from the list of mail addresses. Remove All - Removes all existing recipients from the list of mail addresses.
Specifying How to Handle Job Output
Specifies how the output is handled for the job. This information can be changed only at job submission.
Output Pathname - Specifies a path and file name indicating where the standard output files
are stored. For local files, type in the complete pathname. You can specify a network pathname using the \\host\pathname\filename format.
Error Pathname - Specifies a path and file name indicating where the standard error files are
stored. For local files, type in the complete pathname. You can specify a network pathname using the \\host\pathname\filename format.
Keep Output on Execution Host - Specifies whether the output is kept on the execution host. No Spooling - Specifies whether output is to be created directly in the specified pathname,
rather than spooling (on page 38) the output and waiting until the job is completed. Spooling is not supported on remote computers.
Join Output in One File - Disables the Standard Error group box and sends all output to the
standard output.
Submitting a Batch Job
Specifying Job Resource Requirements
Configures the various job resources needed for the batch job.Execution Priority - Sets the run time priority. The default run time priority is set by the queue.
This value cannot be greater than the execution priority for the queue.
Environment - Enters and updates environment variables. These values can be specified only
at job submission.
Variable - Specifies the environment variable name. Value - Specifies the environment variable value.
Set - Adds the selected environment variable name to the batch environment of the job. Remove - Deletes the selected environment variable from the batch environment of the job. Remove All - Deletes all environment variables from the batch environment of the job. Add Current Environment Variables - Adds all environment variables in the current
environment to the name list. This option is available only at job submission.
Saving and Restoring Named Batch Jobs
A batch job can be saved to a file for later recall, modification, and submission. This is especially useful if you want to set up certain job parameters to be used again and again.
For example, you might have a certain set of people you want to notify whenever a backup runs. You could create a named job that contains the name of your backup script, the queue in which it should run, and the notification list and save it as BACKUP.NJOB. To run a backup job, you would then open the named job using the Job Submit dialog, make any necessary changes (perhaps the start time of the job), and then submit the job. Using this method, you do not have to re-enter the job's parameters each time you want to run the job.
After you have created a named job, you can access it in a variety of ways. Any of the following methods open the named job and fill in the Job Submit dialog with all of its parameters:
1. Click Open on the Job Submit dialog box, browse for the named job, and click OK.
2. Drag the named job file from Windows Explorer into the Batch Manager window. 3. Enter the command batchmgr named_job.NJOB at the command prompt, where
named_job is the name of the job file.
4. Double-click on the named job file in Windows Explorer.
The last two methods will not work if Batch Manager is already active since only one Batch Manager session at a time is allowed.
To create a named job:
1. Select Job > Submit.
The Job Submit dialog displays.
2. Enter the job parameters that you want to save as a named job. 3. Click Save As to name and save your job.
To recall and submit a previously saved named job:
1. Select Job > Submit.
The Job Submit dialog displays.
2. Click Open to browse for previously saved named jobs.
Submitting a Batch Job
3. Choose the named job you want to recall, and click OK.
Batch Manager loads the saved job parameters into the Job Submit dialog and displays the name of the job in the title of the Job Submit dialog box.
4. You can submit the job exactly as it was stored in the named job file, or you can make modifications. If you want to save changes you make, click Save to overwrite the existing
named job, or click Save As to choose a new name for the modified job.
5. Click Submit to submit the job.
Creating a Named Job
To create a named job:1. Select Submit from the Job menu to display the Submit dialog box. See Submitting a Job (on page 30) for more information about the Submit dialog box.
2. Enter the job parameters that you wish to save as a named job. 3. Select Save As to name and save your job.
Submitting a Named Job
To recall and submit a previously saved named job:
1. Select Submit from the Job menu to display the Submit dialog box. 2. Select Open to browse for previously saved named jobs.
3. Choose the named job you wish to recall, and select OK. Batch Manager loads the saved job parameters into the Job Submit dialog, and displays the name of the job in the title of the Job Submit dialog box.
4. You may submit the job exactly as it was stored in the named job file, or you can make modifications. If you wish to save changes you make, select Save to overwrite the existing named job, or select Save As to choose a new name for the modified job.
5. Select Submit to submit the job.
A
account mapping
The process of determining the account name to use when running jobs. Batch Services requires an account name and password to use when running jobs. To perform account mapping, the server tries to match the job owner with an account mapping entry.
B
batch job
A batch job is the full set of instructions to Batch Services to perform a given task or set of tasks on a computer system. The job itself is identified with a script, or a file that can be interpreted by some program to perform a set of instructions. An example of a script is a .BAT file, which is interpreted by the CMD.EXE program.
A unique job identifier or jobid identifies each job. No two jobs will have the same jobid. See also job and shell.
batch queue
A batch queue accepts requests to execute scripts or commands from the keyboard as if the user submitting the request were logged in to the system. Jobs are executed in a batch queue. The resulting output returns to the directory from which the original requestor submitted the job. You can request the output to remain on the executing node or return to a remote node. Batch queues can also have a list of shells associated with them, allowing an administrator to configure a queue to run certain types of scripts. For example, a batch queue may be set up to run scripts for the Perl program. See also queue.
batch server
A Windows service that processes batch jobs, and maintains queue and job information. A Batch Server is also the system on which Batch Services runs. The SmartPlant Batch Server is a system service that may be controlled using the Services icon on the Control Panel.
D
default queue
The queue to which a job is assigned when a user does not specify a queue.
default shell
The shell that is used to run a job submitted to a queue when a user does not specify a shell for that job.
Glossary
Glossary
disabled
A queue state in which the queue will not accept new jobs.
E
enabled
A queue state in which the queue will accept new jobs.
execution host
The computer where a batch job is run.
H
hold
A delay in running a job submitted to a queue. A held job will not run until the hold is released, or the job is deleted from the queue.
A user hold may be placed on a job submitted by that user when the job is submitted. A user
hold can be released either by the submitting user, or by a user with operator or manager privileges on the server.
A user with operator or manager privileges may place an operator hold on a job, after the job is submitted but before it runs. Only a user with operator or manager privileges can release an operator hold.
When a job is being held, the job will remain in the queue until it is deleted or released. It will not run while the hold is in place. See also privilege.
I
inflow state
The state of a queue with regard to accepting jobs. See also queue state, enable, disable.
J
job
A set of instructions needed to perform a given task or set of tasks on a computer system. See also batch job and shell.
job identifier (job ID)
A unique alphanumeric string that identifies a job. A batch job ID is in the form jobid.orighost,
where jobid is a sequentially assigned number up to 5 digits in length, and orighost is the name of the system from which the batch job originated.
When a job is successfully submitted, it is assigned a unique job-id. The job-id can be used to reference the job. No two jobs will have the same job-id.
