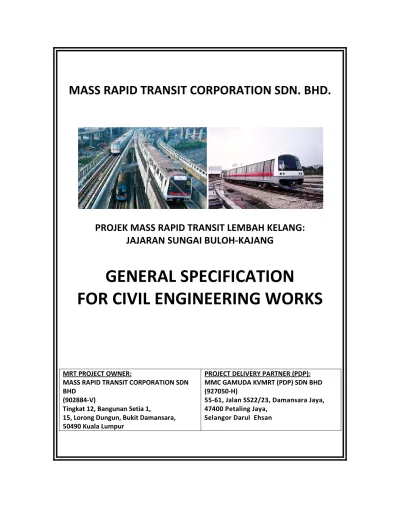

MASS RAPID TRANSIT CORPORATION SDN. BHD.
PROJEK MASS RAPID TRANSIT LEMBAH KELANG:
JAJARAN SUNGAI BULOH-KAJANG
GENERAL SPECIFICATION
FOR CIVIL ENGINEERING WORKS
MRT PROJECT OWNER:
MASS RAPID TRANSIT CORPORATION SDN BHD
(902884-V)
Tingkat 12, Bangunan Setia 1,
15, Lorong Dungun, Bukit Damansara, 50490 Kuala Lumpur
PROJECT DELIVERY PARTNER (PDP): MMC GAMUDA KVMRT (PDP) SDN BHD (927050-H)
55-61, Jalan SS22/23, Damansara Jaya, 47400 Petaling Jaya,
JAJARAN SUNGAI BULOH ‐ KAJANG
GENERAL SPECIFICATION
FOR CIVIL ENGINEERING WORKS
Document Reference No. :
KVMRT/PDP/SBK/GEN/OP/GS/CS/0001
Revision
:
01
Date Issued
:
18
thOctober 2011
Page Not Used
AMENDMENT HISTORY
REVISION NO. DETAILS OF AMENDMENT 00 First issue. 01 Minor amendments made to Sections G1, G3, G4, G5, G7, G9, G11, G13, G16, G17, and G18
Page Not Used
TABLE OF CONTENTS
Page SECTION G1 ‐ GENERAL G1.1 Application of the General Specification ... G1‐1 G1.2 Abbreviations and definitions ... G1‐1 G1.3 Glossary of terms ... G1‐5 G1.4 Trials ... G1‐6 G1.5 Standards and Codes of Practice ... G1‐6 G1.6 Drawings... G1‐7 G1.7 Contractor’s Drawings ... G1‐7 G1.8 Metric and Imperial units ... G1‐8 G1.9 Dimensions from Drawings ... G1‐8 G1.10 Investigation data ... G1‐8 G1.11 Survey of the Site ... G1‐9 Appendix AG1.1 ‐ Requirements For As‐Built Surveys ... G1‐17 SECTION G2 – THE SITE G2.1 Access to the Site ... G2‐1 G2.2 Site restrictions ... G2‐1 G2.3 Site services ... G2‐2 G2.4 Site cleanliness ... G2‐4 G2.5 Parking Facilities ... G2‐5 G2.6 Site Pest Control ... G2‐6 G2.7 Conditions for temporary land allocation ... G2‐6 G2.8 Site Security ... G2‐6 G2.9 General Works Trains ... G2‐6 G2.10 Contractor’s Own Rolling Stock... G2‐7 G2.11 Defined Area and Restricted Area Working and Works Train Operations ... G2‐8 Appendix AG2.1 ‐ Requirements of Works Package Contractor’s Own Rolling Stock ... G2‐11 SECTION 3 ‐ SITE ESTABLISHMENT G3.1 Use of the Site ... G3‐1 G3.2 Submission of particulars ... G3‐1 G3.3 Survey of the Site ... G3‐2 G3.4 Fences and Signs on the Site ... G3‐2 G3.5 Site Office Accommodation for the PDP, PDPR and the Supervising Consultant ... G3‐3Page G3.6 The Works Package Contractor's Site Accommodation ... G3‐6 G3.7 Vehicles for the PDP and Supervising Consultant ... G3‐6 G3.8 Clearance of the Site ... G3‐8 G3.9 Attendance ... G3‐8 G3.10 Material Testing Laboratory ... G3‐9 G3.11 Provision For Survey Instruments and Chainmen ... G3‐10 G3.12 Photographic Records ... G3‐10 G3.13 Prohibition of Advertising ... G3‐12 SECTION G4 ‐ THE WORKS G4.1 Project Execution Plan ... G4‐1 G4.2 Method Statements, and Inspection and Testing Plans ... G4‐2 G4.3 Normal working hours at Site ... G4‐2 G4.4 Drawings and schedules for plant and equipment ... G4‐3 G4.5 Stage notification and inspection of Works ... G4‐3 G4.6 Demolition works ... G4‐4 G4.7 Construction restraints ... G4‐4 G4.8 Temporary Works ... G4‐5 G4.9 Off‐Site Fabrication Works ... G4‐8 G4.10 Construction equipment and plant ... G4‐8 G4.11 Protection of the Works ... G4‐9 G4.12 Approvals from Relevant Authorities ... G4‐10 G4.13 Technology Transfer ... G4‐11 SECTION G5 – WORK IN ROADS G5.1 Maintenance of Existing Roads, Bridges, Culverts, etc. ... G5‐1 G5.2 Temporary diversions and traffic management ... G5‐2 G5.3 Half‐width Construction and Traffic Control ... G5‐8 G5.4 Temporary Traffic Signs ... G5‐8 G5.5 Temporary Routes ... G5‐9 G5.6 Use of roads and footways... G5‐9 G5.7 Pedestrian requirements ... G5‐9 G5.8 Temporary street lighting ... G5‐10 G5.9 Reinstatement of roads and footways ... G5‐11 G5.10 Traffic Management Implementation Team ... G5‐11
Page SECTION G6 – DAMAGE AND INTERFERENCE G6.1 Damage and interference ... G6‐1 G6.2 Watercourses and drainage systems ... G6‐2 G6.3 Utilities and other services ... G6‐3 G6.4 Condition survey of existing buildings and structures ... G6‐6 G6.5 Structures, roads and other property ... G6‐6 G6.6 Trees and other similar obstructions ... G6‐6 G6.7 Avoidance of nuisance ... G6‐6 G6.8 Protection of Existing Railways ... G6‐7 G6.9 Electromagnetic Compatibility ... G6‐8 Appendix AG6.1 ‐ Reference List Of Standards Relating To EMC ... G6‐14 SECTION G7 – TEMPORARY ELECTRICITY SUPPLY G7.1 Work on Site ... G7‐1 G7.2 Electrical ‐ general ... G7‐1 G7.3 Scope ... G7‐2 G7.4 Materials, appliances and components ... G7‐2 G7.5 Design considerations ... G7‐2 G7.6 Mains voltage ... G7‐2 G7.7 Types of distribution supply ... G7‐2 G7.8 Protection of circuits ... G7‐3 G7.9 Earthing ... G7‐3 G7.10 Plugs, socket outlets and couplers ... G7‐3 G7.11 Cables ... G7‐3 G7.12 Transformers and switchgear in tunnels ... G7‐4 G7.13 Lighting installation ... G7‐4 G7.14 Electrical motors ... G7‐4 G7.15 Inspection and testing ... G7‐5 G7.16 Identification ... G7‐5 G7.17 Maintenance ... G7‐5 G7.18 Maintenance record ... G7‐5 G7.19 Electricity supply for Other Works Contractors and trial operations ... G7‐5 G7.20 Metering ... G7‐7 G7.21 Payment of electricity charge ... G7‐7
Page SECTION G8 – MATERIALS, EQUIPMENT, AND SPARE PARTS G8.1 Materials ... G8‐1 G8.2 Materials and equipment provided by Other Works Contractors ... G8‐2 G8.3 Supply of Spare Parts and Special Tools... G8‐3 G8.4 Packing and Storage ... G8‐4 G8.5 Shipping and Delivery... G8‐7 SECTION G9 – SAFETY & HEALTH G9.1 Works Package Contractor's Safety & Health Obligations ... G9‐1 G9.2 Laws and Regulations ... G9‐2 G9.3 Contractor's Safety and Health Personnel ... G9‐2 G9.4 Safety & Health Plan ... G9‐4 G9.5 Safety & Health Risk Assessment ... G9‐5 G9.6 Emergency preparedness and response ... G9‐6 G9.7 Incident notification and reporting ... G9‐7 G9.8 Control of Safety & Health Non‐Compliance ... G9‐7 G9.9 Traffic Management and Public Safety ... G9‐8 G9.10 General Safety and Health Requirements ... G9‐8 G9.11 Safety and Health Meetings ... G9‐15 G9.12 Safety & Health Documentation ... G9‐15 G9.13 Monthly progress report ... G9‐15 G9.14 Training ... G9‐16 G9.15 Safety and Health Inspection and Auditing ... G9‐16 SECTION G10 – QUALITY ASSURANCE AND QUALITY CONTROL G10.1 Introduction ... G10‐1 G10.2 Minimum QA/QC Requirements ... G10‐1 G10.3 Quality Management Responsibility ... G10‐4 G10.4 QA/QC Program and Plan ... G10‐4 G10.5 Document Control ... G10‐6 G10.6 Product Identification and Traceability ... G10‐7 G10.7 Inspection and Testing ... G10‐7 G10.8 Non‐Compliance and Disposition of Non‐Conforming Materials ... G10‐10 and Constructed Works G10.9 Corrective and Preventive Actions ... G10‐11 G10.10 Quality Audits and Training ... G10‐11
Page SECTION G11 – ENVIRONMENTAL MANAGEMENT G11.1 General Environmental Management ... G11‐1 G11.2 Legal Requirements... G11‐1 G11.3 Environmental personnel ... G11‐2 G11.4 Detailed Environmental Impact Assessment (‘DEIA’) ... G11‐2 G11.5 Environmental Management Plan (‘EMP’) ... G11‐2 G11.6 Erosion and Sediment Control Plan (‘ESCP’) ... G11‐4 G11.7 Deliverables ... G11‐4 G11.8 Environmental Protection Works ... G11‐5 G11.9 Stormwater Management ... G11‐8 G11.10 Environmental Incidents ... G11‐8 G11.11 Environmental Monitoring, Site Inspection and auditing ... G11‐8 G11.12 Training, Promotion and awareness ... G11‐9 G11.13 Meetings ... G11‐10 G11.14 Non Compliance ... G11‐10 SECTION G12 – PLANNING, PROGRAMMING AND PROGRESS MONITORING OF THE WORKS G12.1 Planning and Programming ... G12‐1 G12.2 Planning and Programming Organization ... G12‐1 G12.3 Programme Submissions ... G12‐1 G12.4 Progress Monitoring... G12‐1 G12.5 Programme Requirements ... G12‐2 G12.6 Baseline Programme ... G12‐4 G12.7 Design, Procurement and Manufacturing Programme ... G12‐6 G12.8 Architectural Builder’s Works and Finishes (ABWF) and ... G12‐8 Building Services Programme G12.9 Testing and Commissioning Programme ... G12‐9 G12.10 Co‐ordinated Installation Programme ... G12‐9 G12.11 Three Month Rolling Programme ... G12‐10 G12.12 Schedule of Design ... G12‐11 G12.13 Time Chainage Programme ... G12‐13 G12.14 Track Related Installation Programme (TRIP) ... G12‐13 G12.15 Construction Equipment & Labour Returns ... G12‐15 G12.16 Monthly Progress Meeting and Report... G12‐15 G12.17 Programme Analysis Report ... G12‐18
Page SECTION G13 – LIAISON WITH OTHERS G13.1 Liaison with others ... G13‐1 G13.2 Work by Other Works Contractors ... G13‐1 G13.3 Coordination and cooperation ... G13‐2 G13.4 Other Project Contracts and Co‐ordination ... G13‐2 G13.5 Interface Management Plans and Interface Control Documents ... G13‐4 G13.6 Coordination with Other Works Contractors in preparing CSDs and SEMs ... G13‐6 G13.7 Coordination Meetings ... G13‐8 Appendix AG13.1 ‐ Table of Contents for Interface Management Plan ... G13‐9 And Interface Control Document SECTION G14 – DOCUMENT MANAGEMENT G14.1 Documents, submissions and correspondence ... G14‐1 G14.2 Electronic File Formats ... G14‐2 G14.3 Submissions programme ... G14‐3 G14.4 Submission and review procedure ... G14‐4 G14.5 Project records ... G14‐5 SECTION G15 – GENERAL REQUIREMENTS FOR BUILDING SERVICES ANDARCHITECTURAL BUILDERS WORKS AND FINISHES G15.1 General ... G15‐1 G15.2 Submissions ... G15‐1 G15.3 Coordination ... G15‐1 G15.4 Submissions for Building Services Works ... G15‐1 G15.5 Submissions for Architectural Builders Works and Finishes ... G15‐6 SECTION G16 – SOFTWARE MANAGEMENT AND CONTROL G16.1 General ... G16‐1 G16.2 Software Quality Assurance Plan ... G16‐1 G16.3 Software Release Control ... G16‐3 G16.4 Software Progress Tracking ... G16‐4 G16.5 Software Audit ... G16‐5 G16.6 Software Documentation ... G16‐6 G16.7 Safety Integrity Level ... G16‐6 G16.8 Software Deliverables and Licenses ... G16‐7 G16.9 Backup ... G16‐8 Appendix AG16.1‐ Typical Table of Contents for Software Quality Assurance Plan ... G16‐9
Page SECTION G17 – SYSTEM SAFETY G17.1 Construction Risk Management ... G17‐1 G17.2 System Assurance ... G17‐1 SECTION G18 – TESTING AND COMMISSIONING G18.1 General ... G18‐1 G18.2 Testing and Commissioning ... G18‐1 G18.3 Operations and Maintenance Manuals ... G18‐2 G18.4 As Built Drawings ... G18‐2 G18.5 Training ... G18‐3 G18.6 Training Methods ... G18‐5 END OF TABLE OF CONTENTS
Page Not Used
SECTION G1
GENERAL
Application of the General Specification
G1.1 (1) The provisions contained in the Particular Specification and the Drawings shall in the event of any inconsistency or discrepancy prevail over the provisions contained in this General Specification (GS) and the Materials and Workmanship Specification.
(2) The provisions contained in the GS shall prevail over the provisions contained in the Standards, Codes of Practice and similar standard documents stated in the Contract.
(3) This GS shall be read in conjunction with other documents included in the Contract.
(4) All clause and section references in the GS shall refer to the Sections, Sub‐Sections, clauses and sub‐clauses within this document unless specifically described otherwise.
(5) References in the Contract to "General Specification" shall mean this document and to the provisions contained herein. (6) Further to the requirements of the Conditions of Contract
concerning the sufficiency of the Contract Documents, the Works Package Contractor shall promptly notify the PDP of any error, omission, fault or other defect in the Drawings and/or Specifications which he discovers when reviewing the Contract or Executing the Works.
Abbreviations and
definitions
G1.2 (1) Abbreviations used in the GS shall have the following meanings: ABWF : Architectural Builders' Works and Finishes AC : Alternating Current ALARP : As Low As Reasonably Possible ASTM : American Society for Testing and Materials BMS : Building Management System BS : British Standard CAD : Computer‐Aided Drafting CAR : Corrective Action Request CICE : Contractor’s Independent Checking Engineer CIDB : Construction Industry Development Board
CPM : Critical Path Method CSD : Combined Services Drawings DEIA : Detailed Environmental Impact Assessment DID : Department of Irrigation and Drainage DOSH : Department of Occupational Safety & Health DSM : Deterministic Safety Analysis E&M : Electrical and Mechanical EMP : Environmental Management Plan EN : European Standards ERP : Emergency Preparedness and Response Plan ESCP : Erosion and Sediment Control Plan GS : General Specification (this document) ICD : Interface Control Document IEC : International Electrotechnical Commission IEE : Institution of Electrical Engineers IEEE : Institution of Electrical and Electronic Engineers IMP : Interface Management Plan IP : Industrial Protection ISO : International Organisation for Standardization ITP : Inspection and Testing Plan LBS : Location Breakdown Structure M&WS : Materials and Workmanship Specification MSDS : Material Safety Data Sheet NCR : Non‐Compliance Report OBS : Organisation Breakdown Structure PAT : Partial Acceptance Tests PCMM : Project Codes and Method of Measurement PDM : Precedence Diagramming Method
PPE : Personal Protective Equipment PRO : Pre‐Revenue Operation QA : Quality Assurance QC : Quality Control SAMM : Skim Akreditasi Makmal Malaysia SAP : System Assurance Plan SAT : System Acceptance Tests SEM : Structural E&M Drawings SIL : Safety Integrity Level SOCSO : Social Security Organization TOC : Tests on Completion TRIP : Track Related Installation Programme (2) Abbreviations of units of measurement used in the GS shall have the following meanings: C : degrees Celsius g : gram g/ml : gram per millilitre g/m2 : gram per square metre ha : hectare hr : hour Hz : hertz J : joule kg : kilogram kHz : kilohertz kV : kilovolts
(3) Further to Clause 1.1 of the Conditions of Contract, the following words or phrases used in the GS shall have the meanings given to them below:
“Baseline Programme” means the Works Package Contractor’s coordinated detailed programme for the Works prepared in accordance with Clause G12.6, and which is referred to in the Conditions of Contract as the ‘baseline programme’, ‘Approved Programme’ or ‘Approved Revised Programme’, depending on the status of the programme. “Commissioning” means all activities and operations to be
performed by the Works Package Contractor to ensure that all machinery, apparatus and systems, insofar as is possible, is capable of being fully operated by the Works Package Contractor to satisfy all Integrated Test functions and tests to be performed during the Test Running period.
“Completion Tests” means tests including Installation Tests, PAT, SAT, TOC and PRO to be executed after the supply, delivery and installation of the Permanent Works but prior to practical completion of the Works or after any part of the Permanent Works contained in any section of the Works is installed but prior to practical completion of the section of the Works in which the part is comprised.
“Contractor’s Independent Checking Engineer” means the Registered Professional Engineer appointed by the Works Package Contractor to independently check and certify the design of Temporary Works.
"Defined Area" means an area of track as described in Clause G2.11.
“Design Documents” means all drawings, design calculations, software, specifications, samples, patterns, models, written procedures and all other documents and things relating to the design of the Permanent Works and/or the Temporary Works which are prepared by or on behalf of the Works Package Contractor.
"General Works Train" or “Works Train” means any rolling stock provided by the PDP or the Works Package Contractor respectively for the purpose of carrying out installation and testing works within the Defined Area or Restricted Area. “Integrated Test” means those system‐wide operability tests
to be undertaken by the Works Package Contractor whereby the Works Package Contractor shall demonstrate the compatibility between his plant and the plant of Other Works Contractors.
“Monthly Progress Report” means a report which shall be prepared and submitted by the Works Package Contractor to the PDP on a monthly basis, detailing the progress of the Contract and other matters as specified in Section G12. "Operating Railway" means the existing railway tracks
currently in revenue operation or in Trial Operations and any ancillary areas such as the depots, sidings, stations, terminus and traction power feeder stations which form part of the operating system.
"Railway Operator" means Prasarana (or one of its group of companies), or KTM, or other such company which operates or will operate the particular railway or transit system referred to in the clause in which the term has been applied. "Relevant Authority" means any Government department or
public body having jurisdiction in relation to the Works. "Restricted Area" means the location in the railway under
construction which houses electrical or mechanical equipment that has become energised and hence potentially dangerous to people working in the area. When the term is used for track area its associated power rail is energised and it is barricaded from unauthorised access and trains may be running at high speed for testing.
“ ‘S’ curve” means the graphical relationship between the planned (and actual where appropriate) quantity of completed work (or resources) and time. The curve produced is to be illustrated on an accumulative basis where the slope of the line indicates the rate of undertaking the work or rate of expenditure of the resources.
“Test Running” means that period of PAT, SAT, and TOC prior to Trial Running when the Other Works Contractors shall be testing their plant and equipment and run the same in conjunction with the Railway Operator. In addition during this period system‐wide tests shall be undertaken that shall require the attendance of relevant Other Works Contractors. “Trial Running” means that period immediately following the
completion of a section of railway under construction, but prior to opening, when the Railway Operator shall be operating the rolling stock and all other systems and generally using the railway as though a scheduled service was operating, except for the absence of fare‐paying passengers.
Glossary of terms
G1.3 (1) Words and expressions to which meanings are assigned in any Section of the GS shall have the same meanings in other
Sections of the GS except when the context otherwise requires.
(2) Utilities are electricity, lighting, traffic control, telephone and other communication cables, gas, water supply, sewerage and drainage, including all associated protection, supports, ancillary structures, fittings and equipment.
(3) Survey Datum Levels refers to the prevailing datum system applicable to the Klang Valley.
(4) The survey projection and the coordinates used on the Drawings refers to the prevailing survey system applicable to the Klang Valley.
Trials G1.4 (1) Trials shall be carried out as stated in the Materials and Workmanship Specification to demonstrate that proposed materials and methods of construction will produce work which complies with the specified requirements.
(2) Trials shall be carried out before the construction of the relevant Permanent Works commences so as to allow the PDP a sufficient period to determine if the trial complies with the specified requirements.
(3) Trials shall be carried out using materials and methods of construction of the types and locations approved by the PDP. (4) If, in the opinion of the PDP, work which complies with the
requirements of the Contract has not been produced in the trial, particulars of proposed changes to the materials or methods of construction shall be submitted for approval by the PDP, and further trials shall be carried out until relevant work which complies with the specified requirements has been produced in the trial, unless otherwise agreed by the PDP. Works for which trials are required shall not commence until, in the opinion of the PDP, work which complies with the specified requirements has been produced in the trial. (5) Unless permitted by the PDP, the materials and methods of construction used to produce work which complies with the specified requirements in a trial shall not be changed unless further trials have been carried out to demonstrate that the proposed changes are satisfactory. Standards and Codes of Practice
G1.5 (1) The particular edition of any Standard or Code of Practice applicable to the Works, shall be the edition stated in the Specifications. If no edition is specified, the Standard or Code of Practice shall be deemed to be the edition current at the time of Tender, unless otherwise approved by the PDP. If the Malaysian Standard exists, which the PDP determines to be equivalent to the British or other Standard specified, then
the Malaysian Standard shall be followed.
(2) In the event of any discrepancy between the provisions of the Specifications and the provisions within the relevant Standards or Codes of Practice as mentioned in this Specification, then the provisions of the Specifications shall take precedence.
(3) The Works Package Contractor shall provide for the use of the PDP such Standards and Codes of Practice as may be required in the execution of the Works. These shall remain the property of the Works Package Contractor.
(4) The Permanent Works, and, where appropriate, materials and workmanship, shall be in accordance with the Materials and Workmanship Specification and the requirements of the Contract, or where no standard is identified, the Works Package Contractor shall make a proposal which shall be subject to approval by the PDP.
Drawings G1.6 (1) A list of those drawings forming part of the Contract (Drawings) is included in the Specifications if applicable. (2) All references to drawing numbers shall refer to the latest
amendment of that drawing, unless a specific revision or version number is stated in such references.
(3) On completion of each section of the Works the Works Package Contractor shall be responsible for modifying the Drawings to reflect the as‐built condition. This exercise shall include for all amendments to dimensions, removal or amendment to notes, changes from future tense to past tense and materials used.
(4) For ‘build only’ contracts, the as‐built drawings shall be carried out on soft copies of the Drawings which shall be provided to the Works Package Contractor for this purpose. (5) For ‘design and build’ contracts, the as‐built drawings shall
be endorsed by the Works Package Contractor’s Design Consultant.
Contractor’s Drawings
G1.7 (1) The preparation and submission of drawings, sketches, figures, diagrams, illustrations and the like by the Works Package Contractor in the execution of the Works, shall be in accordance with the PDP’s CAD requirements or other standard approved by the PDP. Any soft copies of drawings provided for the use of the Works Package Contractor shall be modified by him if necessary to ensure that his submissions comply with the approved CAD requirements. (2) The Works Package Contractor shall be responsible for the
production of “As‐Built” drawings. These shall include, but are not limited to: structural design drawings; architectural drawings including detail drawings, framing plans, fixings etc; E&M drawings including details of components, fixing, conduit locations; drawings of all services; and any Temporary Works which have been left in place with the approval of the PDP. These shall be prepared and submitted in accordance with Section G14.
(3) The Works Package Contractor shall submit the following no. of copies of “As‐built” drawings:
a) Four sets of A1 size drawings comprising 1 set of original reproducible drawings and 3 sets of non‐fade prints.
b) Six sets of A3 size prints reduced from the original A1 size drawings.
c) Four sets of electronic copies stored on CD‐ROM. (4) The Works Package Contractor shall be responsible for the
production of all drawings required for submission to statutory bodies, other Government Departments, and utility undertakings in order to progress the Works.
Metric and Imperial units
G1.8 Specifications in imperial units shall not be substituted for Specifications in metric units stated in the Contract without the prior approval of the PDP.
Dimensions from Drawings
G1.9 Dimensions shall not be obtained by scaling from the Drawings. Dimensions which are not shown on such drawings or calculable from dimensions shown on such drawings shall be obtained from the PDP.
Investigation data
G1.10 (1) Utility investigation data, ground investigation, laboratory investigation, laboratory testing data, rock cores and soil samples taken from ground investigation commissioned or obtained by the PDP in connection with the Project, are available for inspection on application to the PDP.
(2) The utility investigation data, ground investigation data and laboratory testing data are made available to the Works Package Contractor solely for the purpose of assisting the Works Package Contractor to make his own interpretation of the ground conditions and utility locations. The accuracy or reliability of the information given in the information supplied, prepared or commissioned at any time by the PDP in connection with the Works and adjacent or interfacing works is not warranted and the PDP shall have no liability to the Works Package Contractor in any manner whatsoever for such information.
(3) All other additional utility investigation, ground investigation and laboratory testing required for the execution of the Works shall be carried out by the Works Package Contractor in accordance with the Contract.
G1.11 Survey of the Site
Survey Works G1.11.1 (1) The PDP has established a Primary Control Survey Network for the Project. The Works Package Contractor shall reference this network and undertake all survey works necessary to establish, maintain control of and record the locations, alignments and levels of the Works. The survey works shall, without limitation, include:
a) A Survey Control Network for the Works. The Works Package Contractor shall within two (2) calendar months from the date of the Letter of Acceptance complete and submit for the PDP’s approval his “Survey Control Network”.
b) An Initial Land Record Survey or surveys of parts of the Site, which shall be completed together with drawing records prior to commencement of work on that part of the Site.
c) All surveys required during the progress of the Works to control and record the location, alignment and level of the Works.
d) The as‐built surveys of the Permanent Works and the preparation of Survey Records Drawings in accordance with the requirements of this Section G1.11.
e) Where applicable, the deformation monitoring of any Permanent Works which are constructed on reclaimed land.
f) Precondition surveys of buildings, structures and other facilities potentially affected by the works. g) Video surveys of all existing drains and sewers within
the Site and to the nearest manhole or catchpit outside the Site boundary.
(2) For the Survey Control Network, the Works Package Contractor is required to establish a first order Horizontal Survey Control Network that consists of Primary Control Stations plus a Vertical Survey Control Network at grade level to be established that consists of Bench Marks. The requirements and standards of accuracy for the networks
shall be : Horizontal Network Requirements Accuracy • 1:100,000 for underground works sections. • 1:60,000 for elevated works sections Origin • Major Trigonometrical Stations. • Distances between adjacent stations established to be between 500m and 1000m. Vertical Network Requirements Accuracy • Levelling route shorter than 1 km: +/‐ 1mm √N (where N is number of set‐up) • Levelling route over 1 km: +/‐ 4mm √K (where K is in kilometres) for underground works sections +/‐ 6mm √K (where K is in kilometres) for elevated works sections Origin • At least 2 agreed permanent benchmarks at both ends of the levelling route should be selected.
(3) The location of control stations and benchmarks must be safe, stable and easily accessible. The Works Package Contractor is responsible for site clearance to ensure inter‐ visibility between horizontal control stations and to obtain all relevant permits for performing the survey. (4) Survey Station Markers to be installed for the new Horizontal Control Network Stations and Benchmarks shall be in one of the following types: Survey Marker Ground Conditions Triangulation Monument (Concrete pillar) Hilltop Picket Box Open ground Survey Nail Kerbstones, pavement, concrete sumps, concrete roof or structures Stainless Steel Rod Bench Mark Concrete wall / structures or natural rock (5) Prior to the commencement of field observations, the Works Package Contractor must submit for approval a Survey Method Statement that includes the following information to demonstrate that the survey is capable of achieving the accuracies and standards of this GS:
a) The routing and configurations of the Networks, b) The pre‐analysis reports,
materials and data processing and computing software packages,
d) Survey operation scheme and quality procedures, e) Staffing qualifications and experience, and
f) Data handling procedures and data format for final result submissions.
(6) On completion of the survey, the Works Package Contractor shall submit the following deliverables:
a) A survey report summarizing instruments used, survey procedures, approach to adjustment computation and analysis result.
b) Hard and softcopy of a Survey Album that includes network diagrams and location sketches, Station Summary sheet for each Station and Bench Mark with a co‐ordinate list of all the Stations and Bench Marks. c) Original field notes, data disks, field sketches,
computation sheets for all reduction computation and adjustment results.
d) A valid calibration certificate for each instrument and valid license for each software package used in the survey.
(7) The Initial Land Record Survey shall be undertaken prior to the commencement of works on Site and no works may be carried out on any part of the Site until it has been surveyed and the survey records approved by the PDP. It shall:
a) Record all original landforms, features, levels and the like.
b) Establish the lines, levels and boundaries of the Works.
c) Locate or confirm the details and location of all utilities and services on or in the Site.
d) Check where relevant adjacent roads, buildings, structures and any construction work not associated with the Contract are located.
(8) The Initial Land Record Survey shall be undertaken with a view to providing sufficient detailed information of major existing features which are to be demolished or altered during the course of the Works and form the basis for future Site reinstatement and as a record for details/standards
required for such reinstatement.
(9) Precondition surveys of buildings and structures shall be carried out by a suitably qualified engineer or qualified building surveyor, as necessary for the nature of the structure concerned and which shall produce an accurate record (together with photographic records) of the existing state of the structure prior to the commencement of work in the concerned area. In addition to any reports issued to the Relevant Authorities, the Works Package Contractor shall submit three (3) copies of the precondition survey reports to the PDP not less than twenty‐eight (28) days prior to the commencement of work in that area.
(10) The Works Package Contractor shall conduct video record surveys of all existing drainage and sewerage systems within and directly adjacent to the Site and submit to the PDP two copies of all survey records and video footage prior to commencement of any works within the relevant parts of the Site. The surveys shall extend to the first manhole outside the Site boundary.
(11) The Works Package Contractor shall conduct video record surveys of all existing and new drainage and sewerage systems within the Site and submit to the PDP two copies of all survey records and video footage within twenty‐eight (28) days of the issue of the Certificate of Practical Completion for the Works. Survey Quality Plan G1.11.2 The Works Package Contractor shall submit for approval by the PDP within one (1) month from the date of the Letter of Acceptance, a Survey Quality Plan or plans for the control of all survey work. The Survey Quality Plan shall define:
a) The organization, responsibilities and authorities given to identified personnel.
b) The methods and procedures for establishing, maintaining control of and recording all survey activities required by the Contract.
c) The proposed method of recording the data arising from these surveys and the electronic digital format for such records.
e) The Survey Plan in accordance with this Section.
f) The method and procedure for notifying the PDP of all survey activities.
g) The methods and procedures for the calibration of the survey equipment.
h) The frequency of monitoring for all Survey Control Network Points. The Survey Manager G1.11.3 The Works Package Contractor shall appoint a suitably qualified and competent person as the Survey Manager, to be responsible for the task of ensuring that the requirements of the Survey Quality Plan are implemented and maintained. The Works Package Contractor shall at the time of submission of the Survey Quality Plan, submit for approval by the PDP details of the qualifications, experience, authority and responsibilities of the proposed Survey Manager. Survey Plan G1.11.4 Each survey undertaken by the Works Package Contractor shall be
deemed to be a quality control activity. A Survey Plan or plans suitably structured to comply with the relevant requirements of this section shall be submitted for approval by the PDP. The Survey Plan shall define the programme and frequency required for: a) The establishment of survey control or reference points. b) Construction surveys, which are to be undertaken to control the work during each construction process. c) Progress surveys, which are to be undertaken to record the status of the work for purposes such as the achievement of Key Access Dates and Milestones.
d) As‐built surveys, which are to be undertaken to record the location, alignment and level of all completed elements of the Permanent Works. e) Where applicable, the monitoring of the levels of Permanent Works which are constructed on reclaimed land. f) A schedule for monitoring of deformation and settlement of existing structures and buildings within the zone of influence of construction shall be maintained where applicable. Monitoring of Survey Works G1.11.5 The Works Package Contractor shall provide all reasonable facilities to the Supervising Consultant, and others authorised by the PDP to witness any survey activity and to check the accuracy of the measurements and the records of such activities. This shall include without limitation, the provision of all survey measurements in electronic digital format and other records upon request.
As Built Surveys
G1.11.6 Unless otherwise agreed with the PDP, the Works Package Contractor shall ensure that the as‐built surveys are undertaken within two (2) days of the completion of each stage or section of the Permanent Works and the survey record submitted for approval by the PDP within seven (7) days thereafter and shall be such that:
(1) the determination of frequency of the location and level of each element of the Permanent Works shall comply with the
requirements of Appendix AG1.1;
(2) the determination of accuracy for the location and level of the Permanent Works shall be commensurate with the construction tolerances that are applicable to the Permanent Works; and
(3) if a concession has been permitted by the PDP for a deviation from the required level and or alignment, then sufficient additional points shall be provided to define the full extent of each deviation.
Measurement Units
G1.11.7 The units of measurement for recording the as‐built location and level of the Permanent Works shall be as follows: • Linear Measurements: Metres • Vertical Measurements : Metres • Angular Measurements: Clockwise from 0 to 360 Degrees. • Azimuth: Local Plane Rectangular System Deformation Monitoring G1.11.8 Where a part or a section of the Permanent Works is constructed on reclaimed land, the Works Package Contractor shall submit, at least twenty‐eight (28) days prior to the completion of any part of such work, details of the surveys required for the monitoring of both vertical and horizontal movement of the completed works. These details shall, without limitation, define: a) The extent of each survey. b) The time between the completion of the work and the Initial Survey. c) The frequency of the subsequent surveys. d) The format in which the data will be recorded. e) The format and frequency for reporting the results of these surveys to the PDP. Main Survey Control Points for Other Works Contractors
G1.11.9 The Works Package Contractor shall provide and protect until handed over a series of Main Survey Control Points for the Other Works Contractors. They shall be ready one month prior to the access of the Other Works Contractor. The maximum spacing between the Main Survey Control Points shall be no more than 250m and shall be inter‐visible. The materials for the survey marker shall be proposed by the Works Package Contractor and approved by the PDP. Main Survey Control Points shall be placed such that they remain accessible before, during and after track construction. Detailed requirements for the Main Survey Control Points for different structures are specified below.
a) Tunnel and Station Structure
Main Survey Control Points shall be established for each tunnel bore on each track inside the Stations. The Survey Control Points shall be located on the tunnel roof or walls clear of the track and walkway concrete. Additional points shall be installed at each level within the station to suit the Other Works Contractor’s requirements.
b) Viaduct Structure
Main Survey Control Points shall be established for the Down Track only if they are visible for both tracks on the viaduct. Otherwise additional Main Survey Control Points along the Up Track will be required. The Main Survey Control Points shall be located on the upper surface of the viaduct deck within 1m distance from the column pier at the fixed end of the viaduct deck.
c) At Grade
Main Survey Control Points shall be established within 20m of the mainline tracks. Otherwise additional Main Survey Control Points will be required for other tracks. The Main Survey Control Points shall be located offset from track centre line and clear of the ballast on fixed structures.
As Built Survey Record
Drawings
G1.11.10 The Works Package Contractor shall prepare and maintain a set of drawings of the Permanent Works to show the as‐built survey records in accordance with Appendix AG1.1 and to identify all deviations thereto, whether due to the PDP’s instructions, the Works Package Contractor’s method of construction, site conditions or any other reason. Unless otherwise permitted by the PDP, the Works Package Contractor shall ensure that the data from the as‐ built surveys is incorporated into the As Built Survey Record Drawings and submitted for approval within fourteen (14) days of the date of the as‐built survey. The preparation and submission of As Built Survey Record Drawings shall comply with the requirements of the PDP’s CAD standards.
Deliverables G1.11.11 (1) One complete set of As Built Survey Record Drawings, in a form acceptable to the PDP, shall be signed by the Works Package Contractor’s Survey Manager as being a true record of the Permanent Works as built. The As Built Survey Record Drawings shall be submitted to the PDP and approval prior to applying for a Certificate of Practical Completion for the relevant Section or for the whole of the Works.
(2) One complete set of As Built Survey Record Drawings shall comprise the following:
(a) Three (3) A1 size paper prints of each drawing.
(b) One (1) A1 size negative copy of each drawing. (c) Two (2) sets of electronic CAD files.
(3) Further to Clause G1.7(2), As Built Survey Record Drawings may also form part of the “As‐built” drawings, if acceptable to the PDP, and provided in the quantities specified in Clause G1.7(3). Monthly Report G1.11.12 The Works Package Contractor shall include in his monthly report a section covering the Survey Works. This section of the monthly report shall comment on the Survey Works undertaken and the Survey Records completed. The report shall also show planned Survey Programmes for the following month.
APPENDIX AG1.1
REQUIREMENTS FOR AS‐BUILT SURVEYS
ITEM REQUIREMENTS FOR AS‐BUILT SURVEYS AS BUILT SURVEY
RECORD DRAWINGS EARTHWORK AND PAVEMENTS 1) Earthworks and landscaping Location and levels at a grid of 20m centres Location Plan 2) Roads & Footpaths Cross‐sections at maximum of 20m intervals for each layer. Level points on each cross‐section not to exceed 10m intervals and to include each change of horizontal and vertical alignment, the centre‐line and the edges of each layer. All street furniture and manholes Location Plan and cross‐sections showing all layers
3) Car‐parks As for item 1 Location Plan and
cross‐sections showing all layers
STRUCTURES
4) Piles and Pile Caps Founding level, cut‐off level & locations. Location Plan
5) Foundations, footings Founding levels at 5m centres; location & level of top foundation concrete; location of anchor heads; location and level of top of left in underground Temporary Works. Location Plan 6) Floor slabs Location & levels of underside & finished floor surface at 5m centres Location Plan
7) Columns Location of centre‐point at column head & foot Location Plan
8) Walls Location of inner & outer faces at each end of wall, at vertical construction joints and at any changes of alignment. Where top of wall is exposed the finished levels at 5m centres and at any changes of alignment. Location Plan 9) Beams Location of centre‐line and soffit level at each end of beam or at maximum 10m centres Location Plan
10) Elevated slabs Location & level to top surface at 5m centres Location Plan
11) Tunnels and Station Platforms Eight points wriggle survey (as built) at 2m centres Location Plan 12) Viaduct Cross Sections not to exceed 5m intervals plus at all Movement Joints Location Plan DRAINAGE WORKS 13) Storm water drains sewer drains, or any graded pipe works Location & level of storm water drains invert, sewer drains invert, and pipe invert every 50m & at each change of horizontal or vertical pipe alignment, type & size of storm water drain, sewer drain, and pipe. Plan and long‐ section showing changes of grade, invert levels, drain types and sizes, pipe types & sizes and the depth below the designed top of earthworks or layer work
ITEM REQUIREMENTS FOR AS‐BUILT SURVEYS AS BUILT SURVEY
RECORD DRAWINGS 14) Manholes, Septic Tanks & Soak‐aways Location, size & type of manhole, & manhole cover & invert level. Incoming & outgoing pipelines, size and invert level Include in above plans
15) Outfalls Location and invert level Include in above
plans
16) Headwalls Location and level Include in above
plans
17) Gullies Location, level depth and size Include in above
plans 18) Sumps, pumps rodding eyes, etc Locations, size and type Include in above plans 19) Pipe work Location, level of top of earthworks or layer works & level of pipe centre‐line every 10m and at each change of horizontal or vertical pipe alignment, pipe type and pipe size. Location Plan
20) Valves, Unions Location, size and type Expansion Joints, Pump, etc. Location Plan
END OF SECTION
SECTION G2
THE SITE
Access to the Site G2.1 (1) The Works Package Contractor will be given access to the Site in accordance with the Conditions of Contract.
(2) The Works Package Contractor shall at all times permit and facilitate access to the Site and the Works by the staff of the PDP, Supervising Consultant, and all other personnel authorised by the PDP.
(3) The Works Package Contractor shall at all times permit and facilitate access to the Site by Government departments and utility undertakers, and other Relevant Authorities for the inspection and maintenance of their facilities located within the Site.
(4) The Works Package Contractor shall permit and facilitate access to the Site and the Works by Other Works Contractors during the times specified in the Contract or as otherwise instructed by the PDP.
(5) Unless otherwise permitted by the Contract, the Works Package Contractor shall maintain ingresses and egresses (including designated emergency access routes) to all properties and facilities within and around the Site. Any alternative access arrangements proposed by the Works Package Contractor shall be safe and free from hazards and shall be subject to the approval of the Relevant Authorities and of the PDP.
(6) The Works Package Contractor shall be responsible for liaising with and obtaining permission from all owners / occupiers of private land and properties in order to gain access to such properties for the purpose of carrying out survey works, monitoring works, investigation works and the like.
Site restrictions G2.2 (1) The particular use to which the Site is put shall be submitted for approval by the PDP and the Works Package Contractor shall:
a) confine his use of the areas of the Site to purposes having been approved by the PDP who reserves the right to extend, amend or restrict the uses to which areas of the Site will be put, which right shall not be unreasonably applied;
b) refrain from depositing rubbish or causing nuisance or
approved by the PDP, depositing earth on or removing earth from areas of the Site;
c) refrain from obstructing manholes, utility access
points and the like.
(2) Work other than that necessary for completion of the Works shall not be carried out on Site.
(3) At all times whilst the Works Package Contractor has access to the Site, he shall provide means of distributing loads imposed by Works Package Contractor’s Equipment and traffic and prevent damage to utilities and services.
(4) Except where otherwise provided, the Works Package Contractor shall not permit any person to reside on the Site.
(5) Unless otherwise stated, the Works Package Contractor shall pay all rates and charges of any nature whatsoever arising out of his use of the Site and all other works areas provided therein under the Contract.
(6) The location and size of stockpile material, including excavated material within the Site, shall be submitted for approval by the PDP. All stockpiles shall be maintained at all times in a stable condition.
(7) The Works Package Contractor shall not allow animals to be brought onto the Site. Site services G2.3 (1) The Works Package Contractor shall provide all site services as necessary and appropriate for the construction of the Works, which shall include, but not necessarily be limited to: a) electricity; b) water; c) compressed air; d) site communication facilities; e) temporary drainage and sewage disposal; f) temporary fire protection systems; g) temporary lightning protection; h) dangerous goods stores; and i) temporary lighting facilities.
(2) Such services shall be provided by the Works Package Contractor for use solely in connection with the proper execution of the Works. The Works Package Contractor shall
comply with all regulations of the utility undertakers and Government Departments concerned. The Works Package Contractor shall provide and maintain all installations associated with such services and in relation thereto shall take all reasonable precautions to safeguard the safety and health of all persons and the security of the Site. The PDP may require the immediate disconnection or alteration of such installations or portions thereof as he considers to be prejudicial to safety, health or security. As soon as any or all of the Works Package Contractor's installations are no longer required for the execution of the Works, they shall be entirely removed to the satisfaction of the PDP.
(3) All installations shall comply fully with all appropriate statutory requirements. Pipes, tubes, ducts or cables crossing highways, footpaths, or rights of way shall be ramped over or recessed below the surface. Specific services shall comply with the following:‐
a) Electricity
The electricity supply shall comply with the
requirements of Section G7 herein.
b) Water
An adequate supply of potable water shall be provided
at the Site, including provision to the satisfaction of the water supply authority of any storage tanks so that sufficient potable water is always available for the execution of the Works.
c) Compressed Air
Except in pressurised workings, the compressed air
supply for pneumatic tools and equipment shall be at a pressure of not more than 0.9MN/m2 or other such pressure as may be limited by prevailing regulations. Details of proposed air supply for use in pressurised workings shall be submitted by the Works Package Contractor for approval by the PDP.
d) Site Communication Facilities
The Works Package Contractor shall install efficient means of site communications including messenger, telephone and, where appropriate, two‐way radio to the satisfaction of the PDP. In tunnel work, the Works Package Contractor shall install telephone communication between tunnel faces, bottoms and tops of shafts and the Works Package Contractor's office and PDP's office. Temporary telephone points
along tunnels shall be provided at every 500 metres.
e) Temporary Tunnel and Subway Ventilation
The temporary ventilation system for tunnels and subways shall achieve a minimum air velocity of 0.3 m/sec and shall prevent still air in equipment rooms, cross passages and niches. The Works Package Contractor shall ensure that all emissions, discharges or operations shall include local ventilation to ensure suitable emission dilution. If additional ventilation is required to support the activities of the Works Package Contractor in accordance with the air quality guidelines of BS6164, this shall be provided by the Works Package Contractor. All practical measures shall be taken, including the use of catalytic converters to ensure that diesel operating plant is maintained and operated to a high standard in order to minimize emissions and ensure maximum dilution.
(4) The PDP will instruct the Works Package Contractor as to the requirements for site services to be connected to the PDP's portable site accommodation at any given location and the Works Package Contractor shall provide and maintain these services during his use of the Site.
Site cleanliness G2.4 (1) The Site shall be maintained in a clean and tidy condition. Materials, including materials required for Temporary Works shall be stored in an orderly manner. Rubbish, debris, cement bags, disused formwork, disused packaging and the like shall be disposed of at least once a day and the works areas cleaned by flushing with water if necessary so that the Site is kept constantly clean and tidy. Notwithstanding the above, the Works Package Contractor shall also place rubbish bins at strategic locations throughout the Site.
(2) The Works Package Contractor shall throughout the period of the Contract provide a central debris collection point on Site, as approved by the PDP. Other Works Contractors shall be required to deposit their debris in this collection point on a daily basis and the Works Package Contractor shall at his own expense procure the regular collection and removal of such debris from the Site. After every works shift, all work areas shall be cleaned and made tidy to the satisfaction of the PDP.
(3) As part of the Works Package Contractor’s general housekeeping, the removal of all unused materials, construction detritus, general waste, redundant packaging and the like, shall be planned and carried out on a regular basis, and which shall also be part of his fire control strategy for the Site. In addition, the Works Package Contractor’s
housekeeping procedures shall also include the monitoring of waste and detritus produced and left on the Site by Other Works Contractors to ensure that the Other Works Contractors are also removing such materials from the Site expeditiously, and to alert the PDP in cases of non‐ cooperation in such matters.
(4) The Works Package Contractor shall ensure that no earth, debris, or rock is deposited on public or private rights of way as a result of the Works, including any deposits arising from the movement of Works Package Contractor’s Equipment. All roads, both within and external to the Site which are impacted on by the Works shall be kept in clean condition by the Works Package Contractor. All haul roads will be regularly graded and watered, as necessary to minimise dust nuisance.
(5) The Works Package Contractor shall provide and maintain a patrol unit for the duration of the Contract. The unit shall comprise one (1) foreman and two (2) labourers who shall all be delegated full‐time to the unit. The main duties of the patrol unit shall include the up keeping of proper lighting, signing and guarding provisions as well as other related duties as directed from time to time by the PDP.
(6) The patrol unit shall be required to work outside the Works Package Contractor's normal working hours if so required by the PDP.
(7) The Works Package Contractor shall provide all necessary protective clothing, safety equipment, hand tools, ladders, trestles, power supply, replacement equipment and the like for the exclusive use of the patrol unit.
Parking Facilities
G2.5 (1) The Works Package Contractor shall provide adequate parking facilities for mobile equipment and vehicles on or close to the Site.
(2) The parking facilities shall provide adequate space for parking all mobile equipment, works vehicles, delivery vehicles, staff transportation vehicles and visitors’ vehicles. (3) Where the parking facilities are located on the Site, covered
walkways shall be provided between the parking areas and Site facilities such as offices, storage, and accommodation areas.
(4) Where the parking facilities are located away from the Site, shuttle bus services and covered waiting areas shall be provided to facilitate the movement of people between the parking facility and the Site.
mobile equipment or vehicle to be parked in areas that are not designated parking facilities.
(6) The Works Package Contractor shall at all times ensure that public nuisance is not caused by the parking of mobile equipment and vehicles associated with the Works.
G2.6 Site Pest Control
Rodent Control G2.6.1 The Works Package Contractor shall at all times take effective measures to prevent damage by rodents to the Permanent Works and constituent parts thereof, such as cables, electronic cards, etc., during the execution of the Works and shall advise the PDP of such measures taken accordingly.
Prevention of mosquito breeding
G2.6.2 Measures shall be taken to prevent mosquito breeding on the Site. The measures to be taken shall include the following:
a) Empty cans, oil drums, packings and other receptacles which may retain water shall be deposited at a central collection point and those not required for future use shall be removed from the Site regularly.
b) Standing water shall be removed or, where this is not practicable treated at least once every week with an environmentally acceptable product which will prevent mosquito breeding.
c) Works Package Contractor’s Equipment and other items on the Site which may retain water shall be stored, covered or treated in such a manner that water will not be retained.
Conditions for temporary land allocation
G2.7 The Works Package Contractor shall comply with the obligations, requirements and restrictions applicable to any land allocation for the Works Package Contractor's use.
Site Security G2.8 (1) The Works Package Contractor shall establish, operate, and maintain a security system for the Site in accordance with the requirements of the Particular Specification.
(2) The Works Package Contractor shall provide adequate training for his security staff to ensure that they are able to discharge their security duties properly.
(3) The PDP’s security staff shall conduct inspections and security audits on the Site from time to time, and the PDP shall notify the Works Package Contractor of any required remedial measures or recommended improvements to the Works Package Contractor’s security system arising from such inspections and audits.
General Works Trains
G2.9 (1) The PDP will arrange for General Works Trains to be used by the Works Package Contractor and Other Works Contractors
