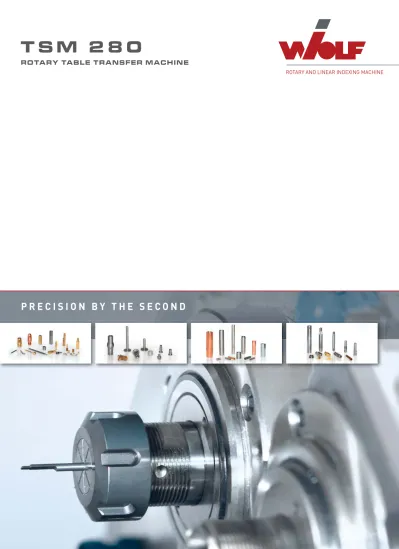

T S M 2 8 0
P R E C I S I O N B Y T H E S E C O N D
ROTARY AND LINEAR INDEXING MACHINE
From raw material to the fi nished product – in one machine
The TSM 280 is an effi cient rotary table transfer machine suitable for executing com-plex production processes in one highly fl exible production unit. Individual – compact – precise. Whether cold extrusion parts, tubes, turned parts, long turned parts or bar / coil material – the TSM 280 guarantees reliable and cost-effective production perform-ance for a variety of industries.
The client defi nes his requirements and WOLF provides him with layouts for parts. In order to increase productivity, WOLF offers consulting services including analysis of production processes and of the client’s products, as well as individualised machine design. Contact us.
Individual production processes
| Cold extrusion parts | Tubes | Turned parts | Long turned parts | Bar material | Coil material
Automotive industry Mechanical and appliance
engineering Electrical engineering Assembly engineering Aerospace Medical engineering Hydraulics/pneumatics Watch industry,
All-in-one machine
The TSM 280 is a rotary indexing machine which is suit-able for the production of small and medium-sized pro-duction runs (from 10 000 to 15 million parts or more). The large number of variations of possible manufactur-ing processes with minimal space requirements makes this machine very effi cient, and the possibility of multiple uses and stepless control of all machining spindles make this machine attractive, as it can take the place of several machines.
| Small and effi cient. The TSM 280 boasts a compact and function-oriented design. As the machine can be transported in one unit costly re-assembly and installation work is eliminated.
Double-sided simultane-ous machining with up to 15 tools. The central element is a horizontal axis rotary transfer table with either 8 or 16 hydraulically operated clamping fi xtures.
The machining heads are controlled by a standard cam system hydraulically or CNC axis.
Sawing Turning Milling Cross Drilling
Reaming Honing Slitting Assembly
Undercutting Knurling Thread Rolling Thread Cutting
Stamping Drilling Checking/Milling Load/Unload
Adaptable units
Drill and turn spindles Threading units Recess turning units Milling units
Cross drilling units Stamping units
Measuring equipment and testing facilities
Special-purpose units
Individual. Compact. Precise.
The modular structure of the TSM 280 makes it possible to develop production proc-esses individually – for just one product or for a whole family of products. A variety of additional units makes it possible to implement new processes.
With reduced set-up time and perfect accessibility during tool changes, different parts may be produced on the same machine. Feed rates, spindle rotation speed and cycle times are steplessly adjustable.
TSM 280 – Advantages at a glance
Machine construction
Modular and compact structure High-quality fabrication
Three-point support for safe positioning Different types of vertical tables
Mechatronic system: electric, hydraulic, pneumatic Machine-mounted switchboard
Control system
Optional PLC or CNC control Operator friendly
Optional tool control
Production
Double-sided simultaneous processing possible 2 – 120 parts/min
Clamping sets with different diameters
TSM 280 – Sheer efficiency
Easy retrofi tting
Double version available (double feed)
LS version for processing long parts can replace sliding head automatics
High quality surface fi nish
Installation / Transport
Cost-effective dispatch as one unit, e.g. for retrofi tting or repair
Easily transportable on pallet
Built-in switchboard: installation and assembly work unnecessary
Dismantling, packing, transport and start-up
Maintenance
Optional maintenance packages Modem for remote supervision
(2) (4) (3) (1) (5) (5) (1) Material reel.
For coil material. Different reels available – vertical and horizontal. Optionally available also with electrical power feed for automatic unwinding of coil material.
(2) Feeding device.
For coil material. To introduce the material at the start of the coil and to set the straightening device.
(3) Standard value for coil material.
Different standard values (static or rotating) available.
Material Feed – Options and Possibilities
(4) Automatic bar feed.
Specially designed for high production.
Guarantees reduced material wastage. In order to re-duce reload times for larger diameters it is possible to provide a bundle loader.
(5) Vibratory and hopper feed systems.
Different feed systems for machining blanks. Vibra-tory feeder mounted on the machine. Hopper feeder mounted on the side or behind the machine table.
Technical Data TSM
Material cross section TSM 280 TSM 280 L TSM 280 LS
Coil material up to 13 mm
Bar material up to 26 mm up to 26 (30) mm up to 26 (30) mm
Part length up to 80 mm up to 200 mm up to 270 mm
Clamping table
Number of clamping positions 8 8 (16) 16
Clamping system hydraulic hydraulic hydraulic
Clamping force up to 25 kN up to 25 kN up to 25 kN
Number of unit heads max. 15 max. 15 Stk. max. 14 Stk.
Feed
with cams · hydraulic · CNC control
Work stroke
With cams up to 35 mm up to 35 mm up to 35 mm
A 6 A 81 34 36 12 Nordheim Lauffen am Neckar Brackenheim-Meimsheim Brackenheim Stetten am Heuchelberg Gemmingen Richen Kirchheim am Neckar Nordhausen Brackenheim-Hausen 13 Nürnberg Heidelberg Würzburg AS Sinsheim Steinsfurt AS Heilbronn Untereisesheim AS Ilsfeld AS Mundelsheim Heilbronn Stuttgart Wilhelm-Maybach-Str. Industriestr. Heinrich-Heine-Str. Quellenstr. Robert-Bosch-Str. Brackenheim Raiffeisenstraße Nordhausen K2074 Lauffen am Neckar Meimsheim Wolf Maschinenbau AG Wilhelm-Maybach-Str. 2 74336 Brackenheim-Hausen Germany Tel: +49 (0)7135-93 6 98-0 Fax: +49 (0)7135-93 6 98-66 [email protected] www. wolf-maschinenbau.com
As international pioneers in the fi eld of rotary table transfer machines WOLF offers integration of diverse processes into one machine – for effi cient and precise produc-tion of cold extrusion parts, turned parts from tube or plain material. With our own research and development strategies we continuously strive to optimise our products for the benefi t of our customers.
From the beginning we have had an open and honest partnership based on the highest professional competence. We will analyse your production process and parts, show your potential for savings and answer your questions. We will provide you with advice and recommend processes and tools. If you need help with service work or machine retrofi tting our competent team will lend you its support.
