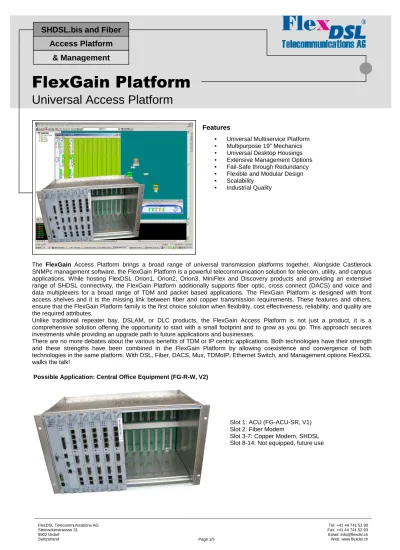

FlexGain Platform. Universal Access Platform. SHDSL.bis and Fiber Access Platform Ddd & Management. Features

(1)

Ddd

The FlexGain Access Platform brings a broad range of universal transmission platforms together. Alongside Castlerock SNMPc management software, the FlexGain Platform is a powerful telecommunication solution for telecom, utility, and campus applications. While hosting FlexDSL Orion1, Orion2, Orion3, MiniFlex and Discovery products and providing an extensive range of SHDSL connectivity, the FlexGain Platform additionally supports fiber optic, cross connect (DACS) and voice and data multiplexers for a broad range of TDM and packet based applications. The FlexGain Platform is designed with front access shelves and it is the missing link between fiber and copper transmission requirements. These features and others, ensure that the FlexGain Platform family is the first choice solution when flexibility, cost effectiveness, reliability, and quality are the required attributes.

Unlike traditional repeater bay, DSLAM, or DLC products, the FlexGain Access Platform is not just a product, it is a comprehensive solution offering the opportunity to start with a small footprint and to grow as you go. This approach secures investments while providing an upgrade path to future applications and businesses.

There are no more debates about the various benefits of TDM or IP centric applications. Both technologies have their strength and these strengths have been combined in the FlexGain Platform by allowing coexistence and convergence of both technologies in the same platform. With DSL, Fiber, DACS, Mux, TDMoIP, Ethernet Switch, and Management options FlexDSL walks the talk!

Possible Application: Central Office Equipment (FG-R-W, V2)

SHDSL.bis and Fiber

Access Platform

& Management

FlexGain Platform

Universal Access Platform

Features

• Universal Multiservice Platform • Multipurpose 19” Mechanics • Universal Desktop Housings • Extensive Management Options • Fail-Safe through Redundancy • Flexible and Modular Design • Scalability

• Industrial Quality

Slot 1: ACU (FG-ACU-SR, V1) Slot 2: Fiber Modem

(2)

Subrack LTU with 14 Slots

Model: FG-R-W, V2

Dimension: 19” or ETSI, 6U, 483x266x248mm (WxHxD), 3.6kg

Number of Slots: 14

Backplane: Only upper backplane. To be used for all applications except voice.

Power: Require ACU or TCU

Through first slot with TCU or ACU

Through second slot for redundancy with ACU

Remark: All line cards do have an own power supply (36-72VDC) on board.

The ACU or TCU is only needed to filter the applied power. Blind frontplates have to be ordered separately (FG-BLD)

Model: FG-R-PCM/W, V2

Dimension: 19” or ETSI, 6U, 483x266x271mm (WxHxD), 4.0kg

Number of Slots: 14

Backplane: Upper and lower backplane. Lower backplane is used for voice applications.

Power: Require ACU or TCU

Through first slot with TCU or ACU

Through second slot for redundancy with ACU

Remark: All line cards do have an own power supply (36-72VDC) on board.

The ACU or TCU is only needed to filter the applied power. Blind frontplates have to be ordered separately (FG-BLD)

Model: FG-ACU-SR, V1

Functionality: Connects and filters the applied power for the subrack

Interfaces: Power Input: 2x 36 to 72VDC (redundant), max. 8A Power Input

Alarms: Major and Minor alarm detection and corresponding relay output. Management: Local Craft Terminal (RS-232)

External 2.048MHz synchronization clock input

Physical Interfaces: DB3 HC (Power), DB9 (LCT & Alarms), RJ45 (Clock), DIN41612 (Back)

Power Consumption: < 3.0 Watts

Model: FG-TCU-SR, V1

Functionality: Connects and filters the applied power for the subrack

Additional Management possibilities

Interfaces: Power Input: 2x 36 to 72VDC (redundant), max. 8A Power Input

Alarms: Major and Minor alarm detection and corresponding relay output. Alarms: Major and Minor alarm optocoupler inputs

Management: Local Craft Terminal (RS-232)

Management: 4x Ethernet 10/100BaseT (Switch) for Telnet, SNMP V1 External 2.048MHz synchronization clock input

Physical Interfaces: DB3 HC (Power), DB9 (LCT & Alarms), RJ45 (Ethernet), RJ45 (Clock),

DIN41612 (Back)

Model: FG-21SWU-SR,V2

Functionality: Ethernet switch for the subrack

Additional Management possibilities & Uplink module (connect all line cards)

Interfaces: 8x Ethernet 10/100BaseT (Auto Sensing)

13x Ethernet 10/100BaseT (Auto Sensing) to backplane for line cards 2x Gigabit Ethernet 1000Base-T

2x Gigabit Ethernet SFP

1x Local craft terminal (Backplane)

(3)

Management: Local Craft Terminal, Telnet/SSH, SNMP v1 and V2c, RMON V1

L3 Features: NAT (Network Address Translation)

L2 Features: Spanning Tree and Ethernet Ring

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Ethernet Ring Protection Mechanism, 50ms rapid switching and protection Port Mirroring, Jumbo Frames support (up to 9216 bytes)

VLAN

4K IEEE 802.1q VLANs

Port-based VLAN, MAC-Based VLAN, Private VLAN GVRP, Q-in-Q, VLAN Translation

Link Aggregation

Static Trunk, Dynamic Trunk, IEEE 802.3ad LACP, Load Balancing Multicast Features

IGMP v1. v2, v3, IGMP Snooping, IGMP Groups, Multicast VLAN Quality of Service

8 Priority Queues/port

WRR, Strict Priority and WRR/WDDR+Strict Priority

802.1p, Port-Based CoS, CoS based on MAC DA/SA, Bandwidth Control per Port

Access Control List

MAC+Port binding, IP+Port binding, IP+MAC binding, TCP/UDP port allow/deny, VLAN + Port Binding

Port Security

Trust Port, Port Blocking, Private VLAN, Port Powering Off

MAC address learning limit per port, DoS check, Management IP list Authorization and Authentication

Radius and IEEE 802.1x support

Power: 18-72VDC

MiniRack with 1 Slot

Model: FG-MRN-AC/DC

Dimension: 19”, 1U, 483x44x255mm (WxHxD), 3.13kg

Number of Slots: 1

Interfaces Power Input: 36-72VDC and/or 100-240VAC

Physical Interfaces: IEC-60320 C14 (AC Power), DB9 (LCT & Alarms), RJ45 (Clock)

Screw Terminals (Back for 36-72VDC Power & FXx Interfaces)

Remark: AC input power is only for local power and not remote power feeding

36-72VDC input power can be uses for remote power feeding

Model: FG-MRN-DC-24V

Number of Slots: 1

Interfaces Power Input: 18-36VDC and/or 36-72VDC

Physical Interfaces: Screw Terminals (18-36VDC Power), DB9 (LCT & Alarms), RJ45 (Clock)

Screw Terminals (Back for 36-72VDC Power & FXx Interfaces)

Remark: 18-36VDC input power is only for local power and not remote power feeding

(4)

UTT1 with 1 Slot

Model: FG-UTT1-48

Dimension: 1U, 288x44x335mm (WxHxD), 2.46kg

Number of Slots: 1

Interfaces Power Input: 2x 36-72VDC

Physical Interfaces: DB9 (LCT & Alarms), Molex (DC Power)

Remark: 19“ require additional holders (FG-UTT1-Holder19”)

Model: FG-UTT1-48AF230

Dimension: 1U, 288x44x335mm (WxHxD), 2.70kg

Number of Slots: 1

Interfaces Power Input: 2x 36-72VDC and/or 100-250VAC

Physical Interfaces: IEC-60320 C14 (AC Power), DB9 (LCT & Alarms), Molex (DC Power)

Remark: 19“ require additional holders (FG-UTT1-Holder19”)

UTT4 with 4 Slots

Model: FG-UTT4-48A

Dimension: 149x287x278mm (WxHxD), 2.80kg

Number of Slots: 4

Interfaces Power Input: 2x 36-72VDC

Physical Interfaces: DB9 (LCT & Alarms), Molex (DC Power)

Remark: 19“ holders are not possible

Model: FG-UTT4-48A-230

Dimension: 149x287x278mm (WxHxD), 3.95kg

Number of Slots: 4

Interfaces Power Input: 2x 36-72VDC and/or 100-250VAC

Physical Interfaces: IEC-60320 C14 (AC Power), DB9 (LCT & Alarms), Molex (DC Power)

Remark: 19“ holders are not possible

Dinrail and 19”

Model: FG-RAIL-MRN-1U

Dimension: 483x44x228mm (WxHxD)

Number of Units: 2 (Orion)

5 (MiniFlex)

Remark: 3 positions can be set up in depth

Model: FG-RAIL-R-2U

Dimension: 483x88x260mm (WxHxD)

Number of Units: 9 (Orion)

10 (MiniFlex)

(5)

Subrack NTU with 14 Slots

Model: FG-R-NTU

Number of Slots: 14

Power: Every unit has to be powered separately

Special power unit FG-PWR-14 with power cable FG-CAB-Power-Molex

Remark: The subrack is just a system to hold the Orion NTU PCB’s

For cabling you can order FG-CableTray

Model: FG-PWR-14

Interfaces Power Input: 2x 48VDC and/or 2x 100-240VAC

Alarm (relay output) for each AC Power input Power Output: 14x 48VDC

Physical Interfaces: IEC-60320 C14 (AC Power), Screw Terminals (DC Power & Alarms)

Output Power: Max. 110 Watts @ 48VDC
