SMC7901WBRA2-B1 Installation Guide

(1)

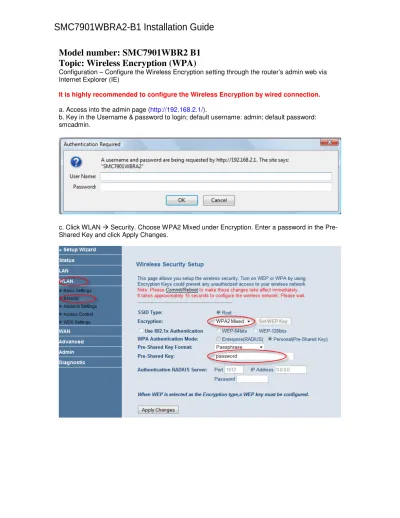

Model number: SMC7901WBR2- B1

Topic: Wireless Encryption (WPA)

Configuration – Configure the Wireless Encryption setting through the router’s admin web via Internet Explorer (IE)

It is highly recommended to configure the Wireless Encryption by wired connection.

a. Access into the admin page (http://192.168.2.1/).

b. Key in the Username & password to login; default username: admin; default password: smcadmin.

c. Click WLAN Security. Choose WPA2 Mixed under Encryption. Enter a password in the Pre-Shared Key and click Apply Changes.

(2)

d. Scroll up and click on Commit/Reboot.

e. Make sure “commit current settings” is checked and click on Reboot.

(3)

Topic: Wireless Encryption (WEP)

(4)

d. A small window will popup from here. Make sure Key Length is under 64-bit and Key Format is under Hex(10 characthers). Create a Password Key under Encryption Key 1. Click on Apply Changes.

Note: Default Tx Key must be on Key 1 and Password Key only needs to be entered in Encryption Key 1.

(5)

f. Make sure “commit current settings” is checked and click on Reboot.

(6)

Topic: Port forwarding(Virtual Server)

(7)

Topic: MAC Filter

(8)

d. Enter the MAC address you wants to filter in the Src MAC Address as shown below and click on Add. Do the same for Incoming.

e. Scroll up and click on “Commit Reboot”.

(9)

d. Enter port of the application/device you wants to open and the IP address of the device/PC using the application as show below.

e. click on “Commit Reboot”.

(10)

Topic: URL Blocking

c. Click Advanced Firewall URL Blocking. Check on Enabled under URL Blocking and click on Apply Changes.

For blocking Website link: Enter the website address under the Domain Name and click on Add Domain Name.

For blocking Keyword: Enter the characters under the Keyword and click on Add Keyword.

(11)

(12)

Topic: Remote Management

(13)

d. Go to Commit/Reboot and check on commit current settings. Click on Reboot.

(14)

Topic: PPPoE Setup

c. Click WAN WAN interface. Enter VPI/VCI (Singapore:0/100) and PPPoE for Channel Mode. Enter your ADSL account and password. Click on Add.

(15)

Topic: IP/Port Filter

(16)

d. Enter the IP address you wants to filter in the Src IP Address as shown below and the port to be denied for access and click on Add. Do the same for Incoming.

e. Scroll up and click on “Commit Reboot”.

(17)

Topic: Firmware Upgrade

(18)

(19)

Topic: DMZ

(20)

(21)

Topic: DDNS

c. Click Advanced DNS DDNS. Enter the Hostname you created in dyndns.org. Enter dyndns username and password and click on Add.
