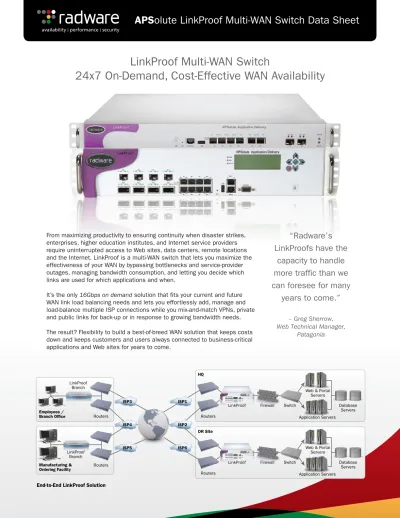

LinkProof Multi-WAN Switch 24x7 On-Demand, Cost-Effective WAN Availability

LinkProof Multi-WAN Switch

24x7 On-Demand, Cost-Effective WAN Availability

APSolute LinkProof Multi-WAN Switch Data Sheet

Routers

Firewall Switch Database Servers Firewall

Web & Portal Servers

Application Servers Routers

Firewall Switch Database Servers Routers Manufacturing & Ordering Facility Firewall LinkProof Branch Routers Employees / Branch Office HQ DR Site LinkProof Branch ISP3 ISP1 ISP4 ISP2 ISP5 ISP6

Web & Portal Servers

Application Servers

LinkProof LinkProof

From maximizing productivity to ensuring continuity when disaster strikes,

enterprises, higher education institutes, and Internet service providers

require uninterrupted access to Web sites, data centers, remote locations

and the Internet. LinkProof is a multi-WAN switch that lets you maximize the

effectiveness of your WAN by bypassing bottlenecks and service-provider

outages, managing bandwidth consumption, and letting you decide which

links are used for which applications and when.

It’s the only 16Gbps on demand solution that fits your current and future

WAN link load balancing needs and lets you effortlessly add, manage and

load-balance multiple ISP connections while you mix-and-match VPNs, private

and public links for back-up or in response to growing bandwidth needs.

The result? Flexibility to build a best-of-breed WAN solution that keeps costs

down and keeps customers and users always connected to business-critical

applications and Web sites for years to come.

End-to-End LinkProof Solution

“Radware’s

LinkProofs have the

capacity to handle

more traffic than we

can foresee for many

years to come.”

– Greg Sherrow,

Web Technical Manager,

Patagonia

LinkProof

Real-Time Health Monitoring, Failure Detection and Traffic Redirection

Quickly identify failures at any point along the transaction path and react proactively, by automatically redirecting in-bound and out-bound traffic to available WAN paths to the data center.

Active-Active or Active-Passive Link Redundancy

Take full advantage of back-up link bandwidth and verify all links are available for immediate fail-over.

Active/Passive Device Redundancy

Prevent the introduction of a single point of failure by operating a high-availability architecture.

Highly-Reliable Platform

Purpose-built, NEBS certified appliance delivering high MTBF.

• Link availability based on user-defined full application/transaction path • Check network points within the Internet cloud

• Micro-second link switching

• Never lose business continuity due to link failures

• Optimize usage of existing connectivity resources while minimizing application response times

• Guarantee highest SLAs as the best link is always serving client requests

• Maximize the investment in Internet links by also utilizing links which previously acted as stand-by links

• Guarantee 24*7 availability of end-to-end transaction paths to effectively support business continuity and disaster recovery plans

• Reduce OPEX by using cost-effective links for redundancy without suffering a reliability penalty

• Lower solution TCO • Proprietary ARP or VRRP

• Effectively support business continuity and disaster recovery plans • Protect your investment

• Lower solution TCO

• High MTBF: 150,000 – 700,000 Hours • Redundant power supply

• Connections tables mirroring

Feature The APSolute Advantage

“Since we installed LinkProof, our

students and faculty have been able

to conduct day-to-day activities and

research without any interruption. It

has allowed us to offer expanded

web hosting capabilities, which has

resulted in greater streaming and

cloud computing opportunities, and a

higher level of user satisfaction.”

– Joseph Compagno,

Director of Strategic Infrastructure Development, New York Law School

Ensure Availability of Data Center Applications

Has data center consolidation placed all your application “eggs” in one basket? Perhaps you can’t afford a single minute of downtime from your revenue generating Web site, online applications or corporate extranet. Smart business sense dictates you manage the availability of your WAN and not rely solely on your service provider’s SLAs. LinkProof lets you introduce active-backup links to support your business continuity strategy. Real-time health-checks of all available WAN paths ensure immediate failover to a functional link in the case of service outages, so your data, applications and Web site are available 24x7.

Business-Oriented Scalability

and Multiple WAN Link Management

redundancy in your WAN links and application access without wasting resources. Increase bandwidth to data centers or remote sites using cost-effective links without compromising up-time.

Inbound and Outbound Proximity-Based Routing

Guarantee best path selection for inbound/outbound traffic.

Link Load-Balancing

Dynamically deliver both incoming and outgoing traffic via the most efficient link available.

Bandwidth Management and Traffic shaping

Align link and network bandwidth with business objectives.

• Patented proximity checks combine latency detection and hop count, guaranteeing inbound/outbound traffic is always passed over the best performing link

• Guarantee quality of experience (QoE) and SLAs for internal/external users • User-defined, priorities for load-balancing decisions based on real-time user and application measurements

• Load-balances firewalls sitting behind

• Maximize infrastructure investment and operational resources • Delay WAN expansion decisions

• User defined and predefined classes include over 40 common applications, and ToS or Diffserv bits

• Limit/guarantee bandwidth per class, user

• Bandwidth management mechanism can squelch malicious traffic to ensure availability of critical applications

• Ensure top-priority and business-critical applications always receive the bandwidth they need

Feature The APSolute Advantage

Smart Application Routing

Decide which traffic is routed over which WAN link(s) based on any application-type.

Supports Multiple IP Address-Spaces and Multiple Link-Types from Different ISPs

Easily integrate new ISP links without the need to coordinate IP addresses or create peering agreements.

Mix-and-match any type of IP terminated connectivity.

“Add-Link-As-You-Grow” Approach

Minimize the investments in connectivity while maintaining the flexibility of adding additional links on demand.

On Demand Platform Scalability

Seamlessly upgrade platform throughput as more bandwidth is needed.

Cost-Based Routing

Take advantage of varying ISP rate structures to minimize monthly connectivity costs.

• Intelligently redirect traffic amongst links according to user-defined application priority and sensitivity

• Increase business agility and reduce time-to-market for applications, WAN design and expansion

• Save on connectivity costs • Prevent service provider lock-in

• Reduce the operational costs of managing complex BGP routing configurations • Reduce the TCO by integrating lower SLA links

• Reduce the cost of purchasing public IP addresses • Reduce peering costs

• Out-of-the-box automatic management of out-bound IP addressing for seamless use of multiple WAN links

• Any IP-terminated link can be managed, e.g.: xDSL, Cable-Modem, Frame Relay, IP-ATM, MPLS

• Support a multiple links simultaneously • Reduce the TCO of adding new WAN links

• Reduce OPEX and TCO by gradually migrating from legacy to new WAN links • Zero downtime when adding new links

• Short Time to Market for adding additional WAN bandwidth

• Reduce OPEX and TCO by removing the need for platform forklift upgrades. • On demand scalability in throughput and services up to 16Gbps

• “Pay-as-you-grow” approach ensuring full investment protection and minimization of initial investment

• Tiered throughput licensing model • Save on monthly connectivity costs • Reduce the TCO of Internet links

• Automatically accommodates for any mix of rate models: - Flat

- Per kbps - Bursting/Ladder

Feature The APSolute Advantage

Accelerate Response Times, Optimize Bandwidth Utilization, and Reduce Costs

End-to-End Headquarters to Branch Office Offering

As more companies strive to consolidate multiple data centers more and more applications get relocated from remote branches into the main data center. The move from a dispersed application configuration to a consolidated one requires enterprises to allow secure access from remote branches into the main data center. In parallel, companies strive to reduce the amount of network devices which must be installed in remote branches, in an effort to reduce the costs associated with purchasing and maintaining multiple network devices. Using LinkProof in conjunction with Radware’s branch offering – LinkProof Branch – allows you to seamlessly connect remote branches to the main data center. The combination of LinkProof and LinkProof Branch provides best-of-breed, multi-WAN link load balancing of private, leased and VPN lines.

Radware APSolute Product Suite

Radware, with more than 10 years of experience, is the industry leader in integrated application delivery solutions. Over 10,000 companies worldwide use Radware’s award-winning APSolute™ application delivery solutions to ensure the full availability, maximum performance and complete security of their networked and IP-based applications. Virtually all major sectors including finance, education, manufacturing, retail, insurance, government, healthcare, transportation, services, wire-line and cellular carriers rely on Radware every day to reduce costs, drive business productivity, and improve profitability. Let Radware make your network “business-smart” so you can also get the greatest value from your business and IT data center investments.

Certainty Support

Radware offers technical support for all of its products through the Certainty Support Program. Each level of the Certainty Support Program consists of four elements - phone support, software updates, hardware maintenance, and on-site support. Radware also has dedicated engineering staff that can assist customers on a professional services basis for advanced project deployments.

Learn More

To learn more about how Radware’s integrated application delivery solutions can enable you to get the most of your business and IT investments, email us at [email protected] or go to www.radware.com.

© 2010 Radware, Ltd. All Rights Reserved. Radware and all other Radware product and service names are registered trademarks of Radware in the U.S. and other countries. All other trademarks and names are the property of their respective owners. Printed in the U.S.A

VPN Gateway

Integrated IPSec VPN gateway for secure communication between remote offices and the main data center.

VPN Tunneling

Dynamically deliver VPN traffic between HQ and branch via the most efficient link available.

• Integrated IPSec VPN gateway within LinkProof Branch

• Reduce CAPEX by eliminating the need for deploying additional stand alone network devices.

• Maximize the investment in Internet links by also utilizing inexpensive leased lines for secure communication

• Support IT consolidation efforts by allowing the migration of applications from the branch to the main data center

• Virtual tunneling – hides IP-address changes while automatically selecting WAN routes between any two LinkProof devices

• Save on monthly connectivity costs

• Guarantee 24*7 availability of end-to-end VPN transactions

Technical specifications and product information are subject to change without prior notice.

APSolute LinkProof Multi-WAN Switch

Technical Specifications

1000Base-SX (850 nm) Operating Distance 1000Base-LX/ZX Operating Distance USB Port

RS-232C Console Dimensions and Weight

Environmental Power

Certifications

Feature Compact Application Switch (CAS) OnDemand Switch VL

• LinkProof Branch 5: up to 5Mbps • LinkProof Branch 25: up to 25Mbps • LinkProof Branch 50: up to 50Mbps

OSPF, RIP, RIP II Motorola PPC 8241 82MHz 64MB 8 N/A N/A N/A N/A N/A N/A • DB-9 serial connection • Female DCE interface 1U:

• Width: 240 mm (9.45 in.) • Depth: 170 mm (6.7 in.) • Height: 44 mm (1.73 in.) • Weight: 0.5 kg (1.1 lbs) Rack mounting kit

• Operating Temperature: 0ºC -40ºC (32°F to 104°F) • Humidity (non-condensing): 5-95%

• Auto-range supply: o AC: 100V - 240V • Power consumption: 12W • Heat dissipation: 41 BTU/h

• Safety: EN 60950-1:2006, CB - IEC 60950-1, cULus • EMC: CE - EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, IEC 61000 4-2 to 4-6, IEC 61000 4-8 & IEC 61000-4-11, FCC Part 15B Class A, VCCI Class A, C-Tick • RoHS 6 • LinkProof 108: up to 100Mbps • LinkProof 208: up to 200Mbps • LinkProof 1008: up to1Gbps • LinkProof 2008: up to 2Gbps • LinkProof 4008: up to 4Gbps

Intel Core 2 Duo E7400 Up to 4GB

N/A 6

2xGigabit Fiber Ports (SFP-GBIC Mini) Full-duplex Gigabit Ethernet fiber • 62.5 micron MM fiber .2 m to 275 m • 50 micron MM fiber .2 m to 550 m • LX: Up to 10 km (6.2 mi) • ZX: Up to 80 km (49.7 mi) On front panel RJ45 serial connection 1U: • Width: 424mm (17in) • Depth: 457 mm (18 in.) • Height: 44 mm (1.7 in.) • Weight: 7.2 kg (15.8 lbs)

EIA Rack or Standalone: 482 mm (19 in.)

• Auto-range supply: o AC: 100V - 240V Frequency: 47-63Hz o DC: -36~-72V • Power consumption: 128W • Heat dissipation: 436.5 BTU/h

• Safety: EN 60950-1:2006, CB - IEC 60950-1, cTUVus • EMC: CE - EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, IEC 61000 4-2 to 4-6, IEC 61000 4-8 & IEC 61000-4-11, FCC Part 15B Class A, ICES-003, VCCI Class A, C-Tick

Technical specifications and product information are subject to change without prior notice.

APSolute LinkProof Multi-WAN Switch

Technical Specifications

© 2010 Radware, Ltd. All Rights Reserved. Radware and all other Radware product and service names are registered trademarks of Radware in the U.S. and other countries. All other trademarks and names are the property of their respective owners. Printed in the U.S.A

Nominal Throughput Routing Protocols Processor Memory 10/100/1000BaseT Ports Gigabit/GBIC Ports 10 Gigabit Ethernet Ports 1000Base-SX/LX/ZX Ports

1000Base-SX (850 nm) Operating Distance 1000Base-LX/ZX Operating Distance USB Port

LCD Screen RS-232C Console Dimensions and Weight

Environmental Power

Certifications

Feature OnDemand Switch 2 OnDemand Switch 3

• LinkProof 1016: up to1Gbps • LinkProof 2016: up to 2Gbps • LinkProof 4016: up to 4Gbps OSPF, RIP, RIP II

AMD Opteron dual-core 2.6GHz Up to 4GB

12

4xGigabit Fiber Ports (SFP-GBIC Mini) N/A

Full-duplex Gigabit Ethernet Fiber • 62.5 micron MM fiber .2 m to 275 m • 50 micron MM fiber .2 m to 550 m • LX: Up to 10 km (6.2 mi) • ZX: Up to 80 km (49.7 mi) On front panel On front panel • DB-9 serial connection • Female DCE interface 1U: • Width: 424 mm (17 in.) • Depth: 600 mm (24 in.) • Height: 44 mm (1.7 in.) • Weight: 9.7 kg (21.4 lbs) 2U: • Width: 424 mm (17 in.) • Depth: 600 mm (24 in.) • Height: 88 mm (3.4 in.) • Weight: 13.2 kg (29.1 lbs)

EIA Rack or Standalone: 482 mm (19 in.) • Operating Temperature: 0ºC -40ºC (32°F to 104°F) • Humidity (non-condensing): 5-95% • Auto-range supply: o AC: 100V - 240V Frequency: 47-63Hz o DC: -36~-72V • Power consumption: 192W • Heat dissipation: 655.104 BTU/h • Dual power supply (AC/DC) in 2U form

• Safety: EN 60950-1:2006, CB - IEC 60950-1, CCC, cULus,

• EMC: CE - EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, IEC 61000 4-2 to 4-6, IEC 61000 4-8 & IEC 61000-4-11, FCC Part 15B Class A, ICES-003, VCCI Class A, C-Tick

• RoHS 6

• LinkProof 8016: up to 8Gbps • LinkProof 12016: up to 12Gbps • LinkProof 16016: up to 16Gbps

2 AMD Opteron dual-core 2.6GHz (embedded) Up to 8GB 8 4 (XFP pluggable optics) 2U: • Width: 424 mm (17 in.) • Depth: 600 mm (24 in.) • Height: 88 mm (3.4 in.) • Weight: 15kg (33.1 lbs)

• EIA Rack or standalone: 482.6 mm (19 in.)

• Auto-range supply: o AC: 100V - 240V Frequency: 47 - 63Hz o DC: -36~ - 72V
