Technical data

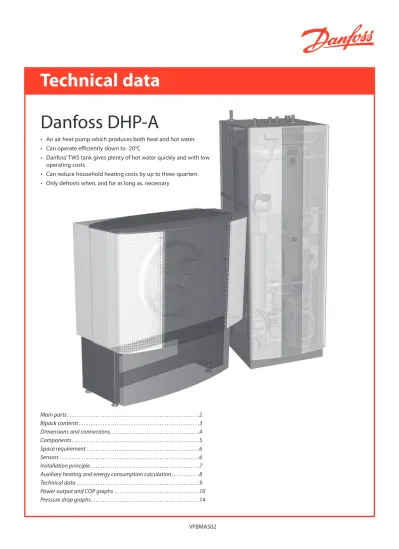

Danfoss DHP-A
• An air heat pump which produces both heat and hot water • Can operate efficiently down to -20°C • Danfoss’ TWS tank gives plenty of hot water quickly and with low operating costs • Can reduce household heating costs by up to three quarters • Only defrosts when, and for as long as, necessary Main parts . . . .2 Bipack contents . . . .3Dimensions and connections . . . .4
Components . . . .5
Space requirement . . . .6
Sensors . . . .6
Installation principle . . . .7
Auxiliary heating and energy consumption calculation . . . .8
Technical data . . . .9
Power output and COP graphs . . . .10
Bipack contents
Sizes 6kW - 10kW:
Part no. Quantity Name
086U2369 1 Safety valve 9 bar 1/2” 086U2701 1 Outdoor sensor Kimsafe 200 035 086U0896 1 Safety valve 1.5 bar 1/2” 086U2824 1 Expansion and bleed tank without valve 086U0026 5 Rubber collar hole 22-32mm 086U6033 2 Flex. hose DN20 L=550 086U6006 1 Filling device brine DN25 086U6005 1 Dirt filter with shut-off DN25 Sizes 12kW:
Part no. Quantity Name
1845 (±10) 455 596 528 258 250 300 40±10 1 2 549 344 610 327 40 80 74 56 80 5 7 89 6 10 3 4 Position Name 1 Brine in (HP Brine out) 28 Cu 2 Brine out (HP Brine in) 28 Cu The brine pipes can be connected on either the left or right-hand sides of the heat pump. Position Name 1 Brine in, 28 Cu 2 Brine out, 28 Cu 3 Lead-in for incoming power supply, sensors and communication cable 4 Heating system supply line, 22 Cu: 6-10 kW, 28 Cu: 12 kW 5 Heating system return line, 22 Cu: 6-10 kW, 28 Cu: 12 kW 6 Expansion pipe, 22 Cu 7 Hot water pipe, 22 Cu or stainless steel 8 Cold water pipe, 22 Cu or stainless steel 9 Lifting point 10 Expansion outlet brine circuit, DN25 int.
Dimensions and connections
Outdoor sensor Other sensors °C Ohm °C kiloOhm -30 1884 0 66,3 -25 1443 5 52,4 -20 1115 10 41,8 -15 868 15 33,5 -10 681 20 27,1 -5 538 25 22,0 0 428 30 18,0 5 343 35 14,8 10 276 40 12,2 15 224 45 10,1 20 183 50 8,5 25 150 55 7,1 30 124 60 6,0 35 103 65 5,0 40 86 70 4,2 75 3,7 80 3,1 85 2,7 90 2,3 95 2,0
1905
1620
Space requirement
Necessary service space and minimum headroom for heat pump installation.Sensors
Conversion table for sensors
The auxiliary heater is made up of an electric heating element on the supply pipe that has three outputs, ADD.HEAT 1, ADD.HEAT 2 and ADD.HEAT 3, and can be controlled in five steps for three phase installations. For three phase, 400V, installations: • Step 1 = ADD.HEAT 1 = 3 kW • Step 2 = ADD.HEAT 2 = 6 kW • Step 3 = ADD.HEAT 1 + ADD.HEAT 2 = 9 kW • Step 4 = ADD.HEAT 2 + ADD.HEAT 3 = 12 kW • Step 5 = ADD.HEAT 1 + ADD.HEAT 2 + ADD.HEAT 3 = 15 kW For a single phase installation the auxiliary heater is made up of an electric heating element on the supply pipe that has two outputs, ADD.HEAT 1 and ADD.HEAT 2, and can be controlled in three steps. For single phase, 230V, installations: • Step 1 = ADD.HEAT 1 = 1.5 kW • Step 2 = ADD.HEAT 2 = 3 kW • Step 3 = ADD.HEAT 1 + ADD.HEAT 2 = 4.5 kW In the event of an alarm, the auxiliary heater engages automatically. The energy consumption calculation is difficult to specify exactly, but the average output for a normal house with normal hot water con-sumption in the following tables gives a relatively accurate result for each heat pump and heating system. Remember that the operating time for the heat pump installation must exceed one year before the specified values in the table are valid. The energy consumption for legionella operation is included in the hours for ADD.HEAT 1. The specified outputs include the circulation pumps and also the outdoor unit’s fan. DHP-A -6 -8 -10 -12 Under floor heating 1.90 kW 2.60 kW 3.00 kW 3.50 kW Radiators 2.30 kW 3.05 kW 3.50 kW 4.10 kW To calculate the energy consumption: 1 Press either the right or left button once to open the INFORMATION main menu. The cursor is in the OPERATION menu option. 2 Press the down button to move the cursor to the OPERAT.TIME menu option. 3 Open the menu by pressing the right button once. 4 Note how many hours the following values have: HEAT PUMP, ADD.HEAT 1, ADD.HEAT 2 and ADD.HEAT 3. 5 Find the value for the average output that corresponds to your heat pump and heating system in the table above, and multiply it by the number of HEAT PUMP hours. Note the result. 6 Multiply the number of ADD.HEAT 1 hours by 3. Note the result. 7 Multiply the number of ADD.HEAT 2 hours by 6. Note the result. 8 Multiply the number of ADD.HEAT 3 hours by 6. Note the result. 9 Add up the multiplied values to obtain the total energy consumption.
Technical data
6 8 10 12
R404A R404A R404A R404A
0.95 1.45 1.50 1.60 3.2 3.2 3.2 3.2 3.1 3.1 3.1 3.1 400V 3-N 400V 3-N 400V 3-N 400V 3-N 2.0 2.3 3.6 4.4 3/6/9/12/15 3/6/9/12/15 3/6/9/12/15 3/6/9/12/15 14 25 29 32 103/164/205/ 206/257 16 3/164/205/ 206/257 16 3/164/205/ 206/257 16 3/204/255/ 256/257 230V 3-N 230V 3-N 230V 3-N 230V 3-N 3.3 4.2 5.4 5.7 1.5/3/4.5 1.5/3/4.5 1.5/3/4.5 1.5/3/4.5 58 56 97 108 253/324/405 253/324/405 323/404/505 323/404/505 5.0 7.0 8.2 9.8 2.9 3.1 2.8 3.0 5.7 7.7 9.2 10.8 2.6 2.9 2.6 2.7 0.2 0.3 0.6 0.5 0.3 0.4 0.5 0.5 30 22 50 43 45 42 43 52 -20 -20 -20 -20 20/-25 20/-25 20/-25 20/-25 55/20 55/20 55/20 55/20 0.08 0.08 0.08 0.08 2.65/2.85 2.65/2.85 2.65/2.85 2.65/2.85 3.10 3.10 3.10 3.10 500/650 500/650 500/800 500/800 2500/3200 2500/3200 2500/3900 2500/3900 54/64 54/64 55/68 55/68 110/150 110/150 140/185 140/185 42/52 42/52 43/56 43/56 33/43 33/43 34/47 34/47 28/38 28/38 29/42 29/42 22/32 22/32 23/36 23/36 60 (30+30) 60 (30+30) 60 (30+30) 60 (30+30) 180 180 180 180 260/94 260/94 260/94 268/94 154/120 154/120 154/120 162/120
Heat pump DHP-A, DHP-AL
Refrigerant Type
Amount kg
Test pressure MPa Design pressure MPa
Compressor Type Scroll Scroll Scroll Scroll
Oil POE POE POE POE
Electrical data 3-N Main supply Volt Rated power, compressor kW Auxiliary heater, max
5 steps kW
Start current A Circuit breaker A Electrical data 1-N Main supply Volt
Rated power, compressor kW Auxiliary heater, max 3 steps kW Start current A Circuit breaker A Performance Output capacity 1 kW Heat factor 1 COP Output capacity 2 kW Heat factor 2 COP Nominal flow 8 Cooling circuit l/s Heating circuit l/s External available
pressure 9 Cooling circuitHeating circuit kPakPa
Lowest outdoor temperature allowed for compressor start
oC Max/min temperature Cooling circuit oC Heating circuit oC Pressure switches Low pressure MPa
Operating MPa High pressure MPa Fan speed outdoor unit, low/high rpm Air flow m3/h Sound power level 10 dB(A) Fan output W Sound pressure level away from outdoor unit 11 1 m 13 dB(A) 4 m 13 dB(A) 8 m 14 dB(A) 16 m 14 dB(A) Max. pipe lenght (Ø28mm between heat pump and outdoor unit) m
Anti freeze media 12 Ethylene glycol Ethylene glycol Ethylene glycol Ethylene glycol
Water heater volume l
Weight, DHP-A / outdoor unit kg Weight, DHP-AL / DWH-A kg
1) At A2W35 according to EN 14511 (including circulation pumps and
outdoor unit) .
2) At A7W45 according to EN 14511 (including circulation pumps and
outdoor unit) .
3) Heat pump with 3 kW auxiliary heater (1-N 1 .5 kW) .
4) Heat pump with 6 kW auxiliary heater (1-N 3 kW) .
5) Heat pump with 9 kW auxiliary heater (1-N 4 .5 kW) .
6) 12 kW auxiliary heater (compressor off) .
7) 15 kW auxiliary heater (compressor off) .
8) Nominal flow: heating circuit Δ10K, cooling circuit Δ3K .
9) Pressure drop that must not be exceeded outside the heat pump
with-out the nominal flow being reduced .
10) Sound power level measured according to EN ISO 3741 .
11) Sound pressure level calculated according to EN ISO 11203 .
12) For DHP-A, -AL models, do not use propylene glycol or ethanol .
13) The levels represent the average values for a measurement box
shaped surface whose sides have the given perpendicular distance to the outdoor unit’s sides .
14) The levels represent the average values for a hemispherical surface
Power output and COP* graphs
Po w er output (kW ) and COP Po w er output (kW ) and COP Outdoor temperature (°C) Outdoor temperature (°C) Heating capacity Heating capacity COP COP Power input Power input The data shown in the graphs is according to EN14511 including circulation pumps and outdoor unit.DHP-A 6, supply line 35°C
Po w er output (kW ) and COP Po w er output (kW ) and COP Outdoor temperature (°C) Outdoor temperature (°C) Heating capacity Heating capacity COP COP Power input Power input
Power output and COP graphs
The data shown in the graphs is according to EN14511 including circulation pumps and outdoor unit.
DHP-A 8, supply line 35°C
Power output and COP graphs
The data shown in the graphs is according to EN14511 including circulation pumps and outdoor unit. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 0 1 2 3 4 5 6 7 8 9 10 11 12 13 Po w er output (kW ) and COP Po w er output (kW ) and COP Outdoor temperature (°C) Outdoor temperature (°C) Heating capacity Heating capacity COP COP Power input Power inputDHP-A 10, supply line 35°C
Power output and COP graphs
The data shown in the graphs is according to EN14511 including circulation pumps and outdoor unit. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Po w er output (kW ) and COP Po w er output (kW ) and COP Outdoor temperature (°C) Outdoor temperature (°C) Heating capacity Heating capacity COP COP Power input Power inputDHP-A 12, supply line 35°C
Pressure drop graphs - Warm side
Heat pump, DHP-A6
Pressure drop warm side, estimated from measurements Pr essur e dr op (kP a)
Volume flow, water (l/s)
Heat pump, DHP-A8
Pressure drop warm side, estimated from measurements Pr essur e dr op (kP a)
Heat pump, DHP-A10
Pressure drop warm side, estimated from measurements
Heat pump, DHP-A12
Pressure drop warm side, estimated from measurements
Pressure drop graphs - Warm side
Pr essur e dr op (kP a)
Volume flow, water (l/s)
Pr essur e dr op (kP a)
