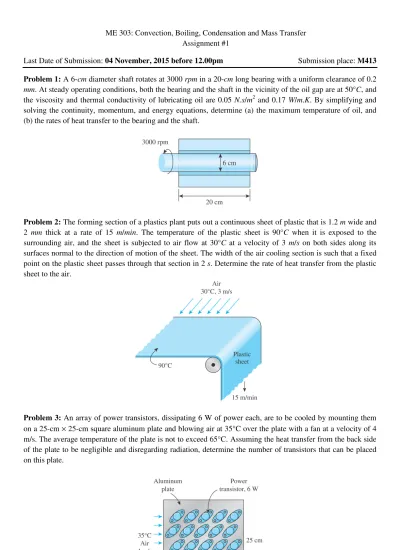

ME 303: Convection, Boiling, Condensation and Mass Transfer Assignment #1

Last Date of Submission: 04 November, 2015 before 12.00pm Submission place: M413 Problem 1: A 6-cm diameter shaft rotates at 3000 rpm in a 20-cm long bearing with a uniform clearance of 0.2

mm. At steady operating conditions, both the bearing and the shaft in the vicinity of the oil gap are at 50°C, and the viscosity and thermal conductivity of lubricating oil are 0.05 N.s/m2 and 0.17 W/m.K. By simplifying and solving the continuity, momentum, and energy equations, determine (a) the maximum temperature of oil, and (b) the rates of heat transfer to the bearing and the shaft.

Problem 2: The forming section of a plastics plant puts out a continuous sheet of plastic that is 1.2 m wide and 2 mm thick at a rate of 15 m/min. The temperature of the plastic sheet is 90°C when it is exposed to the surrounding air, and the sheet is subjected to air flow at 30°C at a velocity of 3 m/s on both sides along its surfaces normal to the direction of motion of the sheet. The width of the air cooling section is such that a fixed point on the plastic sheet passes through that section in 2 s. Determine the rate of heat transfer from the plastic sheet to the air.

Problem 3: An array of power transistors, dissipating 6 W of power each, are to be cooled by mounting them on a 25-cm × 25-cm square aluminum plate and blowing air at 35°C over the plate with a fan at a velocity of 4 m/s. The average temperature of the plate is not to exceed 65°C. Assuming the heat transfer from the back side of the plate to be negligible and disregarding radiation, determine the number of transistors that can be placed on this plate.

Problem 4: Atmospheric air at 375 K flows with a velocity of 4 m/s along a flat plate of 1 m long, maintained at a uniform temperature 325 K. The average heat transfer coefficient is determined to be 8 W/m2°C. Using the Colburn-Reynolds analogy, estimate the drag force acting on the plate over the width of 2 m.

Problem 5: During a plant visit, it was noticed that a 12-m long section of a 10-cm diameter stream pipe is completely exposed to the ambient air. The temperature measurements indicate that the average temperature of the outer surface of the stream pipe is 75°C when the ambient temperature is 5°C. There are also light winds in the area at 10 km/h. The emissivity of the outer surface of the pipe is 0.8, and the average temperature of the surfaces surrounding the pipe, including the sky, is estimated to be 0°C. Determine the amount of heat lost from the steam during a 10-h long work day.

Problem 6: Air flows over a flat plate at a constant velocity of 20 m/s and ambient conditions of 20 kPa and 20°C. The plate is heated to a constant temperature of 75°C, starting at a distance of 7.5 cm from the leading edge. What is the total heat transfer from the leading edge to a point 35 cm from the leading edge?

Problem 7: Air flows across a 20 cm square plate with a velocity of 5 m/s. Free-stream conditions are 10°C and 0.2 atm. A heater in the plate surface furnishes a constant heat flux condition at the wall so that the average wall temperature is 100°C. Calculate the surface heat flux and the value of h at an x position of 10 cm.

Problem 8: A blackened plate is exposed to the sun so that a constant heat flux of 800 W/m2 is absorbed. The black side of the plate is insulated so that all the energy absorbed is dissipated to an air stream which blows across the plate at conditions of 25°C, 1 bar and 3 m/s. The plate is 25 cm square. Estimate the average temperature of the plate. What is the plate temperature at the trailing edge?

Problem 9: Consider a 50-cm diameter and 95-cm long hot water tank. The tank is placed horizontally on the roof of a house. The water inside the tank heated to 80°C by a flat-plate solar collector during the day. The tank is then exposed to windy air at 18°C with an average velocity of 40 km/h during the night. Estimate the temperature of the tank a 45-min period. Assume the tank surface to be at the same temperature as the water inside, and the heat transfer coefficient on the top and bottom surfaces to be the same as that on the side surface. Use the following correlation proposed by Churchill and Bernstein (1977): RedPr > 0.2

Problem 10: Air flows across a 4 cm square cylinder at a velocity of 10 m/s. The surface temperature is maintained at 85°C. Free-stream air conditions are 20°C and 0.6 bar. Calculate the heat loss from the cylinder per meter of length.

Summary of Correlation for Forced Convection Flow over Flat Plates

Properties evaluated at Film temperature

Type

Restrictions

Fluid Flow

Heat Transfer

Isothermal (T

w

= constant)

Isoflux (q

w

= constant)

Local

Laminar: Re

x

< 5 × 10

5

; 0.6 < Pr < 50

C

_{f ,x}

0 664Re

.

−_x1 2/

=

Nu

x

=

0 332Re Pr

.

1 2x/ 1 3/ 1 2 1 3

Nu

_x

₌

0 453Re Pr

.

_x/ /

Average Laminar: Re

L

< 5 × 10

5

; 0.6 < Pr < 50

C

f

1 328Re

.

L1 2/ −

=

Nu

_L

₌

0 664Re Pr

.

1 2_L/ 1 3/

Nu

_L

₌

0 680Re Pr

.

1 2_L/ 1 3/

Local

Turbulent: 5 × 10

5

≤ Re

x

≤ 10

7

;

0.6 ≤ Pr ≤ 60

1 5

C

_{f ,x}

0 059Re

.

−_x /

=

Nu

x

=

0 0296Re

.

4 5x/

Pr

1 3/ 4 5 1 3

Nu

_x

₌

0 0308Re

.

_x/

Pr

/

Average

Turbulent: 5 × 10

5

≤ Re

L

≤ 10

7

;

0.6 ≤ Pr ≤ 60

1 5

C

_f

0 074Re

.

−_L /

=

Nu

L

=

0 037Re

.

4 5L/

Pr

1 3/ 4 5 1 3

Nu

_L

₌

0 037Re

.

_L/

Pr

/

Average

Partly Laminar, Partly Turbulent:

5 × 10

5

≤ Re

L

≤ 10

7

; 0.6 ≤ Pr ≤ 60

Re

cr

= 5 × 10

5 1 5

C

_f

0 074Re

.

−_L /

1742Re

_L

=

−

Nu

L

=

(

0 037Re

.

4 5L/

−

871 Pr

)

1 3/ 4 5 1 3 6 6 5

0 037Re

Pr

Nu

1 12 35 10 Re

/ / L L / L

.

.

−

=

+

×

Local

All Prandtl number

(Churchill and Ozoe): Pe

x

≥ 100

1 2 1 3 1 4 2 3

0 3387Re Pr

Nu

0 0468

1

/ / x x _/ /

.

.

Pr

=



_

_



+





















1 2 1 3 1 4 2 3

0 4637Re Pr

Nu

0 0207

1

/ / x x _/ /

.

.

Pr

=



_

_



+





















Local

ξ = unheated starting length

Laminar: Re

x

< 5 × 10

5

;

0.6 < Pr < 50

1 2

C

_{f ,x}

0 664Re

.

−_x /

=

_{( )} 1 3 3 4 for 0

Nu

Nu

1

/ / x x

x

ξ

ξ

− =



_{ }



=



−

 



 









Local

ξ = unheated starting length

Turbulent: 5 × 10

5

≤ Re

x

≤ 10

7

;

0.6 ≤ Pr ≤ 60

1 5

C

_{f ,x}

0 059Re

.

−_x /

=

_{( )} 1 9 9 10 for 0

Nu

Nu

1

/ / x x

x

ξ

ξ

− =



_{ }



=



−

 



 









Average

ξ = unheated starting length

Laminar: Re

L

< 5 × 10

5

; p = 2

Turbulent: 5 × 10

5

≤ Re

L

≤ 10

7

; p = 8

( ) 1 ₁ 2 for 0

Nu

Nu

1

p p _p p L L

L

L

x

ξ

ξ

ξ

+ ₊ + =









_

 

_

=



 

−

 

_

−

 





_

_

443 CHAPTER 7

T A B L E 7 – 1

Empirical correlations for the average Nusselt number for forced convection over circular and noncircular cylinders in cross flow (from Zukauskas, 1972, Jakob 1949, and Sparrow et al., 2004)

Cross-section

of the cylinder Fluid Range of Re Nusselt number Circle 0.4–4 Nu 5 0.989Re0.330 _Pr1/3 D Gas or 4–40 Nu 5 0.911Re 0.385 _Pr1/3 liquid 40–4000 Nu 5 0.683Re 0.466 _Pr1/3 4000–40,000 Nu 5 0.193Re0.618 _Pr1/3 40,000–400,000 Nu 5 0.027Re0.805 _Pr1/3

Square Gas 3900–79,000 Nu 5 0.094Re0.675 _Pr1/3

D

Square Gas 5600–111,000 Nu 5 0.258Re0.588 _Pr1/3

(tilted

45°) D

Hexagon Gas 4500–90,700 Nu 5 0.148Re0.638 _Pr1/3

D

Hexagon Gas 5200–20,400 Nu 5 0.162Re0.638 _Pr1/3

(tilted 20,400–105,000 Nu 5 0.039Re0.782 _Pr1/3

45°) D

Vertical Gas 6300–23,600 Nu 5 0.257Re0.731 _Pr1/3

plate D

Ellipse Gas 1400–8200 Nu 5 0.197Re0.612 _Pr1/3

D

The characteristic length D for use in the calculation of the Reynolds and the Nusselt numbers for different geometries is as indicated on the figure. All fluid properties are evaluated at the film temperature. Note that the values presented in Table 7–1 for non-circular geometrics have been updated based on the recommendations of Sparrow et al. (2004).

cen98187_ch07_p424-472.indd 443

Hol29362_appA 11/7/2008 14:57

# 101675 Cust: McGraw-Hill Au: Holman Pg. No.658 K/PMS 293 Title: Heat Transfer 10/e Server: Short / Normal / Long

DESIGN SERVICES OF S4CARLISLE

Publishing Services 658 A P P E N D I X A Tables

Table A-5 Properties of air at atmospheric pressure.†

The values ofµ, k, c_p, and Pr are not strongly pressure-dependent and may be used over a fairly wide range of pressures

ρ cp µ × 105 ν × 106 k α × 104 T ,K kg/m3 kJ/kg·◦C kg/m· s m2/s W/m·◦C m2/s Pr 100 3.6010 1.0266 0.6924 1.923 0.009246 0.02501 0.770 150 2.3675 1.0099 1.0283 4.343 0.013735 0.05745 0.753 200 1.7684 1.0061 1.3289 7.490 0.01809 0.10165 0.739 250 1.4128 1.0053 1.5990 11.31 0.02227 0.15675 0.722 300 1.1774 1.0057 1.8462 15.69 0.02624 0.22160 0.708 350 0.9980 1.0090 2.075 20.76 0.03003 0.2983 0.697 400 0.8826 1.0140 2.286 25.90 0.03365 0.3760 0.689 450 0.7833 1.0207 2.484 31.71 0.03707 0.4222 0.683 500 0.7048 1.0295 2.671 37.90 0.04038 0.5564 0.680 550 0.6423 1.0392 2.848 44.34 0.04360 0.6532 0.680 600 0.5879 1.0551 3.018 51.34 0.04659 0.7512 0.680 650 0.5430 1.0635 3.177 58.51 0.04953 0.8578 0.682 700 0.5030 1.0752 3.332 66.25 0.05230 0.9672 0.684 750 0.4709 1.0856 3.481 73.91 0.05509 1.0774 0.686 800 0.4405 1.0978 3.625 82.29 0.05779 1.1951 0.689 850 0.4149 1.1095 3.765 90.75 0.06028 1.3097 0.692 900 0.3925 1.1212 3.899 99.3 0.06279 1.4271 0.696 950 0.3716 1.1321 4.023 108.2 0.06525 1.5510 0.699 1000 0.3524 1.1417 4.152 117.8 0.06752 1.6779 0.702 1100 0.3204 1.160 4.44 138.6 0.0732 1.969 0.704 1200 0.2947 1.179 4.69 159.1 0.0782 2.251 0.707 1300 0.2707 1.197 4.93 182.1 0.0837 2.583 0.705 1400 0.2515 1.214 5.17 205.5 0.0891 2.920 0.705 1500 0.2355 1.230 5.40 229.1 0.0946 3.262 0.705 1600 0.2211 1.248 5.63 254.5 0.100 3.609 0.705 1700 0.2082 1.267 5.85 280.5 0.105 3.977 0.705 1800 0.1970 1.287 6.07 308.1 0.111 4.379 0.704 1900 0.1858 1.309 6.29 338.5 0.117 4.811 0.704 2000 0.1762 1.338 6.50 369.0 0.124 5.260 0.702 2100 0.1682 1.372 6.72 399.6 0.131 5.715 0.700 2200 0.1602 1.419 6.93 432.6 0.139 6.120 0.707 2300 0.1538 1.482 7.14 464.0 0.149 6.540 0.710 2400 0.1458 1.574 7.35 504.0 0.161 7.020 0.718 2500 0.1394 1.688 7.57 543.5 0.175 7.441 0.730
