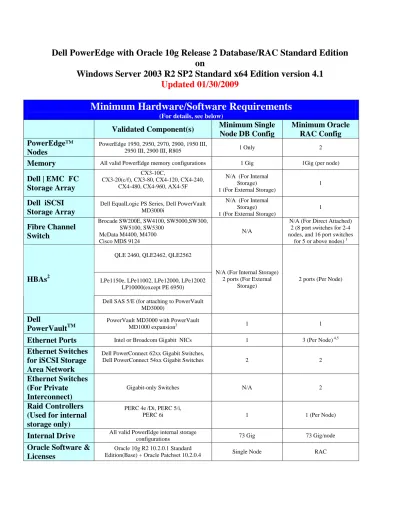

Dell PowerEdge with Oracle 10g Release 2 Database/RAC Standard Edition
on
Windows Server 2003 R2 SP2 Standard x64 Edition version 4.1
Updated 01/30/2009
Minimum Hardware/Software Requirements
(For details, see below)
Validated Component(s)
Minimum Single
Node DB Config
Minimum Oracle
RAC Config
PowerEdge™
Nodes
PowerEdge 1950, 2950, 2970, 2900, 1950 III,
2950 III, 2900 III, R805 1 Only 2
Memory
All valid PowerEdge memory configurations 1 Gig 1Gig (per node)Dell | EMC FC
Storage Array
CX3-10C,
CX3-20(c/f), CX3-80, CX4-120, CX4-240, CX4-480, CX4-960, AX4-5F
N/A (For Internal Storage) 1 (For External Storage)
1
Dell iSCSI
Storage Array
Dell EqualLogic PS Series, Dell PowerVault MD3000i
N/A (For Internal Storage) 1 (For External Storage)
1
Fibre Channel
Switch
Brocade SW200E, SW4100, SW5000,SW300, SW5100, SW5300
McData M4400, M4700 Cisco MDS 9124
N/A
N/A (For Direct Attached) 2 (8 port switches for 2-4 nodes, and 16 port switches
for 5 or above nodes) 1
QLE 2460, QLE2462, QLE2562
LPe1150e, LPe11002, LPe12000, LPe12002 LP10000(except PE 6950)
HBAs
2Dell SAS 5/E (for attaching to PowerVault MD3000)
N/A (For Internal Storage) 2 ports (For External
Storage)
2 ports (Per Node)
Dell
PowerVault
TMPowerVault MD3000 with PowerVault
MD1000 expansion3 1 1
Ethernet Ports
Intel or Broadcom Gigabit NICs 1 3 (Per Node) 4,5Ethernet Switches
for iSCSI Storage
Area Network
Dell PowerConnect 62xx Gigabit Switches,
Dell PowerConnect 54xx Gigabit Switches 2 2
Ethernet Switches
(For Private
Interconnect)
Gigabit-only Switches N/A 2
Raid Controllers
(Used for internal
storage only)
PERC 4e/Di, PERC 5/i,
PERC 6i 1 1 (Per Node)
Internal Drive
All valid PowerEdge internal storage configurations 73 Gig 73 Gig/nodeOracle Software &
Licenses
Oracle 10g R2 10.2.0.1 Standard
Operating System
Windows Server 2003 R2 SP2 Standard x64 EditionRecommended
Notes:
1.
This assumes you don’t need any other ports for other functions on the switch.
2.
PowerEdge 1950 and 1950 III only supports dual port Fibre Channel HBAs. 2 single port Fibre Channel HBAs
are recommended for other servers for High Availability.
a.
PE 1950, PE 1950 III only supports Qlogic QLE 2462, QLE 2562, LPe11002 and LPe12002.
b.
SAS (PowerVault MD3000 storage) configuration requires a minimum of two (single or dual channel)
SAS 5/E HBAs for all supported servers.
3.
PowerVault MD3000 with 2 PowerVault MD1000 expansion (max 45 disks supported). MD1000 is not
supported as a standalone unit.
4.
This assumes one NIC for public network and two teamed NICs for private network for both Fibre Channel and
SAS configuration (all servers except 1950 and 1950 III). 1950 and 1950 III do not support private NIC teaming
and only one NIC is used for private network in a SAS (PowerVault MD3000 storage) configuration.
5.
The two teamed NIC ports for private network should be on the separate PCI buses. For example, one on
on-board NIC, one on addon NIC card. It is recommended that two teamed NIC s are homogenous.
Validated Servers
Model BIOS1 ESM - BMC Firmware1 NOTES
PE 2970 1.5.4 v2.09
PE 1950 2.3.1 v2.10
PE 2900 2.3.1 v2.10
PE 2950 2.3.1 v2.10
PE 1950 III 2.3.1 v2.10
PE 2900 III 2.3.1 v2.10
PE 2950 III 2.3.1 v2.10
Dell
PowerEdge
™
Servers
PE R805 1.0.2 v2.00
Internal Disks RAID
PERC 4e/Di Firmware version= 5B2D; Driver version = 6.46.3.64
PERC 5/i Firmware version= 5.2.2-0072; Driver version= 2.23.0.64
PERC 6/i Firmware version = 6.1.1-0046; Driver version = 2.23.0.64
Network Interconnect
Single/Dual Port Intel Proset Gigabit Family Of Adapters
Driver version = 9.9.12.0
Quad Port Intel Proset Gigabit Family Of Adapters
Driver version = 10.0.25.0
10Gig Intel PCI-E Family of Server Adapters Driver version= 1.3.19.0
Broadcom NetXtreme NDIS Driver = v10.78.0.0
Broadcom NetXtreme II NDIS Driver = v4.4.15b VBD Driver = v4.4.23
NIC Teaming (Not available yet for TOE NICs)2
Intel NIC teaming Driver version= 8.4.2.0
Intel Proset for Windows Device Manager Version= 13.1.33.1
Broadcom Broadcom Advanced Control Suite Version = 11.3.14.0
BASP Teaming driver version= 9.9.12.0
iSCSI SAN Switches
Dell PowerConnect 60xx Gigabit Ethernet Switches
Firmware = v2.2.0.3
iSCSI Storage
Dell EqualLogic iSCSI Storage PS5000XV; Firmware = V4.x (Highland Park) Dell PowerVault MD3000i iSCSI Storage MD3000i; Firmware = 07.35.22.60
SAS Storage
Dell PowerVault MD3000 Storage MD3000; Firmware = 07.35.22.60
Host Bus Adapter (HBA)
Dell SAS HBA
Dell SAS 5/E Firmware version = 00.10.51.00.06.12.05.00;
Storport MiniPort Driver version 1.28.3.1 Qlogic HBAs
QLE 2460; QLE2462, QLE2562 Bios = 2.02; Firmware = 4.03.01; Storport MiniPort Driver version = v9.1.7.16 (x64)
Emulex HBAs
LP10000-E (Not supported in PE6950) Bios = 1.70a3; Firmware = 1.91a5; Storport MiniPort Driver version = 7.2.10.7 (v2.10a7) (x64)
LPe1150-E, LPe11002 Bios = 2.01a2; Firmware = 2.72a2; Storport MiniPort Driver version = v7.2.10.7 (v2.10a7) (x64)
LPe12000-E , LPe12002-E Bios = 2.01a2; Firmware = 1.00a12; Driver version = 7.2.10.7 (v2.10a7)
LPe1105-M4 Bios = 3.03a3; Firmware = 2.72a2; Storport MiniPort Driver version = 7.2.10.7 (v2.10a7) (x64)
LPe1205-M (M600 and M605 only) Bios = 3.03a6; Firmware = 1.00a12; Driver version = 7.2.1.4 (v2.01a4) LPe1205-M (M805 and M905 only) Bios = 3.03a6; Firmware = 1.00a12; Driver version = 7.2.10.7 (v2.10a7) Microsoft Storport Hotfix for HBAs
KB 943545 storport.sys driver version = 5.2.3790.4173
Fibre Channel Switches
Cisco Fibre Channel Switches
MDS 9124 Firmware version = 3.1.2 or higher Brocade Fibre Channel Switches
M4400, M4700 Firmware version = 09.07.02 or higher
Brocade Fibre Channel Switches
200E, 4100, 5000, 300, 5100,5300 Firmware version = 6.1.0c or higher
Direct Attached SAS Storage
MD3000 Firmware version = 07.35.22.60
Dell PowerVault Storage
MD1000 Firmware version = A04
Fibre Channel Storage
Dell | EMC
CX3-10C;CX3-20 (c/f); CX3-40(c/f), CX3-80 (Release 26 or higher) CX4-120, CX4-240, CX4-480, CX4-960(Release 28 or higher) AX4-5F (Release 02.23.050.5.004 or higher)
Software
Oracle Oracle 10g R2 10.2.0.1 Standard Edition for Intel EM64T with Patchset 10.2.0.4
For EqualLogic: iSCSI Initiator on Windows Microsoft iSCSI Initiator 2.0.8 For MD3000i: iSCSI Initiator on Windows Microsoft iSCSI Initiator 2.0.7 Dell EqualLogic Host Integration Tool Kit on
Windows
3.1.2
Operating system Windows Server 2003 Standard x64 Edition R2 with SP2
Power Path for Windows x64 PowerPath 5.2 (www.emc.com)
Dell Systems Management Tools and Documentation DVD
Version 5.5 (support.dell.com)
