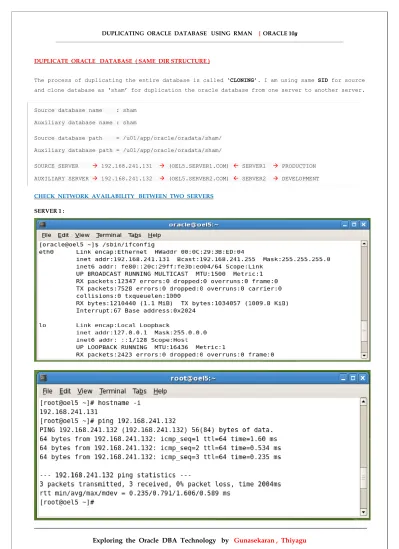

DUPLICATE ORACLE DATABASE ( SAME DIR STRUCTURE )

The process of duplicating the entire database is called ‘CLONING’. I am using same SID for source and clone database as ‘sham’ for duplication the oracle database from one server to another server.

Source database name : sham Auxiliary database name : sham

Source database path = /u01/app/oracle/oradata/sham/ Auxiliary database path = /u01/app/oracle/oradata/sham/

SOURCE SERVER  192.168.241.131  (OEL5.SERVER1.COM)  SERVER1  PRODUCTION AUXILIARY SERVER  192.168.241.132  (OEL5.SERVER2.COM)  SERVER2  DEVELOPMENT

CHECK NETWORK AVAILABILITY BETWEEN TWO SERVERS SERVER 1 :

(2)

SERVER 2 :

CREATE DIRECTORY STRUCTURE FOR AUXILIARY DATABASE $ mkdir -p /u01/app/oracle/oradata/sham/

$ mkdir -p /u01/app/oracle/admin/sham/adump/ $ mkdir -p /u01/app/oracle/admin/sham/bdump/ $ mkdir -p /u01/app/oracle/admin/sham/cdump/ $ mkdir -p /u01/app/oracle/admin/sham/udump/

CONNECTING SOURCE DATABASE

SYS>select name, dbid from v$database; NAME DBID

--- --- SHAM 926116387

SYS>show parameter db_domain;

NAME TYPE VALUE

--- --- --- db_domain string server1-oel5.com

SYS>show parameter service_names;

NAME TYPE VALUE

--- --- --- service_names string sham.server1-oel5.com

PARAMETER FILE BACKUP FOR AUXILIARY DATABASE SYS>show parameter pfile;

NAME TYPE VALUE

--- --- --- spfile string /u01/app/oracle/product/10.2.0/db_1/dbs/spfilesham.ora

(3)

SENDING PFILE TO AUXILIARY SERVER

TNSNAMES.ORA ON TARGET SERVER  192.168.241.131

# tnsnames.ora Network Configuration File: /u01/app/oracle/product/10.2.0/db_1/network/admin/tnsnames.ora # Generated by Oracle configuration tools.

TO_SHAMDB = (DESCRIPTION =

(ADDRESS_LIST =

(ADDRESS = (PROTOCOL=TCP)(HOST=192.168.241.132)(PORT=1521))

) FOR AUXILIARY SERVER

(CONNECT_DATA = (SERVER=DEDICATED) (SERVICE_NAME=sham) ) ) SHAMDB = (DESCRIPTION =

(ADDRESS = (PROTOCOL = TCP)(HOST=192.168.241.131)(PORT=1521))

(CONNECT_DATA = FOR TARGET SERVER

(SERVER = DEDICATED)

(SERVICE_NAME = sham.server1-oel5.com) )

(4)

LISTENER.ORA ON AUXILIARY SERVER  192.168.241.132

# listener.ora Network Configuration File: /u01/app/oracle/product/10.2.0/db_1/network/admin/listener.ora # Generated by Oracle configuration tools.

SID_LIST_LISTENER = (SID_LIST = (SID_DESC = (SID_NAME=sham) (ORACLE_HOME = /u01/app/oracle/product/10.2.0/db_1) (GLOBAL_DBNAME=sham) ) ) LISTENER = (DESCRIPTION_LIST = (DESCRIPTION = (ADDRESS = (PROTOCOL=TCP)(HOST=192.168.241.132)(PORT=1521)) ) )

[oracle@oel5 admin]$ tnsping to_sham

Used parameter files:

Used TNSNAMES adapter to resolve the alias

Attempting to contact (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.241.132) (PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME=sham)))OK (0 msec) [oracle@oel5 admin]$ tnsping shamdb

Used parameter files:

Used TNSNAMES adapter to resolve the alias

Attempting to contact (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP) (HOST = 192.168.241.131)(PORT = 1521))) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = sham.server1-oel5.com))) OK (10 msec)

CONFIGURE PASSWORD FILE ON TARGET & AUXILIARY SERVER ON TARGET SERVER  191.168.241.131

$ cd $ORACLE_HOME/dbs $ export ORACLE_SID=sham

(5)

ON AUXILIARY SERVER2  191.168.241.132 $ cd $ORACLE_HOME/dbs

$ export ORACLE_SID=sham

[oracle@oel5 dbs]$ orapwd file=orapwsham password=dba entries=3 force=y

Note: Database Password must be same on Target and Auxiliary server.

TARGET DATABASE PFILE

sham.__db_cache_size=260046848 sham.__java_pool_size=4194304 sham.__large_pool_size=4194304 sham.__shared_pool_size=100663296 sham.__streams_pool_size=0 *.audit_file_dest='/u01/app/oracle/admin/sham/adump' *.background_dump_dest='/u01/app/oracle/admin/sham/bdump' *.compatible='10.2.0.5.0' *.control_files='/u01/app/oracle/oradata/sham/control01.ctl', '/u01/app/oracle/oradata/sham/control02.ctl',' /u01/app/oracle/oradata/sham/control03.ctl' *.core_dump_dest='/u01/app/oracle/admin/sham/cdump' *.db_block_size=8192 *.db_domain='server1-oel5.com' *.db_file_multiblock_read_count=16 *.db_name='sham' *.db_recovery_file_dest='/u01/app/oracle/flash_recovery_area' *.db_recovery_file_dest_size=4194304000 *.dispatchers='(PROTOCOL=TCP) (SERVICE=shamXDB)' *.job_queue_processes=10 *.log_archive_format='%t_%s_%r.dbf' *.open_cursors=300 *.pga_aggregate_target=123731968 *.processes=150 *.remote_login_passwordfile='EXCLUSIVE' *.sga_target=372244480 *.undo_management='AUTO' *.undo_tablespace='UNDOTBS1' *.user_dump_dest='/u01/app/oracle/admin/sham/udump'

(6)

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

AUXILIARY DATABASE PFILE sham.__db_cache_size=260046848 sham.__java_pool_size=4194304 sham.__large_pool_size=4194304 sham.__shared_pool_size=100663296 sham.__streams_pool_size=0 *.audit_file_dest='/u01/app/oracle/admin/sham/adump' *.background_dump_dest='/u01/app/oracle/admin/sham/bdump' *.compatible='10.2.0.5.0' *.control_files='/u01/app/oracle/oradata/sham/control01.ctl', /u01/app/oracle/oradata/sham/control02.ctl', '/u01/app/oracle/oradata/sham/control03.ctl' *.core_dump_dest='/u01/app/oracle/admin/sham/cdump' *.db_block_size=8192 *.db_domain='server2-oel5.com' *.db_file_multiblock_read_count=16 *.db_name='sham' *.db_recovery_file_dest='/u01/app/oracle/flash_recovery_area' *.db_recovery_file_dest_size=4194304000 *.dispatchers='(PROTOCOL=TCP) (SERVICE=shamXDB)' *.job_queue_processes=10 *.log_archive_format='%t_%s_%r.dbf' *.open_cursors=300 *.pga_aggregate_target=123731968 *.processes=150 *.remote_login_passwordfile='EXCLUSIVE' *.sga_target=372244480 *.undo_management='AUTO' *.undo_tablespace='UNDOTBS1' *.user_dump_dest='/u01/app/oracle/admin/sham/udump'

# Below Parameters are used for from where to where the DATAFILES & LOGFILES will be cloned. # db_file_name_convert=('/u01/app/oracle/oradata/sham/', '/u01/app/oracle/oradata/sham) # log_file_name_convert=('/u01/app/oracle/oradata/sham/', '/u01/app/oracle/oradata/sham') POINTS TO NOTE

If the source database directory structure & clone database directory structure differs, then only you need to use db_file_name_convert & log_file_name_convert parameters.

(7)

STARTUP AUXILIARY DATABASE AT NOMOUNT STAGE & EXIT $ export ORACLE_SID=sham

$ sqlplus "/as sysdba"

Connected to an idle instance. SYS> startup nomount;

ORACLE instance started. . .. [Trimmed] SYS> exit

Disconnected from Oracle Database 10g Enterprise Edition Release 10.2.0.5.0 - Production With the Partitioning, OLAP, Data Mining and Real Application Testing options

Once I started my auxiliary instance in NOMOUNT state, i have disconnected SYS as ‘NO SESSION’ before duplicating a database. It is must and should.

$ export ORACLE_SID=sham $ rman target /

Connected to target database: SHAM (DBID=926462179) RMAN> backup database plus archivelog;

Starting backup at 11-NOV-14 current log archived

using channel ORA_DISK_1

channel ORA_DISK_1: starting archive log backupset

channel ORA_DISK_1: specifying archive log(s) in backup set input archive log thread=1 sequence=14 recid=14 stamp=863358645 input archive log thread=1 sequence=15 recid=15 stamp=863358734 channel ORA_DISK_1: starting piece 1 at 11-NOV-14

channel ORA_DISK_1: finished piece 1 at 11-NOV-14 piece

handle=/u01/app/oracle/flash_recovery_area/SHAM/backupset/2014_11_11/o1_mf_annnn_TAG20141111T135 214_b63ksqp8_.bkp tag=TAG20141111T135214 comment=NONE

channel ORA_DISK_1: backup set complete, elapsed time: 00:00:02 Finished backup at 11-NOV-14

Starting backup at 11-NOV-14 using channel ORA_DISK_1

channel ORA_DISK_1: starting full datafile backupset channel ORA_DISK_1: specifying datafile(s) in backupset

(8)

input datafile fno=00001 name=/u01/app/oracle/oradata/sham/system01.dbf input datafile fno=00003 name=/u01/app/oracle/oradata/sham/sysaux01.dbf input datafile fno=00002 name=/u01/app/oracle/oradata/sham/undotbs01.dbf input datafile fno=00005 name=/u01/app/oracle/oradata/sham/sample01.dbf input datafile fno=00004 name=/u01/app/oracle/oradata/sham/users01.dbf channel ORA_DISK_1: starting piece 1 at 11-NOV-14

handle=/u01/app/oracle/flash_recovery_area/SHAM/backupset/2014_11_11/o1_mf_nnndf_TAG20141111T135 216_b63kss5h_.bkp tag=TAG20141111T135216 comment=NONE

channel ORA_DISK_1: backup set complete, elapsed time: 00:00:36 channel ORA_DISK_1: starting full datafile backupset

channel ORA_DISK_1: specifying datafile(s) in backupset including current control file in backupset

including current SPFILE in backupset

channel ORA_DISK_1: starting piece 1 at 11-NOV-14 channel ORA_DISK_1: finished piece 1 at 11-NOV-14 piece

handle=/u01/app/oracle/flash_recovery_area/SHAM/backupset/2014_11_11/o1_mf_ncsnf_TAG20141111T135 216_b63kv0o3_.bkp tag=TAG20141111T135216 comment=NONE

Starting backup at 11-NOV-14 current log archived

using channel ORA_DISK_1

channel ORA_DISK_1: starting archive log backupset

channel ORA_DISK_1: specifying archive log(s) in backup set input archive log thread=1 sequence=16 recid=16 stamp=863358780 channel ORA_DISK_1: starting piece 1 at 11-NOV-14

handle=/u01/app/oracle/flash_recovery_area/SHAM/backupset/2014_11_11/o1_mf_annnn_TAG20141111T135 300_b63kv5od_.bkp tag=TAG20141111T135300 comment=NONE

list bkp.txt

(9)

ON AUXILIARY SERVER (RECEIVED ALL BACKUPS)

START THE CLONING PROCESS IN TARGET SERVER

Target and Auxiliary database name as ‘SHAM’ but connect string is different.

$ export ORACLE_SID=sham

$ rman target sys/dba@shamdb auxiliary sys/dba@to_sham

connected to target database: SHAM (DBID=926462179) connected to auxiliary database: SHAM (not mounted)

RMAN> duplicate target database to 'sham' nofilenamecheck; Starting Duplicate Db at 11-NOV-14

using target database control file instead of recovery catalog allocated channel: ORA_AUX_DISK_1

channel ORA_AUX_DISK_1: sid=156 devtype=DISK

contents of Memory Script: {

set until scn 480540;

set newname for datafile 1 to

"/u01/app/oracle/oradata/sham/system01.dbf"; set newname for datafile 2 to

"/u01/app/oracle/oradata/sham/undotbs01.dbf"; set newname for datafile 3 to

"/u01/app/oracle/oradata/sham/sysaux01.dbf"; set newname for datafile 4 to

"/u01/app/oracle/oradata/sham/users01.dbf"; set newname for datafile 5 to

"/u01/app/oracle/oradata/sham/sample01.dbf"; restore

check readonly clone database ;

(10)

executing Memory Script

executing command: SET until clause executing command: SET NEWNAME

executing command: SET NEWNAME executing command: SET NEWNAME executing command: SET NEWNAME executing command: SET NEWNAME

Starting restore at 11-NOV-14 using channel ORA_AUX_DISK_1

channel ORA_AUX_DISK_1: starting datafile backupset restore

channel ORA_AUX_DISK_1: specifying datafile(s) to restore from backup set restoring datafile 00001 to /u01/app/oracle/oradata/sham/system01.dbf restoring datafile 00002 to /u01/app/oracle/oradata/sham/undotbs01.dbf restoring datafile 00003 to /u01/app/oracle/oradata/sham/sysaux01.dbf restoring datafile 00004 to /u01/app/oracle/oradata/sham/users01.dbf restoring datafile 00005 to /u01/app/oracle/oradata/sham/sample01.dbf channel ORA_AUX_DISK_1: reading from backup piece

/u01/app/oracle/flash_recovery_area/SHAM/backupset/2014_11_11/o1_mf_nnndf_TAG20141111T135216_b63 kss5h_.bkp

channel ORA_AUX_DISK_1: restored backup piece 1 piece

handle=/u01/app/oracle/flash_recovery_area/SHAM/backupset/2014_11_11/o1_mf_nnndf_TAG20141111T135 216_b63kss5h_.bkp tag=TAG20141111T135216

channel ORA_AUX_DISK_1: restore complete, elapsed time: 00:00:45 Finished restore at 11-NOV-14

sql statement: CREATE CONTROLFILE REUSE SET DATABASE "SHAM" RESETLOGS ARCHIVELOG MAXLOGFILES 16 MAXLOGMEMBERS 3 MAXDATAFILES 100 MAXINSTANCES 8 MAXLOGHISTORY 292 LOGFILE GROUP 1 SIZE 50 M , GROUP 2 SIZE 50 M , GROUP 3 SIZE 50 M DATAFILE '/u01/app/oracle/oradata/sham/system01.dbf' CHARACTER SET WE8ISO8859P1

switch clone datafile all; }

(11)

datafile 2 switched to datafile copy

input datafile copy recid=1 stamp=863365636 filename=/u01/app/oracle/oradata/sham/undotbs01.dbf datafile 3 switched to datafile copy

input datafile copy recid=2 stamp=863365636 filename=/u01/app/oracle/oradata/sham/sysaux01.dbf datafile 4 switched to datafile copy

input datafile copy recid=3 stamp=863365636 filename=/u01/app/oracle/oradata/sham/users01.dbf datafile 5 switched to datafile copy

input datafile copy recid=4 stamp=863365636 filename=/u01/app/oracle/oradata/sham/sample01.dbf

contents of Memory Script: { set until scn 480540; recover clone database delete archivelog ; }

executing command: SET until clause Starting recover at 11-NOV-14

using channel ORA_AUX_DISK_1 starting media recovery

archive log thread 1 sequence 16 is already on disk as file

/u01/app/oracle/flash_recovery_area/SHAM/archivelog/2014_11_11/o1_mf_1_16_b63kv40v_.arc archive log

filename=/u01/app/oracle/flash_recovery_area/SHAM/archivelog/2014_11_11/o1_mf_1_16_b63kv40v_.arc thread=1 sequence=16

media recovery complete, elapsed time: 00:00:03 Finished recover at 11-NOV-14

shutdown clone;

startup clone nomount ; }

database dismounted

Oracle instance shut down

connected to auxiliary database (not started) Oracle instance started

Total System Global Area 373293056 bytes Fixed Size 1273780 bytes Variable Size 113246284 bytes Database Buffers 255852544 bytes Redo Buffers 2920448 bytes

(12)

sql statement: CREATE CONTROLFILE REUSE SET DATABASE "SHAM" RESETLOGS ARCHIVELOG MAXLOGFILES 16 MAXLOGMEMBERS 3 MAXDATAFILES 100 MAXINSTANCES 8 MAXLOGHISTORY 292 LOGFILE GROUP 1 SIZE 50 M , GROUP 2 SIZE 50 M , GROUP 3 SIZE 50 M DATAFILE '/u01/app/oracle/oradata/sham/system01.dbf' CHARACTER SET WE8ISO8859P1

set newname for tempfile 1 to

"/u01/app/oracle/oradata/sham/temp01.dbf"; switch clone tempfile all;

catalog clone datafilecopy "/u01/app/oracle/oradata/sham/undotbs01.dbf"; catalog clone datafilecopy "/u01/app/oracle/oradata/sham/sysaux01.dbf"; catalog clone datafilecopy "/u01/app/oracle/oradata/sham/users01.dbf"; catalog clone datafilecopy "/u01/app/oracle/oradata/sham/sample01.dbf"; switch clone datafile all;

}

executing command: SET NEWNAME

renamed temporary file 1 to /u01/app/oracle/oradata/sham/temp01.dbf in control file

cataloged datafile copy

datafile copy filename=/u01/app/oracle/oradata/sham/undotbs01.dbf recid=1 stamp=863365649

datafile copy filename=/u01/app/oracle/oradata/sham/sysaux01.dbf recid=2 stamp=863365649

datafile copy filename=/u01/app/oracle/oradata/sham/users01.dbf recid=3 stamp=863365649

datafile copy filename=/u01/app/oracle/oradata/sham/sample01.dbf recid=4 stamp=863365649

datafile 2 switched to datafile copy

input datafile copy recid=1 stamp=863365649 filename=/u01/app/oracle/oradata/sham/undotbs01.dbf datafile 3 switched to datafile copy

input datafile copy recid=2 stamp=863365649 filename=/u01/app/oracle/oradata/sham/sysaux01.dbf datafile 4 switched to datafile copy

input datafile copy recid=3 stamp=863365649 filename=/u01/app/oracle/oradata/sham/users01.dbf datafile 5 switched to datafile copy

(13)

Alter clone database open resetlogs; }

database opened

Finished Duplicate Db at 11-NOV-14

CONNECTING AUXILIARY DATABASE $ export ORACLE_SID=sham

$ sqlplus "/as sysdba"

Connected to:

Oracle Database 10g Enterprise Edition Release 10.2.0.5.0 - Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SYS>select name, dbid, open_mode from v$database; NAME DBID OPEN_MODE

--- --- --- SHAM 926530381 READ WRITE
