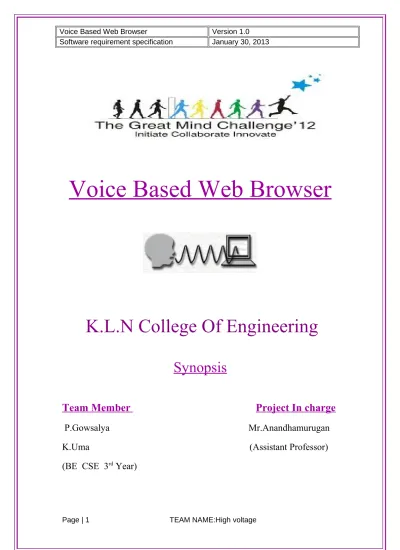

Voice Based Web Browser
K.L.N College Of Engineering
Synopsis
Team Member
Project In charge
P.Gowsalya Mr.Anandhamurugan
K.Uma (Assistant Professor)
(BE CSE 3
rdYear)
•
Table of Contents
Description Page No.
Introduction :
1.1. Purpose……….3
1.2. Scope ……….3
1.3. Definition, Acronyms and Abbreviation……….3
1.4. Technologies to be used………...4 1.5. Tools used………5 1.6. References………...5 1.7. Overview……….5 2. Overall Description 2.1. Product Perspective………...6 2.2. Software Interface………6 2.3. Hardware Interface………..7 2.4. Communication Interface………...7 2.5. Product Function………...7 2.6. Constraints………...8
2.7. Use Case Model………...9
2.8. Class Diagram………...10
2.9. Sequence Diagram………...11
2.10. Activity Diagram………...13
2.11. E-R Diagram………....16
2.12. Architecture Design………...17
2.13. Assumptions and Dependencies………..18
3. Specific Requirements 3.1.Supplementary Requirements………18
1. Introduction
1.1 Purpose
Voice Based Web Browser. voice-based web to make information accessible to
users who may not be able to read or write, or who do not have access to the Internet. Users can access the voice-based web using a toll-free number, through a variety of ways including a voice recognition system or a tone phone. Unlike a computer interface, a voice interface needs no keyboard, no mouse, no screen, freeing users from these barriers to access and action. It requires no training. It is accessible to anyone with a telephone. Voice is mobile—information can be sent and retrieved from anywhere. Since customers can have access at anytime from anywhere, voice makes it possible to use time more effectively. Fast and efficient, voice frees users from not only the desktop, but even the laptop.
1.2 Scope
The user gives the request through the voice or text using phone ,personal computer or Touch tone.
The request goes to the voice browser.If the request is voice, speech recognition converts voice into text.
Checks the grammers and then using speech synthesis to convert text into pre-recorded audio.
The pre-recored audio should be store in the administrator.it should display to the user.
1.3. Definitions, Acronyms and Abbreviations
•
ADMIN-
Administrator has the authority for convert the voice into text,text into voice and then displaying to the user.•
ASR-
Automatic Speech Recognition is to convert the speech into text.
• HTML – Hypertext Markup Language is to create static websites.
• J2EE – Java 2 Enterprise Edition is a programming platform and it is the part
of the java platform for developing and running distributed java applications.
• EJB – Enterprise java bean, it is architecture for the development and
deployment of transactional, distributed object applications-based, server-side software componen
• RSA – Rational Software Architect is a designer toolkit which is
designed for develop more complex projects by providing fully dynamic web service.
• DB2 – Database 2 is the database management system that provides a
flexible and efficient database platform to erect strong on demand business applications.
• UML- Unified Modeling Language is a standard language for writing software blueprints. The UML may be used to visualize, specify, construct and document
• XML - Extensive Markup Language used for data transfer and XML is
stored naturally in DB2
• HTTP – Hypertext transfer protocol is a transaction oriented client/server
protocol between web browser and a web server.
• HTTPS – Secure hypertext transfer protocol is a hypertext transfer
protocol over secure socket layer.
1.4 Technologies used:
HTML – Hyper Text Markup Language
Java Script
– Script Language XML – Extensive Mark Up Language JAVA – Application architecture
J2EE – Application architecture
1.5. Tools used
• RSA – Rational Software Architect 7.0
• DB2 9 – Database
• WAS – Websphere Application Server 6.0
• TSM – Tivoli Storage Manager
1.6 References
IBM TGMC Sample Synopsis.
IBM – www.ibm.in/developerworks.
Wikipedia - www.wikipedia.com
Database Management Systems - korth.
1.7 Overview
Existing System:
• Type the text search the content who may not be able to read or write people does not access it.
Drawbacks:
WAP(Cellular phones, Palm Pilots)access to the web:
Small screens: For web phones, there's an incredibly small viewing area; palmtops are barely better.
Speed of access: All devices have slow access.
Limited or fragmented availability: Wireless web access is sporadic in many areas and entirely unavailable in other areas.
Awkward input: Palm's Graffiti, touchtone pads, or even tiny QWERTY keyboards are awkward for any amount of writing, even a short email.
Price: Many technology limitations are being addressed by higher-end devices and services. But the entry price for a good wireless web palmtop with decent display, keyboard, and speed is easily $700 to $900, not including monthly access.
Lack of user habit: It takes some patience and overcoming the learning curve to get the hang of it -- connecting, putting in an address, typing. Users just aren't used to the idea and protocol yet.
Proposed System:
Voice Browsers offer the promise of allowing everyone to access Web based services from any phone, making it practical to access the Web any time and anywhere, whether at home, on the move, or at work.
Users will able to choose whether to respond by a key press or a spoken command.
Voice browsers allow people to access the Web using speech synthesis, pre-recorded audio, and speech recognition.
Our plan:
Accept the voice commands
Output should be converted into speech
2.Overall Description
2.1. Product Perspective
2.2
. Software Interface
Client on Internet
Web Browser, Operating System (any)
Web Server
Data Base Server
DB2, Operating System (any)
Development End
RAD (J2EE, Java, Java Bean, Servlets, HTML, XML, AJAX), DB2, OS (Windows), WebSphere(Web Server)
2.3. Hardware Interface
Minimum Requirements:Client Side
Processor
RAM
Disk Space
Internet Explorer – 6
Intel Pentium III or AMD -800 MHz
128 MB 100 MB
Server Side
Processor
RAM
Disk Space
RAD Intel Pentium III or
AMD -800 MHz 1 GB 3.5 GB DB2-9.5 256 MB 500 MB (Excluding Data Size) Recommended Requirements:
Client Side
Processor
RAM
Disk Space
Internet Explorer
– 6 Intel Pentium III or AMD -1GHZ 256 MB 100 MB
Server Side
Processor
RAM
Disk Space
RAD Intel Pentium III or AMD -2GHZ 2 GB 3.5 GB
2.4. Communication Interface
• Voice based web browser will be connected to the World Wide Web.
• The HTTP protocol will be used to facilitate communication between the client and server.
2.5 Product Function:
Voice based web browser-Easy to use - for people with no knowledge or fear of
computers. Voice interaction can escape the physical limitations on keypads and displays as mobile devices become ever smaller. Many companies to offer services
over the phone via menus traversed using the phone's keypad. Voice Browsers are the next generation of call centers, which will become Voice Web portals to the company's services and related websites, whether accessed via the telephone network or via the Internet. .
Some of the features of the product are as follow:
Accessing business information:
• The corporate "front desk" which asks callers who or what they want
• Automated telephone ordering services
• Support desks
• Order tracking
• Airline arrival and departure information
Accessing public information:
• Community information such as weather, traffic conditions, school closures, directions and events
• Local, national and international news
• National and international stock market information
• Business and e-commerce transactions
Accessing personal information:
• Voice mail
• Calendars, address and telephone lists
• Personal horoscope
• Personal newsletter
• To-do lists, shopping lists, and calorie counters
2.6. Constraints
• The information of all the users must be stored in a database that is accessible by the Administrator.
• Voice based web browser system is connected to the computer and is running all 24 hours a day.
• The users can access Online Book Sales with mobile SMS System from any computer that has Internet browsing capabilities and an Internet connection.
2.7. Use Case Model
Touch tone Speech recognition
Telephone calls
Request through voice
Pre-recored audio Speech Synthesis VoiceXML scripts Grammars Audio files Voice browser User
Request through text
HTML scripts Multimedia files
Maintain database
USER user name : string email id : string search_Via_Phone() search_Via_Pc() search_Via_Touchtone() upload() download() account_Create() COMPUTER network connection : string operating system : string computer configuration : string html_To_Script() VOICE BROWSER version : integer script : string voicexml_Script() grammers() audio_Files() text_To_Speech() speech_To_Text() ADMIN system number : integer user_Id : integer password : string login() search() upload() download() chat() send mail() receive mail() report generate() WEB APPLICATION SERVER band width : string integrity : string ip address : integer port number : integer security()
data services() transaction_Support() load_Balancing()
2.9.Squence Diagram
USER VISUAL BROWSER
VOICE BROWSER
ADMIN
request for home page
search content
send html files
voice request
send voice xml files display
text or voice output generate html files
grammar checking
pre-recorded audio
BROWSER SERVER DATABASE
HTTP request or enter URL
resolve request type go to pages (HTML)webpages to user want to upload resources
checks for authorization valid user
request for chatting checks for authorization allow user to upload
valid user provide chat application web pages
request URL
validate URL invalid(page cannot be displayed)
valid got web pages display to the user
USER REQUEST
voice browser search content
voice xml grammar audiio files HTML multimedia file
scripts script administrator resolve request type database
through voice through computer
Give request
resolve request
type Display error message
serve requested URL
invalid valid
start session valid user verify authorization process request No Yes
2.10.3.Uploading and downloading:
2.12.Architecture Diagram
User Request via keyboard Request via phone User name Upload Downlo ad Phone numb er Request via touch tone Sen d to Feed back Voice Browser Voic e xml Gram mars Audio files Speech synthes is Prerecord ed audio Speec h recogni tion Administrator Search Permis sion grant Delete memb ers Updati on Add memb erss Mana ge Data base Maintain informatio n Reslove request type Receiv e reques t Ser verAPPLICATION BUSINESS LAYER
DATABASE
LAYER
USER LOGIN USERACCOUNT _UI USER ACCOUNT USERLOGIN _UI SEARCH_UI SEARCH UPLOAD_UI UPLOAD FEEDBACK_UI DOWNLOAD DOWNLOAD_UI FEEDBACK VOICESEARCH _UI VOICE SEARCH USER DETAILS SEARCH FEEDBACK RESOURCE S PRE-RECORDED AUDIO2.13. Assumption and Dependencies
• The Computer should have Internet connection and Internet server capabilities.
• The users know the English language, as the user interface will be provided in English.
3.3Supplementary Requirement
Safety Requirements
Highly recommend Kaspersky 2010 internet security to been Installed in users Pc to prevent the harm that may occurs by unwanted malicious software’s, phishing URLs and all the types of virus attacks during using this application..
Security Requirements
All users should be properly authenticated before allowed entry into the system authentication will be based on an E-mail address, and a password.
All activities on the system must be logged.
Non-Functional Requirements
• Secure access of confidential data (user’s details). SSL can be used.
• 24 X 7 availability.
• Better component design to get better performance at peak time.
• Flexible service based architecture will be highly desirable for future extension.
Other Requirements
The user must be agreed with all the term and conditions that have provided by the System Administrator, local authority and Should Obey to the all International standards and Protocols.
