Influence of beet necrotic yellow vein virus on sugar beet storability

(1)

Influence of

Beet necrotic yellow vein virus

on Sugar Beet Storability

Carl A. Strausbaugh, United States Department of Agriculture–Agricultural Research Service NWISRL, Kimberly,

ID 83341; Eugene Rearick, Amalgamated Research, Inc., Twin Falls, ID 83301; Stacey Camp, Amalgamated Sugar

Co., Paul, ID 83347; John J. Gallian, University of Idaho, Research and Extension Center, Twin Falls 83303; and

Alan T. Dyer, Montana State University, Bozeman 59717

Preventing sucrose losses in long-term storage is critical to the viability of the sugar beet industry. Loss of sucrose be-yond normal respiration can be attributed to the physiological state of the root, dehy-dration, microbial activity, harvest condi-tions (mud, frost, high temperatures, and so on), and injuries from harvest and cleaning operations (4,5,9–13,26).

In the pile, storage fungi reduce recov-erable sucrose levels of stored beet. The major causes of storage decay have been identified as Phoma betae A. B. Frank, Penicillium claviforme Bainier, Botrytis cinerea Pers., and Fusarium spp. (4). For instance, it has been reported that the res-piration rate of stored sugar beet roots will double when approximately 20% of their surface area is infected by Penicillium and Botrytis spp. (15). These infections also lead to a threefold increase in reducing sugars, which are problematic to sucrose extraction (15). Recently, the influence of fungal infections in the field on storability of sugar beet was investigated in Germany under controlled storage conditions. Stor-ability was found to be impaired by

Rhizoctonia solani J.G. Kühn but not by Cercospora beticola Sacc. (12).

In southern Idaho, much of the sugar beet crop is stored from mid-October to mid-March in piles 6.1 m high by 36.6 m wide at the base (24.4 m wide at top) (17). In southern Idaho, approximately one-third of the sugar beet roots are directly proc-essed, one-third are held in short-term storage, and one-third are held in long-term (>90 days) storage (17). For 2006, one-third of the sugar beet roots for south-ern Idaho would have been approximately 1.7 million metric tons (16). The factory processing campaign begins in late Sep-tember with roots directly from the field but eventually shifts to using only stored roots sometime in November. The extrac-tability of sugar from stored beet will vary depending on impurities such as potas-sium, sodium, amino-N, invert sugars, and substances associated with rot organisms such as dextran (5). Maintaining sucrose concentration and root quality during stor-age is important for maintaining factory efficiency.

Rhizomania, caused by Beet necrotic yellow vein virus (BNYVV), has become one of the most serious diseases of sugar beet worldwide (14,18,19,22). The primary means of controlling this disease is through host resistance based largely on the Rz1 gene (18,19). However, strains of BNYVV that overcome the Rz1 gene have been documented (14). Concerns also have been raised that BNYVV may influence the storability of sugar beet. A preliminary report suggesting that disease agents may

compromise storability of sugar beet prompted this investigation on the influ-ence of BNYVV on the storability of sugar beet (21).

MATERIALS AND METHODS Treatments. The study examined 12 treatments, consisting of six commercial sugar beet cultivars from fields with and without rhizomania-infested soil from the 2005 growing season, and was repeated with roots from the 2006 season. One of the six cultivars, HM Owyhee, was suscep-tible to rhizomania and is among the best commercial cultivars for resistance to curly top. The other five cultivars contained resistance genes to rhizomania and also were selected for their performance against curly top. Rhizomania was uniform and evident throughout the infested field in both years. Curly top, caused by Beet se-vere curly top virus and closely related species, also was present at moderate els in the 2005 fields but only at trace lev-els in the 2006 fields. The influence of curly top was ameliorated by host resis-tance and the use of the insecticide Temik 15G (15% aldicarb). Powdery mildew, caused by Erysiphe polygoni DC., also was present in the 2005 infested field; however, the most susceptible cultivars (Beta 4490 R and Beta 4199 R) had the least sucrose loss in the storage work. Thus, powdery mildew should have had very little influ-ence on the storage work. Root rots and other fungal and bacterial diseases were not evident in the fields and the roots were free of visible root rot at harvest. At both the disease-free and rhizomania fields, the six cultivars were arranged in a random-ized complete block design with four rep-lications as four-row plots, 10.4 m long, with rows 0.6 m apart. The fields were managed using standard commercial cul-tural practices. At harvest, six eight-beet samples were collected in nylon mesh onion bags from each plot. Two of the samples were submitted to the Amalga-mated Tare Lab for sugar analysis. The storage samples were piled inside a metal corrugated ventilation pipe (0.9 m in di-ameter) on top of plywood in the same experimental design and blocks as ar-ranged in the field. The samples inside the pipe covered an area of 6.1 m, with the initial 6.1 m of the open end of the pipe unused. The open end of the pipe was cov-ered with straw bales. The pipe was lo-ABSTRACT

Strausbaugh, C. A., Rearick, E., Camp, S., Gallian, J. J., and Dyer, A. T. 2008. Influence of Beet necrotic yellow vein virus on sugar beet storability. Plant Dis. 92:581-587.

Rhizomania caused by Beet necrotic yellow vein virus (BNYVV) and storage losses are serious sugar beet production problems. To investigate the influence of BNYVV on storability, six sugar beet cultivars varying for resistance to BNYVV were grown in 2005 and 2006 in southern Idaho fields with and without BNYVV-infested soil. At harvest, samples from each cultivar were placed in an outdoor ventilated pile in Twin Falls, ID and were removed at 40-day intervals start-ing at the end of October. After 144 and 142 days in storage, sugar reduction across cultivars averaged 20 and 13% without and 68 and 21% with BNYVV for the 2005 and 2006 roots, re-spectively. In the December samplings, frozen root area was 1 and 2% without and 25 and 41% with BNYVV for the 2005 and 2006 roots, respectively. Root rot was always worse with stored roots from BYNVV-infested soil in December, January, and February samplings. Root weight loss was variable in 2005; however, in 2006, an increase in weight reduction always was associ-ated with BNYVV-infested roots. In order to prevent losses in rhizomania-infested areas, culti-vars should be selected for storability as well as rhizomania resistance.

Corresponding author: C. A. Strausbaugh E-mail: [email protected]

Accepted for publication 7 November 2007.

doi:10.1094 / PDIS-92-4-0581

This article is in the public domain and not copy-rightable. It may be freely reprinted with custom-ary crediting of the source. The American Phyto-pathological Society, 2008.

(2)

cated on top of a 30-cm layer of beet. The pipe was covered by roots piled to a height of 6.1 m. The pile was ventilated using the same perforated pipe placed 3.7 m on cen-ter. The storage pipe with the samples was placed between the two ventilation pipes. The roots surrounding the pipe were from commercial cultivars and healthy in ap-pearance (no visible rhizomania or rot symptoms). The samples were retrieved at 40-day intervals beginning on 31 October 2005 and 1 November 2006. Temperature inside the storage tube was recorded on a Hobo temperature sensor (Onset Computer Corp., Bourne, MA) at 1-h intervals. Cv. HM 2980 RZ was not available in 2006; thus, we included HM 2984 RZ in place of this cultivar.

2005 Rhizomania field samples. The field was located on a research farm at the College of Southern Idaho in Twin Falls. Barley had been grown on the field the previous year. Sugar beet was planted on 3 May 2005. The insecticide Temik 15G was applied at 22.4 kg/h during bedding on 19 April 2005. The field was mechani-cally topped and harvested on 5–6 Octo-ber with a small-plot harvester. Storage samples were held outdoors in a shaded area until they were placed inside the pipe

in the Twin Falls ventilated pile on 17 October.

2005 Field samples disease-free in ap-pearance. The plots were within a com-mercial field 14.5 km north of Rupert, ID. The field had been in potato in 2004 and was planted to sugar beet on 5 April 2005. The insecticide Temik 15G at 15.7 kg/h was applied during cultivation on 28 May 2005. The plants were hand topped and harvested on 7 October. The storage sam-ples were held outdoors in a shaded area until they were placed inside the Twin Falls ventilated pile on 17 October.

2006 Rhizomania field samples. The trial was located in a commercial field 11.3 km north of Rupert, ID. The field had been in spring barley in 2005 and was planted to sugar beet on 10 April 2006. The insecti-cide Temik 15G was applied at 16.8 kg/h on 20 June 2006. The plants were hand topped and harvested on 6 October. The storage samples were held outdoors in a shaded area until they were placed inside the Twin Falls ventilated pile on 19 Octo-ber.

2006 Field samples disease-free in ap-pearance. The plots were within a com-mercial grower’s field located 6.4 km south of Nampa, ID. The field had been in

corn in 2005 and was planted to sugar beet on 27 March 2006. The insecticide Temik 15G was applied at 16.8 kg/h on 15 May 2006. The plants were hand topped and harvested on 12 October. Storage samples were held outdoors in a shaded area until they were placed inside the Twin Falls ventilated pile on 19 October.

Rhizomania, rot, and freeze damage ratings. After being retrieved from the storage pile on each sampling date, the roots were evaluated for rhizomania symp-toms using a 0-to-9 disease index, where 0 = no symptoms; 1 = root growth normal, minor bearding, and no discoloration; 2 = taproot slightly constricted and bearded; 3 = taproot moderately constricted, bearded, and discolored with very little adhering soil; 4 = similar to 3 except more adhering soil; 5 = taproot wine-glass shaped, discol-ored, and brittle and feeder roots bearded with soil adhering; 6 = damage to taproot severe and probably nonfunctional, with severe bearding just below the crown; 7 = taproot destroyed and severe bearding below the crown, with root area a ball of soil; 8 = similar to 7 except root necrotic into the crown area; 9 = root dead. The index is similar to one published previ-ously (23) and was utilized in a continuous manner rather than categorically. At the same time, surface rot also was evaluated as the percentage of root area associated with rot damage such as dry black rot, wet bacterial rot, or tissue covered with fungal growth. The percentage of root area asso-ciated with freeze damage (frost on root surface, tissue translucent, and so on) also was established at the time of retrieval from storage. No freeze data were obtained on the first sampling date because no freezing had occurred. No attempt was made to analyze the roots for frozen root area in the February samplings, because the roots had deteriorated too badly from rot.

Weight analysis. Prior to placing the storage samples in the pile, each sample was weighed. The samples were reweighed when retrieved from the storage pile. These weights were used to determine reduction in root weight.

Sugar analysis. Two of the six samples collected from each plot were submitted to the Amalgamated Tare Lab in Paul, ID at the time of harvest. Percent sugar was determined using an Autopol 880 po-larimeter (Rudolph Research Analytical, Hackettstown, NJ) and a half-normal weight sample dilution and aluminum sulfate clarification method (ICUMSA Method GS6-3 1994; 2). Percent sugar for samples coming out of storage was deter-mined by Amalgamated Research Inc. in Twin Falls, ID using gas chromatography, because polarimeter readings can be af-fected by impurities that accumulate dur-ing storage. The gas chromatographic method was similar to ICUMSA Method GS4/7/8/5-2 (2002) with the following

Fig. 1. Average daily temperature (°C) during storage A, from 5 October 2005 to 28 February 2006

and B, from 6 October 2006 to 26 February 2007 in an outdoor commercial sugar beet pile in Twin

(3)

modifications: the internal standard used was D(–)-salicin (2-[hydroxymethyl]phenyl-β-D-glucopyranoside) and equal volumes (to ±0.01 ml) of a solution of internal stan-dard in dimethylformamide were dis-pensed into weighed samples and stan-dards using a volumetric dispenser (2). To compare the two sugar analysis techniques, 16-beet samples were pulled from 24 dif-ferent plots. The samples were split and then analyzed with the polarimeter and gas chromatograph. The gas chromatography analysis averaged 1.395% higher. To estab-lish percent reduction in sugar at harvest versus storage, only samples from within the same plot were compared. Percent sugar reduction was established using the following equation: percent reduction in pounds of sugar = (1 – {[(% sugarstorage

sample – 1.395) × weightstorage sample]/(%

sugarharvest sample × weightharvest sample)}) ×

100.

Data analysis. Data were analyzed in SAS (20) using the general linear models procedure (Proc GLM), and Fisher’s pro-tected least significant difference was used for mean comparisons. Single degree-of-freedom contrasts also were conducted. Bartlett’s Test was used to establish homo-geneity of variance.

RESULTS

Temperature. During the 2005–06 stor-age season, there was a cold period that began on 8 December 2005 (Fig. 1). The average daily temperature in the pipe ranged between –6 and –8°C for 10 con-secutive days. Temperatures then moder-ated and the average temperature remained above 0°C for 25 days between 1 January 2006 and 6 February 2006. During the 2006–07 storage season, temperatures in the pipe dropped below 0°C on 26 No-vember 2006 and stayed below zero for 71 of the next 76 days (Fig. 1). The lowest average daily temperature during this pe-riod was –5.9°C.

Rhizomania ratings. Rhizomania rating data for 2005 differed between sampling dates (P < 0.0001). Rhizomania rating data for 2006 did not differ between sampling dates (P = 0.2157) and variances were homogeneous (P = 0.8837). In 2005 and 2006, all six cultivars from the rhizomania-infested field had significantly higher rhi-zomania root ratings than the same six cultivars from a field lacking foliar and root symptoms of rhizomania (Table 1). The rhizomania-susceptible check, HM Owyhee, had the highest rhizomania rat-ings in the infested fields both years. Sin-gle degree-of-freedom contrast also showed that cultivars from the infested field (mean rating of 2.6) had more rhizo-mania root symptoms (P < 0.0001) than those from the noninfested field (mean rating of 0.0).

Surface rot. Surface rot data were ana-lyzed separately for the two storage sea-sons because experiments were different

on all four sampling dates (P = 0.0026, 0.0009, 0.0033, and 0.0001, respectively). On the 31 October 2005 sampling, five of the cultivars from the rhizomania-infested field had more root rot than those from the noninfested field (Table 2). In the 1 No-vember 2006 sampling, no root rot was evident (Table 3). In the 9 December 2005 sampling, all cultivars from the infested field had more root rot (19 to 25%) than those from the noninfested field (2 to 6%). In the 12 December 2006 sampling, HM Owyhee and HM 2984 from the infested field had more root rot than from the non-infested field, whereas the other cultivars did not differ. In the 18 January 2006 sam-pling, all cultivars from the infested field

(51 to 70%) had considerably more root rot than those from the noninfested field (4 to 14%). In the 22 January 2007 sampling, only HH Meridian R had more rot from the infested field than from the noninfested field. In the 28 February 2006 sampling, root appearance of the cultivars from the infested field was poor (72 to 88%). Culti-vars from the noninfested field also had rot (25 to 42%) but it not as severe as in those from the infested field. In the 26 February 2007 sampling, there was more root rot on five of the six cultivars from the infested field (25 to 40%) than on the previous sampling date, whereas those from the noninfested field still had very little root rot (7 to 14%). Comparisons across

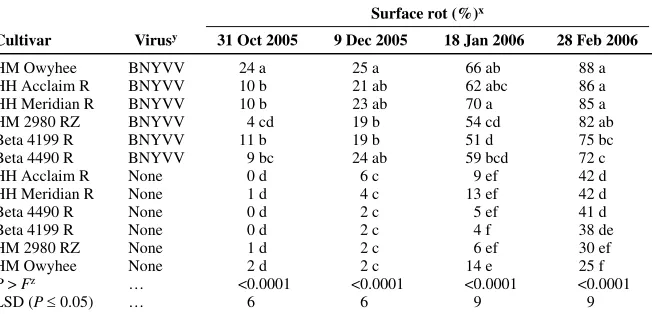

culti-Table 2. Percentage of root surface exhibiting rot on sugar beet roots harvested in October 2005 from disease-free and rhizomania-infested trials after storage in an outdoor commercial pile in Twin Falls, ID

Surface rot (%)x

Cultivar Virusy _{31 Oct 2005} _{9 Dec 2005} _{18 Jan 2006} _{28 Feb 2006}

HM Owyhee BNYVV 24 a 25 a 66 ab 88 a

HH Acclaim R BNYVV 10 b 21 ab 62 abc 86 a

HH Meridian R BNYVV 10 b 23 ab 70 a 85 a

HM 2980 RZ BNYVV 4 cd 19 b 54 cd 82 ab

Beta 4199 R BNYVV 11 b 19 b 51 d 75 bc

Beta 4490 R BNYVV 9 bc 24 ab 59 bcd 72 c

HH Acclaim R None 0 d 6 c 9 ef 42 d

HH Meridian R None 1 d 4 c 13 ef 42 d

Beta 4490 R None 0 d 2 c 5 ef 41 d

Beta 4199 R None 0 d 2 c 4 f 38 de

HM 2980 RZ None 1 d 2 c 6 ef 30 ef

HM Owyhee None 2 d 2 c 14 e 25 f

P > Fz _… _{<0.0001 <0.0001 <0.0001 <0.0001}

LSD (P≤0.05) … 6 6 9 9

x _{Surface rot = percentage of root area covered with fungal growth or rotted tissue. Sugar beet were}

harvested 5 to 7 October 2005.

y _{BNYVV =}_{Beet necrotic yellow vein virus}_.

z _P_>_F_{was the probability associated with the}_F_{value. LSD = Fisher’s protected least significant}

difference value.

Table 1. Severity of rhizomania symptoms for sugar beet roots harvested from disease-free and rhizo-mania-infested trials

Rhizomania visual root ratingw

2005 roots

Cultivar Virusx _{31 Oct 05} _{9 Dec 05} _{18 Jan 06} _{28 Feb 06} _{2006 roots}

HM Owyhee BNYVV 3.2 a 4.2 a 5.0 a 4.2 a 4.8 a

HM 2980 RZy _BNYVV _{1.2 c} _{3.4 b} _{3.4 b} _{2.2 b} _{2.7 b}

Beta 4490 R BNYVV 1.9 b 2.9 b 3.1 b 1.8 bc 2.4 c

Beta 4199 R BNYVV 1.4 bc 3.0 b 3.0 b 2.0 bc 2.3 c

HH Acclaim R BNYVV 1.2 c 1.9 c 2.0 c 1.9 bc 1.7 d

HH Meridian R BNYVV 1.2 c 2.9 b 3.1 b 1.6 c 1.5 d

HM Owyhee None 0.0 d 0.0 d 0.0 d 0.0 d 0.0 e

HM 2980 RZ None 0.0 d 0.0 d 0.0 d 0.0 d 0.0 e

Beta 4490 R None 0.0 d 0.0 d 0.0 d 0.0 d 0.0 e

Beta 4199 R None 0.0 d 0.0 d 0.0 d 0.0 d 0.0 e

HH Meridian R None 0.0 d 0.0 d 0.0 d 0.0 d 0.0 e

HH Acclaim R None 0.0 d 0.0 d 0.0 d 0.0 d 0.0 e

P > Fz _… _{<0.0001 <0.0001 <0.0001 <0.0001 <0.0001}

LSD (P≤0.05) … 0.5 0.5 0.5 0.5 0.2

w _{Rhizomania visual root rating based on a scale of 0 to 9 (0 = healthy and 9 = dead) determined when}

retrieved from storage. Sugar beet roots were harvested and put into storage between 5 and 12 Octo-ber. Data from 2005 sampling dates were not analyzed together because they differed (P< 0.0001).

Data from 2006 sampling dates were analyzed together because they did not differ (P= 0.2157) and

variances were homogeneous (P = 0.8837). x _{BNYVV =}_{Beet necrotic yellow vein virus}_.

y _{Cv. HM 2980 RZ was not available in 2006; therefore, cv. HM 2984 RZ was used instead.}

(4)

vars based on contrasts show that surface root rot was greater (P < 0.0001) in roots from the infested fields on all sampling dates both years, except for the 1 Novem-ber 2006 sampling. A diversity of fungi were isolated from the rotted tissue (data not shown) and root rots were evident only in storage and not prior to placement in the storage pile.

Frozen root area. Data between ex-periments for frozen root area were ana-lyzed separately because experiments dif-fered on both the December and January sampling dates (P = 0.0082 and 0.0100, respectively). On the 9 December 2005 sampling, four of the six cultivars from the rhizomania-infested field had more frozen root area than those from the noninfested field (Table 4). On the 12 December 2006 sampling, all cultivars from the

rhizoma-nia-infested field had more frozen root area than from the noninfested field, ex-cept for Owyhee (Table 5). Data collected in January both years did not differ be-tween treatments. Based on contrasts, the two December samplings (P < 0.0001 for 2005 and 2006) had more frozen root area on roots from the infested field (25 and 41%, respectively) than the noninfested field (1 and 2%, respectively). A similar trend was evident in January 2006 (P = 0.0247) but not in January 2007 (P = 0.3443) based on contrasts.

Root weight reduction. Data between storage seasons for root weight reduction were analyzed separately because experi-ments were different on all sampling dates (P = 0.0014, 0.0050, 0.0001, and 0.0003, respectively). In the first experiment, there were some minor differences in weight

loss depending on sampling date but there were no apparent trends (Table 6). In the second experiment, there were significant differences on all sampling dates (Table 7). On the 1 November 2006 and 12 Decem-ber 2006 sampling dates, roots of all culti-vars from the rhizomania-infested field lost more weight than roots from the nonin-fested field. Differences between treat-ments were smaller as time in storage in-creased. Based on contrasts, the 2005 experiment did not reveal any trends; how-ever, on all sampling dates (October 2006 to February 2007) in the 2006 experiment, roots from the infested field (10, 12, 18, and 17%, respectively) lost more (P < 0.0001 on all dates) weight than those from the noninfested field (4, 6, 6, and 10%, respectively).

Sucrose reduction. On the first sam-pling date, there were no significant differ-ences between treatments (Tables 8 and 9). On the 9 December 2005 sampling, only the susceptible check, HM Owyhee, showed a significant loss in sugar when comparing roots from the infested and noninfested fields. In the 12 December 2006 sampling, HM Owyhee and HH Ac-claim R both showed a reduction in su-crose when harvested from a rhizomania-infested field (Table 9). In both January samplings, HM Owyhee and HH Meridian R from the rhizomania-infested fields both showed a reduction in sucrose. In the 28 February 2006 sampling, five out of the six cultivars grown in the infested field lost substantially more sucrose (43 to 94%) than roots from the same cultivars from the noninfested field (15 to 31%). In the 26 February 2007 sampling, HM Owyhee, HH Meridian R, and Beta 4490 R all showed a significantly larger reduction in sucrose (19 to 31%) than the same culti-vars from a noninfested field (8 to 18%). The January (2006 and 2007) samples show that storing roots from a rhizomania-infested field (17.3 and 14.3%) reduced (P = 0.0035 and <0.0001) sucrose compared with those from a noninfested field (15.9 and 7.7%) based on contrasts. The Febru-ary (2006 and 2007) samples show that storing roots from a rhizomania-infested field (67.7 and 20.6%) reduced (P < 0.0001 and 0.0050) sucrose compared with those from a noninfested field (20.1 and 13.8%) based on contrasts. Contrasts for the 12 December 2006 sampling also showed that sucrose losses (8.5% from infested versus 4.6% noninfested; P = 0.0128) due to rhizomania could be docu-mented by early December. Differences among cultivars could not be proven with-out the influence of rhizomania. However, HH Acclaim R and HH Meridian R ranked the worst both years when averaging the rankings over all samplings without the influence of disease (average ranking in 2005 and 2006): HH Meridian R (1.25 and 2.25), HH Acclaim R (2.25 and 2.75), Beta 4199 R (3.5 and 3.25), HM 2980 RZ (4.25

Table 4. Percentage of frozen root tissue in sugar beet roots harvested in October 2005 from disease-free and rhizomania cultivar trials that were stored in an outdoor commercial pile in Twin Falls, ID

Frozen root area (%)x

9 Dec 2005

Cultivar Virusy_Normal_Transformed₁₈_Jan₂₀₀₆

HH Acclaim R BNYVV 52 7.2 a 52

HH Meridian R BNYVV 26 4.3 b 45

HM Owyhee BNYVV 24 4.3 b 59

HM 2980 RZ BNYVV 22 4.2 b 49

Beta 4199 R BNYVV 16 3.1 bc 24

Beta 4490 R BNYVV 8 1.9 bc 39

HH Meridian R None 6 2.0 bc 48

HH Acclaim R None 1 1.0 c 35

Beta 4490 R None 1 1.1 c 28

Beta 4199 R None 0 0.7 c 20

HM 2980 RZ None 0 0.7 c 21

HM Owyhee None 0 0.7 c 32

P > Fz _{… …}_0.0006_0.3328

LSD (P≤ 0.05) … … 2.9 NS

x _{Frozen root area = percentage of outside area of the root frozen based on frost or tissues with wet,}

water-soaked appearance. Sugar beet were harvested and put into storage on 17 October 2005. Trans-formed = square root transformation to reduce variability and increase normality.

difference value. NS = not significantly different.

Table 3. Percentage of root surface exhibiting rot on sugar beet roots harvested in October 2006 from disease-free and rhizomania-infested trials after storage in an outdoor commercial pile in Twin Falls, ID

Surface rot (%)x

Cultivar Virusy _{1 Nov 2006} _{12 Dec 2006} _{22 Jan 2007} _{26 Feb 2007}

HH Meridian R BNYVV 0 3.4 abc 25.0 a 39.5 a

HH Acclaim R BNYVV 0 4.5 a 20.5 ab 33.5 ab

HM Owyhee BNYVV 0 4.1 ab 8.0 c 30.2 ab

Beta 4490 R BNYVV 0 2.2 abcde 10.5 bc 27.0 abc

Beta 4199 R BNYVV 0 2.1 bcde 10.0 bc 26.2 abc

HM 2984 RZ BNYVV 0 4.0 ab 9.5 c 25.0 bc

HM 2984 RZ None 0 1.2 cde 7.2 c 14.2 cd

Beta 4490 R None 0 0.3 e 3.0 c 8.2 d

HH Acclaim R None 0 3.0 abcd 11.2 bc 7.2 d

HH Meridian R None 0 1.5 cde 7.2 c 7.2 d

Beta 4199 R None 0 0.8 de 1.4 c 7.2 d

HM Owyhee None 0 1.0 de 2.8 c 7.0 d

P > Fz _{… N/A}_0.0052_0.0025_<0.0001

LSD (P≤ 0.05) … … 2.3 10.7 13.8

x _{Surface rot = percentage of root area covered with fungal growth or rotted tissue. Sugar beet roots}

were harvested 6 to 12 October 2006. y _{BNYVV =}_{Beet necrotic yellow vein virus}_.

z _P_>_F_{was the probability associated with the}_F_{value; N/A = not applicable. LSD = Fisher’s}

(5)

and no data), HM 2984 RZ (no data and 3.75), Beta 4490 R (4.25 and 6.0), and HM Owyhee (5.5 and 3.0).

DISCUSSION

Rhizomania caused by BNYVV had a significant negative impact on the storabil-ity of sugar beet based on sucrose loss, susceptibility to freeze damage and rot, and weight loss. The storage losses were evident in not only the rhizomania-susceptible commercial cv. HW Owyhee but also cultivars considered resistant to BNYVV. Finding that cultivars considered resistant to BNYVV were negatively influ-enced by this virus problem should not be viewed as completely unexpected because even cultivars with the best resistance are not immune to BNYVV. Because rhizo-mania is now present in all major produc-tion areas, the potential for sugar loss in stored sugar beet roots could easily reach tens of millions in dollars in revenue lost annually. These data highlight the need for further research to develop criteria for the selection of cultivars with good long-term storability and rhizomania resistance, con-sidering storage-related losses as well as performance in the presence of BNYVV infection.

Sucrose loss in sugar beet traditionally has been studied through influences on respiration and storage decay fungi (5). Now the influence of disease problems in the field on the storability of sugar beet is beginning to be studied. In Germany, Rhizoctonia root rot increased storage losses, while Cercospora leaf spot had little influence (12). These data and a lot of previous storage data have been generated under controlled conditions. The rhizoma-nia data presented in this research not only confirm that disease problems in the field can be important in storage but also show that storage problems can be studied under ambient conditions. Work under ambient conditions is likely to be necessary to tablish real-world losses; however, to es-tablish criteria for selecting cultivars, work under more controlled conditions may prove to be more beneficial because of reduced environmental influence. The commercial sugar beet piles in the sur-rounding area also struggled with break-down problems beginning in mid-December 2005 and early January 2006. In December 2006 and January 2007, with continuous freezing temperatures, the outer portions of the commercial piles froze but were processed in a timely man-ner. The roots in the storage study re-sponded in a similar manner in both sea-sons and seemed to be representative of what was occurring in the surrounding area.

The sucrose loss data reported in this study, while quite dramatic, does not in-clude the potential for additional sugar loss in processing. The level of impurities that negatively impact the extraction of sugar in

stored roots was not assessed. Previous research showed that roots infested with R. solani sustained a reduction in root quality (3,12). Thus, the total loss of sugar in roots infected with BNYVV is likely to be even greater than we report here. Given the loss in sugar established in this report, factories should consider processing roots from fields infested with BNYVV directly and avoid storing roots, if possible.

The impact that ambient temperatures had on these data cannot be ignored, par-ticularly with the impact freeze damage can have on sugar beet. The sugar beet crop grown in 2005 endured a brief but severe cold period (average ambient tem-perature in pile was –6 to –8°C) in mid-December followed by 25 days with above-freezing temperatures in January and early February. The 2006 crop dropped

below 0°C in late November and stayed below 0°C for 71 of the next 76 days, re-sulting in fairly ideal storage conditions. Healthy sugar beet roots continue respira-tion down to around –8°C, at which time respiration drops to near zero but does not completely stop until –18°C (24). How-ever, cell damage and loss of sugar begins occurring at –1 to –3°C (24). Considerable freeze damage occurred both years by the time the December sampling was con-ducted, despite the differences in tempera-tures between the 2 years. This freeze damage was largely associated with sugar beet that had been produced in BNYVV-infested ground. Roots compromised by BNYVV apparently froze more readily, as indicated by the December data from both years; therefore, the temperature at which serious freeze damage occurs should be

Table 6. Percent reduction in root weight in sugar beet roots harvested in October 2005 from disease-free and rhizomania-infested trials and stored in an outdoor commercial pile in Twin Falls, ID

Reduction in root weight (%)x

HH Acclaim R BNYVV 3.4 f 5.7 b 7.1 13.8

HH Meridian R BNYVV 4.9 bcde 5.3 b 6.8 12.0

HM Owyhee BNYVV 5.4 abcd 7.7 a 7.6 11.4

HM 2980 RZ BNYVV 4.1 def 5.6 b 5.3 9.2

Beta 4490 R BNYVV 3.7 ef 5.1 b 6.3 8.2

Beta 4199 R BNYVV 4.7 cdef 4.7 b 5.2 7.8

HH Meridian R None 5.3 abcd 4.8 b 7.5 13.7

HH Acclaim R None 6.1 abc 5.5 b 8.2 10.9

Beta 4490 R None 6.5 a 6.4 ab 8.1 10.6

HM Owyhee None 5.8 abc 7.7 a 7.5 9.5

HM 2980 RZ None 5.2 abcde 5.9 b 8.1 9.4

Beta 4199 R None 6.4 ab 6.1 ab 6.8 7.7

P > Fz _{… 0.0015}_0.0133_0.1561_0.3306

LSD (P≤ 0.05) … 1.5 1.7 NS NS

x _{Percent reduction in root weight of stored roots in relation to that determined at harvest. Sugar beet}

difference value. NS = not significantly different.

Table 5. Percentage of frozen root tissue in sugar beet roots harvested in October 2006 from disease-free and rhizomania cultivar trials that were stored in an outdoor commercial pile in Twin Falls, ID

Frozen root area (%)x

12 Dec 2006

Cultivar Virusy_Normal_Transformed₂₂_Jan₂₀₀₇

HH Acclaim R BNYVV 88 9.3 a 56.2

Beta 4490 R BNYVV 60 7.8 ab 71.2

HH Meridian R BNYVV 42 6.3 bc 82.5

HM 2984 RZ BNYVV 35 5.7 c 68.8

Beta 4199 R BNYVV 11 3.1 d 57.5

HM Owyhee BNYVV 10 2.5 de 68.8

HH Meridian R None 8 2.3 de 75.0

HH Acclaim R None 6 2.1 de 88.8

Beta 4490 R None 1 1.1 de 55.0

Beta 4199 R None 0 0.7 e 53.8

HM 2984 RZ None 0 0.7 e 48.8

HM Owyhee None 0 0.7 e 25.0

P > Fz _{… …}_<0.0001_0.5259

LSD (P≤ 0.05) … … 2.0 NS

x _{Frozen root area = percentage of outside area of the root frozen based on frost or tissues with wet}

water soaked appearance. Sugar beet were harvested 6 to 12 October 2006. Transformed = square root transformation to reduce variability and increase normality.

(6)

assessed with sugar beet compromised by disease problems in the field. HH Acclaim R, a rhizomania-resistant cultivar, had 88% of its surface area freeze damaged by 12 December 2006. In fact, roots from most of the rhizomania-resistant cultivars grown in rhizomania-infested fields suffered greater freeze damage than the susceptible check in 2006. Some may argue that this freeze damage is a response to the culti-vars’ lack of storability and others might argue that it is a reflection of rhizomania resistance. Cvs. HH Meridian R and HH Acclaim R had better rhizomania resis-tance ratings than the other resistant culti-vars at times based on root observations (Table 1). Yet these two cultivars per-formed very poorly for most storage vari-ables. In the absence of BNYVV, estab-lishing differences in storability between cultivars was difficult. However, the trends present in the data without disease pressure

appear to be amplified in the presence of BNYVV. During the 2006 growing season, the plot areas sampled were not influenced by other major disease problems. During the 2005 growing season, both the infested and noninfested field had exposure to moderate levels of curly top (ameliorated by host resistance and insecticide applica-tions), but the primary difference should have been a response to rhizomania. In addition, HH Meridian R and HH Acclaim R ranked the worst both years for sucrose loss without the influence of rhizomania, indicating that these cultivars potentially have a storability problem. At times, these two cultivars have fewer rhizomania root symptoms than some of the other cultivars; however, the lack of storability potentially offsets this response leading to poor stor-ability. If the research were conducted under more controlled conditions, estab-lishing differences between cultivars

with-out BNYVV present might be possible. Nevertheless, conducting this research under ambient conditions was insightful in terms of freeze damage, rot potential, and sugar loss potential.

The considerable root rot found associ-ated with roots from the BNYVV-infested field (72d to 88% in 2005 and 25 to 40% in 2006) may be a reflection of the freeze damage endured in December. Although the apparent freeze damage on the 2006 sugar beet was considerably worse than that for 2005, the fluctuations to above-freezing temperatures in 2005 may explain the increase in rot. Observations in the field would indicate that, once sugar beet roots are frozen, they must remain frozen or be processed within 7 to 10 days or microbial activity will eliminate the possi-bility of economically extracting sugar (data not shown). If roots are to be stored in a frozen condition, it is important that root temperatures be maintained at less than –5°C. Wyse (24) showed that cell damage and loss of sugar occurs at –1 to –3°C and that respiration does not stop until root temperatures reach –18°C. Freezing does not impair beet quality as long as they remain frozen; however, roots should be processed immediately upon thawing (12).

In the 2006 roots, BNYVV clearly was associated with a reduction of root mass. In the 2005 roots, a reduction in mass was not established. Perhaps the inoculum levels in the field and ambient temperature differences between years can explain the differential responses. Loss in mass among sugar beet cultivars was 7 to 17% at 20°C in Germany and, when infested with R. solani, a 22% reduction in mass was evi-dent (12).

Cultivars need resistance to storage rot pathogens and a low respiration rate (5). Heritable resistance to storage rot patho-gens, as well as other diseases, is present in the sugar beet gene pool (1,5). Germ-plasm lines bred for resistance to Phoma, Botrytis, and Penicillium spp. have been developed (6). In the past, germplasm lines with low respiration only and lines with low respiration combined with storage rot resistance have been developed and re-leased (7,8). However, this research has been phased out because of the industry’s decision to place emphasis on physical methods such as ventilation and freezing to reduce storage losses (5). Sucrose loss in storage occurs because of two general changes: direct loss of sucrose via respira-tion and loss of sucrose to molasses be-cause of the accumulation of nonsucrose components in the thin juice (25). It could be argued that sucrose losses due to patho-gens can rival sucrose lost to respiration. Given the impact that BNYVV has on storability, perhaps there should be a re-newed emphasis on storability in sugar beet. Genotypes that improve storability have been established (12) but improving

Table 7. Percent reduction in root weight in sugar beet roots harvested in October 2006 from disease-free and rhizomania-infested trials and stored in an outdoor commercial pile in Twin Falls, ID

Reduction in root weight (%)x

HM Owyhee BNYVV 13.0 a 14.7 a 23.2 a 22.4 a

HH Acclaim R BNYVV 9.7 bc 11.5 abc 14.5 cd 18.3 ab

HH Meridian R BNYVV 9.4 bc 10.9 bcd 19.3 ab 16.8 b

HM 2984 RZ BNYVV 11.5 ab 12.9 ab 16.8 bc 16.1 bc

Beta 4490 R BNYVV 10.6 b 12.3 ab 16.4 bc 15.4 bc

Beta 4199 R BNYVV 7.9 cd 12.7 ab 16.9 bc 15.1 bc

HM Owyhee None 5.8 de 6.6 e 12.0 d 12.2 cd

Beta 4199 R None 5.3 e 8.1 cde 11.9 d 12.1 cd

HM 2984 RZ None 4.6 e 6.8 e 11.6 d 12.0 cd

Beta 4490 R None 5.3 e 7.5 de 14.1 cd 11.9 cd

HH Acclaim R None 5.7 de 5.7 e 11.0 d 10.1 d

HH Meridian R None 3.7 e 7.0 e 12.6 cd 9.0 d

P > Fz _… _{< 0.0001} _{< 0.0001} _<0.0001 _<0.0001

LSD (P≤0.05) … 2.3 3.5 4.3 4.3

x _{Percent reduction in root weight of stored roots in relation to that determined at harvest. Sugar beet}

difference value.

Table 8. Percent reduction in sucrose in sugar beet roots harvested from disease-free and rhizomania-infested trials stored in an outdoor commercial pile in Twin Falls, ID

Reduction in sucrose (%)x

HH Meridian R BNYVV 6.5 13.5 ab 26.2 a 94.1 a

HH Acclaim R BNYVV 6.4 11.0 abc 19.7 ab 90.9 a

HM Owyhee BNYVV 7.9 17.4 a 28.8 a 82.0 a

HM 2980 RZ BNYVV 2.3 8.6 bcd 8.3 c 55.1 b

Beta 4199 R BNYVV 0.2 9.1 bcd 8.9 c 42.8 bc

Beta 4490 R BNYVV 2.0 5.0 cd 12.0 bc 41.1 bcd

HH Meridian R None 11.1 14.0 ab 14.2 bc 31.2 bcd

HH Acclaim R None 6.6 7.8 bcd 14.9 bc 24.4 cd

Beta 4490 R None 6.2 6.1 cd 7.2 c 18.2 cd

Beta 4199 R None 3.7 11.5 abc 12.1 bc 16.5 d

HM 2980 RZ None 5.1 11.2 abc 10.0 c 15.3 d

HM Owyhee None 2.1 2.5 d 10.8 bc 15.2 d

P > Fz _{… 0.2788}_0.0121_0.0002_<0.0001

LSD (P≤ 0.05) … NS 7.2 9.1 26.0

x _{Percent reduction in sucrose of stored roots in relation to that determined at harvest. Sugar beet were}

harvested 5 to 12 October.

(7)

storability could still be a challenge. Some traits such as respiration and invert sugar accumulation are correlated with sucrose loss but are inherited independently (1). In addition, some traits appear to be governed by both additive and nonadditive gene action. Thus, improving storability in sugar beet will likely be a challenge (1).

Rhizomania negatively impacts harvest yields, having almost eliminated sugar beet production in California before resistant cultivars became available in the 1980s (19). Resistance-breaking strains of the virus have been identified in major U.S. sugar beet production areas (14). The main control measure for this disease problem is the use of resistant cultivars. However, with the evidence for resistance-breaking strains and additional problems with stor-age, considerable financial losses due to rhizomania are likely in both the field and storage. Finding new sources of resistance to BNYVV will be important; however, selecting cultivars for varying levels of resistance is difficult in the field. Using the storability of sugar beet roots as a measure for cultivar selection may prove to be im-portant in limiting sugar losses in storage but may enhance recovery of sucrose from fields with a history of BNYVV infection, as well.

ACKNOWLEDGMENTS

These data support the objectives for the United States Department of Agriculture CRIS project

5368-21220-002-00D. We thank the Amalgamated Sugar Co., Amalgamated Research Inc., Beet Sugar Development Foundation, and Snake River Sugar Beet Growers for supporting our research work; and technical support staff members D. Patterson, P. Foote, J. Smith, M. Funke, D. Kenney, and T. Brown for their efforts.

LITERATURE CITED

1. Akeson, W. R., and Widner, J. N. 1981. Differ-ences among sugarbeet cultivars in sucrose loss during storage. J. Am. Soc. Sugar Beet Technol. 21:80-91.

2. Bartens, A. 2005. International Commission

for Uniform Methods of Sugar Analysis Meth-ods Book 2005. Dr. Albert Bartens KG, Berlin. 3. Bruhns, M., Lemmes, R., and Schick, R., Jr. 2004. Verarbeitungseigenschaften von Rhizoc-tonia-geschädigten rüben. Zuckerindustrie 129:105-111.

4. Bugbee, W. M. 1982. Storage rot of sugar beet. Plant Dis. 66:871-873.

5. Bugbee, W. M. 1993. Storage. Chapter 14 in: The Sugar Beet Crop: Science into Practice. D. A. Cooke and R. K. Scott, eds. Chapman and Hall, London.

6. Campbell, L. G., and Bugbee, W. M. 1985.

Registration of storage rot resistant sugarbeet germplasms F1004, F1005, and F1006. Crop Sci. 25:577.

7. Campbell, L. G., and Bugbee, W. M. 1988.

Registration of sugarbeet germplasm with combined storage rot resistance and low-storage-respiration rate. Crop Sci. 25:577. 8. Campbell, L. G., and Cole, D. F. 1988.

Regis-tration of two sugarbeet germplasms having low storage-respiration rates. Crop Sci. 28:205-206.

9. Cole, D. F., and Bugbee, W. M. 1976. Changes in resident bacteria, pH, sucrose, and invert sugar levels in sugarbeet roots during storage. Appl. Environ. Microbiol. 31:754-757.

10. Dexter, S. T., Frakes, M. G., and Nichol, G. 1966. The effect of low, medium and high ni-trogen fertilizer rates on the storage of sugar beet roots at high and low temperatures. J. Am. Soc. Sugar Beet Technol. 14:147-159.

11. Kenter, C., and Hoffmann, C. 2005. Lagerung

und qualität von zuckerrüben—Welchen ein-fluss hat die sorte? Zuckerrübe 54:312-316.

12. Kenter, C., Hoffmann, C., and Märländer, B.

2006. Sugarbeet as raw material—advanced storage management to gain good processing quality. Sugar Ind. 131(9):1-15.

13. Klotz, K. L., and Finger, F. L. 2004. Impact of temperature, length of storage, and postharvest disease on sucrose catabolism in sugarbeet. Postharvest Biol. Technol. 34:1-9.

14. Liu, H.-Y., Sears, J. L., and Lewellen, R. T. 2005. Occurrence of resistance-breaking Beet necrotic yellow vein virus of sugar beet. Plant Dis. 89:464-468.

15. Mumford, D. L., and Wyse, R. E. 1976. Effect of fungus infection on respiration and reducing sugar accumulation of sugarbeet roots and use of fungicides to reduce infection. J. Am. Soc. Sugar Beet Technol. 19:157-162.

16. National Agricultural Statistics Service. 2007. Crop production summary for 2006. U. S. Dep. Agric. NASS.

17. Peterson, C. L., Hall, M. C., and Traveller, D. J. 1984. Sugarbeet storage experiments. ASAE Pap. No. 84-4040. ASAE, Knoxville, TN.

18. Rush, C. M. 2003. Ecology and epidemiology

of Benyviruses and plasmodiophorid vectors. Annu. Rev. Phytopathol. 41:567-592. 19. Rush, C. M., Liu, H.-Y., Lewellen, R. T., and

Acosta-Leal, R. 2006. The continuing saga of rhizomania of sugar beets in the United States. Plant Dis. 90:4-15.

20. SAS Institute, Inc. 1999. The SAS System for Windows. Version 8.2. SAS Institute Inc., Cary, NC.

21. Strausbaugh, C. A., Rearick, E., Camp, S.,

Gallian, J. J., and Dyer, A. T. 2007. Sugar beet storability and the influence of Beet necrotic yellow vein virus (Abstr.) Phytopathology 97:S111.

22. Ward, L., Koenig, R., Budge, G., Garrido, C., McGrath, C., Stubbley, H., and Boonham, N. 2007. Occurrence of two different types of RNA-5-containing beet necrotic yellow vein virus in the UK. Arch. Virol. 152:59-73. 23. Wisler, G. C., Lewellen, R. T., Sears, J. L., Liu,

H.-Y., and Duffus, J. E. 1999. Specificity of TAS-ELISA for beet necrotic yellow vein virus and its application for determining rhizomania resistance in field-grown sugar beets. Plant Dis. 83:864-870.

24. Wyse, R. E. 1978. Effect of low and fluctuat-ing temperatures on the storage life of sugarbeets. J. Am. Soc. Sugar Beet Technol. 20:33-42.

25. Wyse, R. E., and Dexter, S. T. 1971. Source of recoverable sugar losses in several sugarbeet varieties during storage. J. Am. Soc. Sugar Beet Technol. 16:390-398.

26. Wyse, R. E., and Holdredge, R. M. 1982. A

comparison of forced ventilation and natural convection as means of cooling sugarbeet stor-age piles in several geographic locations. J. Am. Soc. Sugar Beet Technol. 21:235-246.

Table 9. Percent reduction in sucrose in sugar beet roots harvested from disease-free and rhizomania-infested trials stored in an outdoor commercial pile in Twin Falls, ID

Reduction in sucrose (%)x

HM Owyhee BNYVV 8.0 15.1 a 20.5 a 31.7 a

HH Meridian R BNYVV 5.0 8.7 abc 22.2 a 25.8 ab

HH Acclaim R BNYVV 10.2 14.6 ab 15.2 ab 19.7 bc

Beta 4490 R BNYVV 6.3 7.1 bcd 9.7 bcd 19.3 bc

Beta 4199 R BNYVV 7.0 5.2 cd 8.5 bcd 14.5 cd

HM 2984 RZ BNYVV 0.0 0.5 d 9.6 bcd 12.7 cd

HM Owyhee None 4.5 6.3 cd 6.6 cd 18.6 bcd

Beta 4199 R None 2.4 4.7 cd 8.9 bcd 14.5 cd

HH Meridian R None 6.1 7.0 bcd 7.1 cd 14.4 cd

HH Acclaim R None 6.1 6.2 cd 12.4 bc 14.2 cd

HM 2984 RZ None 7.0 2.6 cd 7.0 cd 13.7 cd
