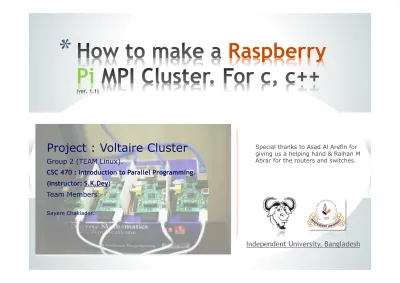

Raspberry Pi - OpenMP C++ Tutorial IUB

Get the

hardware

:

*

(Raspberry

Pi

x as many as you like), to keep

things simple we are going to use only 3. You

should have at least one

Pi

(Master) with

keyboard, mouse and monitor.

You can create an Open MPI + Open MP

cluster using regular x86 or x64 machines

using the same procedure as well.

A network router with at least 4 ports. (3

Pi

’s on 3

ports and an extra port if you extend the cluster by

adding more switches or hubs.

A network router with at least 4 ports. (3

P

i’s on 3

ports and an extra port if you want to extend the

cluster by adding more switches or hubs.

*

Setup the first Pi by installing the Raspbian image.

(http://www.raspberrypi.org/documentation/installation/installing-images/)

1.

Start the image and login in to the Pi. Type in “

sudo

raspi-config

” . This is start the configuration screen. Go in to advanced

options and set

hostname

to

Voltaire-1.

This is going to be our

Master Node.

Go to youtube:

Play https://www.youtube.com/watch?v=LTP9FUIt0Egor https://www.youtube.com/watch?v=h3cE9iXIx9c Install OpenMPI by typing this in to the terminal: sudo apt-get install openmpi-bin openmpi-dev

*

Cloning

Now, since you have setup everything which was needed. Lets see if it runs.

2.

go the terminal and type in “

mpiexec -f machinefile –n 1 hostname”

it should display the systems hostname, which is “

VOLTAIRE-1

” .

3. Create a directory on Desktop and name is “Parallel”. Create a new file

called mpi1.cpp and write your MPI code on it.

See the last slide for the code to our cpp file.

4. Clone the memory cards and change their Hostname as such :

“

VOLTAIRE-2

,

VOLTAIRE-3

” .

For cloning you can either use

dd

command on linux or

wind32diskimager

on Windows.

Copy Image on Linux: sudo dd bs=4M if=/dev/mmcblk0 of=~/Desktop/voltair-1.img Write Image on Linux: sudo dd if=~/Desktop/voltair-1.img of=/dev/mmcblk0 bs=4M

5. A command will be executed using mpiexec which will run on all the

nodes. The nodes will run mpi1.out which is the outfile. Therefore it must

be present in the same location on all the nodes. We are going to compile

the source code over SSH (tunnel) by logging in to

VOLTAIRE-2

,

*

6. When the Master will invoke the Two Slaves over the Ethernet network, it needs the to login on the remote slaves to execute the mpiexec command. Therefore we must create a way for the Master to access the Slaves without login.

Login to the router and find all the attached devices and their IP given by the DHCP service of the router. You can also set it to static IP etc. etc.

Type this in to the terminal of the Master node to allow for passwordless login from the master. ssh-keygen -t rsacat ~/.ssh/id_rsa.pub | ssh [email protected] "mkdir .ssh;cat >> .ssh/authorized_keys“ you may have to type in “yes”, then if it asks for password, the default for raspbian image is “raspberry” for the login “pi”

*

7. on the master open terminal: cd Desktop/Parallel

mpic++ -o mpi1.out mpi1.cpp

8. on the master open terminal to access the slave and do the same(compile): ssh [email protected]

9. lets run the program from the master, on the terminal type: mpiexec –n 2 –host 192.168.2.3,192.168.2.4 mpi1.out

Master Slave executable

*

11. If all goes well you will see the code running:

In our code we have used SEND and RECEIVE. The two slaves sends the master their “hostname” as array of characters of size 100. Master receives them and display them. Simple. See our code on the last slide for the details.

The return of the message has not been synchronized. But it does return them. The master closes the program as void Finalize() is called.

Now changing code and making sure its on all nodes is a tedious task if you have say 64 nodes. Therefore you can either use NFS or FTP with a script and another MPI program to get the source and compile it. NFS Share Executable : http://stackoverflow.com/questions/25829684/how-to-avoid-copying-executable-from-master-node-to-slaves-in-mpilibs

*

We suggest you also look at OpenMP on the bellow slides as it will allow for proper utilization of the target slaves.

Memory

Slave 1

Core 1

Core 3

Core 2

Core 4

Memory

Slave 2

Core 1

Core 3

Core 2

Core 4

Memory

Slave 3

Core 1

Core 3

Core 2

Core 4

MPI MPI MPI MPI MP MP MP

Memory

Master

Core 1

Core 3

Core 2

Core 4

MP

What is OpenMP (Open Multi Processing)

It is a defacto standard

API

for writing shared memory parallel applications in C, C++ and Fortran.

OpenMP is managed by the

nonprofit

technology

consortium

OpenMP Architecture Review

Board (or OpenMP ARB), jointly defined by a group of major computer hardware and software

vendors, including

AMD

,

IBM

,

Intel

,

Cray

,

HP

,

Fujitsu

,

Nvidia

,

NEC

,

Red Hat

,

Texas

Instruments

,

Oracle Corporation

, and more.

[1]

OpenMP uses a

portable

, scalable model that gives

programmers

a simple and flexible interface for

developing parallel applications for platforms ranging from the standard

desktop computer

to

the

supercomputer

.

*

OpenMP

Compiler Directives

Runtime Subroutines

Environment variables

Directive pragma. It is alanguage constructthat specifies how acompiler(orassemblerorinterpreter) should process its input.

Older Generation

Processors

Where only one processor was used and it had One

Core

.

*

Core

Memory

Current Generation

Processors

Today, multiple

Cores

are present on the same

Processor.

Core 1

Memory

Processor Processor

Core 2

Sequential Program

Programs written were sequential in nature and

it utilized only 1

Core

. Even if multiple were

available. But we want to use all of the cores.

*

Core

Memory

Processor

Instructions

Core 1

Memory

Processor

Instructions

Core 2

Core 3

Core 4

*

Instructions

FORK

OpenMP programs start with a single thread; the master thread

At start of parallel region master creates team of parallel ”worker” threads (FORK)

Thread 0

(master) Thread 1 Thread 2 Thread 3

JOIN

Statements in parallel block are executed in parallel by every thread

At end of parallel region, all threads

synchronize, and join master thread (JOIN)

What are threads, cores, and how do they relate?

Thread is independent sequence of execution of program code. Block of code with one entry and one exit. OpenMP threads are mapped onto physical cores. It is possible to map more than 1 thread on a core.

Every program consists of two parts:

•

Sequential part

The compiler is available for free from

http://openmp.org/wp/openmp-compilers/

OpenMP v4.0 specification

(July2013) includes the library

“libgomp” in GNU compilers (C++,C etc.).

The manual can be found at:

https://gcc.gnu.org/onlinedocs/libgomp/

#include <iostream>

#include ”omp.h” // inclusion of the OPEN MP header files

Using namespace std;

int main() {

#pragma omp parallel

{ // start of clause

cout << ”Hello World”<<endl; } // end of clause

return 0; }

*

int main() {

int threads = 100; int id = 100;

cout <<”Viewing Thread Number: ”,id << ” Of”; cout << threads <<endl;

return 0; }

*

OpenMP can control the number of threads used. It can be set using the following

Environmental variable OMP_NUM_THREADS

Runtime function omp_set_num_threads(n)

To get information about threads:

•

Runtime function omp_get_num_threads()

•

Returns number of threads in parallel region

•

Returns 1 if called outside parallel region

•

Runtime function omp_get_thread_num()

•

Returns id of thread in team

•

Value between [0,n-1] // where n = #threads

•

Master thread always has id 0

Environment Variables

To activate the OpenMP extensions for C/C++, the compile-time flag

-fopenmp must be specified

Example : g++ -fopenmp -o hello.x hello.cpp

Invoke

compiler Flag

Executable

*

OpenMPI C++ Test Code

#include <iostream> #include <ctime> #include <mpi.h> using namespace std; int main(){ MPI :: Init();

int process =MPI::COMM_WORLD.Get_size(); int rank =MPI::COMM_WORLD.Get_rank(); char host[100]; char displayhost[100]; gethostname(host,100); cout<<"Hostname: "<<host<<endl; cout<<"Process : "<<process<<endl; cout<<"Rank : "<<rank<<endl; cout<<" + "<<endl; if (rank==1) {

MPI :: COMM_WORLD.Send (&host, 100, MPI::CHAR , 0, 0); }

if (rank==2) {

MPI :: COMM_WORLD.Send (&host, 100, MPI::CHAR , 0, 0); }

if (rank==0) {

MPI :: COMM_WORLD.Recv (&displayhost,100,MPI::CHAR,1,0); // recieve from Rank 1 cout<<"Recieved Hostname: "<<displayhost<<endl;

cout<<"--- "<<endl;

MPI :: COMM_WORLD.Recv (&displayhost,100,MPI::CHAR,2,0); // recieve from Rank 2 cout<<"Recieved Hostname: "<<displayhost<<endl;

cout<<"--- "<<endl; }

void Finalize(); // or use MPI::Finalize(); return 0;
