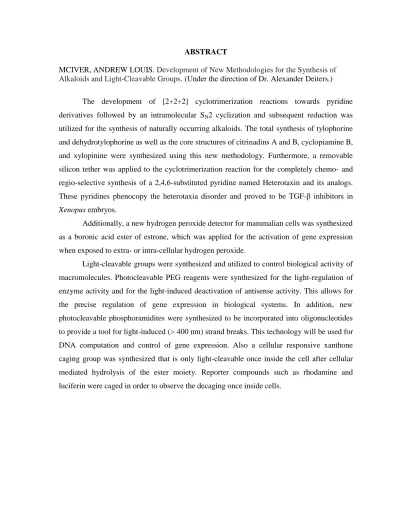

ABSTRACT
MCIVER, ANDREW LOUIS. Development of New Methodologies for the Synthesis of Alkaloids and Light-Cleavable Groups. (Under the direction of Dr. Alexander Deiters.)
The development of [2+2+2] cyclotrimerization reactions towards pyridine derivatives followed by an intramolecular SN2 cyclization and subsequent reduction was
utilized for the synthesis of naturally occurring alkaloids. The total synthesis of tylophorine and dehydrotylophorine as well as the core structures of citrinadins A and B, cyclopiamine B, and xylopinine were synthesized using this new methodology. Furthermore, a removable silicon tether was applied to the cyclotrimerization reaction for the completely chemo- and regio-selective synthesis of a 2,4,6-substituted pyridine named Heterotaxin and its analogs. These pyridines phenocopy the heterotaxia disorder and proved to be TGF-β inhibitors in Xenopus embryos.
Additionally, a new hydrogen peroxide detector for mammalian cells was synthesized as a boronic acid ester of estrone, which was applied for the activation of gene expression when exposed to extra- or intra-cellular hydrogen peroxide.
Development of New Methodologies for the Synthesis of Alkaloids and Light-Cleavable Groups
by
Andrew Louis McIver
A dissertation submitted to the Graduate Faculty of North Carolina State University
in partial fulfillment of the requirements for the Degree of
Doctor of Philosophy
Chemistry
Raleigh, North Carolina
2012
APPROVED BY:
________________________________ ________________________________
Dr. Daniel L. Comins Dr. Jonathan S. Lindsey
________________________________ ________________________________
Dr. Christian Melander Dr. Nanette Nascone-Yoder
________________________________ Dr. Alexander Deiters
ii
DEDICATION
iii BIOGRAPHY
Andrew Louis McIver was born March 16, 1982 in Wilmington, NC. He and his older brother, Davis, were raised by their mother Lisa McIver through high school in Wilmington. Andrew grew up loving sports, playing soccer in high school, and surfing at the beach. He became interested in chemistry after taking AP chemistry his junior year in high school. Andrew then attended UNCW where he graduated magna cum laude with honors with a BS in Chemistry. His enthusiasm for organic chemistry developed after taking Organic Chemistry with Dr. Seaton, after which he received the Deloach award for outstanding students in organic chemistry. He also studied abroad while in college, going to Newcastle University in Australia in the spring of 2003 where he did a lot of surfing and studying. After returning for his senior year in college, he joined Dr. Varadarajan‟s research laboratory for his honors research project synthesizing compounds for site-specific methylation of DNA for cancer research. He then stayed after obtaining his BS degree to achieve an MS in Chemistry where he also worked in Dr. Varadarajan‟s laboratory to continue his undergraduate research.
iv
ACKNOWLEDGMENTS
I first want to thank my advisor, Dr. Alex Deiters, for his guidance and high expectations which allowed me to have great success throughout my time at NCSU. He has taught me to have a good work ethic and to pay attention to details when performing experiments and presenting the work that I have done. His guidance will help me throughout my career as an organic chemist to be as successful as possible.
I would also like to thank the all lab members that I have had the pleasure of working with these last five years. Doug, Jesse, and Wesleigh who were here at the beginning were a tremendous help in the lab as well as out of the lab as good friends. I thank Yan who is always fun to talk to while performing reactions in the lab and for her knowledge of everything that I didn‟t know in chemistry. Also I thank Qingyang, Rajendra, Jeane, Colleen, Jessica, and Meryl for helping with chemistry, biology, and making my time in lab enjoyable.
v
TABLE OF CONTENTS
LIST OF TABLES ... ix
LIST OF FIGURES ... x
LIST OF SCHEMES ... xiv
LIST OF ABBREVIATIONS ... xxii
CHAPTER 1: Transition Metal Catalyzed [2+2+2] Cyclotrimerization Reactions ... 1
1.1 [2+2+2] Cyclotrimerization Reactions Towards Benzene Derivatives ... 1
1.1.1 Background and Mechanism... 1
1.1.2 Regioselectivity of the Cyclotrimerization Reaction ... 3
1.1.3 Chemoselectivity in Cyclotrimerization Reactions ... 7
1.1.4 Synthesis of Natural Products ... 10
1.2 [2+2+2] Cyclotrimerization Reactions Towards Pyridine Derivatives ... 19
1.2.1 Background and Mechanism... 19
1.2.2 Regioselectivity of the Cyclotrimerization Reaction ... 21
1.2.3 Chemoselectivity of the Cyclotrimerization Reaction ... 24
1.2.4 Synthesis of Natural Products ... 24
1.3 Microwave-assisted Cyclotrimerization Reactions... 28
1.4 Summary and Outlook ... 34
CHAPTER 2: Synthesis of Triphenylenes and Azatriphenylenes: Total Synthesis of Tylophorine and Dehydrotylophorine ... 35
2.1 Background ... 35
2.2 Synthesis of Triphenylenes and Azatriphenylenes ... 36
2.3 Synthesis of Dehydrotylophorine and Tylophorine ... 40
2.4 Liquid Crystal Synthesis ... 45
2.5 Conclusion and Outlook ... 48
2.6 Experimental ... 48
vi
3.1 Tricyclic Alkaloids... 59
3.2 Tandem [2+2+2] Cyclotrimerization-Substitution Methodology ... 60
3.3 Synthesis of the Core of Citrinadins A and B ... 65
3.4 Conclusion and Outlook ... 66
3.5 Experimental ... 67
CHAPTER 4: Attempted Synthesis of Streptonigrin and Lavendamycin via [2+2+2] Cyclotrimerization Reaction ... 79
4.1 Streptonigrin and Lavendamycin Background ... 79
4.1.1 Streptonigrin ... 79
4.1.2 Lavendamycin ... 80
4.2 Attempted Synthesis of Streptonigrin ... 81
4.3 Attempted Synthesis of Lavendamycin ... 85
4.4 Conclusion and Outlook ... 91
4.5 Experimental ... 92
CHAPTER 5: Cyclotrimerization with an Acetylene Equivalent: Progress Towards the Total Synthesis of Buflavine ... 99
5.1 Buflavine ... 99
5.2 Initial Attempts to Synthesize Buflavine ... 99
5.3 Development of a Removable Tether for an Acetylene Equivalent ... 104
5.4 Conclusion and Outlook ... 112
5.5 Experimental ... 113
CHAPTER 6: Investigation of Microwave Effects in [2+2+2] Cyclotrimerization Reactions ... 132
6.1 Microwave Effects ... 132
6.2 Microwave Effect Investigation ... 136
6.3 Conclusion and Outlook ... 140
6.4 Experimental ... 141
vii
7.1 Introduction to Heterotaxia ... 143
7.2 Discovery of Heterotaxin ... 143
7.3 Regioselective Synthesis of Heterotaxin and Analogs ... 146
7.4 Mechanism of Action of Heterotaxin ... 148
7.5 Structure Activity Relationship Studies ... 152
7.6 Target of Heterotaxin ... 154
7.7 Conclusion and Outlook ... 156
7.8 Experimental ... 156
CHAPTER 8: Synthesis of Estrone Boronates for Hydrogen Peroxide Detection ... 169
8.1 Detection of Hydrogen Peroxide in Cellular Processes ... 169
8.2 Synthesis of Estradiol and Estrone Boronates ... 171
8.3 Biological Results ... 177
8.4 Conclusion and Outlook ... 183
8.5 Experimental ... 184
CHAPTER 9: Photocaged Compounds ... 194
9.1 Introduction ... 194
9.2 Caging Groups Cleaved by One-Photon Excitation ... 195
9.2.1 ortho-Nitrobenzyl Caging Group ... 195
9.2.2 ortho-Nitrophenyl-ethyl Caging Group ... 198
9.2.3 Xanthone Caging Group ... 199
9.2.4 (7-Diethylaminocoumarin-4-yl)methyl Caging Group ... 200
9.3 Two-Photon Excitation ... 201
9.3.1 Two-Photon Background ... 201
9.3.2 6-Bromo-7-hydroxycoumarin-4-methyl Caging Group ... 205
9.3.3 8-Bromo-7-hydroxyquinoline Caging Group ... 206
9.3.4 3-Nitro-2-ethyl-dibenzofuran Caging Group ... 207
9.3.5 Other Two-Photon Caging Groups ... 208
9.4 Summary ... 209
viii
10.1 PhotoPEG for the Control of Lysozyme Activity ... 211
10.2 PhotoPEG for Antisense Stabilization ... 219
10.3 Two-Photon PhotoPEG Attempts ... 224
10.3.1 Attempted Synthesis of Bhc PhotoPEG ... 224
10.3.2 Attempted Synthesis of BHQ PhotoPEG ... 228
10.3.3 Synthesis of NDBF PhotoPEG ... 234
10.4 Conclusion and Outlook ... 241
10.5 Experimental ... 242
CHAPTER 11: Synthesis of New Photocleavable Phosphoramidites ... 261
11.1 One-Photon Photocleavable Phosphoramidites ... 261
11.2 DEACM Phosphoramidite Synthesis ... 262
11.3 NDBF Phosphoramidite Synthesis ... 265
11.4 Conclusion and Outlook ... 267
11.5 Experimental ... 267
CHAPTER 12: Xanthone Caging Group with a “Safety Switch” ... 273
12.1 Xanthone Decaging Fluorescence... 273
12.2 Xanthone Decaging of a Fluorescent Reporter ... 282
12.2.1 Coumarin Caging ... 283
12.2.2 Rhodamine Caging... 284
12.2.3 Luciferin Caging ... 292
12.3 Conclusion and Outlook ... 297
12.4 Experimental ... 298
ix
LIST OF TABLES
Table 6.1. Radiation energies compared to bond energies ... 133
Table 7.1. Time course studies of each phenotype to heterotaxin exposure ... 152
x
LIST OF FIGURES
Figure 2.1. Structures of the parent triphenylene 201 and 2-azatriphenylene 202. Structures of 2-azatriphenylene related natural products dehydrotylophorine (203) and
tylophorine (204) ... 35
Figure 2.2. Polarized optical micrograph of 236 in the isotropic phase ... 47

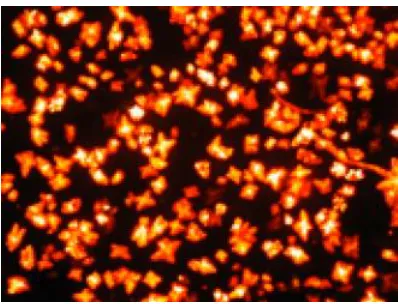

Figure 2.3. Polarized optical micrograph of 236 cooled from isotropic phase to an apparent liquid crystalline phase (100x magnification, 238 °C) ... 48
Figure 3.1. Natural products with a tricyclic alkaloid core structure shown in red ... 60
Figure 3.2. Examples of prenylated indole alkaloid natural products ... 67
Figure 4.1. Streptonigrin (287) ... 79
Figure 4.2. Minimal structural requirements for biological activity ... 80
Figure 4.3. Lavendamycin (289)... 81
Figure 5.1. Structure of buflavine (340) ... 99
Figure 6.1. Inverted temperature gradient produced during microwave heating (left) compared to oil bath heating (right) ... 134
Figure 6.2. Temperature profile of cyclotrimerization reaction in xylenes measured with FO probe (red) and IR probe (pink) ... 140

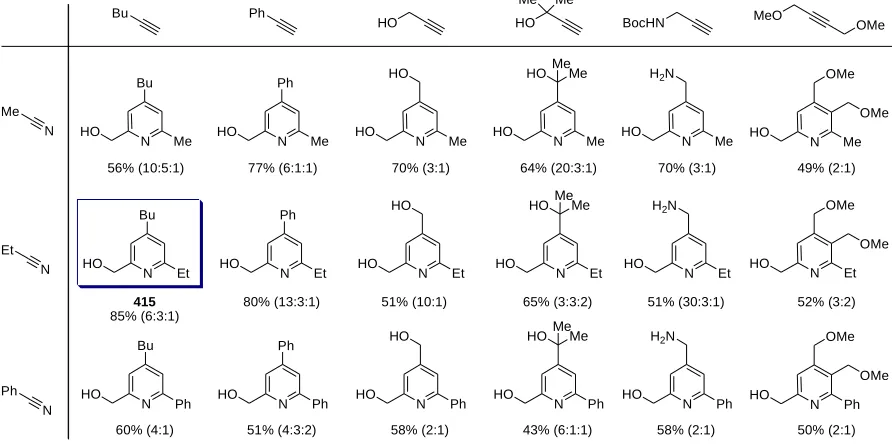

Figure 7.1. Initial compounds screened in Xenopus laevis embryos. The heterotaxia inducing compound is highlighted in the blue box ... 144
