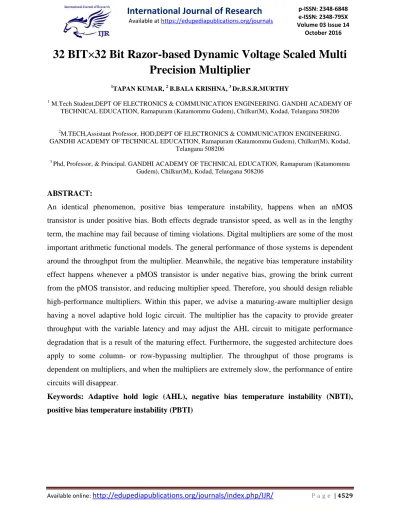

32 BIT×32 Bit Razor-based Dynamic Voltage Scaled Multi
Precision Multiplier
1TAPAN KUMAR, 2 B.BALA KRISHNA, 3 Dr.B.S.R.MURTHY
1 M.Tech Student,DEPT OF ELECTRONICS & COMMUNICATION ENGINEERING. GANDHI ACADEMY OF
TECHNICAL EDUCATION, Ramapuram (Katamommu Gudem), Chilkur(M), Kodad, Telangana 508206
2M.TECH,Assistant Professor, HOD,DEPT OF ELECTRONICS & COMMUNICATION ENGINEERING.
GANDHI ACADEMY OF TECHNICAL EDUCATION, Ramapuram (Katamommu Gudem), Chilkur(M), Kodad, Telangana 508206
3 Phd, Professor, & Principal. GANDHI ACADEMY OF TECHNICAL EDUCATION, Ramapuram (Katamommu
Gudem), Chilkur(M), Kodad, Telangana 508206
ABSTRACT:
An identical phenomenon, positive bias temperature instability, happens when an nMOS
transistor is under positive bias. Both effects degrade transistor speed, as well as in the lengthy
term, the machine may fail because of timing violations. Digital multipliers are some of the most
important arithmetic functional models. The general performance of those systems is dependent
around the throughput from the multiplier. Meanwhile, the negative bias temperature instability
effect happens whenever a pMOS transistor is under negative bias, growing the brink current
from the pMOS transistor, and reducing multiplier speed. Therefore, you should design reliable
high-performance multipliers. Within this paper, we advise a maturing-aware multiplier design
having a novel adaptive hold logic circuit. The multiplier has the capacity to provide greater
throughput with the variable latency and may adjust the AHL circuit to mitigate performance
degradation that is a result of the maturing effect. Furthermore, the suggested architecture does
apply to some column- or row-bypassing multiplier. The throughput of those programs is
dependent on multipliers, and when the multipliers are extremely slow, the performance of entire
circuits will disappear.
Keywords: Adaptive hold logic (AHL), negative bias temperature instability (NBTI),
I. INTRODUCTION
In addition, negative bias temperature
instability happens whenever a pMOS
transistor is under negative bias. In cases
like this, the interaction between inversion
layer holes and hydrogen-passivized Si
atoms breaks the Si-H bond produced
throughout the oxidation process, producing
H or H2 molecules. When these molecules
diffuse away, interface traps remain. The
accrued interface traps between plastic and
also the gate oxide interface lead to elevated
threshold current (Vth), lowering the circuit
switching speed. Digital multipliers are
some of the most important arithmetic
functional models in lots of programs, like
the Fourier transform, discrete cosine
transforms, and digital filtering. Once the
biased current is taken away, overturn
reaction happens, lowering the NBTI effect.
However, overturn reaction doesn't
eliminate all of the interface traps produced
throughout the stress phase, and Vth is
elevated within the lengthy term. Hence, you
should design a dependable
high-performance multiplier. The related impact
on an nMOS transistor is positive bias
temperature instability, which happens when
an nMOS transistor is under positive bias. In
comparison using the NBTI effect, the PBTI
effect is a lot smaller sized on
oxide/polygene transistors, and for that
reason is generally overlooked. However,
for top-k/metal-gate nMOS transistors with
significant charge trapping, the PBTI effect
can't be overlooked. A conventional
approach to mitigate the maturing effect is
overdesign, including things like
guard-banding and gate oversizing however, this
method can be quite pessimistic and area
and power inefficient. To avert this problem,
many NBTI-aware methodologies happen to
be suggested. An NBTI-aware technology
mapping technique was suggested to be sure
the performance from the circuit during its
lifetime. NBTI-aware sleep transistor is built
to lessen the aging effects on pMOS
sleep-transistors, and also the lifetime stability
from the power-gated circuits in mind was
enhanced. Wu and Marculescu suggested
some pot logic restructuring and pin
reordering method, which is dependent on
discovering functional symmetries and
transistor stacking effects. Additionally they
suggested an NBTI optimization way in
which considered path sensitization [1].
Dynamic current scaling and the
body-making techniques were suggested to lessen
power or extend circuit existence. They,
however, require circuit modification or
don't provide optimization of specific
delay because the overall circuit clock cycle
to be able to perform properly. However, the
probability the critical pathways are
triggered is low. Generally, the road delay is
shorter compared to critical path. Of these
noncritical pathways, while using critical
path delay because the overall cycle period
can lead to significant timing waste. Hence,
the variable-latency design was suggested to
lessen the timing waste of traditional
circuits. The variable-latency design divides
the circuit into a double edged sword: 1)
shorter pathways and a pair of) longer
pathways. Shorter pathways can execute
properly in a single cycle, whereas longer
pathways need two cycles to complete.
When shorter pathways are triggered
frequently, the typical latency of
variable-latency designs is preferable to those of
traditional designs. For instance, several
variable-latency adders were suggested
while using speculation technique with error
recognition and recovery [2]. A brief path
activation function formula was suggested to
enhance the precision from the hold logic
and also to optimize the performance from
the variable-latency circuit. An instruction
scheduling formula was suggested to
schedule the procedures on no uniform
latency functional models and enhance the
performance of Very Lengthy Instruction
Word processors. Additionally, the critical
pathways are split into two shorter pathways
that may be unequal and also the clock cycle
is placed towards the delay from the longer
one. These research designs could lessen the
timing waste of traditional circuits to
enhance performance, but they didn't think
about the aging effect and may not adjust
themselves throughout the runtime. A
flexible-latency adder design that views the
maturing effect was suggested. However, no
variable-latency multiplier design that views
the maturing effect and may adjust
dynamically continues to be done. Within
this paper, we advise a maturing-aware
reliable multiplier design having a novel
adaptive hold logic circuit. The multiplier is
dependent on the variable-latency technique
and may adjust the AHL circuit to attain
reliable operation drunk of NBTI and PBTI
effects. To be precise, the contributions of
the paper are summarized the following:
novel variable-latency multiplier
architecture by having an AHL circuit. The
AHL circuit can decide if the input designs
require a couple of cycles and may adjust
the knowing criteria to make sure that there's
minimum performance degradation after
considerable aging happens comprehensive
analysis and comparison from the
cycle periods to exhibit the potency of our
suggested architecture a maturing-aware
reliable multiplier design way in which is
appropriate for big multipliers. Even though
the experiment is carried out in 16- and
32-bit multipliers, our suggested architecture
can be simply extended to large designs.
Fig.1. Proposed system architecture
II. PROPOSED MODEL
Our suggested aging-aware multiplier
architecture, including two m-bit inputs, one
2m-bit output, one column- or
row-bypassing multiplier, 2m 1-bit Razor
switch-flops, as well as an AHL circuit. The inputs
from the row-bypassing multiplier would be
the symbols within the parentheses. Within
the suggested architecture, the column- and
row-bypassing multipliers could be
examined by the amount of zeros either in
the multiplicand or multiplication to
calculate if the operation requires one cycle
or two cycles to accomplish. The suggested
aging-aware reliable multiplier design, it
introduces the general architecture and also
the functions of every component as well as
describes how you can design AHL that
changes the circuit when significant aging
happens. When input designs are random,
the amount of zeros and ones within the
multiplication and multiplicand follows an
ordinary distribution. Hence, the 2
aging-aware multipliers could be implemented
using similar architecture, and also the
difference backward and forward bypassing
multipliers are based on the input signals
from the AHL. Based on the bypassing
selection within the columnar row-bypassing
multiplier, the input signal from the AHL
within the architecture using the
column-bypassing multiplier may be the
multiplicand, whereas those of the
row-bypassing multiplier may be the
multiplication. Razor switch-flops may be
used to identify. Single-bit Razor
switch-flop consists of a primary switch-switch-flop,
shadow latch, XOR gate, and mux. The
primary switch-flop catches the execution
result for that combination circuit utilizing a
normal clock signal, and also the shadow
latch catches the execution result utilizing a
postponed clock signal, that is reduced
compared to normal clock signal [3]. When
the locked little bit of the cisco kid latch
differs from those of the primary
switch-flop, what this means is the road delay of the
and also the primary switch-flop catches the
wrong result. If errors occur, the Razor
switch-flop sets the mistake signal to at least
one to inform the machine to execute the
operation and inform the AHL circuit that
the error has happened. We use Razor
switch-flops to identify whether a surgical
procedure that is regarded as a 1-cycle
pattern can definitely finish inside a cycle.
Otherwise, the procedure is executed with
two cycles. Even though the execution may
appear pricey, the total cost is low since the
execution frequency is low. More particulars
for that Razor switch-flop are available. The
AHL circuit consists of a maturing indicator,
two knowing blocks, one mux, and
something D switch-flop. When the cycle
period is simply too short, the column- or
row-bypassing multiplier can't complete
these procedures effectively, causing timing
violations. These timing violations are going
to be caught through the Razor switch-flops,
which generate error signals. If errors
happen frequently and exceed a predefined
threshold, this means the circuit has endured
significant timing degradation because of
the aging effect, and also the aging indicator
will output signal 1 otherwise, it'll output to
point the maturing effect continues to be not
significant, with no actions are essential [4].
The maturing indicator signifies if the circuit
has endured significant performance
degradation because of the aging effect. The
maturing indicator is implemented inside a
simple counter that counts the amount of
errors over some procedures and it is reset to
zero in the finish of individuals procedures.
The multiplier array includes rows of carry
save adder, by which each row consists of
full adder cells. Each FA within the CSA
array has two outputs: the sum bit goes
lower and also the carry bit would go to the
low left FA. The final row is really a ripple
adder for carry propagation. The FAs within
the AM will always be active no matter
input states. A column-bypassing multiplier
is definitely an step up from the standard
array multiplier. The AM is really a fast
parallel AM. It may be observed that for that
FAs in the foremost and third diagonals, two
three input bits are : the carry bit from the
upper right FA and also the partial product
alibi. Therefore, the creation of the adders
both in diagonals is , and also the output
sum bit is just comparable to the 3rd bit, the
sum creation of its upper FA. Hence, the FA
is modified to include two tractate gates and
something multiplexer. The multiplicand bit
air can be used the selector from the
multiplexer to determine the creation of the
FA, and air may also be used because the
the input road to the FA. If air is , the inputs
of FA are disabled, and also the sum bit of
the present FA is equivalent to the sum bit
from the upper FA, thus lowering the power
use of the multiplier. A minimal-power
row-bypassing multiplier can also be suggested
to lessen the game power the AM. The
whole process of the reduced-power
row-bypassing multiplier is comparable to those
of the reduced-power column-bypassing
multiplier, however the selector from the
multiplexers and also the tractate gates make
use of the multiplication. The 2 inputs in the
foremost and second rows are for FAs. The
inputs are bypassed to FAs within the
second rows, and also the tractate gates
switch off the input pathways towards the
FAs. Therefore, no switching activities exist
in the very first-row FAs in exchange, power
consumption is reduced. However, the FAs
should be mixed up in third row since the b3
isn't zero. More particulars for that
row-bypassing multiplier can be found. The
fundamental concept is to carry out a shorter
path utilizing a shorter cycle and longer path
using two cycles [5]. Because most
pathways execute inside a cycle period that's
much smaller sized compared to critical path
delay, the variable-latency design has
smaller sized average latency. Through
simulation, it may be figured that the
potential of the carry propagation delay
being more than 5 is low. Hence, the cycle
period is placed to five, and hold logic is put
into inform the machine if the adder can
complete the operation inside a cycle period.
Another key observation would be that the
path delay to have an operation is strongly
associated with the amount of zeros within
the multiplicands within the
column-bypassing multiplier. Aging Model As
pointed out, the NBTI effect happens
whenever a pMOS transistor is under
negative bias current, leading to Vth drift.
Once the bias current is taken away, the
process of recovery happens, lowering the
Vth drift. Within this paper, we use 32-nm
high-k metal gate models.
Figure1 Normal 4x4 Multiplier Schematic Diagram
Figure2 Normal 16x16 Multiplier
Schematic Diagram
Fig3: column multiplier 4x4 schematic diagram
Fig4: column multiplier 16x16 schematic diagram
Fig6: row multiplier 4x4 Result
III. CONCLUSION
That additionally towards the BTI effect that
increases transistor delay, interconnects also
offers its aging issue that is known as electro
migration. Electro migration happens once
the current density is sufficient to result in
the drift of metal ions across the direction of
electron flow. This paper suggested a
maturing-aware variable-latency multiplier
design using the AHL. The multiplier has
the capacity to adjust the AHL to mitigate
performance degradation because of
elevated delay. The metal atoms are going to
be progressively displaced after some time,
and also the geometry from the wires can
change. If your wire becomes narrower, the
resistance and delay from the wire is going
to be elevated, as well as in the finish,
electro migration can lead to open circuits.
This problem can also be more severe in
advanced process technology because metal
wires are narrower, and alterations in the
wire width may cause bigger resistance
variations. Additionally, our suggested
variable latency multipliers tight on
performance degradation because variable
latency multipliers tight on timing waste, but
traditional multipliers have to think about
the degradation brought on by both BTI
effect and electro migration and employ the
worst situation delay because the cycle
period. When the aging effects brought on
by the BTI effect and electro migration are
thought together, the delay and gratification
degradation could be more significant.
Fortunately, our suggested variable latency
multipliers may be used drunk of both BTI
effect and electro migration.
REFERENCES
[1] R. Vattikonda, W. Wang, and Y. Cao,
“Modeling and miimization of pMOS NBTI effect for robust naometer design,” in Proc.
ACM/IEEE DAC, Jun. 2004, pp. 1047–
1052.
[2] Y. Lee and T. Kim, “A fine-grained
and body biasing for standard cell based
designs,” in Proc. ASPDAC, 2011, pp. 603–
608.
[3] D. Baneres, J. Cortadella, and M.
Kishinevsky, “Variable-latency design by function speculation,” in Proc. DATE, 2009,
pp. 1704–1709.
[4] Y. Chen et al., “Variable-latency adder
(VL-Adder) designs for low power and
NBTI tolerance,” IEEE Trans. Very Large
Scale Integr. (VLSI) Syst., vol. 18, no. 11,
pp. 1621–1624, Nov. 2010.
[5] R. Vattikonda, W. Wang, and Y. Cao, “Modeling and minimization of pMOS NBTI effect for robust nanometer design,”
in Proc. 43rd ACM/IEEE DAC, Aug. 2006,
