1 Learning Demonstration Interim Progress Report – Summer
2007
1.1 Introduction
This purpose of this report is to document and discuss key results to date from the U.S. Department of Energy’s (DOE) Controlled Hydrogen Fleet and Infrastructure Validation and Demonstration Project, also referred to as the fuel cell vehicle learning demonstration. This report serves as one of many mechanisms to help transfer knowledge and lessons learned within various parts of DOE’s hydrogen program, as well as externally to other stakeholders. Other mechanisms have included: briefings to FreedomCAR technical teams (five in the last year), presentations at technical conferences (National Hydrogen Association, Fuel Cell Seminar, and EVS-22 conferences), postings of individual results to the National Renewable Energy
Laboratory’s (NREL) Web site, presentations at DOE’s Annual Merit Review, and participation in groups such as the California Hydrogen Business Council, US Fuel Cell Council Joint
Hydrogen Quality Task Force, and various California Fuel Cell Partnership working groups. The primary goal of this project is to validate vehicle/infrastructure systems using hydrogen as a transportation fuel for light-duty vehicles. This means validating the use of fuel cell vehicles (FCVs) and hydrogen refueling infrastructure under real-world conditions using multiple sites, varying climates, and a variety of sources for hydrogen. See Figure 1 for photographs of the first-generation vehicles and logos of the four teams and Figure 2 for photographs representing the four types of hydrogen refueling stations.
Hydrogen and gasoline station Washington, DC Mobile Refueler San Francisco, CA Autothermal Reformer Chino, CA
DTE/BP Power Park Southfield, MI Delivered
Compressed H2
Natural Gas
On-Site Reforming Electrolysis Delivered Liquid H2
Hydrogen and gasoline station Washington, DC Mobile Refueler
San Francisco, CA
Autothermal Reformer Chino, CA
DTE/BP Power Park Southfield, MI Delivered
Compressed H2
Natural Gas
On-Site Reforming Electrolysis Delivered Liquid H2
Figure 2: Four Types of Hydrogen Production and Refueling Facilities with Examples
By 2009 we will validate hydrogen vehicles with greater than 250-mile range, 2,000-hour fuel cell durability, and $3/gge hydrogen production cost (based on volume production). We are identifying the current status of the technology and tracking its evolution over the five-year project duration, particularly between the first- and second-generation FCVs. NREL’s role in this project is to provide maximum value for DOE and industry from the data produced by this “learning demonstration.” We seek to gain knowledge about the progress toward the technical targets, and provide that data to the HFCIT R&D activities. This information allows the program to move more quickly toward cost-effective, reliable hydrogen FCVs and supporting refueling infrastructure.
1.2 Approach
NREL’s approach to accomplishing the project’s objectives is structured around a highly
collaborative relationship with each of the four industry teams, including Chevron/Hyundai-Kia, DaimlerChrysler/BP, Ford/BP, and GM/Shell. We are receiving raw technical data from both the hydrogen vehicles and refueling infrastructure that allows us to perform unique and valuable analyses across all four teams. Our primary objectives are to feed the current technical
challenges and opportunities back into the DOE Hydrogen R&D Program and assess the current status and progress toward targets. To protect the commercial value of these data for each company, we established the Hydrogen Secure Data Center (HSDC) to house the data and perform our analysis (Figure 3 shows the flow of data and results). To ensure value is fed back to the hydrogen community, we publish composite data products twice a year at technical conferences. These data products report on the progress of the technology and the project, focusing on the most significant results. Additional composite data products are conceived as additional trends and results of interest are identified. We also provide our detailed analytical results (not public) on each individual company’s data back to them to maximize the industry benefit from NREL’s analysis work and obtain feedback on our methodologies.
Raw Data,
Reports
Hydrogen Secure Data
Center (HSDC)
•
Located at NREL:
Strictly Controlled
Access
• Detailed Analyses,
Data Products,
Internal Reports
Composite Data
Products
•
Pre-agreed upon aggregate data results for publicDetailed Data
Products
•
Only shared withcompany which originated the data
•
No confidentialinformation
Raw Data,
Reports
Hydrogen Secure Data
Center (HSDC)
•
Located at NREL:
Strictly Controlled
Access
• Detailed Analyses,
Data Products,
Internal Reports
Composite Data
Products
•
Pre-agreed upon aggregate data results for publicDetailed Data
Products
•
Only shared withcompany which originated the data
•
No confidentialinformation
Hydrogen Secure Data
Center (HSDC)
•
Located at NREL:
Strictly Controlled
Access
• Detailed Analyses,
Data Products,
Internal Reports
Composite Data
Products
•
Pre-agreed upon aggregate data results for publicDetailed Data
Products
•
Only shared withcompany which originated the data
•
No confidentialinformation
Figure 3: Process Flow for Hydrogen Secure Data Center Analysis and Results 1.3 Key Analysis Accomplishments in FY 2007
• Created and published 30 new or updated composite data products (the third such set of public results) representing results from analyzing almost two years of Learning
Demonstration data. Presented results publicly at EVS-22, the Fuel Cell Seminar, the National Hydrogen Association conference, and the 2007 DOE Hydrogen Program Merit Review meeting.
• Created a new NREL Web page at http://www.nrel.gov/hydrogen/cdp_topic.html to allow direct public access to the latest composite data products, organized by topic, date, and CDP number. This also allowed the results to be indexed directly by search engines.
• Made major improvements to NREL’s Fleet Analysis Toolkit (FAT) for automatically processing and analyzing every vehicle trip file and presenting the results graphically in an interactive manner.
• Received and processed a total of 141,000 individual vehicle trips, amounting to over 38 GB of data, since inception of the project.
1.4 Section 1: Vehicle Results
The results in FY 2007 came from analyzing an additional year of data (January – December 2006), creating a total of 30 new or updated composite data products we presented at three technical conferences. To accomplish this, our in-house analysis tool, the Fleet Analysis Toolkit, underwent significant improvements and revisions. Since there are now so many technical results from the project, they cannot normally all be discussed during brief conference presentations. Therefore, in January 2007 NREL launched a new Web page at
http://www.nrel.gov/hydrogen/cdp_topic.html to provide the public with direct access to the results. These results have also been presented publicly at the Fuel Cell Seminar (11/06), the EVS-22 conference in Japan (12/06), and the 2007 National Hydrogen Association meeting (3/07) as two distinct sets of results (labeled “Fall 2006” and “Spring 2007”). In order to focus on the high-level results and conclusions, this report will discuss the results in bullet form, organized by topic. The last section includes all of the composite data products referenced.
• Fuel Cell Efficiency: The fuel cell system efficiency was measured from select vehicles
on a vehicle chassis dynamometer at several steady-state points of operation. DOE’s technical target for net system efficiency at ¼-power is 60%. Data from the four Learning Demonstration teams showed a range of net system efficiency from 52.5% to 58.1% (Figure 4), which is very close to the target. Efficiency of the 2nd generation systems will be evaluated as soon as they are introduced through baseline testing.
• Vehicle Fuel Economy: Vehicle fuel economy was measured from city and highway
drive-cycle tests (Figure 5) on a chassis dynamometer using draft SAE J2572 (left blue bar, representing the range of four points, one from each OEM). These raw test results were then adjusted according to U.S. Environmental Protection Agency (EPA) methods to create the “window-sticker” fuel economy that consumers see when purchasing the vehicles (0.78 x Hwy, 0.9 x City) (center blue bar). This resulted in an adjusted fuel-economy range of 42 to 56.5 miles/kg hydrogen for the four teams. As with all vehicles sold today, including gasoline hybrids, on-road fuel economy is slightly lower than this rated fuel economy (right blue bar). Note that EPA has adjusted its testing and reporting methodology beginning with model-year 2008 vehicles to try to make the window-sticker fuel economy better reflect on-road driving performance.
• Vehicle Driving Range: Vehicle range was calculated using the fuel economy results
discussed above and multiplying them by the usable hydrogen stored onboard each vehicle (Figure 6). Using the EPA-adjusted fuel economy resulted in a range from just over 100 miles up to 190 miles from the four teams. The 2nd generation vehicles will strive to push this range up to 250 miles to reach the 2009 DOE target. Note that two other composite data products relating to range were also generated. Figure 7 shows a histogram of the distance vehicles actually traveled between refuelings as a percentage of each vehicle’s dyno range. This shows that the majority of the vehicles (80%) travel less than 50% of the dyno range between refuelings. This is due to several factors, but the dominant ones are limited H2 infrastructure, fear of running out of fuel, and actual on-road fuel economy being lower than the dynamometer fuel economy, as has already been discussed. Figure 8 shows a large spread of on-road range from the four teams (green bar) as a percentage of their dyno range.
• Fuel Cell Durability: Fuel cell stacks will need roughly a 5,000 hour life to enter the market for light-duty vehicles. For this demonstration project, targets were set at 1,000 hours in 2006, and 2,000 hours in 2009. By creating periodic fuel cell polarization curve fits using the on-road stack voltage and current data, we calculated the voltage under high current and used it to track the gradual degradation of the stacks with time. We then compared these results to the first-generation target of 1,000 hours for 2006. Since the vehicles have not yet been driven long enough to acquire 1,000 hours of operation (a range of fleet averages from 145 to 379 hours for the four teams, as shown in Figure 9), we extrapolated based on the slope of the voltage degradation (mV/hour times the 10% voltage drop target). The projected times to 10% fuel cell stack voltage degradation from the four teams had an average of over 700 hours with a high projection of over 1,250 hours from one team, straddling the 1,000 hour DOE target (Figure 10). Note that this 10% criterion, which is used for assessing progress toward DOE targets, may differ from the OEM’s end-of-life criterion and does not address “catastrophic” failure modes such as membrane failure. The 2nd generation stacks introduced in this project beginning in late 2007 will be compared to the 2,000 hour target for 2009.
• Vehicle Safety: The Learning Demonstration has had a very strong safety record to date.
In accordance with DOE’s safety definitions, there have been no safety incidents or near misses involving the vehicles; they have all been non-events. There was one reported issue with properly setting thresholds for triggering onboard alarms from hydrogen sensors that is being resolved by the company involved. This occurred in Quarter 4, 2006, as can be seen in Figure 11 by the spike in the number of safety reports for that quarter. This resolution will also involve a reassessment by that company of the type of safety data reported to the HSDC, and will likely involve an update to the number of reports (lower) for previous and future quarters.
• Other Vehicle Metrics: There have been several other vehicle-related composite data
products that will be briefly mentioned here. Figure 12 shows the range of ambient temperature during vehicle operation spanning from 3°F-123°F. So fuel cell vehicles are currently able to operate in extreme temperature conditions, but 2nd generation vehicle tests will determine their ability to also start from sub-freezing temperatures. Figure 13 shows the distribution of vehicle operating hours, showing a median of 300-400 hours. Similarly with vehicle miles traveled (shown in Figure 14), the peak number of vehicles occurs at 6,000-8,000 miles. The total number of vehicle miles traveled through
December 2006 is 573,064, and Figure 15 shows that after the first few quarters, mileage accumulation has been relatively linear. Figure 16 tracks the total number of Learning Demonstration vehicles deployed by quarter, and the on-board hydrogen storage systems that they use.
1.5 Section 2: Infrastructure Results
• Hydrogen Quality: Hydrogen quality was determined by measuring the impurities and
calculating the hydrogen fuel quality index as a percentage. SAE J2719 has established a 99.99% hydrogen fuel quality index target. The hydrogen fuel quality index from all the stations sampled ranged from 99.73% to 99.999%, as shown in Figure 17. The values on the lower end were due to some high detection limits on inert gases, and likely do not really represent hydrogen fuel quality that low.
• Hydrogen Impurities: More important than the absolute hydrogen fuel quality index is the
actual level of impurities by constituent. Impurities evaluated include particulates, inert gases (N2 + H2 + Ar), NH3, CO, CO2, O2, total HC, H20, and total sulfur, and are shown
in Figure 18. One key finding was that reported values are, in general, close to the SAE J2719 target values. For total sulfur, we observed that all of the data were reported at the detection limits of the gas analysis hardware used. So while the target for sulfur is 4 parts per billion (ppb), detection-limited results ranged from 3-70 ppb. Therefore, either new cost-effective techniques to get real measurements at such low concentrations should be developed, or the target should be raised to something that can be measured with
confidence.
• H2 Infrastructure Maintenance: An evaluation of all of the maintenance required on
refueling station equipment found that roughly ½ of all labor hours were unplanned, accounting for 60% of the maintenance events (Figure 19). This reflects the early nature of technology maturity for the stations, and will be tracked as the technology matures and more stations are put into service.
• Infrastructure Safety: With respect to hydrogen refueling infrastructure, there has only
been one event that was classified as an incident. It involved a piece of equipment that was incorrectly installed and led to the release of hydrogen from the station’s storage tanks into the atmosphere. There were no injuries and no damage except for the piece of equipment involved. At a less severe level (see Figure 20), there were nine events categorized as near-misses and 59 non-events (primarily alarms-only and equipment malfunctions). All but one of the near-misses involved a minor release of hydrogen with no ignition. Figure 21 shows that no single primary factor led to the majority of
infrastructure safety reports, but the following three categories made up almost 40 of them: calibration/settings or software controls, environment (weather, power disruption, other), and inadequate or non-working equipment. Figure 22 shows that the number of refuelings normalized by the number of safety reports per quarter has improved by a factor of 10 since the beginning of the project, and Figure 23 shows that no serious (incident or near-miss) reports have occurred in the last three reporting quarters.
• Refueling Events: Hydrogen vehicle refueling needs to be as similar as possible to
conventional vehicle refueling to allow an easier commercial market introduction. Over 3,700 refueling events have been analyzed to date, and the amount, time, and rate have been quantified. The average time to refuel was 4.19 minutes with 78% of the refueling events taking less than 5 minutes (Figure 24). The average amount per fill was 2.15 kg, reflecting both the limited storage capacity of these vehicles (~4 kg max) and peoples’ comfort level with letting the fuel gauge get close to empty (Figure 25). DOE’s target refueling rate is 1 kg/minute, and these Learning Demo results indicate an average of
0.71 kg/min and a median of 0.75 kg/min, with 20% of the refueling events exceeding 1 kg/minute (Figure 26). Therefore, we can conclude that high-pressure gases are
approaching adequate refueling times and rates for consumers; however, the challenge is still in packaging enough high-pressure hydrogen onboard to provide adequate range, or finding alternate advanced hydrogen storage materials that can replace the need for high-pressure tanks. See Figure 27, Figure 28, and Figure 29 for the status of the
first-generation storage tanks validated.
• Other Infrastructure Metrics: The amount of hydrogen produced or dispensed has also
been tracked by quarter. This result is shown in Figure 30. Note that the amount of hydrogen produced is not the same as the amount dispensed because the project includes a power park at which the unused hydrogen can be converted back into grid electricity during peak utility load periods (due to late afternoon air-conditioning loads) using on-site fuel cells. As discussed earlier, there are four major types of hydrogen refueling stations being demonstrated (shown in Figure 31) and the rate of introduction of these stations is shown in Figure 32.
1.6 Conclusions and Future Directions
NREL has now analyzed the first two years of the 5-year project with 77 vehicles now in fleet operation, 12 project refueling stations in use, and no major safety problems encountered. We’ve analyzed data from 141,000 individual vehicle trips covering 570,000 miles traveled and 20,000 kg H2 produced or dispensed. Last fall we supported a September 2006 DOE MYPP
milestone to evaluate on-road fuel cell durability through voltage degradation and comparison to the 1,000-hour target. The results included an individual team-average high of over 1,250 hours with the 4-team average still over 700 hours. We’ve analyzed fuel cell system efficiency at ¼-power and compared it to the DOE target of 60%; system efficiency results from the four teams ranged between 52.5% and 58.1%. We’ve published 30 composite data products to date and made them directly accessible to the public from a new Web site.
As we move forward in the future, we will identify any correlations of real-world factors influencing fuel cell degradation and strive to separate their interwoven dependencies. We will create new and updated composite data products based on data through June 2007, and prepare results for publication at EVS-23 and 2007 Fuel Cell Seminar as the “Fall 2007” results. We will also support the September 2007 DOE MYPP and Joule milestone on refueling times and rates. For the 2nd generation vehicles initially introduced this fall, we will evaluate improvements in fuel cell durability, range, fuel economy, and safety. We will semi-annually (spring/fall) compare technical progress to program objectives and targets, providing public outputs through publication at conferences. As an important part of the project, we will identify opportunities to feed project findings back into HFCIT Program R&D activities to maintain the project as a “learning demonstration.”
1.7 Related Publications/Presentations from FY07
1. Wipke, K., “Hydrogen Secure Data Center: Procedures to Protect Technical Data Submitted under the Controlled Hydrogen Fleet and Infrastructure Demonstration and Validation Project,” Golden, CO: National Renewable Energy Laboratory, updated June 2007.
2. Wipke, K., Welch, C., Thomas, H., Sprik, S., “Controlled Hydrogen Fleet and
Infrastructure Analysis,” DOE Annual Merit Review Meeting, Washington, DC, May 2007. (presentation)
3. Wipke, K., “Composite Data Products for the Controlled Hydrogen Fleet and
Infrastructure Demonstration and Validation Project,” Golden, CO: National Renewable Energy Laboratory, updated March 2007. (online at
http://www.nrel.gov/hydrogen/cdp_topic.html).
4. Wipke, K., Welch, C., Thomas, H., Sprik, S., Gronich, S., Garbak, J., Hooker, D., “Fuel Cell Vehicle Learning Demonstration: Spring 2007 Results,” NHA Annual Hydrogen Meeting and Exposition, San Antonio, TX, March 2007. (presentation)
5. Wipke, K., Welch, C., Thomas, H., Sprik, S., Gronich, S., Garbak, J., “Controlled
Hydrogen Fleet and Infrastructure Demonstration and Validation Project: Initial Fuel Cell Efficiency and Durability Results,” World Electric Vehicle Association Journal,
December 2006. (paper)
6. Wipke, K., Welch, C., Thomas, H., Sprik, S., "Controlled Hydrogen Fleet and
Infrastructure Analysis Project," 2006 DOE HFCIT Program Annual Progress Report, November 2006. (paper)
7. Wipke, K., Welch, C., Thomas, H., Sprik, S., Gronich, S., Garbak, J., “Hydrogen Leaning Demonstration Project: Fuel Cell Efficiency and Initial Durability,” Fuel Cell Seminar, November 2006. (extended abstract and presentation)
8. Wipke, K., presentation of Learning Demonstration results to FreedomCAR Vehicle Systems Analysis Tech Team, July 12, 2006 and Nov. 8, 2006.
9. Wipke, K., presentation of Learning Demonstration results to FreedomCAR Fuel Cell Tech Team, October 18, 2006.
10.Wipke, K., Welch, C., Thomas, H., Sprik, S., Gronich, S., Garbak, J., “Hydrogen Fleet & Infrastructure Demonstration and Validation Project: Fall 2006 Progress Update,” EVS-22, Yokohama, Japan, October 2006. (paper and presentation)
11.Wipke, K., Welch, C., Thomas, H., Sprik, S., Gronich, S., Garbak, J., “Hydrogen Fleet & Infrastructure Demonstration and Validation Project: Fall 2006 Progress Update,” CARB ZEV Technology Symposium, September 25, 2006. (presentation)
12.Wipke, K., presentation of Learning Demonstration results to FreedomCAR Hydrogen Storage Tech Team, September 21, 2006.
13.Wipke, K., presentation of Learning Demonstration results to FreedomCAR Codes and Standards Tech Team, June 5, 2006.
14.Welch, C., Wipke, K., Thomas, H., Sprik, S., “DOE’s Controlled Hydrogen Fleet and Infrastructure Demonstration and Validation Project: Quarterly Validation Assessment Reports,” (HSDC papers only)
o 1Q 2006, May 2006. o 2Q 2006, August 2006. o 3Q 2006, December 2006. o 4Q 2006, March 2007.
1.8 Acronyms
CDP composite data product
FAT Fleet Analysis Toolkit (software tool developed at NREL)
FCV fuel cell vehicle
FY fiscal year
gge gallon of gasoline equivalent
H2 hydrogen
HFCIT Hydrogen, Fuel Cells & Infrastructure Technologies (DOE program)
HSDC Hydrogen Secure Data Center (at NREL)
MYPP Multi-Year Program Plan (DOE document)
NHA National Hydrogen Association
NREL National Renewable Energy Laboratory
1.9 Composite Data Products Referenced in Previous Discussion 0 10 20 30 40 50 60 70 All OEM s E ff ici en cy ( % )
Fuel Cell System1 Efficiency2 at ~25% Net Power.
DOE Target
Created: Aug-29-06 4:09 PM
1 Gross stack power minus fuel cell system auxiliaries, per DRAFT SAEJ2615.
2 Ratio of DC output energy to the lower heating value of the input fuel (hydrogen).
Excludes power electronics and electric drive.
Figure 4: Fuel Cell System Efficiency at ~25% Net Power
Dyno (1) Window-Sticker (2) On-Road (3)(4)
0 10 20 30 40 50 60 70 80 Fue l E conom y ( m ile s/ kg H 2 ) Fuel Economy Created: Feb-27-07 4:49 PM
(3) Excludes trips < 1 mile. One data point for on-road fleet average of each make/model. (1) One data point for each make/model. Combined City/Hwy fuel economy per DRAFT SAE J2572. (2) Adjusted combined City/Hwy fuel economy (0.78 x Hwy, 0.9 x City).
(4) Calculated from on-road fuel cell stack current or mass flow readings.
Dyno Range (2) Window-Sticker Range (3) On-Road Range (4)(5) 0 50 100 150 200 250 300 Veh ic le R an g e ( m ile s) Vehicle Range1 2015 Target 2009 Target Created: Feb-27-07 4:49 PM
(1) Range is based on fuel economy and usable hydrogen on-board the vehicle. One data point for each make/model. (2) Fuel economy from unadjusted combined City/Hwy per DRAFT SAE J2572.
(3) Fuel economy from EPA Adjusted combined City/Hwy (0.78 x Hwy, 0.9 x City). (4) Excludes trips < 1 mile. One data point for on-road fleet average of each make/model. (5) Fuel economy calculated from on-road fuel cell stack current or mass flow readings.
Figure 6: Learning Demonstration Fuel Cell Vehicle Driving Range
0 10 20 30 40 50 60 70 80 90 100 0 10 20 30 40 50 60 70 80 90
100 Range Histogram: All OEMs
Percentage of chassis dyno range1 b/w refuelings
P er ce nt age of r ef ue lings Percentage Cumulative Percentage Total refuelings2 = 5480
0 10 20 30 40 50 60 70 80 90 100 Vehicle Range Factors
Percentage of chassis dyno range1.
Al l O E Ms W in dow -S ti ck er 2 O n-R oa d 3 Dy no 1 Created: Feb-26-07 12:53 PM
1. Calculated using the combined City/Hwy fuel economy from dyno testing (non-adjusted) and usable fuel on board. 2. Applying window-sticker correction factors for fuel economy: 0.78 x Hwy and 0.9 x City.
3. Using fuel economy from on-road data (excluding trips > 1 mile, consistent with other data products). 3. Using fuel economy from on-road data (excluding trips > 1 mile, consistent with other data products).
Figure 8: On-Road Range Normalized by Dynamometer Range
Max Hrs Accumulated (1)(2) Avg Hrs Accumulated (1)(3)
0 200 400 600 800 Ti m e ( H our s)
DOE Learning Demonstration:
Fuel Cell Stack Hours Accumulated Through 2006 Q4
Created: Feb-28-07 8:27 PM
(1) Range bars created using one data point for each OEM.
(2) Range (highest and lowest) of the maximum operating hours accumulated to-date of any OEM's individual stack in "real-world" operation. (3) Range (highest and lowest) of the average operating hours accumulated to-date of all stacks in each OEM's fleet.
0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 2006 Target 2009 Target
Actual Operating Hours Accumulated To-Date Projected Hours to 10% Degradation
Max Hrs Accumulated (1)(2) Avg Hrs Accumulated (1)(3) Projection to 10% Degradation (4)(5)
Ti m e ( H our s)
DOE Learning Demonstration Fuel Cell Stack Durability: Based on Data Through 2006 Q4
Max Projection Avg Projection
Created: Feb-28-07 8:27 PM
(1) Range bars created using one data point for each OEM.
(2) Range (highest and lowest) of the maximum operating hours accumulated to-date of any OEM's individual stack in "real-world" operation. (3) Range (highest and lowest) of the average operating hours accumulated to-date of all stacks in each OEM's fleet.
(4) Projection using on-road data -- degradation calculated at high stack current. This criterion is used for assessing progress against DOE targets, may differ from OEM's end-of-life criterion, and does not address "catastrophic" failure modes, such as membrane failure.
(5) Using one nominal projection per OEM: "Max Projection" = highest nominal projection, "Avg Projection" = average nominal projection. The shaded green bar represents an engineering judgment of the uncertainty due to data and methodology limitations. Projections will change as additional data are accumulated.
Figure 10: Projected Hours to 10% Fuel Cell Stack Voltage Degradation
Safety Incidents - Vehicle Operation
0 5 10 15 20 25 30 35 40 45 50 Q3 4 Q2 3 N u mb er o f In ci d en ts
H2 Leak - During Fueling H2 Alarm - Stack H2 Alarm - Fuel System
60 50 40 30 20 10 0 -10 -20 -30 De g re es Ce ls iu s
Ambient Temperature During Operation
All OEMs
Created: Mar-07-07 3:35 PM
32o F 3o F 123o F
Figure 12: Range of Ambient Temperature during Vehicle Operation
Vehicle Hours: All OEMs Combined
0 2 4 6 8 10 12 14 16 18 0-100 100-2 00 200-3 00 300-4 00 400-5 00 500-6 00 600-7 00 700-8 00 800-9 00 >900
Total Vehicle Hours
N um be r of V ehi cl es Through Q4 2006 Created: 28-Feb-07
Total Vehicle Hours = 28,545
Through Q4 2006
Vehicle Hours: All OEMs Combined
0 2 4 6 8 10 12 14 16 18 0-100 100-2 00 200-3 00 300-4 00 400-5 00 500-6 00 600-7 00 700-8 00 800-9 00 >900
Total Vehicle Hours
N um be r of V ehi cl es Through Q4 2006 Created: 28-Feb-07
Total Vehicle Hours = 28,545
Through Q4 2006
Vehicle Miles: All OEMs Combined 0 2 4 6 8 10 12 14 0-200 0 2000 -400 0 4000 -600 0 6000 -800 0 8000 -100 00 1000 0-120 00 1200 0-140 00 1400 0-160 00 1600 0-180 00 >180 00
Total Vehicle Miles
N u m b er o f V eh icl es
Total Miles Traveled = 573,064
Through Q4 2006
Created: 28-Feb-07
Figure 14: Distribution of Vehicle Miles Traveled
Cumulative Vehicle Miles Traveled: All OEMs
-100,000 200,000 300,000 400,000 500,000 600,000 700,000 V eh icle M ile s T ra ve le d
On-Board Hydrogen Storage Methods -10 20 30 40 50 60 70 80 2005Q2 2005Q3 2005Q4 2006Q1 2006Q2 2006Q3 2006Q4 # of V e hi cl es ( A ll T eam s) Liquid H2 10,000 psi tanks 5,000 psi tanks Created Feb-28-2007
Figure 16: Hydrogen FCVs (and Storage Type) Deployed by Quarter
99.73 99.74 99.75 99.76 99.77 99.78 99.79 99.8 99.81 99.82 99.83 99.84 99.85 99.86 99.87 99.88 99.8999.9 99.91 99.92 99.93 99.94 99.95 99.96 99.97 99.98 99.99100 H ydroge n Fu el Q ua lit y Inde x ( % )
Hydrogen Fuel Quality Index Sampled from Stations(1)
Data Range Data SAE J2719
Created: Feb-28-07 12:06 PM (1) Includes sampling from both electrolysis and reforming
0 1 2 3 4 5 6 7 8 9 10 Particulates
μg/L
H2 Impurities
Data Range SAE J2719 Measured Less Than or Equal To (Detection Limited)
0 500 1000 1500 2000 2500 3000 (N2 + He + Ar) 0 5 10 15 20 25 30 35 40 H20 Total HC O2 CO2 CO NH3 μmol/mol (ppm) 0 10 20 30 40 50 60 70 80 90 100 Total S* nmol/mol (ppb) Created: Feb-28-07 12:06 PM
*Calculated from SO2, COS, H2S, CS2, and Methyl Mercaptan (CH3SH).
Figure 18: Hydrogen Impurities Sampled from All Stations to Date
0 20 40 60 80 100 120 140 160 180 200 Adjustment Check Only Other Repair Replacement
Maintenance: Average Labor Hours Per Station Since Inception
Scheduled Un-Scheduled 0 5 10 15 20 25 30 Adjustment Check Only Other Repair Replacement
Maintenance: Average Number of Events Per Station Since Inception
Hours
Total Infrastructure Safety Events by Severity and Event Type Through 2006 Q4
0 5 10 15 20 25 30 35 40 45 50 55 60 65
Non-Event Near Miss Incident
Severity N u m b er o f E ven ts
H2 Release - Significant, NO Ignition Electrical Issue
Non-H2 Release
Automatic System Shutdown Equipment Malfunction Alarms Only
H2 Release - Minor, NO Ignition
Created 07-Mar-2007
Figure 20: Infrastructure Safety Reports by Severity
Primary Factors of Infrastructure Safety Events Through 2006 Q4
0 10 20 30 40 50 60 7
Total Non-Events Total Near Miss Total Incidents S eve ri ty Number Of Events 0 Calibration/Settings/ Software Controls
Environment (Weather, Power Disruption, Other) Inadequate/ Non-working Equipment
Not Yet Determined
Mischief, Vandalism, Sabotage Maintenance Required Design Flaw
Operator/Personnel Error
Created 07-Mar-2007
Infrastructure Safety Trend and Online Stations 11 10 20 31 104 110 94 0 2 4 6 8 10 12 2005 Q2 2005 Q3 2005 Q4 2006 Q1 2006 Q2 2006 Q3 2006 Q4 Reporting Period N u m b er of S ta tions 0 20 40 60 80 100 120 N umbe r of R e fuel ings
Number of Online Stations Average Refuelings Between Safety Events
Created 28-Feb-2007
Figure 22: Average Refuelings Between Infrastructure Safety Reports
Type of Infrastructure Safety Event by Quarter Through 2006 Q4
4 6 8 10 12 14 16 18 N u mb er o f E ven ts Incident Near Miss Non-Event Stations Online Average # Events/Station
0 2 4 6 8 10 12 14 16 18 20 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 Time (min) Num be r of Fue ling E ve nt s
Histogram of Fueling Times All Light Duty Through 2006Q4
Created: Feb-28-07 1:43 PM
Figure 24: Distribution of Refueling Times
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Amount Fueled (kg) Num be r of Fue ling E ve nt s
Histogram of Fueling Amounts All Light Duty Through 2006Q4
Created: Feb-28-07 1:43 PM
0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270
Avg Fuel Rate (kg/min)
Num be r of Fu el ing E ve n ts
Histogram of Fueling Rates All Light Duty Through 2006Q4
5 minute fill of 5 kg at 350 bar
3 minute fill of 5 kg at 350 bar
2006 Tech Val Milestone
2010 MYPP Adv Storage Materials Target
Created: Feb-28-07 1:42 PM
Figure 26: Distribution of Refueling Rates Compared to Targets
2000 4000 6000 8000 10000 12000 N u m b er o f cy cl es
Hydrogen Tank Cycle Life
2015 DOE M YPP Target1 2010 DOE M YPP Target1 2007 DOE M YPP Target1
0 1 2 3 4 5 6 7 8 9 All OEM s W eigh t Pe rc en t H ydr og en ( % )
Weight Percent Hydrogen
2015 DOE M YPP Target1 2010 DOE M YPP Target1 2007 DOE M YPP Target1
Created: 23-Feb-2006
1Some near-term targets have been achieved with compressed and liquid tanks. Emphasis is on advanced materials-based technologies.
Figure 28: Compressed and Liquid Hydrogen Tank Weight-Percent
0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.1 All OEM s Ma ss H 2 p er L ite r (k g /L )
M ass of Hydrogen Per Liter
2015 DOE M YPP Target1 2010 DOE M YPP Target1 2007 DOE M YPP Target1
Created: 23-Feb-2006 1Emphasis is on advanced materials-based technologies.
Cumulative Hydrogen Produced or Dispensed
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Q2 2005 Q3 2005 Q4 2005 Q1 2006 Q2 2006 Q3 2006 Q4 2006 Calendar Quarter M as s o f Hy dr og en (k g ) (t ho us ands ) Created 20-Feb-2007Figure 30: Cumulative Hydrogen Produced or Dispensed
Infrastructure Hydrogen Production Methods
1 2 3 4 5 # of S ta ti ons
Online Stations
0 2 4 6 8 10 12 2005 Q2 2005 Q3 2005 Q4 2006 Q1 2006 Q2 2006 Q3 2006 Q4Reporting Period
Nu
m
b
er o
f
S
tat
io
n
s
Created 20-Feb-2007REPORT DOCUMENTATION PAGE OMB No. 0704-0188Form Approved
The public reporting burden for this collection of information is estimated to average 1 hour per response, including the time for reviewing instructions, searching existing data sources, gathering and maintaining the data needed, and completing and reviewing the collection of information. Send comments regarding this burden estimate or any other aspect of this collection of information, including suggestions for reducing the burden, to Department of Defense, Executive Services and Communications Directorate (0704-0188). Respondents should be aware that notwithstanding any other provision of law, no person shall be subject to any penalty for failing to comply with a collection of information if it does not display a currently valid OMB control number.
PLEASE DO NOT RETURN YOUR FORM TO THE ABOVE ORGANIZATION. 1. REPORT DATE (DD-MM-YYYY)
July 2007
2. REPORT TYPE Technical Report
3. DATES COVERED (From - To)
5a. CONTRACT NUMBER
DE-AC36-99-GO10337 5b. GRANT NUMBER
4. TITLE AND SUBTITLE

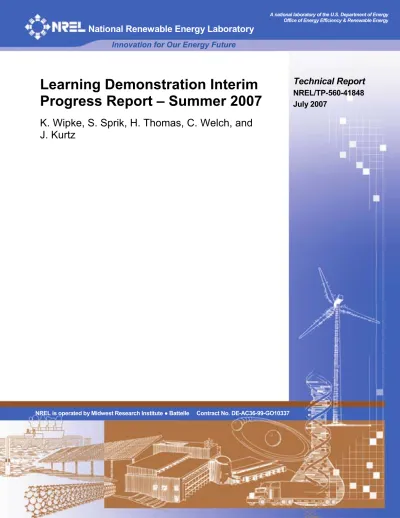

Learning Demonstration Interim Progress Report – Summer 2007
5c. PROGRAM ELEMENT NUMBER
5d. PROJECT NUMBER NREL/TP-560-41848 5e. TASK NUMBER
H2708100 6. AUTHOR(S)
K. Wipke, S. Sprik, H. Thomas, C. Welch, and J. Kurtz
5f. WORK UNIT NUMBER
7. PERFORMING ORGANIZATION NAME(S) AND ADDRESS(ES) National Renewable Energy Laboratory
1617 Cole Blvd. Golden, CO 80401-3393 8. PERFORMING ORGANIZATION REPORT NUMBER NREL/TP-560-41848 10. SPONSOR/MONITOR'S ACRONYM(S) NREL
9. SPONSORING/MONITORING AGENCY NAME(S) AND ADDRESS(ES)
11. SPONSORING/MONITORING AGENCY REPORT NUMBER
12. DISTRIBUTION AVAILABILITY STATEMENT National Technical Information Service U.S. Department of Commerce
5285 Port Royal Road Springfield, VA 22161 13. SUPPLEMENTARY NOTES 14. ABSTRACT (Maximum 200 Words)
This report documents the key results to date from the U.S. DOE Controlled Hydrogen Fleet and Infrastructure Validation and Demonstration project.
15. SUBJECT TERMS
