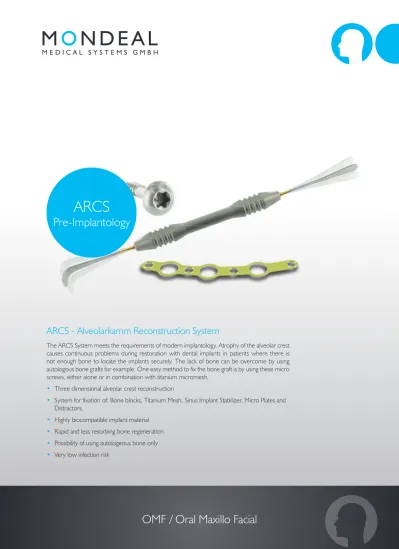

ARCS - Alveolarkamm Reconstruction System
The ARCS System meets the requirements of modern implantology. Atrophy of the alveolar crest
causes continuous problems during restoration with dental implants in patients where there is
not enough bone to locate the implants securely. The lack of bone can be overcome by using
autologous bone grafts for example. One easy method to fix the bone graft is by using these micro
screws, either alone or in combination with titanium micromesh.
•
Three dimensional alveolar crest reconstruction
•
System for fixation of: Bone blocks, Titanium Mesh, Sinus Implant Stabilizer, Micro Plates and
Distractors.
•
Highly biocompatible implant material
•
Rapid and less resorbing bone regeneration
•
Possibility of using autologeous bone only
•
Very low infection risk
Page 2
ARCS
Table of Contents
•
Screws
Page 3 - 4
•
Microplates, Titanium MICRO-MESH
Page 5
•
Titanium Membranes
Page 6
•
Drills
Page 7 - 8
•
Instruments
Page 9 - 10
•
SIS - Sinus Implant Stabilizer
Page 11
•
SWING-LIFT Instruments
Page 12
•
ARCS PIN
Page 13 - 14
•
Container
Page
15
LOCK-DRIVE Screw
Art. No. Diameter x Length
31-71203 1.2 x 3 mm 31-71204 1.2 x 4 mm 31-71205 1.2 x 5 mm 31-71206 1.2 x 6 mm 31-71207 1.2 x 7 mm 31-71208 1.2 x 8 mm 31-71211 1.2 x 11 mm 31-71213 1.2 x 13 mm 31-71215 1.2 x 15 mm
Self-tapping Screws „Standard“
(
Packaging: 5/ea.)
CROSS-FIT Screw
Art. No. Diameter x Length
31-81203 1.2 x 3 mm 31-81204 1.2 x 4 mm 31-81205 1.2 x 5 mm 31-81206 1.2 x 6 mm 31-81207 1.2 x 7 mm 31-81208 1.2 x 8 mm 31-81211 1.2 x 11 mm 31-81213 1.2 x 13 mm 31-81215 1.2 x 15 mm
LOCK-DRIVE Emergency Screw
Art. No. Diameter x Length
31-71504 1.5 x 4 mm 31-71506 1.5 x 6 mm 31-71511 1.5 x 11 mm 31-71513 1.5 x 13 mm 31-71515 1.5 x 15 mm
CROSS-FIT Emergency Screw
Art. No. Diameter x Length
31-81504 1.5 x 4 mm 31-81506 1.5 x 6 mm 31-81511 1.5 x 11 mm 31-81513 1.5 x 13 mm 31-81515 1.5 x 15 mm
Page 4
Self-drilling Screws „Advanced“ (
Packaging: 1/ea.)
•
Self-drilling Screws with suitable thread component for bone anchorage
•
Flat shaft for the transplant
•
Approved titanium implant quality
CROSS-FIT Screw,
self-drilling
Art. No. Diameter x Length31-41208 1.35 x 8 mm 31-41210 1.35 x 10 mm 31-41212 1.35 x 12 mm 31-41214 1.35 x 14 mm
MCD Screw,
self-drilling
Art. No. Diameter x Length31-51208 1.35 x 8 mm 31-51210 1.35 x 10 mm 31-51212 1.35 x 12 mm 31-51214 1.35 x 14 mm
Microplates (
Packaging: 1/ea.)
Thickness: 0.6 mm
12-06108 8-hole Plate straight 12-06162 6-hole X-Plate
More microplates please find in our brochure MICRO 1200.
Titanium MICRO-MESH (
Packaging: 1/ea.)
MICRO-MESH,
Thickness: 0.1 mm
Art. No. Length x Width x Thickness
12-07001 50 x 30 x 0.1 mm 12-07002 100 x 60 x 0.1 mm 12-07003 100 x 30 x 0.1 mm 12-07004 50 x 60 x 0.1 mm 12-07005 120 x 120 x 0.1 mm
MICRO-MESH,
Thickness: 0.2 mm
Art. No. Length x Width x Thickness
12-07011 50 x 30 x 0.2 mm 12-07012 100 x 60 x 0.2 mm 12-07013 100 x 30 x 0.2 mm 12-07014 50 x 60 x 0.2 mm 12-07015 120 x 120 x 0.2 mm
Indications:
Stable covering of medium and large bone defects after filling with autologeous bone grafts or with bone
substitute materials. Duration of implantation of the Titanium Mesh: approx. 3-4 months.
Page 6
Titanium Membranes (
Packaging: 1/ea.)
Art. No. Length x Width x Thickness
31-00220 20 x 25 x 0.02 mm 31-00230 30 x 25 x 0.02 mm 31-00240 40 x 25 x 0.02 mm 31-00250 50 x 25 x 0.02 mm
Art. No. Length x Width x Thickness
31-00233 30 x 30 x 0.03 mm
Indikations:
Covering of medium and small bone defects as barrier between the mucosa and the bone for the unilateral
bone regeneration (tenting procedure) also when using bone substitute materials. Duration of implantation of the Titanium
Membrane: approx. 2-4 months.
TI-PORE Membrane:
Ti-Pore membranes distinguish to normal membranes by the micro-perforation in the centre of the
membrane. The special features secure the volume of the augmentation and offer an optimized stability of the augmented
bone for perfect aesthetic results.
Both Titamium membranes can be cut to individual form and size!
Art. No. Diameter x Length Working Length (WL) End
12-12620 1.0 x 20 mm 5 mm Dental 12-12622 1.0 x 23 mm 8 mm Dental 12-12623 1.0 x 25 mm 10 mm Dental 12-12625 1.0 x 30 mm 15 mm Dental
For the drilling of the gliding hole in the bone graft
Art. No. Diameter x Length Working Length (WL) End
11-12622 1.4 x 25 mm 10 mm Dental 10-67515 1.5 x 22 mm 9 mm Dental 10-67516 1.5 x 33 mm 20 mm Dental
Art. No. Diameter x Length Working Length (WL) End
12-12614 1.0 x 47 mm 5 mm Dental 12-12618 1.0 x 50 mm 8 mm Dental
Drill Gliding Hole Art. No. Diameter x Length Working Length (WL) End
11-13620 1.4 x 49 mm 10 mm Dental
Drills
Max. 1.000 rpm
For angled handpiece
For straight handpiece
Page 8 Optional Art. No. Diameter x Length Working Length (WL) End
12-12623 1.0 x 25 mm 10 mm Dental 12-12625 1.0 x 30 mm 15 mm Dental
Art. No. Diameter x Length Working Length (WL) End
11-12622 1.4 x 25 mm 10 mm Dental
Drills
Max. 1.000 rpm
Instruments
12-12000 Screwdriver handle, 9 cm
12-12001 LOCK-DRIVE blade
12-12054 CROSS-FIT holding device, not self-retaining 12-12019 CROSS-FIT screwdriver with holding device 12-12066 Screwdriver handle, short, 6 cm
12-12008 CROSS-FIT blade
12-12010 LOCK-DRIVE, screwdriver fixed, 13 cm, self-retaining
Page 10
Instruments
12-12002 LOCK-DRIVE blade, short, 2 cm, DENTAL, self-retaining
12-12009 CROSS-FIT Klinge, short, 2 cm, DENTAL, self-retaining
33-18235 Thumb Screw Mandrel for Dental shaft instruments
for Screws „Standard“
for Screws „Advanced“
11-12000 Screwdriver handle, 10 cm
11-12025 CROSS-FIT blade
SIS - Sinus Implant Stabilizer (
Packaging: 1/ea.)
12-06350 SIS Sinus Implant Stabilizer, standard
12-06351 SIS Sinus Implant Stabilizer, standard, curved
12-06352 SIS Sinus Implant Stabilizer, large
12-06353 SIS Sinus Implant Stabilizer, large, curved
acc. to Prof. Dr. M. Lang, Nürnberg
•
The implant and the healing screw must have a diameter larger than 3.3 mm (respectively 3.6 mm). Depending on
the implant system and implant diameter the SIS-Version „Standard“ or SIS-Version „large“ should be used.
•
Handling: The SIS is fixed between the implant and the healing screw. This combination can additionally be secured
with ARCS Microscrews through the small SIS holes inside the bone.
•
To be used with following endosseus implants (without guarantee):
Branemark - Nobel Biocare, Osseotite 3i - Implant Innovations
®, Ankylos
®- Friadent Dentsply, Bonefit-Straumann,
Replace - Nobel Biocare, Camlog-Altatec, Xive - Friadent Dentsply, Sky Implant - Bredent, u.a.
•
Plate thickness: 0.6 mm
Ø 3.3 8 10 Ø 3.3 8 10 Ø 3.6 8 10 Ø 3.6 8 10Page 12
SWING-LIFT Instruments
18-33001 Swing-Lift instrument no.1, small hook, angled
18-33002 Swing-Lift instrument no. 2, hook, angled
18-33003 Swing-Lift instrument no. 3, spatula, straight/angled
18-33004 Swing-Lift instrument no. 4, spoon/condenser
18-33000 Swing-Lift Set, instruments I-4, complete (not illustrated)
The SWING-LIFT Instrument set for the direct sinus-lift increases the sensitivity during operation and reduces the
risk of perforating the „Scheiderian membrane“ - due to the unique swing-effect of the instruments no. 1, 2 and 3.
ARCS PIN
31-01203 Titanium Pins 3 mm, with thread, 5/ea. 31-01213 Titanium Pins 3 mm, without thread, 5/ea.
31-01205 Titanium Pins 5 mm, with thread, 5/ea. 31-01215 Titanium Pins 5 mm, without thread, 5/ea.
31-01255 Drill for pins and foils, DENTAL 31-01226 Blade for Titanium Pins, DENTAL
31-01075 ARCS Membrane Perforator and spatula, 18 cm
Page 14
ARCS PIN
31-01220 Pin Placement Instrument straight, complete, 3 parts
31-01219 Pin Placement Instrument angled, complete, 3 parts
31-01223 Handle for Placement Instrument
31-01222 Placement adaptor straight for Placement Instrument, with cover cap
31-01221 Placement adaptor angled for Placement Instrument, with cover cap
Container
