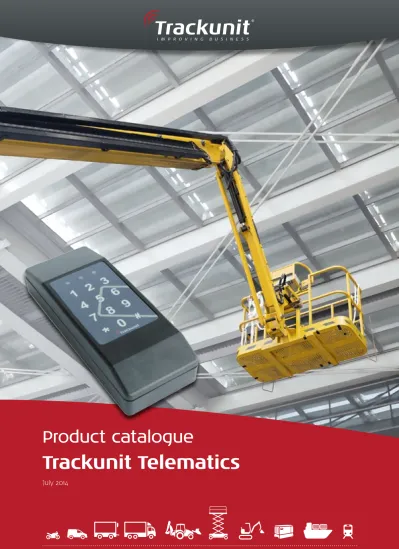

Product catalogue. Trackunit Telematics

(1)

Product catalogue

(2)

TrackuniT ProducT overview

We are proud to present this catalogue giving a complete over-view of Trackunit Telematics and used for ordering Trackunit pro ducts and packages.

imProving business

Trackunit Telematics gives more than 3,000 companies world wide a powerful tool for stream lining operations and obtaining improved profita bility.

A small GSM/GPS unit is installed and uploads data to our server cloud which can be accessed via the Trackunit Manager web portal on PC or the Trackunit Mobile Manager on tablet and smartphone.

For prices please contact your local Trackunit dealer.

rental

OeM

cOnstructiOn

lOgistics and service

(3)

Trackunit 401 SmartID

4

Trackunit 401 Standard

7

Trackunit 401 Temperature

7

Trackunit 401 Connector-solutions

7

Trackunit ID-packages

9

Trackunit Temperature Sensors

12

Trackunit 301 Standard

15

Trackunit 301 Connector

15

Trackunit 301 Wireless

15

Trackunit 301 GSM

16

Trackunit 301 Battery-series

17

Trackunit Virtual Hardware (App)

20

Trackunit Manager

21

Trackunit Lite (App)

22

Partnumbers and order info

23

Product matrix

26

Approvals 27

hardware

overview

soFTware

(4)

TrACkunIT 401 SMArTID

keypad and rFid card identifies user and controls machine access

Type: ME401-2 rFID/PIn

Part no. 7402.5421-1 (12V)

Part no. 7402.5421-2 (24V)

An USB RFID Card reader

for office use is available. See page 25 for order info.

RFID Cards are ordered separately. See page 25 for order info. Technical specifications:

3 digital inputs and 1 digital output

12V or 24V

relay included

Max. voltage 40V

140 x 55 x 28mm

1.3 meter cable

The unique combination of a telematics

module and ID reader in one self

contained unit.

Machine operators access by keypad

and rFID card hereby identifying user

and preventing unauthorized usage.

access by keypad and rFid card

A ct ua l s iz e

(5)

TECHnICAL SPECIFICATIOnS FOr TrACkunIT 401 SMArTID

Connections

Operational voltage (supply voltage) 12-24 v dc

absolute maximum voltage range 9-40 v dc

standby consumption (gsM-receiver active) 20 ma/10 ma (average, at 12v/24v)

consumption during charging on an empty battery 200 ma/100 ma (max, at 12v/24v)

standby time on the backup-battery for gPs positioning 48–96 hours (Poor–optimum installation)

charging time for an empty backup-battery 3 hours at 25ºc

expected lifetime of the backup-battery 3 years

digital inputs 3 digital outputs - User ID active 1 0 output available Temperature range

in active running mode -30ºc to +60ºc

storage -40ºc to +70ºc Mechanical specifications dimensions length 140 mm Width 55 mm Height 28 mm cable length 130 cm

environmental class iP67

(6)

TrACkunIT 401–SErIES

Temperature Packages: iButton ID RFID card ID general features: » gsM/gPs quadband unit » integrated antenna » accelerometer

» Backup battery for added security » up to 4 digital inputs and 1 digital output » High moisture and dust resistance (iP67) » Fuse with fuse holder

» 1.7 meter cable

» Mounting cradle and plastic strip

examples of use cases/functions:

» Fleet management of cars, trucks, trailers and machines

» temperature surveillance in refrigerated vans » immobilizer functionality with id-solutions » identify user and user access to vehicles and

machines with the id-solutions

» identify drivers on the map in trackunit Manager » Precise documentation for working hours » easy maintenance administration

» alarms and tracking of trailers

sophisticated functions and connectivity

The Trackunit 401 is the sophisticated solution taking fleet management further

with a number of innovative options. The unit can be connected to immobilizer/

driver-id solutions or temperature sensors.

This quadband unit is equipped with an accelerometer that records movement

and ensures optimal power consumption. The integrated antenna is non-

direc tional, offering greater installation flexibility and better signal conditions.

The sturdy construction offers high resistance to moist and dust which makes

it a reliable and durable choice for demanding environments.

(7)

TrACkunIT 401 VArIAnTS

The Trackunit 401 Standard provides full fleet

management functionality.

Type: ME401-2

Part no. 7402.0421-1

» 4 digital inputs and 1 digital output » Fuse with fuse holder

» 1.7 meter cable » Mounting cradle

see technical specifications on page 13

Trackunit 401 standard

Type: ME401-2

Part no. 7402.0421-2

Part no. 7402.0421-3

Prepared for Trackunit iButton-, rFID- and

PIn- Packages as well as Trackunit temperature

sensors. users also benefit from full fleet

management functionality.

» High quality deutsch connector

» 1.7 meter cable with deutsch connector » up to 2 temperature sensors can be connected see technical specifications on page 13

Trackunit 401 connector

Trackunit packages are found on page 9 and 11 Temperature sensors can be found on page 12

(8)

Prepared for Trackunit iButton Pro Package,

and full fleet management functionality.

Type: ME401-2

Part no. 7402.0421-22

» Waterproof deutsch connector

» 1.7 meter cable with deutsch connector see technical specifications on page 13

Trackunit 401 connector Pro

(9)

ibutton package identifies user and user access

Additional iButton key

rings can be ordered. See page 24 for order information.

An USB iButton reader

for office use is available. See page 25 for order information.

12V Trackunit iBuzzerPackage

creates a buzzer signal if a iButton key is not applied correctly. See page 23 for order information.

accessories:

TrACkunIT IBuTTOn PACkAGE

» 1 iButton reader with 2 meter cable

» 12v or 24v relay

» 2 iButton key rings (red and green)

» 4 terminals for the relay

» iButton installation guide

order guide:

+

Me401 connector iButton Package accessories

(10)

order guide:

TrACkunIT IBuTTOn PrO PACkAGE

ibutton Pro package identifies user and user access

Part no. 7402.2427-12 (12V)

Part no. 7402.2427-24 (24V)

Additional iButton key

rings can be ordered. See page 24 for order information.

An USB iButton reader

for office use is available. See page 25 for order information.

Extension cables are available. See page 24 for order information.

accessories:

» 1 iButton reader with 0,8 meter cable

» 12v or 24v relay

» 2 iButton key rings (red and green)

» iButton installation guide

» Blue led

+

Me401 connector Pro iButton Pro package accessories

(11)

TrACkunIT rFID PACkAGE

rFid package identifies user and user access

An USB RFID Card reader for office use is available. See page 25 for order information.

RFID Cards are ordered seperately. See page 25 for order information.

» 1 rFid reader

» 3 meter cable

» 12v or 24v relay

» rFid card reader installation guide

accessories:

order guide:

+

Me401

(12)

TrACkunIT TEMPErATurE SEnSOrS

Part no. 7402.4421

Part no. 7402.4422

Part no. 7402.4423

Part no. 7402.4424

3 meter sensor

4 meter sensor

12 meter sensor

16 meter sensor

(13)

TECHnICAL SPECIFICATIOnS FOr ME401-2

TECHnICAL SPECIFICATIOnS FOr TEMP. SEnSOrS

Connections

standby time on the backup-battery 48–96 hours

(Poor–optimum installation)

digital inputs

- RFID active

4

3 inputs available

digital outputs

- iButton, RFID or iBuzzer active

1

0 output available Temperature range

storage -40ºc to +70ºc

Mechanical specifications

dimensions length 90 mm

Width 45 mm

(49 mm incl. mounting cradle) Height 18 mm

(23 mm incl. mounting cradle)

cable length 170 cm

Weight 65 g (excluding cable)

Sensor information

sensor casing Waterproof stainless steel tube

length 30mm

diameter Ø 6mm

cable Black flexible silicone - 2 wire cable

Sensor specifications

1-wire digital thermometer

(14)

TrACkunIT 301–SErIES

compact and robust

ME301 is a sophisticated unit in a compact design. The unit is equipped with an

accelerometer that records motion. The integrated antenna is not directional,

offering greater installation flexibility and better signal conditions. The sturdy

construction of the unit offers high resistance to moist and dust which makes it

a reliable and durable choice for demanding environments.

general features: » gsM/gPs quadband unit » integrated antenna » accelerometer

» Backup battery for added security » High moisture and dust resistance (iP67)

Examples of use cases:

» Fleet management for cars, trucks, trailers and machines

» Works in all countries with a gPrs data network » Precise documentation for working hours » improved insurance terms for rental companies » accurate invoicing for rental companies

» easy administration of fleet maintenance » remote activation of cabin heater » Kilometer count based on gPs » alarms and tracking of machines

(15)

TrACkunIT 301 VArIAnTS

GSM/GPS unit for full fleet management functionality

For easy installation in cars and trucks

Battery powered solution for

quick and flexible use in any

type of machinery or vehicle

» 12v plug » 1.7 meter cable

» Fully charged the battery lasts up to 3 weeks depending on settings.

230v dc-con-nector available for charging the battery.

see page 25 for order info.

12v-plug available for charging the battery. see page 25 for order info.

Type: ME301-2

Part no. 7402.0321-2

Type: ME301-2

Part no. 7402.0321-1

Trackunit 301 standard

Trackunit 301 connector

Trackunit 301 wireless

(16)

GSM-unit without GPS for use in stationary machinery

See technical specifications on page 18

Trackunit 301 gsm

Type: ME301-2

Part no. 7402.0321-14

(17)

TrACkunIT 301 ExTEnDED BATTEry SErIES

Long life battery powered solution

–ideal for containers and machines

without power supply.

» Me301 inside

» state of the art rechargeable high capacity li-ion battery

» charging time for empty battery: 1 day » expected battery lifetime: up to 15 years

230V Li-Ion Europlug Charger available. See page 24 for order information.

Long Life Battery powered solution

with Alkaline batteries (AA)

» Me301 inside

» 6xaa premium alkaline batteries » Qualified for air freight

» surveillance of voltage level » dust and moisture resistant iP67

Trackunit 301 extended battery

Trackunit 301 alkaline battery

Type: ME301-7LI

Part no. 7402.0371-1

Part no. 7402.0371-4 (magnetic)

(18)

Connections

standby time on the backup-battery 48–96 hours (Poor–optimum installation)

digital inputs 3

digital outputs 1

Temperature range

Width 45 mm (49 mm incl. mounting cradle) Height 18 mm (23 mm incl. mounting cradle)

cable length 170 cm

Weight 60 g (excluding cable)

(19)

TECHnICAL SPECIFICATIOnS FOr ME301-7LI

TECHnICAL SPECIFICATIOnS FOr ME301-7AL

Connections

Battery standby time 1 position/day 4 positions/day 12 positions/day 24 positions/day up to 5 years up to 5 years* up to 3 years* up to 1 year* up to 6 months*

charging time for an empty battery 1 day

expected lifetime of the backup-battery up to 15 years

Temperature range

Width 100 mm Height 42 mm

Weight 585g

Connections

Battery standby time 1 position/day 4 positions/day 8 positions/day 24 positions/day up to 1 year up to 8 months up to 5 months up to 1 months Temperature range

dimensions length 160

Width 100 Height 25

Weight 355g

(20)

TrACkunIT VIrTuAL HArDWArE – APP

Track all your ressources

Fleet managers now get an improved overview of all mobile ressources – including key personnel. track and communicate with smarphone users with-out additional hardware and installation. requires only a paid annual subscription.

the trackunitvH app works with the trackunit Mana-ger and has limited fleet mangagement functionality.

Three easy steps

» download the app

» activate the phone serial number in your trackunit Manager

» activate tracking in the app and get moving!

Functionality:

» track key personnel in the trackunit Manager » update your current status inside the app » activate or de-activate tracking functionality » Write short messsages inside the app

Trackunit users can track smartphones as virtual hardware using the TrackunitVH

app available at the App Store and Google Play.

Available for iPhone Available for Android

Main status screen

(21)

TrACkunIT MAnAGEr

The online Trackunit Manager is the heart of the fleet management system and

it offers users a wide range of value-adding features for stream lining operations

and obtaining improved profita bility.

A business tool

the trackunit Manager is an online portal for fleet management using a web browser and internet access. the system offers improved efficiency and optimisation of business resources and procedures. We refer to this simply as ‘improving business’.

User-orientation

We take pride in continuously developing the system from user input, thereby ensuring a business tool that stays relevant and a profitable investment for our customers year after year.

some of the basic benefits and features in Trackunit manager:

» improved revenue on operations, accurate in voi - cing on rental and optimized productivity based on detailed utilization information

» simplified service management of vehicles and machines

» improved logistics based on detailed location information

» extended security and reduced cost related to missing and stolen equipment with the integrated alarm module

» user friendly system provided in more than 15 languages

SMS

(22)

TrACkunIT LITE – APP

Fleet management in pocket-sized format

trackunit app for smartphone means mobile access to up-to-date information on vehicle fleets or machi-nery. users are provided with relevant information on each unit, including map location or lists of driving hours, working hours, stopped time etc.

the map function also facilitates monitoring the entire fleet, and clicking on updated data for each unit. smartphone fleet management is a handy supple-ment to the internet-based trackunit Portal, and includes some of the same functions.

Important benefits:

» More flexibility in your daily work » Overview on map

» status and information » security with geo fence alarm

» reduced risk of theft and additional costs

Enhanced security

a smartphone can be used to set up a geofence alarm for any unit - an invisible fence around the unit, within which the system will alert the user if the unit moves outside. in the event of theft, reaction time is therefore short, reducing the risk of unnecessary cost and loss of earnings.

Customized app for iPad and iPhone

trackunit offers custom app development for mobile devices giving you fleet management functionality on the go. Brand your company and services for employees and customers with our app services.

Functions: » Overview on map

» information about vehicle or machine » status on input » driving time » Work time » stop time » location » speed » Heading

» geo fence alarm

» street view compatibility (android)

users of Trackunit fleet management system can check the fleet status on

smartphone, providing enhanced flexibility on the job.

(23)

TrACkunIT PArT nuMBErS

Trackunit SmartID

Product Description Part number Page

Trackunit 401 SmartID 12V 7402.5421-1 4

Trackunit 401 SmartID 24V 7402.5421-2 4

Trackunit 401–series

Trackunit 401 Standard 7402.0421-1 7

Trackunit 401 Connector 7402.0421-2 7

Trackunit 401 Connector Pro 7402.0421-22 8

Trackunit 401 Connector 7402.0421-3 8

Packages for 401 Connectors

12V Trackunit iButton Package 7402.2420-12 9

24V Trackunit iButton Package 7402.2420-24 9

12V Trackunit iButton Pro Package 7402.2427-12 10

24V Trackunit iButton Pro Package 7402.2427-24 10

12V Trackunit iBuzzer Package 7402.2422 10

12V Trackunit RFID Package 7402.3420-12 11

(24)

Product Description Part number Page

Trackunit 301–series

Trackunit 301 Standard 7402.0321-1 15 Trackunit 301 Connector 7402.0321-2 15 Trackunit 301 Wireless 7402.0321-3 15 Trackunit 301 GSM 7402.0321-14 16

Trackunit 301 Extended battery 7402.0371-1 17

Trackunit 301 Extended Battery (magnetic) 7402.0371-4 17

Trackunit 301 Alcaline Battery 7402.0371-11 17

Product Description Part number Page

Trackunit hardware accessories

Trackunit iButton Reader 7402.2419 9

Trackunit iButton Pro Reader 7402.2423 10

Trackunit iButton Key Ring

7402.2403-XXX (xxx = color code, Options: -red, -blu, -gre, -yel)

9-10

Trackunit iButton Pro Extension Cable 1m: 4370.1111

3m: 4370.1113 10

Trackunit 12V relay 4100.0001 9-11

(25)

Product Description Part number Page

Trackunit hardware accessories

Trackunit RFID Card Reader 7402.3421 11

Trackunit RFID Card 7402.3403 11

Trackunit Temperature Sensors

3m: 7402.4421 4m: 7402.4422 12m: 7402.4423 16m: 7402.4424

12

Trackunit fuse holder with fuse 4370.2000

-Trackunit Deutsch Power Cable 1.5m 4370.1060

-Trackunit DC Europlug charger 7300.0004 15

Trackunit 12V charger 4300.0049 15

Trackunit Li-Ion Europlug charger 7402.1371 17

Trackunit 750 mAh Battery for ME301/ME401 4233.0001

-Trackunit 26.1 Ah Battery for ME301-7 4233.0007

-Trackunit office equipment

Trackunit USB iButton Reader 7402.2402 9-10

(26)

Tr

ack

un

it 4

01

Sm

ar

tID

Tr

ac

ku

ni

t 4

01

St

an

da

rd

Tr

ac

ku

ni

t 4

01

iB

ut

to

n/

rF

ID

Tr

ac

ku

ni

t 4

01 T

em

pe

ra

tu

re

Tr

ac

ku

ni

t 3

01

St

an

da

rd

Tr

ac

ku

ni

t 3

01

C

onne

ct

o

r

Tr

ac

ku

nit

3

01

W

ire

le

ss

Tr

ac

ku

ni

t 3

01 G

SM

Tr

ac

ku

ni

t 3

01

E

xt

ende

d B

at

te

ry

Tr

ac

ku

ni

t 3

01

Alc

al

in

e B

at

te

ry

uSEr MATrIx

(27)

APPrOVALS

ISO 9001

trackunit has received the certificate for quality manage-ment. We consider quality as one of the most important parameters for the success of our business. Our quality has now become measura- ble through the isO

9001:2008 certification.

TÜV SÜD

Our facility for development and production of fleet man-agement equipment has received the quality mark of german tÜv sÜd.

Quality management also live up to the specifications by the agency. tÜv sÜd auto-motive assures safe and reliable operation of new technologies in automobiles.

Declaration of Conformity

the declaration of conformity states that all trackunit Me-products complies with ec directives for emission and safety standards concerning use in machines and agricultural equipment.

E1 approval

trackunit devices Me201, Me301 and Me401 are all approved for automotive use

Trackunit ME401 EC-Declaration of_Conformity Manufacturer: Name: M-Tec A/S Address: Industrivej 10 DK-9490 Pandrup Phone: +45 9673 7400 Declares that the product: Brand name:

Trackunit Type: M

E401-x Intended use:

GSM based fleet_{management unit w} ith configurable surveillance of up to 6 digital inputs, 2 di_{gital output, GPS pos}

ition, motion sens_{or and 1-wire,} CAN-bus.

Complies with the essential requirements of the D irective 2003/

37/EEC and Dire_{ctive 2006/42/EEC,} when used as int_{ended and that the}

following standa_{rds have been a} pplied: 1 Emission/_{Immunity (Fores}

try and agricultural tractors and all k_{inds of mobile ag}

ricultural machinery): Applied standard(s)

EN ISO 14982 Version 2009 Complies with th_{e essential req}

uirements of the 2004/108/EEC di rective, when used as intended and that the following standards have be

en applied: 1

Emission/Immunity_{(Earth movers, tract} ors and constructio

n equipment): ISO 14982 _________ Version 1998 Applied _standard(s) ISO 13766 Version 2006 ISO 13309 V ersion 2000 Complies with the essential req_{uirements of art}

icle 3 of the R&T_{TE 1999/5/EC dir} ective, when used as intended and t_{hat the following}

Harmonized St_{andards have be} en applied: 1

Safety (Article 3 .1.a of the R&TTE Directive)

EN 60950-1 + A11, A1 and A12 Version 2006 Applied standard(s) EN 62311 Version 2008 EN 62209-2 Version 2010 2 Electromagnetic compatibility (Article 3.1.b of th_{e R&TTE directive)}

EN 301 489-1 Version 1.8.1 Applied standard(s) EN 301 489-3 Version 1.4.1 EN 301 489-7 Version 1.3.1 3

Efficient use of th_{e radio frequency} spectrum (Artic

le 3.2 of the R&T_{TE directive)} EN 300 440-2 Version 1.1.2 Applied standard(s) EN 301 511 Version 9.0.2 Pandrup, 18 Januar 2012

(Place and date)

Name: Svend M. Hansen Kraftfahrt-Bundesamt DE-24932 Flensburg MITTEILUNG ausgestellt von: Kraftfahrt-Bundesamt über die Genehmigung eines Typs

E1

TCB

GRANT OFAUTHORIZA EQUIPMENTTION

TCB

Certification Issued U

nder the Authority of the Federal Communic ations Com mission By: CETECOM ICT Services GmbH Untertuerk heimer Strasse 6-10 D-66117 Saa rbruecken, Germany Date of Grant: 10/17/2012 Application Dated: 10/17/2012 M-Tec Trackunit A/S Industrivej 10 Pandrup, 9490 Denmark Attention: S

vend Hansen , Managing D irector

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is h ereby issued to the named GRANTE

E, and is VALID ONLY for the equi

pment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER: ZMF-ME401 Name of_Grantee: M-Tec Trackuni t A/S Equipment Class: PCS Licens ed Transmitter Notes: Mobile Engine Grant Notes FCC Rule Parts Frequency Range (MHZ) Output Watts Frequency Tolerance DesignatorEmission 22H 824.2 - 848.8 0.69 0.1 PM _247KGXW 22H 824.2 - 848.8 0.25 0.1 PM 240KG7W 24E 1850.2 - 1909.8 0.93 0.1 PM _245KGXW 24E 1850.2 - 1909.8 0.45 0.1 PM _239KG7W

Output power listed is ERP for Part 2 2 and EIRP for Part 24 This device contains func

tions that are not operational in U.S. Territories. This filing is only applicable for US operations.

This device

must be installed to ensure a minimum distance of 5 cm from the body. End users must be inform

ed of the body worn r equirements for satisfying RF Exposure compliance.

The highest reported SAR is <0.1 W/kg FCC approval

trackunit Me301 and Me401 both have a Fcc grant, allowing the devices to be used in the usa.

Industry Canada

trackunit Me301 and Me401 both have a industry canada ic approval, allowing the devices to be used in canada.

R&TTE approval

trackunit Me401 has been certified to fulfill the r&tte directive 1999/5/ec by cetecom ict services gmbH.

Aircraft approval

tÜv süd uK approves that the trackunit device Me301-7al fulfills the aircraft

stan-CETECOM ICT Services GmbH CERTIFICATE OF C

ONFORMITY

Statement This equipment fulfils the requirem

ents or parts the_{reof in the above} mentioned specifications. CETECOM ICT_{Services is autho}

rized to act as N_{otified Body in ac} cordance with th_{e R&TTE Directi}

ve 1999/5/EC of 09. March 1999

Saarbrücken, 2012-01-30

_____________{__________________}

Place, Date of Issue

Signed by Frank Muchitsch Notified Body CETECOM ICT Services GmbH, Un

tertürkheimer Straße 6-10, 66117 Saar_{brücken, Germany} Registration-No.: E816467Z-02-CC Number of annexes:---Certificate Holder: M-tec A/S Industrivej 10 9490 Pandrup Denmark Product Designation:

ME401-1 / ME401_{-2 / ME401-3 / M} E401-4 / ME401-5 / ME401_{-6 / ME401-7 / ME401-8} Product Description:

E-GSM/GPRS/E_{DGE/GPS Telem} atic system Product Manufacturer: M-tec A/S Industrivej 10 9490 Pandrup Denmark Specifications and test reports: Specification

Test report no. & date Name of test laboratory

Notes EN 62209-2:2010

EN 62311:2008 _{1-3518/11-01-10 da} ted 2011-10-31

CETECOM ICT_{Services GmbH} conform EN 60950-1:2006/

A11:2009/ A1:2010/A12:2011 _{1-3518/11-01-04 da}

ted 2012-01-13 M528872X-EO dated 2010-04-12 CETECOM ICT_{Services GmbH}

conform EN 301 489_{-1 V1.8.1}

EN 301 489_{-3 V1.4.1} EN 301 489_{-7 V1.3.1} 1-3518/11-01-02_{M528872X-EO da}_{-B dated 2012-01-02}

ted 2010-04-12 CETECOM ICT_{Services GmbH} conform EN 301 511 V9.0.2

EN 300 440_{-1 V1.5.1} 1-3518/11-01-03_{-C dated 2012-01-19} M528872X-EO da_{ted 2010-04-12}

CETECOM ICT_{Services GmbH} conform

Date Modified: 2013-02-27

Certification and Engineering Bureau

Radio Equipm ent List (REL)

Search Results

8 model(s) found Perform a New Search Your search:

Company Nam_{e (Alphanumer} ic): M-Tec Certification N_{umber (Alphan}

umeric): 9746A Maximum # of _{Results Returned: 25} Sorted/groupe_{d by: Certificat}

ion Number Model Certification Number Approval Date ME-401-1 9746A-ME401 2013-01-23 ME-401-2 9746A-ME401 2013-01-23 ME-401-3 9746A-ME401 2013-01-23 ME-401-4 9746A-ME401 2013-01-23 ME-401-5 9746A-ME401 2013-01-23 ME-401-6 9746A-ME401 2013-01-23 ME-401-7 9746A-ME401 2013-01-23 ME-401-8 9746A-ME401 2013-01-23

Perform a New Search [Search: Term_{[Back to Hom}_{inal Equipment List]}

epage]

Industry Canada Side 1 af 1 Search Results - R_{adio Equipment L}

ist (REL) - Certific_{ation and Engine} ering Bureau -...

27-02-2013 http://www.ic.gc.c_{a/app/sitt/reltel/src}

h/prfrmRELSrch.do;jsessionid=0001l psyMNJ0...

(28)

Trackunit now offers an attractive financing package that minimises the down payment on your new Trackunit equipment. Make your money work for you instead by investing them in your core business.

Choose from 12, 24, 36 and 48 month financing and a low down payment. The remaining balance is divided into monthly payments. Subject to credit approval.

You find contact information at www.trackunit.com

Fund your equipment - interest free!

Get all the benefits of Trackunit for a low down payment.

TrACkunIT FInAnCInG

0

%

INTEREST FREE

FINANCING

12

months

48

months

36

months

24

months
