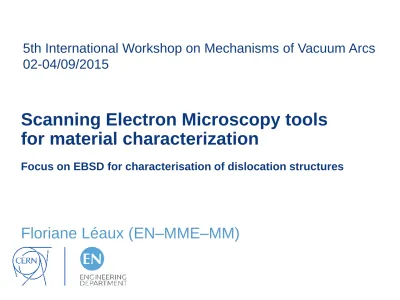

Scanning Electron Microscopy tools for material characterization

(1)

Scanning Electron Microscopy tools

for material characterization

Focus on EBSD for characterisation of dislocation structures

Floriane Léaux (EN–MME–MM)

5th International Workshop on Mechanisms of Vacuum Arcs 02-04/09/2015

(2)

Outline

1. Introduction • SEM* principle

• Response to incident electrons

2. Characterisation of dislocation structures

• EBSD*

• Link with dislocations

• Misorientation criterion

• Example (ferritic steel)

3. Conclusion • Microscopy at CERN for CLIC

• SEM-FIB*

*SEM: Scanning Electron Microscope

*EBSD: Electron BackScattered Diffraction *FIB: Focused Ion Beam

(3)

Introduction

 SEM principle

(4)

SEM principle, response to incident electrons 1. Introduction Ref: AMMRF Incident beam Sample Light (cathodoluminescence) Bremsstrahlung Secondary electrons Backscattered electrons Heat Elastically scattered electrons Transmitted electrons Specimen current Auger electrons

(5)

Characterisation of dislocation

structures

 EBSD principle

 Link with dislocations

 Introduction of a misorientation criteria, example of KAM*  EBSD and TEM*, between complementarity and

substitution

 Case of a ferritic steel

*KAM:Kernel Average Misorientation *TEM:Transmission Electron Microscope

(6)

Diffraction of back scattered electrons Following Bragg condition

Diffraction cones Kikuchi lines Diffraction pattern EBSD principle (1/2) 2. Dislocation structures Electron beam Sample Phosphor screen Camera Electron beam Screen Kikuchi lines Diffraction cones Cristal Diffracting planes Ref:[BAU10]

(7)

EBSD principle (2/2) 2. Dislocation structures • Mapping: • Phase • Orientation • … Ref: [BAU10] Oxford Instruments

(8)

Link with dislocations

2. Dislocation structures

Ref: [WRI11]

Influence of dislocations on the diffraction pattern

*_{GND : Geomatrically Necessary Dislocations}

*_{SSD: Statistically Stored Dislocations}

Perfect crystal GND* _SSD* Contrast and sharpness decrease Local misorientation  Rotation of the pattern Theoretical diffraction pattern

(9)

Link with dislocations

Ref: [WRI11]

Influence of dislocations on the diffraction pattern

*_{GND : Geometrically Necessary Dislocations}

*_{SSD: Statistically Stored Dislocations}

Perfect crystal GND* _SSD*  Rotation of the pattern Theoretical diffraction pattern Local misorientation

LAGB : Low Angle Grain Boundaries

(10)

Introduction of misorientation criteria

• Example of Kernel Average Misorientation (KAM)

2. Dislocation structures Local misorientation

Misorientation within a subgrain/grain

0,5° < DQ < Q_lim

Q_lim= 5° or more, 15° for a grain

Deformation gradient

Link with dislocation densities (GND)

 Link with plastic deformation

Grain boundary: Q > Q_lim

𝐾𝐴𝑀_𝑖 = 1 𝐾

𝑗=1 𝐾

ΔΘ_𝑖𝑗, ΔΘ_𝑖𝑗 < ΔΘ_𝑙𝑖𝑚 Misorientation average between

(11)

EBSD and TEM

• Between complementarity and substitution

TEM

EBSD

+

Imaging mode  direct image of dislocation structures

+

Understand mechanisms

−

Limited to small scale

−

Destructive method Deformation mechanisms dislocation structure Link with plastic deformation Quantitativ e results

+

Assessment of dislocation densities

+

Quantitative and statistic results

+

Non destructive method (for small samples)

−

Influence of experimental parameters  comparative results

(12)

Case of a ferritic steel (1/3)

Ref: [LEA12]

Low carbon ferritic steel

Subjected to cyclic deformation (LCF* fatigue tests)

Total strain control : 0.3% < De_t < 1.2%

*LCF: Low Cycle Fatigue

TEM KAM No deformation High deformation, De_t = 1.2% 0 1 2 3 4 5

(13)

Case of a ferritic steel (2/3)

• Take into account the experimental effect

Define a reference state

Calculate a variation of KAM 2. Dislocation structures Ref: [LEA12] Δ𝐾𝐴𝑀 = 𝐾𝐴𝑀 − 𝐾𝐴𝑀𝑟𝑒𝑓 𝐾𝐴𝑀_𝑟𝑒𝑓 -40 0 40 80 120 160 200 0 0,2 0,4 0,6 0,8 1 D K A M ( %) Déformation plastique De p (%)

Evolution de la taille de cellule et du <KAM>

0.5S 0.4S 0.3S 0.7S 1.0S 1.2S 0 5 10 15 20 25 30 35 40 0 0,25 0,5 0,75 1 1,25 1,5 1,75 2 0.3% 0.4% 0.5% 0.7% 1.0% 1.2% F ré q u en c e ( %) KAM (°) De t =

Evolution of DKAM with De_p KAM distribution

(14)

Case of a ferritic steel (2/3) 2. Dislocation structures Ref: [LEA12] -40 0 40 80 120 160 200 0 0,5 1 1,5 2 2,5 0 0,2 0,4 0,6 0,8 1 D K A M ( %) T a ill e mo y en n e d e c el lu le (µm ) Déformation plastique De p (%)

1.0S 1.2S 0.7S 0.7S 0.5S 0.4S 0.3S 0.4S MEB-EBSD

MET _{Very good fit between EBSD}

(15)

Case of a ferritic steel (2/3) 2. Dislocation structures Ref: [LEA12] -40 0 40 80 120 160 200 0 0,5 1 1,5 2 2,5 0 0,2 0,4 0,6 0,8 1 D K A M ( %) T a ill e mo y en n e d e c el lu le (µm ) Déformation plastique De p (%)

1.0S 1.2S 0.7S 0.7S 0.5S 0.4S 0.3S 0.4S MEB-EBSD

MET _{Very good fit between EBSD}

(16)

Case of a ferritic steel (3/3) Case of CC metal

Dislocation structure = cells

• What about copper?

• What about other dislocation arrangements? • …

Ref: [LEA12]

Dislocation  appearance of BD ???

(17)

Conclusion

 Microscopy at CERN in the context of CLIC  BD* and FE* description

 Dislocation structure charaterisation of pure copper and link with BD occurency

 Prespective : SEM-FIB and the 3D nanoworld

*BD: Break Down *FE: Field Emission

(18)

Microscopy at CERN in the context of CLIC

• BD and FE description

 Charaterisation and localisation of BD

Post-Mortem analysis

Ref: [PER14]

Ana Teresa PEREZ FONTENLA SEM images review on CLIC

structures after testing

(19)

Microscopy at CERN in the context of CLIC

• Dislocation structure charaterisation of copper

3. Conclusion

 Introduction of dislocation structure into Cu-OFE

 TEM bibliography  cell structure

 Monotonic and fatigue tests + EBSD charaterisation

Enrique RODRIGUEZ CASTRO Identification of dislocations patterns in Cu-OFE for CLIC project by using EBSD

POSTER session

• Link with BD occurency

• DC spark system Ref: [ZHA05]

[JIA03]

After cyclic deformation

After tension until rupture (monotonic)

(20)

Prespective : SEM-FIB

• SEM-FIB  SEM microscope equiped with a focused ion column Electron column Ion column Sample New signals  Secondary ions  Secondary electrons  STEM*

*STEM: Scanning Transmission Electron Microscopy

Preferential etching Nanomachining

(21)

Prespective : SEM-FIB 3. Conclusion Milling  Cross-sections  3D tomography Ref: TESCAN

Preparation of the sample

Acquisistion: Milling and

imaging 3D reconstruction

(22)

Prespective : SEM-FIB

• Beginning 2016

• New possibilities for CLIC accelerating RF structure:  Delicate preparation on selected area  Cross section  STEM images  …

Up to now: Top view

Prespective:

Cross-section / bulk view

EBSD, KAM

?

• CERN is actually acquiring a SEM-FIB

(23)

Thank you
