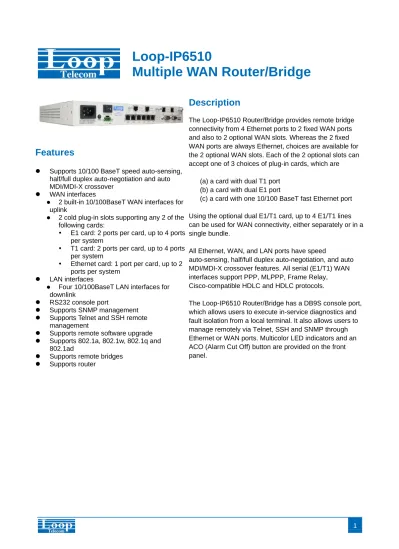

Loop-IP6510 Multiple WAN Router/Bridge

(1)

Loop-IP6510

Multiple WAN Router/Bridge

Description

The Loop-IP6510 Router/Bridge provides remote bridge connectivity from 4 Ethernet ports to 2 fixed WAN ports and also to 2 optional WAN slots. Whereas the 2 fixed WAN ports are always Ethernet, choices are available for the 2 optional WAN slots. Each of the 2 optional slots can accept one of 3 choices of plug-in cards, which are

(a) a card with dual T1 port (b) a card with dual E1 port

(c) a card with one 10/100 BaseT fast Ethernet port Using the optional dual E1/T1 card, up to 4 E1/T1 lines can be used for WAN connectivity, either separately or in a single bundle.

All Ethernet, WAN, and LAN ports have speed

auto-sensing, half/full duplex auto-negotiation, and auto MDI/MDI-X crossover features. All serial (E1/T1) WAN interfaces support PPP, MLPPP, Frame Relay, Cisco-compatible HDLC and HDLC protocols.

The Loop-IP6510 Router/Bridge has a DB9S console port, which allows users to execute in-service diagnostics and fault isolation from a local terminal. It also allows users to manage remotely via Telnet, SSH and SNMP through Ethernet or WAN ports. Multicolor LED indicators and an ACO (Alarm Cut Off) button are provided on the front panel.

Features

 Supports 10/100 BaseT speed auto-sensing, half/full duplex auto-negotiation and auto MDI/MDI-X crossover

 WAN interfaces

 2 built-in 10/100BaseT WAN interfaces for uplink

 2 cold plug-in slots supporting any 2 of the following cards:

 E1 card: 2 ports per card, up to 4 ports per system

 T1 card: 2 ports per card, up to 4 ports per system

 Ethernet card: 1 port per card, up to 2 ports per system

 LAN interfaces

 Four 10/100BaseT LAN interfaces for downlink

 RS232 console port

 Supports SNMP management  Supports Telnet and SSH remote

management

 Supports remote software upgrade  Supports 802.1a, 802.1w, 802.1q and

802.1ad

(2)

Ordering Information

To specify options, choose from the list below.

Note: RoHS compliant units are identified by the letter G appearing at the end of the ordering code.

Model Description Notes

Main Unit

Loop-IP6510-aa-bb-pp-RT-G 1U height ETSI (front access) unit, stand-alone with 2 built-in 10/100BaseT WAN interfaces and 4 10/100BaseT LAN interfaces, which support Bridge and Router function.

Loop-IP6510-aa-bb-pp-BR-G 1U height ETSI (front access) unit, stand-alone with 2 built-in 10/100BaseT WAN interfaces and 4 10/100BaseT LAN interfaces, which supportBridge function only.

Cold Plug-in Modules

Loop-IP6510-2T1-G Dual T1 interface with RJ48C connector

E1-120 ohm/T1 jumper selectable Loop-IP6510-2E120-G Dual E1-120 ohm interface with RJ48C

connector

Loop-IP6510-1FE-G One 10/100 BaseT Fast Ethernet Accessories

Power Cord (All power cords are RoHS compliant.)

Loop-ACC-PC-USA AC power cord for Taiwan/America

Loop-ACC-PC-EU AC power cord for Europe Loop-ACC-PC-UK AC power cord for UK Loop-ACC-PC-AUS AC power cord for Australia Loop-ACC-PC-CH AC power cord for China User’s Manual

Loop-IP6510-UM User’s Manual (optional, printed on paper copy). A CD version of the manual is already included as standard equipment.

Software

Loop-IP6510-UPGR-RT Activation code for Router function

 Where aa and bb are used to select the additional cold plug-in modules. If this option is not required, omit the aa or bb field in the ordering code

aa, bb= Description Notes

2T1 Dual T1 interface with RJ48C connector

E1-120 ohm/T1 jumper selectable

2E120 Dual E1-120 ohm interface with RJ48C connector

1FE One 10/100 BaseT Fast Ethernet

 Where pp is used to select a power supply

pp = Description Notes

P9 Hybrid 100 to 240 Vac and -48 Vdc (-36 to -72 Vdc) coexist fixed power supply

(3)

Loop-IP6510 Product Specifications

Ethernet WAN Interface

Two built-in 10/100BaseT Ethernet ports (WAN1 and WAN2) Speed auto-sensing

Half/full duplex auto-negotiation Auto MDI/MDI-X crossover

WAN Plug-in Module

E1 card: 2 ports per card, up to 4 ports per system T1 card: 2 ports per card, up to 4 ports per system Ethernet card: 1 port per card, up to 2 ports per system

Layer-two E1/T1 WAN protocols: PPP, MLPPP, HDLC, Frame Relay, Cisco compatible HDLC

E1 Line Interface

Line Rate 2.048M bps  50 ppm

Line Code HDB3

Output Signal ITU G.703

Connector RJ48C

Loopbacks Line Loopback, Payload Loopback Test Pattern 20-bit QRSS, 3-in-24, 1-in-8, 2-in-8, 1:1

T1 Line Interface

Line Rate 1.544 Mbps  50 bps Line Code AMI or B8ZS

Output Signal DS1

Connector RJ48C

Loopbacks Line Loopback, Payload Loopback Test Pattern 20-bit QRSS, 3-in-24, 1-in-8, 2-in-8, 1:1

LAN Interface

4 10/100BaseT interfaces Speed auto-sensing

Half/full duplex auto-negotiation Auto MDI/MDI-X crossover

Management SNMP v1, v2c Telnet SSH Bridge STP, RSTP 802.1q supported

Cisco ISL packet transparent VLAN packet transparent User configurable aging time Up to 16K MAC table

Padding/un-padding Ethernet FCS

Support IEEE 802.1ad Q-in-Q

Router

Routing protocol: RIP-I, RIP-II, OSPF Static route

Address Translation

NAT/NAPT

(4)

Port forwarding table for NAPT (Virtual Service) Supports port range from 1 to 65535

DHCP

DHCP server support for LAN users (RFC2131, RFC2132) BOOTP compatible

DHCP relay

Access Control & Firewall (RT)

Packet filtering based on

 Inbound/outbound direction  Source/destination IP address  Protocol types (ICMP, TCP, UDP)  Port number range

 Up to 4 control lists QoS

QoS based on rate limit Classification based on

 Outbound direction

 Source/destination IP addresses  DSCP

 Protocol types  Port number range Administration & Diagnostics

Ping Traceroute Loopback Telnet SSH Electrical

Power Source (AC) 100 to 240 Vac, 0.8A Power Source (DC) -36 to -72 Vdc, 1.2A Power Consumption < 20 W

Physical and Environment

Dimensions 334.5 x 44 x 228 mm (W x H x D) Mounting Stand-alone, wall mount

Temperature Range 0C to 55C

Humidity 0% - 95% RH (non-condensing)

Standards Compliance

IEEE 802.1d bridge, 802.1w RSTP, 802.1q VLAN, 802.1ad Q-in-Q

IETF RIP1 (RFC1058), RIP2 (RFC1389)

ITU G.703, G.704, G.823

Compliance

EMC/EMI FCC15 Class A, EN55022, EN55024 Safety UL60950, IEC60950-1 (CB)

(5)

(6)

Ethernet IP6510 _IP6510 E1/T1 Network Backup Network DSL Ethernet DSL

Ethernet as a backup link
