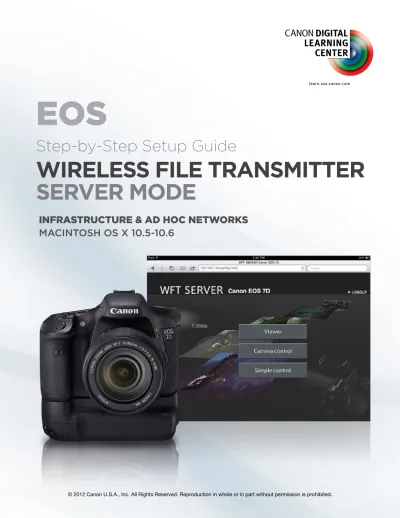

EOS
Step-by-Step Setup Guide
Wireless File TransmiTTer
server mode
InfraStructurE & ad HOc nEtwOrkS
Macintosh os X 10.5-10.6
WFT Server Mode
Infrastructure Network Setup
Initial Setup – OS X
Overview
This section will describe how to set up a WFT Server Mode/Infrastructure network on an Apple Macintosh running OS X 10.5-10.6. WFT Server Mode allows you to wirelessly control your camera through a standard web browser. It also provides Live View functionality and the ability to wirelessly transfer images from the camera to a remote com- puter. This setup requires a wireless network router
to serve as the access point. It assumes that the router has been set up for DHCP with WEP security enabled. You will therefore need the 10 digit WEP key or other password to connect to the router. Do not attempt to change the settings on anyone else’s computer or network without the explicit permission of the owner or administrator.
Begin by switching on your router and setting it up according to manufacturer’s instructions. Activate your computer’s Air- port card and select the name of wireless network you want to access. If the network belongs to someone else you must obtain permission before attempting to access it.
WFT Setup
1
Turn on your camera with the WFT attached.(The WFT requires its own battery.) Navigate to to the Tool menu that lists WFT settings, then
2
Under WFT Settings, select [Connection wizard].3
Under Select communication method, select [WFTserver], then select [OK].4
Under LAN type, select [Wireless]. then select [OK].5
Under Wireless LAN setup method, select [Connect with wizard], then select [OK].6
Under Select wireless network, select the wireless network ID that is being distributed by your router. This must be the same one you se- lected in the initial computer setup. Select [OK].7
Under Key format, select one of the two op- tions. The option you choose must match the maximum number of digits available or neces- sary for your router’s wireless network login ID (WEP key). Select [OK].8
Under Enter 8-63 ASCII characters, enter the wireless login ID/WEP key you need to access the wireless network. Press the Menu button on the camera to select [OK].9
It may take a few seconds for the WFT to con- nect to the wireless network. When it does, you will see this Network screen. Select [Auto set- ting], then select [OK].10
Under Select set number, assign a number from 1-5 so your settings can be saved and retrieved for future use. Select [OK].11
Return to the first Tool menu.Select [WFT Settings].
12
Under WFT settings, select [Set up].13
Under Set up, select [Confirm settings].14
Under Confirm settings, scroll to settings screen 2 on the camera. You must enter the exact IP address set you see on your camera into your web browser to access WFT Serv- er. The screen at right is only an example.Enter IP address here for reference.
192.168.1.
15
Return to the first Tool menu.Select [WFT Settings].
16
Under WFT Settings, select [Set up].17
Under Set up, select [WFT server settings].18
Under WFT server settings, select [WFT account].19
Select a WFT account to which you wish to assign a Login name and Password. In this example we have selected [User 1].21
You are now set up for a WFT infrastructure wireless network. To log in, open your web browser, enter the IP address you saw in WFT Setup Step 14, then tap the [return] key on the touch keyboard. (The URL you see here is only an example.)20
Under the next WFT account screen, enter the Login name and Password of your choice. Entries are case-sensitive, so write down exactly what you entered. This will be the login name and password you must enter in Step 22 below.Login name Password
22
Enter the Login name and Password you assigned in Step 20 above, then click the Log In button.23
You will see a WFT Server home screen similar to the one at right.Click any one of the three buttons to begin.
When you have finished using WFT Server mode, return to the WFT settings menu to se- lect [Disconnect.] This will disconnect your WFT from your computer’s wireless network.
How to Disonnect
To reconnect:
1. Change the WFT setting from [Disconnect]
to [WFTserver].
2. Turn on the WFT. When the LED turns green repeat Steps 11-14.
How to Reconnect
WFT Server Mode
Ad Hoc Network Setup
Initial Computer Setup
Overview
This section will describe how to set up a WFT Serv- er Mode ad hoc network on an Apple Macintosh running OS X 10.5-10.6. An ad hoc network creates a two-way link between the Wireless File Transmitter and your computer. WFT Server Mode allows you to wirelessly control your camera through a standard web browser. It also provides Live View functionality and the ability to wirelessly transfer images from the camera to a remote computer.
This setup allows you to assign a login name and password, is secure, and WEP encrypted. Be- fore making any changes, please take note of your original settings so that you can restore them later if you wish. Do not attempt to change the settings on anyone else’s computer or network without the explicit permission of the owner or administrator.
1
Click the Airport icon on your top menu bar.Scroll down and select Create Network... on the resulting drop-down menu.
2
A. Enter a name in the Name field (for example “AD HOC WFT SERVER”).B. Set Channel to Automatic.
C. Check the Require Password box.
D. Enter a 5-character ASCII pass- word. Your password must be exactly 5 characters.
E. Click OK.
3
Your Airport icon will be replaced by the icon shown at right.4
Click the System Preferences icon on the Applications Dock at the bottom of your screen.5
Under Internet & Network, click the Network icon in the fourth row from the top.6
Click the Airport tab on the left side of the dialog box, then click the Advanced button at the lower right corner.7
Click the TCP/IP tab. On the drop-down Configure IPv4 menu select Manually. In the IPv4 Ad- dress field, enter “192.168.1.100”.Once the dialog box is configured as shown, click OK, then Apply, then close the dialog box. You can now move on to WFT Setup.
1
Turn on your camera with the WFT attached.(The WFT requires its own battery.) Navigate to to the Tool menu that lists WFT settings, then select [WFT settings].
WFT Setup
2
Under WFT settings, select [Connection wizard].4
Under LAN type, select [Wireless], then select [OK].3
Under Select communication method, select [WFTserver], then select [OK].5
Under Wireless LAN setup method, select [Connect with wizard], then select [OK].6
Under Select wireless network, select the name of the wireless network you created dur- ing Step 2 of the initial computer setup, then select [OK].7
Under Key index, select [Key index 1], then select [OK].8
Under Key Format, select [Enter 5 ASCII characters], then select [OK].9
Under Enter 5 ASCII characters, enter the same 5-digit password you entered during Step 2 of the initial computer setup. Press the Menu button on the camera to select [OK].10
Under Network, select [Manual Setting], then select [OK].11
Under IP address setting, select [Manual Setting], then select [OK].12
Enter an IP address for the WFT unit. This will be the address you enter into your browser to access WFT Server. The first six digits must be “192.168.” Either of the last two digits must be different from the ones you assigned to the computer. Select [OK].Enter IP address here for reference.
192.168. .
13
Under Gateway, leave the gateway set to [Disable]. Select [OK].14
Assign a Set number from 1-5 so your set- tings can be saved and retrieved for future use. Select [OK].15
Return to the Tool menu that lists [WFT Set- tings]. Select [WFT Settings].16
Under WFT Settings select [Set up].17
Under Set up, select [WFT server settings].18
Under WFT server settings, press the Set button to select [WFT account].19
Select a WFT account you wish to define.In this example we have selected [User 1].
21
You are now set up for a WFT ad hoc wireless network. To log in, open your web browser,20
Under the next WFT account screen, enter the Login name and Password of your choice. Entries are case-sensitive, so write down exactly what you entered. This will be the login name and password you must enter in Step 22 below.Login name Password
22
Enter the Login name and Password you assigned in Step 20 above, then click the Log In button.23
You will see a WFT Server home screen similar to the one at right. Click any one of the three buttons to begin.
© 2011 Canon U.S.A., Inc. All Rights Reserved. Reproduction in whole or in part without permission is prohibited.
When you have finished using WFT Server mode, return to the WFT settings menu to select [Disconnect.] To reconnect your computer to the Internet, restore your previous settings.
How to Disonnect
To reconnect:
1. Change the WFT setting from [Disconnect]
to [WFTserver].
2. Select the WFT network you previous set- up on your computer.
3. Enter the IP address you created in Step 18.
