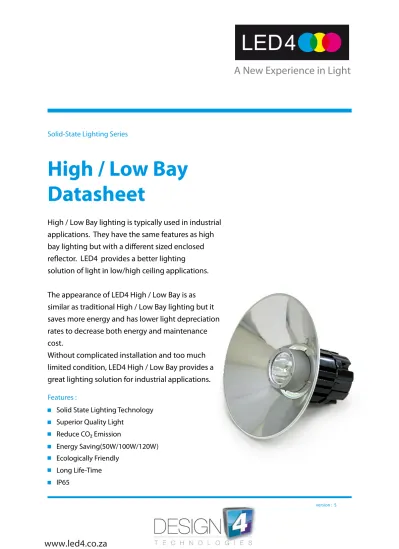

High / Low Bay Datasheet

(1)

Datasheet

High / Low Bay

Solid-State Lighting Series

version : 5

High / Low Bay lighting is typically used in industrial applications. They have the same features as high

solution of light in low/high ceiling applications.

The appearance of LED4 High / Low Bay is as similar as traditional High / Low Bay lighting but it saves more energy and has lower light depreciation rates to decrease both energy and maintenance cost.

Without complicated installation and too much limited condition, LED4 High / Low Bay provides a great lighting solution for industrial applications.

Solid State Lighting Technology Superior Quality Light

Energy Saving(50W/100W/120W) Ecologically Friendly

Long Life-Time IP65

Features :

LED4

(2)

Nomenclature

The following table describes the available colors, and wattage.

Figure 1 : High / Low Bay nomenclature.

E Code

Edison Type

B Code Type

0 1 2 Code Type Bay

LED ItemX1 X2

Module X4

Emitting Color X6

Filed Angle

W H X

Cool White Neutral White Warm White Code Type

WattX5

05 10 12

50W 100W 120W Code Type

E B 1 W - 05 0 - 0

X3 X4 X5

X1 X2 X6 X7

Serial No.X7

Driver external Driver internal

Heat-sink lengthen version (Driver external)

Heat-sink lengthen version (Driver internal)

Code Type 0 1 2 3

90º 40º 60º 120º

Code Type 0 1 3 4

(3)

Ø153

146 245

Ø360

Ø153

280 380

Ø360 Ø153

230 330

Ø360

Dimensions

Figure 2 : High / Low Bay dimensions. Notes:

1. Unit : mm.

2. Tolerance : ± 5.0 mm.

EB1x - 05xx (50W)

EB1x - 10xx (100W)

EB1x - 12xx (120W)

(4)

The following describes the choices of color temperature, angles, and CRI of Low/High Bay for

Part No. Rating Units

Power Consumption 50 / 100 / 120^{*1, 2} W

Field Angle 40 / 60 / 90 / 120 Degree

Color Temperature 5300~6300 / 3800~4500 / 2800~3200 K

CRI 70 / 75 / 80 /

Weight (EB1x - 05xx) 3.3±0.2 kg

Part No. Symbol Rating Units

Plastic Housing Temperature T_C 80 °C

Operating Temperature T_opr -30~50 °C

Storage Temperature T_stg -40~60 °C

AC Input Voltage(50W) V 90~264 V

AC Input Voltage(100/120W) V 90~277 V

LED Life Time 25,000 hrs

EDIS Temperature TEDIS 80 °C

Table 1 : High / Low Bay absolute maximum ratings.

Absolute Maximum Ratings

The following table shows electrical characteristics and operating temperature of Low/High Bay.

Notes:

1. Power consumption has 5% tolerance.

2. Thermal equilibrium at 50 degree C ambient.

(5)

Power

Consumption Part No. CCT Field Angle Flux (min.) Flux (Typ.)

50W

EB1W-051x 5300~6300K 40° 2100 lm 2300 lm

EB1H-051x 3800~4500K 40° 1750 lm 1950 lm

EB1X-051x 2800~3200K 40° 1650 lm 1850 lm

EB1W-052x 5300~6300K 60° 2350 lm 2600 lm

EB1H-052x 3800~4500K 60° 2000 lm 2200 lm

EB1X-052x 2800~3200K 60° 1900 lm 2100 lm

EB1W-050x 5300~6300K 90° 2400 lm 2700 lm

EB1H-050x 3800~4500K 90° 2100 lm 2300 lm

EB1X-050x 2800~3200K 90° 2000 lm 2200 lm

EB1W-053x 5300~6300K 120° 2350 lm 2600 lm

EB1H-053x 3800~4500K 120° 2000 lm 2200 lm

EB1X-053x 2800~3200K 120° 1900 lm 2100 lm

Power

100W

EB1W-101x 5300~6300K 40° 3850 lm 4250 lm

EB1H-101x 3800~4500K 40° 3150 lm 3500 lm

EB1X-101x 2800~3200K 40° 2750 lm 3050 lm

EB1W-102x 5300~6300K 60° 4300 lm 4800 lm

EB1H-102x 3800~4500K 60° 3600 lm 4000 lm

EB1X-102x 2800~3200K 60° 3100 lm 3450 lm

EB1W-100x 5300~6300K 90° 4500 lm 5000 lm

EB1H-100x 3800~4500K 90° 3700 lm 4100 lm

EB1X-100x 2800~3200K 90° 3300 lm 3600 lm

EB1W-103x 5300~6300K 120° 4300 lm 4800 lm

EB1H-103x 3800~4500K 120° 3600 lm 4000 lm

EB1X-103x 2800~3200K 120° 3100 lm 3450 lm

(6)

Power

120W

EB1W-121x 5300~6300K 40° 5400 lm 6000 lm

EB1H-121x 3800~4500K 40° 4350 lm 4850 lm

EB1X-121x 2800~3200K 40° 3800 lm 4250 lm

EB1W-122x 5300~6300K 60° 6050 lm 6700 lm

EB1H-122x 3800~4500K 60° 5000 lm 5500 lm

EB1X-122x 2800~3200K 60° 4300 lm 4800 lm

EB1W-120x 5300~6300K 90° 6300 lm 7000 lm

EB1H-120x 3800~4500K 90° 5100 lm 5700 lm

EB1X-120x 2800~3200K 90° 4500 lm 5000 lm

EB1W-123x 5300~6300K 120° 6050 lm 6700 lm

EB1H-123x 3800~4500K 120° 5000 lm 5500 lm

EB1X-123x 2800~3200K 120° 4300 lm 4800 lm

(7)

Power

Consumption Part No. Lux@ 4m

(Typ.) Lux@ 6m

(Typ.) Lux@ 8m

(Typ.) Lux@ 10m

(Typ.) Lux@12m (Typ.)

50W

EB1W-051x 410 180 100 64 44

EB1H-051x 340 150 84 52 36

EB1X-051x 320 140 80 50 34

EB1W-052x 240 107 58 38 26

EB1H-052x 200 89 50 30 20

EB1X-052x 90 82 45 30 20

EB1W-050x 205 90 50 32 22

EB1H-050x 170 75 42 26 18

EB1X-050x 160 70 40 25 17

EB1W-053x 110 50 28 18 12

EB1H-053x 90 40 23 14 9

EB1X-053x 88 38 22 14 9

Power

(Typ.) Lux@ 6m

(Typ.) Lux@ 8m

(Typ.) Lux@ 10m

100W

EB1W-101x 800 350 194 124 84

EB1H-101x 640 280 154 98 68

EB1X-101x 560 240 136 84 60

EB1W-102x 470 208 115 74 50

EB1H-102x 380 165 90 58 40

EB1X-102x 330 140 80 50 36

EB1W-100x 400 175 97 62 42

EB1H-100x 320 140 77 49 34

EB1X-100x 280 120 68 42 30

EB1W-103x 220 95 53 34 23

EB1H-103x 175 75 42 27 19

EB1X-103x 155 65 37 23 17

(8)

cd/klm C0-C180 C90-C270 2400 1600

cd/klm C0-C180 C90-C270 cd/klm C0-C180 C90-C270 cd/klm C0-C180 C90-C270

1200 800

1600

1200 800

600 400

Power

(Typ.) Lux@ 6m

(Typ.) Lux@ 8m

(Typ.) Lux@ 10m

120W

EB1W-121x 1120 490 270 170 118

EB1H-121x 900 390 215 138 96

EB1X-121x 780 330 190 118 84

EB1W-122x 665 290 161 103 70

EB1H-122x 535 230 128 82 57

EB1X-122x 460 195 113 70 50

EB1W-120x 560 245 136 87 59

EB1H-120x 450 195 108 69 48

EB1X-120x 390 165 95 59 42

EB1W-123x 310 135 75 48 33

EB1H-123x 250 110 60 38 26

EB1X-123x 210 90 52 32 23

Light Patterns

• 40˚ • 60˚ • 90˚ • 120˚

EB1x - xx1x EB1x - xx2x EB1x - xx0x EB1x - xx3x

Figure 3 : High / Low Bay light patterns.

(9)

Figure 4 : High / Low Bay application.

Applications

LED4 High / Low Bay can produce an intense light in a certain area. It can be easily installed or

replaced a traditional High / Low Bay lighting in warehouse, factory, gymnasium, large outlet, and etc.

(10)

10 15 20 40 80 90 100 110 120 lux

0.0 1.98 3.82

22.00m 15.01

10.01 5.01

0.01

5.89 7.73 9.88 11.72 13.88 15.72 17.88 19.72 21.98 24.00m

Module Cabinet

Figure 5 : High / Low Bay light plan example : warehouse application.

No.of module: 20 Flux per module: 5,000lm Total Power: 2,000W Area: 528m²/ 5,683ft² LPD: 1.89 W/m²/ 0.18 W/ft² Workplan height: 0.85m

Height of Room: 8.000 m, Mounting Height: 6.400 m, Light loss factor: 0.80, Values in Lux, Scale 1:309

Surface

Workplane /

Floor 20

70 50

74

112 2.23 143

132 19 55 4.03

9 2.48 14

16 Ceiling

Walls (4)

Eav [lux] Emin [lux] Emax [lux]

100W High Bay Application.

(11)

in preserving the forest by reducing energy consumption, and CO2 emission one step at a time.

Replacing traditional mercury vapor lamp with LED4 Module lighting application, one can help in reducing golbal warming by lots of CO2 annually.

Power Reduction by 50% Reduction of CO2

emission by 168 kg Saves 12 trees a year

= =

864 432 50%

500 1000 KWh

0 1 Year

Mercury Vapor Lamp (100W) Edison Low Bay (50W) 50W Low Bay VS 100W Mercury Vapor Lamp

Figure 7 : 50W Low Bay VS 100W Mercury Vapor Lamp.

Note : Calculation based on 24 hours of daily operation.

LED4

Mercury Vapor Lamp (100W) Edison Low Bay (50W) 500

400

300

200

100

0 dollars

2

1 3 4 Year

Balance

Saves:USD57.4

Saves:USD118.9

Environmentally Friendly

(12)

2160

864 60%

3000

2000

1000 KWh

0 1 Year

Mercury Vapor Lamp (250W) LED4 Low Bay (100W)

Figure 8 : 100W High Bay VS 250W Mercury Vapor Lamp.

= =

100W High Bay VS 250W Mercury Vapor Lamp

Mercury Vapor Lamp (250W) LED4 Low Bay (100W) 1000

500

0 dollars

2

1 3 4 Year

Balance

Saves:USD87.9

Saves:USD212.3

Saves:USD336.7

Environmentally Friendly

(13)

Figure 9 : 120W High Bay VS 400W Mercury Vapor Lamp.

Note : Calculation based on 24 hours of daily operation.

= =

120W High Bay VS 400W Mercury Vapor Lamp

Environmentally Friendly

1 1 1

r

3456

1037

4000

70%

3000 2000 1000 KWh

0 1 Year

Mercury Vapor Lamp (400W) LED4 Low Bay (120W)

Mercury Vapor Lamp (400W) LED4 Low Bay (120W) 1500

1000

500

0 dollars

2

1 3 4 Year

Saves:USD224

Saves:USD11.5

Saves:USD436.5

Saves:USD649

(14)

1.50W Packge

Package Information

2.100W Packge 3.100W Packge (driver external)

4.120W Packge 5.120W Packge (driver external)

1. 50W Package : 170mm(width)*170mm(length)*315mm(height)

2. 100W heatsink length version : 170mm(width)*170mm(length)*405mm(height)

3. 100W heatsink length version (driver external) : 170mm(width)*220mm(length)*405mm(height) 4. 120W heatsink length version : 170mm(width)*170mm(length)*460mm(height)

Notes :

(15)

Versions Date

1 1. Establish a Datasheet. 2010.02.01

2 1. Update the Flux and Lux of the Illuminance and Field

Angles. 2010.05.03

3 1. Update the Flux and Lux of the Illuminance.

2. Update the 2010.07.01

4 1. Revised the size of heatsink. 2010.10.13

5 1.Revised the AC Input Voltage of Absolute Maximum Ratings 2011.01.14
