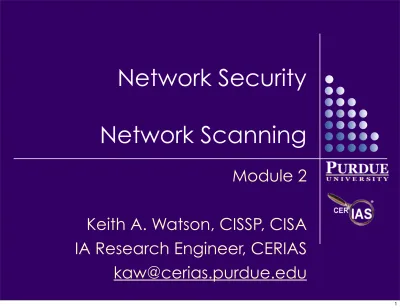

Network Security. Network Scanning

Network Security

Network Scanning

Module 2

Keith A. Watson, CISSP, CISA

IA Research Engineer, CERIAS

Network Scanning

Definition: Sending packets configured to

evoke a response from the target system;

the result or lack of result is used to infer the

configuration of the target.

Network Scanning:

Overview



Scanning What, Why and Where



Considerations



nmap and other tools



nmap features

Exercises

Network Scanning:

Why scan?



Network scanning is useful in determining

the devices that exist in a network:

• Desktops, servers, laptops

• Routers, managed switches, firewalls • Wireless access points

• Network monitoring and log collection systems • Network printers and print servers

• IP-accessible CD-ROM drive arrays • iPod Touch, iPhone, Zune devices

• Apple Time Capsules and Airport Expresses • Roku, Tivo, MythTV, Wii, Xbox, PlayStation

Network Scanning: Why

scan?



Network scanning is useful to determine

what services exist on a network:

• File services (CIFS, SMB, Appletalk, NFS, FTP)

• Infrastructure (DHCP, DNS, Bootp, TFTP, SNMP)

• Authentication (AD services, LDAP, Kerberos)

• Remote Access (VPN, SSH, Remote Desktop)

• Printer and Scanner Sharing

• Web-based interfaces (printers, firewalls, WAPs)

• Peer-to-Peer file sharing

Network Scanning:

What do we scan?



Specific systems

• Examine new systems placed on the network

• Verify network service configuration

• Re-check network service configuration

• Examine existing systems for changes in config



Network segments

• Scan all systems on specific networks (lab, classroom, admin, test networks, DMZ)

• Scan the entire network space to look for rogue systems

Network Scanning:

From

where do we scan?



The position from which you scan can

change the results



Firewalls

• From inside, you will “see” more information

• From outside, you should “see” very little



Routers w/ACLs

• If you are not scanning across ACLs, you will “see” more



Scanning from multiple positions in the

Network Scanning:

Things to Consider



Network scanning can harm your network

• At least temporarily...

• Older systems may crash or hang

• Building management systems may do weird stuff

• The network performance may be impacted

• Network devices may drop packets

• Systems may generate significant amounts of log messages

• ID systems should be alerting when scans occur



You probably shouldn’t be scanning at peak

Network Scanning:

Tools Available



nmap, version 5



iPod Touch / iPhone tools

• Net Scan ($0.99)

• iNet ($3.99)

• Network Utility (Pro version: $0.99)

• iPortScan PRO ($0.99)

• Portscan ($1.99)



Mac: Network Utility application

Network Scanning:

nmap features



multiple host discovery methods



multiple scan methods



service and version detection



OS detection



intrusion detection evasion techniques

• setting source port (20, 53, 67, 88), randomization



performance tuning



scripting engine



runtime feedback

Network Scanning:

nmap interfaces



Command line

• nmap is designed to be used from the CLI

• all options and modes can be specified



Graphical User Interface

• Zenmap is a GUI interface for nmap

Network Scanning:

nmap target selection



Targets can be IP addresses, hostnames,

FQDNs, networks



Listed as the last parameters on CLI



Examples

• poly-server.cerias.purdue.edu • purdue.edu/24

• 128.10.247.10,128.10.247.20,128.10.246.0/24 • 128.10.247-250.1-254



Use ‘-iL <file>’ to read targets from a <file>



Use ‘--exclude <host1>[,<host2>,...<hostn>]’

Network Scanning:

nmap host discovery



Host discovery is the process of determining

what systems are on the network



What’s the traditional method for

determining if a system is on the network?



Ping (ICMP, Echo Request)

Ping Example

Source Target

ICMP Echo Request ICMP Echo Reply

Network Scanning:

nmap host discovery



Host discovery is necessary to avoid

scanning “dead” IP addresses where no

system is responding for that address



Proper host discovery can shorten large

address range scans



Using a UDP echo request (ping) may not be

effective if the system’s firewall blocks them



Other nmap host discovery methods may

Network Scanning:

nmap host discovery



Disable ping (-PN)

• Skips host discovery entirely



List scan (-sL)

• Performs reverse DNS lookup

• Gets a target list



Ping scan (-sP)

• Reports responding hosts only

• Uses ping, TCP SYN to port 443, TCP ACK to port 80, ICMP timestamp request to find hosts

Network Scanning:

nmap host discovery



TCP SYN ping (-PS <portlist>)

• SYN sent to specified ports (default: 80)

• Host is up if SYN/ACK or RST received



TCP ACK ping (-PA <portlist>)

• ACK sent to specified ports (default: 80)

• Host is up if RST received



UDP ping (-PU <portlist>)

• Empty UDP packet sent to specified ports (default: 40125)

TCP Connection

Establishment

SYN Ping

Source Target

SYN

SYN Ping

Source Target

SYN RST

SYN Ping

Source Target

Network Scanning:

nmap host discovery



SCTP INIT ping (-PY <portlist>)

• Sends SCTP INIT packet to specified ports (default: 80)

• Host is up if any response received



ICMP ping types (-PE, -PP, -PM)

• -PE is an echo request

• -PP is a timestamp request

• -PM is a address mask request

Network Scanning:

nmap host discovery



IP Protocol ping (-PO <protocollist>)

• Sends a packet with the specified protocol

number in the header (default: send packets for ICMP, IGMP, IP-in-IP)

• Host is up if any response received



ARP ping (-PR)

• Sends an ARP request on the local ethernet network

• Host is up if any response received

Network Scanning:

nmap host discovery



Common ports to use in host discovery

• Windows: TCP/135, UDP/137, UDP/138, TCP/139, TCP&UDP/445, TCP&UDP/1025-1030, TCP/3389

• UNIX: TCP/21, TCP/22, TCP/23, TCP/25, UDP/53, TCP/80, TCP&UDP/111, UDP/161, UDP/514

• Network devices: TCP/22, TCP/23, UDP/53, UDP/ 67-68, TCP/80, TCP/443, UDP/161



Bottom line: Unless your host is blocking

standard ICMP pings, you can stick to the

default host discovery methods

Network Scanning:

nmap port states



open

• Accepts TCP, UDP, SCTP connections



closed

• Responds but no application is listening



filtered

• Little info available to determine actual state

• Firewalls may be dropping probes



unfiltered

Network Scanning:

nmap port states



open|filtered

• Unable to determine if port is open or filtered

• Reported by UDP, IP Protocol, FIN, NULL, Xmas



closed|filtered

• Unable to determine if port is closed or filtered

Network Scanning:

nmap scan modes



TCP SYN scan (-sS)

• Starts TCP three-way handshake

• Open if a SYN/ACK received

• Closed if RST received

• Filtered if ICMP error or no response received



TCP connect scan (-sT)

• Opens TCP connection, sends no data

Network Scanning:

nmap scan modes



UDP scan (-sU)

• Sends empty UDP packet

• Closed if ICMP port unreachable received

• Filtered if other ICMP received

• Open|filtered if there is no response

• Scan can be very slow, due to timeout periods



SCTP INIT scan (-sY)

• Sends an empty SCTP INIT chunk

• Open if INIT-ACK received

• Closed if ABORT received

Network Scanning:

nmap scan modes



NULL scan (-sN)

• Sends TCP packet with no header bits set



FIN scan (-sF)

• Sends TCP packet with FIN set



Xmas scan (-sX)

• Sends TCP packet with FIN, PSH, URG set



Responses to NULL, FIN, Xmas:

• Closed is RST received

Network Scanning:

nmap scan modes



TCP Window (-sW) and Maimon (-sM) scans

• Rely on implementation details in specific systems



IP Protocol scans (-sO)

• Determines what IP protocols are supported



FTP Bounce scans (-b <ftprelay>)

• Old FTP server bug



Idle scan (-sI <zombie>)

• Can map out trust relationships between systems



Custom TCP scan (--scanflags)

Network Scanning:

nmap port specification



Port numbers are associated with specific

network services or applications (1-65535)



Most port number assignments are fixed

• Assigned by IANA



Without specifying ports, nmap choose the

1000 most common ports to scan for each

protocol

Network Scanning:

nmap port specification



Specify additional ports with -p option

• -p- or -p1-65535

• -p U:53,137,161,T:21,22,25,80,443,8080



Fast scan (-F)

• Scans only 100 common ports



Avoid port randomization (-r)

Network Scanning:

nmap fingerprint modes



nmap attempts to detect the OS version

based on “fingerprinting” the TCP stack

• Quirks and implementation details can be

evaluated and compared against a database of known TCP stack implementations

Network Scanning:

Other options/features



Service and Version detection (-sV)

• Attempts to determine the versions of software



Timing and Performance options

• Retries, timeouts, delays, rate limiting, scan rates



Scripting Engine

• Includes library of scan functions

• Write your own scripts



Firewall/IDS Evasion and Spoofing

• Attempts bypass firewalls

Network Scanning:

nmap output example 1

golgafrincham:~ admin$ sudo nmap -sP dis

Starting Nmap 5.00 ( http://nmap.org ) at 2009-11-05 14:34 EST Host 128.10.247.70 is up (0.00015s latency).

MAC Address: 00:11:43:A0:98:42 (Dell)

Network Scanning:

nmap output example 2

golgafrincham:~ admin$ sudo nmap -sS dis

Starting Nmap 5.00 ( http://nmap.org ) at 2009-11-05 14:23 EST Interesting ports on 128.10.247.70:

Not shown: 998 closed ports PORT STATE SERVICE

22/tcp open ssh 80/tcp open http

MAC Address: 00:11:43:A0:98:42 (Dell)

Network Scanning:

nmap output example 3

golgafrincham:~ admin$ sudo nmap -O milliways

Starting Nmap 5.00 ( http://nmap.org ) at 2009-11-05 14:38 EST Interesting ports on 128.10.247.50:

Not shown: 996 filtered ports PORT STATE SERVICE

22/tcp open ssh

9101/tcp open jetdirect 9102/tcp open jetdirect 9103/tcp open jetdirect

MAC Address: 00:B0:D0:DB:A5:56 (Dell Computer)

Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port

Device type: general purpose Running: FreeBSD 7.X

Network Scanning:

saving nmap output



nmap output can be saved as

• Text (default): -oN <file>

• XML: -oX <file>

• l33t: -oS <file>

• Grepable: -oG <file>

• All at once: -oA <basename>



Verbose output (-v)



Debugging (-d <level>)

Network Scanning:

nmap output differencing



Differencing provides a method to see

changes over time

golgafrincham:~ admin$ ndiff yesterday.xml today.xml -Nmap 5.00 at 2009-11-05 14:59

+Nmap 5.00 at 2009-11-05 15:01

128.10.247.50, 00:B0:D0:DB:A5:56: -Not shown: 999 filtered ports

+Not shown: 998 filtered ports PORT STATE SERVICE VERSION

I hate command lines...



nmap includes a GUI tool called Zenmap



It is a simple interface for constructing the

command line options for nmap



Notice that as you choose options, the

command line listed changes



The Zenmap output is the same as nmap



It’s a learning tool for nmap parameters



For our exercises you can use which ever

Let’s get started...



Boot up BackTrack if you haven’t already



OR



Install nmap on your machine

Network Scanning:

Exercise 1



Using Zenmap or nmap do a SYN scan on

192.168.1.20

Network Scanning:

Exercise 2



Use Zenmap or nmap to do an OS detection

scan against 192.168.1.25



What operating system does this machine

Network Scanning:

Exercise 3



Scan targets in the range of 192.168.1.20-26



Choose any scan method



What OSs are used?



What services are available?



With everyone scanning at once watch for

Network Scanning:

Exercise 4



Experiment with Zenmap and nmap



Any IP on 192.168.1.0 is a target



Attempt different scan modes and attempt

End of Module 2
