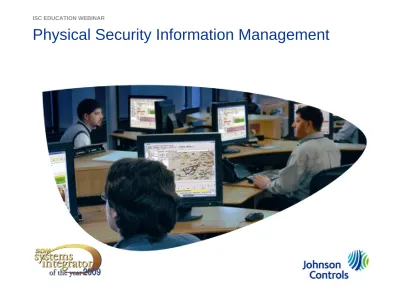

ISC EDUCATION WEBINAR. Physical Security Information Management

Physical Security Information Management

PSIM Definition

A Physical Security Information Management (PSIM) system is a software

platform with the following components that enhances event management and

security operation:

„Data Aggregation

„Visualization

„System Control & Communication

„Task Automation

„Incident Response Workflow

Systems Integration Levels 5 6 7 8 9 „ Reduce Costs „ Mitigate Risk „ Increase Compliance

Three Key Components of “Integration”

When deployed properly, PSIM integration will enable opportunities to optimize

business policies and procedures that directly affect the profitability of an

organization.

„ Connect – Leveraging investments in networking infrastructure to efficiently transport data in an open and standard method

„ Share – Easily share data and information between disparate systems to enable proper user visibility

Normalization to a common format Control logic Application logic User applications Application Programmer Interface (API)

Typical Building System Software Architecture

Field data collection and storage

Field data collection and storage

Custom interlocks and sequences

Custom interlocks and sequences

PID Control

PID Control

Graphics

Graphics _ReportingReporting

Energy Management

Energy Management

Auto loop tuning

Auto loop tuning

Alarm Mgmt

Alarm Mgmt _ConfigConfig

Application interface (XML, .NET, Web Services, etc)

Application interface (XML, .NET, Web Services, etc)

Field data collection and storage

Field data collection and storage

Custom interlocks and sequences

Custom interlocks and sequences

Access Control

Access Control

Graphics

Graphics _ReportingReporting

Advanced access rules

Advanced access rules

Alarm Mgmt

Alarm Mgmt _ConfigConfig

Application interface (XML, .NET, Web Services, etc)

Application interface (XML, .NET, Web Services, etc)

Access

Control

Access

Control

BAS/

HVAC

System

BAS/

HVAC

System

The Problem: Disparate Systems

Typical buildings and campuses have a

wide array of automation systems of

various make, model, and vintage with

each having similar functions

„ User interface

„ Graphics

„ Alarm & Event Management

„ Reporting

Access Control

Access

Control VideoVideo IntrusionIntrusion BASBAS LightingLighting

Fire Alarm Fire Alarm IT Systems IT Systems Standard

Standard _ProprietaryProprietary _StandardStandard _ProprietaryProprietary Field data collection and storage

Field data collection and storage

Custom interlocks and sequences Custom interlocks and

sequences Control Control Advanced rules Advanced rules Graphics

Graphics _ReportingReporting _{Alarm Mgmt}Alarm Mgmt _ConfigConfig Application interface (XML, .NET, Web Services, etc) Application interface (XML, .NET, Web Services, etc)

Traditional Systems Integration Software Architecture

„ Connect - Integrating these systems together can reduce complexity by establishing a

“User Interface Master” for each connection

„ Many traditional integrating architectures are rigid and fragile

„ A “User Interface Master” is established for each point-to-point connection

„ Some systems do not “talk” to others

„ Compounded complexity with more than one system of a type

Reference Architecture for Enterprise Systems Integration

Back to the beginning…

Access Control

Access

Control VideoVideo IntrusionIntrusion BASBAS LightingLighting

Fire Alarm Fire Alarm IT Systems IT Systems Standard

Standard _ProprietaryProprietary _StandardStandard _ProprietaryProprietary Field data collection and storage

Field data collection and storage

Custom interlocks and sequences Custom interlocks and

sequences Control Control Advanced rules Advanced rules Graphics

Graphics _ReportingReporting _{Alarm Mgmt}Alarm Mgmt _ConfigConfig Application interface (XML, .NET, Web Services, etc) Application interface (XML, .NET, Web Services, etc)

Reference Architecture for Enterprise Systems Integration

Message format and content normalization

Message format and content normalization

Connect to enable Sharing

„

Reduce the accumulation of complexity over time, standardization of data

structures and messages needs to occur.

Reference Architecture for Enterprise Systems Integration

Access Control

Access

Control VideoVideo IntrusionIntrusion BASBAS LightingLighting

Fire Alarm Fire Alarm IT Systems IT Systems

Message format and content normalization

Message format and content normalization

Share

„

All communications between subsystems and applications occur through a

messaging system.

„

The messages are XML-formatted information packets whose contents are

Reference Architecture for Enterprise Systems Integration

Rules Configuration

Rules

Configuration

Data fusion, application, and workflow rules

Data fusion, application, and workflow rules

Message format and content normalization

Message format and content normalization

Optimize

„

Application logic can be simplified when it is applied after data normalization

Reference Architecture for Enterprise Systems Integration

Video _IntrusionIntrusion _BASBAS _LightingLighting Fire

Alarm Fire Alarm IT Systems IT Systems

Data fusion, application, and workflow rules

Data fusion, application, and workflow rules

Archive Data Archive ID Management ID Management Event Management Event Management Compliance Management Compliance Management Building Management Building Management

Message format and content normalization

Message format and content normalization

A Simplified View

Connecting, Sharing, and Optimizing to reduce costs, mitigate risk, and

PSIM Definition

A Physical Security Information Management (PSIM) system is a software platform

with the following components that enhances event management and security

operation:

„ Data Aggregation

„ Visualization

„ System Control & Communication

„ Task Automation

„ Incident Response Workflow

Components of PSIM

Data Aggregation

„ Normalizes data from disparate systems to common format

„ Enables sharing of data between systems

„ Stored data can be queried easily

Rules Configuration

Rules

Configuration Data fusion, application, and workflow rulesData fusion, application, and workflow rules Data

Archive Data Archive ID Management ID Management Event Management Event Management Compliance Management Compliance Management Building Management Building Management

Components of PSIM

Visualization

„ Presents important information in easy-to-understand format

„ Enables full situational awareness for Operators

Access Control Access Control Rules Configuration Rules Configuration Video

Video IntrusionIntrusion BASBAS LightingLighting Fire

Alarm Fire Alarm IT Systems IT Systems

Data fusion, application, and workflow rules

Data fusion, application, and workflow rules Data Archive Data Archive ID Management ID Management Event Management Event Management Compliance Management Compliance Management Building Management Building Management

Message format and content normalization

Components of PSIM

System Control & Communication

„ Override connected systems and devices

„ Communicate to other systems/people

„ Dispatch appropriately

Rules Configuration

Rules

Configuration Data fusion, application, and workflow rulesData fusion, application, and workflow rules Data

Archive Data Archive ID Management ID Management Event Management Event Management Compliance Management Compliance Management Building Management Building Management

Components of PSIM

Task Automation

„ Intelligence makes simple manual tasks automatic

„ Configurable logic reduces manpower need for simple tasks

Access Control Access Control Rules Configuration Rules Configuration Video

Video IntrusionIntrusion BASBAS LightingLighting Fire

Alarm Fire Alarm IT Systems IT Systems

Data fusion, application, and workflow rules

Data fusion, application, and workflow rules Data Archive Data Archive ID Management ID Management Event Management Event Management Compliance Management Compliance Management Building Management Building Management

Message format and content normalization

Components of PSIM

Incident Response Workflow

„ Guides Operator through logical steps for a proper response

„ Allows for simple step-by-step Operator assessment to a complex incident

Rules Configuration

Rules

Configuration Data fusion, application, and workflow rulesData fusion, application, and workflow rules Data

Archive Data Archive ID Management ID Management Event Management Event Management Compliance Management Compliance Management Building Management Building Management

Components of PSIM

Advanced System Reporting

„ Displays full audit trail of event and response history

„ Answers important security or business related questions

Access Control Access Control Rules Configuration Rules Configuration Video

Video IntrusionIntrusion BASBAS LightingLighting Fire

Alarm Fire Alarm IT Systems IT Systems

Data fusion, application, and workflow rules

Data fusion, application, and workflow rules Data Archive Data Archive ID Management ID Management Event Management Event Management Compliance Management Compliance Management Building Management Building Management

Message format and content normalization

Challenges in Deploying PSIM

„ Engaging the right stake-holders

„ Defining scope of services

„ Creating of response workflows

„ Identifying all potential incidents

„ Defining proper response to each

„ Finding concrete numbers to support business case

„ Quantifying risk mitigation

„ Finding hidden cost in current approach

„ “Harvesting” labor savings

Business Outcomes of Successful PSIM Deployment

Reduce Costs

„ Consolidate command centers

„ Reduce guard or operator cost

„ Decrease integration maintenance

Mitigate Risks

„ Automate simple Operator tasks

„ Enhance situational awareness during emergencies

Questions

Brandon Arcement +1 512-853-9481
