Introduction. Driver Support Windows 98

(1)

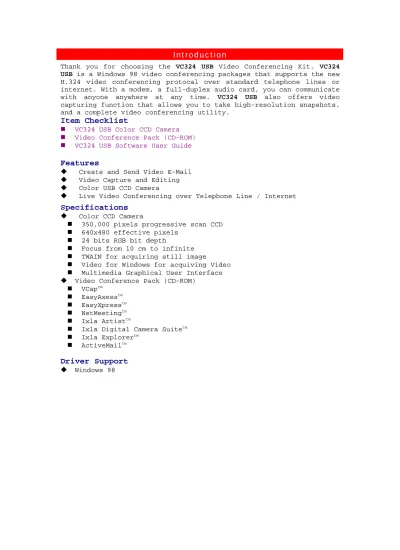

Introduction

Thank you for choosing the VC324 USB Video Conferencing Kit. VC324

USB is a Windows 98 video conferencing packages that supports the new

H.324 video conferencing protocal over standard telephone lines or internet. With a modem, a full-duplex audio card, you can communicate with anyone anywhere at any time. VC324 USB also offers video capturing function that allows you to take high-resolution snapshots, and a complete video conferencing utility.

Item Checklist

n VC324 USB Color CCD Camera n Video Conference Pack (CD-ROM) n VC324 USB Software User Guide

Features

u Create and Send Video E-Mail u Video Capture and Editing u Color USB CCD Camera

u Live Video Conferencing over Telephone Line / Internet

Specifications

u Color CCD Camera

n 350,000 pixels progressive scan CCD n 640x480 effective pixels

n 24 bits RGB bit depth

n Focus from 10 cm to infinite n TWAIN for acquiring still image

n Video for Windows for acquiving Video n Multimedia Graphical User Interface u Video Conference Pack (CD-ROM)

n VCaptm n EasyAxesstm n EasyXpresstm n NetMeetingtm n Ixla Artisttm

n Ixla Digital Camera Suitetm n Ixla Explorertm

n ActiveMailtm

Driver Support

(2)

Driver Installation

Note : DO NOT PLUG IN CAMERA BEFORE INSTALLATION. IF YOU

DO THIS, PLEASE QUIT INSTALL APPLICATION AND UNPLUG THE

CAMERA.

Installation Procedure.

u Install Driver

1. Insert the VC324 USB Video Conferencing Pack CD into the CD-ROM, the

VC324 USB Installation Wizard will

appear. You can also run D:\AOSetup.exe to launch it. Please click Camera Driver to next step.

2. Click Next when the

Welcome Setup dialog

box appears.

3. After you complete installing VC324 USB driver, click Close button.

4. Now it is ready to plug the VC324 USB to your computer. Please follow the step in

Plug Hardware Section

(3)

Driver Installation

u Hardware Setup

1. Plug VC324 USB Camera into your computer’s USB port, Windows 98 will found New Hardware, and

automatically setup driver for you. 2. If system ask for P35U.SYS, Please

browser to the Video Conferencing Pack CD’s Driver Folder ( D:\Driver )

3. Now you can start to enjoy your VC324 USB video Conferencing Kit even without reboot Windows 98 !

u

Check Your VC324 USB Setup

1. Right click on My Computer, and select

Properties.

2. After System Properties dialogbox appear, Please select Device Manager tab to check your system’s device setting

3. If your VC324 USB setup ready, you should see a device named P35U Camera

Capture under Image device

4. If this device did not appear on this location , please uninstall VC324 USB

(4)

Get The Best Quality

In order to make sure that you will get the best image

quality, you must adjust the White–Balance function

before using your VC324 USB Camera, to the following to

get the best quality of VC324 USB.

u Setup VCap

1. Insert VC324 USB Video Conference Pack CD into CD-ROM

2. VC324 USB Installation Wizard dialog will appear. Please Select

VCap to install .

3. Click Continue to install the

VCap.

4. After VCap successful installed, Please launch it to adjust your

VC324 USB Camera.

u Adjust the White-Balance Function

1. Select Video Camera

(5)

Get The Best Quality

2. Grad a piece of white paper and aim at

the white paper using VC324 USB Camera. 3. Click Auto button in the White Balance

block , the Camera will adjust it’s white color setting automatically. 4. Click OK button to finish adjust your

VC324 USB Camera.

Special Notes

1. You can adjust your VC324 USB ‘s White-Balance Function whenever you feel colors in the Camrea is not correct.

2. Before install VC324 USB, please make sure that the USB Setting in mother board BIOS has been enabled.

3. VC324 USB is only supported in Windows 98 now.

There is a VC324 USB Video Conferencing Kit FAQ document in CD’s root directory, Please read it first when you have any question.

(6)

Install Other Softwares

Setup EasyAxess

TM EasyAxessTM is a Windows 98 video conferencing software program supporting the new H.324 video conferencing protocal over standard telephone lines. With EasyAxessTM , you can communicate with anyone anywhere at anytime. 1. Start Windows 98

and insert the VC324 USB Video Conferencing Pack CD. 2. Click EasyAxessTM

to setup EasyAxessTM .

3. Follow the instruction on screen to setup EasyAxessTM .

4. You can also run D:\EasyAxess\Setup.exe to install EasyAxessTM .

Setup EasyXpress

TM

EasyXpressTM VideoMail is a simple way to send video e-mail to your friends and colleagues. You simply create the video mail message on your computer and send with your mail program like any other mail. Those who receive your mail can play the video clip on any Windows 98 system. They will see your video clip and hear your voice. It is almost as if you sent them videotape ! Only easier and faster.

1. Start Windows 98 and insert the VC324 USB Video Conferencing Pack CD.

2. Click EasyXpressTM

to setup EasyXpressTM .

3. Follow the instruction on screen to setup EasyXpressTM .

4. You can also run D:\EasyXpress\Setup.exe to install EasyXpressTM .

(7)

Install Other Softwares

Setup NetMeeting

TM

Microsoft NetMeetingTM includes support for the H.323 audio and video conferencing standard. NetMeetingTM can be used to place calls to and receive calls from products that are H.323 compatible, including the Intel Internet Video Phone. With appropriate equipment and services that are currently under development by third parties, NetMeetingTM

can place a call to a telephone using an H.323 gateway.

2. Click NetMeetingTM

to setup NetMeetingTM.

3. Follow the instruction on screen to setup NetMeetingTM .

4. You can also run D:\NetMeeting\Setup.exe to install NetMeetingTM .

Setup ActiveMail

TM

ActiveMailTM

is a user-friendly multimedia e-mail composing tool rich in a wide collection of graphics, templates and background music. Think of it: won't it be cool when someone open their e-mail and finds such an awesome e-mail from you ? With an Internet connection and ActiveMail, you can exchange fascinating e-mail messages with anyone who has an Internet connection.

2. Click ActiveMailTM

to setup ActiveMailTM .

3. Follow the instruction on screen to setup ActiveMailTM .

4. You can also run D:\ActMail\Setup.exe to install ActiveMailTM .

(8)

Install Other Softwares

Setup ixla Artist

TM

ixla ArtistTM is a paint and image editing program with all the features to let you effortlessly paint and retouch photos like an expert Graphic Artist.

2. Click ixla ArtistTM

to setup ixla ArtistTM.

3. Follow the instruction on screen to setup ixla ArtistTM .

4. You can also run D:\ixlaArt\Setup.exe to install ixla ArtistTM .

Setup ixla Digital Camera Suite

TM

Fast and easy-to-use, ixla Digital Camera SuiteTM

gives you the power to turn your digital camera photos into stunning presentations. 1. Start Windows 98 and insert the VC324 USB Video Conferencing Pack

CD.

2. Click ixla DCsTM

to setup ixla Digital Camera SuiteTM .

3. Follow the instruction on screen to setup ixla Digital Camera

SuiteTM.

4. You can also run D:\ixlaDCs\Setup.exe to install ixla Digital

Camera SuiteTM .

Setup ixla Explorer

TM ixla ExplorerTM

is the ultimate tool for looking after your images.

ixla ExplorerTM

automatically creates high quality thumbnails of the images stored on your computer.

2. Click ixla ExplorerTM

to setup ixla ExplorerTM .

3. Follow the instruction on screen to setup ixla ExplorerTM .

4. You can also run D:\ixlaExpl\Setup.exe to install ixla ExplorerTM .
