1

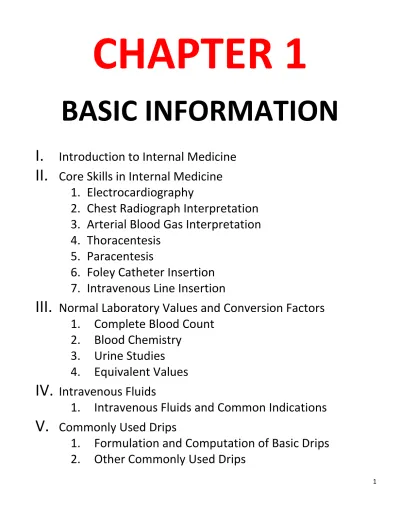

CHAPTER 1
BASIC INFORMATION
I.
Introduction to Internal Medicine
II.
Core Skills in Internal Medicine
1. Electrocardiography
2. Chest Radiograph Interpretation
3. Arterial Blood Gas Interpretation
4. Thoracentesis
5. Paracentesis
6. Foley Catheter Insertion
7. Intravenous Line Insertion
III.
Normal Laboratory Values and Conversion Factors
1. Complete Blood Count
2. Blood Chemistry
3. Urine Studies
4. Equivalent Values
IV.
Intravenous Fluids
1. Intravenous Fluids and Common Indications
V.
Commonly Used Drips
1. Formulation and Computation of Basic Drips
2. Other Commonly Used Drips
2
SECTION 1
INTRODUCTION TO INTERNAL MEDICINE
I. INTRODUCTIONInternal Medicine (IM) can be quite overwhelming because of the complexity of cases and long work hours. Despite these inherent toxicities, it remains one of the most rewarding fields in Medicine. Students and practitioners alike enjoy the intellectual stimulation and experience of translating theoretical knowledge into direct patient care. As basic IM principles cannot be dissociated from the cases we encounter, it is imperative for every practitioner to acquire the core competencies and skills of an internist. The approach to patient encounter and chart writing are discussed in the succeeding parts.
II. HISTORY AND PHYSICAL EXAMINATION
Complete history and physical examination are central to hypothetico-deductive reasoning in clinical medicine. Starting from the chief complaint, problems are elicited from the in chronological order. After completing the details for acute complaints, probe into the patient’s past medical history, including present medications and pre-morbid functional capacity. Diseases in the family such as hypertension, diabetes, heart disease, early cardiac death and other heredofamilial diseases should be elicited as part of the family medical history. History of allergic reactions to drugs and food should always be elicited. Dietary habits, smoking history, alcohol intake and illicit drug use should also be included in the personal and social history. Likewise, female patients should be asked about details on menstruation and pregnancy.
The comprehensive history is followed by the systematic physical examination (PE). This starts with a general survey followed by checking the patient’s vital signs. Permission should always be asked from the patient before doing any maneuver, especially the more intrusive ones. A complete PE is carried out with special focus on certain procedures pertinent to the identified problems of the patient.
III. WRITING THE ORDERS
With the information obtained from the history and PE, a prioritized problem list is then created, with the most urgent conditions listed first. Based on the problem list, the management list is then outlined.
The orders for the patient usually contain the following:
Diet Dietary preparations (i.e., general liquids, soft diet, full diet) and specific dietary prescriptions (i.e., low-salt, low-fat, low-purine, DAT)
Fluids and Drips Main IV lines (i.e., plain saline, D5-containing fluids) and side drips (i.e., vasopressors, electrolyte solutions)
Monitoring BP, HR, RR, temperature, peripheral O2 saturation, neurologic vitals, etc.)
Frequency by which these parameters are checked (i.e., q hourly, q4h, q shift)
Diagnostics Prioritized list of diagnostic procedures such as imaging, blood tests and special procedures Therapeutics Medications with corresponding doses, frequency of dosing, duration and side effects to
watch out for
Transfusions
Blood products, the amount to be transfused, rate of transfusion and interval between transfusions
Pre-medications and side effects to watch out for
Anticipatory measures: diuretics for possible congestion, anti-pyretics for febrile transfusion reactions
3
DATE/TIME6/10/2015 7:30am
PHYSICIAN’S ORDER SHEET Gen Med
Diagnosis: Community acquired pneumonia, moderate risk Hypertension, stage I, controlled
Diet: Low salt, low fat diet; limit oral fluid intake <1.5L day IVF: PNSS 1L x 10 hours
Side drip1: MgSO4 2g in 250cc D5W x 24 hours
Dx: Chest X-Ray (PA and lateral views) Complete blood count
Tx:
1. Ceftriaxone 2g IV q24h
2. Azithromycin 500mg/tab 1 tab OD for 3 days 3. Losartan 50mg/tab 1 tab PO OD
Monitor VS q4 with temp and O2 sat Monitor I&O q shift and record
Refer to dietary for dietary prescription and advice Watch out for desaturation and BT reaction
Jaime Aherrera MD Lic. No. 123456 IV. PRESENTING THE CASE
A. General data – begin with the name, followed by the age, sex, chief complaint, reason for admission, and date of admission or referral
“Juan dela Cruz, 28 years old male, admitted yesterday morning for dyspnea.”
B. History of present illness – review of systems and pertinent information from the past medical, family medical, personal/social, and obstetric (if applicable) histories
C. Significant diagnostic findings and their interpretations, including pertinent normal findings to rule out the differentials being considered by the team
D. Hospital course – emphasize the developments or important events that happened to the patient E. Case summary – two or three sentences
F. Assessment/problem list
G. Plan – based on the assessment/problem list; detailed and specific. Orders for the patient should have their bases and the expected laboratory findings or trends should be known
4
SECTION 2
CORE SKILLS IN INTERNAL MEDICINE
ELECTROCARDIOGRAPHY
I. THE STANDARD 12-LEAD ELECTROCARDIOGRAM (ECG) A. Limb leads
Standard limb (Bipolar) leads: I, II, III
Augmented limb (Unipolar) leads: aVF, aVR, aVL B. Chest leads
V1 4th ICS, right parameter border V2 4th IC, left parasternal border
V3 Between V2 and V4
V4 5th ICS, left midclavicular line V5 5th ICS, left anterior axillary line V6 5th ICS, left midaxillary line
5
III. BASIC STEPS IN ECG READINGStep 1: Determine rate Step 2: Determine rhythm Step 3: Measure intervals Step 4: Determine axis
Step 5: Look for chamber enlargements
Step 6: Check for arrhythmias and other abnormalities
STEP 1: DETERMINE HEART RATE
Regular Rhythm
1500_____________
Heart Rate = # of small squares from R to R
Irregular Rhythm
Heart Rate = # of QRS complexes within 30 large boxes x 10
STEP 1: DETERMINE RHYTHM
Regular Sinus Rhythm
Rhythm is determined by the sinus node, which fires at 60-100 bpm
P-wave is normally upright in lead II (and usually in leads I, aVL and aVF)
Each p-wave is followed by a QRS complex, and each QRS complex is preceded by a p-wave
The distances between the R-R intervals should be equal
Sinus Tachycardia and Bradycardia
Tachycardia: HR >100bpm
Bradycardia: HR <60bpm Sinus Arrhythmia
SA node discharges irregularly (sinus node rate varies with the respiratory cycle)
Rate: normal
Rhythm: varies with respiration, variation in the P-P interval and R-R interval >120 msecs
6
STEP 3: MEASURE INTERVALSNormal Values
Wave/Interval Description Normal Values
P-wave Atrial depolarization < 0.12 sec or <120 msec (<3 small boxes) PR interval Conduction within the AV node 0.12-0.20 sec or 120-200 msec (3-5 small boxes) QRS duration Ventricular activation < 0.11-0.12 sec or <110-120 msec (<3 small boxes) QT interval (QTc) Ventricular activation and recovery 0.35-0.43* (males) and 0.45* (females)
*may vary depending on reference
*Source: Kasper DL, et al. Harrison’s Principle of Internal Medicine, 19th edition
Corrected QT-interval (QTc) using the Bazett’s formula
Done to adjust for abnormal heart rates (HR <60 or >100 bpm)
QT actual
Corrected QT interval =
R-R interval in sec
STEP 4: DETERMINE AXIS
Computation of Frontal Axis
Deduct negative deflections form positive deflections in QRS complexes to derive the values for leads I and aVF.
If lead I is a negative integer, subtract the computed axis from 180 to get the final axis.
Note that the value for aVF in the denominator is the absolute value, while that in the numerator takes the sign (positive or negative) into consideration. This is why a predominantly negative deflection in aVF will make the axis negative.
____90 aVF____
Axis = | I | + | aVF
Interpretation Normal Axis -30o to 100o Right Axis Deviation (RAD) 100o to 180o
Left Axis Deviation (LAD) -30oto -90o
Extreme Axis Deviation -90o to -180o “Eyeballing” method – can be used to estimate axis
INTERPRETATION LEAD I LEAD aVF
Normal QRS pointing UP QRS pointing UP
Left Axis Deviation QRS pointing UP QRS pointing DOWN
Right Axis Deviation QRS pointing DOWN QRS pointing UP
Extreme Axis Deviation QRS pointing DOWN QRS pointing DOWN
STEP 5: LOOK FOR CHAMBER ENLARGEMENTS
A. Atrial Enlargement
Right Atrial Enlargement (RAE)
Peaked P-wave with > 2.5mm amplitude (> 2.5 small boxes) in leads II, III or aVF
“P-Pulmonale” or peaked P-wave from pulmonary causes
Left Atrial Enlargement (LAE)
Broad P-wave (> 120ms or > 3 small boxes)
Biphasic P wave in V1 with a broad negative component
Often notched P-wave in one or more limb leads
7
B. Left Ventricular Hypertrophy (LVH)SOKOLOW-LYON CRITERIA CORNELL CRITERIA
[S in V1] + [R in V5 or v6] > 35 mm (>35 small boxes) OR R in aVL>11mm S in V3 + R in aVL: Female > 20mm Male > 28mm
C. Right Ventricular Hypertrophy (RVH)
Relatively tall R wave in lead V1 (R > S wave) with right axis deviation
R in V1 > 0.7mV
R/S in V1 > 1 with R > 0.5 mV
R/S in V5 or V6 < 1 IV. ARRYTHMIAS
JUNCTIONAL AND IDIOVENTRICULAR RHYTHMS
A. Junctional (Atrioventricular) Rhythm
Pacemaker: AV junction with a ventricular rate of 40 to 60 bpm
P wave: may appear before, after, or buried within the QRS complex
Rhythm (RR-interval): regular
QRS complex: narrow (<0.12 sec)
B. Idioventricular Rhythm
Pacemaker: Hiis-Purkinje system (HPS) with a ventricular rate between 15 to 40 bpm
P wave: absent
Rhythm (RR interval): regular
8
DISORDERS OF SINUS RHYTHM
A. Sinus Pause
Temporary cessation of sinus node activity
May be synonymous with sinus “arrest” – which pertains to a prolonged sinus pause (definition is arbitrary)
Difference from sinus exit block: the supposed P-P interval of the dropped beat is not a multiple of the normal P-P interval
B. Sinus Exit Block
Failure of impulse transmission
No visible P-QRS-T complex for >1 cycle, wherein the P-P interval of the pause is a multiple of the normal P-P interval (differentiating it from sinus pause)
ATRIOVENTRICULAR (AV) BLOCKS
A. First Degree AV Block
Prolonged PR interval (>0.20 sec or >5 small boxes)
P-wave is followed by a QRS complex
B. Second Degree AV Block, Mobitz Type I (Wenckebach)
PR interval progressively lengthens, then the impulse is blocked (P is not followed by QRS, resulting in a dropped beat)
9
C. Second Degree AV Block, Mobitz Type II PR intervals of
conducted beats are constant in length, however, beats are dropped with no warning
PR intervals may be normal or prolonged D. High Grade AV Block
2 out of every 3 or more impulses from the atria are blocked by the AV node and fail to reach the ventricles
PR intervals are constant (in contrast to complete heart block)
E. Third Degree (Complete) AV Block
P and QRS waves occur regularly but are independent of each other
No consistent
relationship between atrial and ventricular activity (AV Dissociation)
PP intervals and RR intervals are constant
10
ATRIAL ARRHYTHMIAS
A. Premature Atrial Contractions (PAC)
Premature P-waves (earlier than the next expected sinus P-wave)
P-wave has a different morphology compared to the sinus P-wave since this P-wave is coming from a different atrial focus
QRS is usually narrow B. Atrial Fibrillation (AF)
Description: Rapid,
erratic electrical discharge from multiple atrial ectopic foci
Rate: atrial rate >350
bpm; ventricular rate varies Rhythm: irregularly irregular P-waves: no discernable P-wave QRS: usually normal C. Atrial Flutter Description: Re-entrant
circuit within the atria, with variable conduction of impulses through the AV node to the ventricles
Rate: atrial rate is
250-350 bpm; ventricular rate varies Rhythm: variable (depending on conduction) P-waves: saw-tooth appearance QRS: usually normal D. Wandering Pacemaker Description: impulses
originate from different foci in the atrium
Rate: normal Rhythm: irregular P-waves:> 3 different forms PR interval: variable QRS: normal
11
E. Multifocal Atrial Tachycardia (MFAT) Rate: Fast; Irregular
atrial rate (> 100) Rhythm: irregular P-wave: >
3 different
forms
PR interval: variable QRS: normalSUPRAVENTRICULAR TACHYCARDIA (SVT)
Arrhythmia has such afast rate that the P waves may not be seen
Rate: 150-250 bpm
Rhythm: regular
P waves: frequently
buried in preceding T waves
QRS: normal, but may
be wide if abnormally conducted through ventricles (aberrant conduction)
Atrioventricular Nodal Reentrant Tachycardia (AVNRT)
Most common form of SVT
Narrow QRS tachycardia with a short RP interval – P-waves buried in the QRS complex
May have a “pseudo-S” wave (which is actually a retrogradely conducted P wave) in inferior leads or “pseudo-R prime” in V1
VENTRICULAR ARRHYTHMIAS
Wide QRS tachycardias (>120 ms or 3 small squares): usually ventricular in origin
Differentials for wide QRS tachycardia
o Ventricular tachycardia (VT): more common o Supraventricular tachycardia (SVT) with aberrancy
When faced with a wide-complex tachycardia and the morphology is in question, it is safer to treat as ventricular tachycardia (the more life-threatening differential)
A. Premature Ventricular Contractions (PVC)
Prematurely occurring QRS complex which is wide and bizarre-looking
Usually no preceding P-wave
T wave opposite in
12
complexTrigeminy: PVC occurs after every 2 sinus beats
Couplet: two successive PVCs (if three successive PVCs, it is already considered unsustained VT)
B. Ventricular Tachycardia (VT) 1. VT According to Morphology a. Monomorphic Ventricular Tachycardia
Rapid, bizarre wide QRS complex (appearance of all the beats match each other in each lead)
No P-wave Ventricular focus produces a rapid sequence of PVC-like wide ventricular complexes b. Polymorphic Ventricular Tachycardia (Torsades de Pointes) Beat-to-beat variations in appearance Baseline rhythm demonstrates long QT interval Presents with an oscillating pattern mimicking the “turning of the points” stitching pattern
2. VT According to Duration
a. Sustained: ventricular tachycardia that lasts for more than 30 seconds
b. Non-sustained: ventricular tachycardia that self-terminates within 30 seconds (presence of at least >3 successive PVCs is considered VT)
3. VT Based on Symptoms
a. Pulseless VT: no effective cardiac output (no pulse, no BP) defibrillate (treat as ventricular fibrillation) b. Unstable VT: with pulse, but unstable BP cardioversion
13
C. Ventricular Fibrillation (VF) Associated with coarse or fine chaotic undulations
No P-wave
No true QRS complexes
PACEMAKER RHYTHM
A. Ventricular Paced Rhythm
RR interval is regular
QRS complex is wide with an LBBB morphology
Pacemaker spike (“blip”) is followed by a wide QRS complex (good capture)
B. Atrial Paced Rhythm
Atrial pacing appears on the ECG as a single pacemaker stimulus followed by a P wave
PR interval and configuration of the QRS complex are similar to those seen in a sinus rhythm
14
V. OTHER ABNORMAL FINDINGSISCHEMIA
Findings suggestive of ischemia(should be in 2 or
more contiguous leads)
ST segment depression > 1mm (> 1 small box)
Deep T-wave inversions > 5 mm (> 5 small boxes)
For example, if there are ST segment
depressions of >1mm in lead V5 and V6: then we can say that there is lateral wall ischemia. If ST segment depressions occur in V3 to V6: then we can say there is anterolateral wall ischemia.
The Contiguous Leads
II, III, aVF Inferior wall
I, aVL High lateral wall
V1, V2 Septal wall
V3, V4 Anterior wall
V5, V6 Lateral wall
V1 – V3 Anteroseptal wall
V3 – V6, I, aVL Anterolateral wall V5, V6, II, III, aVF Inferolateral wall Almost all leads Diffuse, massive V3R, V4R (right-sided
leads)
Right ventricular wall
INFARCTION
A. Findings suggestive of injury or infarction
Significant ST elevation:manifestation of myocardial necrosis; the earliest sign of acute infarction
> 1 mm ST elevation in contiguous limb leads, or
> 2 mm ST elevation in contiguous chest leads B. Pathologic Q-Waves
Indicate myocardial necrosis
Significant Q-wave: > 0.04 secs duration and > 25% of the R wave amplitude
Ignored in lead V1 unless with abnormalities in other precordial leads
Ignored in lead III unless with abnormalities in leads II and aVF C. Classification as to Timing of Myocardial Infarction
CLASSIFICATION TIMING ECG FINDINGS
(A) Normal
(B) Acute MI Minutes to hours ST elevation + peaked or inverted T-waves + Q waves (C) Recent MI Hours to days Q-waves +ST elevation + T-wave inversion
(D) Old MI Days to months Q-waves + Isoelectric ST-segment + T-wave inversion
D. Posterior LV wall involvement
Posterior wall ischemia, which is usually associated with lateral or inferior involvement, may be indirectly recognized by reciprocal or “mirror-image” ST depressions in leads V1 to V3
The posterior LV wall electrical activity is not represented in a typical standard surface ECG
The anteroseptal leads (V1 to V3) are directed form the anterior precordium pointing towards the internal surface of the posterior myocardium
E. Reciprocal Changes
Pertains to ST-depression in leads opposite those demonstrating ST-elevation
“Ischemia at a distance”
Anterior MI: reciprocal change in inferior wall
Inferior MI: reciprocal change in I, aVL, or anterior wall
15
PULMONARY EMBOLISM (PE)
McGinn-White sign: S1Q3T3 pattern (large S-wave in lead I, Q-wave in lead III, and inverted T-wave in lead III) indicating acute right heart strain
Sinus tachycardia: most commonly cited abnormality
T wave inversion on leads V1-V4: another most commonly cited abnormality (due to RV strain)
Right bundle branch block
Low amplitude deflections
ELECTRICAL ALTERNANS
Beat to beat variation in the QRS amplitude
Seen in massive pericardial effusion and/or cardiac tamponade
BUNDLE BRANCH BLOCKS
V1 V6
Normal
RBBB
16
A. Left Bundle Branch Block (LBBB) QRS duration >0.12 sec (complete LBBB)
If <0.12 sec, then it is considered incomplete LBBB
Broad, notched, or slurred R-waves in leads I, aVL, V5 and V6
Small or absent initial R-waves in right precordial leads (V1 and V2) followed by deep S-waves
Absent septal Q-waves in leads I, V5 and V6
B. Right Bundle Branch Block (RBBB)
QRS duration >0.12 sec (complete RBBB)
If <0.12 sec, then it is considered incomplete RBBB
Slurred S-wave in leads I and V6
RSR pattern in V1 (“bunny ears”)
PERICARDITIS
Acute Pericarditis
A. Stages of Pericarditis
Stage 1: Widespread ST elevation and PR depression with reciprocal changes in aVR (first two weeks)
Stage 2: Normalization of ST changes; generalized T wave flattening (1 to 3 weeks)
Stage 3: Flattened T waves become inverted (3 to several weeks)
17
B. Pericarditis versus Myocardial InfarctionPERICARDITIS MYOCARDIAL INFARCTION
ST elevation
Diffuse ST elevations which are concave upward ST elevations which are convex upward
T-waves T-wave usually not inverted unless ST is
isoelectric
T-waves may begin to invert before ST becomes isoelectric
Q-waves Usually absent Present
Reciprocal Change Unusual Common
PR depression Usually present Absent
WOLFF PARKINSON WHITE (WPW) PATTERN
Pre-excitation pattern: atrial impulse activates theventricle earlier than would be expected if the impulse traveled by way of the normal AV conduction system
o Triad of WPW: PR interval <120 msec, QRS >120 msec, (+) delta wave (slurred upstroke or initial portion of QRS complex) o Secondary ST-T wave abnormalities
opposite that of the delta wave and QRS forces
ARRHYTHMOGENIC RV DYSPLASIA (ARVD)
Epsilon wave: a small positive deflection (‘blip’)buried at the end of the QRS complex, representing delay in depolarization of the right ventricular (RV) free wall and outflow tract
Epsilon waves, found in 50% of patients with ARVD, are due to the slowed intraventricular conduction, hence the terminal notch in the last 1/3 segment of the QRS complex (which represents the right ventricular activation)
BRUGADA ECG PATTERN
Type 1 Prominent coved ST-elevation displaying J-point amplitude or ST-elevation >2mm, followed by a negative T-wave
Type 2 >2 mm J-point elevation, >1 mm ST-elevation and a saddleback appearance, followed by a positive or biphasic T-wave
18
DEXTROCARDIA (“Right Sided Heart”)
Absent R-wave progression in the chest leads (dominant S-waves throughout)
Predominantly negative P-wave, QRS complex, and T-wave in lead I
Low voltage in leads V3-V6 (because these leads are placed on the left side of the chest)
Accidental reversal of the left and right arm electrodes may produce a similar ECG pattern in the limb leads but with normal QRS morphology in the precordial leads
OTHER ECG FINDINGS
Non-specific ST-T wave changes
T-wave inversion, ST segment depression/elevation not fulfilling the criteria for ischemia or infarction (as outlined above): flattened or slightly inverted T-waves, ST segments slightly above or below the isoelectric line
Poor R wave progression R-wave in leads V1-V3 is < 3 small boxes
Normal R-wave in V4-V6 Low voltage complexes
QRS complexes <5 small boxes in limb leads or < 10 small boxes in chest leads
Example: COPD, anasarca, obesity, myocarditis, moderate-sized to massive pericardial effusions
Electrolyte abnormalities
Hypokalemia Prominent U wave + flattened T wave Hyperkalemia Peaked T-waves > 10 mm, wide QRS, sine
wave pattern
Hypocalcemia Prolonged QT interval
Hypercalcemia Shortened QT interval
CHEST RADIOGRAPH INTERPRETATION
I. BASIC STEPS IN READING CHEST X-RAYS (CXR)
Step 1: Identify general data
Step 2: Determine view (PA, AP, lateral, decubitus) Step 3: Assess quality of film
19
STEP 1: IDENTIFYING GENERAL DATA OF THE PATIENT Patient name
Date/Time CXR was taken
Diagnosis of patient
Indication for CXR
STEP 2: DETERMINING THE VIEW
Postero-Anterior View (PA) Antero-Posterior View (AP)
Scapula winged out, ribs and clavicles more angulated Scapula not winged out; clavicles more horizontal Arms at an angle with the body, with hands at waist Arms parallel to body
Mongolian hat sign appreciated
(formed by the C7 and T1 spinous + transverse processes)
Mongolian hat sign not appreciated
Heart not magnified Heart and other structures magnified
STEP 3: ASSESSING THE QUALITY OF THE FILM
Inclusion Apices of the lungs to the costophrenic angles should be adequately visualized Inspiratory Effort One should count >8 intercostal spaces, 6-8 anterior ribs, 9-11 posterior ribs
Exposure Upper four thoracic vertebrae should be visualized Obliquity Medial ends of both clavicles equidistant from midline
The spinous process of the thoracic vertebra should be in the midline
STEP 4: ASSESSING ANATOMY AND ABNORMALITIES
A. General Structure
Soft tissues and bones: soft tissue swellings, rib fractures, breast shadow, osteopenia/osteoporosis
Trachea and mediastinum: carinal angle, tracheal position, mediastinal widening, masses
Vessels: aortic knob and pulmonary arteries
Diaphragm: right hemidiaphragm is usually higher than the left
B. The Heart
Assess CT ratio: >0.50 in PA view suggests cardiomegaly
Cardiomegaly cannot be definitively ascertained on AP films, due to the possibility of magnification effects
CHAMBER PA FILM LATERAL FILM
Left ventricular enlargement
Apex displaced inferiorly and laterally (drooping apex)
Obliteration of retrocardiac space
Right ventricular enlargement
Apex displaced superiorly and laterally (uplifted apex)
Obliteration of retrosternal space
Left atrial enlargement
Prominence of left atrial appendage
Loss of cardiac waistline
Widening of carinal angle (>70o)
Double density sign on right cardiac border
Posterior displacement of the left mainstem bronchus on lateral film
Right atrial enlargement
Bulging right heart border (height >1/2 of right cardiac silhouette and width 1/3 of right hemithorax)
N/A
C. The Lungs
CP angle: blunting suggests minimal pleural effusion
Pleura: check for pneumothorax, lesions
Parenchyma: check for opacities, densities, infiltrates
20
o Right Lung (3 lobes): Right upper lobe (RUL) + right middle lobe (RML) + right lower lobe (RLL)o Left lung (2 lobes): Left upper lobe (LUL) + lingula + left lower lobe (LLL) II. COMMON CHEST X-RAY PATHOLOGIES
Aortic Aneurysm Mediastinum >30% of thoracic diameter, or mediastinum >8-10 cm Atelectasis
Density in the area of the collapsed lung
Displacement of interlobular fissures (direct sign)
Surrounding structures deviated to the side of the collapsed lung (ipsilateral mediastinal shift)
Crowding of vessels/bronchi
Ipsilateral diaphragmatic elevation
Bronchiectasis Appears as “bunches of grapes” (ring shadows)
Tram-track lines
Consolidation Inhomogenous opacities
Prominent air bronchogram sign COPD/Emphysema Hyperaerated lungs Flattened hemidiaphragms Tubular heart Occasionally, bullae Fibrosis
Decreased lung volume
Shift of mediastinum and surrounding structures towards fibrotic area
Blurred heart border or diaphragm with indistinct vascular markings in the areas of fibrosis
Fungus Ball Homogenous round opacity with a crescent sign
Hamartoma Popcorn ball lesion
Pericardial Effusion Generalized enlargement of the cardiac shadow (“water bottle sign”) with normal vascular markings
Pleural Effusion Blunting of costophrenic angles
Meniscus sign
Pneumomediastinum Presence of gas between the mediastinal structures Pneumoperitoneum Presence of gas underneath the diaphragm
Pneumothorax
Hyperlucent pulmonary area
Loss of vascular markings beyond the visceral pleural line
Mediastinal structures deviated to contralateral side (tension pneumothorax) Pulmonary edema
Prominent hilar vessels (hilar fullness) in a bat-wing distribution
Cephalization of vessels
Kerley B lines Pulmonary Metastasis Cannon ball lesions
ARTERIAL BLOOD GAS (ABG) INTERPRETATION
I. BASIC STEPS IN ABG INTERPRETATION
Step 1: Determine the primary acid-base disorder and whether compensation is appropriate Step 2: Check for secondary acid-base disorders
Step 3: Compute for anion gap and / when needed Step 4: Check oxygenation status
21
STEP 1: DETERMINE THE PRIMARY ACID-BASE DISTURBANCE AND APPROPRIATE COMPENSATIONA. Check the pH, HCO3 and pCO2 levels
NORMAL VALUES IN ARTERIAL BLOOD GAS
Arterial pH 7.40 + 0.05
pCO2 40 +2
HCO3 24 + 2
Anion gap 12 + 2
B. Determine Primary Problem
To assess whether primary problem is respiratory or metabolic in origin, compare changes of HCO3and pCO2 from baseline
If the change in HCO3 from baseline is larger, then the problem is primarily metabolic and vice versa
Check pH Check HCO3& pCO2 PRIMARY DISTURBANCE
pH <7.4
HCO3> CO2 Metabolic acidosisCO2>HCO3 Respiratory acidosis
pH >7.4
HCO3> CO2 Metabolic alkalosisCO2> HCO3 Respiratory acidosis
C. Assess for appropriateness of compensation using the following formulas
PRIMARY DISORDER COMPENSATION
Metabolic acidosis For every 1 meq/L FALL in HCO3,pCO2will DECREASE by 1.2 mmHg Metabolic alkalosis For every 1 meq/L RISE in HCO3,pCO2will INCREASE by 0.7 mmHg Respiratory acidosis For every 10 mmHg RISE in pCO2, HCO3will INCREASE by 1 meq/L Respiratory alkalosis For every 10 mmHg FALL in pCO2, HCO3will DECREASE by 2 meq/L
STEP 2: CHECK FOR SECONDARY ACID-BASE DISORDERS
A. In cases where there is inappropriate compensation, a secondary acid-base disorder should be considered
PRIMARY DISORDER COMPENSATION SECONDARY ACID-BASE DISORDER
Metabolic Acidosis
Actual reduction of pCO2 from baseline is
HIGHER than that of calculated compensation
Secondary RESPIRATORY ALKALOSIS is present
Actual reduction of pCO2 from baseline is LESS
than that of calculated compensation
Secondary RESPIRATORY ACIDOSIS is present
Metabolic Alkalosis
Actual increase of pCO2 from baseline is
HIGHER than that of calculated compensation
Secondary RESPIRATORY ACIDOSIS is present
Actual increase of pCO2 from baseline is LESS
than that of calculated compensation
Secondary RESPIRATORY ALKALOSIS is present
Respiratory Acidosis
Actual increase of HCO3 from baseline is
HIGHER than that of calculated compensation
Secondary METABOLIC ALKALOSIS is present
Actual increase of HCO3 baseline is LESS than
that of calculated compensation
Secondary METABOLIC ACIDOSIS is present
Respiratory Alkalosis
Actual decrease of HCO3 from baseline is
HIGHER than that of calculated compensation
Secondary METABOLIC ACIDOSIS is present
Actual decrease of HCO3 from baseline is LESS
than that of calculated compensation
Secondary METABOLIC ALKALOSIS is present
22
STEP 3: COMPUTE FOR ANION GAP AND / WHEN NECESSARYA. Formula for Anion Gap
Anion gap = Na – (HCO3 + Cl)
Normal anion gap is 8-12 High anion gap is >12 B. Usual Causes of Metabolic Acidosis are as follows:
HIGH-ANION GAP METABOLIC ACIDOSIS (HAGMA) NORMAL ANION GAP METABOLIC ACIDOSIS (NAGMA)
M: Methanol U: Uremia D: Diabetic ketoacidosis P: Paraldehyde I: Isoniazid, Iron L: Lactic acidosis
E: Ethylene glycol, Ethanol S: Salicylates
H: Hyperalimentation A: Acetazolamide R: Renal tubular acidosis D: Diarrhea
U: Uretero-pelvic shunt P: Post-hypocapnia C. Check for /
1. For High-Anion Gap Metabolic Acidosis (HAGMA)
Anion Gap
HCO
3 If=1, there is pure HAGMA
If <1, there is HAGMA + NAGMA
If >1, there is HAGMA + metabolic alkalosis 2. For Normal-Anion Gap Metabolic Acidosis (NAGMA)
Chloride
HCO
3 If=1, there is pure NAGMA
If <1, there is NAGMA + HAGMA
If >1, there is NAGMA + metabolic alkalosis D. Computing for Bicarbonate Deficit
HCO
3deficit = (desired HCO
3– actual HCO
3) x weight x 0.4
STEP 4: CHECK FOR OXYGENATION STATUS
STATUS PO2 LEVEL ON ABG
Hyperoxemia (more than adequate) >100 mmHg
Normoxemia 80-100 mmHg
Mild hypoxemia 60-79 mmHg
Moderate hypoxemia 45-59 mmHg
23
THORACENTESIS
MATERIALS METHOD Thoracentesis set Abbocath gauge #16 3 way stopcock Macroset/IV tubing Drapes 50cc syringe 10cc syringe Lidocaine 2% ampoules Clean (non-sterile) gloves
Sterile gloves Cotton Rubbing alcohol Betadine Sterile gauze Micropore Sterile specimen vials/bottles
1. Examine the patient and review available labs (CXR, CBC, blood chemistry,bleeding parameters)
2. Explain nature of procedure to patient and obtain consent
3. Extract simultaneous serum specimen for LDH, albumin, total protein and glucose 4. Position patient in sitting position with the mid-axillary line accessible for needle insertion 5. Confirm and mark topmost site of insertion by counting ribs based on CXR and percussing fluid level (usual site of insertion is at the 8th ICS posterior axillary line; alternatively, chest
UTZ with markings can be done)
6. Observe sterile technique including sterile gloves, betadine prep and drapes
7. Anesthetize skin over insertion site with 2% Lidocaine, including superior surface of the rib and pleura
8. Insert thoracentesis needle perpendicularly through the anesthetized area to the same depth as the first needle and observe backflow of pleural fluid
9. Once with backflow, leave catheter in place, remove needle and attach three-way stopcock & tubing
10. Aspirate needed amount, then turn the stopcock and evacuate fluid through the tubing (do not remove more than 1.5L to avoid increased risk of re-expansionpulmonary edema or
hypotension)
11. Fill specimen tubes/containers and label properly
12. When draining of fluid is complete, have patient take a deep breath or ask patient to cough and gently remove needle
13. Cover insertion site with sterile occlusive dressing
14. Send specimen for qualitative studies (pH, specific gravity, cell count and differentials, protein, LDH, albumin, glucose), gram stain and culture, AFB smear and additional studies as necessary (i.e., cytology for malignancy, amylase for pancreatitis, triglycerides for
chylothorax)
15. Monitor patient closely and watch out for untoward reactions (chest pain, dyspnea, cough, infection)
16. Obtain upright CXR to evaluate lung expansion/fluid level and rule out pneumothorax 17. Provide post-procedural analgesics as necessary
18. Document procedure, patient response, side effects, nature of fluid drained and lab tests sent
PARACENTESIS
MATERIALS METHOD Abbocath gauge #16 Macroset/IV tubing Drapes 50cc syringe 10cc syringe Lidocaine 2% ampoules Clean (non-sterile) gloves
Sterile gloves Cotton Rubbing alcohol Betadine Sterile gauze Micropore
Sterile specimen vials/ bottles
1. Examine the patient and review available labs (CXR, CBC, blood chemistry,bleeding parameters)
2. Explain nature of procedure to patient and obtain consent 3. Have patient empty bladder prior to procedure
4. Extract simultaneous serum specimen for LDH, albumin, total protein and glucose 5. Assemble materials and prepare sterile field
6. Position patient in supine position with the trunk elevated 45 degrees
7. Confirm and mark the site of access (usually midline 3-4 cm below umbilicus, halfway between symphisis pubis and umbilicus)
8. Anesthetize skin over insertion site with 2% lidocaine, down to and including the peritoneum 9. Insert paracentesis needle perpendicularly through the anesthetized area to the same depth as the first needle and observe for backflow of fluid
10.Once with backflow, leave the catheter in place, remove needle and attach tubing draining into specimen needles
11.Remove the necessary amount of ascetic fluid
12. Monitor the patient for hypotension during the procedure
13. When draining of fluid is complete, remove needle and cover insertion site with sterile occlusive dressing
14. Fill specimen tubes/containers and label properly
15. Send specimens for qualitative studies (pH, specific gravity, cell count and differentials, LDH, protein, albumin, glucose), gram stain and culture, AFB smear and additional studies as necessary (i.e., cytology for malignancy)
16. Provide post-procedural analgesics as necessary
24
FOLEY CATHETER INSERTION
MATERIALS METHOD
Foley catheter with urine bag
Drapes
10cc syringe
1 vial syringe water
Clean (non-sterile) gloves
Sterile gloves
Cotton
Rubbing alcohol
Betadine
Lubricant (KY jelly)
Micropore
Sterile specimen bottles (if for urine collection)
1. Hand hygiene 2. Prepare materials
3. Identify patient by name and introduce self to patient 4. Explain nature of procedure
5. Provide as much privacy as possible 6. Position patient properly
7. Wash and rinse urethral area
8. Open foley catheter package, put aside but maintain sterile zone around foley catheter 9. Wear clean gloves
10.Clean urethral opening aseptically:
a. For male – in circular motions inside to out b. For female – follow a “7” figure then drop 11.Change to sterile gloves
12. Lubricate tip of catheter liberally
13. Attach drainage end of foley catheter to urine bag
14. Insert lubricated end of catheter into urinary meatus gently then push gently up until you are sure you are inside the bladder (usually up to the port where you inject water and there is urine backflow)
15. Observe for urine flow
16. Infuse 5-10ml of sterile water to inflate balloon 17. Pull foley catheter slowly until with some resistance 18. Secure foley catheter with tape
19. Dry patient’s perineum
20. Instruct patient on catheter care 21. Remove gloves 22. Hand hygiene
IV LINE INSERTION
MATERIALS METHOD IV cathula Macroset/IV tubing Clean (non-sterile) gloves
Tourniquet Cotton Rubbing alcohol Micropore Splint (optional) 1. Hand hygiene 2. Prepare materials
3. Identify patient by name and introduce self to patient 4. Explain nature of procedure
5. Wear clean gloves
6. Select position/site of venipuncture
7. Swab puncture site with alcohol on concentric circles inside to out 8. Apply tourniquet
9. Stabilize the selected site 10.Insert needle bevel up 11.Observe for blood backflow
12. Remove needle while pushing cathula further into the vein
13. Attach infusion set quickly while pressing on vein to prevent excessive escape of blood 14. Release tourniquet
15. Try running the IV line to check that fluid infuses continuously and there is no bulging at the insertion site
16. Cover the insertion site with a 1x1 sterile gauze and tape securely 17. Loop tubing and secure with tape
18. Apply splint
19. Instruct the patient on care of IV site 20. Discard sharps properly
21. Remove gloves 22. Hand hygiene
25
SECTION 3
NORMAL LABORATORY VALUES AND CONVERSION FACTORS
COMPLETE BLOOD COUNT (CBC)
Monocytes: Neutrophils: 0.02-0.09 Hemoglobin: 0.50-0.70 120-180g/L Platelets: 12.0-18.0 g/dL WBC: 150-450 x 109/L 4-11 x 109/L 150-450 x 103/mm3 4-11 x 103/mm3 Hematocrit: Eosinophils: 0.37-0.54 0.00-0.06 Lymphocytes: Basophils: 0.20-0.50 0.00-0.02 RBC MCV MCH MCHC RDW-CV Reticulocytes 4-6 x 1012/L (106/mm3) 80-100 fL 27-31 pg 320-360 g/L 11-16% 0.005-0.015
BLOOD CHEMISTRY
LABORATORY SI CONVENTIONAL Glucose 3.9-6.1 mmol/L 75-100 mg/dL BUN 2.6-6.4 mmol/L 7-20 mg/dL Creatinine 53-115 umol/L 0.6-1.3 ng/mL Sodium 136-146 mmol/L 136-146 mEq/L Potassium 3.5-5.2 mmol/L 3.5-5.2 mEq/LChloride 100-108 mmol/L 100-108 mEq/L Calcium 2.12-2.52 mmol/L 8.7-10.2 mg/dL Magnesium 0.70-1.00 mmol/L 1.5-2.3 mg/dL Phosphorus 0.81-1.4 mmol/L 2.5-4.3 mg/dL Total protein 64-83 g/L 6.4-8.3 g/dL Albumin 34-50 g/L 3.4-5.0 g/dL Globulin 23-35 g/L 2.3-3.5 g/dL
AST (SGOT) 15-37 U/L 15-37 U/L
ALT (SGPT) 30-65 U/L 30-65 U/L
Alkaline phosphatase
36-92 umol/L 36-92 umol/L Total bilirubin 0-17.1 umol/L 0.3-1.3 mg/dL Direct bilirubin 0-5.00 umol/L 0.1-0.4 mg/dL
Indirect bilirubin 3.4-13.7 umol/L 0.2-0.9 mg/dL
Uric acid 0.13-0.44
umol/L
3.1-7.0 mg/dL
Ammonia 11-35 umol/L 19-60 ug/dL
Amylase 0.34-1.6 ukat/L 30-110 U/L
LABORATORY SI CONVENTIONAL Lipase 0.51-0.73 ukat/L 23-300 U/L LDH 2.0-3.8 ukat/L 100-190 U/L CRP 0.2-3.0 mg/L 0.2-3.0 mg/L RF < 30 kIU/L < 30 kIU/mL Free T4 10.3-21.9 pmol/L 0.8-1.7 ng/dL Free T3 3.7-6.5 pmol/L 2.4-4.2 pg/mL TSH 0.34-4.25 mIU/L 0.34-4.25 uIU/mL PSA < 40 y/o 0.0-2.0 ug/L 0.0-2.0 ng/mL PSA > 40 y/o 0.0-4.0 ug/L 0.0-4.0 ng/mL
AFP 0.0-8.5 ug/L 0.0-8.5 ng/mL CA 125 0-35 kU/L 0-35 U/mL CA 19-9 0-37 kU/L 0-37 U/mL CEA (nonsmokers) 0-3.0 ug/L 0-3.0 ng/mL CEA (smokers) 0-5.0 ug/L 0-5.0 ng/mL
CK-total 55-170 U/L 55-170 U/L
CK MB 0-16 U/L 0-16 U/L
CK MM 8-97 U/L 8-97 U/L
26
URINE STUDIES
URINALYSIS
Color Yellow, clear/hazy
Specific gravity 1.016-1.022 pH 4.6-6.5 Sugar, Albumin (-) RBC 0 / 0-2 / hpf WBC 0-2 / 0-5 / hpf
Casts Hyaline, coarse, fine, granular, waxy
Crystals Small amounts
Epithelial cells Small amounts
Bacteria (-)
Mucus thread Small amounts
24 HOUR URINE CHEMISTRY
Total volume 500-2000cc Creatinine 0.65-0.70 g/L or 8.8-14 mmol/d Total protein 0-0.1 g/24hr or < 100 mg/d Na+ 80-260 mmol/L K+ 25-100 mmol/L Cl- 80-340 mmol/L
Uric acid 4.42-5.9 mmol/24hr
CA2+ 2.5-7.5 mmol/24hr
Phosphorus 22.4-33.6 mmol/24hr
Amylase 64.75-490.25 U/L
Mucus thread Small amounts
Microalbumin N: 0.0-0.03 g/d Microalbuminuria: 0.03-0.30 g/d Clinical albuminuria: >0.3 g/d
EQUIVALENT VALUES
To convert to mg/dL PARAMETER FACTOR RBS (mmol/L) Multiply by 18BUN (mmol/L) Multiply by 2.8
Creatinine (umol/L) Divide by 88.4
Calcium (mmol/L) Divide by 0.25
Magnesium (mmol/L) Divide by 0.411
Bilirubin (umol/L) Divide by 17.10
Uric acid (umol/L) Divide by 59.48
HDL or LDL (mmol/L) Divide by 0.0259
Triglycerides (mmol/L) Divide by 0.0113
Equivalent values of common interventions
INTERVENTION EQUIVALENT 1 cc 10% oral KCl 1.33 meqs K+ 15 cc 10% oral KCl 20 meqs K+ 30 cc 10% oral KCl 40 meqs K+ Kaliumdurule (750mg) 10 meqs K+ 1 medium sized banana Roughly 7-10 meqs K+ NaHCO3 50mL 45 meqs Na+ NaHCO3GrX tab (650 mg)
7.7 meqs Na+per tab
NaCl tab (1g) 17 meqs Na+ per tab
Normal saline solution (1L)
27
SECTION 4
INTRAVENOUS FLUIDS
INTRAVENOUS FLUIDS AND COMMON INDICATIONS
I. BASIC TYPES OF INTRAVENOUS FLUIDS
IV FLUIDS DESCRIPTIONS EXAMPLES
Crystalloids
Balanced salt / electrolyte solutions which may be isotonic, hypertonic or hypotonic
Normal saline (0.9% NaCl), lactated Ringer’s, hypertonic saline (3, 5, 7.5%), Ringer’s solution
Colloids
High-molecular weight solutions which draw fluid into the intravascular component via oncotic pressure
Effective plasma expanders
Albumin, hetastarch, pentastarch, plasma and dextran
Free H2O solutions
Provide water that is not bound by macromolecules or organelles, thus is free to pass through membranes
D5W (5% dextrose in water), D10W, D20W, D50W, D50-50, dextrose/ crystalloid mixes
Blood products Essentially are also considered colloids
Whole blood, pRBC, FFP,
cryoprecipitate, platelet concentrate II. COMPOSITION OF INTRAVENOUS FLUIDS
IV FLUID Glucose Na+ Cl- K+ CA2+ HCO
3 COMMENTS
D5W 50 gm/L
Useful in dehydrated states and hypernatremia
Can be used as diluents
D10W 100 gm/L Used to correct hypoglycemia
0.9 NSS 154 154 Fluid of choice for initial resuscitation
Can be used as diluents D5 0.9 NSS 50 gm/L 154 154
Same as 0.9 NSS but with additional glucose
Useful for patients on NPO
LR 130 109 4 3 28 Useful for trauma, surgery and burn
patients
NR 140 98 5
D5NM 50 gm/L 40 40 13
Routine fluid and electrolyte maintenance with minimal carbohydrate calories
D5NMK 50 gm/L 40 40 30 Same as D5NM but with additional
potassium content III. USUAL INDICATIONS FOR IV FLUID ADMINISTRATION
Maintain normal blood pressure: normal or isotonic saline is the initial fluid of choice
Return the intracellular (ICF) volume to normal
o In patients with acute hyponatremia, the ICF volume in the brain rises and could become dangerous high with more prominent decline in plasma sodium hypertonic saline usually given to raise the plasma sodium
o When there is a large water deficit in the ICF compartment (e.g. severe hypernatremia), electrolyte-free water (D5W) is given
Replace ongoing renal losses
Give maintenance fluids to match insensible losses
28
IV. COMMONLY USED INTRAVENOUS FLUIDS1. Normal Saline (0,9% NaCl, pNSS)
Least expensive and most commonly used resuscitative crystalloid
High Cl content imposes on the kidneys an excess Cl load that cannot be rapidly excreted risk of hyperchloremic acidosis
The only solution that may be administered with blood products
Does not provide free water or calories 2. Lactated Ringer’s (LR) Solution
Lactate is converted readily to bicarbonate in the liver
Minimal effects on normal body fluid composition and pH
Most closely resembles the electrolyte composition of normal blood serum
Does not provide calories 3. D5W or ¼ Normal Saline
Provides 170 calories/L from 5% dextrose
Provides free water for insensible losses and some sodium to promote renal function and excretion
With added potassium, this is an excellent maintenance fluid in the immediate postoperative period
Prevents excess catabolism and limits proteolysis 4. Hypertonic Saline (3% NaCl)
1026 mOsm/L, 513 mEq/L Na+
Increases plasma osmolality and thereby acts as a plasma expander, increasing circulatory volume via movement of intracellular and interstitial water into the intravascular space
Due to high sodium content, poses high risk of hypernatremia
Before proceeding to the next section, here are some general terminologies using drips:
cc/hr
equal to
mL/hr
equal to
ugtt/min
ugtt/min
(microdrops/min) divided by
4
is EQUAL TO
gtt/min
(drops/min)
dose (mcg / kg / min) x BW in kg x 60 min
Infusion rate (cc / hr) = solution concentration (mcg / cc)
dose of drug (mcg)_
solution concentration (mcg / cc) = volume of diluent (cc)
29
SECTION 5
COMMONLY USED DRIPS
FORMULATION AND COMPUTATION OF BASIC DRIPS
I. DOPAMINE
Generally used to augment BP and cardiac output in patients with cardiogenic shock
Dopamine releases norepinephrine from nerve terminals, which itself stimulates A1 and B1 receptors
Usually started at an infusion rate of 2-5 mcg/kg/min
Dose is increased every 2-5 minutes to a maximum of 20-50 mcg/kg/min A. Things to know about Dopamine:
Preparation One ampule contains 200 mg dopamine
Sample order Dopamine drip: 200mg dopamine (1 ampule) + 250 cc D5W to run for ____ cc/hr
Dopamine factor
For a formulation of 1 ampule (200mg) in 250 cc D5W factor, used is 13.3
For a formulation of 2 ampules (400mg) in 250 cc D5W factor, used is 26.6
NOTE: A more concentrated dose is usually chosen for patients who cannot tolerate fluid overload (e.g. patients with CHF, CKD)
B. Dopamine demonstrates varying Hemodynamic Effects based on the dose
DOSE MECHANISM OF ACTION EFFECT
< 2 mcg/kg/min Activates DA1 and DA2 receptors
Renal Vasodilation:
Vasodilation of splanchnic and renal vasculature
2-10 mcg/kg/min Activates B1-receptors
Inotropic:
Increase in cardiac output with little or no change in HR or SVR
> 10 mcg/kg/min
Effects on A1-receptors overwhelm the dopaminergic
receptors
Vasoconstrictor:
Vasoconstriction, leading to increase in SVR, LV filling pressures, and HR
Source: Fauci, et.al, Harrison’s Principles of Internal Medicine 19th edition, 2015.
C. Computation of Dopamine Drip Rate based on Desired Dose
mcg
Desired dose kg min x Body Weight (kg)
Dopamine drip rate (ugtt/min) = Dopamine factor
D. Sample computation
55/F patient, 45kg, admitted for cardiogenic shock with BP of 80/50 mmHg
If our desired dose is 10mcg/kg/min (chronotropic/inotropic dose) and we decide to give 400mg (2 amps) dopamine (factor is 26.6), the dopamine rate is computed as follows:
mcg
Dopamine drip rate (ugtt/min) =
10 kg min x 45 (kg) =
16.9 = 17 cc/hr = 17 ugtt/min
26.6
Sample chart order:30
Start dopamine drip: 400mg (2amps dopamine) + 250cc D5W x 17 cc/hr (dose of ~10 mcg/kg/min)
Titrate by 2-3 cc/hr to maintain BP > 90/60
E. Reverse computation: computing for the DOSE of dopamine being administered
Note that when reporting/endorsing a case, it is better to state the dose of dopamine that the patient is being given and not the drip rate. To compute for the specific dose, use the following formula
Dopamine drip rate ugtt x Dopamine factor
mcg min = min________________
Dopamine dose kg body weight (kg)
Example:
Patient is a 45-kg, 55/F, given 2 amps of Dopamine (200 mg/amp) in 250cc PNSS at a rate of 19 ugtts/min (or 19cc/hr). QUESTION: What is the dose of dopamine being given to the patient?
Dose given (in mcg/kg/min) = rate (in ugtt/min) x 26.6
= 19ugtt/min x 26.6 = 11.23mcg/kg.min
45 kg 45 kg
Answer: 11.23 mcg/kg/min is the dose being given to the patient at a rate of 19 ugtts/min (or 19cc/hr). Since
we are giving 11.23 mcg/kg/min, we have a vasoconstricting effect which is beneficial in a patient with septic
shock. If the patient is still hypotensive, we can increase the ugtt/min (titrate) up 34 ugtt/min (20mcg/kg/min)
for a 45-kg patient (“dopa max”). If still with no response to maximal dopamine dosing, we can start another
inotrope like norepinephrine.
In the computation, we used 26.6 because 2 ampules of dopamine were used for the patient.
F. For quick reference:1. Dopamine 200 mg + 250 cc D5W preparation Drip Rate (ugtt/min or cc/hr) Body Weight in Kg 40 kg 50 kg 60 kg 70 kg 80 kg 90 kg Dose (mcg/ kg/min) 2.5 7.5 cc/hr 9.4 cc/hr 11.3 cc/hr 13.1 cc/hr 15.0 cc/hr 16.9 cc/hr 5.0 15.0 cc/hr 18.8 cc/hr 22.5 cc/hr 26.3 cc/hr 30.0 cc/hr 33.8 cc/hr 7.5 22.5 cc/hr 28.1 cc/hr 33.8 cc/hr 39.4 cc/hr 45.0 cc/hr 50.6 cc/hr 10.0 30.0 cc/hr 37.5 cc/hr 45.0 cc/hr 52.5 cc/hr 60.0 cc/hr 67.5 cc/hr 15.0 45.0 cc/hr 56.3 cc/hr 67.5 cc/hr 78.8 cc/hr 90.0 cc/hr 101.3 cc/hr 20.0 60.0 cc/hr 75.0 cc/hr 90.0 cc/hr 105.0 cc/hr 120.0 cc/hr 135.0 cc/hr 2. Dopamine 400 mg + 250 cc D5W Preparation Drip Rate (ugtt/min or cc/hr) Body Weight in Kg 40 kg 50 kg 60 kg 70 kg 80 kg 90 kg Dose (mcg/ kg/min) 2.5 3.8 cc/hr 4.7 cc/hr 5.6 cc/hr 6.6 cc/hr 7.5 cc/hr 8.4 cc/hr 5.0 7.5 cc/hr 9.4 cc/hr 11.3 cc/hr 13.1 cc/hr 15.0 cc/hr 16.9 cc/hr 7.5 11.3 cc/hr 14.1 cc/hr 16.9 cc/hr 19.7 cc/hr 22.5 cc/hr 25.3 cc/hr 10.0 15.0 cc/hr 18.8 cc/hr 22.5 cc/hr 26.3 cc/hr 30.0 cc/hr 33.8 cc/hr 15.0 22.5 cc/hr 28.1 cc/hr 33.8 cc/hr 39.4 cc/hr 45.0 cc/hr 50.6 cc/hr 20.0 30.0 cc/hr 37.5 cc/hr 45.0 cc/hr 52.5 cc/hr 60.0 cc/hr 67.5 cc/hr
31
II. DOBUTAMINE A synthetic sympathomimetic amine with positive inotropic action
Effects are due to selective stimulation of B1 adrenergic receptors A. Things to know about Dobutamine:
Preparation One ampule contains 250 mg dobutamine
Sample order Dobutamine drip: 250mg dobutamine (1 amp) + 250 cc D5W to run for ___ cc/hr
Dobutamine factor
For a formulation of 1 ampule (250 mg) in 250 cc D5W, factor used is 16.6
For a formulation of 2 ampules (500 mg) in 250 cc D5W,factor used is 33.2
NOTE: A more complicated dose is usually chosen for patients who cannot tolerate fluid overload (e.g. patients with CHF, CKD)
B. Effects of Dobutamine (dose-dependent)
Minimal positive chronotropic activity at low doses(2.5 mcg/kg/min) and moderate chronotropic activity at
higher doses
Usually given at 10 mcg/kg/min, however, its vasodilatory effect at this dose precludes its use in patients with decreased systemic vascular resistance
C. Computation of Dobutamine Drip Rate based on Desired Dose
Desired dose mcg min x Body weight (kg)
Dobutamine Drip Rate (ugtt/min) = kg_____________________
Dobutamine factor
D. Sample computation
60/M patient, 50 kg, in cardiogenic shock from decompensated heart failure with BP of 80/50 mmHg
If our desired dose is 5 mcg/kg/min and we decide to use 500 mg (2 amps) dobutamine (factor is 33.2)
5 mcg min x 50 (kg)
Dobutamine Drip Rate (ugtt/min) = kg_______________ = 7.5 = 8cc/hr = 8 ugtt/min
33.2
Sample chart order:
Start dobutamine drip: 500 mg (2 amps dobutamine) + 250 cc D5W x 8 cc/hr (dose of 5 mcg/kg/min)
Titrate by 2-3 cc/hr to maintain BP >90/60 until 15 cc/hr (~10 mcg/kg/min)
The maximum dose of 15 cc/hr was computed using the dose 10 mcg/kg/min
Note that when endorsing a case, it is better to state the dose of dobutamine that the patient is being given and not the drip rate
To compute for the specific dose, use the following formula
Dobutamine drip rate ugtt x Dobutamine factor
Dobutamine Dose mcg min = min_____________________
kg body weight (kg)
32
E. For quick reference:1. Dobutamine 250 mg + 250 cc D5W Preparation Drip Rate (ugtt/min or cc/hr) Body Weight in Kg 40 kg 50 kg 60 kg 70 kg 80 kg 90 kg Dose (mcg/ kg/min) 2.5 6.0 cc/hr 7.5 cc/hr 9.0 cc/hr 10.5 cc/hr 12.0 cc/hr 13.5 cc/hr 5.0 12.0 cc/hr 15.0 cc/hr 18.0 cc/hr 21.0 cc/hr 24.0 cc/hr 27.0 cc/hr 7.5 18.0 cc/hr 22.5 cc/hr 27.0 cc/hr 31.5 cc/hr 36.0 cc/hr 40.5 cc/hr 10.0 24.0 cc/hr 30.0 cc/hr 36.0 cc/hr 42.0 cc/hr 48.0 cc/hr 54.0 cc/hr 15.0 36.0 cc/hr 45.0 cc/hr 54.0 cc/hr 63.0 cc/hr 72.0 cc/hr 81.0 cc/hr 20.0 48.0 cc/hr 60.0 cc/hr 72.0 cc/hr 84.0 cc/hr 96.0 cc/hr 108.0 cc/hr 2. Dobutamine 500 mg + 250 cc D5W Preparation Drip Rate (ugtt/min or cc/hr) Body Weight in Kg 40 kg 50 kg 60 kg 70 kg 80 kg 90 kg Dose (mcg/ kg/min) 2.5 3.0 cc/hr 3.8 cc/hr 4.5 cc/hr 5.3 cc/hr 6.0 cc/hr 6.8 cc/hr 5.0 6.0 cc/hr 7.5 cc/hr 9.0 cc/hr 10.5 cc/hr 12.0 cc/hr 13.5 cc/hr 7.5 9.0 cc/hr 11.3 cc/hr 13.5 cc/hr 15.8 cc/hr 18.0 cc/hr 20.3 cc/hr 10.0 12.0 cc/hr 15.0 cc/hr 18.0 cc/hr 21.0 cc/hr 24.0 cc/hr 27.0 cc/hr 15.0 18.0 cc/hr 22.5 cc/hr 27.0 cc/hr 31.5 cc/hr 36.0 cc/hr 40.5 cc/hr 20.0 24.0 cc/hr 30.0 cc/hr 36.0 cc/hr 42.0 cc/hr 48.0 cc/hr 54.0 cc/hr III. NORADRENALINE/NOREPINEPHRINE
A potent vasoconstrictor and inotropic stimulant
Despite non-significant improvement in survival compared to patients given dopamine, the relatively safer profile of norepinephrine makes it a good initial vasopressor therapy
Usually started at a dose of 2 to 4 mcg/minand titrated upward as necessary
If systematic perfusion or systolic pressure cannot be maintained at >90 mmHg with a dose of 15 mcg/min, it is unlikely that a further increase in dose will be beneficial
A. METHOD 1: Long Method
Step 1: Compute for concentration
stock (mg) x 1000 mcg Concentration = 250 cc IVF 1 mg
EXAMPLE: For 4 mg norepinephrine + 250 cc D5W
4 mg x 1000 mcg Concentration = 250 cc 1 mg
Step 2: Compute for infusion rate mcg / min
Infusion rate cc = dose kg x weight (kg) x 60 min/hr hr concentration (mcg/cc)
Sample chart order:
To start norepinephrine drip as follows: 4 mg norepinephrine + 250 D5W x 38 cc/hr (0.2 mcg/kg/min or 10 mcg/min in a 50 kg patient)
33
To compute for the current dose given a certain infusion rate, use the following formula:Dose mcg / min =Infusion rate (cc/hr) x concentration (mcg/cc)
kg weight (kg) 60 min/hr
B. METHOD 2: Short-Cut Method
Computation for Norepinephrine Drip Rate based on Desired Dose
Desired dose (mcg/min)____
Norepinephrine Drip Rate (ugtt/min) = Norepinephrine factor
Norepinephrine Factor
Norepinephrine drip: 2 mg (1 amp) + 250cc D5W (factor used: 0.133)
Norepinephrine drip: 4 mg (2 amps) + 250cc D5W (factor used: 0.266)
Norepinephrine drip: 8 mg (4 amps) + 250cc D5W (factor used: 0.532)
*A more concentrated dose is usually chosen for patients who cannot tolerate fluid overload
C. For quick reference:
Drip rate (ugtt/min or cc/hr) Dose (mcg/min) Norepinephrine 2mg + 250 cc D5W Preparation Norepinephrine 4mg + 250 cc D5W Preparation 5 cc/hr 0.7 mcg/min 1.3 mcg/min 10 cc/hr 1.4 mcg/min 2.7 mcg/min 15 cc/hr 2.0 mcg/min 4.0 mcg/min 20 cc/hr 2.7 mcg/min 5.3 mcg/min 25 cc/hr 3.4 mcg/min 6.7 mcg/min 30 cc/hr 4.0 mcg/min 8.0 mcg/min 40 cc/hr 5.5 mcg/min 10.7 mcg/min 50 cc/hr 6.7 mcg/min 13.3 mcg/min 60 cc/hr 8.0 mcg/min 16.0 mcg/min 70 cc/hr 9.4 mcg/min 18.7 mcg/min 80 cc/hr 10.7 mcg/min 21.3 mcg/min 90 cc/hr 12.0 mcg/min 24.0 mcg/min 100 cc/hr 13.4 mcg/min 26.7 mcg/min
IV. UNFRACTIONED HEPARIN (UFH)
A sulfated polysaccharide usually isolated from mammalian tissues rich in mast cells
Acts as an anticoagulant by activating antithrombin (AT III) and accelerating the rate at which antithrombin inhibits clotting enzymes, particularly thrombin and factor Xa
A. Usual Formulation of Heparin Drip
Heparin drip: 10,000 units of UFH in enough pNSS to make 100 cc in a soluset (concentration of 10,000
units/100 cc or 100 units/cc) B. Usual doses for Common Indications
Myocardial infarction = “60-12” 60 units/kg IV push as loading dose then start IV drip at 12 units/kg/hr Deep vein thrombosis or
34
C. Heparin Drip Adjustment: PTT is ideally monitored every 6 hours (after a dose change) and IV drip adjusted accordingly to reach target PTT of 1.5-2.5 times the control (46-70 sec)
Raschke’s Protocol
aPTT Heparin Adjustment
<1.2x control 80 u/kg IV bolus then add 4 u/kg/hr to infusion rate 1.2 to 1.5x control 40 u/kg IV bolus then add 2 u/kg/hr to infusion rate 1.5 to 2.3x control No change
2.3 to 3.0x control Decrease infusion rate by 2 u/kg/hr
>3.0x control Discontinue for 1 hour, then decrease infusion rate by 2 u/kg/hr
Mayo Clinic Protocol
aPTT (seconds) Heparin Adjustment
<35 80 u/kg bolus then increase drip rate by 4 u/kg/hr 35-45 40 u/kg bolus then increase drip rate by 2 u/kg/hr
46-70 No change
71-90 Reduce drip rate by 2 u/kg/hr
>90 Withhold heparin for 1 hour then reduce drip rate by 3 u/kg/hr
*Order a PTT 6 hours after any dosage change and adjust accordingly until PTT is therapeutic (~46-70). When two consecutive PTTs are therapeutic, order PTT every 24 hours
V. INSULIN DRIP (Insulin regimen would depend on the indication) A. For Hyperkalemia
Insulin causes K+ shift (extracellular potassium goes intracellularly)
Glucose-Insulin (GI) solution: 50 mL of 50% Dextrose in Water (D50-50) + 10 units Regular Insulin in 2-5 minutes
Sample order: Mix 1 amp D50-50 + 10 units Humulin-R IV stat, then q6h x 4 doses B. For Hyperglycemia
1. Formulation of Insulin drip (depends on physician)
Example (drip 1) 20 units of Insulin (HR) in 100cc pNSS = concentration of 0.2unit/cc (20units/100cc)
Example (drip 2) 50 units of Insulin (HR) in 100cc pNSS = concentration of 0.5unit/cc (50units/100cc)
Example (drip 3) 100 units of Insulin (HR) in 100cc pNSS = concentration of 1unit/cc (100units/100cc) 2. Examples
Example 1: If we decide to give our patient 2 units of insulin per hour (via insulin drip):
For drip 1: give 10 cc per hour (10 cc/hr or 10 gtts/min)
For drip 2: give 4 cc per hour (4 cc/hr or 4 ugtts/min)
For drip 3: give 2 cc per hour (2 cc/hr or 2 ugtts/min)
Example 2: Start drip at 0.1 unit/kg/hr, titrate to desired blood glucose
If the patient is 50kg, start Insulin drip at 5 units/hr. if we decide to use drip #3 form the example above, the order will be: Insulin drip 100 units HR + 100 cc pNSS at a rate of 5 cc/hr (to deliver 5 units/hr)
V. NICARDIPINE
An intravenous calcium channel blocker used as a first-line agent in the management of hypertensive crises A. Things to know about Nicardipine:
Preparation One 10 mL ampule contains 10 mg Nicardipine Usual formulation
Drip: 10 mg Nicardipine + 90 mL D5W or pNSS in soluset
Concentration: 0.1 mg/mL of Nicardipine Dose Initial dose 5 mg/hr (ex. HPN emergency)
35
5mg/hr = 50 cc/hr (pr 50 ugtt/min)0.1 mg/cc
Some would give an initial IV bolus prior to starting drip Titration Titrate by 2,5 mg/hr q15 minutes until target BP is reached
Maximum dose: 15 mg/hr B. Sample chart order:
Start Nicardipine drip as follows: 10 mg Nicardipine + 90 cc D5W in a soluset x 50 cc/hr, titrate by 2.5 mg/hr every 15 minutes until target BP is reached
VI. NITROGLYCERIN (GLYCERYL TRINITRATE)
Organic nitrate which causes systemic venodilation, decreasing preload and afterload and reducing myocardial oxygen demand
Also improves coronary collateral circulation A. Things to know about Nitroglycerin
Preparation One ampule contains 10 mg nitroglycerin Usual formulation
Drip: 10 mg + 90 cc D5W in soluset
Concentration: 0.1 mg/cc of NTG 100 mcg/cc of NTG Dose
Initial dose 5 mcg/min or 300 mcg/hr 300 mcg/hr = 3 cc/hr (or 4 uggt/min) 100 mcg/cc
Titration Titrate by 5 mcg.min q5min until pain relief is achieved or BP is controlled B. Sample chart order:
Start nitroglycerin drip: 10mg nitroglycerin + 90cc D5W in a soluset x 3cc/hr, titrate by 3 cc/hr until chest pain-free
