Input/Output Devices

Input/Output Devices

Alona Sorin

Seminar in Computer Science - 236801

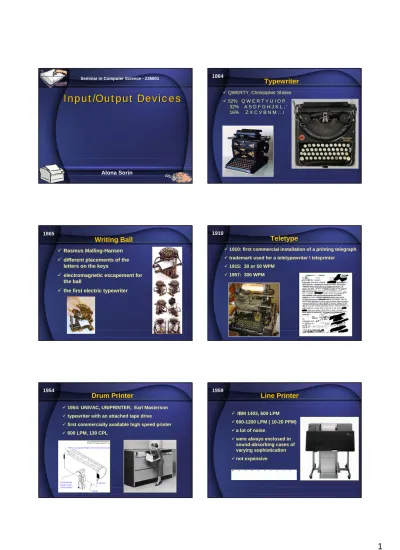

Typewriter

9 QWERTY, Christopher Sholes 9 52% Q W E R T Y U I O P 32% A S D F G H J K L ; ' 16% Z X C V B N M , . / 1864

Writing Ball

1865 9 Rasmus Malling-Hansen 9 different placements of the

letters on the keys

9 electromagnetic escapement for the ball

9 the first electric typewriter

Teletype

9 1910: first commercial installation of a printing telegraph 9 trademark used for a teletypewriter \ teleprinter

9 1915: 30 or 50 WPM 9 1957: 300 WPM 1910

Drum Printer

9 1954: UNIVAC, UNIPRINTER, Earl Masterson 9 typewriter with an attached tape drive 9 first commercially available high speed printer 9 600 LPM, 130 CPL 1954

Line Printer

1959 9 IBM 1403, 600 LPM 9 600-1200 LPM ( 10-20 PPM) 9 a lot of noise

9 were always enclosed in sound-absorbing cases of varying sophistication 9 not expensive

(2)

Plotter

9 graphics printer that draws images with ink pens

9 1959: Calcomp 560, first computer graphics output devices sold 9 1970: Hewlett Packard and Tektronix

desk-sized flatbed plotters

1959

IBM Selectric Printer

1961

9 pivoting typeball 9 different fonts 9 14.8 CPS

9 high quality printed output

Dot Matrix Printer

9 impact matrix printer

9 the oldest of the three technologies used in most of today’s printers 9 1970: 165 CPS ,$2,995

9 1977: speed of 240 CPS 9 1983: ImageWriter, $675 1970

9each character as a group of small dots

9tiny metal rod, also called a "wire" or "pin“

9one or two columns of dot hammers 9speeds range from 200 to 400 cps

Dot Matrix Printer

Few of the more common problems : 9 light or poor print quality

9 paper jams 9 missing print 9 paper out

Dot Matrix Printer

9 non-impact method

9 canister of ink instead of ribbon

9 three ink colors (cyan, magenta and yellow) 9 black ink for pure black printing

9 propelling tiny droplets of liquid ink onto paper 9 higher quality text than dot matrix printers

(3)

Technologies to control the flow of ink: 9 Thermal Ink Jet

9 Piezoelectric Ink Jet 9 Continuous Ink Jet

Inkjet Printer

1964

Continuous Ink Jet Technology

9 1867: William Thomson

9 1951: first commercial model, Siemens

9 one of the oldest ink jet technologies in use and is fairly mature

9 control a continuous inkjet droplet stream direction onto the printed media or into a gutter

1867

Drop on Demand Method

9 Siemens, PT-80 9 thermal , piezoelectric 9 ejects ink droplets

only when they are needed

9 faster and more quietly than dot matrix printers

1977

Thermal Wax Printer

9 dye-sublimation and solid ink

9 small resistive heating pins melt wax-based ink onto ordinary paper or burn dots onto special coated paper 9 typically 300dpi 9 specialist applications 1964

Electrophotography

9 Chester Carlson 9 Xerography 910-22-38 ASTORIA 9 $150,000,000 1938

Xerography

9“dry writing”

9a dry photographic or photocopying process 9used in copy machines, laser and LED printers 9officially announced in 1948

(4)

9General Electric, Eastman Kodak, IBM 9Haloid Company - 1949 9 Xerox Corporation

Xerography

1949

Laser Printer

9 1970 – 1971: Gary Starkweather - Scanned Laser Output Terminal, “SLOT”

9 1972: Butler Lampson and Ronald Rider – control system

9 EARS: Ethernet, Alto, Research character

generator, Scanned laser output terminal

9 first laser printer 9 base of the Xerox 9700 1972

9 Xerox 9700 laser printing system 9 industry's first commercial laser printer 9 120 pages per minute

9 fastest commercial laser printer 9 huge

Xerox 9700

1978 9 electrostatic charges 9 "painting" a negative of the page to be printed on the charged drum 9 where light falls, the

charge is dissipated, leaving a positive image to be printed

Laser Printer

9 high quality text and graphics on plain paper

9 fastest models can print over 200 monochrome pages per minute (12,000 pages per hour)

Laser Printer

Color Laser Printer

9 CMYK colored toner (cyan, yellow, and magenta ) 9 complexity of the

printing process 9 each of the four inks

(5)

9 drum 9 dot matrix 9 inkjet 9 impact 9 piezo electric 9 thermal wax 9 laser 9 thermal bubble 9 dye sublimation 9daisy-wheel 9 bubblejet

Printer Technologies

9 1936: August DVORAK 22% ' , . P Y F G C R L ? 70% A O E U I D H T N S -8% ; Q J K X B M W V Z 9 One-handed versions 9 AZERTY A Z E R T Y U I O P Q S D F G H J K L M % W X C V B N ? . /

Keyboard

Right -handed Left -handed S im p lified 1936

Non-Traditional Keyboards

Light Pen / Gun

9 photosensitive device 9 1952: handmade prototype of a

"light gun“, Whirlwind Project at MIT 9 1957: Lincoln TX-0 computer at the

MIT Lincoln Laboratory

1952

Graphics Tablet

9 sketching new images or tracing old ones

9 1964: RAND Tablet, ( Grafacon -Graphic Converter)

9 1984: Koala Pad, first home computer graphics tablet

1964

9 1963: Douglas Engelbart, Stanford Research Institute

9 one button on top and two wheels on the underside 9 device with its long cable tail looked something like

a mouse

Early Mouse

(6)

Mechanical Mice

9 1972: Bill English, ball mouse, part of the hardware package of the Xerox Alto computer 9 rubber or metal ball rotates in any direction 9 mechanical sensors detect the direction 1972

Optomechanical Mice

9 optical sensors detects motion of the ball 9 1980: Steve Kirsch, Mouse Systems Corporation,

infrared light-emitting diodes and a four-quadrant infrared sensor

9 1981: Richard F. Lyon, 16-pixel visible-light image sensor with integrated motion detection, sold by Xerox

1980

9 optical mouse sensor, developed by Agilent Technologies

9 a tiny camera takes thousands of pictures every second

9 most optical mice use a small, red light-emitting diode

Optical Mouse

1999

Laser Mouse

9 1998 : Sun Microsystems 9 2004: Logitech with Agilent

Technologies introduced MX 1000 9 infrared laser instead of an LED 9 wireless mouse 1998
