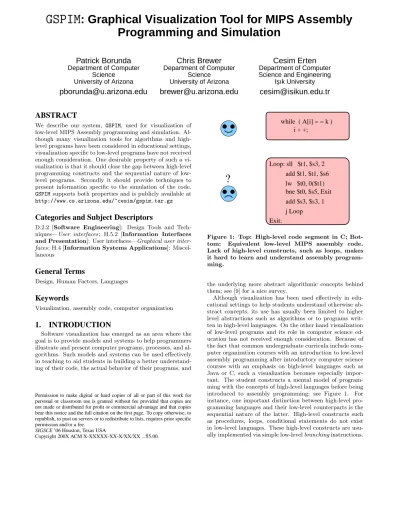

GSPIM
: Graphical Visualization Tool for MIPS Assembly Programming and SimulationPatrick Borunda
Department of Computer Science
University of Arizona
Chris Brewer
Department of Computer Science
University of Arizona
Cesim Erten
Department of Computer Science and Engineering
Is¸ık University
ABSTRACT
We describe our system, GSPIM, used for visualization of low-level MIPS Assembly programming and simulation. Al- though many visualization tools for algorithms and high- level programs have been considered in educational settings, visualization specific to low-level programs have not received enough consideration. One desirable property of such a vi- sualization is that it should close the gap between high-level programming constructs and the sequential nature of low- level programs. Secondly it should provide techniques to present information specific to the simulation of the code.
GSPIMsupports both properties and is publicly available at http://www.cs.arizona.edu/~cesim/gspim.tar.gz
Categories and Subject Descriptors
D.2.2 [Software Engineering]: Design Tools and Tech- niques—User interfaces; H.5.2 [Information Interfaces and Presentation]: User interfaces—Graphical user inter- faces; H.4 [Information Systems Applications]: Miscel- laneous
General Terms
Design, Human Factors, Languages
Keywords
Visualization, assembly code, computer organization
1. INTRODUCTION
Software visualization has emerged as an area where the goal is to provide models and systems to help programmers illustrate and present computer programs, processes, and al- gorithms. Such models and systems can be used effectively in teaching to aid students in building a better understand- ing of their code, the actual behavior of their programs, and
Permission to make digital or hard copies of all or part of this work for personal or classroom use is granted without fee provided that copies are not made or distributed for profit or commercial advantage and that copies bear this notice and the full citation on the first page. To copy otherwise, to republish, to post on servers or to redistribute to lists, requires prior specific permission and/or a fee.
SIGSCE ’06 Houston, Texas USA
Copyright 200X ACM X-XXXXX-XX-X/XX/XX ...$5.00.
?
Exit:
while ( A[i] = = k ) i + +;
add $t1, $t1, $s6 Loop: sll $t1, $s3, 2
lw $t0, 0($t1) bne $t0, $s5, Exit add $s3, $s3, 1 j Loop
Figure 1: Top: High-level code segment in C; Bot- tom: Equivalent low-level MIPS assembly code.
Lack of high-level constructs, such as loops, makes it hard to learn and understand assembly program- ming.
the underlying more abstract algorithmic concepts behind them; see [9] for a nice survey.
Although visualization has been used effectively in edu- cational settings to help students understand otherwise ab- stract concepts, its use has usually been limited to higher level abstractions such as algorithms or to programs writ- ten in high-level languages. On the other hand visualization of low-level programs and its role in computer science ed- ucation has not received enough consideration. Because of the fact that common undergraduate curricula include com- puter organization courses with an introduction to low-level assembly programming after introductory computer science courses with an emphasis on high-level languages such as Java or C, such a visualization becomes especially impor- tant. The student constructs a mental model of program- ming with the concepts of high-level languages before being introduced to assembly programming; see Figure 1. For instance, one important distinction between high-level pro- gramming languages and their low-level counterparts is the sequential nature of the latter. High-level constructs such as procedures, loops, conditional statements do not exist in low-level languages. These high-level constructs are usu- ally implemented via simple low-level branching instructions.
Because of the sequential nature of these programs the user then has to follow the branching instructions in order to make sense of the program. A visualization model for low- level languages that allows the user make the connection between high-level constructs and their low-level implemen- tations more intuitive would prove quite useful for courses designed to introduce assembly language in the general con- text of computer organization.
In this paper we describe such a model and present our system, GSPIM, designed for the purposes of closing the gaps between high-level language constructs and low-level assem- bly programming and providing an environment for visual- izing the simulation of such programs.
1.1 Related Work
Many visualization systems have been designed for algo- rithm visualization to help user understand the workings of algorithms in visual forms mostly via animations; see [5] for a general survey on the topic. The Matrix system provides a set of visual concepts for data structure visualization and algorithm animation [6]. The techniques of Kaleidoscope, Lattice, and MAP were introduced as part of the COMIND tool [10]. JAWAA is a tool for creating animations of data structures and displaying them with a web browser [8].
Software visualization models and systems have been built to support maintenance, understanding, and inspection of programs. In addition to providing an overall understanding of the code, the visualization systems can be used to aid in reverse engineering and debugging. Among the notable educational software visualization tools is Jeliot, a family of program animation systems [1]. The Object Visualizer of [3] aims to introduce object-oriented concepts through visualization.
Regarding visualization in low-level assembly program- ming, SPIMbot, an extension to SPIM, is introduced as a tool that allows virtual robots to be controlled by writing programs in MIPS [11]. It provides a framework for simu- lating robots and their interactions with a virtual world and a graphical display to visualize the robots.
1.2 Our Contributions
We provide a visualization model for low-level assembly programming and simulation that aims to close the gaps between high-level programming concepts and the sequential nature of low-level programs. We present our system, GSPIM, built with this model in mind for MIPS assembly code. It is inspired by James Larus’s widely-used MIPS simulator SPIM [7] and it can be considered a simple graphical version of SPIM. The main components of the GSPIM system can be summarized as follows:
• Understanding assembly programs: We create a graph- ical view of the assembly program which represents the call relations and control flow of the code. These rela- tions are automatically laid out using specialized lay- out algorithms that apply to user-constructed MIPS assembly programs and thus provide nice visualiza- tions.
• Simulating assembly programs: All MIPS instructions, including some common pseudoinstructions, are simu- lated. The functionality is no less than that of SPIM in the sense that all simulation outputs of SPIM are also provided. Simulation is visualized through animation
within the graphical view and the original text of the program.
• Static/dynamic aids: To avoid unnecessary complica- tion, unreachable code parts are removed from the graphical view statically. Regarding simulation of the code, color animation is introduced in graphical view to distinguish parts of code executed commonly from those executed rarely.
The GSPIM system was implemented as part of a project designed for the Honors section of the Computer Organi- zation class at the University of Arizona in Spring-05. All authors were involved in the class and were thus able to re- flect their first-hand experience with assembly programming using MIPS in designing a visualization system for low-level programming and simulation that can be of use in similar courses. The system is operational and can be downloaded at [2].
The rest of the paper is organized as follows: Next section describes the static visualization model in the form of graph- ical view and how the static attributes of assembly code is represented in GSPIM. Section 3 describes how simulation of assembly code is represented and concentrates on the dy- namics of the code. The GSPIM GUI features are described in Section 4 and finally we conclude in Section 5.
2. GRAPHICAL VIEW MODEL
The graphical view consists of statically visualizing the assembly code in the form of graphs. A nice visualization of assembly code should be able to present the high-level constructs that are not explicit in the code. One way of pre- senting such constructs is to use the compiler graphs, since they can be considered intermediate tools between high-level code and low-level assembly code. Although visualization of compiler graphs to aid in program analysis is not a new idea, the following views of such visualization in educational set- tings have not been considered:
• As a median to increase learner’s understanding of static low-level code by providing a sense of similar- ity with high-level code constructs.
• As a dynamic tool to provide the learner with an in- tuition about the simulation of low-level code.
With these goals in mind the main model we use is the simultaneous representation of call graph and control flow graphs of the assembly code, which we call graphical view, together with the original textual code itself.
Note that the graph concepts used in the graphical view are heavily used in compiler analysis. However one advan- tage of our visualization system is that the user does not have to know any details about these graphs. Simply know- ing what each graph represents is enough for visualization purposes.
2.1 MIPS Assembly and Call Graphs
A call graph is an abstract representation (in the form of a directed graph) of the procedures of a program. It represents the parent(caller)-child (callee) relationships of procedures in a program. Each node in the graph corresponds to a pro- cedure and there is a directed edge from a caller node to a callee node. Assembly programs do not have a syntactic sep- aration between a normal instruction and a procedure call.
Figure 2: GSPIM user interface. The graphical view consists of the call graph and control flow graph layouts.
The current nodes in the call graph and the control flow graph are indicated with green borders. All nodes start out gray and the popular nodes (heavily executing code segments) become red during simulation. The textual code segment corresponds to the current block in the flow graph. Contents of registers and memory cells can be viewed.
However in MIPS Assembly there are certain instructions that must be executed before running a procedure and be- fore returning from the procedure: jal ProcedureAddress must be executed before a call and jr $ra must be exe- cuted before returning. Here ProcedureAddress indicates the label of the code segment corresponding to the proce- dure and $ra is the register that holds the return address.
Through simple text processing of the code the call graph can be constructed using these instructions as indicators.
The main GUI contains a panel that shows the call graph of the assembly code; see Figure 2. Visualizing the call graph gives the user a better overall understanding of the assem- bly code. The user can differentiate the procedures within the code from other constructs such as loops and conditional statements which are represented in detail in the control flow graph view.
2.2 MIPS Assembly and Flow Graphs
A control flow graph (CFG) is an abstract representation of a procedure. Each node in the graph represents a basic block, i.e., a straight-line piece of code without any branches or branch-targets; branch targets start a block and branches end a block. There are two specially designated blocks: the entry block, through which the control enters the flow graph, and the exit block, through which all control flow leaves.
In order to construct the control flow graph representa- tion of a procedure first we identify the headers (the first
instruction of a basic block) using the following:
• Add new nodes Entry and Exit as headers.
• First instruction in the code is a header.
• The target of any branch is a header.
• The instruction following any branch is a header.
Then for each header we add successive instructions into current basic block which can be identified by its header, until we reach the next header. Once the nodes of the graph are found then the task is to find the edges:
• There is a directed edge from basic block B1 to basic block B2 if either there is a branch from last instruc- tion in B1 to header of B2 or B2 immediately follows B1 and B1does not end in an unconditional branch.
• There is an edge from Entry to each initial basic block.
• There is an edge from each final basic block to Exit.
• There is at most one directed edge from a basic block B1 to a basic block B2.
The control flow graph of the currently executing proce- dure is visualized in a panel in the main GUI; see Figure 2.
Figure 3: Back edges are identified in the flow graph and are drawn in red, pointing upward. Other edges are drawn in black and pointing downward. It sim- plifies the recognition of loops within the code.
We make some simplifying assumptions regarding the con- trol flow graphs. First of all we assume that the resulting flow graphs are reducible. A node m dominates node n if every path in the flow graph from the entry block to n con- tains m. If a flow graph is reducible then edge (n, m) is backward (a back edge) if and only if either n = m or m dominates n in the graph. Thus, the backward edges of a reducible flow graph are unique [4]. This property of re- ducible flow graphs allows us to identify back edges. Once the back edges are found our layout algorithm draws every back edge in such a way that the edge points upward and it is drawn with a distinguishable color. Every other edge is drawn downward with a dark color. This helps user rec- ognize loop constructs more easily and differentiate them from other constructs such as conditional statements; see Figure 3. Note that the assumption regarding the reducibil- ity of the flow graphs is not an artificial one. Reducible flow graphs constitute a subclass of flow graphs that include all those derived from “structured” programs, i.e., programs that do not use variants of goto statements that carry the flow into arbitrary points in the program. Assuming a pro- gramming experience gained from a structured high-level language, the user is likely to generate assembly code that gives rise to reducible flow graphs. Even if the flow graph is irreducible our system produces a layout for the flow graph, but in that case the arguments about the back edges no longer hold.
Another simplifying assumption is that every node in the flow graph has outdegree at most two. This is actually a property of the flow graphs of MIPS Assembly code as the branches in MIPS are naturally two-way branches. This property simplifies the layout process of the flow graph and enhances better visualization.
Although we cover the construction of the control flow graphs in depth here, the user does not have to know all these details. The flow graphs resulting from MIPS As- sembly code are usually simple. Figure 4 shows the usual structure of if then else statement and the while loop in MIPS. Once the user gets acquainted with visualization of such constructs in the graphical view, it is fairly straight- forward to make sense of a piece of code segment written in assembly. For example the code segment for the binary pro- cedure in Figure 2 consists of a sequence of if then else constructs recursively embedded within the same construct.
(a) (b)
Figure 4: a) The structure of if then else state- ment in MIPS. b) The structure of while statement in MIPS.
3. SIMULATION
Once the static graphical view is constructed by GSPIM the user can then simulate the assembly code and visualize the simulation output and statistics.
3.1 Simulation Output
Simulation output in the form of register data is shown as a separate panel in the GUI; see Figure 2. While the simulation is taking place the values shown in the register data change accordingly.
Aside from the code segment corresponding to a basic block, MIPS assembly programs usually have a data section which corresponds to the space in memory that is allocated for the program. The user can view the data section of the code by clicking on the Show Data button.
In case of user interactive assembly programs a separate window pops up and asks user for input if necessary. The user can also view the output of the program, normally di- rected to the console, by clicking on the Show Output button.
3.2 Simulation Statistics and Animation
The current node in the call graph which is the currently executing procedure, and the current node in the control flow graph which is the currently executing block within the current procedure are highlighted during the simulation.
The user has the option of simulating the code up to com- pletion or choosing the stepwise simulation by specifying the number of instructions at each simulation step. In either
case the currently executing instruction is highlighted. If the instruction writes into a register that register value is also highlighted. These effects help user follow simulation and its output more easily. At any point the user can stop the simulation and examine the registers, the code segments, or the graphs of interest in more detail.
In order to distinguish between parts of the code execut- ing commonly from the ones executing rarely we implement a color animation in the graphical view. All nodes in the graphical view start out with light gray in color. As the simulation proceeds we keep a record of the number of times the code segments corresponding to each node is executed.
A node’s color becomes more red as the simulation goes through that node and it reaches its darkest tone possible (determined by the simulation statistics) when the simula- tion ends. For instance in Figure 2 the node binary is more red than the node main in the call graph which indicates the procedure binary has executed more than the procedure main. Similarly in the control flow graph the only nodes that are pink are the leftmost branch nodes, which indicates that those blocks are the only ones executed so far within the procedure binary.
4. OTHERGSPIMGUI FEATURES
The GSPIM GUI allows the user to download a MIPS As- sembly program. Within the graphical view the user is given the capability to zoom in/out the parts of the graph of in- terest. Once the user clicks on the Enable Zoom button then the parts of the graph under the mouse is enlarged.
The system provides an automatic layout of the graphs under consideration. The edges are drawn as orthogonal segments and the layout algorithm places the nodes in layers in such a way that the number of crossings between edges is reduced via known heuristics which we do not discuss here. Some of these heuristics are enhanced by the special assumptions regarding the flow graphs arising from MIPS Assembly code. The user also has the option of changing the layout in case the provided automatic layout is not desirable.
Clicking on the update button brings the layout back to the original automatic layout computed by the system.
5. CONCLUSIONS
We presented the GSPIM system, used for visualization of low-level MIPS Assembly programming and simulation. Our system is designed for the purpose of closing the gap between high-level programming constructs and the sequential na- ture of low-level programs by providing a visualization of MIPS Assembly code in the form of graphs. Moreover our system provides tools that aim to enhance the user’s under- standing of the simulation of the code. Although the current system is designed to aid the low-level assembly language learner, we believe it can also be used to aid the study of compiler graphs and can enhance compiler analysis.
Although we followed a hands-on approach while design- ing the system as the authors were involved in a class that in- cluded learning how to code in low-level assembly language, we have not yet used our system exclusively in such a class.
We plan to test our system and its usability in the future.
We also plan to investigate on the possibility of providing the capability to create the call and control flow graphs so that the user can view the resulting MIPS Assembly code without creating a text-based code. We would like to ex-
periment whether such an idea would enhance the user’s learning experience of low-level assembly code without being concerned with the syntactic details of a specific assembly language.
6. ACKNOWLEDGMENTS
We would like to thank Raphael Bressel and Andreea Danielescu for their help in the implementation. We would also like to thank Peter Eades for helpful discussions regard- ing the use of reducible flow graphs as a restricted class of flow graphs suitable for user-created low-level code.
7. ADDITIONAL AUTHORS
Additional authors: Nolan King, Zach Nation, and Maxim Shokhriev.
8. REFERENCES
[1] M. Ben-Ari, N. Myller, E. Sutinen, and J. Tarhio.
Perspectives on program animation with jeliot. In Software Visualization: International Seminar, LNCS 2269, pages 31–45, 2002.
[2] P. Borunda, R. Bressel, C. Brewer, A. Danielescu, C. Erten, N. King, Z. Nation, and M. Shokriev.
Gspim: Graphical visualization tool for assembly programming and simulation. In
http://www.cs.arizona.edu/˜cesim/gspim.tar.gz.
[3] H. L. Dershem and J. Vanderhyde. Java class visualization for teaching object-oriented concepts.
ACM SIGCSE Bulletin, 30(1):53–57, 1998.
[4] M. S. Hecht and J. D. Ullman. Characterizations of reducible flow graphs. Journal of the ACM (JACM), 21(3):367–375, 1974.
[5] C. D. Hundhausen, S. A. Douglas, and J. T. Stasko. A meta-study of algorithm visualization effectiveness.
Journal of Visual Languages and Computing, 13(3):259–290, June 2002.
[6] A. Korhonen and L. Malmi. Matrix-concept animation and algorithm simulation system. In Proceedings of the Working Conference on Advanced Visual Interfaces, pages 109–114. ACM, May 2002.
[7] J. Larus. Spim: A mips r2000/r3000 simulator. In http://www.cs.wisc.edu/ larus/spim.html.
[8] W. Pierson and S. Rodger. Web-based animation of data structures using jawaa. In Proceedings of the twenty-ninth SIGCSE technical symposium on Computer science education, pages 267–271. ACM, 1998.
[9] B. A. Price, R. M. Baecker, and I. S. Small. A principled taxonomy of software visualization. Journal of Visual Languages and Computing, 4(2):211–266, 1993.
[10] P. Pu and D. Lalanne. Interactive problem solving via algorithm visualization. In Proceedings of the IEEE Symposium on Information Visualization, pages 145–154, October 2000.
[11] C. Zilles. Spimbot: an engaging, problem-based approach to teaching assembly language programming.
ACM SIGCSE Bulletin, 37(1):106–110, 2005.
